Samsung GT-S5750E User manual

GSM TELEPHONE
GT-S5750E/S5753E Common
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 10. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA 2100 WCDMA900
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~98
88DL:10562
~10838
UL:2712~28
63,DL:2937
~3088
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~-
50dBm
24dBm~-
50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
lBada OS
lHSDPA 3.6 900(option)/2100MHz
lEDGE Quad Band (D/L only)
l3.2’’ WQVGA, TFT 262K
l3M FF Camera +Video Rec.
lWi-Fi /BT v3.0 +EDR /USB v2.0
lA-GPS
lFM Radio with RDS +Rec.
lTouchWiz 3.0 UI /Dolfin Browser /Social Hub /DNSe
l80MB internal memory /microSD (up to 16G)
l1200mAh standard Battery

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program(Flash loader 7.2.4 SEC 2.4 Lite And Slave 0.4)
•GT-S5750E mobilePhone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Binary files

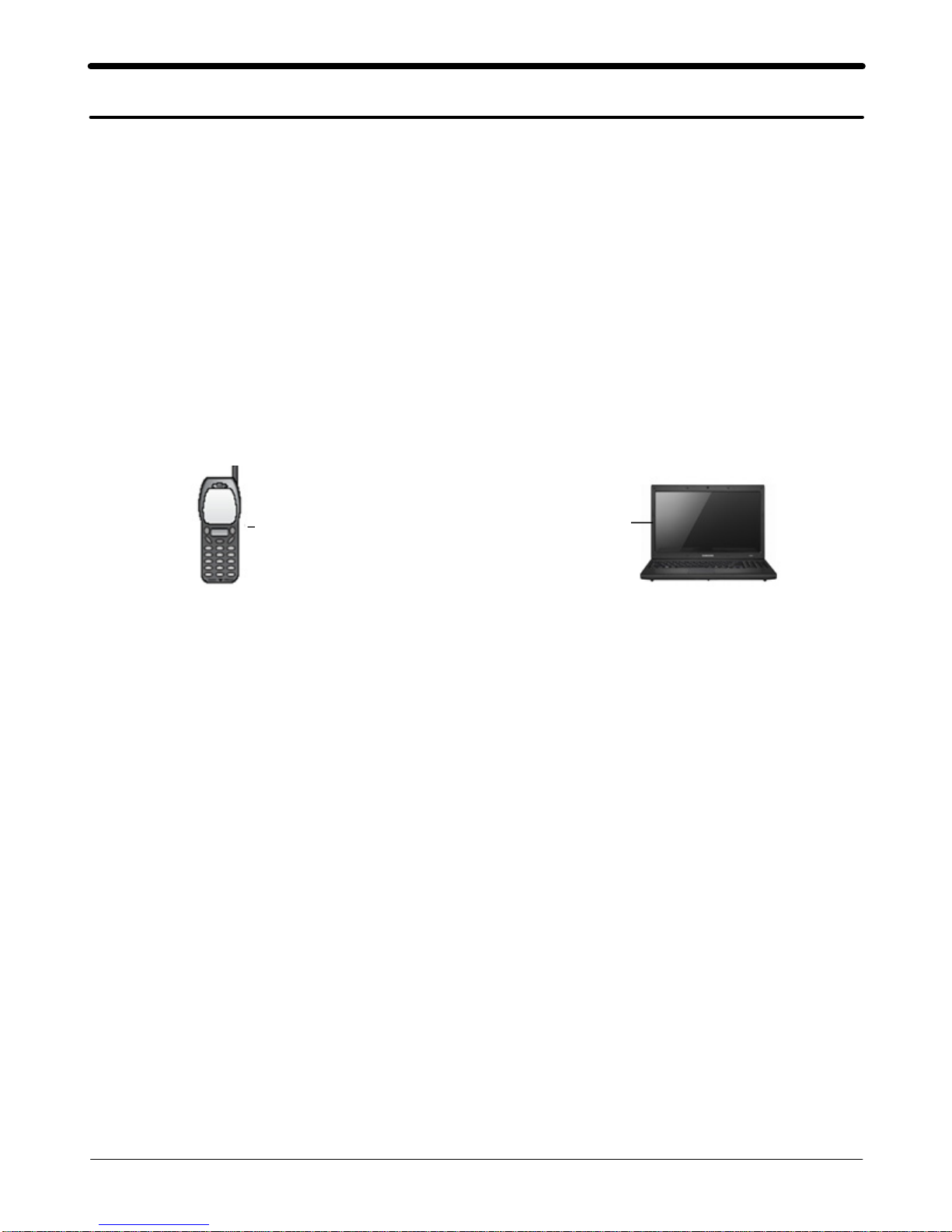

（Settings
Connect to the computer by
USB cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program

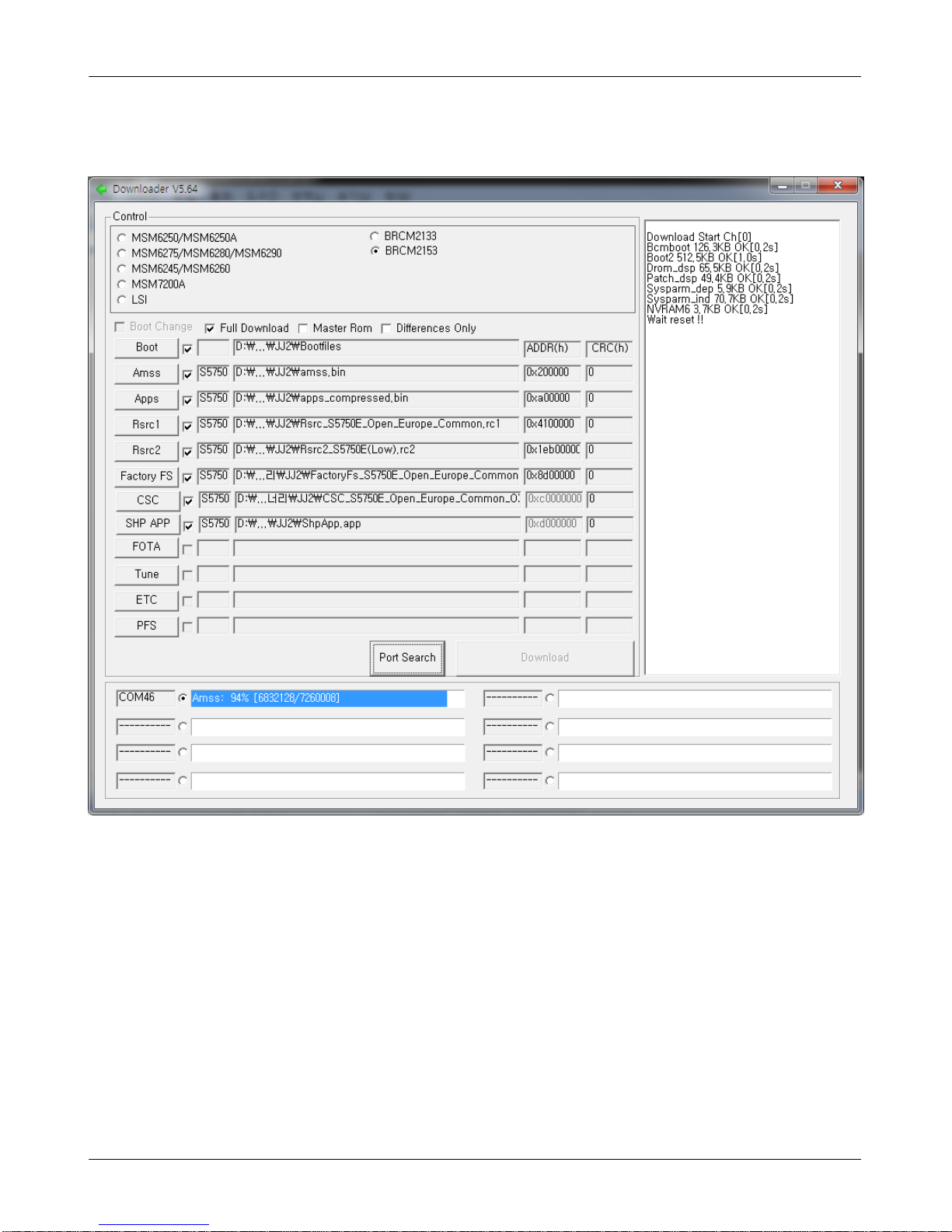

｝1. Load the binary download program by executing the "Downloader V5.64"

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2. Select the "BRCM2153".as Control.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3. Select the Full Download.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
4. Load the file of Boot, Amss, Apps, Rsrc 1. Rsrc2, Factory FS, CSC, SHP APP from
the folder that you saved the binary files.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization
5. Click the Port Search button when the download cable is connected to PC.
cf. You have to set the phone as adownload mode by pressing Volume UP +
Camera +POWER key simultaneously before connecting to PC .

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization
6. Then the down loader can search the port.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-8
This Document can not be used without Samsung's authorization
7. Click the Download button when the Port searched.
It will start to download.
8. When downloading is finished successfully, there is a"
All files complete"message.

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QKP01
QSP01
QCA01
QME03
QFR01
QLC01
QLB01
QAR01
QJK01
QMP01
QRE01
QCR101
QBC00
QCK02
QCK01
QME01
QVO01
QRF06
QMO01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001499
QCR101 SCREW-MACHINE 6001-002005
QJK01 KEY FPCB-EARJACK ASSY(GT_S5250) GH59-09640A
QME03 TOUCH/PANEL-GT_S5250 GH59-09672A
QSP01 MODULE-SPK+INT(GT-S5750E) GH59-10394A
QMP01 A/S ASSY-PBA MAIN(COMM) S5750E,NEE,SVC GH82-05313A
QCA01 ASSY CAMERA-MODULE,3M(GT_S5250) GH96-04935A
QLC01 ASSY LCD-3.2",WQVGA(GT-S5750E) GH96-04963A
QFR01 ASSY CASE-FRONT GH98-17542A
QBC00 ASSY COVER-BATT GH98-17544A
QKP01 ASSY KEYPAD-MAIN GH98-17546A
QLB01 ASSY BRACKET-LCD 3G GH98-18402A
QME01 KEY FPCB-MAIN KEY PBA(GT_S5250) GH59-09658A
QRE01 ASSY CASE-REAR GH98-17543A
QMO01 MOTOR DC-GT-S5250 GH31-00503A
QRF06 PMO COVER-USB GH72-60559A
QCK01 ASSY KEY-CAM GH98-17855A
QVO01 ASSY KEY-VOL GH98-17856A
QCK02 ASSY KEY-POWER GH98-17857A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5-1
This Document can not be used without Samsung's authorization
5. MAIN Electrical Parts List
5-1. Main
SEC CODE DESIGN LOC DESCRIPTION
0403-001688 ZD603 DIODE-ZENER
0404-001172 D300,D500 DIODE-SCHOTTKY
0406-001293 ZD400,ZD401,ZD402 DIODE-TVS
0406-001293 ZD403,ZD404,ZD405 DIODE-TVS
0406-001293 ZD406,ZD500,ZD501 DIODE-TVS
0406-001293 ZD502,ZD503,ZD601 DIODE-TVS
0406-001293 ZD604 DIODE-TVS
0407-001002 D600 DIODE-ARRAY
0801-002970 U602 IC
1001-001585 U601 IC
1001-001607 U103 IC
1001-001655 U401 IC
1108-000379 UME200 MEMORY
1201-002967 PAM102 IC
1201-003088 PAM101 IC
1201-003136 PAM100 IC
1203-006158 U301 IC
1203-006331 U500 IC
1205-003868 U102 IC
1205-004099 U105 IC
1205-004101 U104 IC
1205-004105 UCP200 IC
1209-001922 U402 IC
1404-001221 VR100 THERMISTOR
2007-000138 R406,R503,R606 R-CHIP
2007-000140 R402 R-CHIP
2007-000141 R420,R421 R-CHIP
2007-000143 R500,R600,R601 R-CHIP
2007-000148 R118 R-CHIP
2007-000156 R604 R-CHIP
2007-000162 R114,R115,R117,R132 R-CHIP
2007-000162 R222,R315,R501,R605 R-CHIP
2007-000170 R204,R307 R-CHIP
2007-000172 R502 R-CHIP
2007-001288 R302,R303 R-CHIP
2007-001323 R403 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC DESCRIPTION
2007-003014 R221 R-CHIP
2007-007092 R400 R-CHIP
2007-007132 R110,R131 R-CHIP
2007-007489 R116 R-CHIP
2007-007981 R113 R-CHIP
2007-008213 R217 R-CHIP
2007-008401 R218 R-CHIP
2007-008419 R103,R105,R106,R107 R-CHIP
2007-008419 R210,R213 R-CHIP
2007-008806 R127,R128,R129,R130 R-CHIP
2007-008809 R201,R202,R211 R-CHIP
2203-000233 C1035,C108,C193,C231 C-CERAMIC,CHIP
2203-000254 C1030,C1031,C1032 C-CERAMIC,CHIP
2203-000254 C163,C194 C-CERAMIC,CHIP
2203-000278 C120,C121,C122,C145 C-CERAMIC,CHIP
2203-000278 C148,C151,C155,C160 C-CERAMIC,CHIP
2203-000278 C167,C173,C183 C-CERAMIC,CHIP
2203-000386 C111 C-CERAMIC,CHIP
2203-000438 C113,C401,C402,C417 C-CERAMIC,CHIP
2203-000550 C305,C308 C-CERAMIC,CHIP
2203-000627 C154 C-CERAMIC,CHIP
2203-000696 C139 C-CERAMIC,CHIP
2203-000812 C1001,C1002,C1003 C-CERAMIC,CHIP
2203-000812 C1004,C197 C-CERAMIC,CHIP
2203-000854 C400,C404 C-CERAMIC,CHIP
2203-000995 C613 C-CERAMIC,CHIP
2203-001101 C415,C416 C-CERAMIC,CHIP
2203-001124 C1023 C-CERAMIC,CHIP
2203-001153 C1037 C-CERAMIC,CHIP
2203-001385 C1017,C144 C-CERAMIC,CHIP
2203-002487 C603 C-CERAMIC,CHIP
2203-002709 C1033,C128,C150,C152 C-CERAMIC,CHIP
2203-002709 C156,C161,C164,C232 C-CERAMIC,CHIP
2203-002709 C414 C-CERAMIC,CHIP
2203-005234 C106,C140,C147 C-CERAMIC,CHIP
2203-005450 C1010,C1011,C190 C-CERAMIC,CHIP
2203-005552 C132,C134 C-CERAMIC,CHIP
