Samsung SCH-210 User manual

CDMA PORTABLE
CELLULAR TELEPHONE
SCH-210
CONTENTS
1. General Introduction
2. Specification
3. Installation
4. NAM Programming
5. Product Support Tools
6. Circuit Description
7. Troubleshooting
8. Exploded Views and Parts List
9. PCB Diagrams
10. Electrical Parts List
11. Block & Circuit Diagrams
CDMAPORTABLECELLULARTELEPHONE
SERVICE
Manual

Samsung Electronics Co.,Ltd.
GH68-60756A

Samsung Electronics - Contents may change without notice. 1-1
1. General Introduction
The SCH-210 cellular phone functions as both analog cellular phone working in AMPS (Advanced Mobile
Phone Service) mode and digital cellular phone working in CDMA (Code Division Multiple Access) mode.
CDMA type digital mode applies DSSS (Direct Sequential Spread spectrum) mode which first came to be
used in the military.
The DSSS reduces channel cross talk and allow to use one frequency channel by multiple users in the same
specific area, resulting in increase of channel capacity to about ten times compared to that of analog mode
currently used.
Soft/Softer Handoff, Hard Handoff, and Dynamic RF Power Control technologies are combined into this
phone to reduce the call drop while usage.
CDMA digital cellular network consists of MSO (Mobile Switching Office), BSC (Base Station Controller),
BTS (Base Station Transmission System), and MS (Mobile Station). MS meets the specifications of the below:
IS-95A : Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum
Cellular System
IS-96A : Speech Service Option 1 Standard for Dual-Mode Wideband Spread Spectrum Cellular Systems
IS-98A : Standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile Station
IS-126 : Mobile Station Loopback Service Options Standard
SCH-210 is composed of main handset, rapid charger, cradle, two batteries (1300 mAh, 850 mAh), hands-
free kit, and travel charger. Hands-Free Kit is designed to be operated in half-duplex mode taking turn-
around delay between the phone and the system into account.

1-2 Samsung Electronics - Contents may change without notice.
General Introduction

Samsung Electronics - Contents may change without notice. 2-1
2. Specification
2-1 General
Frequency Range Digital Mode Analog Mode
Transmitter : 824.64 ~ 848.37 MHz 824.04 ~ 848.97 MHz
Receiver : 869.64 ~ 893.37 MHz 869.04 ~ 893.97 MHz
Channel Spacing : 1.23 MHz 30 kHz
Number of Channels : 20 FA 832 CHs
Duplex Spacing : 45 MHz
Frequency Stability : 2.5 ppm ( 30 ~
£´60 -22 ~ 140 )
Operating Temperature : 20 ~ £´50 ( 4 ~ 122 )
Operating Voltage
HHP : 7.2V DC ( 10 )
Hands-free : 13.7V DC ( 10 )
Size and Weight
including standard battery : 130 51 27.5 mm, 205 g (5.12 2 0.94 inch, 7.2 oz)
including extended-life battery : 130 51 37 mm, 207 g (5.12 2 1.46 inch, 7.4 oz)
Operating Time
Digital mode Standby Time : about 50 ~ 55 hours (with standard battery)
: about 85 ~ 90 hours (with extended-life battery)
Talk Time : about 150 min (with standard battery)
: about 250 min (with extended-life battery)
Analog Standby Time : about 10 ~ 12 hours (with standard battery)
: about 16 ~ 18 hours (with extended-life battery)
Talk Time : about 100 min (with standard battery)
: about 170 min (with extended-life battery)
2-2 Analog Mode
TRANSMITTER
RF output power : 0.6 W ( 2/ 4 dB)
Carrier ON/OFF Conditions
"ON" Condition : within 3 dB of specification output (in 2mS)
"OFF" Condition : below 60 dBm (in 2mS)
Compressor
Compression Rate : 2:1
Attack Time : 3 mS
Recovery Time : 13.5 mS
Reference Input : Input level for producing a nominal 2.9 kHz peak frequency
deviation of transmitted carrier

Specification
2-2 Samsung Electronics - Contents may change without notice.
Preamphasis : 6 dB/OCT within 0.3 ~ 3 kHz
Maximum Frequency Deviation
F3 of G3 : 12 kHz ( 10 )
Supervisory Audio Tone : 2 kHz ( 10 )
Signaling Tone : 8 kHz ( 10 )
Wideband Data : 8 kHz ( 10 )
Post Deviation Limiter Filter
3.0 kHz ~ 5.9 kHz : above 40LOG (F/3000) dB
5.9 kHz ~ 6.1 kHz : above 35 dB
6.1 kHz ~ 15 kHz : above 40LOG (F/3000) dB
Over 15 kHz : above 28 dB
Spectrum Noise Suppression
For All Modulation
f 20 kHz ~ f 45 kHz : above 26 dB
For Modulation by Voice and SAT
f 45 kHz : above 63 10LOG (Py) dB
For Modulation by WBD (without SAT) and ST (with SAT)
f 45 kHz ~ f 60 kHz : above 45 dB
f 60 kHz ~ f 90 kHz : above 65 dB
f 90 kHz ~ 2f : above 63 10LOG (Py) dB
(where f = carrier frequency
Py= mean output power in watts)
Harmonic and Conducted Spurious Emissions : above 43 10LOG (Py) dB
RECEIVER
DE-Emphasis : 6 dB/OCT within 0.3 ~ 3 kHz
Expander
Expansion Rate : 1:2
Attack Time : within 3 mS
Recovery Time : within 13.5 mS
Reference Input : Output level to a 1000 Hz tone from a carrier within 2.9
kHz peak frequency deviation
Sensitivity : 12 dB SINAD/ 116 dBm
Intermodulation Spurious Response Attenuation : above 65 dB
RSSI Range : above 60 dB
Protection Against Spurious Response Interference : above 60 dB
In Band Conducted Spurious Emissions
Transmit Band : below 60 dBm
Receive Band : below 80 dBm
Out of Band Conducted Spurious Emissions : below 47 dBm

Specification
Samsung Electronics - Contents may change without notice. 2-3
2-3 Digital Mode
Waveform Quality : above 0.944
Time Reference : within 1uS
RX Sensitivity : 104 dBm, FER = within 0.5%
Dynamic Range : 104 dBm ~ 25 dBm, FER = within 0.5%
TX Output Power : Maximum 320 mW (25dBm)
TX Frequency Deviation : within 300 Hz
Occupied Band Width : 1.32 MHz
TX Conducted Spurious Emissions : 900 kHz below 42 dBc / 30 kHz
: 1.98 MHz below 54 dBc / 30 kHz
Minimum TX Power Control : below 50 dBm
Open Loop Power Control : 25 dBm 57.0 dBm ~ 38.5 dBm
65 dBm 17.5 dBm ~
£´1.5 dBm
104 dBm £´18.0 dBm ~ £´30.0 dBm
Standby Output Power : below 61 dBm
Closed Loop TX Power Control Range : Test 1 beyond 24 dB
Test 2 0 mS ~ 2.5 mS
Test 3 beyond 24 dB
Test 4 beyond 24 dB
Test 5 beyond 24 dB
Maximum Allowable EIRP
45 dBm
41 dBm
41 ~ 32 dBm
32 dBm
32 ~ 26 dBm
21 dBm
Frequency Range
25 ~ 70 MHz
70 ~ 130 MHz
130 ~ 174 MHz
174 ~ 260 MHz
260 ~ 470 MHz
470 ~ 1 GHz
Radiated Spurious Emissions

2-4 Samsung Electronics - Contents may change without notice.
Specification
MSC Receiver Frequency
FA NO. CH. NO. CENTER FREQUENCY FA NO. CH. NO. CENTER FREQUENCY
1 1011 869.640MHz 11 404 882.120MHz
2 29 870.870MHz 12 445 883.350MHz
3 70 872.100MHz 13 486 884.580MHz
4 111 873.330MHz 14 527 885.810MHz
5 152 874.560MHz 15 568 887.040MHz
6 193 875.790MHz 16 609 888.270MHz
7 234 877.020MHz 17 650 889.270MHz
8 275 878.250MHz 18 697 890.910MHz
9 316 879.480MHz 19 738 892.140MHz
10 363 880.890MHz 20 779 893.370MHz
MSC Transmitter Frequency
FA NO. CH. NO. CENTER FREQUENCY FA NO. CH. NO. CENTER FREQUENCY
1 1011 824.640MHz 11 404 837.120MHz
2 29 825.870MHz 12 445 838.350MHz
3 70 827.100MHz 13 486 839.580MHz
4 111 828.330MHz 14 527 840.810MHz
5 152 829.560MHz 15 568 842.040MHz
6 193 830.790MHz 16 609 843.270MHz
7 234 832.020MHz 17 650 844.270MHz
8 275 833.250MHz 18 697 845.910MHz
9 316 834.480MHz 19 738 847.140MHz
10 363 835.890MHz 20 779 848.370MHz

Specification
Samsung Electronics - Contents may change without notice. 2-5

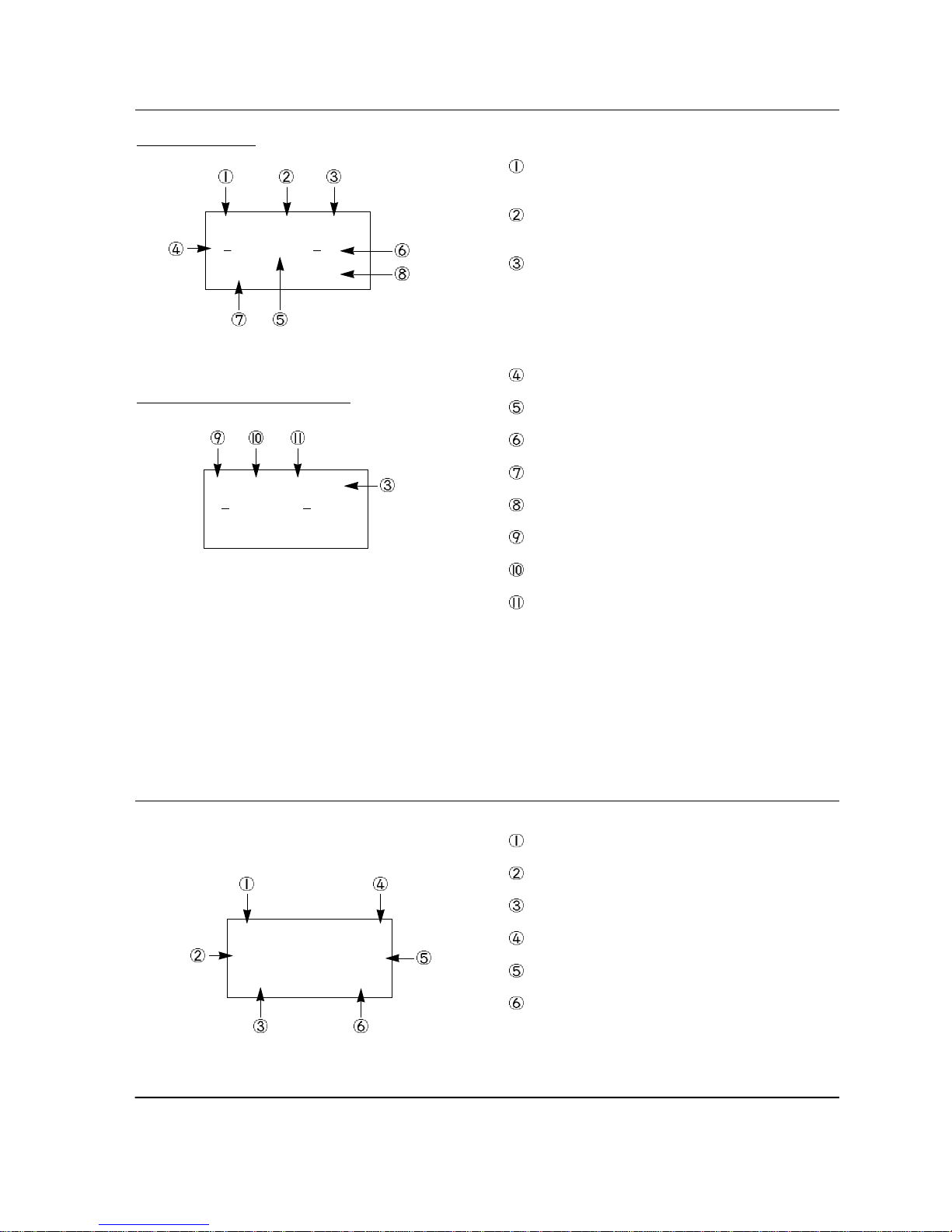

IN IDLE MODE
IN CONVERSATION MODE
Sxxxxx : SID (System ldentification) toggle
Nxxxxx : NID (Network Identification) toggle
Slx : Slot cycle index (lowest between the system
and the phone will be used)
Handset Status : 0 - Acquisition
1 - Synchronization
2 - Paging (Idle)
3 - Traffic Initialization
4 - Traffic Mode
5 - Exit
T-xx : Tx adjust, Value ranges from +63 ~-63dB
Dxxx or Rxxx : sector power in dBm
-xx : e c /I o
Pxxx : PN offset or Pilot #
CHxxxx : channel number
TV : Tx vocoder rate (8 is full rate, 1 is 1/8th rate)
RV : Rx vocoder rate (8 is full rate, 1 is 1/8th rate)
xx : Walsh code used in traffic channel
TVx RVx xx x
T xx Rxxx xx
Pxxx CHxxxx
2-4 CDMA Debug Display Information (menu 8)
SIDxxxxx : FM Home System ID
PWRx : Power Level 0~7
SATx : Supervisory Audio Tone code (0~3)
x (Using Frequency Band) : A Band or B Band
RSSIxxx : RSSI value
CHxxx : Using Channel
2-5 FM Debug Display Information (menu 8)
SIDxxxxx x
PWRx RSSIxxx
SATx CHxxxx
SIDxxxxx Slx x
T xx Rxxx xx
Pxxx CHxxxx

Specification
2-6 Samsung Electronics - Contents may change without notice.

Samsung Electronics - Contents may change without notice. 3-1
3. Installation

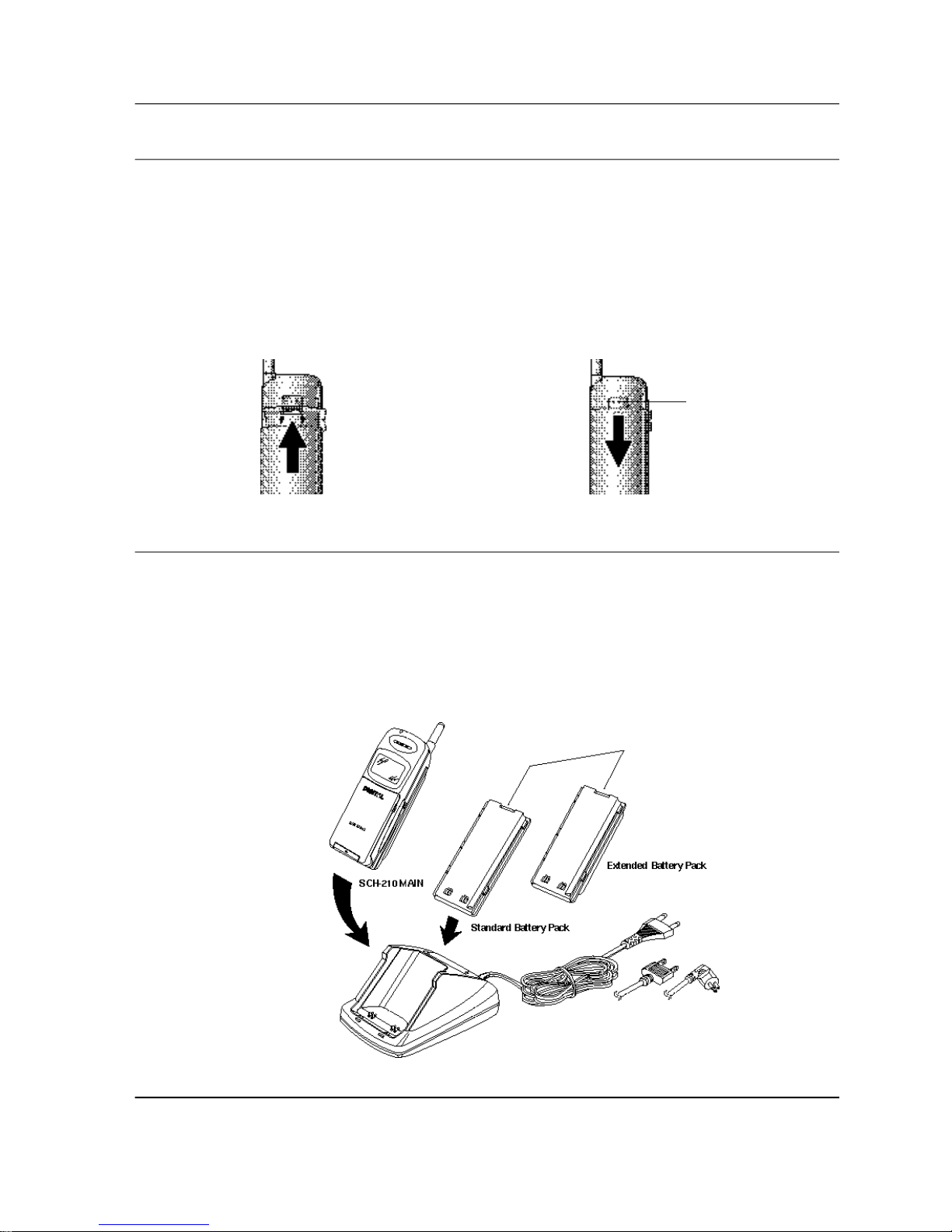

3-1 Installing a Battery Pack
1. To attach the battery pack after charging, align
it with the phone about 1cm (1/2") away from
its place so that the two arrows on the phone
are seen, the battery charge contacts pointing
downward.
2. Slide the battery pack upwards until it clicks
firmly into position. The phone is now ready
to be turned on.
3. To remove the battery pack, release it by
pressing the button on the rear of the phone.
4. Slide the battery pack downward about 1cm
(1/2") and lift it away from the phone.
3-2 For Desk Top Use
1. Choose a proper location to install the charger
for desk top use.
2. Plug the power cord of the charger into an
appropriate wall socket. When the power is
connected correctly, the lamps turn on briefly.
3. To charge the battery pack, insert the battery
pack into the rear slot of the charger. The lamp
marked BAT on the front panel of the charger
lights up red.
4. If you do not wish to use the phone while
charging the battery, insert the phone with the
battery pack attached into the front slot of the
charger. The lamp marked PHONE on the
front panel of the charger lights up red.
Press this button to release
the battery pack
Figure 3-1 Charging the Phone and Battery

Installation
3-2 Samsung Electronics - Contents may change without notice.
Item Model Name Service Part#
Desk Top Rapid Charger DTC58 GH44-40034A
Standard Battery Pack BTL850SB GH43-10104A
Extended Battery Pack BTL1350EB GH43-10103A
3-3 For Mobile Mount
3-3-1 Antenna
1. Choose a proper location to install the
antenna.
The center of the roof top provides the best
performance.
The edge of the rear trunk also provides a
good performance. However, the antenna
should be higher than the roof of the car.
In case of on-glass antenna, you should
align the antenna base with the round plate
to connect the cables correctly.
2. Mount the antenna vertically, connect the
antenna cable.
3. Tighten the antenna nut fully.
Product Charging time Stand by time (hours) Talking time (min)
(hours) Digital Analog Digital Analog
Standard Battery Pack (Li-ion: 800mAh) 2 ~ 3 50 ~ 55 10 ~ 12 150 100
Extendard Battery Pack (Li-ion: 1350mAh) 2.5 ~ 3.5 85 ~ 90 16 ~ 18 250 170
SPECIFICATIONS USING “DTC 58”

Samsung Electronics - Contents may change without notice. 3-3
Installation
3-3-2 Cradle
1. Choose a location where it is easy to reach and
does not interfere with the driver's safe
operation of the car.
2. Separate the two halves of the clamshell by
removing the two large slotted screws. See the
figure 3-2.
3. Drill holes and mount the lower half of the
clamshell by using the screws.
4. Place the cradle onto the remaining half of the
clamshell and assemble them by using the
screws.
5. Reassemble the two halves of the clamshell
together. Adjust the mounting angle and
tighten the two slotted screws.
Figure 3-2 Cradle Installation

Installation
3-4 Samsung Electronics - Contents may change without notice.
3-3-3 Hands-Free Box
1. Drill holes in a proper location for the hands-
free box, attach the mounting bracket by using
the screws. See the figure 3-3.
2. Install the hands-free box into the bracket.
3-3-4 Hands-Free Microphone
1. It is recommended to install the microphone
where it is 30-45 cm (12-18") away from the
driver. Choose the location where is least
susceptible to interference caused by external
noise sources, ie, adjacent windows, radio
speakers, etc. Normal place is the sun visor.
2. Once the microphone has been correctly
positioned, connect the microphone wire to
the MIC jack on the hands-free box.
Figure 3-3 Hands-Free Box Installation

Samsung Electronics - Contents may change without notice. 3-5
Installation
Figure 3-4 Cable Connections
3-3-5 Cables
1. Connect the cradle and the hands-free box
with the data cable. See the figure 3-4.
2. Connect the antenna cable to the RF jack of the
cradle.
3. Connect the power cable as follows:
Connect the red wire to the battery (+)
terminal, black wire to the battery (-) terminal.
Then connect the orange wire to the switched
side of the ignition switch, and then connect
the brown wire to the stereo mute wire from
your vehicle stereo.
4. Connect the other end of the power cable to
the PWR jack of the hands-free box.
Notes:
It is recommended to connect the power cable
directly to the battery to avoid power noise.
Make sure the connection, in the vehicle,
between the battery (-) terminal and vehicle
chassis is made correctly.
Make sure the fuse having a proper capacity is
used on the power cable.
Make sure the cables do not pass over any sharp
metal edge that may damage it.

Installation
3-6 Samsung Electronics - Contents may change without notice.

Samsung Electronics - Contents may change without notice. 4-1
4. NAM Programming
4-1 General Setup
LCD Display Key in Function
47 869#08#9 -selects NAM programming
1-choose 'GENERAL.'
Volume Electronic Serial Number of the phone.
Volume The version of the Common Air Interface supported by the mobile.
or Vocoder data rate.
OK
Volume Station Class Mark displays the power class (bit 0~1),
transmission (bit2), slotted (bit5), dual mode (bit6).
4-digit code Four-digit number supplied by the user which enables
OK electronic locking of the phone.
or Enables slot mode.
OK
Slot mode index.
0 - 7 Specifies the duration and frequency of times that the mobile
OK checks the paging channel. The higher the value, the less often the
mobile looks at the paging channel, and the more power is saved.
Preferred system selection for NAM(1~4).
or Up to four NAMs are allowed for the phone. This lists one of the
OK four NAMs and allows you to program both the FM and CDMA
settings.
NAM Program
1:General
2:Setup NAM1
ESN B0000000
CAI version3
VOC 13K/8K
SO_VOICE_13K
SCM 01101010
Lock Code
0000
Slot ModeYes
Slot Index 2
Pref NAM(1~4)...
Digital pref

NAM Programming
4-2 Samsung Electronics - Contents may change without notice.
4-2 Setting Up NAM1
LCD Display Key in Function
2-choose 'Setup NAM1.'
1-choose 'Phone #'.
phone number Phone number.
OK
mobile ID number Mobile ID number.
OK
2-choose 'FM.'
FM Home System ID.
ID number The Identification of the cellular system in which the mobile
OK station subscribes for service.
Cellular Service provider.
1st Paging Channel.
channel number Suggested setting is 333 for the A carrier, 334 for the B carrier:
OK ranges from 313 to 333 for A and 334 to 354 for B.
Primary analog paging channel: setting depends on whether
the service is provided by the A carrier or the B carrier.
FM Acquisition System ID.
ID number Enables you to set the phone to acquire up to six SIDs in the
OK analog mode. If you enter ‘0’ for any SID, the program
assumes that you have no more numbers to store.
Default setting is 0: ranges from 0 to 32,767: up to six SIDs.
FM Lock System ID.
ID number
Enables you to specify up to six SIDs that the phone is prohibited
OK from acquiring in analog mode. If you enter ‘0’ for any SID, the
program assumes that you have no more numbers to store. The
user may be denied service when operating within the service
areas of these systems.
Default setting is 0: ranges from 0 to 32,767: up to six SIDs.
NAM Program
1:General
2:Setup NAM1
Setup NAM1
1:Phone #
2:FM
3:CDMA
Phone #
1234567890
Mobile ID #
1234567890
Setup NAM1
1:Phone #
2:FM
3:CDMA
FM Home SID
20
FM 1st Chn
334
FM Acq SID (1~6)
20
FM LockSID (1~6)
0

Samsung Electronics - Contents may change without notice. 4-3
NAM Programming
LCD Display Key in Function
or Enables autonomous registration.
OK
or Preferred system selection.
OK
FM Access Overload Class.
or This two-digit number specifies the level of priority assigned
OK to the mobile for accessing the system.
Ranges from 0 to 15.
3-choose 'CDMA.'
number International Mobile Station Identity Mobile Country Code.
OK
number International Mobile Station Identity Mobile Network Code.
OK
or Preferred system selection.
OK
CDMA Access Overload Class.
class number This two-digit number specifies the level of priority assigned
OK to the mobile for accessing the system.
Ranges from 0 to 15.
channel number Primary CDMA channel for the A carrier.
OK Ranges from 0 to 1,023. 0 indicates no channel.
channel number Primary CDMA channel for the B carrier.
OK Ranges from 0 to 1,023. 0 indicates no channel.
channel number Secondary CDMA channel for the A carrier.
OK Suggested setting is 0: ranges from 0 to 1,023.
channel number Secondary CDMA channel for the B carrier.
OK Suggested setting is 0: ranges from 0 to 1,023.
Auto Reg Yes
FM pref...
B pref
FM ACCOLC 0
Setup NAM1
1:Phone #
2:FM
3:CDMA
IMSI MCC 000
IMSI MNC 00
CDMA pref...
B pref
CDMA ACCOLC0
Pchn Sys A
283
Pchn Sys B
384
Schn Sys A
691
Schn Sys B
777

NAM Programming
4-4 Samsung Electronics - Contents may change without notice.
LCD Display Key in Function
CDMA Acquisition System ID.
ID number Enables you to set the phone to acquire up to six SIDs in the
OK CDMA mode. If you enter ‘0’ for any SID, the program
assumes that you have no more numbers to store.
Default setting is 0: ranges from 0 to 32,767: up to six SIDs.
CDMA Lock System ID.
ID number Enable you to specify up to six SIDs that the phone will be
OK prohibited from acquiring in CDMA mode. If all six SIDs are
set to zero, no lock restrictions will be in effect and the phone
can acquire all SIDs.
Default setting is 0: ranges from 0 to 32,767 up to six SIDs.
CDMA Home System ID.
or Enables the phone to allow mobile terminated calls while in
OK the home system. Controls the types of registration allowed for
the phone.
CDMA foreign SID, current status is displayed.
or changes the status.
OK stores it.
CDMA foreign NID, current status is displayed.
or changes the system.
OK stores it.
first SID written in the list, current status is displayed.
number to change, enter new one.
OK stores it.
first NID written in the list, current status is displayed.
number to change, enter new one.
OK stores it.
CD Acq SID
(1-6) 20
CD lockSID
(1-6) 0
CDMA HomeSID
Yes
CDMA fSID
Yes
CDMA fNID
Yes
SID #1
20
NID #1
65535
