Samsung SCH U340 - Cell Phone - Verizon Wireless User manual

SCH-U340
User’s Guide
Draft3
2006.08.17

Intellectual Property
All Intellectual Property, as defined below, owned by or
which is otherwise the property of Samsung or its
respective suppliers relating to the SAMSUNG Phone,
including but not limited to, accessories, parts, or
software relating there to (the “Phone System”), is
proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions.
Intellectual Property includes, but is not limited to,
inventions (patentable or unpatentable), patents, trade
secrets, copyrights, software, computer programs, and
related documentation and other works of authorship.
You may not infringe or otherwise violate the rights
secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to) modify,
prepare derivative works of, reverse engineer,
decompile, disassemble, or otherwise attempt to create
source code from the software. No title to or ownership
in the Intellectual Property is transferred to you. All
applicable rights of the Intellectual Property shall
remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA),
Inc.
Headquarters:
1301 East Lookout Drive Suite 150 Richardson,
TX 75082
Internet Address: http://www.samsungusa.com
©2006 Samsung Telecommunications America, Inc. is
a registered trademark of Samsung Electronics
America, Inc. and its related entities.
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered TrademarSk RSA Security, Inc.

Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED ON THE WARRANTY PAGE ENCLOSED
WITH THE PRODUCT, THE PURCHASER TAKES THE
PRODUCT “AS IS”, AND SAMSUNG MAKES NO EXPRESS
OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER
WITH RESPECT TO THE PRODUCT, INCLUDING BUT
NOT LIMITED TO THE MERCHANTABILITY OF THE
PRODUCT OR ITS FITNESS FOR ANY PARTICULAR
PURPOSE OR USE; THE DESIGN, CONDITION OR
QUALITY OF THE PRODUCT; THE PERFORMANCE OF
THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT
OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION
OR CONTRACT PERTAINING THERETO. NOTHING
CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH
RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG
SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY
KIND RESULTING FROM THE PURCHASE OR USE OF
THE PRODUCT OR ARISING FROM THE BREACH OF THE
EXPRESS WARRANTY, INCLUDING INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF
ANTICIPATED PROFITS OR BENEFITS.

5
Contents
Overview of menu functions 6
Your phone 3
Keys, features, and locations
Unpack 3
Make sure you have each item
Get started 4
First steps to operating your phone
Install and charge the phone ..................................... 4
Power on or off........................................................ 5
Keys ...................................................................... 6
Menu functions 7
All menu options listed
Solve problems 13
Help and personal needs
Health and safety information 15

6
1 Media Gallery
1 Sound
2 Image
2 Recent calls
1 Missed
2 Received
3 Dialed
4 All
5 View Timers
3 Voice Commands
1 Launch
2 Key Setting
3 Voice Settings
4 Settings
1 Sounds Settings
2 Display Settings
3 Phone Settings
4 Call Settings
5 Contacts
1 New Contact
2 Contact List
3 Groups
4 Speed Dials
6 Tools
1 Calendar
2 Calculator
3 Alarm
4 World Clock
5 Notepad
7 Phone Info
1 My Number
2 Software Version
3 Icon Glossary
4 Software Update
8 Messaging
1 New Message
2 Inbox
3 Sent
4 Drafts
5 Voicemail
9 Camera
1 Take PIX
2 My PIX
Overview of menu functions
To access Menu mode, press [ OK ] in Idle mode.

1
Drive safely at all times
Do not use a hand-held phone while driving. Park
the vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using them
in an aircraft is both illegal and dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be using
equipment that could be sensitive to external radio
frequency energy. Follow any regulations or rules in
force.
Important
safety
precautions
Failure to comply with the following
precautions may be dangerous or illegal.

Important safety precautions
2
Be aware of special regulations
Meet any special regulations in force in any area and
always switch off your phone whenever it is forbidden
to use it, or when it may cause interference or danger.
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear). Avoid
unnecessary contact with the antenna when the phone
is switched on.
Emergency call
Key in the emergency number for your present
location, then press .
Keep your phone away from small children
Keep the phone and all its parts, including accessories,
out of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories and
batteries. Use of any unauthorized accessories could
damage your phone and may be dangerous.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see "Health and
safety information" on page 15.
• The phone could explode if the battery is replaced
with an incorrect type.
• Dispose of the used batteries according to the
manufacturer’s instructions.

3
Your phone
Keys, features, and locations
Special
function keys
Earpiece
Display
Power on/off/ Menu
exit key
Microphone
Left soft key
Volume keys
Dial key Alphanumeric
keys
Right soft key
Navigation keys
(Up/Down/Left/
Right)
Headset
jack
Delete key
Menu
access/
Confirm key
Voice recognition key
Camera lens
Camera key
External
display
Unpack
Make sure you have each item
You can obtain various accessories
from your local Samsung dealer.
Phone Travel Adapter
Battery User’s Guide
The items supplied with your phone
and the accessories at your Samsung
dealer may vary, depending on your
country.

4
Get started
First steps to operating your phone
Install and charge the phone
Remove the battery cover.
If the phone is already on, first turn it off by pressing
and holding .
Install the battery.
Reattach the battery cover.
Plug the travel adapter into the phone.
Plug the adapter into a standard AC wall outlet.

5
Get started
Low battery indicator
When the battery is low:
• a warning tone sounds,
• the battery low message displays, and
• the empty battery icon blinks.
If the battery level becomes too low, the phone
automatically turns off. Recharge your battery.
Power on or off
When the phone is completely charged (the
battery icon becomes still), unplug the adapter
from the power outlet.
Remove the adapter from the phone.
Power on
Do not turn on the
phone when
mobile phone use
is prohibited.
1. Open the phone.
2. Press and hold to turn on
the phone.
3. If necessary, enter the PIN and
press OK .
Power off 1. Open the phone.
2. Press and hold .

6
Get started

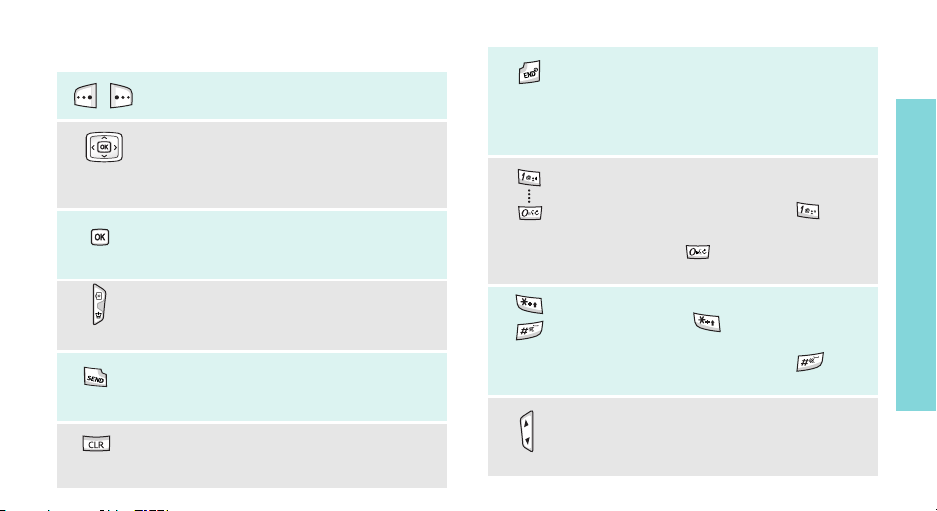

Keys
Perform the function indicated on the
bottom line of the display.
In Idle mode, access menu options
directly.
In Menu mode, scroll through the menu
options.
In Idle mode, access Menu mode.
In Menu mode, select the highlighted
menu option.
In Idle mode, press and hold to turn on
the camera.
In camera mode, take a photo.
Make or answer a call.
In Idle mode, retrieve the recent
numbers dialed, missed, or received.
Delete characters from the display. In
Menu mode, return to the previous menu
level.
Press and hold to switch the phone on
and off.
End a call.
In Menu mode, cancel input and return
the phone to Idle mode.
Enter numbers, letters, and some special
characters.
In Idle mode, press and hold to
access your voicemail.
In Idle mode, access Voice
Commands mode.
Enter special characters.
Press and hold to enter an
international call prefix.
In Idle mode, press and hold to
activate or deactivate Silent mode.
Adjust the phone volume.
In Idle mode, with the phone open,
adjust the keypad tone volume.

7
Menu functions
All menu options listed
Media Gallery
The Media Gallery menu allows you to access media
contents, such as sounds or images stored in the
phone’s memory.
To access this menu, press [ OK ] in Idle mode and
select Media Gallery .
Sounds
Use this menu to set the embedded sounds as your
ringtone, or as a ringtone for a Contacts entry. You can
also set them as alert tones for text message or
voicemail message.
Images
Use this menu to set the embedded images or photos
you have taken as a caller ID image for a Contacts
entry. You can also send the images by multimedia
message.
Recent Calls
Use this menu to view the calls you have dialed,
received, or missed, and the length of your calls.
To access this menu, press [ OK ] in Idle mode and
select Recent Calls .
Missed
The phone stores the most recent numbers you have
failed to answer. When you access this menu, a list of
the missed calls displays.

Menu functions
Recent Calls
8
Received
This menu lets you view the most recent calls you
have received if you are a subscribe to the Caller Line
Identification service. Contact your service provider
for further details about this service. When you access
this menu, a list of the incoming calls displays.
Dialed
If Caller Line Identification is available, your phone
keeps a list of the most recent outgoing calls that you
have made. Contact your service provider for the
availability.
All
Use this menu to view the most recent calls dialed,
received, or missed. When you access this menu, a list
of all calls displays.
View Timers
This item displays the time log for calls made and
received, or all calls together. You can also view the
elapsed time of your last call, the time spent on calls
while roaming, and even view how much data has
been transmitted and received through the wireless
web.
Note that the actual time invoiced by your service
provider will vary.

9
Menu functions
Voice Commands
Use this menu to perform some functions or access
specific menus by your voice command. You only need
to say the command into the microphone. You can also
change the settings for using the Voice Commands
feature.
To access this menu, press [ OK ] in Idle mode and
select Voice Commands .
Settings
The Settings menu allows you to customize the
phone settings.
To access this menu, press [ OK ] in Idle mode and
select Settings .
Sounds Settings
This menu enables you to customize various settings
for sounds.
In this menu, you can:
• adjust the master volume.
• set the ringer melodies for calls.
• set the alert tones for text, multimedia, and
voicemail messages.
• set the keypad tone.
• adjust volume for the keypad and earpiece.
• customize additional tones for the phone.
• set whether or not the phone plays the power on/
off tone.
Display Settings
This menu enables you to customize various settings
for the display and the light.
In this menu, you can:
• set a banner message to be displayed on the
phone screen in Idle mode.
• specify the length of time the backlight for the
display and keypad stay on.
• adjust the brightness of the display for varying
lighting conditions.

Menu functions
Settings
10
• change the background image for the main display
and external display.
• select a display theme to be used for the phone
screen.
• select a clock type for the main display and
external display.
• select an entering mode to be used while dialing.
Phone Settings
This menu enables you to customize various settings
for the phone’s system.
• turn off the network features.
• use the Navigation keys as a shortcut to access a
specific menu directly from Idle mode.
• select the language to be used.
• set various security options.
• select the phone network used while roaming.
Call Settings
Use this menu to customize the settings for calls.
In this menu, you can:
• set answering options and the automatic redialing
feature.
• activate or deactivate TTY mode or the one-touch
dial feature.
• encrypt the voice channel so that people cannot
eavesdrop on your conversation.
• set whether or not the phone restricts calls.
• configure data settings.
• set the length of the DTMF tone.

11
Menu functions
Contacts
You can store phone numbers in your phone.
To access this menu, press [ OK ] in Idle mode and
select Contacts .
New Contact
This menu allows you to add a new entry to your
Contacts. A name can contain up to 7 numbers in
different categories; Mobile 1,2, Home, Work, Email
1,2 and Fax.
Contact List
This menu allows you to find an entry by scrolling
through the Contact List or by entering the entry
name you want.
Groups
Use this menu to add new groups or manage the
existing groups in your Contacts. You can also send
text or multimedia messages to the selected group.
Speed Dials
Once you have stored phone numbers in Contacts, you
can set up to 500 speed-dial entries and then dial
them easily whenever you want, simply by pressing
and holding the associated number key(s) in Idle
mode.
Tools
The menu enables you to keep track of your schedule
and tasks, set alarms, or use convenient features,
such as a calculator, and notepad.
To access this menu, press [ OK ] in Idle mode and
select Tools .
When you access this menu, you can:
• view the calendar and organize your schedule.
• use the phone as a calculator for basic
mathematical equations.

Menu functions
Phone Info
12
• set an alarm so that the phone rings at a specific
time, for example, to remind you of an
appointment.
• find out what time it is in another part of the world.
• make memos of important things you need to
remember.
Phone Info
Use this menu to view the information of your phone,
such as your own number, the software version of the
phone, and the icon glossary. You can also update the
software version.
To access this menu, press [ OK ] in Idle mode and
select Phone Info .
Messaging
Use the Messaging menu to send and receive short
text messages to and from other mobile phones. In
addition, your phone supports the Enhanced
Messaging Service (EMS), which enables you to
include simple pictures, melodies, and animated
images in your messages. You can also use the voice
mail feature.
To access this menu, press [ OK ] in Idle mode and
select Messaging .
New Message
In this menu, you can create and send new text
messages.
You can also create and send multimedia messages
using various images and sounds (pix message) and
video clips (flix message).
Inbox
You can view the messages you have received in this
message box. When you access this menu, a list of
messages displays.
Sent
You can view the messages you have sent in this
message box. When you access this menu, a list of
messages displays.

13
Drafts
You can view the messages you have saved in this
message box while creating a message.
Voicemail
Use this menu to access your voice mails.
Camera
You can use the camera module embedded in your
phone to take photos and record videos.
In this menu, you can:
• take photos and record video clips.
• access and manage the photos you have taken or
videos you have recorded.
Solve problems
Help and personal needs
To save the time and expense of an unnecessary
service call, perform the simple checks in this section
before contacting a service professional.
When you switch on your phone, the
following messages may appear:
“Phone locked Enter password”
• The automatic locking function has been enabled.
You must enter the phone’s password before you
can use the phone.
“No service,” “Network failure,” or “Not
done” displays
• The network connection has been lost. You may be
in a weak signal area. Move and try again.
• You are trying to access an option for which you
have no subscription with your service provider.
Contact the service provider for further details.
You must enter the voice server number before you
can access your voice mails. Your service provider
can give the voice server number.

Solve problems
Camera
14
You have entered a number but it was not
dialed
• Be sure that you have pressed .
• Be sure that you have accessed the right cellular
network.
• Be sure that you are not in FDN mode.
Your correspondent cannot reach you
• Be sure that your phone is switched on.
( pressed for more than one second.)
• Be sure that you are accessing the correct cellular
network.
Your correspondent cannot hear you speaking
• Be sure that you have switched on the
microphone.
• Be sure that you are holding the phone close
enough to your mouth. The microphone is located
at the bottom of the phone.
The phone starts beeping and “LOW
BATTERY” flashes on the display
• Your battery is insufficiently charged. Recharge the
battery.
The audio quality of the call is poor
• Check the signal strength indicator on the display
( ). The number of bars indicates the signal
strength from strong ( ) to weak ( ).
• Try moving the phone slightly or moving closer to a
window if you are in a building.
No number is dialed when you re-call an
Address Book entry
•Usethe Contact List menu to ensure the number
has been stored correctly.
• Re-store the number, if necessary.
The battery doesn’t charge properly or the
phone sometimes turns itself off
Wipe the charging contacts both on the phone and on
the battery with a clean soft cloth.

15
If the above guidelines do not help you to
solve the problem, take note of:
• The model and serial numbers of your phone
•Yourwarrantydetails
• A clear description of the problem
Then contact your local dealer or Samsung after-sales
service.
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the
U.S. government. These FCC exposure limits are
derived from the recommendations of two expert
organizations, the National Counsel on Radiation
Protection and Measurement (NCRP) and the Institute
of Electrical and Electronics Engineers (IEEE). In both
cases, the recommendations were developed by
scientific and engineering experts drawn from
industry, government, and academia after extensive
reviews of the scientific literature related to the
biological effects of RF energy.
