Samsung SGH-B200 User manual

GSM TELEPHONE
SGH-B200
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS
efrcom

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2008. 03. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
EGSM 900
Phase 2
DCS1800
Phase 1
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45 MHz 95 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~5 dBm 30 dBm~0 dBm
Power Class 5 pcl ~19pcl 0pcl ~15pcl
Sensitivity -102 dBm -100 dBm
TDMA Mux 8 8
Cell Radius 35 Km 2 Km

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Speed dial
-Phonebook memory status
-SDN(Service Dialling Numbers)
-Network services
-Read SMS or MMS messages
-Send SMS or MMS messages
-Voicemail
-Broadcast message
-MMS profile
-SOS messages
-Web browser
-Menu shortcuts
-FM radio

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
RF Test Cable (GH39-00397A)
Test Cable
(GH39-00892A/GH39-00895A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•Three binary files for downloading B200.
–B200XXYY.s3 :Main source code binary.
4-2. Pre-requsite for Downloading
•Downloader Program(OptiFlash.exe)
•B200 Mobile Phone
•Data Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download program by executing the “OptiFlash.exe”
2. Select the “Options”->“ Settings”->“ Generic”->“ Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

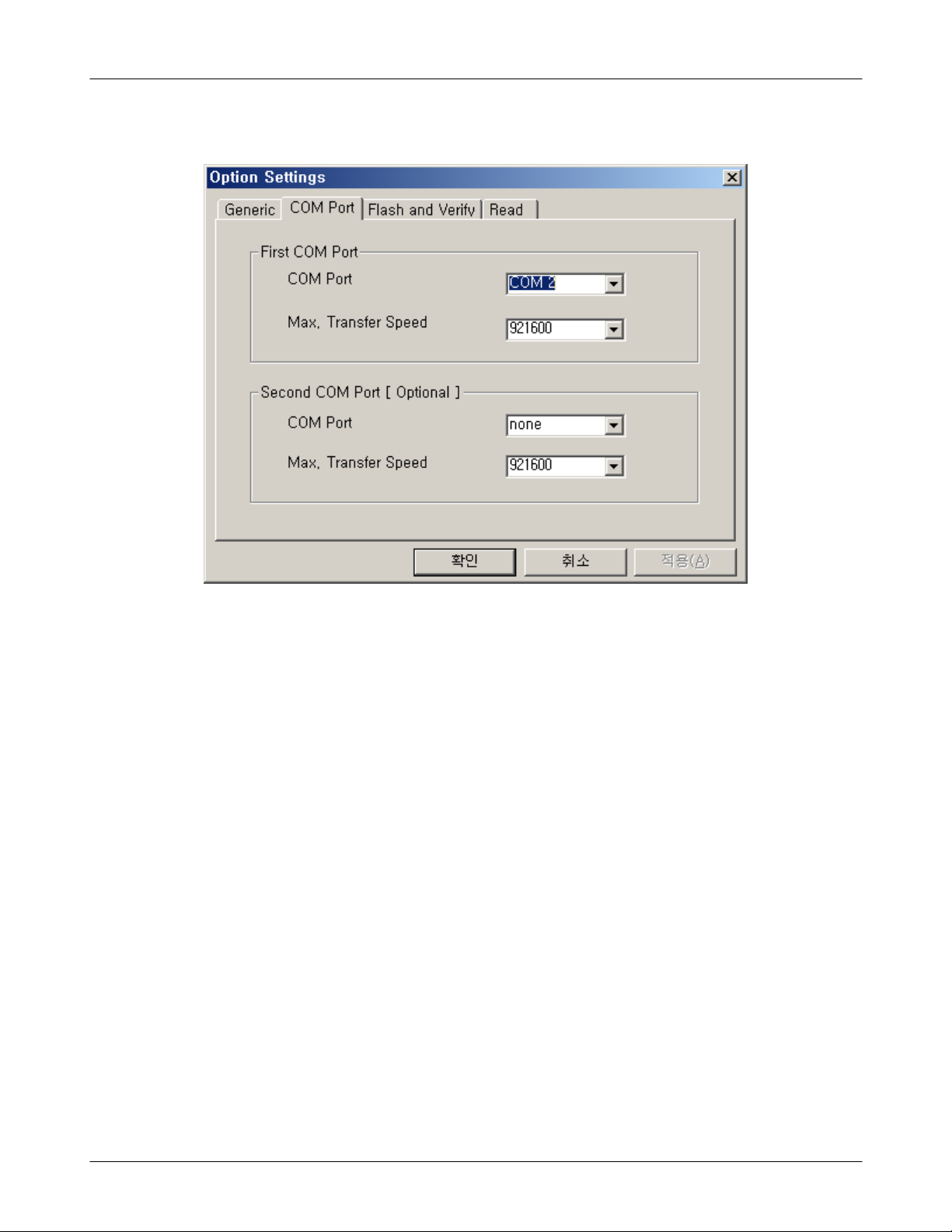

3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use aslower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

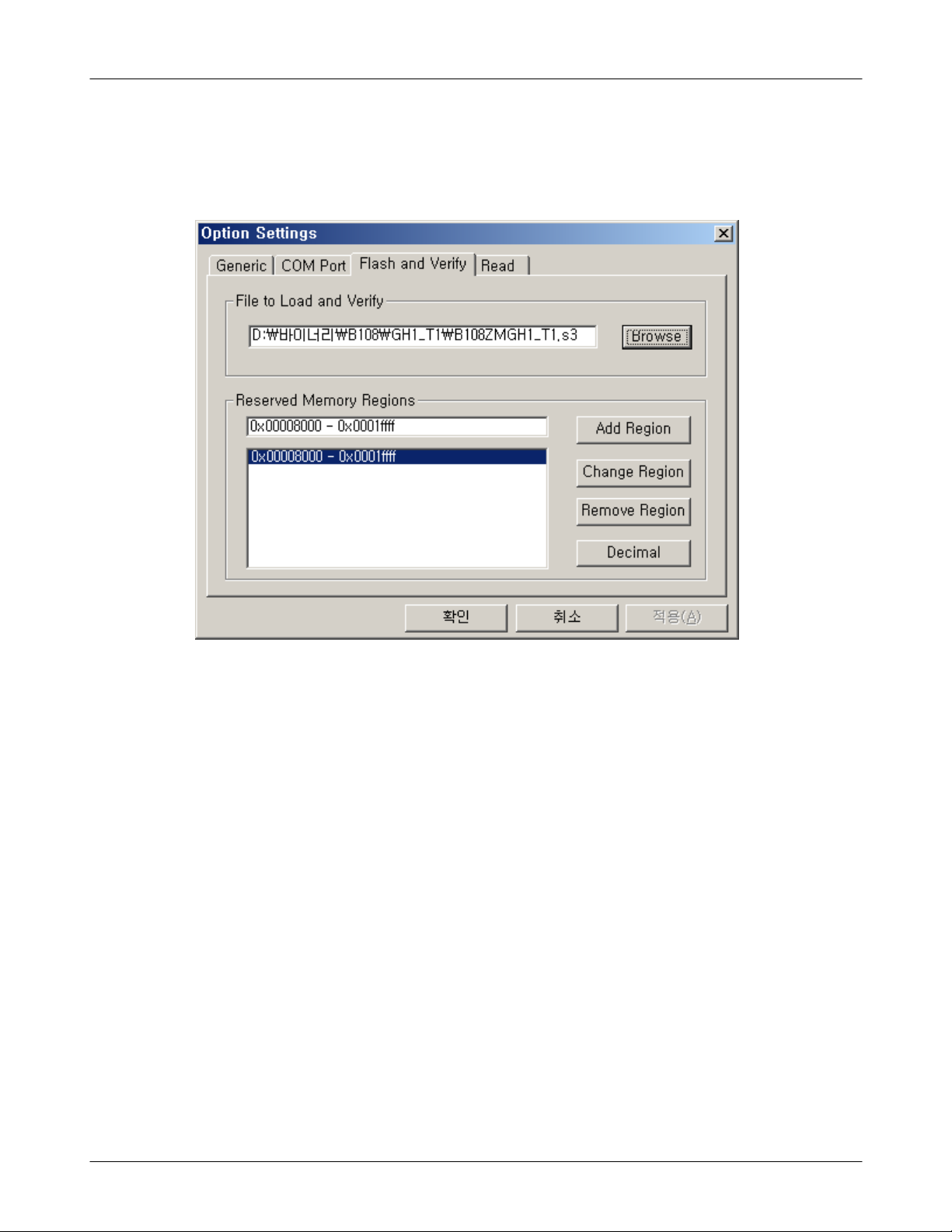

4. Select the“Flash&Verify”->“ Browse”
Set the directory path and choose the latest s/w binary, for example “
B200XXYY.s3”, for the downloader binary setting.
Make sure that not to change the reserved memory
regions.
In case of B200 the reserved memory regions are :
-0x00008000 – 0x0001ffff

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK”button then press “Flash”.
(Before pressing ‘Flash’button, push the button ‘*’and ‘END’at the same time.Then
press ‘Flash’.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a“
All is well”message.
7. After finishing downloading, Certain memory resets should be done to guarantee the
normal performance.
8. Confirm the downloaded version name and etc. :
*#1111#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

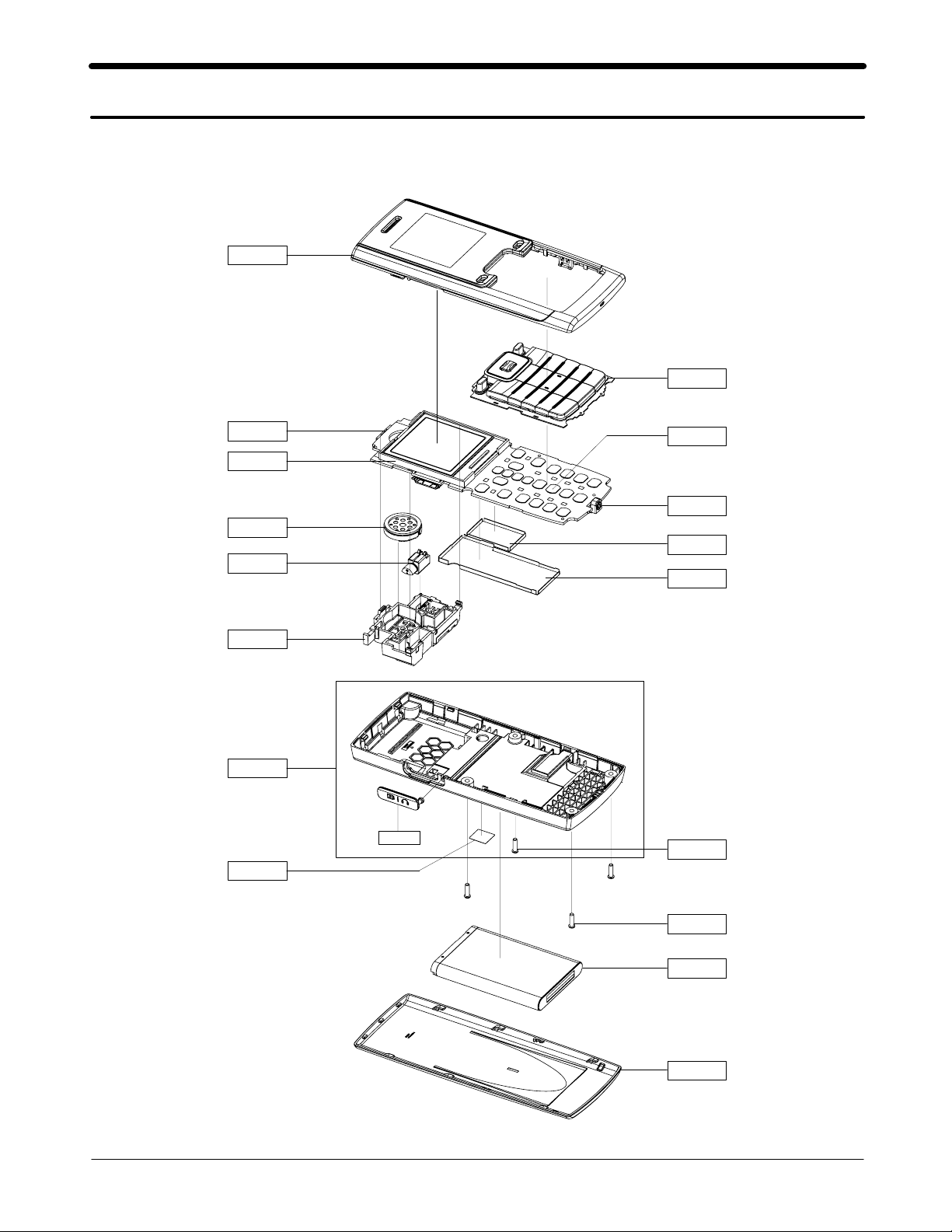

5-1. Cellular phone Exploded View
QFR01
QKP01
QLC01
QMP01
QSP01
QMO01
QAN01
QRE01
QRF01
QME01
QMI01
QSH02
QCR88
QCR88
QBA01
QBA00
QSH01
QRF03

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN01 INTENNA-SGH_B108 GH42-01421A
QBA00 PMO COVER-BATTERY GH72-46303B
QBA01 INNER BATTERY PACK-1000MAH,BLA GH43-02424A
QFR01 ASSY CASE-FRONT GH98-07539B
QKP01 ASSY KEYPAD-(SER/HBA) GH98-08466B
QLC01 LCD-LCD MODULE GH07-01056A
QME01 DOME SHEET-SGHB200 GH59-05543A
QMI01 MICROPHONE-ASSY-SGH_B108 GH30-00447A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 PBA MAIN-SGHB200 GH92-04442A
QRE01 ASSY CASE-REAR GH98-07540B
QRF03 PMO COVER-EAR IF GH72-46304B
QSH01 IPR SHIELD-COVER A GH70-02974A
QSH02 IPR SHIELD-COVER B GH70-02975A
QSP01 SPEAKER 3001-002289
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0401-001141 D600 DIODE-SWITCHING SA
0403-001547 ZD300 DIODE-ZENER SA
0406-001241 ZD301 DIODE-TVS SA
0406-001241 ZD302 DIODE-TVS SA
0406-001267 ZD500 DIODE-TVS SA
0504-000168 TR300 TR-DIGITAL SA
0601-002037 LED600 LED SA
0601-002037 LED601 LED SA
0601-002037 LED602 LED SA
0601-002037 LED603 LED SA
0601-002037 LED604 LED SA
0601-002037 LED605 LED SA
0601-002037 LED606 LED SA
0601-002037 LED607 LED SA
0601-002037 LED608 LED SA
0601-002037 LED609 LED SA
0601-002037 LED610 LED SA
0801-003206 U104 IC-CMOS LOGIC SA
1001-001349 U302 IC-ANALOG MULTIPLEX SA
1001-001371 U401 IC-ANALOG SWITCH SA
1001-001453 U503 IC-ANALOG SWITCH SA
1108-000111 UME200 IC-MCP SA
1201-002180 PAM500 IC-AUDIO AMP SA
1201-002490 PAM100 IC-POWER AMP SA
1203-003897 UCP300 IC-POWER SUPERVISOR SA
1203-004640 U602 IC-DC/DC CONVERTER SA
1203-005005 U301 IC-BATTERY SA
1204-002700 U500 IC-TUNER SA
1204-002783 U400 IC-SOUND GENERATOR SA
1205-003098 U103 IC-TRANSCEIVER SA
1205-003412 UCP200 IC-MODEM SA
1404-001165 TH200 THERMISTOR-NTC SA
1405-001082 VR300 VARISTOR SA
1405-001082 VR301 VARISTOR SA
1405-001082 VR302 VARISTOR SA
1405-001082 VR303 VARISTOR SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1405-001082 VR402 VARISTOR SA
1405-001082 VR403 VARISTOR SA
1405-001082 VR605 VARISTOR SA
1405-001082 VR606 VARISTOR SA
1405-001082 VR607 VARISTOR SA
1405-001082 VR608 VARISTOR SA
1405-001082 VR609 VARISTOR SA
1405-001082 VR610 VARISTOR SA
1405-001121 VR400 VARISTOR SA
1405-001121 VR401 VARISTOR SA
2007-000138 R304 R-CHIP SA
2007-000138 R412 R-CHIP SA
2007-000141 R410 R-CHIP SA
2007-000141 R515 R-CHIP SA
2007-000143 R210 R-CHIP SA
2007-000143 R211 R-CHIP SA
2007-000148 R102 R-CHIP SA
2007-000148 R316 R-CHIP SA
2007-000148 R317 R-CHIP SA
2007-000148 R408 R-CHIP SA
2007-000148 R409 R-CHIP SA
2007-000148 R507 R-CHIP SA
2007-000148 R511 R-CHIP SA
2007-000148 R512 R-CHIP SA
2007-000148 R513 R-CHIP SA
2007-000153 R416 R-CHIP SA
2007-000157 R204 R-CHIP SA
2007-000157 R303 R-CHIP SA
2007-000157 R419 R-CHIP SA
2007-000157 R517 R-CHIP SA
2007-000160 R401 R-CHIP SA
2007-000161 R508 R-CHIP SA
2007-000161 R514 R-CHIP SA
2007-000162 R203 R-CHIP SA
2007-000162 R205 R-CHIP SA
2007-000162 R207 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-000162 R301 R-CHIP SA
2007-000162 R504 R-CHIP SA
2007-000162 R506 R-CHIP SA
2007-000170 R107 R-CHIP SA
2007-000170 R110 R-CHIP SA
2007-000170 R314 R-CHIP SA
2007-000170 R315 R-CHIP SA
2007-000171 R100 R-CHIP SA
2007-000171 R105 R-CHIP SA
2007-000171 R109 R-CHIP SA
2007-000171 R111 R-CHIP SA
2007-000171 R420 R-CHIP SA
2007-000171 R421 R-CHIP SA
2007-000171 R500 R-CHIP SA
2007-000171 R502 R-CHIP SA
2007-000171 R505 R-CHIP SA
2007-000172 R200 R-CHIP SA
2007-000172 R202 R-CHIP SA
2007-000172 R402 R-CHIP SA
2007-000172 R403 R-CHIP SA
2007-000172 R600 R-CHIP SA
2007-000172 R601 R-CHIP SA
2007-000172 R602 R-CHIP SA
2007-000172 R603 R-CHIP SA
2007-000172 R604 R-CHIP SA
2007-000172 R605 R-CHIP SA
2007-000172 R606 R-CHIP SA
2007-000172 R607 R-CHIP SA
2007-000172 R608 R-CHIP SA
2007-000172 R609 R-CHIP SA
2007-000172 R610 R-CHIP SA
2007-000173 R417 R-CHIP SA
2007-000173 R418 R-CHIP SA
2007-000242 R407 R-CHIP SA
2007-000242 R503 R-CHIP SA
2007-000775 R400 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-000831 R509 R-CHIP SA
2007-000831 R510 R-CHIP SA
2007-000982 R209 R-CHIP SA
2007-001119 R405 R-CHIP SA
2007-001119 R501 R-CHIP SA
2007-001284 R201 R-CHIP SA
2007-001284 R300 R-CHIP SA
2007-001292 R305 R-CHIP SA
2007-001292 R306 R-CHIP SA
2007-001301 R103 R-CHIP SA
2007-001307 R108 R-CHIP SA
2007-001308 R106 R-CHIP SA
2007-001325 R404 R-CHIP SA
2007-001339 R302 R-CHIP SA
2007-002797 R104 R-CHIP SA
2007-007148 R328 R-CHIP SA
2007-007590 R406 R-CHIP SA
2007-007590 R411 R-CHIP SA
2007-007741 R101 R-CHIP SA
2007-008045 R519 R-CHIP SA
2007-008403 R206 R-CHIP SA
2007-008403 R208 R-CHIP SA
2007-008419 R307 R-CHIP SA
2007-008419 R308 R-CHIP SA
2007-008419 R309 R-CHIP SA
2007-008419 R310 R-CHIP SA
2007-008419 R311 R-CHIP SA
2007-008419 R312 R-CHIP SA
2007-008419 R313 R-CHIP SA
2007-008483 R518 R-CHIP SA
2007-008531 R318 R-CHIP SA
2007-008531 R319 R-CHIP SA
2007-008542 R516 R-CHIP SA
2203-000233 C220 C-CER,CHIP SA
2203-000233 C302 C-CER,CHIP SA
2203-000254 C203 C-CER,CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2203-000254 C204 C-CER,CHIP SA
2203-000254 C208 C-CER,CHIP SA
2203-000254 C209 C-CER,CHIP SA
2203-000254 C210 C-CER,CHIP SA
2203-000254 C213 C-CER,CHIP SA
2203-000254 C215 C-CER,CHIP SA
2203-000254 C217 C-CER,CHIP SA
2203-000254 C300 C-CER,CHIP SA
2203-000330 C222 C-CER,CHIP SA
2203-000359 C401 C-CER,CHIP SA
2203-000386 C129 C-CER,CHIP SA
2203-000386 C221 C-CER,CHIP SA
2203-000438 C133 C-CER,CHIP SA
2203-000438 C330 C-CER,CHIP SA
2203-000438 C413 C-CER,CHIP SA
2203-000466 C115 C-CER,CHIP SA
2203-000627 C134 C-CER,CHIP SNA
2203-000679 C132 C-CER,CHIP SA
2203-000679 C206 C-CER,CHIP SA
2203-000812 C119 C-CER,CHIP SA
2203-000812 C120 C-CER,CHIP SA
2203-000812 C121 C-CER,CHIP SA
2203-000812 C131 C-CER,CHIP SA
2203-000812 C305 C-CER,CHIP SA
2203-000812 C306 C-CER,CHIP SA
2203-000812 C310 C-CER,CHIP SA
2203-000812 C600 C-CER,CHIP SA
2203-000812 C601 C-CER,CHIP SA
2203-000812 C602 C-CER,CHIP SA
2203-000812 C603 C-CER,CHIP SA
2203-000812 C604 C-CER,CHIP SA
2203-000812 C605 C-CER,CHIP SA
2203-000812 C606 C-CER,CHIP SA
2203-000812 C607 C-CER,CHIP SA
2203-000812 C608 C-CER,CHIP SA
2203-000812 C610 C-CER,CHIP SA
