Samsung SGH-D520 User manual

GSM TELEPHONE
SGH-D520
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Exploded and assembling View

Samsung Electronics Co.,Ltd.
Code No.: GH68-10734A
2006. 04. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

목차
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GSM TX power Level ......................................................................2-2
3. Product Function
4. Array course control
4-1. Downloading Binary Files .............................................................4-2
4-2. Pre-requsite for Downloading .......................................................4-2
4-3. S/W Downloader Program ...........................................................4-3
5. Exploded View and Parts list
5-1. Cellular phone Exploded View ......................................................5-1
5-2. Cellular phone Parts list ..............................................................5-2
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
9-1. Baseband ..................................................................................9-1
9-1-1. Power ON .............................................................................9-1
9-1-2. Initial ...................................................................................9-4
9-1-3. SIM Part ...............................................................................9-6
9-1-4. Microphone Part ....................................................................9-7
9-1-5. Speaker Part_1(MP3, SPEAKER PHONE) ...................................9-8
9-1-6. Speaker Part_2(RECEIVER) ...................................................9-10
9-1-7. Charging Part ......................................................................9-11

목차
9-2. RF ..........................................................................................9-13
9-2-1. EGSM RX ............................................................................9-13
9-2-2. DCS RX ..............................................................................9-15
9-2-3. PCS RX ...............................................................................9-16
9-2-4. EGSM TX ............................................................................9-17
9-2-5. DCS TX ..............................................................................9-18
9-2-6. PCS TX ...............................................................................9-19
10. Reference data
11. Exploded and assembling View
11-1. Cellular phone Exploded View ...................................................11-1
11-2. Cellular phone assembling ........................................................11-2
11-3. Slide FPCB KIT assembling .....................................................11-29

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-2
This Document can not be used without Samsung's authorization
2-1. GSM General Specification
E-GSM DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 975~1023
0~124 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
Time Slot Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation GPRS 0.3 GMSK 0.3 GMSK 0.3 GMSK
MSPower GPRS 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Level GPRS 5~19(class4) 0~15(class1) 0~15(class1)
Sensitivity -102 dBm -100 dBm -102 dBm
TDMAMux888
Cell Radius 35 Km 2 Km 2 Km
Operating Temperature -20 ℃~45℃-20 ℃~45℃-20 ℃~45℃
Supply Voltage 3.7 V 3.7 V 3.7 V
Size and Weight Dimention : 97(H) × 52(W) × 14.9(D) mm
Weight : 96 g (with standard battery)

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX Power Level
TX Power
control level E-GSM
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±2 dBm
17 9±2d Bm
18 7±2d Bm
19 5±2d Bm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
3-1. Main Function
-Camera and camcorder
-Image editor
-File viewer
-Bluetooth
-Get personal with photo caller ID
-Name card
-Multimedia Message Service (MMS)
-Email
-Web browser
-Java
-Voice recorder

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
Test Cable (GH39-00127A)
RF Test Cable (GH39-00283A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
• Two binary files for downloading D520.
– D520XXYY.s3 : Main source code binary.
– D520XXYY.cts : Default Contents binary.
4-2. Pre-requsite for Downloading
• Downloader Program(OptiFlash.exe)
• D520 Mobile Phone
• Data Cable
• Binary files
• CTS files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download programby executing the “OptiFlash.exe”
2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware
platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below
1.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the COM port when the download cable is connected
Up to 64 ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use a slower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Select the“Flash&Verify” -> “Browse”
Set the directory path and choose the latest s/w binary, for example
“D520XXYY.s3”,for the downloader binary setting.
In case of D520 the reserved regions are not a
necessity. (It is defined in platform.def file)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

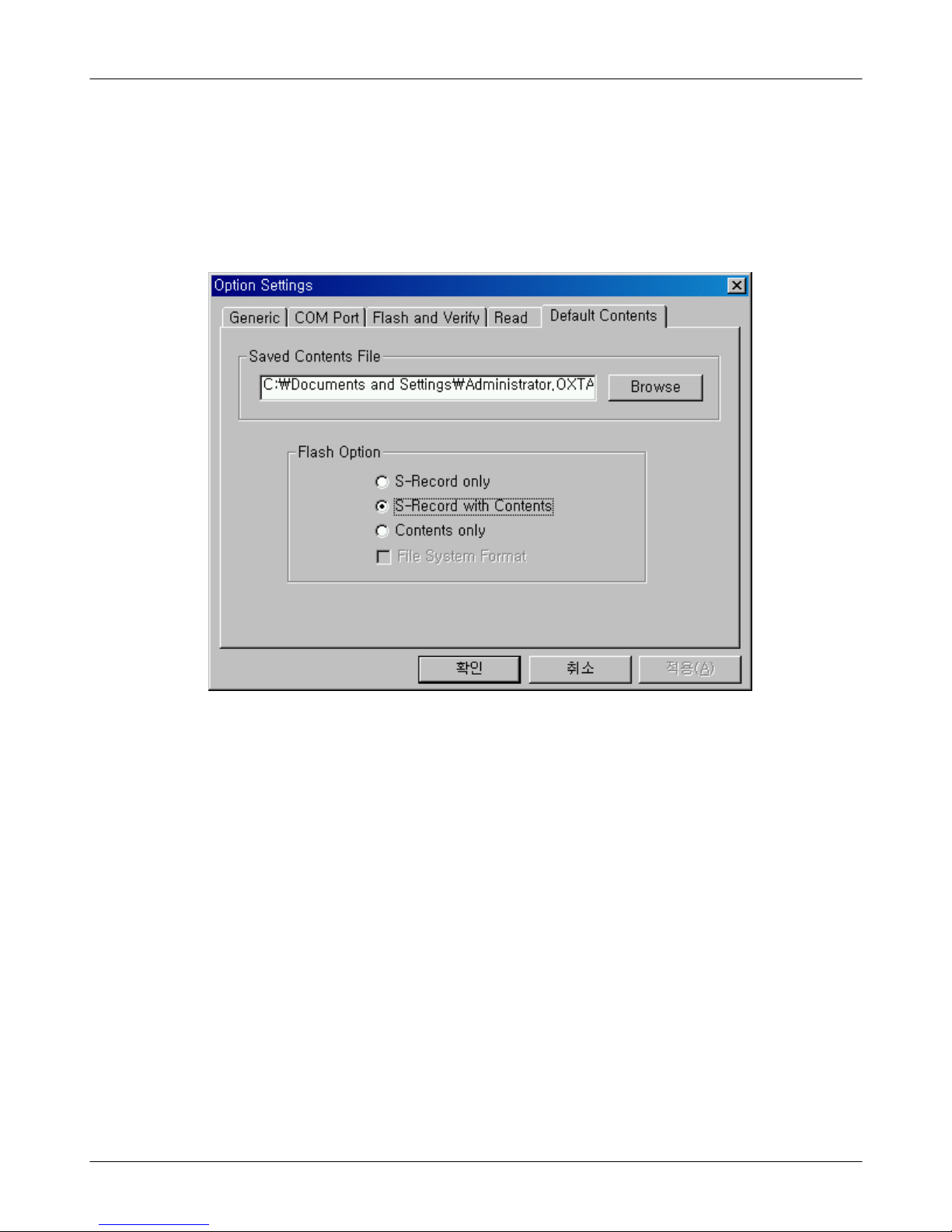

5. Select the“Default Contents” -> “Browse”
Set the directory path and choose the CTS file, for example
“D520XXYY.cts”,for the downloader binary setting.
Function of Flash option
S-Record only : download binary only
S-Record with Contens : download binary with default contents
Contents only : download default contents

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
6. Click “OK” button then press “Flash”.
(Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same
time. Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading. 
7. When downloading is finished successfully, there is a “All is well”
message. 
8. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
9. Confirm the downloaded version name and etc. :
*#5002*8376263#
Full Reset : 
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

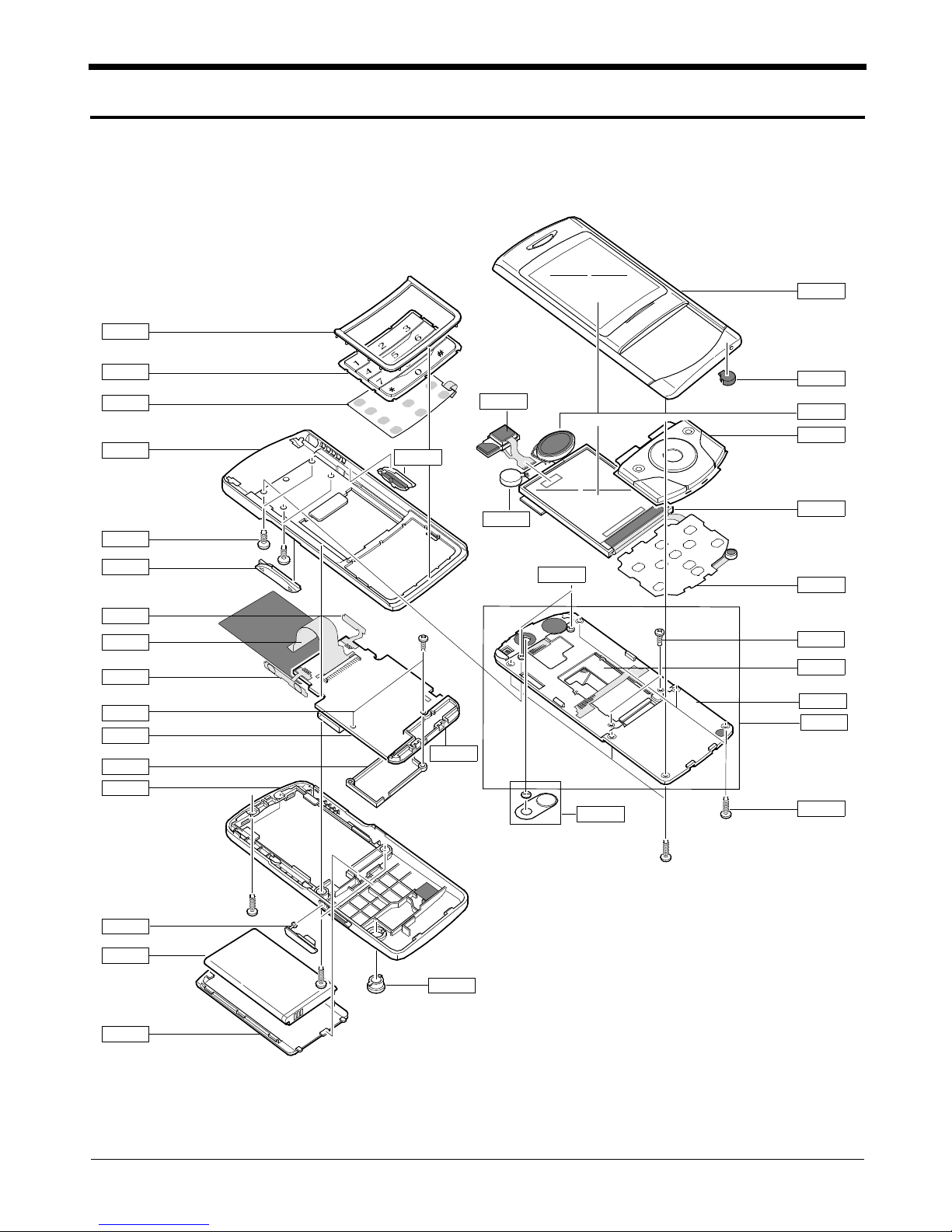

5-1. Cellular phone Exploded View
QKP01
QFR01
QRE01
QBA00
QFU01
QKP02
QLC01
QME02
QME01
QVO01
QMI03
QCA01 QSP01
QMO01
QSH01
QVK01
QPC01
QBA01
QIF01
QRF01
QFR04
QCK01
QCA02
QCR05
QMP01
QCA05 QCR12
QCR47
QHI01
QFL02
QFL01
QCR32
QAN02
QCR32

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
5-2. Cellular phone Parts list
Design LOC Discription SEC CODE
QAN02
ㅤ
INTENNA-SGHD520 GH42-00740A
QBA00
ㅤ
ASSY-COVER-BATT GH98-00721B
QBA01
ㅤ
INNER BATTERY PACK-800MAH,BLK, GH43-01850A
QCA01
ㅤ
UNIT-CAMERA GH59-02860A
QCA02
ㅤ
UNIT-CAMERA KEY GH59-02799A
QCA05
ㅤ
MEC-SUB FLASH DECO GH75-08862A
QCK01
ㅤ
MEC-CAM KEY GH75-08866A
QCR05
ㅤ
SCREW-MACHINE 6001-001478
QCR05
ㅤ
SCREW-MACHINE 6001-001478
QCR12
ㅤ
SCREW-MACHINE 6001-001530
QCR32
ㅤ
SCREW-MACHINE 6001-001700
QFR01
ㅤ
MEC-SUA FRONT COVER GH75-08863B
QFR04
ㅤ
PMO-FRONT COVER BUSH GH72-27856A
QKP01
ㅤ
MEC-KEYPAD MAIN GH75-08864B
QKP02
ㅤ
MEC-KEYPAD SUB GH75-08861B
QLC01
ㅤ
ELA UNIT-SGHD520 LCD GH96-02099A
QME01
ㅤ
UNIT-KEY PAD GH59-02716A
QME02
ㅤ
UNIT-NAVI KEY GH59-02717A
QMO01
ㅤ
MOTOR DC-SPHV8400 GH31-00187A
QMP01
ㅤ
PBA MAIN-SGHD520 GH92-02481A
QPC01
ㅤ
MEA-SLIDE FPCB KIT GH97-05579A
QRF01
ㅤ
PMO-COVER RF GH72-29405B
QSH01
ㅤ
NDC-SHIELD CAN GH71-05961A
QSP01
ㅤ
SPEAKER 3001-001906
QVK01
ㅤ
UNIT-VOLUME KEY GH59-02798A
QVO01
ㅤ
MEC-KEY VOLUME GH75-08277A
QRE01
ㅤ
MEC-SUA REAR COVER GH75-08865B
ㅤ
QIF01 PMO-IF COVER GH72-27858B
QFL01
ㅤ
MEC-SUA SLIDE LOW HINGE GH75-08859B
ㅤ
QCR32 SCREW-MACHINE 6001-001700
ㅤ
QCR47 SCREW-MACHINE 6001-001695
ㅤ
QFL02 MEC-SLIDE LOWER GH75-08860B
ㅤ
QHI01 MEC-HINGE GH75-09414A
QFU01
ㅤ
MEC-SUA SLIDE UPPER GH75-08857B
ㅤ
QMI03 RMO-MIC HOLDER GH73-05704A

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHD800 TA(EU) GH44-01060A
S/W CD-SAMSUNGPCSTUDIO 3.0 GH46-00215A
EARPHONE-STEREO HEADSET GH59-02499A
LABEL(P)-IMEI GH68-01335D
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL-SFC CARD GH68-07937A
MANUAL USERS-EU FRENCH GH68-09205A
LABEL(P)-MAIN (EU) GH68-09251A
MANUAL USERS-EU DUTCH GH68-09509A
CUSHION-CASE TA2 MA2 GH69-03632A
BOX(P)-UNIT MAIN (EU) GH69-03635A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-TAPE REMOVE LCD GH74-18286A
MPR-VINYL BOHO MAIN GH74-19951A
MPR-TAPE GASKET MAIN FPC GH74-21361A
MPR-TAPE NAVI CONN BTM GH74-21362A
MPR-TAPE CAMERA CONN GH74-21364A
MPR-TAPE LCD CONN C GH74-21365A
MPR-TAPE NAVI KEY CONN GH74-21366A
MPR-TAPE MAIN CONN C GH74-21367A
MPR-TAPE MAIN CONN A GH74-21368A
MPR-TAPE LCD CONN D GH74-21369A
MPR-CUSHION NAVI KEY GH74-21626A
MPR-CUSHION LCD BACK GH74-21627A
MPR-VINYL BOHO SUB KEY GH74-22225A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
4202-001095 ANT602 ANTENNA-CHIP SA
4302-001201 BAT100 BATTERY-LI(2ND) SA
3711-006025 BTC502 HEADER-BATTERY SA
2203-006194 C100 C-CER,CHIP SA
2203-006194 C101 C-CER,CHIP SA
2203-006423 C102 C-CER,CHIP SA
2203-006423 C103 C-CER,CHIP SA
2203-006324 C104 C-CER,CHIP SA
2203-006562 C105 C-CER,CHIP SA
2203-006562 C106 C-CER,CHIP SA
2203-006562 C107 C-CER,CHIP SA
2203-006562 C108 C-CER,CHIP SA
2203-006562 C109 C-CER,CHIP SA
2203-006562 C110 C-CER,CHIP SA
2203-006562 C111 C-CER,CHIP SA
2203-005736 C112 C-CER,CHIP SA
2203-006648 C113 C-CER,CHIP SA
2203-006194 C114 C-CER,CHIP SA
2203-001405 C115 C-CER,CHIP SA
2203-006562 C116 C-CER,CHIP SA
2203-006423 C117 C-CER,CHIP SA
2203-006121 C118 C-CER,CHIP SA
2203-006423 C119 C-CER,CHIP SA
2203-005682 C120 C-CER,CHIP SA
2203-005682 C121 C-CER,CHIP SA
2203-005729 C122 C-CER,CHIP SA
2203-006257 C124 C-CER,CHIP SA
2203-006562 C125 C-CER,CHIP SA
2203-006423 C126 C-CER,CHIP SA
2203-006562 C128 C-CER,CHIP SA
2203-006562 C129 C-CER,CHIP SA
2203-006825 C130 C-CER,CHIP SA
2203-006562 C131 C-CER,CHIP SA
2203-006825 C132 C-CER,CHIP SA
2203-006562 C135 C-CER,CHIP SA
2203-006423 C136 C-CER,CHIP SA
2203-006348 C137 C-CER,CHIP SA
2203-006324 C138 C-CER,CHIP SA
2203-006194 C200 C-CER,CHIP SA
2203-006194 C201 C-CER,CHIP SA
2203-006423 C202 C-CER,CHIP SA
2203-006423 C203 C-CER,CHIP SA
