Samsung SGH-D780 User manual

GSM TELEPHONE
SGH-D780
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
12. Schematic Diagrams

This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2008. 05. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because specificity of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool, because performance of parts is
damaged by the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product, otherwise screw will
be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km
2-1. GSM General Specification
*PCS1900 only in Master

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±2dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level DCS1800
030±2dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM900
GSM850
533±2dBm
631±3dBm
729±3dBm
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
2-2. GSM TX power class
*PCS1900 only in Master

SAMSUNG Proprietary-Contents may change without notice
Specification
This Document can not be used without Samsung's authorization
2-3
TX Power
control level
GSM900
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
2 26 -4/+3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 12±3 dBm
9 10±3 dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
2-3. GSM EDGE TX power class
TX Power
control level PCS1900
2 26 -4/+3 dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
812±3dBm
910±3dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
Only in Master

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-4

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Bar Design Intenna
-Dual Standby
-2M CMOS Camera
-Bluetooth V.2.0
-Stereo Bluetooth Headset
-Mobile Tracker & SOS Messaging
-2.1" QVGA 262K TFT Display
-EXT. Memory
-SMS / MMS / E-Mail
-WAP 2.0 / Java MIDP 2.0
-MP3,AAC,MP4,3GPPDecoding
-Video Recording and Messaging
-GSM/GPRS/EDGE Class 10
-Band(Master : GSM900, 1800, 1900/ Slave : GSM900, 1800)
-FM radio
-Speaker Phone

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Jig (GH80-03306A) Test Cable (GH39-00838A)
Test Cable (GH39-00877A)Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(OneNAND_Downloader_v0.5_GEM_Lite_For_three_drive_arm7_arm9.exe)
• D780 Mobile Phone
• Data Cable
• Binary file, TFS file
4-2-2. S/W Downloader Program

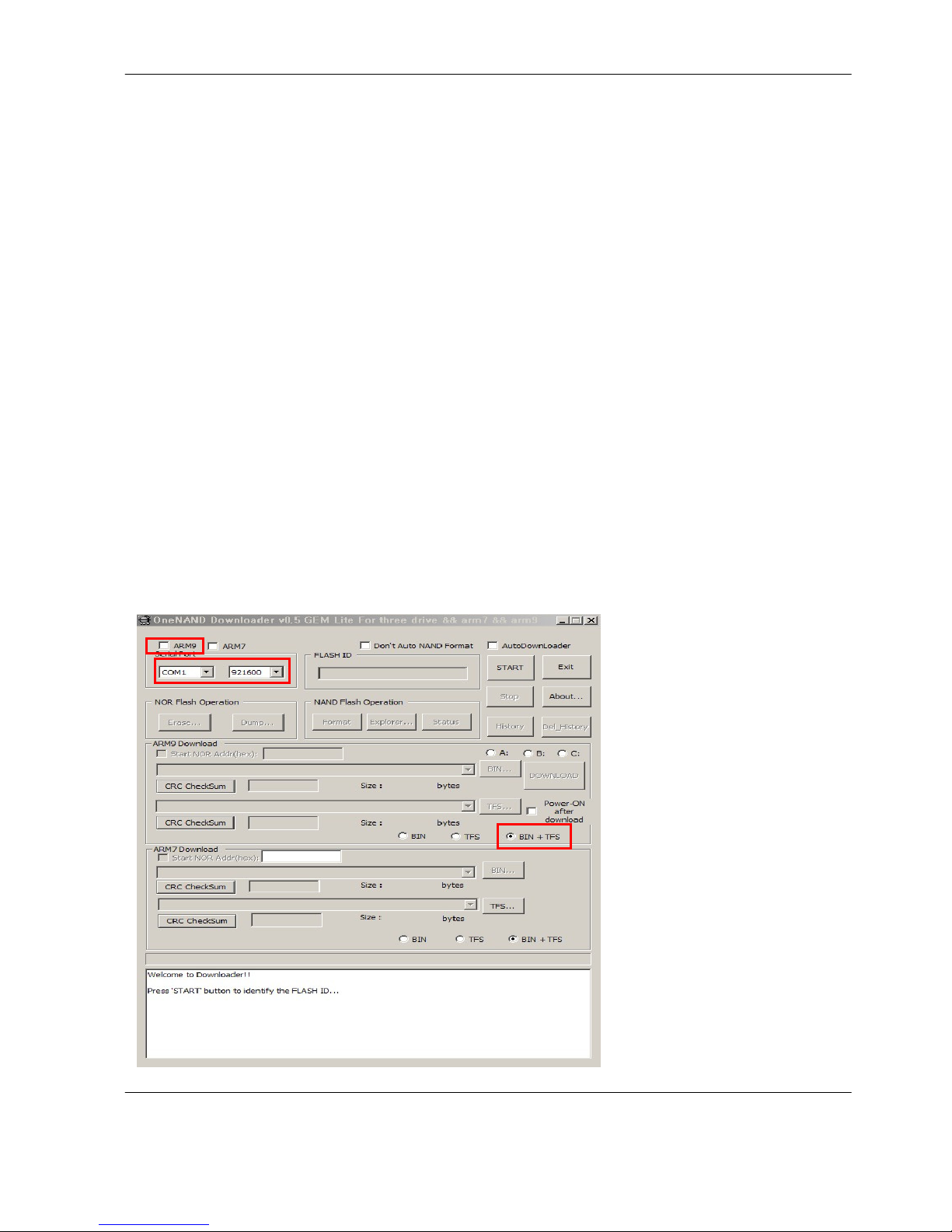

■Load the binary download program by executing the
“OneNAND_Downloader_v0.5_GEM_Lite_For_three_drive_arm7_arm9.exe”
1. Select the download mode you want.
-if Master mode wanted, check ARM9
-if Slave mode wanted, check ARM7
2. Select the connected serial port and the rate of speed
3. Select the check box, the mode you want to download.
- if the binary file wanted, check only 'BIN'
- if the tfs file wanted, check only 'TFS'
- if all the files wanted, check 'BIN+TFS'
1
2
3

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

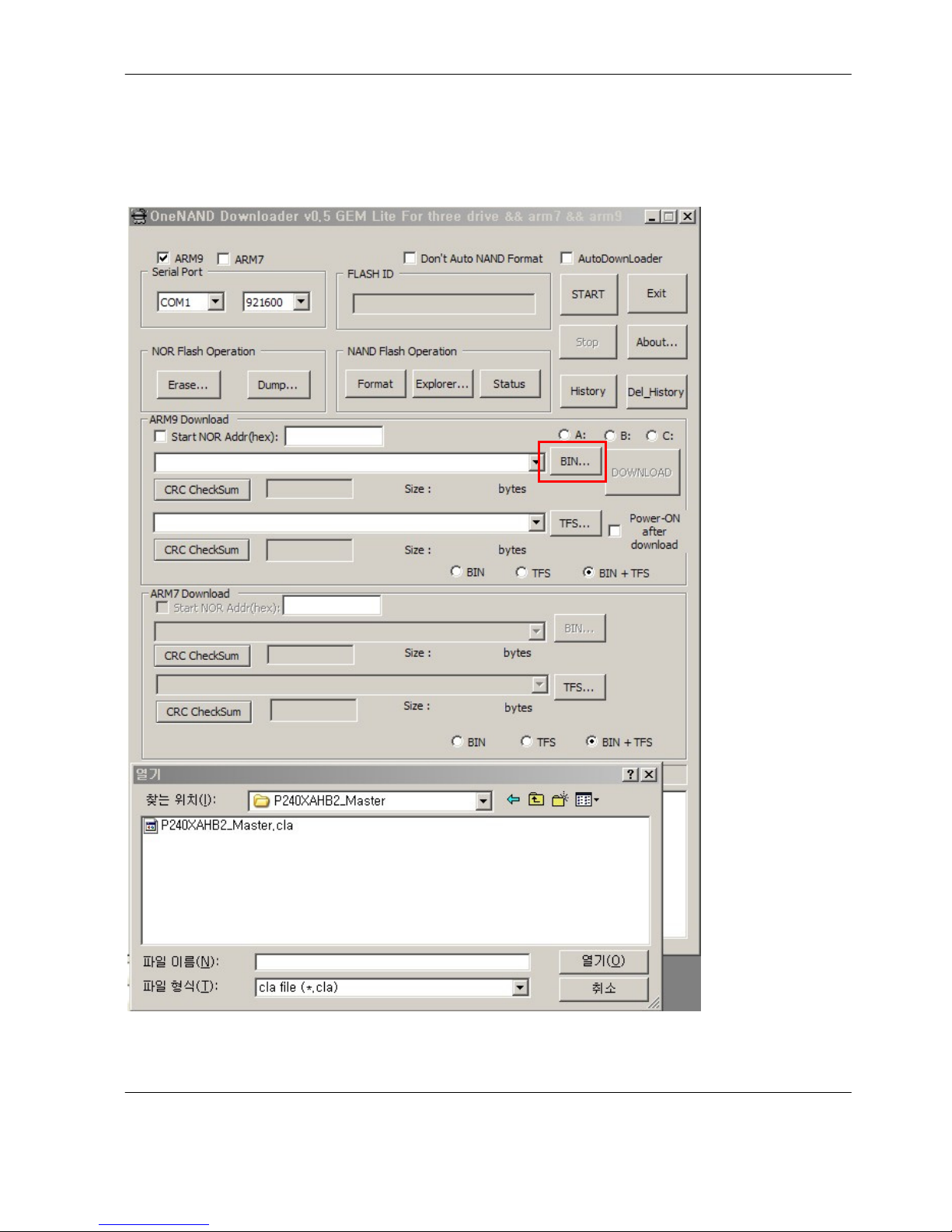

4. Select the file(s) what you want to download
-if you select ARM9, select the file "D780ooooo_Master.ooo"
-if you select ARM7, select the file "D780ooooo_Slave.ooo"
4

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHP240 UPPER GH42-01546A
QAN03 INTENNA-SGHP240 LOWER GH42-01545A
QAN05 ASSY RUBBER-INTENNA GH98-01592A
QAN06 ASSY RUBBER-INTENNA CONTACT GH98-04988A
QBA00 ASSY COVER-BATTERY GH98-07965A
QBA01 INNER BATTERY PACK-1200MAH,BLK GH43-02986A
QCA01 CAMERA MODULE-SGH P240 GH59-05590A
QCK01 PMO KEY-CAMERA GH72-47114A
QCK02 PMO KEY-SWITCH GH72-47115A
QCR87 SCREW-TAPPING 6002-001412
QCR87 SCREW-TAPPING 6002-001412
QCR88 SCREW-TAPPING 6002-001409
QKP01 ASSY KEYPAD-(SER/SIL) GH98-07966A
QLB01 ASSY BRACKET-LCD GH98-08200A
QLC01 LCD-SGH P240MODULE GH07-01270A
QME01 KEY FPCB-MAIN KEY PBA(P240) GH59-05594A
QMO01 MOTOR DC-SGH P240 GH31-00434A
QMP01 PBA MAIN-SGH_D780 GH92-04611A
QRE01 ASSY CASE-REAR GH98-07964A
QRE04 ASSY DECO-REAR GH98-08374A
QSH01 ASSY BRACKET-SHIELD V2 GH98-08314A
QSP01 SPEAKER 3001-002350
QVO01 PMO KEY-VOLUME GH72-47113A
QFR01 ASSY CASE-FRONT GH98-07963A
QIF01 PMO COVER-IF GH72-47091A
QSD01 PMO COVER-SD GH72-47092A
5-2. Cellular phone Parts List

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
0403-001547 D611 DIODE-ZENER SA
0406-001203 D500 DIODE-TVS SA
0406-001231 D501 DIODE-TVS SA
0406-001231 D502 DIODE-TVS SA
0406-001231 D509 DIODE-TVS SA
0406-001231 D601 DIODE-TVS SA
0406-001231 D603 DIODE-TVS SA
0406-001231 D606 DIODE-TVS SA
0406-001231 D608 DIODE-TVS SA
0406-001231 D610 DIODE-TVS SA
0406-001231 D612 DIODE-TVS SA
0406-001254 ZD400 DIODE-TVS SA
0406-001254 ZD401 DIODE-TVS SA
0406-001286 D300 DIODE-TVS SA
0406-001286 ZD500 DIODE-TVS SA
0407-001002 D600 DIODE-ARRAY SA
0505-002111 Q300 FET-SILICON SA
0505-002111 U900 FET-SILICON SA
0801-003022 U200 IC-CMOS LOGIC SA
0801-003055 U303 IC-CMOS LOGIC SA
1001-001429 U300 IC-ANALOG SWITCH SA
1001-001429 U301 IC-ANALOG SWITCH SA
1001-001453 U400 IC-ANALOG SWITCH SA
1001-001453 U403 IC-ANALOG SWITCH SA
1001-001453 U404 IC-ANALOG SWITCH SA
1001-001453 U405 IC-ANALOG SWITCH SA
1001-001470 U502 IC-ANALOG SWITCH SA
1001-001470 U101 IC-ANALOG SWITCH SA
1001-001470 U401 IC-ANALOG SWITCH SA
1106-001519 UME300 IC-SRAM SA
1108-000112 UME200 IC-MCP SA
1108-000152 UME800 IC-MCP SA
1201-002490 PAM700 IC-POWER AMP SA
1201-002492 U408 IC-AUDIO AMP SA
1201-002576 PAM100 IC-POWER AMP SA
1203-004550 UPL900 IC-POWER SUPERVISOR SA
1203-004776 U201 IC-POSI.FIXED REG. SA
1203-004792 U402 IC-POSI.FIXED REG. SA
1203-004792 U600 IC-POSI.FIXED REG. SA
1203-004792 U601 IC-POSI.FIXED REG. SA
1203-004792 U901 IC-POSI.FIXED REG. SA
1203-004793 U302 IC-POSI.FIXED REG. SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
1203-004960 U500 IC-DC/DC CONVERTER SA
1203-005072 UPL300 IC-POWER SUPERVISOR SA
1204-002907 U102 IC-TUNER SA
1205-003082 UCP200 IC-MODEM SA
1205-003192 UCP800 IC-MODEM SA
1205-003210 U503 IC-CODEC SA
1205-003214 U409 IC-CODEC SA
1205-003278 U700 IC-TRANSCEIVER SA
1205-003283 U100 IC-TRANSCEIVER SA
1205-003419 BT100 IC-TRANSCEIVER SA
1404-001221 VR200 THERMISTOR-NTC SA
1404-001221 VR800 THERMISTOR-NTC SA
1405-001138 V800 VARISTOR SA
2007-000070 L401 R-CHIP SA
2007-000070 L402 R-CHIP SA
2007-000138 R112 R-CHIP SA
2007-000138 R324 R-CHIP SA
2007-000138 R325 R-CHIP SA
2007-000138 R403 R-CHIP SA
2007-000138 R406 R-CHIP SA
2007-000138 R414 R-CHIP SA
2007-000138 R415 R-CHIP SA
2007-000138 R416 R-CHIP SA
2007-000138 R520 R-CHIP SA
2007-000140 R105 R-CHIP SA
2007-000140 R213 R-CHIP SA
2007-000140 R318 R-CHIP SA
2007-000140 R907 R-CHIP SA
2007-000141 R306 R-CHIP SA
2007-000141 R516 R-CHIP SA
2007-000141 R517 R-CHIP SA
2007-000141 R817 R-CHIP SA
2007-000141 R818 R-CHIP SA
2007-000143 R107 R-CHIP SA
2007-000143 R700 R-CHIP SA
2007-000143 R705 R-CHIP SA
2007-000143 R706 R-CHIP SA
2007-000143 R707 R-CHIP SA
2007-000143 R709 R-CHIP SA
2007-000143 R822 R-CHIP SA
2007-000148 R106 R-CHIP SA
2007-000148 R200 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
2007-000148 R201 R-CHIP SA
2007-000148 R205 R-CHIP SA
2007-000148 R206 R-CHIP SA
2007-000148 R211 R-CHIP SA
2007-000148 R214 R-CHIP SA
2007-000148 R224 R-CHIP SA
2007-000148 R401 R-CHIP SA
2007-000148 R412 R-CHIP SA
2007-000148 R600 R-CHIP SA
2007-000148 R601 R-CHIP SA
2007-000148 R602 R-CHIP SA
2007-000148 R910 R-CHIP SA
2007-000148 U902 R-CHIP SA
2007-000157 R228 R-CHIP SA
2007-000157 R229 R-CHIP SA
2007-000157 R230 R-CHIP SA
2007-000157 R420 R-CHIP SA
2007-000157 R825 R-CHIP SA
2007-000159 R320 R-CHIP SA
2007-000162 R108 R-CHIP SA
2007-000162 R109 R-CHIP SA
2007-000162 R113 R-CHIP SA
2007-000162 R202 R-CHIP SA
2007-000162 R209 R-CHIP SA
2007-000162 R210 R-CHIP SA
2007-000162 R225 R-CHIP SA
2007-000162 R304 R-CHIP SA
2007-000162 R307 R-CHIP SA
2007-000162 R308 R-CHIP SA
2007-000162 R309 R-CHIP SA
2007-000162 R310 R-CHIP SA
2007-000162 R311 R-CHIP SA
2007-000162 R312 R-CHIP SA
2007-000162 R313 R-CHIP SA
2007-000162 R314 R-CHIP SA
2007-000162 R319 R-CHIP SA
2007-000162 R321 R-CHIP SA
2007-000162 R510 R-CHIP SA
2007-000162 R511 R-CHIP SA
2007-000162 R512 R-CHIP SA
2007-000162 R514 R-CHIP SA
2007-000162 R519 R-CHIP SA
