Samsung SGH-E870 User manual

GSM TELEPHONE
SGH-E870
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Disassembly and Assembly
instructions
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
10. Flow Chart of Troubleshooting
11. Reference data

Contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GMSK TX Power Level ....................................................................2-2
2-3. EDGE TX Power Level ....................................................................2-3
3. Product Function
4. Array course control
Software Downloading
4-1. Downloading Binary Files ................................................................4-2
4-2. Pre-requsite for Downloading ..........................................................4-2
4-3. S/W Downloader Program ...............................................................4-3
5. Exploded View and Parts List
5-1. Cellular phone Exploded View .........................................................5-1
5-2. Cellular phone Part list ...................................................................5-2

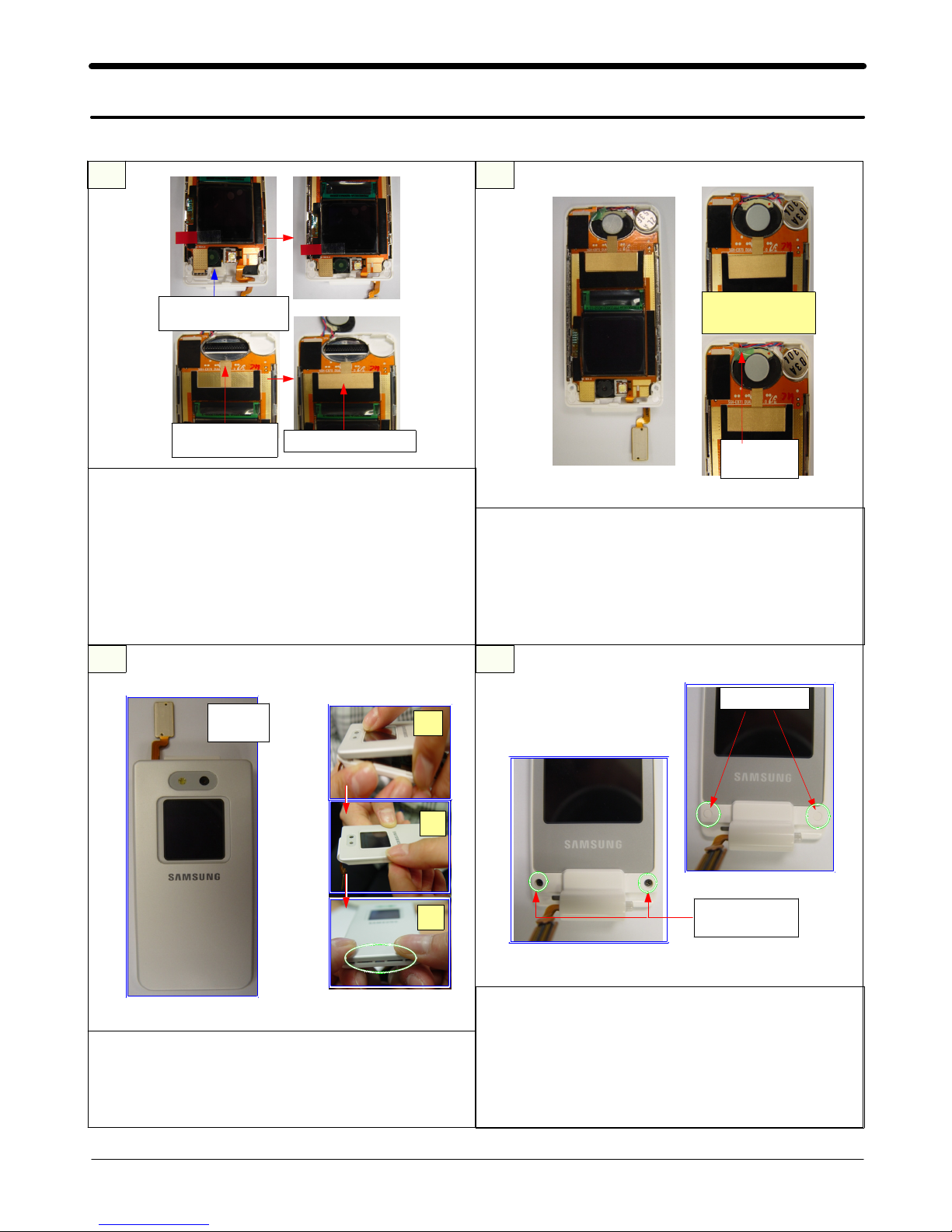

6. Disassembly and Assembly instructions
6-1. Assembly .....................................................................................6-1
6-2. Disassembly ..................................................................................6-3
6-3. KIT Assembly ................................................................................6-5
7. MAIN Electrical Parts List
8. Block Diagrams
9. PCB Diagrams
10. Flow Chart of Troubleshooting
10-1. Baseband
10-1-1. Power ON ..............................................................................10-1

Contents
10-1-2. Initial ....................................................................................10-4
10-1-3. Sim Part ...............................................................................10-6
10-1-4. Microphone Part .....................................................................10-8
10-1-5. Speaker Part ........................................................................10-10
10-1-6. Camera Part ........................................................................10-12
10-1-7. Mp3 Display Part ..................................................................10-14
10-2. RF
10-2-1. EGSM RX .............................................................................10-16
10-2-2. DCS RX ...............................................................................10-17
10-2-3. PCS RX ...............................................................................10-18
10-2-4. EGSM TX .............................................................................10-19
10-2-5. DCS & PCS TX .....................................................................10-20
11. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM 900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124
&975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
EDGE 812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
Time Slot
Period/Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation
GPRS 0.3 GMSK 0.3 GMSK 0.3 GMSK
EDGE 8PSK 8PSK 8PSK
MS Power
GPRS 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
EDGE 27~5 dBm 26~0 dBm 26~0 dBm
Power
Level
GPRS 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl
EDGE 8~19(class E2) 2~15(class E2) 2~15(class E2)
Sensitivity -102 dBm -100 dBm -102 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 2 Km 2 Km

Specification
2-2
2-2. GMSK TX power Level
TX Power
control
level
GSM900
5 33±2 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

Specification
2-3
2-3. EDGE TX Power Level
TX Power
control
level
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and camcorder
Use the camera module on your phone to take a photo or record a video.
-Music player
Playmusicfilesusingyourphoneasamusicplayer.
-Web browser
Access the wireless web to get up-to-the-minute information and a wide variety of
media content.
-Image editor
Crop, resize, rotate, and decorate your photos.
-Voice commands
Experience a new level of voice command capability that allows for easy hands-free
use. You can select menus, control camera settings, as well as make phone calls without
any key presses.
-Bluetooth
Transfer media files and personal data and connect to other devices using free, wireless
Bluetooth technology.
-Photo printing
Print your photos to preserve your best moments forever.
-Multimedia Message Service (MMS)
Send and receive MMS messages with a combinagion of text, image, video, and audio.
-E-mail
Send and receive e-mails with image, video, and audio attachments.
-Get personal with photo/video caller ID
See who's calling you when their very own photo or video displays.
-Phone to TV
View photos and video clips captured with the phone on your TV screen.
-Java
Enjoy Java™-based embedded games and download new games.

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
Test Jig (GH80-03307A)
Test Cable (GH39-00127A)
RF Test Cable (GH39-00397A )

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
• Two binary files for downloading E870.
–E870XXYY.s3:Mainsourcecodebinary.
– E870XXYY.cts : Default Contents binary.
4-2. Pre-requsite for Downloading
• Downloader Program(OptiFlash.exe)
• E870 Mobile Phone
• Data Cable
• Binary files
• CTS files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program
1. Load the binary download programby executing the “OptiFlash.exe”
2. Select the “Options” -> “Settings” -> “Generic” ->
“Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the COM port when the download cable is connected
Up to 64 ports are supported. Additionally you can select the maximum
transfer speed OptiFlash will use to communicate with the phone. However,
OptiFlash will use a slower speed if either the PC’s or the phone’s serial
hardware is incapable of handling the selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Select the“Flash&Verify” -> “Browse”
Set the directory path and choose the latest s/w binary, for example
“E870XXYY.s3”,for the downloader binary setting.
In case of E870 the reserved regions are not a necessity.
(It is defined in platform.def file)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Select the“Default Contents” -> “Browse”
Set the directory path and choose the CTS file, for example
“E870XXYY.cts”,for the downloader binary setting.
Function of Flash option
S-Record only : download binary only
S-Record with Contens : download binary with default contents
Contents only : download default contents

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

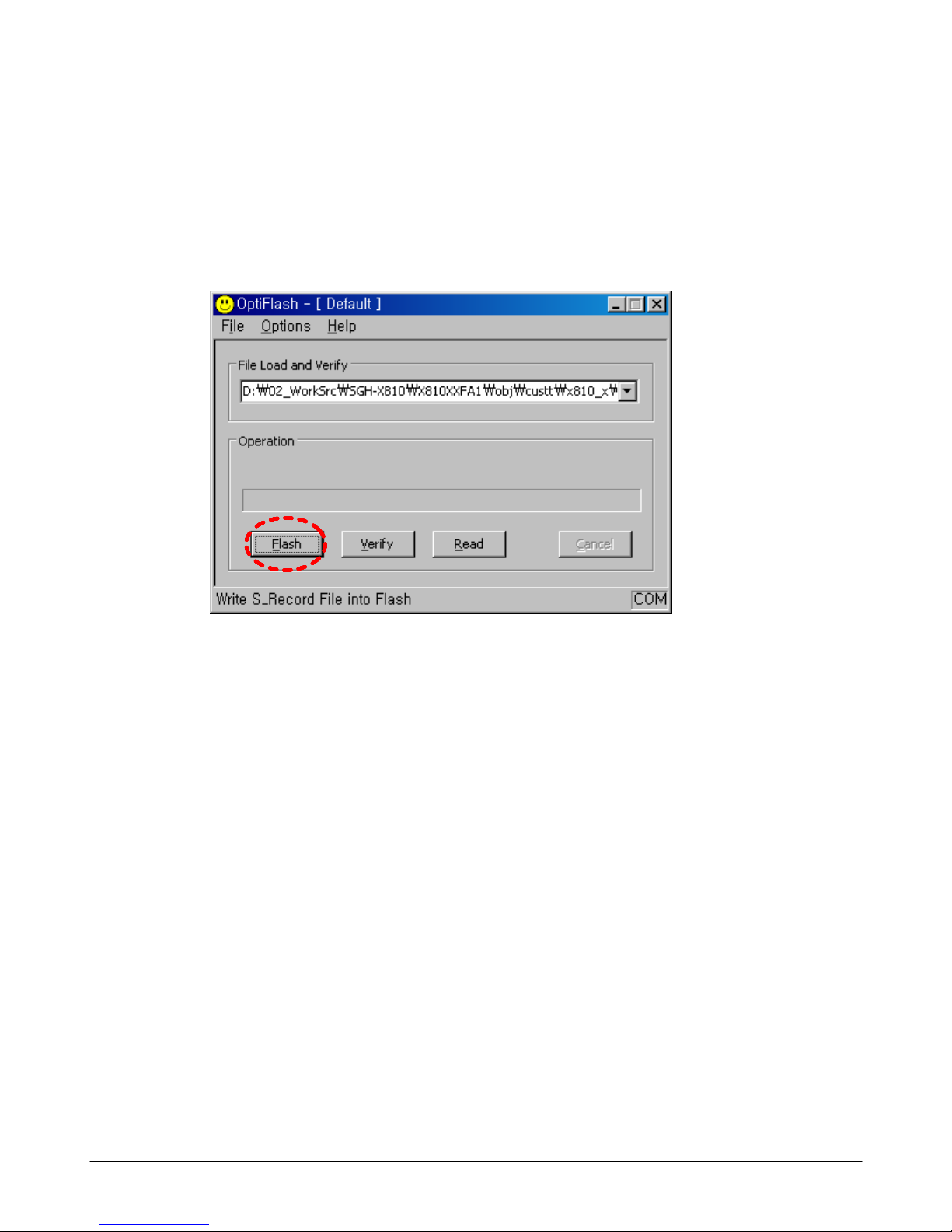

6. Click “OK” button then press “Flash”.
(Before pressing ‘Flash’ button, push the button ‘*’and ‘END’ at the same
time. Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading. 
7. When downloading is finished successfully, there is a “All is well”
message. 
8. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
9. Confirm the downloaded version name and etc. :
*#5002*8376263#
Full Reset : 
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFU01
QWD04
QLC01
QSP01
QMO01
QFL01
QMW01
QCR05
QSC01
QCA01
QKP01
QFR01
QVO01
QRF03
QMP01
QFB05
QAN02
QRE01
QBA01
QCR05
QBA00
QMI03
QCK01
QCH05
QFB02
QCW01
QME03
QHI01
QSC14
QAN05
QCR12
QRF01
QMI01
QME01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHE870 GH42-00720A
QAN05 MEC-INTENNA CONTACT GH75-08168A
QBA00 ASSY-COVER-BATTERY GH98-01110A
QBA01 INNER BATTERY PACK-800MAH,BLK, GH43-01850A
QCA01 UNIT-CAMERA GH59-02696A
QCR05 SCREW-MACHINE 6001-001478
QCR12 SCREW-MACHINE 6001-001530
QCW01 PMO-COVER CAMERA WINDOW GH72-27823A
QFB02 MEC-FLASH BRACKET GH75-08830A
QFB05 MEC-BRACKET SIM GH75-08832A
QFU01 MEC-FOLDER UPPER GH75-08827A
QKP01 MEC-KEYPAD MAIN(SER/WS) GH75-09168A
QLC01 MEA-LCD MODULE KIT GH97-05621A
QME01 UNIT-METAL DOME GH59-02688A
QME03 UNIT-CON TO CON ASS'Y GH59-02705A
QMI01 MICROPHONE-ASSY-5.25MM GH30-00177C
QMI03 RMO-MIC HOLDER GH73-06697A
QMO01 MOTOR DC-SGHZ130 GH31-00155G
QMP01 PBA MAIN-SGHE870 GH92-02475A
QMW01 MEC-COVER MAIN WINDOW GH75-08833A
QRE01 MEC-COVER REAR GH75-08831A
QRF01 MPR-RF SHEET GH74-19987A
QSC01 RMO-FOLDER SCREW COVER GH73-05771A
QSC14 MPR-TAPE FRONT HOLE GH74-19983A
QSP01 SPEAKER 3001-001864
QWD04 PMO-COVER DUAL WINDOW GH72-27822A
QFL01 MEC-FOLDER LOWER GH75-08828A
QHI01 MEC-HINGE GH75-09605A
QFR01 MEC-COVER FRONT GH75-08829A
QCH05 PMO-T FLASH COVER GH72-26489A
QCK01 MEC-CAMERA KEY GH75-08835A
QRF03 PMO-EAR COVER GH72-26490A
QVO01 MEC-VOLUME KEY GH75-08836A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-DATA LINK CABLE GH39-00444B
ADAPTOR-SGHD800 TA(EU) GH44-01060B
S/W CD-SAMSUNG PC STUDIO GH46-00225A
UNIT-EARPHONE GH59-02499B
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL-WARRANTY CARD GH68-02623A
MANUAL-SFC GH68-04336A
LABEL(P)-BARCODE RUSSIA GH68-08494A
LABEL(R)-MAIN (SER) GH68-09068B
MANUAL USERS-EU RUSSIAN GH68-09119A
CUSHION-CASE TA2 MA2 GH69-03580A
BOX(P)-UNIT MAIN (SER) GH69-03583B
RMO-SUB LCD RUBBER A GH73-06699A
RMO-SUB LCD RUBBER B GH73-06700A
RMO-LCD CENTER RUBBER GH73-06701A
RMO-SPEAK RUBBER GH73-06707A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-BOHO VINYL DUAL WIN GH74-17800A
MPR-BOHO VINYL DUAL WIN GH74-17800A
MPR-CUSHION DUAL GH74-19870A
MPR-LCD FPCB GASKET GH74-19873A
MPR-PCB GASKET GH74-19988A
MPR-TAPE EL CON GH74-19989A
MPR-TAPE CAM GASKET LCD GH74-20636A
MPR-VINYL BOHO UPPER OUT GH74-21780A
MPR-VINYL BOHO MAIN WINDOW GH74-21781A
MPR-TAPE EL SHEET LABEL A GH74-21835A
MPR-TAPE EL SHEET LABEL B GH74-21836A
MPR-TAPE HOLE IC GH74-21837A
MPR-TAPE MIC FPCB GH74-21838A
MPR-SPEAK CENTER GASKET GH74-21840A
MPR-TAPE SPEAK WIRE MASKING GH74-21841A
MPR-VINYL BOHO REAR GH74-23610A
MEC-HANGER ROPE GH75-00223T

SAMSUNG Proprietary-Contents may change without notice
6. Disassembly and Assembly instructions
6-1
This Document can not be used without Samsung's authorization
6-1. Assembly
1. Insert LCD F-PCB at FOLDER LOWER.
2.SafearrivalinturnCAMERA/FLASHBRACKET.
3. Attach in turn SPEAK CENTER GASKET or LCD
FPCB GASKET at LCD(SUB LCD).
caution
1. When safe arrival the FLASH BRACKET,
Take care.
2. Perfectly safe arrival CAMERA or FLASH
BRACKET.
1.SafearrivalinturnMOTOR/SPEAK.
2. Attach an insulate TAPE at SPEAK BONDING
left portion.
caution
1.ArrivesafeMOTORWIREaftertwistfourorfive
times.
2. Arrange the wire, Do not jump out.
1.Assemble FOLDER UPPER.
caution
1. Do not damage , when combinate the FOLDER
UPPER.
1. SCREW the LOWER . (2 POINT)
2. Insert to the SCREW CAP.
caution
1. Check SCREW CAP condition.
2.PressSCREWCAPbycottonbud,todonottake
off assembly.



 
 
 
   









 
 

