Samsung SGH-E890 User manual

GSM TELEPHONE
SGH-E890
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View/Disassembly
and Assembly Instructions
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

Samsung Electronics Co.,Ltd.
2006. 12. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

CONTENTS
1. Safety Precautions
1-1. Repair Precaution......................................................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution...............................................1-2
2. Specification
2-1. GSM General Specification.......................................................................................2-1
2-2. GSM Tx Power Class...............................................................................................2-2
3. Product Function
4. Array course control
4-1. Software Adjustments................................................................................................4-1
4-2. Software Downloading...............................................................................................4-2
5. Exploded View/Disassembly & Assembly Instructions
5-1. Cellular phone Exploded View...................................................................................5-1
5-2. Cellular phone Part list...............................................................................................5-2
5-3. Disassembly & Assembly Instructions........................................................................5-4
6. MAIN Electrical Parts List
7. Block Diagrams
7-1. RF Solution Block Diagrams.....................................................................................7-1
7-2. Base Band Block Diagrams......................................................................................7-3
8. PCB Diagrams

CONTENTS
9. Flow Chart of Troubleshooting
9-1. Power On...................................................................................................................9-1
9-2. Initial ..........................................................................................................................9-4
9-3. Charging Part.............................................................................................................9-7
9-4. Sim Part.....................................................................................................................9-8
9-5. Microphone Part .....................................................................................................9-10
9-6. Speaker Part(MP3/Spk)...........................................................................................9-12
9-7. Key Data Input........................................................................................................9-14
9-8. Receiver Part...........................................................................................................9-15
9-9. LCD Part..................................................................................................................9-16
9-10. Camera Part...........................................................................................................9-18
9-11. Trans Flash Card Part..........................................................................................9-20
9-12. TV OUT..................................................................................................................9-22
9-13. Bluetooth Part........................................................................................................9-23
9-14. Main Key LED Part...............................................................................................9-25
9-15. GSM900 Receiver..................................................................................................9-26
9-16. GSM900 Transmitter..............................................................................................9-27
9-17. DCS Receiver........................................................................................................9-28
9-18. DCS/PCS Transmitter............................................................................................9-29
9-19. PCS Receiver.........................................................................................................9-30
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of magnetic force.
―Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
―Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected
completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
PCS1900
1850~1910
1930~1990
512~810
80MHz
270.833kbps
3.692us
576.9us
4.615ms
0.3GMSK
30dBm~0dBm
0pcl ~ 15pcl
-100dBm
8
-
GSM900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
ARFCN range 1~124 0~124 &
975~1023 512~885
Tx/Rx spacing 45MHz 45MHz 95MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm
TDMA Mux 8 8 8
Cell Radius 35Km 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level
PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM900
5 33±3 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3.  
3-1
This Document can not be used without Samsung's authorization
 
―  
―    
―   
― 
―  
―   
―
― 
―  
―

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

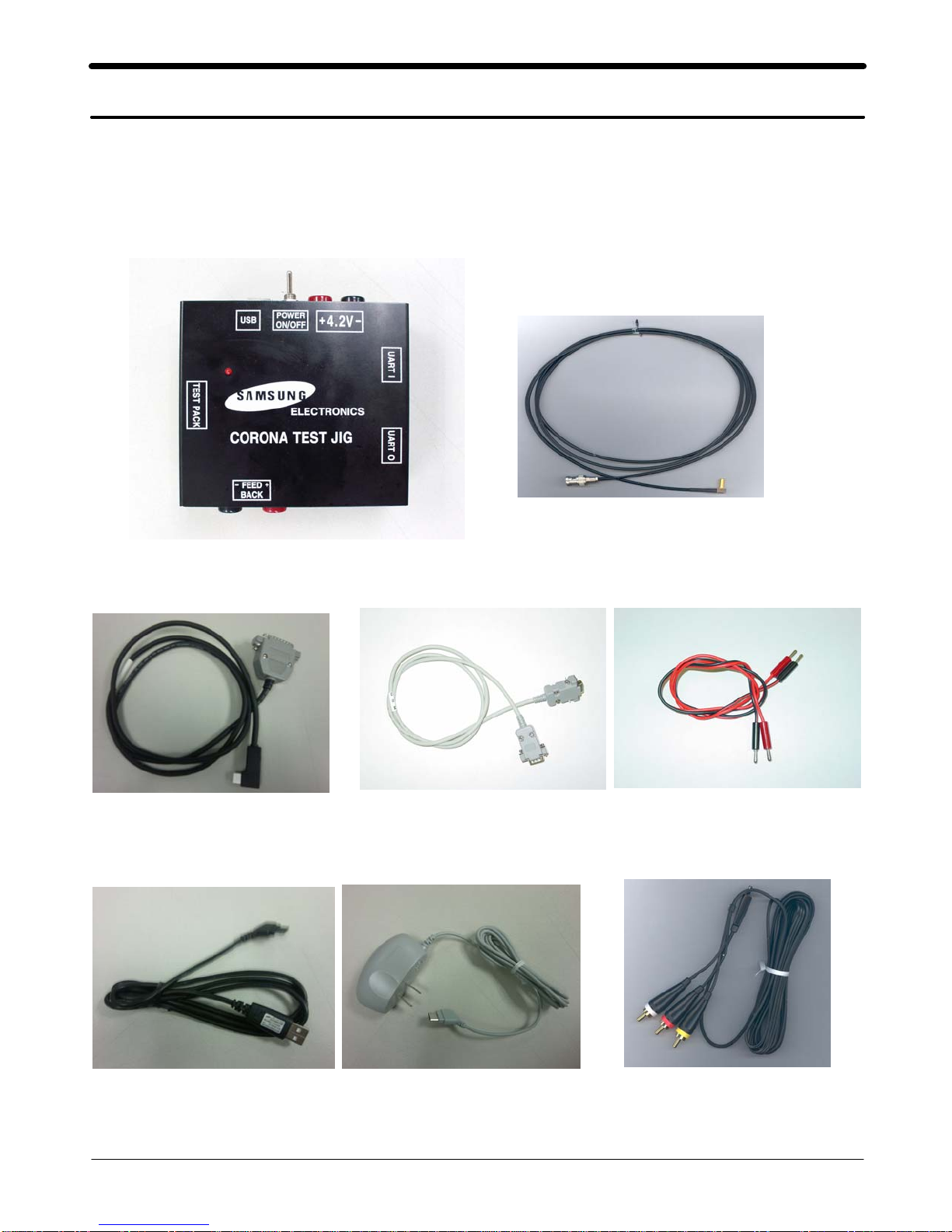

4-1. Software Adjustments
RF Test Cable
(GH39-00283A)
Test Jig (GH80-03306A)
Power Supply Cable
Serial Cable
Test Cable
(GH39-00499B)
TA
(GH44-01116B) TV-OUT Cable
(GH39-00410A)
DATA CABLE
(GH39-00482B]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(OneNAND_Downloder_1.8.exe)
• E890 Mobile Phone
• Data Cable
• Binary file, TFS file

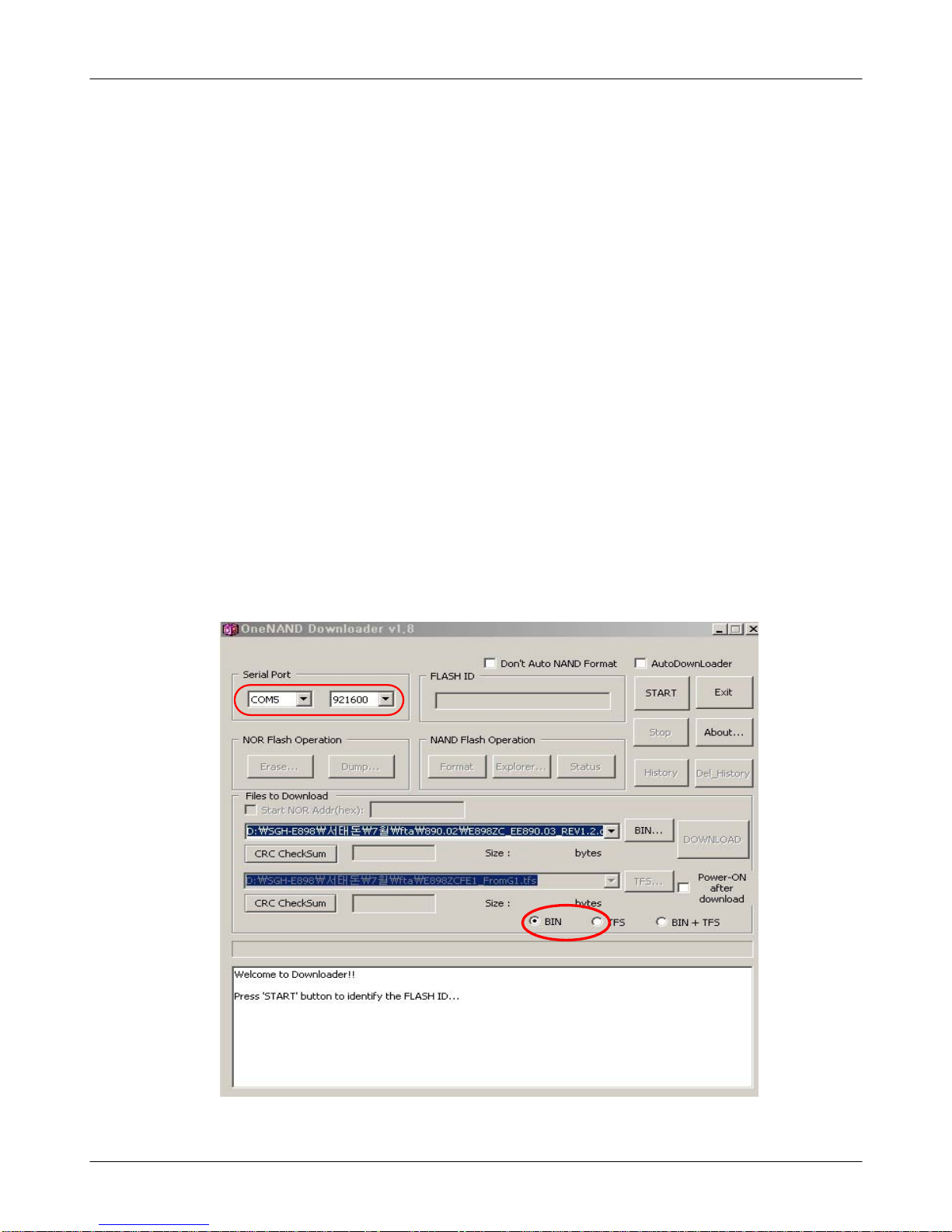

4-2-2. S/W Downloader Program
■Load the binary download programby executing the
“OneNAND_Downloder_1.8.exe”
1. Select the connected serial port andthe rate of speed
2. Select the check box, the mode you want to download.
―if the binary file wanted, check only 'BIN'
―if the tfs file wanted, check only 'TFS'
―if all the files wanted, check 'BIN+TFS'
1
2

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
3. Select the file(s) what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View/Disassembly&Assembly Instructions
5-1
        

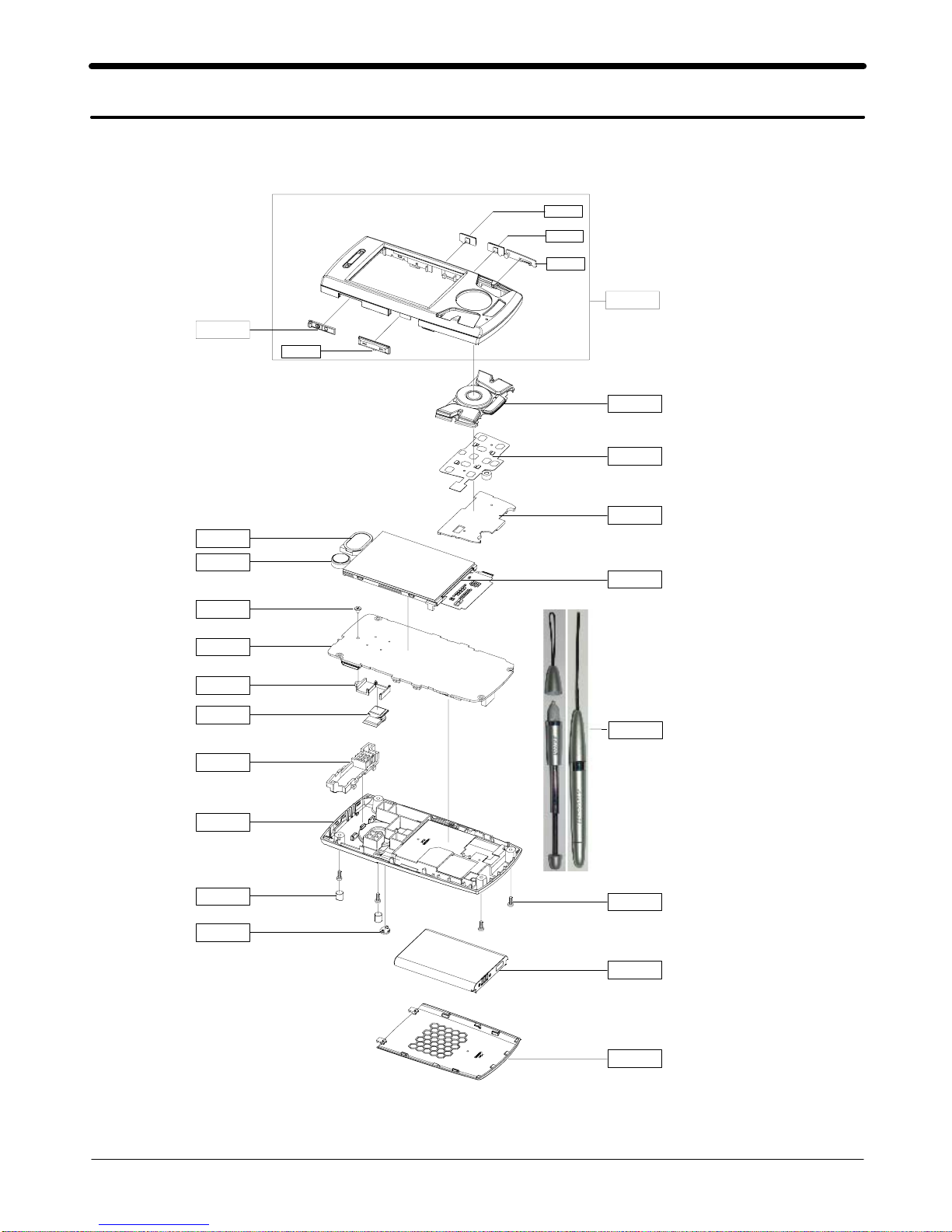

5-1. Cellular phone Exploded View
QFR01
QCK01
QRF03
QVO01
QSP01
QMO01
QCR05
QMP01
QCA06
QCA01
QAN02
QRE01
QRF01
QSC01
QCK02
QSD01
QKP01
QLC01
QST01
QME01
QBR01
QCR04
QBA01
QBA00

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-2
        
5-2. Cellular phone Parts list
Design LOC Description Sec Code
QAN02 INTENNA-SGHE898 GH42-00955A
QBA00 PMO-COVER BATT GH72-33166A
QBA01 INNER BATTERY PACK-880MAH,BLK, GH43-02323A
QBR01 NDC-BRAKET DOMESHEET GH71-06759A
QCA01 UNIT-CAMERA GH59-03358A
QCA06 NDC-BRAKET CAMERA GH71-06760A
QCR04 SCREW-MACHINE 6001-001479
QCR05 SCREW-MACHINE 6001-001478
QKP01 ASSY KEYPAD-(TIY/SIL) GH98-01807A
QLC01 LCD-SGH-E898 GH07-00969A
QME01 UNIT-MAIN KEY FPCB GH59-03373A
QMO01 MOTOR DC-SGHE898 GH31-00273A
QMP01 PBA MAIN-SGHE890S GH92-03152A
QRE01 ASSY CASE-REAR GH98-01806A
QRF01 PMO-COVER RF GH72-32726A
QRF03 PMO-COVER EAR JACK GH72-32714A
QSC01 RMO-COVER SCREW GH73-07720A
QSP01 SPEAKER 3001-002028
QST01 ASSY ACCE-STYLUS PEN(SIL_SAM) GH98-02835F
QFR01 ASSY CASE-FRONT GH98-02838A
QCK01 PMO-CAMERA KEY GH72-33664A
QCK02 PMO-HOLD KEY GH72-33666A
QSD01 PMO-COVER SD GH72-32715A
QVO01 PMO-VOLUME KEY GH72-33665A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-3
        
Description Sec Code
BAG PE 6902-000634
ADAPTOR-SGHE690,SIL,EU,A_TYPE GH44-01361B
UNIT-EARPHONE GH59-02499B
LABEL(P)-IMEI GH68-01335D
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
MANUAL USERS-SEA ENGLISH GH68-12558A
LABEL(R)-MAIN(EU) GH68-12864A
CUSHION-CASE(EU) GH69-04624A
BOX-UNIT(SEA) GH69-04625A
RMO-CUSHION ANTENNA PIN GH73-07718A
MPR-CUSHION PBA FRONT GH74-25664A
MPR-TAPE DOME SHEET ESD GH74-25682A
MPR-TAPE PBA FRONT GH74-25684A
MPR-TAPE PBA BACK GH74-25685A
MPR-TAPE PBA SIM GH74-26193A
MPR-TAPE PBA LCD GH74-26194A
MPR-VINYL BOHO FRONT GH74-27684A
MPR-VINYL BOHO FRONT GH74-27684A
MPR-TAPE GH74-27758A
MPR-TAPE GH74-27758A
MPR-VINYL BOHO LCD GH74-28057A
MPR-TAPE GH74-28229A

SAMSUNG Proprietary-Contents may change without notice

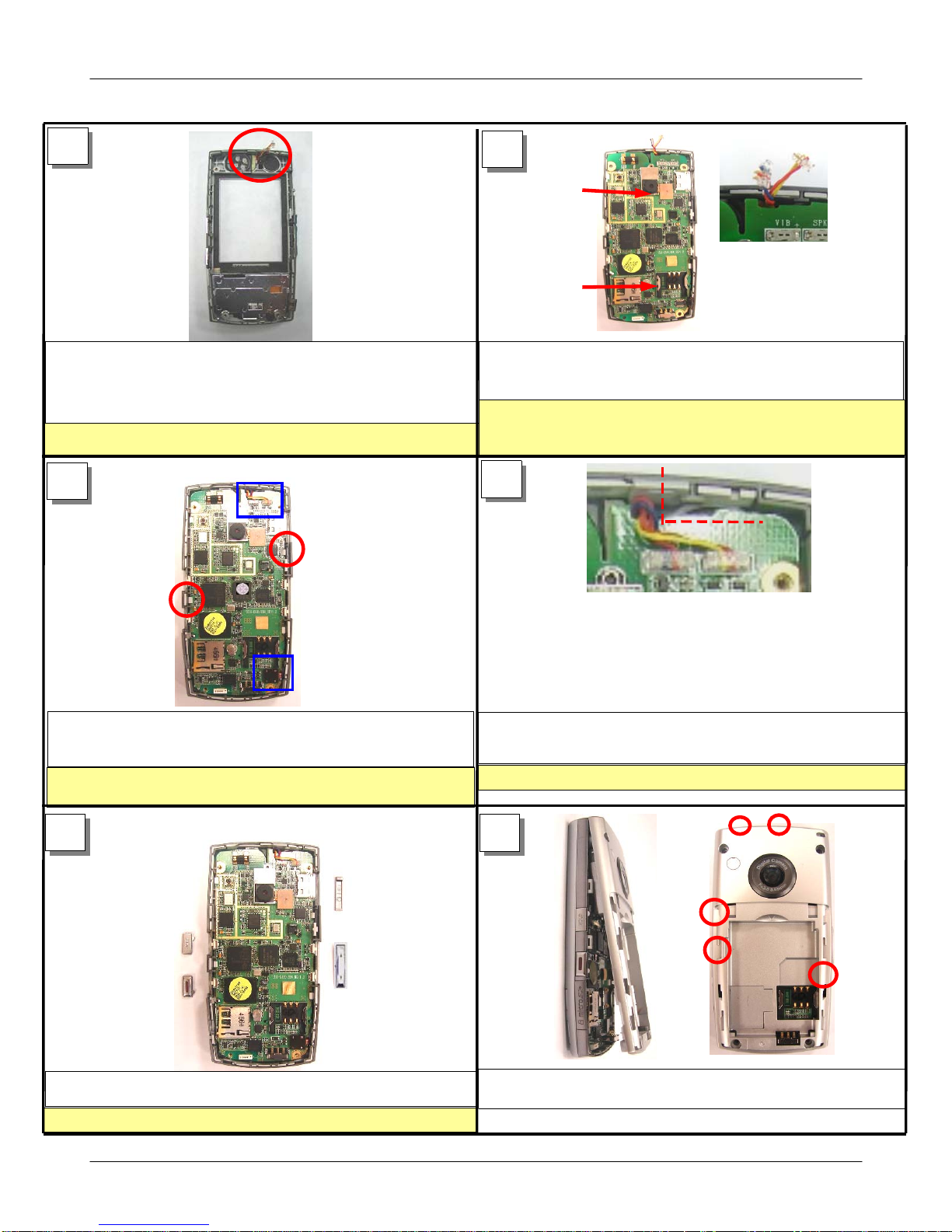

Exploded View/Disassembly&Assembly Instructions
5-4
        
1
4
3
2
 
  
        
         
  
         
         
         

           
       
        
           
 
      
           
   
        
5-3. Disassembly and Assembly Instructions
Disassembly

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-5
        
          
 
          
         
 
       
1
6
4
3
2
5
         
 
       
          
 
     
       
      
         
         
          
      
      
         
              
     
Assembly

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-6
        
       
  
         
  
      
  
      
        
     
        

12
56
    
 
      
   
          
  
        
 
         

     
       
      
  
         
 
        
       
    
3 4

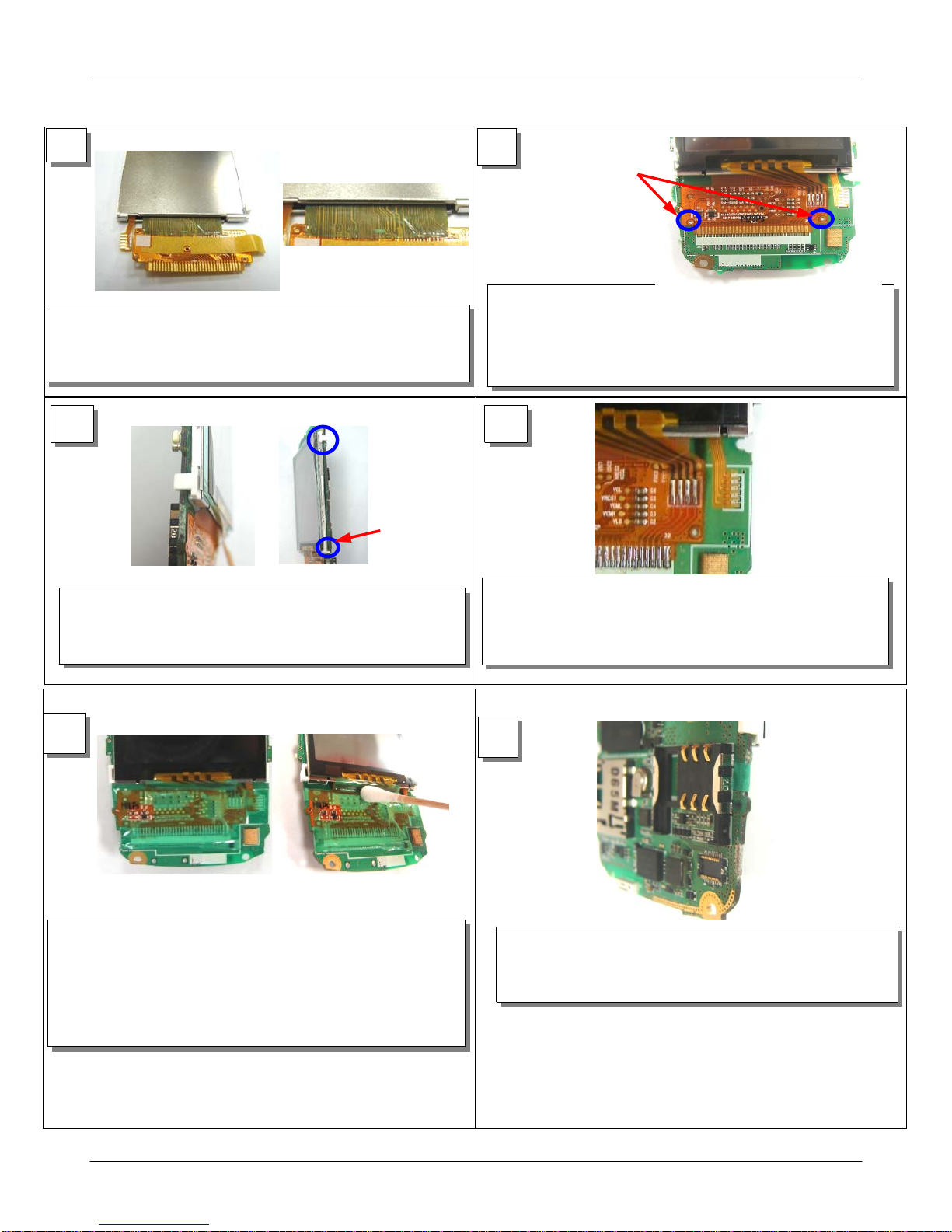

LCD F-PCB KIT Assembly
