Samsung SGH-i400 User manual

GSM TELEPHONE
SGH-i400
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/WCDMA General Specification
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK
MSPower 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5 pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl
Sensitivity -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 2 Km -

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9± 3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
Camera
Music player
RealPlayer
Gallery
Flash lite player
Voice mail, Instant Messageing
Bluetooth

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

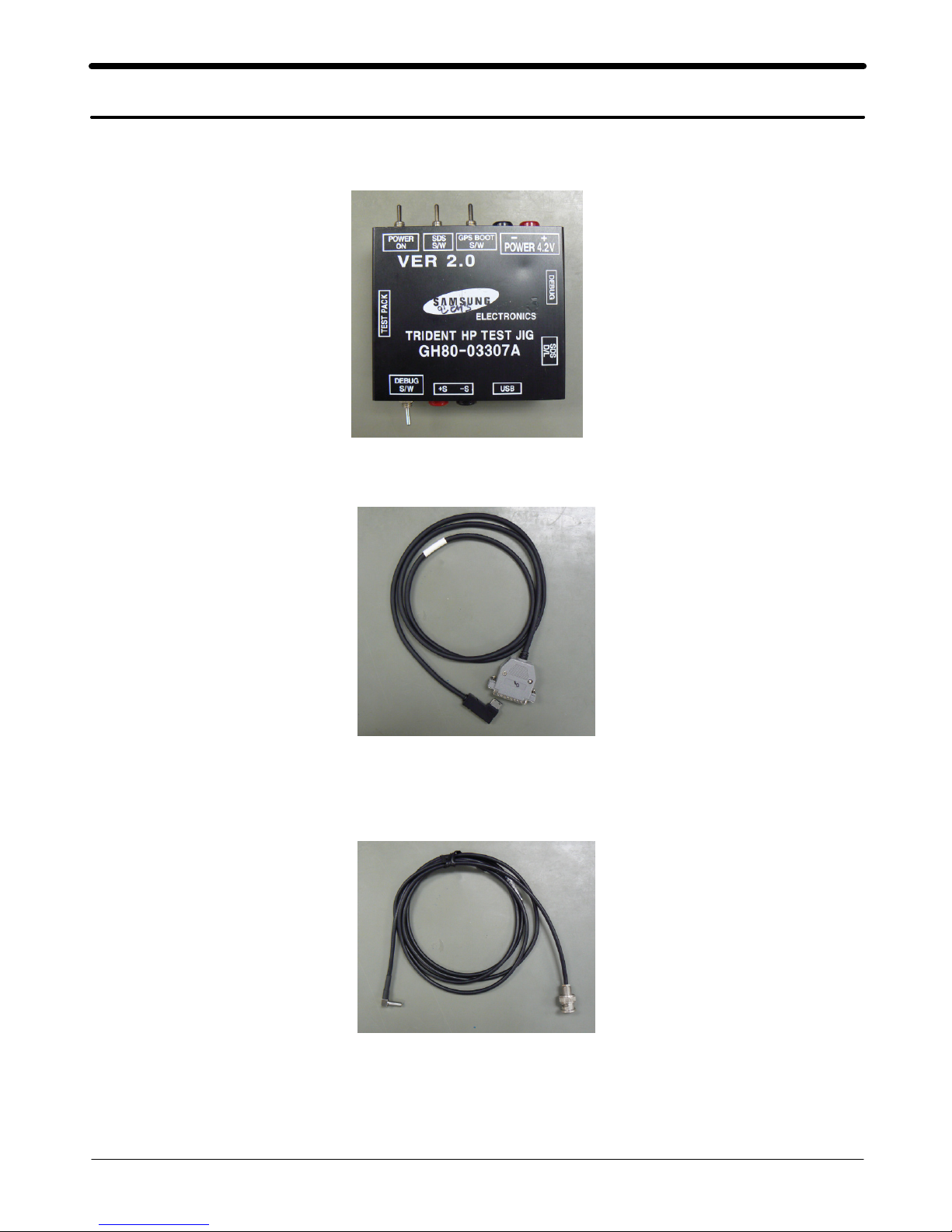

GH39-03307A
GH39-00894A
GH39-00599A

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•binary file for downloading i400.
–i400XEXXX.BIN :AP Image.
–i400XEXXX.s3 :CP Image.
4-2. Pre-requsite for Downloading
•Downloader Program(ApolloPlus)
•i400 Mobile Phone
•Data Cable
•Binary file

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

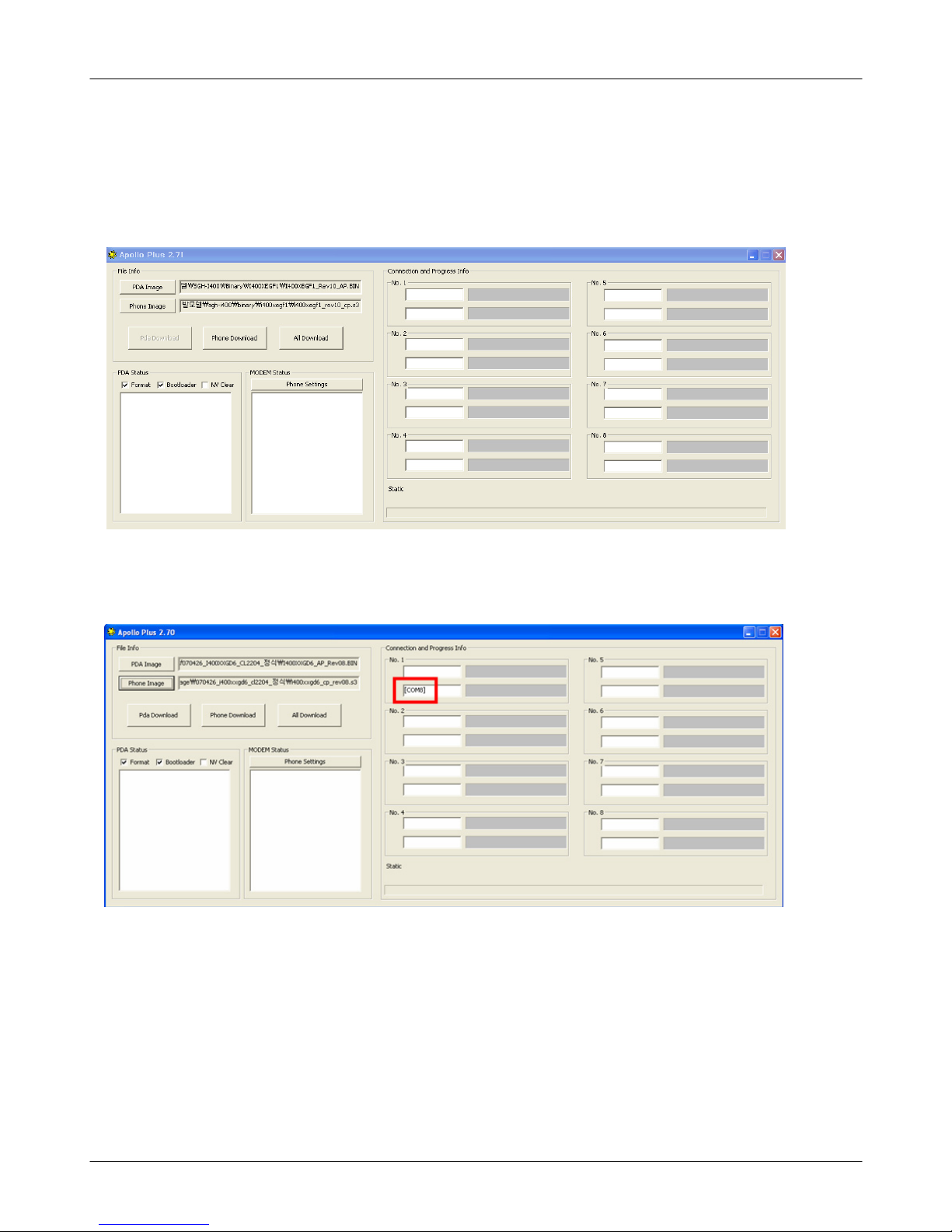

4-3. S/W Downloader Program
1. Load the binary download program by executing the “ApolloPlus”
2. Push the simultaneously "5" & "8" when Handset power on.
Confirm the No."COM Port"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

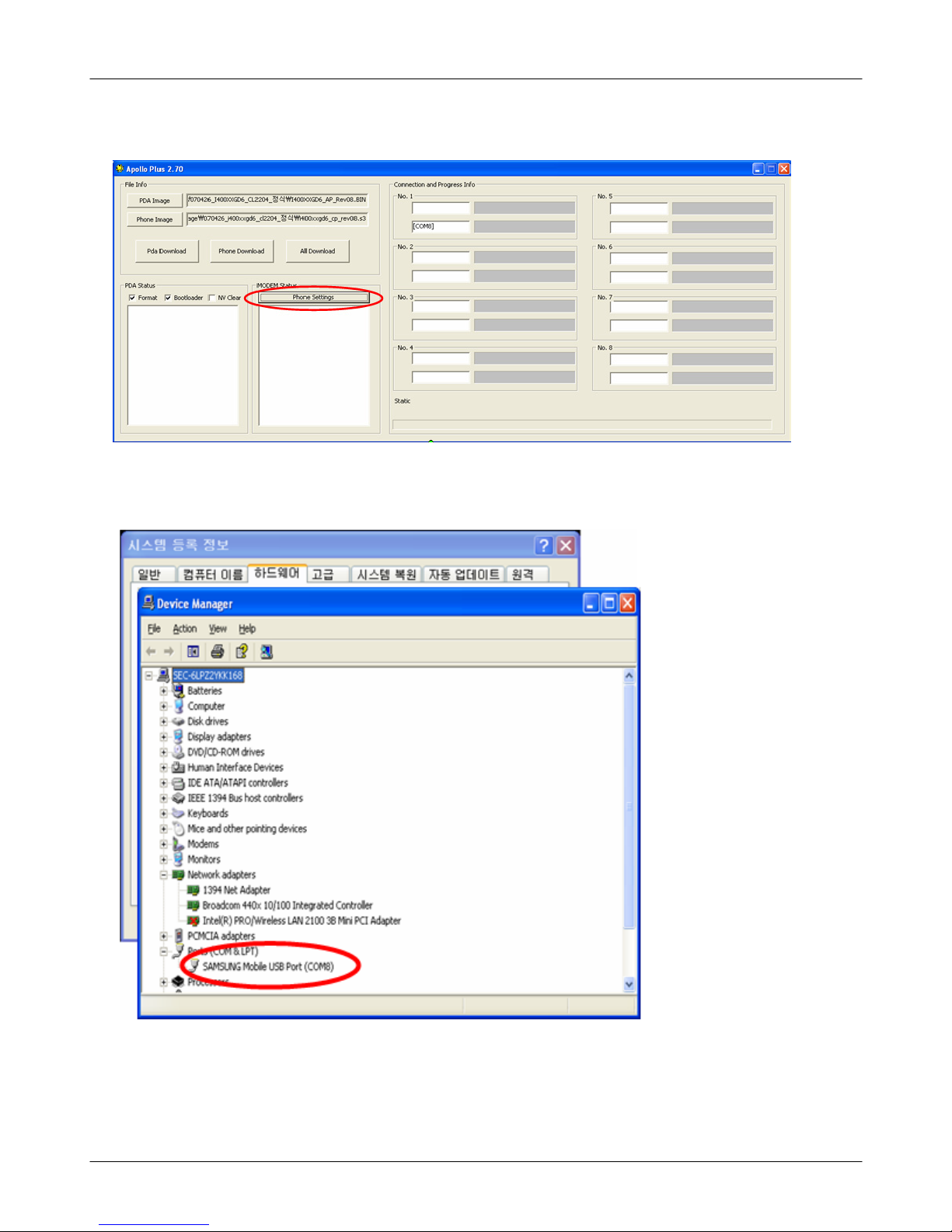

3. Select Phone Settings.
4. Confirm "COM Port"
Push the "Device Manager" and Confirm "Com Port No."

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

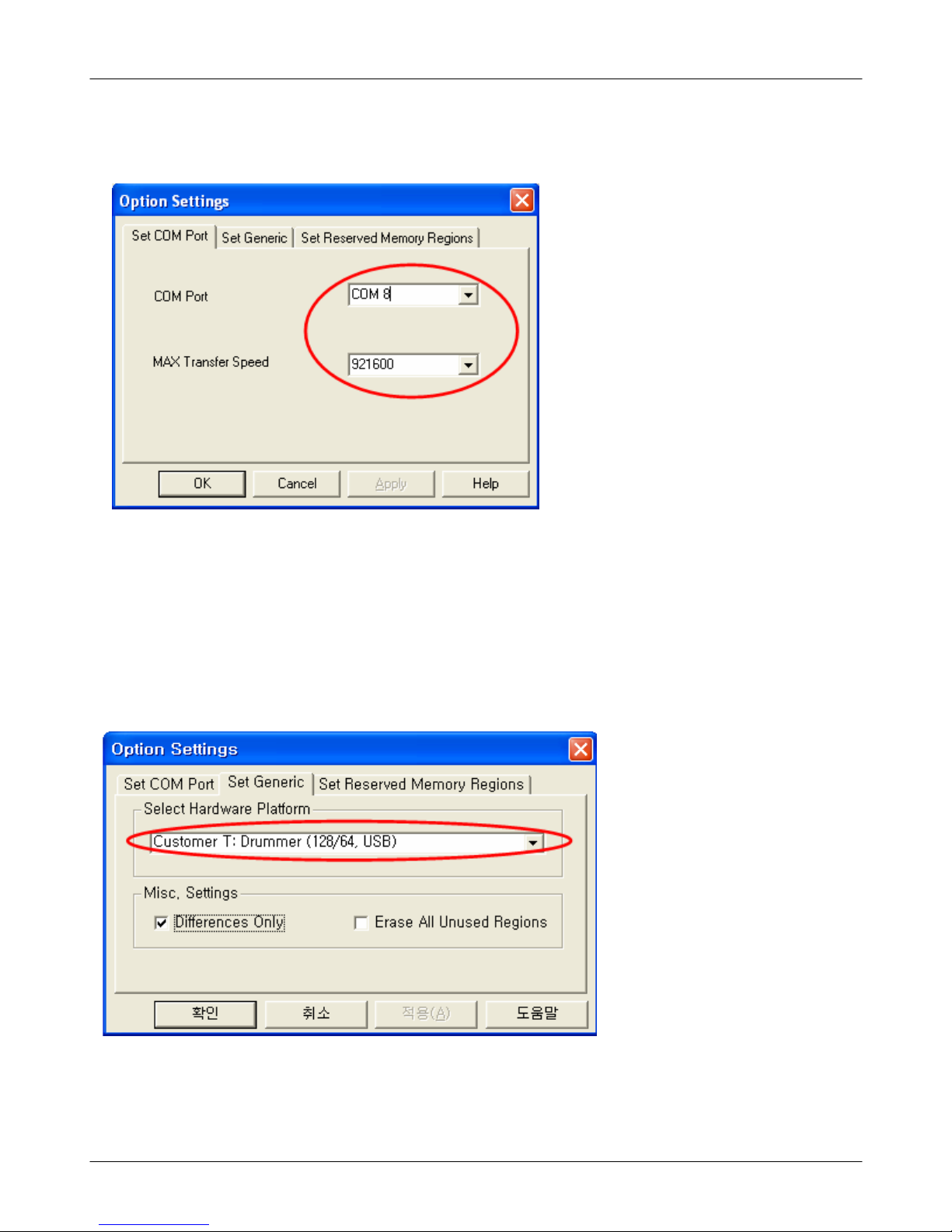

5. Push the "Set COM Port".
Select "COM Port No" as you confirm COM Port Number in Device Manager.
6. Push the "Set Generic" tab.
Select the "Customer T: Drummer(128/64,USB)
You can select the maximum transfer speed.ApolloPlus will use to
communicate with the phone. However, ApolloPlus will use aslower
speed if either the PC’s or the phone’s serial hardware is incapable
of handling the selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

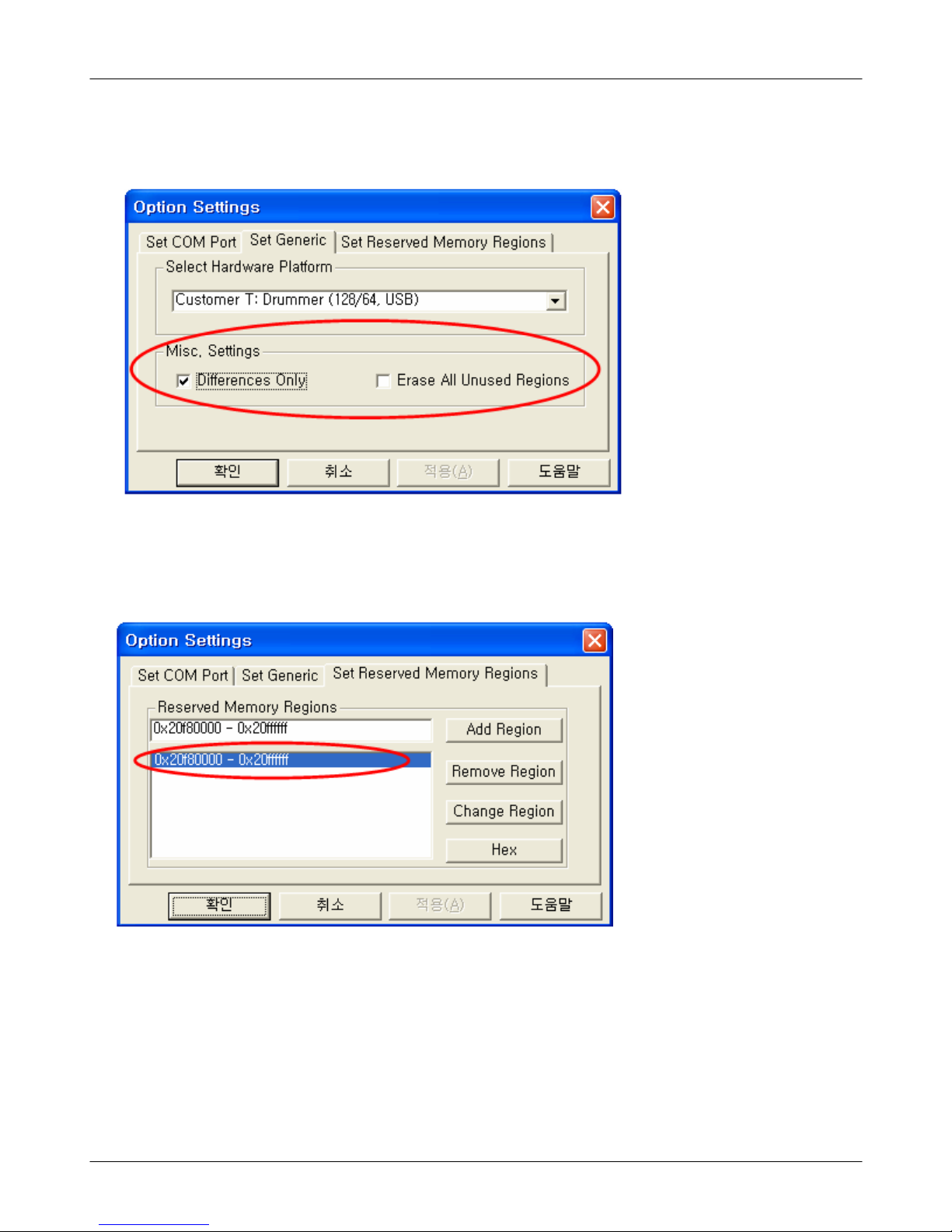

7. Comfirm "Option Settings"
Select "Differences Only" or "Erase All Unused Regions"
8. Make sure the reserved Memory Regions.
0x20f80000 –0x20ffffff

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

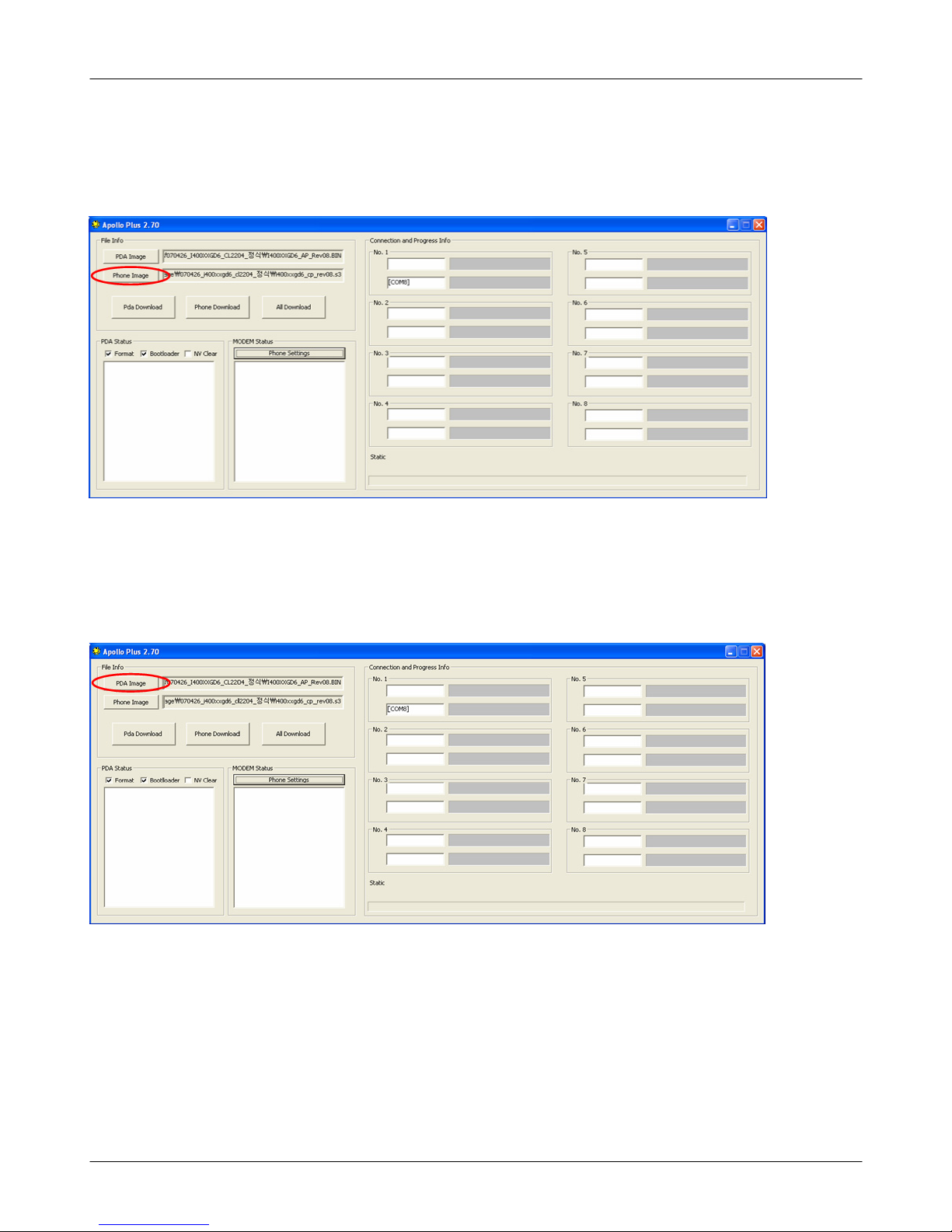

9. Select the “Phone Image”
Set the directory path and choose the latest s/w binary, for example
“i400XXXX.s3”, for the downloader binary setting.
10. Select the “PDA Image”
Set the directory path and choose the latest s/w binary, for example
“i400XXXX.BIN”, for the downloader binary setting.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization

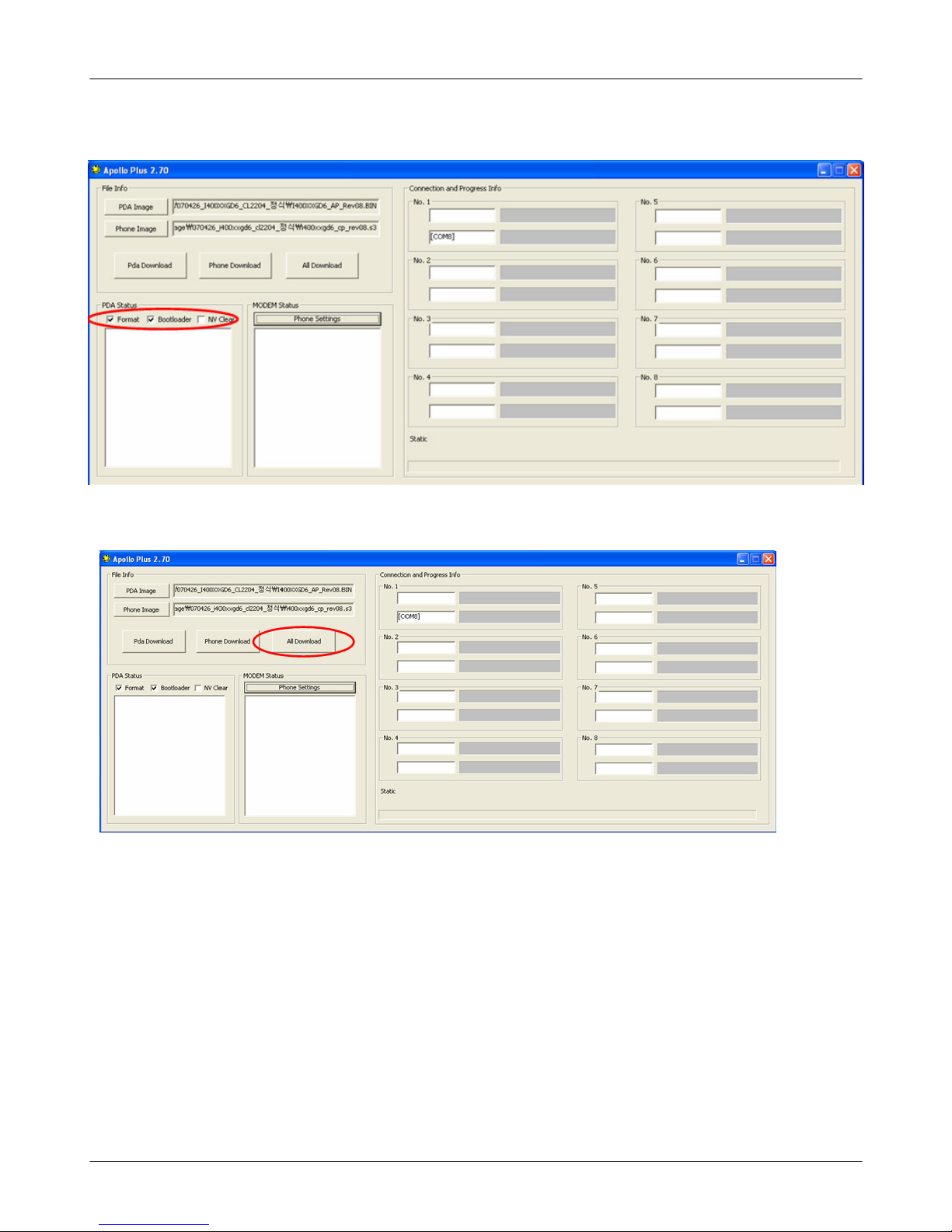

11. Select the "Format" &"
Bootloader"
12. Select the "All Download"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization

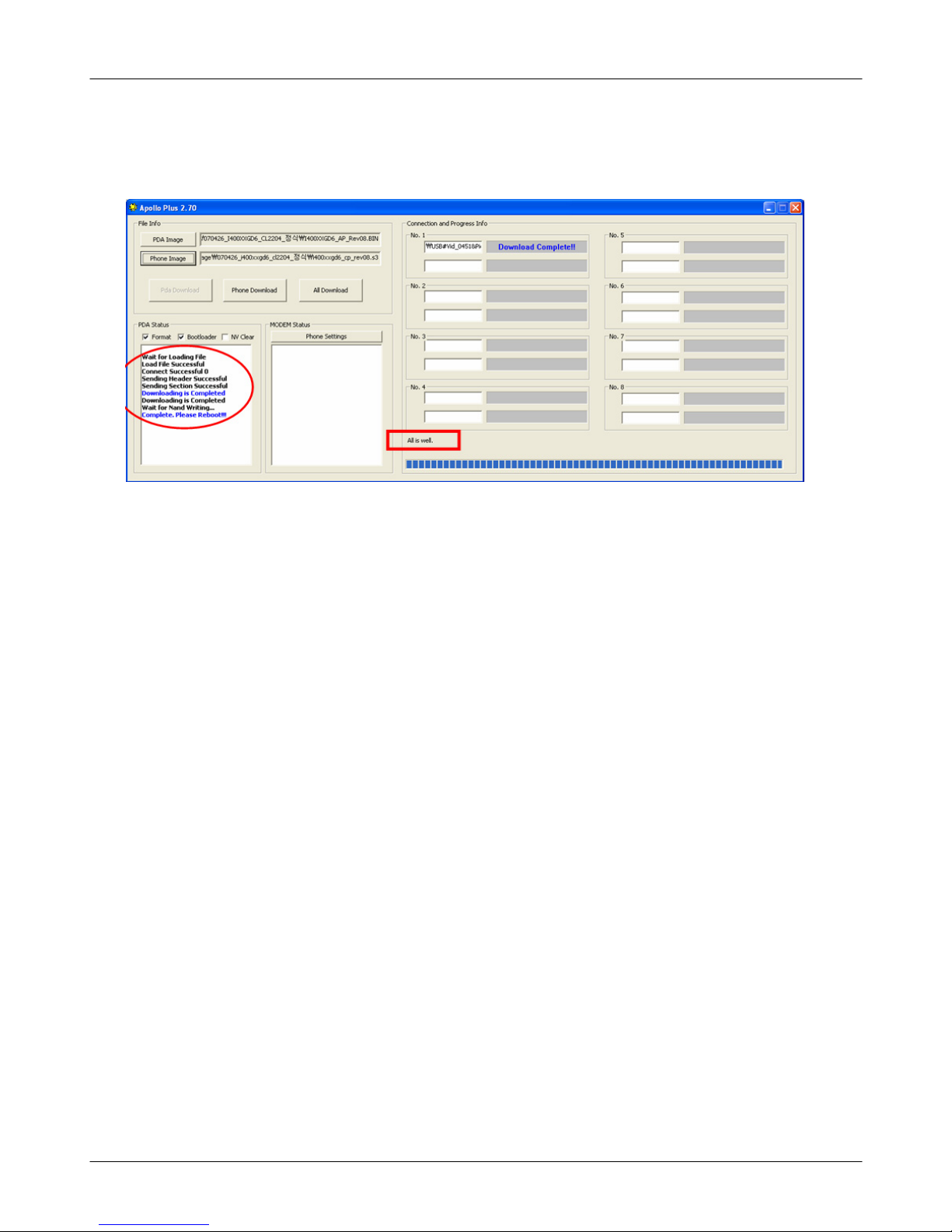

13.The completion of S/W Download
When downloading is finished successfully, there is a“ All is well”message.
8. Confirm the downloaded version name and etc. :
*#1234#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

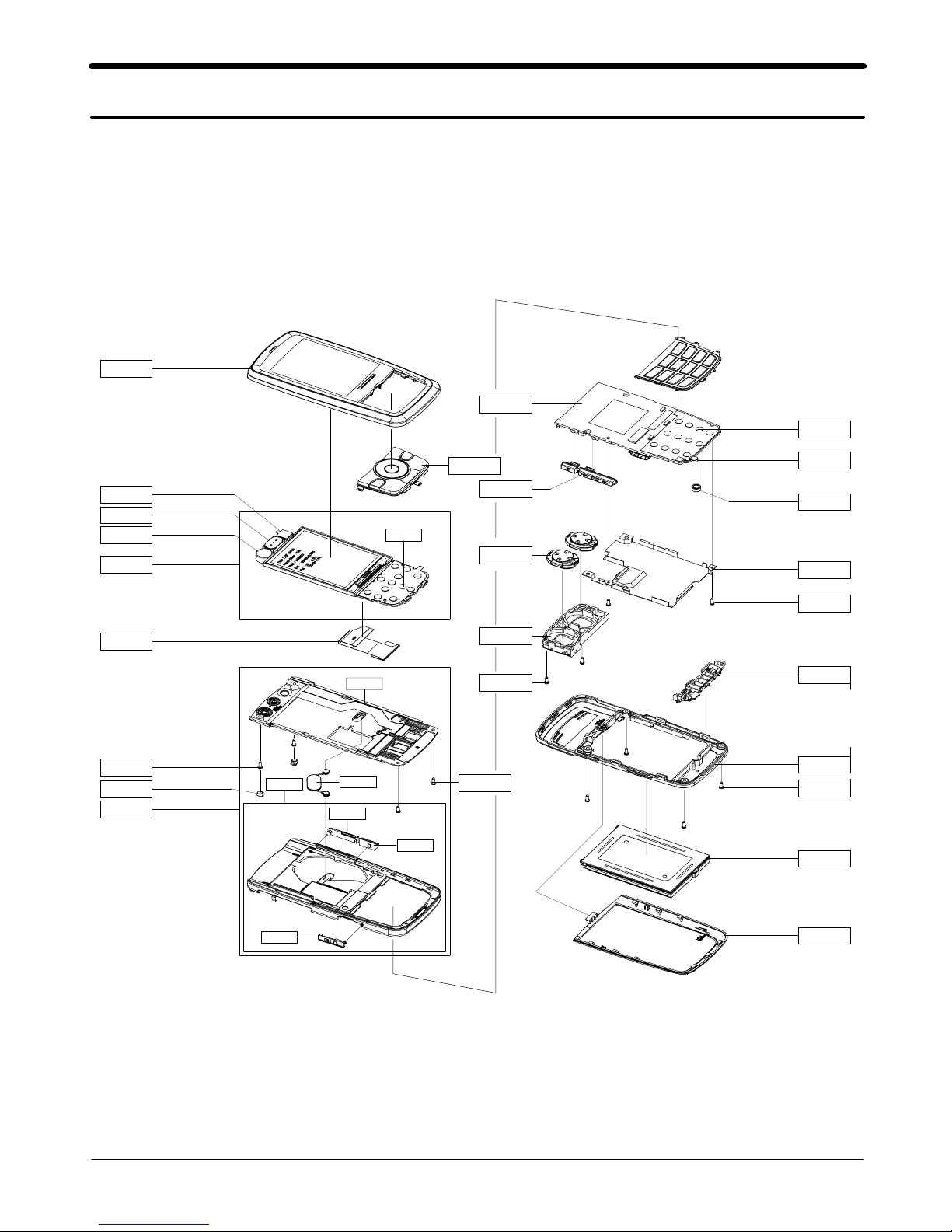

5-1. Cellular phone Exploded View
QLC01
QMI01
QCA01
QAR01
QMO01
QPC01
QSC01
QCR05
QFL01
QFU01
QSP01
QAN03
QCR05
QVO01
QMP01
QRF01
QSH01
QCR17
QAN02
QRE01
QCR06
QBA01
QBA00
QME01
QKP02
QCR17
GHI01
QCK01
QSD01
QIF01
QFL02
QME02
QFR01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHI400 GH42-01269A
QAN03 INTENNA-SGHI400,BT GH42-01280A
QAR01 AUDIO-RECEIVER 3009-001273
QBA00 PMO-CASE BATTERY GH72-39402C
QBA01 BATTERY-950MAH,BLK,ENG,M GH43-02901A
QCA01 CAMERA MODULE GH59-04541A
QCK01 PMO KEY-CAMERA V3 GH72-42382C
QCR05 SCREW-MACHINE 6001-001478
QCR05 SCREW-MACHINE 6001-001478
QCR06 SCREW-MACHINE 6001-001155
QCR17 SCREW-MACHINE 6001-001460
QCR17 SCREW-MACHINE 6001-001460
QFL01 ASSY CASE-HINGE S/L F/C(SER) GH98-05512B
QFL02 ASSY CASE-SLIDE LOWER GH98-04530C
QFR01 ASSY CASE-FRONT(SER) GH98-05511B
QFU01 ASSY CASE-SLIDE UPPER GH98-04528C
QHI01 ASSY HINGE-LINK HINGE GH98-03994A
QIF01 PMO COVER-EAR IF V2 GH72-42376C
QKP02 ASSY KEYPAD-SUB(XEF/ZR) GH98-04535A
QLC01 ELA UNIT-SGHI400 LCD MODULE GH96-02535A
QME01 DOME SHEET-3X4 KEY DOME SHEET, GH59-04530A
QME02 DOME SHEET-NAVI KEY DOME SHEET GH59-04531A
QMI01 MICROPHONE-ASSY-SGHI400 GH30-00392A
QMO01 MOTOR DC-SGHI400 GH31-00349A
QMP01 PBA MAIN-SGHI400 GH92-03452A
QPC01 MEA-SLIDE FPCB KIT GH97-08116A
QRE01 ASSY CASE-REAR GH98-04532C
QRF01 RMO COVER-RF GH73-11035A
QSC01 RMO COVER-SCREW CAP GH73-11047C
QSD01 PMO COVER-MICRO SD GH72-42380C
QSH01 ASSY COVER-SHIELD CAN GH98-06206A
QSP01 SPEAKER 3001-002180
QVO01 ASSY KEY-VOLUME GH98-06207C
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Description SEC CODE
ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A
LABEL(R)-WATER SOAK GH68-09361A
IPR BRACKET-LID GH70-02616A
TAPE GASK GH74-29623A
TAPE INSU-MIC FPCB GH74-34204A
TAPE INSU-PBA GH74-34205A
TAPE GH74-34206A
TAPE GASK GH74-34207A
TAPE GASK-ESD FRONT GH74-34569A
MPR-INSU TAPE GH74-11961A
TAPE INSU-LCD GH74-34197A
TAPE GASK-LCD GH74-34570A
TAPE-LIGHT LCD GH74-34571A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-TAPE LED GH74-17926A
TAPE INSU GH74-32729A
TAPE GH74-35048A
TAPE-LCD BACK LIGHT GH74-34772A
VINYL-BOHO MAIN KEY GH74-35325A
VINYL-BOHO SUB KEY GH74-35324A
TAPE INSU GH74-32729A
TAPE GH74-35048A
BAG PE 6902-000634
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(R)-MAIN EU GH68-15593A
BOX(P)-UNIT MAIN EU GH69-05733A
CUSHION-CASE TA2 MA2 GH69-05734A
S/W CD-MS COMPANION,I400 GH46-00457A
MANUAL USERS-QRG RUSSIAN GH68-15110A
MANUAL USERS-QRG ENGLISH GH68-15111A
CBF INTERFACE-DLC APCBS10BBE(S GH39-00922A
VINYL-BOHO WINODW GH74-35903A
EARPHONE-B-TYPE GH59-04557A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0401-001141 D503 DIODE-SWITCHING SA
0403-001547 D500 DIODE-ZENER SA
0404-001172 D300 DIODE-SCHOTTKY SA
0406-001190 D506 DIODE-TVS SA
0406-001190 D507 DIODE-TVS SA
0406-001197 D602 DIODE-TVS SA
0406-001197 D603 DIODE-TVS SA
0406-001197 ZD602 DIODE-TVS SA
0406-001210 ZD603 DIODE-TVS SA
0406-001210 ZD604 DIODE-TVS SA
0407-000115 D509 DIODE-ARRAY SA
0407-001002 D501 DIODE-ARRAY SA
0407-001002 D502 DIODE-ARRAY SA
0407-001002 D508 DIODE-ARRAY SA
0407-001007 D400 DIODE-ARRAY SA
0504-001113 TR300 TR-DIGITAL SA
0504-001113 TR501 TR-DIGITAL SA
0505-001165 TR500 FET-SILICON SA
0601-002275 LED600 LED SA
0601-002275 LED601 LED SA
0801-003012 U403 IC-CMOS LOGIC SA
0801-003016 U301 IC-CMOS LOGIC SA
0801-003016 U400 IC-CMOS LOGIC SA
0801-003058 U405 IC-CMOS LOGIC SA
0904-002227 UCP700 IC-DSP SA
1001-001221 U202 IC-ANALOG SWITCH SA
1001-001336 U501 IC-ANALOG SWITCH SA
1001-001408 U605 IC-ANALOG SWITCH SA
1001-001408 U606 IC-ANALOG SWITCH SA
1009-001027 U200 IC-HALL EFFECT S/W SA
1108-000050 UCP700UP IC-MCP SA
1108-000122 UME200 IC-MCP SA
1201-002241 U604 IC-AUDIO AMP SA
1201-002457 PAM100 IC-POWER AMP SA
1203-002716 U402 IC-VOL. DETECTOR SA
1203-003432 U401 IC-POSI.FIXED REG. SA
1203-003523 U410 IC-POSI.FIXED REG. SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1203-003643 U409 IC-MULTI REG. SA
1203-003737 U602 IC-POSI.FIXED REG. SA
1203-003737 U603 IC-POSI.FIXED REG. SA
1203-003748 U407 IC-MULTI REG. SA
1203-004119 UCD300 IC-POWER SUPERVISOR SA
1203-004164 U300 IC-DC/DC CONVERTER SA
1203-004621 U406 IC-POWER SUPERVISOR SA
1203-004838 U404 IC-BATTERY SA
1205-002272 U201 IC-TRANSCEIVER SA
1205-003093 RFT101 IC-TRANSCEIVER SA
1205-003169 U101 IC-DATA COMM./GEN. SA
1404-001165 TH300 THERMISTOR-NTC SA
1405-001093 V500 VARISTOR SA
1405-001093 V501 VARISTOR SA
1405-001093 V502 VARISTOR SA
1405-001093 V503 VARISTOR SA
1405-001093 V504 VARISTOR SA
1405-001093 V505 VARISTOR SA
1405-001093 V506 VARISTOR SA
1405-001093 V507 VARISTOR SA
1405-001093 V508 VARISTOR SA
1405-001093 V509 VARISTOR SA
1405-001093 V510 VARISTOR SA
1405-001093 V511 VARISTOR SA
1405-001093 V512 VARISTOR SA
1405-001093 V513 VARISTOR SA
1405-001093 V514 VARISTOR SA
1405-001093 V515 VARISTOR SA
1405-001093 V516 VARISTOR SA
1405-001093 V517 VARISTOR SA
1405-001093 V518 VARISTOR SA
1405-001093 V600 VARISTOR SA
1405-001093 V601 VARISTOR SA
1405-001093 V606 VARISTOR SA
1405-001093 V607 VARISTOR SA
2007-000070 R403 R-CHIP SA
2007-000070 R404 R-CHIP SA
