Samsung GT-C3300K User manual

GSM TELEPHONE
GT-C3300K(C3303K Common)
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 06. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlin
k
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-1.3Mega Pixel (CMOS) Camera.
-3.5
pi Ear Jack, Micro USB connector
-Dual SPK
-EDGE /GPRS 850 / 900 / 1800 / 1900MHz
-QVGA 2.4 Inch 262K TFT Touch screen
-SMS/MMS/EMS (OMA v1.2 )
-FM Intenna Radio
-MP3/AMR/AAC/WMA
-MicroSD Card Support (up to 8GB)
-External Memory
-Bluetooth v2.1
-Internet Browsing

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. Software Download
6-1-1. Pre-requisite for Download
ㆍDownloader Program (Flash loader 7.4.4_SSG_v0.X)
ㆍGT-C3300K Mobile Phone
ㆍCORONA TEST JIG (GH80-03306A)
ㆍJIG BOX (GH99-36900A)
ㆍRF Test Cable (GH39-00985A)
ㆍJIG Cable (GH39-01290A)
ㆍAdapter (GH99-38251A)
ㆍBinary files
ㆍPower Supply

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Download Process
1. Load the binary download program by executing the"PNX4908 Downloader v0.XFor 3disk"

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

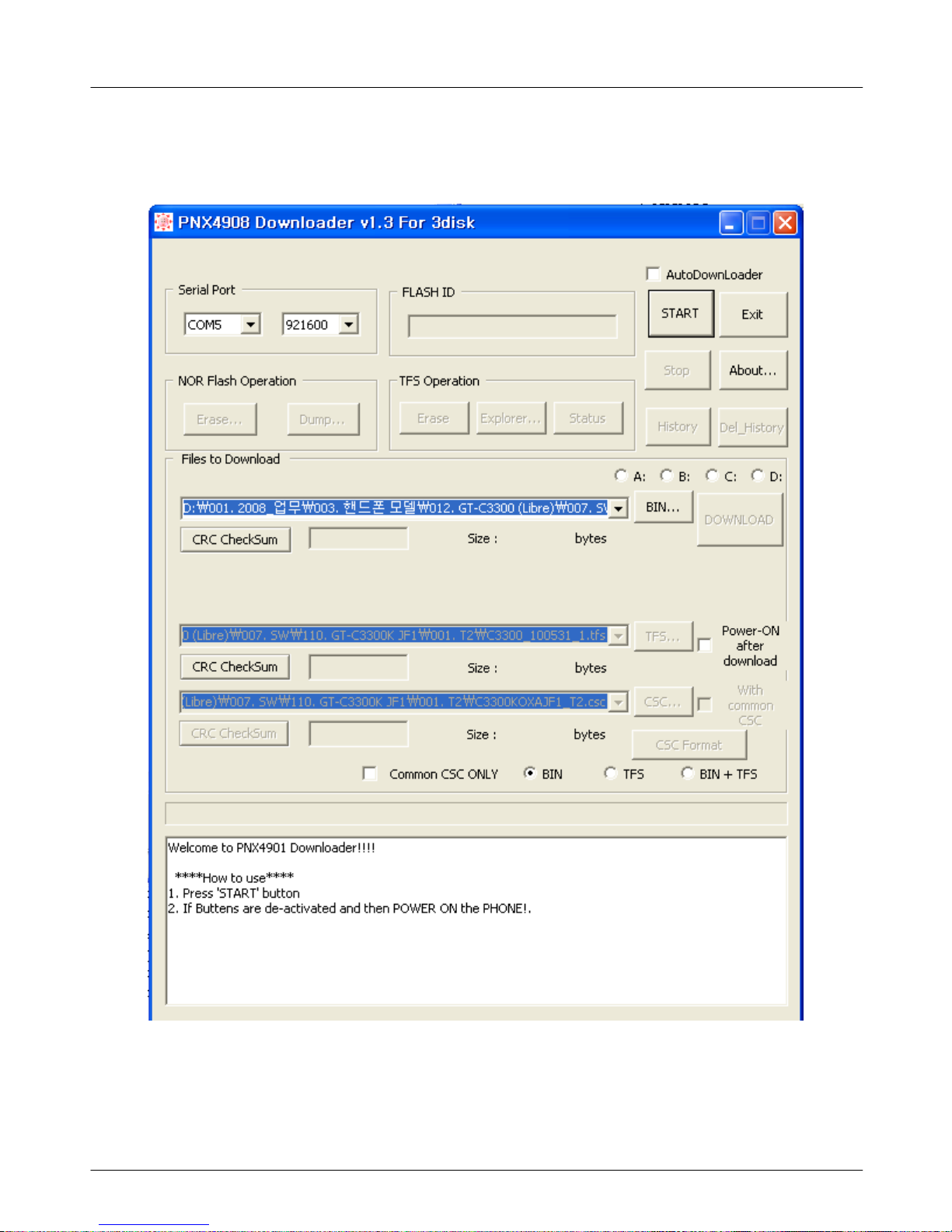

2. Set BuadRate (921600) And Com port.
Check "BIN+TFS" and With Common CSC

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization

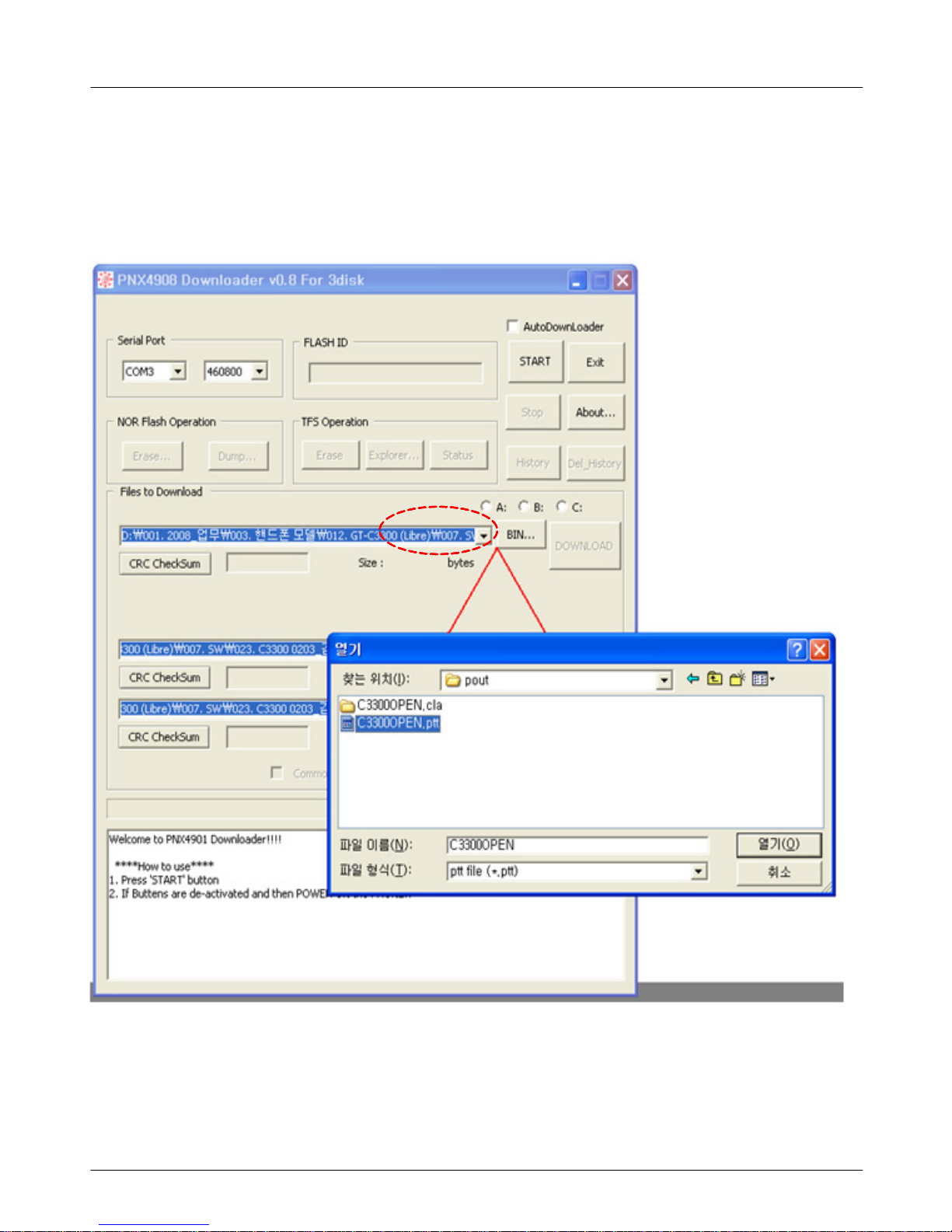

3. Select 'Binary', 'CSC' ,'
TFS' file.
-Binary file :*.
ptt
-CSC file :*.
csc
-TFS file :*.
tfs

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
4. Click the "START". You will see **Wait for awhile ..." command on window screen.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization
5. After Click START, Connect Phone to JIG cable.
6. After connect phone, You will see "**Now you can do the followings. **".
And Click "DOWNLOAD"
7. After Downloading, You must Full reset.
Full reset : *2762*3855#
8. Confirm the downloaded version name and etc. :
*#1234#

SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

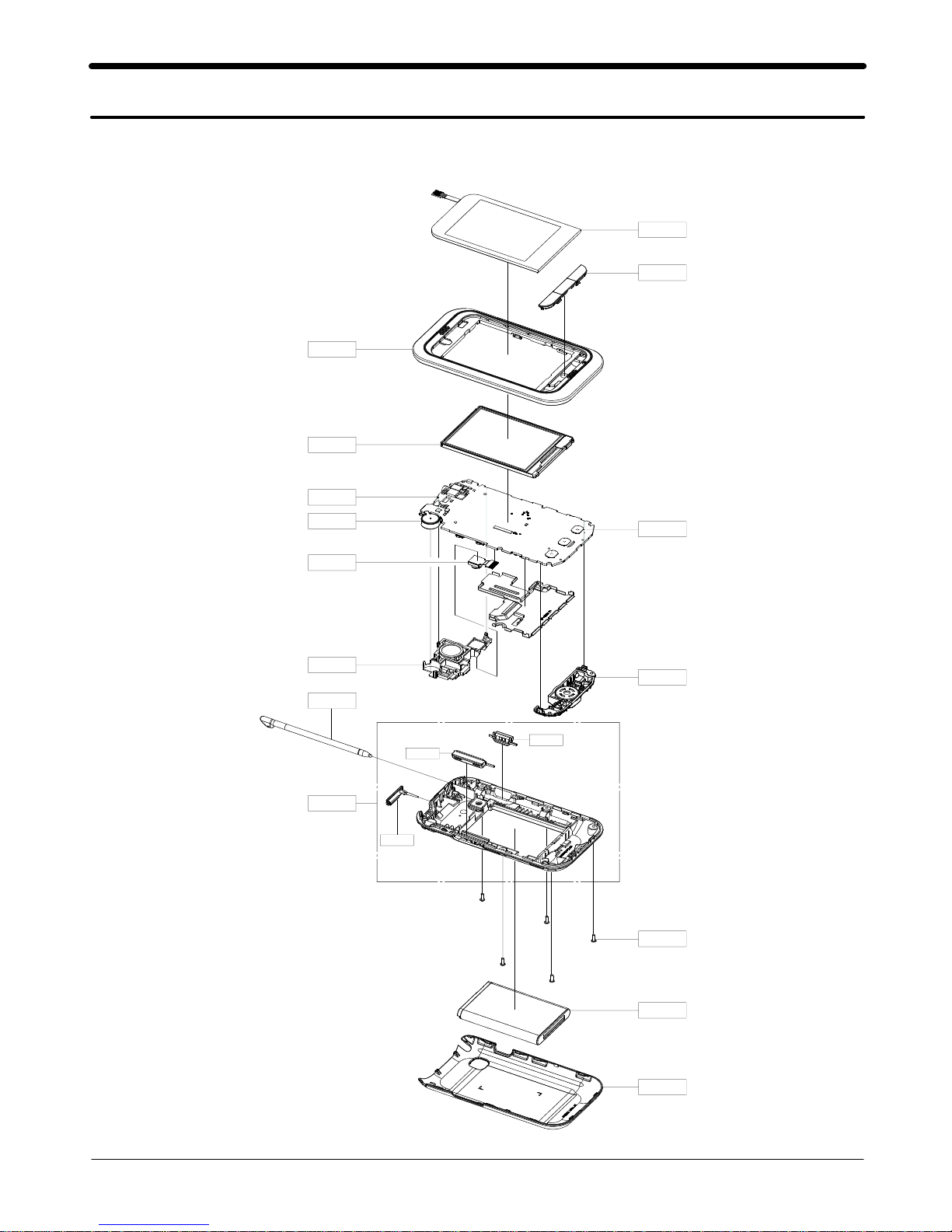

4-1. Cellular phone Exploded View
QRE01
QST01
QFR01
QMO01
QSP01
QCA01
QMP01
QLC01
QCK02
QKP01
QME01
QSP02
QCR67
QBA01
QBC00
QME03
QVO01
QRF06

- This Document can not be used without Samsung's authorization -
5-2. Cellular phone Parts list : GT-C3300DKKXEF
Design LOC Description SEC CODE
QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A
QBC00 ASSY COVER-BATT GH98-16379A
QCA01 CAMERA MODULE-MODULE,GT-C3300K(1.3M) GH59-09730A
QCK02 PMO KEY-HOLD_V2 GH72-60476A
QCR67 SCREW-MACHINE 6001-002083
QFR01 ASSY CASE-FRONT GH98-16378A
QKP01 ASSY KEYPAD-MAIN GH98-16375A
QLC01 ASSY LCD-2.4" TN QVGA GT-C3300 ASS'Y GH96-04549A
QME01 DOME SHEET-GT-C3300 GH59-09280A
QME03 TOUCH/PANEL-GT-C3300 GH59-09281A
QMO01 MOTOR LINEAR VIBRATION-GT-C3300_MOTOR GH31-00501A
QMP01 A/S ASSY-PBA MAIN(COMM),GT-C3300K,SVC GH82-04939A
QRE01 ASSY CASE-REAR GH98-16377A
QRF03 PMO COVER-USB_V2 GH72-60469A
QSP01 MODULE-SPK+INT A (GT-C3300) GH59-09367A
QSP02 MODULE-SPK+INT B (GT-C3300) GH59-09366A
QST01 PMO ACCE-STYLUS PEN GH72-58591A
QVO01 PMO KEY-VOLUME_V2 GH72-60472A

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization

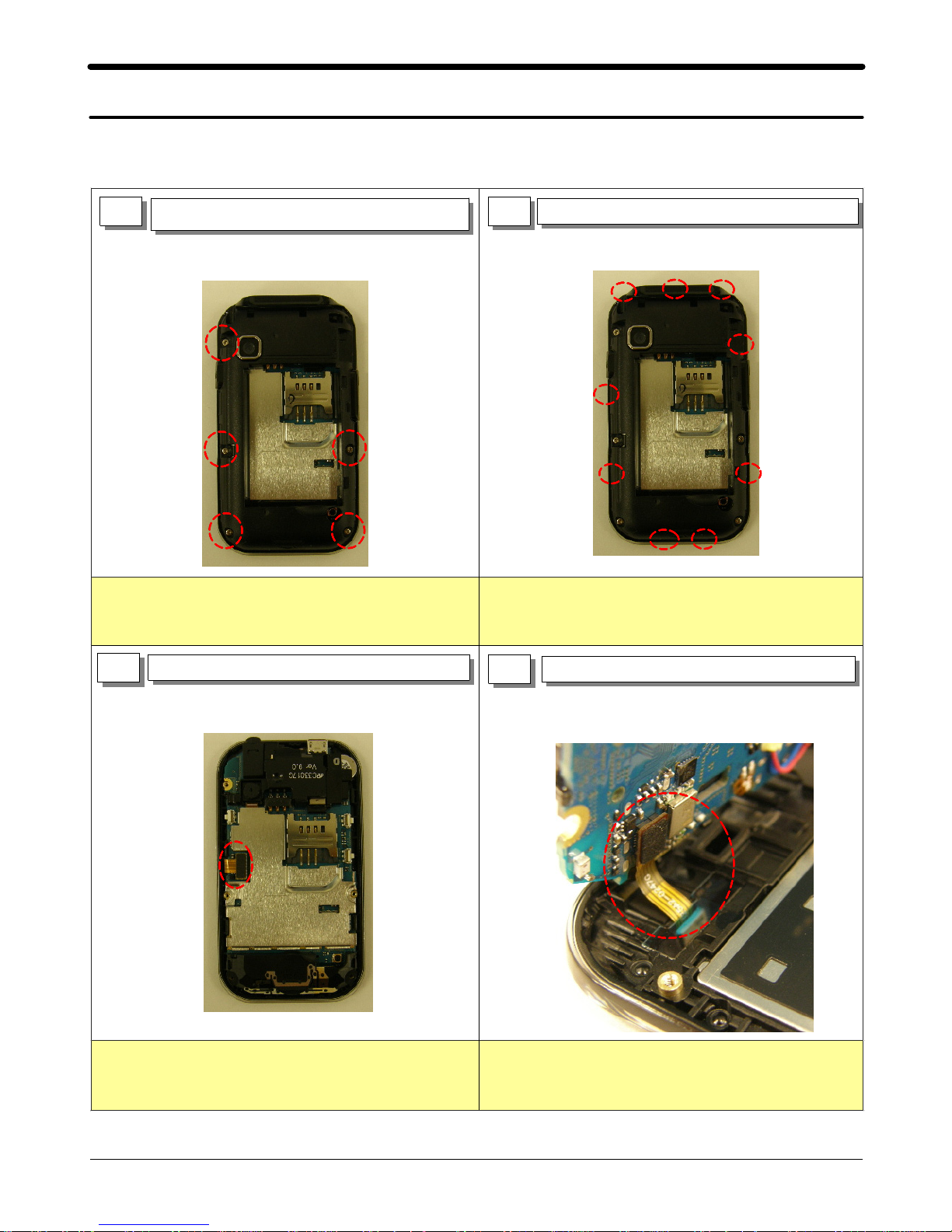

7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
1) Unscrew the 5points.
1
1) Separate the LCD connector
2
34
1) Seperate the REAR CASE. 9hooks
1) Separate the TSP connector.
※Caution
1) Be care of scratch and molding damage.
※Caution
1) Be care of scratch and molding damage.
※Caution
1) Be care of scratch and molding damage.
※Caution
1) Be care of scratch and molding damage.
2) Be care of damage to the TSP.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization

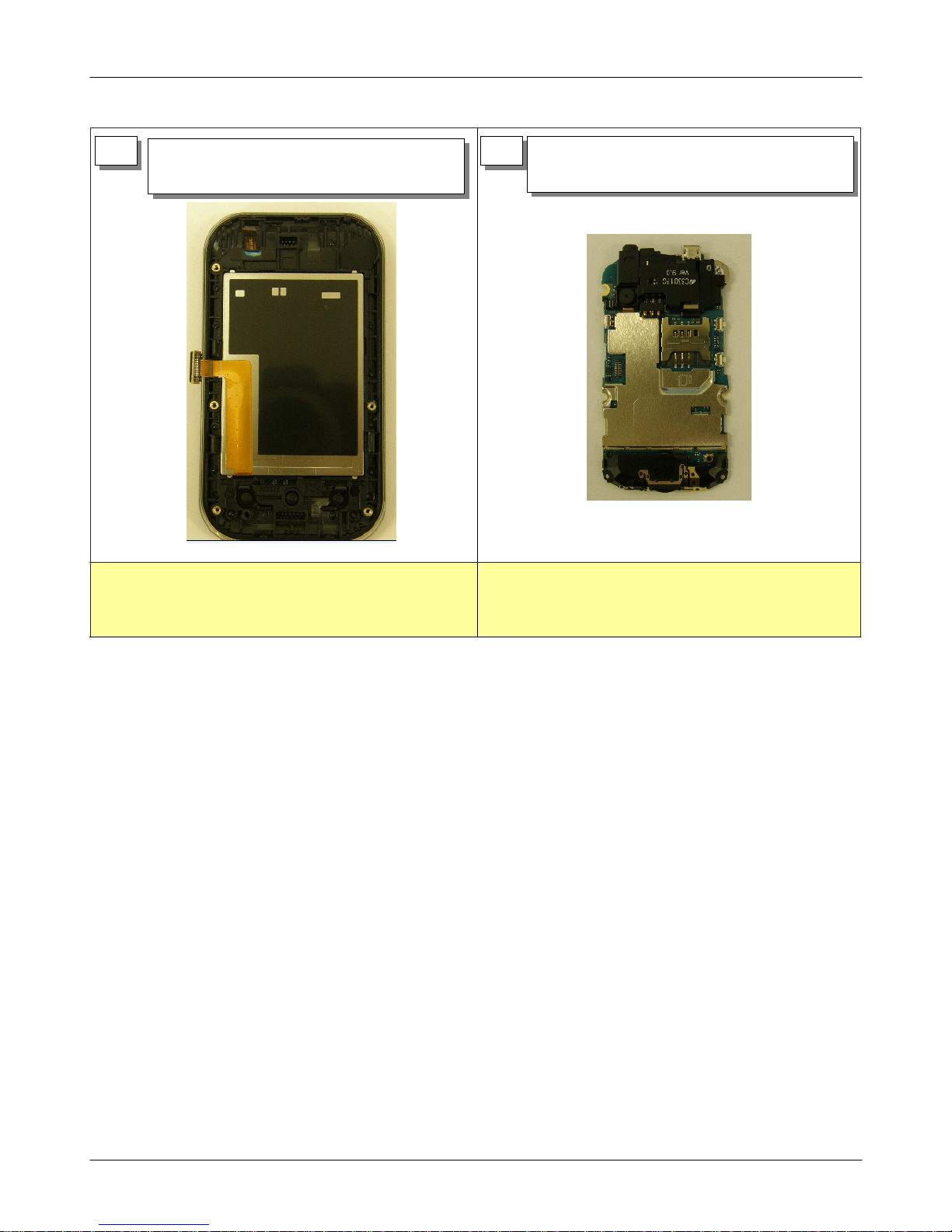

5 6
1) Separate LCD, KEYPAD and TSP from the
FRONT CASE.
1) Separate the MOTOR/SHIELD CAN
/INTENNA/CAMERA(D,K) from the PBA.
※Caution
1) Be care of scratch and molding damage.
2) Be care of damage to the LCD.
※Caution
1) Be care of damage to FPCB and Wire.
2) Be care of damage to the Intenna pattern

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
7-1-1. Assembly
1 2
34
1) Solder the Speaker and motor. 1) Assemble the SPEAKER MODULE to PBA
and attach the Motor to module.
1) Assemble the CAMERA 1) Assemble the insu tape and shieldcan
※Caution
1) Be care of damage the FPCB.
※Caution
1) Be care of damage to PBA and MOTOR wire
※Caution
1) Be care of damage to FM Radio PATTERN
and PBA.
※Caution
1) Be care of damage to PBA.

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization
5 6
8
1) Assemble the INTENNA 1) Assemble the earjack rubber
71) Assemble the KEYPAD.
2) Attach the TSP.
1) Assemble the LCD.
2) Attach the insu tape.
※Caution
1) Be care of damage to INTENNA PATTERN
and PBA.
※Caution
1) Be care of damage the CAMERA FPCB and
connector
※Caution
1) Be care of scratch and molding damage.
2) Be care of TSP Fpcb damage.
※Caution
1) Be care of damage the LCD module.
2) Be care of TSP Fpcb damage.
