Samsung SGH-X620 User manual

GSM TELEPHONE
SGH-X620
GSM TELEPHONE CONTENTS
1. Specification
2. Circuit Description
3. Exploded Views and Parts List
4. Electrical Parts List
5. Block Diagrams
6. PCB Diagrams
7. Flow Chart of Troubleshooting

Samsung Electronics Co.,Ltd. August. 2005
Printed in Korea.
Code No.: GH68-08050A
BASIC.
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
ⓒ

SAMSUNG Proprietary-Contents may change without notice
1. Specification
This Document can not be used without Samsung's authorization
1-1
GSM900
Phase 1 DCS1800 Phase 1 PC1900 Phase 1
Freq. Band[MHz]
Uplink/Downlink 890~915 935~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 1~124 512~885 512~810
Tx/Rx spacing 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -100dBm -100dBm
TDMA Mux 8 8 8
Cell Radius 35Km 2Km 2Km
1-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
1-2
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
1-2. GSM TX power class
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
2. Circuit Description
2-1
This Document can not be used without Samsung's authorization
2-1. SGH-X620 RF Circuit Description
2-1-1. RX PART
- ASM(U100) →Switching Tx, Rx path for GSM900, DCS1800, PCS1900 by logic controlling.
- ASM Control Logic (U100) →Truth Table
VC1 VC2 VC3
Tx Mode (GSM900) H L L
Tx Mode (DCS1800/1900) L H L
Rx Mode (GSM900) L L L
Rx Mode (DCS1800) L L L
Rx Mode (PCS1900) L L H
- VC-TCXO (OSC101)
This module generates the 26MHz reference clock to drive the logic and RF. After division by two a reference clock of
13MHz is supplied to the other parts of the system through the pin CLKOUT. After additional process, the reference
clock applies to the U100 Rx IQ demodulator and Tx IQ modulator. And then, the oscillator is controlled by serial data
to select channel and use fast lock mode for GPRS high class operation.
- Transceiver (U101)
The receiver front-end which amplifies the GSM, DCS aerial signal, converts the chosen channel down to a low IF signal
of 100 kHz. The first stages are symmetrical low noise amplifiers (LNAs). The LNAs are followed by an IQ down mixer.
It consists of two mixers in parallel but driven by quadrature out of phase LO signals. The In phase (I) and Quadrature
phase (Q) IF signals are low pass filtered to provide protection from high frequency offset interferes. The low IF I and Q
signals are then fed into the channel filter. The front-end low IF I and Q outputs enter the integrated bandpass channel
filter with provision for five 8 dB gain steps in front of the filter.
2-1-2. TX PART
I and Q baseband signals are applied to the IQ modulator that shifts the modulation spectrum up to the transmit IF. It is
designed for low harmonic distortion, low carrier leakage and high image rejection to keep the phase error as small as
possible.
The modulator is loaded at its IF output by an integrated low pass filter that suppress unwanted spurs prior to get into
the phase detector. The clock drive is generated by division of the RFLO signal provided for the transmit offset mixer.
Baseband IQ signal fed into offset PLL, this function is included inside of U101 chip. OSC100 chip generates modulator
signal which power level is about 6.5dBm and fed into Power Amplifier(U102). The PA output power and power ramping
are well controlled by Auto Power Control circuit. We use offset PLL below table.

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-2
This Document can not be used without Samsung's authorization
Modulation Spectrum
200kHz offset
30 kHz bandwidth
GSM -35dBc
DCS -35dBc
400kHz offset
30 kHz bandwidth
GSM -66dBc
DCS -65dBc
600kHz ~ 1.8MHz offset
30 kHz bandwidth
GSM -75dBc
DCS -68dBc
2-2. Baseband Circuit description of SGH-X620
2-2-1. PCF50601
- Power Management
Ten low-dropout regulators designed specifically for GSM applications power the terminal and help ensure optimal system
performance and long battery life. A programmable boost converter provides support for 1.8V, 3.0VSIMs, while a self-
resetting, electronically fused switch supplies power to external accessories. Ancillary support functions, such as RTC
module and High Voltage Charge pump, Clock generator, aid in reducing both board area and system complexity.
I2C BUS serial interface provides access to control and configuration registers. This interface gives a microprocessor full
control of the PCF50601 and enables system designers to maximize both standby and talk times.
Supervisory functions. including a reset generator, an input voltage monitor, and a temperature sensor, support reliable
system design. These functions work together to ensure proper system behavior during start-up or in the event of a fault
condition(low microprocessor voltage, insufficient battery energy, or excessive die temperature).
-Backlight Brightness Modulator
The Backlight Brightness Modulator (BBM) contains a programmable Pulse-width modulator (PWM) and FET
to modulate the intensity of a series of LED’s or to control a DC/DC converter that drives LCD backlight.
This phone (SGH-X620) use PWM control to contrast the backlight brightness.
-Clock Generator
The Clock Generator (CG) generates all clocks for internal and external usage. The 32768 Hz crystal
oscillator provides an accurate low clock frequency for the PCF50601 and other circuitry.
2-2-2. LCD Connector
LCD is consisted of main LCD(color 65K UFB LCD) and sub LCD (B/W LCD).
Chip select signals LCD_MAIN_CS and LCD_SUB_CS, can enable Each LCD. BACKLIGHT signal enables white LED
of main LCD. "LCD_RESET" signal initiates the reset process of the LCD.
16-bit data lines(HD(0)~HD(15)) transfers data and commands to LCD. Data and commands use "HA(1)" signal. If this
signal is low, inputs to LCD are commands. If it is high, inputs to LCD are data.

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-3
This Document can not be used without Samsung's authorization
The signal which informs the state of LCD is whether input or output, is required. But in this system, there is no input
state from LCD. So only "HA(1)" signal is used to indicate write data or command to LCD. Power signals for LCD are
"VBAT and "VDD3".
"SPK_P" and "SPK_N" are used for audio speaker containing voice or melody. And "VDD_VIB" from PCF50601
enables the motor.
2-2-3. Key
This is consisted of key interface pins among OM6359, KBIO(0:7). These signals compose the matrix. Result of matrix
informs the key status to key interface in the OM6359. Power on/off key is separated from the matrix. So power on/off
signal is connected with PCF50601 to enable PCF50601. Twelve key LEDs are use the "VDD_KEY" as supply voltage.
"FLIP" informs the status of folder (open or closed) to the OM6359. This uses the hall effect IC, A321ELH-SAMSUNG.
A magnet under main LCD enables A321ELH-SAMSUNG.
2-2-4. EMI ESD Filter
This system uses the EMI ESD filter, EMIF09 to protect noise from IF CONNECTOR part.
2-2-5. IF connetor
It is 18-pin connector. They are designed to use VBAT, V_EXT_CHARGE, TXD0, RXD0, RTS0, CTS0, JIG_REC,
CHARGER_OK, RXD1, TXD1, AUX_MIC, AUX_SPK and GND. They connected to power supply IC, microprocessor
and signal processor IC.
2-2-6. Battery Charge Management
A complete constant-current/constant-voltage linear charger is used for single cell lithium-ion batteries.
If TA connected to phone, "+DCVOLT" enable charger IC and supply current to battery.
When fault condition caused, "CHG_ON" signal level change low to high and charger IC stop charging
process.
2-2-7. Audio
EARP_P and EARP_N from OM6359 are connected to the main speaker. MIC_P and MIC_N are connected to the main
MIC. YMU762 is a synthesizer LSI for mobile phones. It is a LSI as an input/output device for sound sources, which is
the mobile phones, such as AAC, in addition to ringing-melodies.
As a synthesis, YMU762 is equipped 32 voices with different tones. Since the device is capable of simultaneously
generating up to synchronous with the play of the FM synthesizer, various sampled voices can be used as sound effects.
Since the play data of YMU762 are interpreted at anytime through FIFO, the length of the data(playing period) is not
limited, so the device can flexibly support application such as incoming call melody music distribution service.
The hardware sequencer built in this device allows playing of the complex music without giving excessive load to the
CPU of the portable telephones.
For the purpose of enabling YMU762 to demonstrate its full capabilities, Yamaha purpose to use "SMAF:Synthetic music
Mobile Application Format" as a data distribution format that is compatible with multimedia. Since the SMAF takes a
structure that sets importance on the synchronization between sound and images, various contents can be written into it
including incoming call melody with words that can be used for training karaoke, and commercial channel that combines

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
2-4
This Document can not be used without Samsung's authorization
texts, images and sounds, and others. The hardware sequencer of YMU788 directly interprets and plays blocks relevant to
synthesis (playing music and reproducing ADPCM with FM synthesizer) that are included in data distributed in SMAF.
2-2-8. Memory
Signals in the OM6359 enable two memories. They use two volt supply voltage, VDD3 in the PCF50601 & VDD_1.9V
with a LDO. This system uses Intel's memory, RD38F3050LOZTQ0. It is consisted of 128M bits flash NOR memory and
64M bits SRAM. It has 16 bit data line, HD[0~15] which is connected to OM6359. It has 26 bit address lines,
HA[1~26]. NCSFLASH & NCSRAM signals are chip select. Writing process, HWR_N is low and it enables writing
process to flash memory and SRAM. During reading process, HRD_N is low and it enables reading process to flash
memory and SRAM. Reading or writing procedure is processed after HWR_N or HRD_N is enabled.
2-2-9. OM6359
OM6359 is consisted of ARM core and DSP core. It has 8x1Kword on-chip program/data RAM, 55 Kwords
on-chip program ROM in the DSP. It has 4K*32bits ROM and 2K*32bits RAM in the ARM core. DSP is consisted
of KBS, JTAG, EMI and UART. ARM core is consisted of EMI, PIC(Programmable Interrupt Controller),
reset/power/clock unit, DMA controller, TIC(Test Interface Controller), peripheral bridge, PPI, SSI(Synchronous Serial
Interface), ACC(Asynchronous communications controllers), timer, ADC, RTC(Real-Time Clock) and keyboard interface.
KBIO(0:7), address lines of DSP core and HD[0~15]. HA[1~26], address lines of ARM core and HD[0~15], data lines of
ARM core are connected to memory and YMU762.
NCSRAM, NCSFLASH in the ARM core are connected to each memory. HWR_N and HRD_N control the process of
memory. External IRQ(Interrupt ReQuest) signals from each units, such as, PMU need the compatible process.
KBIO[0~7] receive the status from key and RXD0/TXD0 are used for the communication using data link
cable(DEBUG_DTR/RTS/TXD/RXD/CTS/DSR).
It has JTAG control pins(TDI/TDO/TCK) for ARM core and DSP core. It receives 13MHz clock in CKI pin from
external TCXO. ADC(Analog to Digital Convertor) part receives the status of temperature, battery type and battery voltage.
2-2-10. TOH2600DGI4KRA(26MHz)
This system uses the 26MHz TCXO, TOH2600DGI4KRA, SEM. AFC control signal from OM6359 controls frequency
from 26MHz x-tal. The clock output frequency of UAA3536 is 13MHz. This clock is connected to OM6359, YMU762.
2-2-11. FM Radio(TEA5761)
The TEA5761 is a single chip electronically tuned FM radio for low voltage application with fully
integrated IF selectivity and demodulation.
The radio is completely adjustment free and does only require a minimum of small and low cost external
components. The radio can tune theEuropean-, US- andJapan FM bands.

SAMSUNG Proprietary-Contents may change without notice
3. Exploded View and Parts List
3-1
This Document can not be used without Samsung's authorization

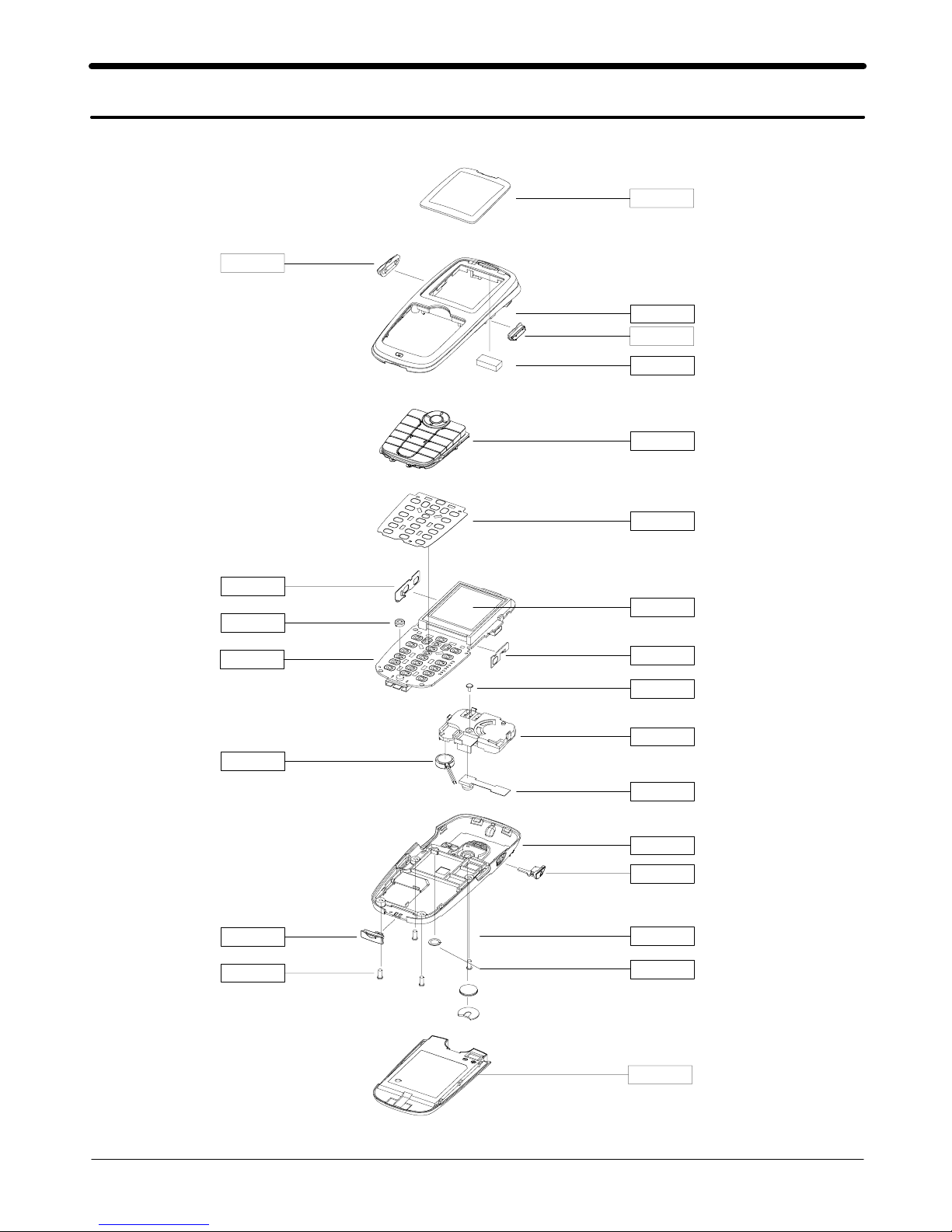

3-1. Exploded View
QMW02
QFR01
QAU01
QKP01
QME01
QLC01
QCA02
QMP01
QCR05
QAN02
QCA01
QRE01
QCW01
QRF01
QIF01
QRF03
QCK01
QCR21
QVO01
QMO01
QMI03
QVK01
QBA01

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-2
This Document can not be used without Samsung's authorization
3-2. Parts List
Location No Description Sec Code
QAN02 INTENNA-SGHX620;J90-OY505-F01P01,SGH GH42-00573A
QAU01 AUDIO-RECEIVER;32ohm,96dB±2dB,12.5X 3009-001100
QBA01 BATTERY-800MAH,DK/SILVE,EU,M;BST4138 GH43-02007A
QCA01 UNIT-CAMERA;SGH-X620,MOMFH150G1A,-,E GH59-02115A
QCA02 UNIT-CAMERA KEY;SGH-X620,SSC4018P087 GH59-02111A
QCK01 MEC-CAMERA KEY;SGH-X620,EU,-,-,-,-,S GH75-07456A
QCR05 SCREW-MACHINE;PH,+,M1.4,L3,ZPC(BLK), 6001-001478
QCR21 SCREW-MACHINE;BH(1.0),+,M1.7,L3.5,BL 6001-001507
QFR01 MEC-FRONT CASE;SGH-X620,EU,-,-,-,-,S GH75-06379A
QIF01 PMO-IF COVER;SGH-X620,PC+ELASTOMER,D GH72-22325A
QKP01 MEC-KEYPAD;SGH-X620,EU,-,-,-,-,BLK,- GH75-06380A
QLC01 LCD-SGHX620 LCD;LTS166QQ-F01-0,SGH-X GH07-00705A
QME01 UNIT-METAL DOME;SGH-X620,SSM5017P800 GH59-02112A
QMI03 RMO-RUBBER MIC;SGH-X620,CR-RUBBER,P5 GH73-04169A
QMO01 MOTOR DC-SGHX620;JHV-10A1-C9S,SGH-X6 GH31-00179A
QMP01 PBA MAIN-SGHX620;SGH-X620,ERA,EU,PBA GH92-02048A
QMW02 PCT-MAIN WINDOW;SGH-X620,ACRYL,TRP,4 GH72-19752A
QRF01 MPR-RF COVER;SGH-X620,PC SHEET,P6.6X GH74-13087A
QVK01 UNIT-VOLUME KEY;SGH-X620,SSV4018P088 GH59-02113A
QVO01 MEC-VOLUME KEY;SGH-X620,EU,-,-,-,-,S GH75-07455A
QRE01 MEC-REAR CASE;SGH-X620,EU,-,-,-,-,SI GH75-06383A
QRF03 PMO-EAR JACK COVER;SGH-X620,PC+ELAST GH72-21956A
QCW01 MEC-CAMER WINDOW;SGH-X620,EU,-,-,-,- GH75-07587A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-3
This Document can not be used without Samsung's authorization
Description Sec Code
BAG PE;LDPE,T0.05,W80,L180,TRP,-,- 6902-000634
ADAPTOR-SGHD500 BLK;TAD137EBE,SGH-D5 GH44-00954A
UNIT-EARPHONE;SGH-C230,EM-SS550E-STB GH59-02166A
LABEL(P)-WATER SOAK;COMM,NORGE,100G, GH68-02026A
MANUAL-WEEE CARD;COMM,SEC,ENGLISH,UN GH68-07013A
LABEL(R)-SGHX620(EU);SGH-E335,TMB,PO GH68-07405A
MANUAL-USER;SGH-X620,XET,ITALIAN,ITA GH68-07612A
CUSHION-CASE(1-2_NEW);SGH-X620,PULP, GH69-02994A
BOX(P)-SGHX620(EU);SGH-X620,SC300+S1 GH69-03067A
ICT-MIRROR;SGH-X620,STS,P10.52,1.1,- GH70-00404A
PMO-BATTER LOCKER;SGH-X620,PC,D/SIL, GH72-21963A
MPR-BOHO VINYL C/WIN B;SGH-X620,SP30 GH74-15524A
MPR-TAPE INSULATION PCB;SGH-X620,3M8 GH74-16995A
MPR-BOHO VINYL M/WIN;SGH-X620,SP100, GH74-16997A
MPR-TAPE INTENNA CAMERA;SGH-X620,TES GH74-16999A
MPR-TAPE INSULATE CAMERA;SGH-X620,3M GH74-17225A
MPR-TAPE INSULATE VOLUME;SGH-X620,3M GH74-17226A
MPR-BOHO VINYL M/WIN A;SGH-X620,ST-5 GH74-17308A
MPR-BOHO VINYL CAM WIN A;SGH-X620,ST GH74-17309A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-4
This Document can not be used without Samsung's authorization

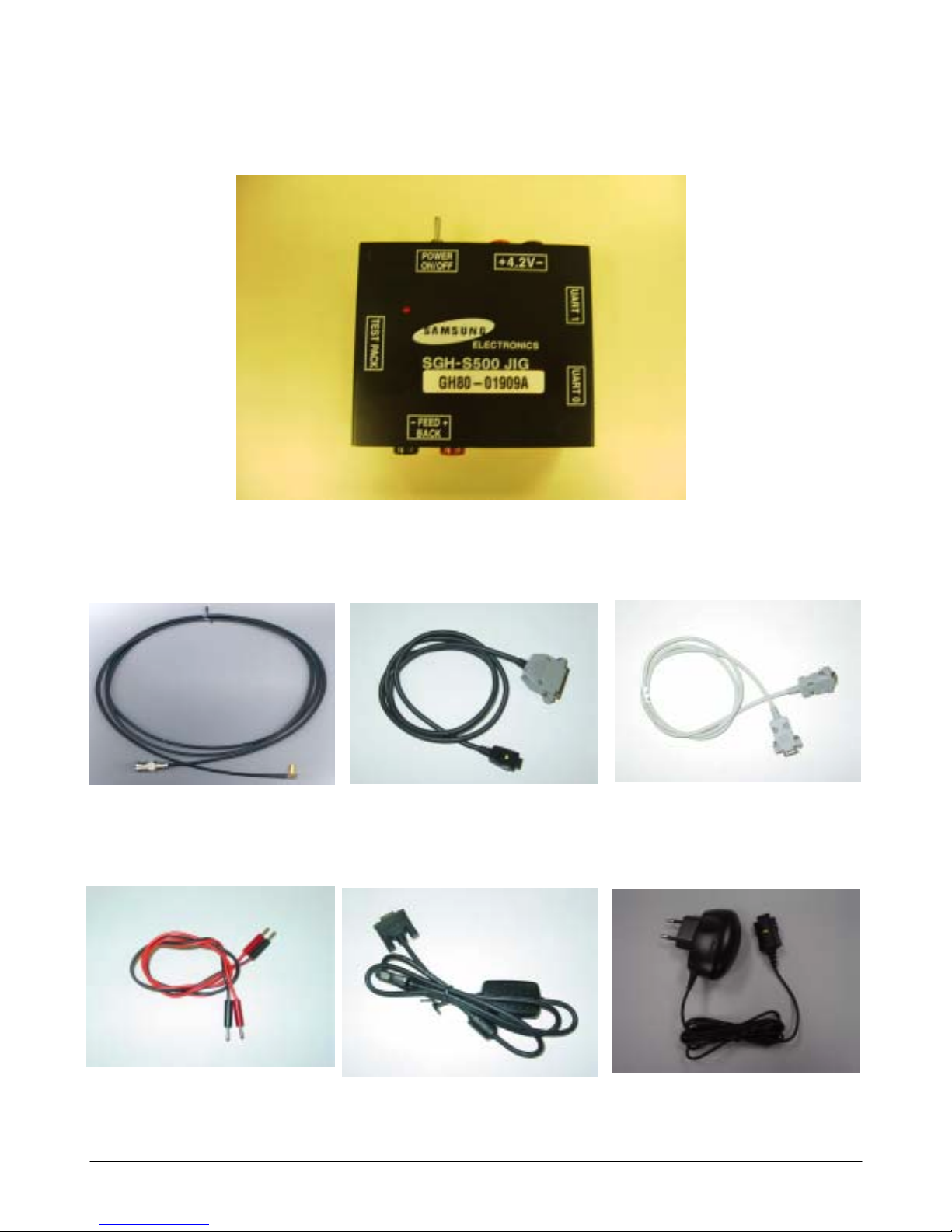

3-3. Test Jig (GH80-01909A)
3-3-1. RF Test Cable
(GH39-00283A) 3-3-2. Test Cable (GH39-00217A) 3-3-3. Serial Cable
3-3-4. Power Supply Cable 3-3-5. DATA CABLE
(GH39-00219A) 3-3-6. TA
(GH44-00184G)

SAMSUNG Proprietary-Contents may change without notice
4. Electrical Parts List
4-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
BAT300 BATTERY-LI(2ND) 4302-001180
BAT500 CONNECTOR-BATTERY 3711-005829
C101 C-CER,CHIP 2203-000278
C102 C-CER,CHIP 2203-000278
C103 C-CER,CHIP 2203-000278
C105 C-CER,CHIP 2203-000812
C107 C-CER,CHIP 2203-000854
C108 C-CER,CHIP 2203-000854
C109 C-CER,CHIP 2203-005057
C110 C-CER,CHIP 2203-005482
C111 C-CER,CHIP 2203-000628
C112 C-CER,CHIP 2203-000628
C113 C-CER,CHIP 2203-005057
C114 C-CER,CHIP 2203-005482
C115 C-CER,CHIP 2203-002668
C118 C-CER,CHIP 2203-000233
C119 C-CER,CHIP 2203-000233
C120 C-CER,CHIP 2203-005482
C121 C-CER,CHIP 2203-005057
C122 C-CER,CHIP 2203-005138
C124 C-FILM,SMD-PPS 2301-001213
C125 C-CER,CHIP 2203-000359
C126 C-FILM,SMD-PPS 2301-001197
C127 C-CER,CHIP 2203-005482
C128 C-CER,CHIP 2203-005057
C129 C-CER,CHIP 2203-006053
C130 C-CER,CHIP 2203-000438
C131 C-CER,CHIP 2203-006190
C132 C-CER,CHIP 2203-000438
C133 C-CER,CHIP 2203-006190
C134 C-CER,CHIP 2203-000438
C135 C-TA,CHIP 2404-001239
C136 C-CER,CHIP 2203-000233
C138 C-CER,CHIP 2203-005503
C139 C-CER,CHIP 2203-000311
C140 C-CER,CHIP 2203-000233
C141 C-CER,CHIP 2203-000438
C142 C-CER,CHIP 2203-000254
C143 C-CER,CHIP 2203-000438
C144 C-CER,CHIP 2203-001153
C145 C-CER,CHIP 2203-000550
C146 C-CER,CHIP 2203-005480
C147 C-CER,CHIP 2203-005482
C148 C-CER,CHIP 2203-005057
C149 C-CER,CHIP 2203-000278
C150 C-CER,CHIP 2203-005482
C151 C-CER,CHIP 2203-000679
C152 C-CER,CHIP 2203-000278
C153 C-CER,CHIP 2203-000233
C154 C-CER,CHIP 2203-000254

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
C155 C-CER,CHIP 2203-000311
C156 C-CER,CHIP 2203-000311
C157 C-CER,CHIP 2203-000311
C158 C-CER,CHIP 2203-000311
C159 C-CER,CHIP 2203-002668
C200 C-CER,CHIP 2203-005061
C201 C-CER,CHIP 2203-005061
C202 C-CER,CHIP 2203-005061
C203 C-CER,CHIP 2203-005061
C204 C-CER,CHIP 2203-000254
C205 C-CER,CHIP 2203-005061
C206 C-CER,CHIP 2203-005061
C207 C-CER,CHIP 2203-000254
C208 C-CER,CHIP 2203-000254
C209 C-CER,CHIP 2203-000643
C210 C-CER,CHIP 2203-000233
C211 C-CER,CHIP 2203-005482
C212 C-CER,CHIP 2203-005482
C213 C-CER,CHIP 2203-000854
C214 C-CER,CHIP 2203-006141
C215 C-CER,CHIP 2203-005482
C217 C-CER,CHIP 2203-006053
C218 C-CER,CHIP 2203-005482
C219 C-CER,CHIP 2203-005482
C220 C-CER,CHIP 2203-005061
C221 C-CER,CHIP 2203-005061
C222 C-CER,CHIP 2203-005061
C223 C-CER,CHIP 2203-005061
C224 C-CER,CHIP 2203-005061
C225 C-CER,CHIP 2203-000254
C226 C-CER,CHIP 2203-005061
C227 C-CER,CHIP 2203-005061
C228 C-CER,CHIP 2203-005482
C300 C-CER,CHIP 2203-006208
C301 C-CER,CHIP 2203-005482
C302 C-CER,CHIP 2203-006208
C303 C-CER,CHIP 2203-005482
C304 C-CER,CHIP 2203-005482
C307 C-CER,CHIP 2203-006257
C308 C-CER,CHIP 2203-005571
C309 C-CER,CHIP 2203-006208
C310 C-CER,CHIP 2203-005395
C311 C-TA,CHIP 2404-001225
C312 C-CER,CHIP 2203-000386
C313 C-CER,CHIP 2203-000425
C314 C-CER,CHIP 2203-006257
C315 C-CER,CHIP 2203-005482
C316 C-CER,CHIP 2203-006053
C317 C-CER,CHIP 2203-000425
C318 C-CER,CHIP 2203-006208

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
C319 C-CER,CHIP 2203-000885
C320 C-CER,CHIP 2203-006208
C321 C-CER,CHIP 2203-006208
C322 C-CER,CHIP 2203-005065
C323 C-TA,CHIP 2404-001225
C324 C-CER,CHIP 2203-006208
C325 C-CER,CHIP 2203-005482
C326 C-CER,CHIP 2203-005482
C327 C-CER,CHIP 2203-005482
C328 C-CER,CHIP 2203-006208
C329 C-TA,CHIP 2404-001101
C330 C-TA,CHIP 2404-001086
C331 C-CER,CHIP 2203-006053
C332 C-CER,CHIP 2203-006208
C333 C-CER,CHIP 2203-006399
C334 C-CER,CHIP 2203-006208
C335 C-CER,CHIP 2203-000679
C336 C-CER,CHIP 2203-006053
C337 C-CER,CHIP 2203-006208
C338 C-CER,CHIP 2203-006208
C339 C-CER,CHIP 2203-006053
C340 C-CER,CHIP 2203-005482
C341 C-TA,CHIP 2404-001374
C342 C-TA,CHIP 2404-001381
C344 C-CER,CHIP 2203-006090
C345 C-CER,CHIP 2203-006201
C346 C-CER,CHIP 2203-006053
C347 C-CER,CHIP 2203-006201
C348 C-CER,CHIP 2203-006201
C349 C-TA,CHIP 2404-001225
C350 C-CER,CHIP 2203-006201
C351 C-CER,CHIP 2203-005482
C352 C-CER,CHIP 2203-006208
C353 C-CER,CHIP 2203-006208
C354 C-CER,CHIP 2203-006208
C400 C-TA,CHIP 2404-001352
C401 C-CER,CHIP 2203-005482
C407 C-CER,CHIP 2203-000885
C408 C-CER,CHIP 2203-000885
C409 C-TA,CHIP 2404-001348
C417 C-CER,CHIP 2203-005061
C418 C-CER,CHIP 2203-000995
C419 C-CER,CHIP 2203-000679
C421 C-CER,CHIP 2203-000854
C422 C-CER,CHIP 2203-000995
C423 C-CER,CHIP 2203-000679
C424 C-CER,CHIP 2203-000679
C426 C-CER,CHIP 2203-000679
C427 C-CER,CHIP 2203-005061
C428 C-CER,CHIP 2203-000386

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-4
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
C429 C-CER,CHIP 2203-000812
C430 C-CER,CHIP 2203-000425
C432 C-CER,CHIP 2203-000679
C433 C-CER,CHIP 2203-000679
C435 C-CER,CHIP 2203-000425
C436 C-CER,CHIP 2203-005482
C444 C-CER,CHIP 2203-006053
C445 C-CER,CHIP 2203-006208
C449 C-CER,CHIP 2203-000679
C450 C-TA,CHIP 2404-001352
C451 C-CER,CHIP 2203-005061
C452 C-CER,CHIP 2203-000854
C453 C-CER,CHIP 2203-005061
C454 C-CER,CHIP 2203-000679
C455 C-CER,CHIP 2203-005065
C456 C-CER,CHIP 2203-005061
C457 C-CER,CHIP 2203-000885
C458 C-CER,CHIP 2203-000885
C500 C-CER,CHIP 2203-003054
C501 C-CER,CHIP 2203-005061
C502 C-CER,CHIP 2203-006141
C503 C-TA,CHIP 2404-001225
C504 C-CER,CHIP 2203-006141
C505 C-CER,CHIP 2203-000233
C506 C-CER,CHIP 2203-005482
C507 C-CER,CHIP 2203-000679
C508 C-CER,CHIP 2203-000725
C509 C-CER,CHIP 2203-005482
C510 C-CER,CHIP 2203-006141
C511 C-CER,CHIP 2203-005482
C512 C-CER,CHIP 2203-005482
C513 C-CER,CHIP 2203-000438
C514 C-CER,CHIP 2203-000812
C515 C-CER,CHIP 2203-000812
C516 C-CER,CHIP 2203-002759
C517 C-CER,CHIP 2203-005482
C518 C-TA,CHIP 2404-001225
C519 C-CER,CHIP 2203-002687
C520 C-CER,CHIP 2203-000254
C521 C-CER,CHIP 2203-005482
C522 C-CER,CHIP 2203-000359
C523 C-CER,CHIP 2203-005480
C524 C-CER,CHIP 2203-001239
C526 C-CER,CHIP 2203-005480
C527 C-CER,CHIP 2203-005480
C528 C-CER,CHIP 2203-006399
C529 C-CER,CHIP 2203-005482
C530 C-CER,CHIP 2203-005480
C531 C-CER,CHIP 2203-005482
C532 C-CER,CHIP 2203-000254

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-5
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
C534 C-TA,CHIP 2404-001239
C535 C-CER,CHIP 2203-005482
C536 C-CER,CHIP 2203-006260
C537 C-CER,CHIP 2203-006257
C538 C-CER,CHIP 2203-006260
C539 C-CER,CHIP 2203-006257
C540 C-TA,CHIP 2404-001088
C541 C-CER,CHIP 2203-001153
C545 C-CER,CHIP 2203-001033
C546 C-CER,CHIP 2203-001033
C548 C-CER,CHIP 2203-000359
CN100 CONNECTOR-COAXIAL 3705-001358
CN300 CONNECTOR-CAR EDGE 3709-001355
CN400 JACK-EAR PHONE [phone]
CN500 CONNECTOR-INTERFACE 3710-001611
CN501 CONNECTOR-HEADER 3711-005643
CN502 CONNECTOR-SOCKET 3710-001105
F500 FILTER-SAW 1405-001158
F501 FILTER-SAW 1405-001158
F502 FILTER-SAW 1405-001158
F503 FILTER-SAW 1405-001158
F504 FILTER-EMI/ESD 2901-001322
F505 FILTER-EMI/ESD 2901-001322
F506 FILTER-EMI/ESD 2901-001322
F507 FILTER-EMI/ESD 2901-001322
F508 FILTER-EMI/ESD 2901-001322
L104 INDUCTOR-SMD 2703-002204
L107 INDUCTOR-SMD 2703-002170
L109 INDUCTOR-SMD 2703-002201
L112 INDUCTOR-SMD 2703-002201
L113 INDUCTOR-SMD 2703-002201
L115 INDUCTOR-SMD 2703-002170
L118 INDUCTOR-SMD 2703-002314
L119 INDUCTOR-SMD 2703-002368
L120 INDUCTOR-SMD 2703-002176
L121 INDUCTOR-SMD 2703-002176
L301 CORE-RERRITE 3301-001105
L302 INDUCTOR-SMD 2703-002714
L401 INDUCTOR-SMD 2703-001231
L402 INDUCTOR-SMD 2703-002314
L403 INDUCTOR-SMD 2703-002314
L404 INDUCTOR-SMD 2703-001259
L405 INDUCTOR-SMD 2703-001259
L501 CORE-RERRITE 3301-001105
L503 INDUCTOR-SMD 2703-001673
L504 INDUCTOR-SMD 2703-002206
L505 INDUCTOR-SMD 3301-001756
L506 INDUCTOR-SMD 3301-001756
L507 INDUCTOR-SMD 3301-001756
LED400 LED 0601-001819

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-6
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
LED401 LED 0601-001819
LED402 LED 0601-001819
LED403 LED 0601-001819
LED404 LED 0601-001819
LED405 LED 0601-001819
LED406 LED 0601-001819
LED407 LED 0601-001819
LED408 LED 0601-001819
LED409 LED 0601-001819
MIC400 MIC-CONDENSOR 3003-001107
OSC100 OSCILLATOR-VCO 2806-001341
OSC101 OSCILLATOR-VCTCXO 2809-001281
Q100 TR-DIGITAL 0504-001151
Q101 TR-DIGITAL 0504-001151
Q102 TR-DIGITAL 0504-001151
Q400 IC-RELAY DRIVER 1003-001440
R100 R-CHIP 2007-000171
R101 R-CHIP 2007-000162
R102 R-CHIP 2007-000162
R103 R-CHIP 2007-000162
R104 R-CHIP 2007-007148
R105 R-CHIP 2007-000141
R106 R-CHIP 2007-000140
R107 R-CHIP 2007-001288
R108 R-CHIP 2007-001308
R109 R-CHIP 2007-001308
R110 R-CHIP 2007-000566
R111 R-CHIP 2007-001329
R112 R-CHIP 2007-000144
R113 R-CHIP 2007-001288
R114 R-CHIP 2007-007311
R115 R-CHIP 2007-000148
R116 R-CHIP 2007-001308
R117 R-CHIP 2007-001308
R118 R-CHIP 2007-000566
R119 R-CHIP 2007-007699
R120 R-CHIP 2007-007699
R121 R-CHIP 2007-000171
R123 R-CHIP 2007-008672
R124 R-CHIP 2007-000142
R125 R-CHIP 2007-000148
R126 R-CHIP 2007-001308
R127 R-CHIP 2007-007306
R128 R-CHIP 2007-000140
R129 R-CHIP 2007-007314
R130 R-CHIP 2007-007314
R131 R-CHIP 2007-007314
R132 R-CHIP 2007-007314
R133 R-CHIP 2007-000140
R134 R-CHIP 2007-000171

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-7
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
R135 R-CHIP 2007-000171
R200 R-CHIP 2007-000174
R201 R-CHIP 2007-007014
R202 R-CHIP 2007-001313
R203 R-CHIP 2007-007014
R204 R-CHIP 2007-000171
R205 R-CHIP 2007-000162
R207 R-CHIP 2007-007107
R208 R-CHIP 2007-007142
R209 R-CHIP 2007-007107
R210 R-CHIP 2007-007142
R211 R-CHIP 2007-000162
R213 R-CHIP 2007-000162
R214 R-CHIP 2007-007001
R215 R-CHIP 2007-000162
R216 R-CHIP 2007-000162
R217 R-CHIP 2007-000148
R218 R-CHIP 2007-000162
R219 R-CHIP 2007-000143
R220 R-CHIP 2007-000141
R221 R-CHIP 2007-000141
R222 R-CHIP 2007-000162
R223 R-CHIP 2007-000162
R224 R-CHIP 2007-000162
R300 R-CHIP 2007-000839
R301 R-CHIP 2007-000162
R302 R-CHIP 2007-007100
R305 R-CHIP 2007-000148
R310 R-CHIP 2007-000140
R311 R-CHIP 2007-003001
R312 R-CHIP 2007-000151
R313 R-CHIP 2007-000157
R314 R-CHIP 2007-007311
R315 R-CHIP 2007-000162
R316 R-CHIP 2007-007489
R317 R-CHIP 2007-007573
R318 R-CHIP 2007-007334
R402 R-CHIP 2007-007014
R403 R-CHIP 2007-007014
R408 R-CHIP 2007-003030
R409 R-CHIP 2007-003030
R410 R-CHIP 2007-002970
R411 R-CHIP 2007-002970
R412 R-CHIP 2007-002970
R413 R-CHIP 2007-002970
R414 R-CHIP 2007-002970
R415 R-CHIP 2007-002970
R416 R-CHIP 2007-002796
R417 R-CHIP 2007-000140
R418 R-CHIP 2007-000148

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-8
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
R419 R-CHIP 2007-000140
R420 R-CHIP 2007-002796
R423 R-CHIP 2007-007573
R424 R-CHIP 2007-007529
R426 R-CHIP 2007-001339
R427 R-CHIP 2007-007107
R428 R-CHIP 2007-007107
R430 R-CHIP 2007-001317
R431 R-CHIP 2007-002970
R432 R-CHIP 2007-002970
R433 R-CHIP 2007-002796
R434 R-CHIP 2007-000140
R436 R-CHIP 2007-000148
R438 R-CHIP 2007-000140
R439 R-CHIP 2007-002796
R440 R-CHIP 2007-007014
R441 R-CHIP 2007-007014
R500 R-CHIP 2007-000162
R501 R-CHIP 2007-000162
R503 R-CHIP 2007-000143
R504 R-CHIP 2007-000143
R507 R-CHIP 2007-000162
R509 R-CHIP 2007-000148
R510 R-CHIP 2007-007014
R511 R-CHIP 2007-007014
R512 R-CHIP 2007-001313
R514 R-CHIP 2007-000162
R515 R-CHIP 2007-001325
R517 R-CHIP 2007-007132
R518 R-CHIP 2007-007308
R519 R-CHIP 2007-007308
R520 R-CHIP 2007-000775
R521 R-CHIP 2007-001325
R522 R-CHIP 2007-003001
R523 R-CHIP 2007-000171
R524 R-CHIP 2007-007107
R534 R-CHIP 2007-000171
R536 R-CHIP 2007-000171
R545 R-CHIP 2007-000171
R546 R-CHIP 2007-008531
R547 R-CHIP 2007-008531
R548 R-CHIP 2007-008531
R549 R-CHIP 2007-008531
R550 R-CHIP 2007-008531
R551 R-CHIP 2007-008531
R552 R-CHIP 2007-000171
TH200 THERMISTOR-NTC 1404-001221
U100 FILTER-ASM 2911-000008
U101 IC-TRANSCEIVER 1205-002327
U102 IC-POWER AMP 1201-002075
