Samsung SCH-811 User manual

SERVICE
CDMA CELLULAR
TELEPHONE
SCH-811
Manual
CDMA CELLULAR TELEPHONE
SAMSUNG PROPRIETARY-CONTENTS MAY CHANGE WITHOUT NOTICE
CONTENTS
1. General Introduction
2. Specification
3. Installation
4. NAM Programming
5. Product Support Tools
6. Troubleshooting
7. Exploded view and its Part List
8. Electrical Parts List
9. PCB diagrams
10. Block & circuit diagrams

Samsung Electronics Co.,Ltd.
GH68-00398A
1999. 3. REV. 1.0
ELECTRONICS

SAMSUNG Proprietary-Contents may change without notice 1-1
1. General Description
The SCH-811 cellular phone functions as both analog cellular phone working in AMPS (Advanced Mobile
Phone Service) mode and digital cellular phone working in CDMA (Code Division Multiple Access) mode.
CDMA type digital mode applies DSSS (Direct Sequential Spread spectrum) mode which first came to be used
in the military.
The DSSS reduces channel cross talk and allow to use one frequency channel by multiple users in the same
specific area, resulting in increase of channel capacity to about ten times compared to that of analog mode
currently used.
Soft/Softer Handoff, Hard Handoff, and Dynamic RF Power Control technologies are combined into this phone
to reduce the call drop while usage.
CDMA digital cellular network consists of MSO (Mobile Switching Office), BSC (Base Station Controller),
BTS(Base Station Transmission System), and MS (Mobile Station). MS meets the specifications of the below:
E IS-95A : Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum
Cellular System
E IS-96A : Speech Service Option 1 Standard for Dual-Mode Wideband Spread Spectrum Cellular Systems
E IS-98A : Standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile Station
E IS-126 : Mobile Station Loopback Service Options Standard
SCH-811 is composed of main handset, rapid charger, three batteries (1600 mAh, 1000 mAh, 550mAh), hands-
free kit, car adaptor, and travel charger. Hands-Free Kit is designed to be operated in full-duplex mode taking
turn-around delay between the phone and the system into account.

2-1 SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1 General
Frequency Range Digital Mode Analog Mode
Transmitter : 824 ~ 849 MHz 824 ~ 849 MHz
Receiver : 869 ~ 894 MHz 869 ~ 894 MHz
Channel Spacing : 1.23 MHz 30kHz
Number of Channels : 20 FA 832CHs
Duplex Spacing : 45 MHz 45MHz
Frequency Stability : ±2.5 ppm (-20ûC ~ +60ûC, -4ûF ~ +140ûF)
Operating Temperature : -30ûC~+60ûC (-4ûF ~ +140ûF)
Operating Voltage
HHP : 3.6V DC (±10%)
Hands-free : 13.7V DC (±10%)
Size and Weight : 88.0 x 56.5 x 26.7/27.6/31.3 mm
including slim battery : 117.3 g
including standard battery : 145.2 g
including extended battery : 160.5 g
Operating Time
Digital Mode Standby Time : up to 36 hours (with slim battery)
: up to 65 hours (with standard battery)
: up to 100 hours (with extended battery)
Talk Time : up to 75 min (with slim battery)
: up to 150min (with standard battery)
: up to 240min (with extended battery)

SAMSUNG Proprietary-Contents may change without notice 2-2
2-2 Digital Mode
Waveform Quality 0.944 or more
Time Reference ±1uS or less
Rx Sensitivity and Dynamic Range -104dBm, FER=0.5% or less
-25dBm, FER=0.5% or less
Tx Output Power 320mW (25dBm)
Tx Frequency Deviation ±300Hz or less
Occupied Band Width 1.32MHz
Tx Conducted Spurious Emission 900KHz : -42dBc / 30KHz below
1.98MHz: -54dBc / 30KHz below
Minimum Tx Power Control below -50dBm
-25dBm: -57.0dBm ~ -38.5dBm
Open Loop Power Control -65dBm: -17.5dBm ~ + 1.5dBm
-104dBm: +18.0dBm ~ +30.0dBm
Standby Output Power below -61dBm
Test1: ±24dB or less
Test2: 0mS ~ 2.5mS
Colsed Loop Tx Power Control Range Test3: ±24dB or more
Test4: ±24dB or more
Test5: ±24dB or more

2-3 SAMSUNG Proprietary-Contents may change without notice
2-3 ANALOG MODE
TRANSMITTER
RF output power
Carrier ON/OFF conditions
ÒONÓ Condition
ÒOFFÓ Condition
Compressor
Compression Rate
Attack Time
Recovery Time
Reference Input
Preamphasis
Maximum Freqency Deviation
F3 of G3
Supervisory Audio Tone
Signaling Tone
Wideband Data
Post Deviation Limiter Filter
3.0 ~ 5.9KHz
5.9 ~ 6.1KHz
6.1 ~ 15KHz
Over 15KHz
Spectrum Noise Suppression
For all modulation
f0+20KHz ~ f0+45KHz
For modulation by voice and SAT
f0 +45KHz
For modulation by WBD(without SAT)
and ST (with SAT)
f0+45KHz ~ f0+60KHz
f0+60KHz ~ f0+90KHz
f0+90KHz ~ 2f0
Harmonic and conducted Spurious Emissions
0.6W (+2/-4dB)
within ±3dB of specification output (in 2mS)
below-60dBm (in 2mS)
2:1
3mS
13.5mS
Input level for producing a nominal ±2.9KHz
peak freqency deviation of transmitted carrier
6dB/OCT within 0.3 ~ 3KHz
±12KHz
±2KHz (±10%)
±8KHz (±10%)
±8KHz (±10%)
above 40 LOG (F/3000) dB
above 35 dB
above 40 LOG (F/3000) dB
above 28 dB
above 26 dB
above 63 +10 LOG (PY) dB
above 45 dB
above 65 dB
above 63 +10 LOG (PY) dB
(where f0=carrier frequency
PY=mean output power in watts)
below 43 + 10 LOG (PY) dB

SAMSUNG Proprietary-Contents may change without notice 2-4
RECEIVER
De-Emphasis
Expander
Expander Rate
Attack Time
Recovery Time
Reference Input
Sensitivity
Intermodulation Spurious Response Attenuation
RSSI Range
Protection Against Spurious Response
Interference
In Band Conducted Spurious Emission
Transmit Band
Receive Band
Other Band
Radiated Spurious Emission
Frequency Range
25 ~ 70 MHz
70 ~ 130MHz
130 ~ 174 MHz
174 ~ 260 MHz
260 ~ 470 MHz
470 ~ 1GHz
-6dB / OCT within 0.3 ~3KHz
1:2
within 3mS
within 13.5mS
output level to a 1000Hz tone from a carrier
within ±2.9KHz peak frequency deviation
12dB SINAD / -116dBm
avove 65dB
above 60dB
above 60dB
below -60dBm
below -80dBm
below -47dBm
Maximum Allowable EIRP
-45dBm
-41dBm
-41 ~ -32dBm
-32dBm
-32 ~ -26dBm
-21dBm

2-5 SAMSUNG Proprietary-Contents may change without notice
2-4 CDMA Debug Display Information (menu 8)
IN IDLE MODE
IN CONVERSATION MODE
1 : Sxxxxx : SID (System ldentification) toggle
Nxxxxx : NID (Network Identification) toggle
2 : SIx : Slot cycle index (lowest between the system and the phone will be used)
3 : Handset Status : 0 - Acquisition
1 - Synchronization
2 - Paging (Idle)
3 - Traffic Initialization
4 - Traffic Mode
5 - Exit
4 : T-xx : Tx adjust, Value ranges from +63 ~ -63dB
5 : Dxxx : sector power in dBm
6 : -xx : Ec/Io
7 : Pxxx : PN offset
8 : CHxxxx : channel number
9 : TEx : Tx vocoder rate (8 is full rate, 1 is 1/8th rate)
E : EVRC
V : 13k or 8k
10 : REx : Rx vocoder rate (8 is full rate, 1 is 1/8th rate)
11 : xx : Walsh code used in traffic channel
12
5
3
64 Sxxxx
TEx
T-xx Dxxx -xx
CHxxxxPxxx
REx xx x
T-xx Dxxx -xx
CHxxx
Pxxx
SIx x
7
8
91011
3

SAMSUNG Proprietary-Contents may change without notice 2-6
2-5 FM Debug Display Information (menu 8)
1 : SIDxxxxx : FM Home System ID
2 : PWRx : Power Level 0~7
3 : SATx : Supervisory Audio Tone code (0~3)
4 : x (Using Frequency Band) : A Band or B Band
5 : RSSIxxx : RSSI value
6 : CHxxx : Using Channel
14
52 SIDxxxxx
PWRx RSSIxxx
CHxxxx
SATx
x
3
6

3. Installation
3-1 Installing a Battery Pack
1. To attach the battery pack after charging, align it with the phone about 1cm (1/2 inch away from its place so
that the two arrows on the phone are seen, the battery charge contacts pointing downward.
2. Slide the battery pack upwards until it clicks firmly into position. The phone is now ready to be turned on.
3. To remove the battery pack, release it by pressing the button on the rear of the phone.
4. Slide the battery pack downward about 1cm (1/2inch and lift it away from the phone.
3-1 SAMSUNG Proprietary-Contents may change without notice
Press this button to
release the battery pack

SAMSUNG Proprietary-Contents may change without notice 3-2
3-2 For Desk Top Use
1. Choose a proper location to install the charger for Desk Top use.
2. Plug the power cord of the charger into an appropriate wall socket. When the power is connected correctly,
the lamps turn on briefly.
3. To charge the battery pack, insert the battery pack into the rear slot of the charger. The lamp marked BAT on
the front panel of the charger ights up red.
4. If you do not wish to use the phone while charging the battery, insert the phone with the battery pack
attached into the front slot of the charger. The lamp marked PHONE on the front panel of the charger lights
up red.
Figure 3-1 Charging the Phone and Battery
SPECIFICATIONS USING ÒDTC 81Ó
Product Charging time (hours) Stand by time (hours) Talking time(min)
Front Rear Digital Digital
Slim Battery Pack (Li-ion: 550mAh 2 2 36 75
Standard Battery Pack (Li-ion: 1000mAh) 2.5 4 65 150
Extended Battery Pack (Li-ion: 1600mAh) 3 5 100 240
item Model Name Service Part#
Desk Top Rapid Charger DTC81
Slim Battery Pack BTI81AB
Standard Battery Pack BTS81AB GH43-00060A
Extended Battery Pack BTE81AB
STANDARD
BATTERY PACK
SLIM
BATTERY PACK EXTENDED BATTERY PACK

3-3 SAMSUNG Proprietary-Contents may change without notice
3-3 For Mobile Mount
3-3-1 Cradle
1. Choose a location where it is easy to reach and does not interfere with the driverÕs safe operation of the car.
2. Separate the two halves of the clamshell by removing the two large slotted screws. See the figure 3-2.
3. Drill holes and mount the lower half of the clamshell by using the screws.
4. Place the cradle onto the remaining half of the clamshell and assemble them by using the screws.
5. Reassemble the two halves of the clamshell together. Adjust the mounting angle and tighten the two slotted
screws.

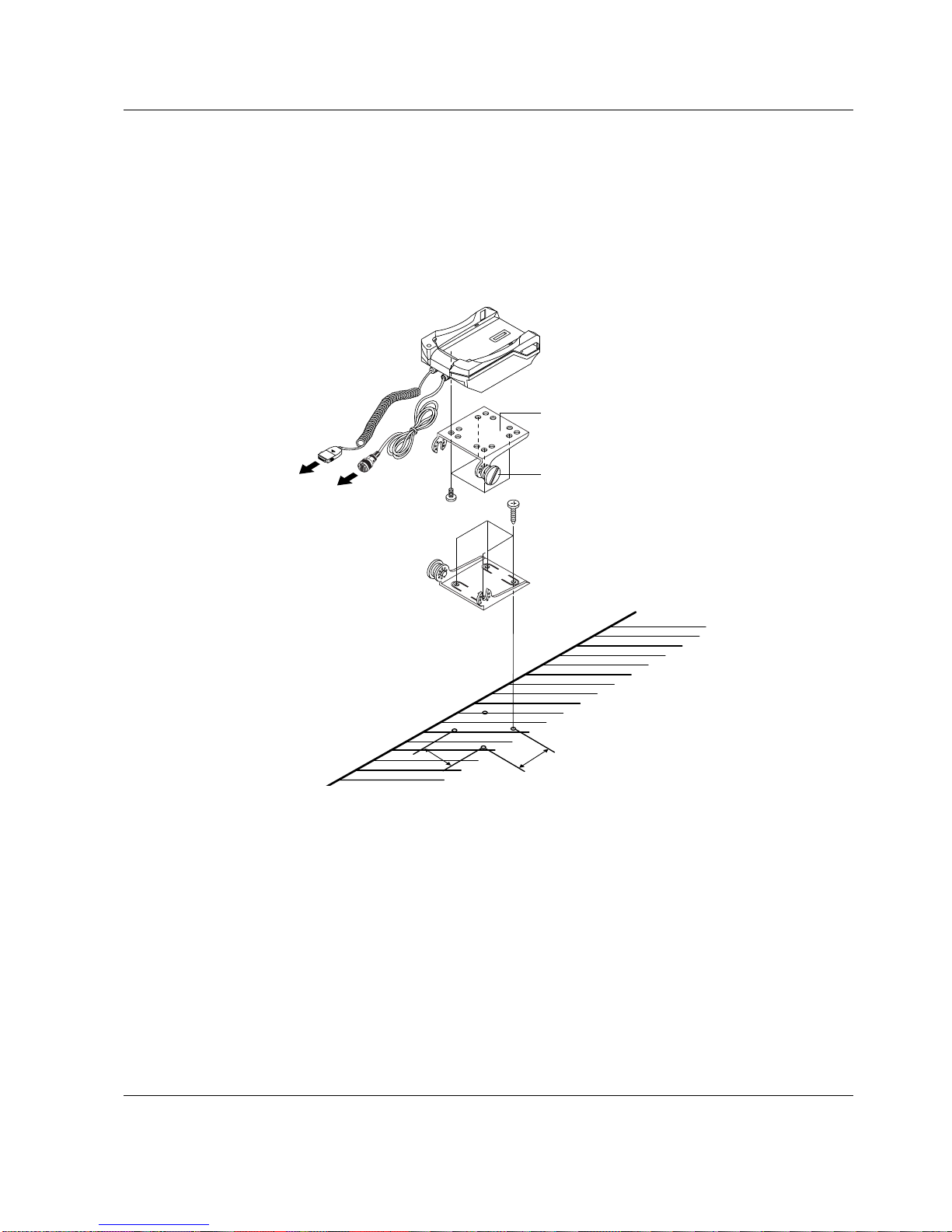

Figure 3-2 Cradle Installation
3-3-2 Hands-Free Box
1. Drill holes in a proper location for the hands-free box, attach the mounting bracket by using the screws. See
the figure 3-3.
2. Install the hands-free box into the bracket.
HANDS
FREE BOX
CELLULAR
PHONE
CRADLE
CLAM SHEEL
MOUNT UPPER
CLAM SHEEL
MOUNT LOWER
FIXED SCREW
CAR
32
32

SAMSUNG Proprietary-Contents may change without notice 3-4
3-3-3 Hands-Free Microphone
1. It is recommended to install the microphone where it is 30-45 cm (12-18inch away from the driver. Choose
the location where is least susceptible to interference caused by external noise sources, ie, adjacent windows,
radio speakers, etc. Normal place is the sun visor.
2. Once the microphone has been correctly positioned, connect the microphone wire to the MIC jack on the
hands-free box.
Figure 3-3 Hands-Free Box 1 Installation
MOUNTING BRACKET

3-5 SAMSUNG Proprietary-Contents may change without notice

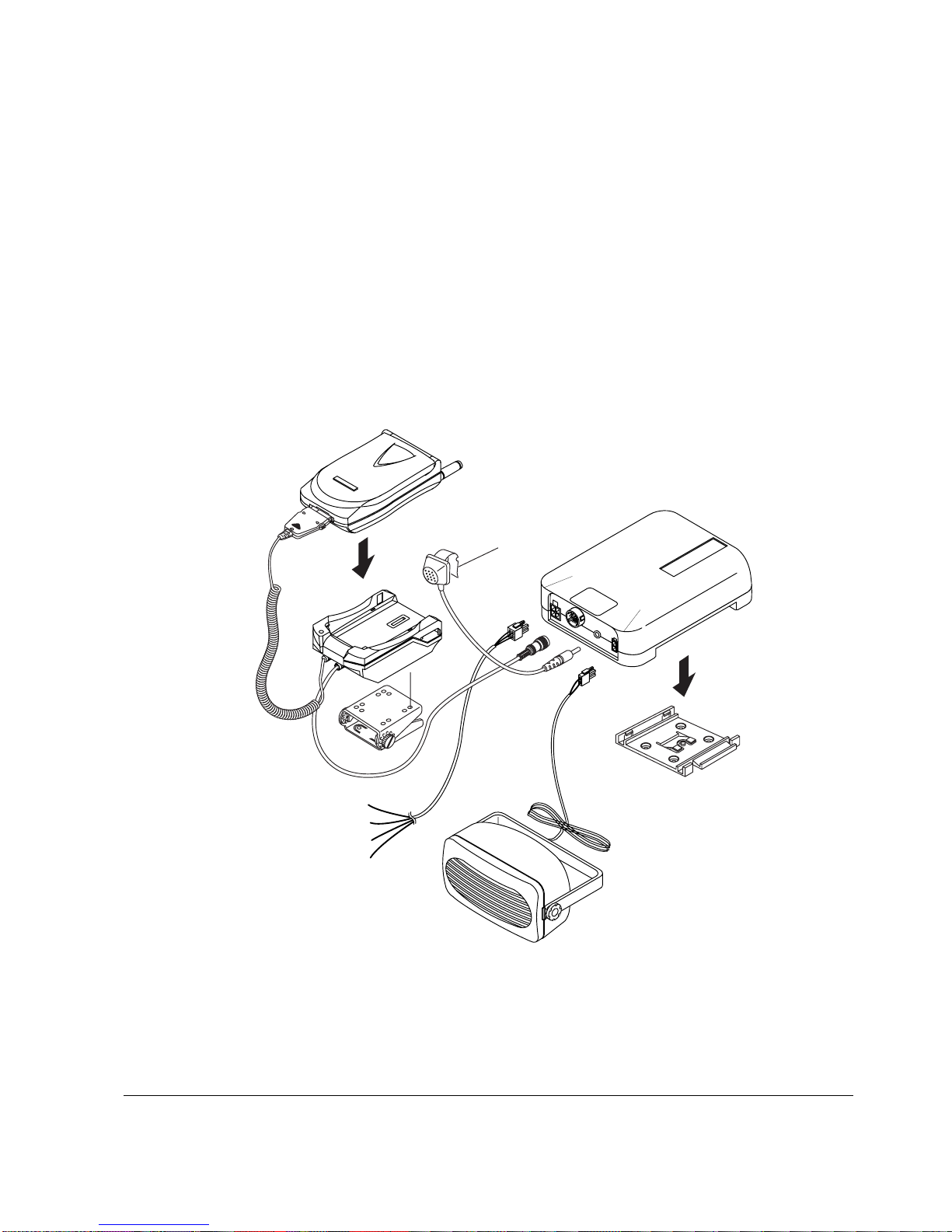

3-3-4 Cables
1. Connect the cradle and the hands-free box with the data cable. See the figure 3-4.
2. Connect the antenna cable to the RF jack of the cradle.
3. Connect the power cable as follows:
Connect the red wire to the battery (+) terminal, black wire to the vehicle chassis. Then connect the battery (-)
terminal to the vehicle chassis. Connect the yellow wire to the switched side of the ignition switch, and then
connect the white to the stereo mute wire from your vehicle stereo.
4. Connect the other end of the power cable to the PWR jack of the hands-free box.
Notes:
It is recommended to connect the power cable directly to the battery to avoid power noise.
Make sure the connection, in the vehicle, between the battery (-) terminal and vehicle chassis is made correctly.
Make sure the fuse having a proper capacity is used on the power cable.
Make sure the cables do not pass over any sharp metal edge that may damage it.
Yellow(Ignition)
Micro Phone
White(Stereo Mute)
Red(Vehicle Battery)
Black(GND)

4. NAM Programming
NAM features can be programmed as follows:
Notes:
-If you enter the NAM program mode, each item shows the currently stored data. Go to the next item by
pressing OK.
-You can modify the data by entering a new data.
-If you enter a wrong digit, press CLR to delete the last digit. Press and hold CLR to delete all digits.
-To scroll items backwards or forwards, press the VOLUME button on the left side of the phone.
4-1 General Setup
LCD Display Key in Function
47*869#08#9 -selects NAM programming
NAM program 1 -choose ÔGENERALÕ
1:General
2:Setup NAM1
3:Setup NAM2
ESN Volume ▼-Electronic Serial Number of the phone is displayed
E9031F77
CAI version Volumet -Common Air Interface version is displayed
3
VOC13K/8K
SO_VOICE_08K Volume ▼-Vocoder Rate
SCM Volume ▼-Station Class Mark displays the power class,
01101010 transmission, slotted class, dual mode.
Lock Code Lock code, current ststus is displayed
0000 4-digit code -to change, enter new code.
OK -store it
Slot Mode Slot mode. ÔYesÕ indicates the slot mode.
Yes F or E-changes the status.
OK -store it.
Slot Index Slot mode index. The higher, the longer sleeping time
2 0-7 -to change, enter new one.
OK -store it.
Pref NAM(1~4)... Preferred system selection for NAM(1~4).
Digital pref F or EUp to four NAMs are allowed for the phone. This lists
OK one of the four NAMs and allows you to program both
the FM and CDMA settings.
SAMSUNG Proprietary-Contents may change without notice 4-1

4-2 SAMSUNG Proprietary-Contents may change without notice
4-2 Setting Up NAM1
LCD Display Key in Function
NAM Program 2 -Choose ÔSetup NAM1.Õ
1:General
2:Setup NAM1
3:Setup NAM2
Setup NAM1 1 -Choose ÔPhone #Õ
1:Phone #
2:FM
3:CDMA
Phone # -directory number
1234567890 Phone number -to change, enter new one.
OK -store it.
Mobile ID # -Phone number currently used.
1234567890 Phone number -to change, enter new one.
OK -store it.
Setup NAM1 2 -Choose ÔPhone #Õ
1:Phone #
2:FM
3:CDMA
FM HOME SID System ID for home, current ststus is displayed.
4369 ID number -to change, enter new one.
OK -store it.
FM 1st Chn Current 1st paging channel.
333 Channel number -to change, enter new one.
OK -store it.
FM Acq SID1 Acquisition system ID 1, current status is displayed.
4 ID number -to change, enter new one.
OK -store it.
FM Acq SID2 Acquisition system ID2, current status is displayed.
0 ID number -to change, enter new one.
OK -store it.
FM LockSID 1 Lock system ID 1, current status is displayed.
0 ID number -to change, enter new one.
OK -store it.
Auto Reg FM Registration, current status is displayed.
-changes the status.

SAMSUNG Proprietary-Contents may change without notice 4-3
LCD Display Key in Function
Yes F or EÔYESÕ to enable, ÔNOÕ to disable.
OK -store it.
FM preq... Preferred system selection, current status is displayed.
-changes the system.
A only F or EÔYESÕ to enable, ÔNOÕ to disable.
OK -store it.
FM ACCOLC Current Access Overload Class.
0F or E-changes the system.
OK -store it.
Setup NAM1 3 -choose ÔCDMAÕ
1:Phone #
2:FM
3:CDMA
IMSI_MCC IMSI Moble Country Code, current code is displayed.
000 number -to change, enter new one.
OK -store it.
IMSI_MNC IMSI Mobile Network Code, current code is displayed.
00 number -to change, enter new one.
OK -store it.
CDMA pref.. Preferred system selection, current system is displayed.
A only F or E-changes the system.
OK -store it.
CDMA ACCOLC CDMA Access Overload Class, current status is displayed.
0 class number -to change, enter new one.
OK -store it.
Pchn Sys A Preferred channel currently used under system A
779 channel number -to change, enter new one.
OK -store it.
Pchn Sys B Preferred channel currently used under system B
779 channel number -to change, enter new one.
OK -store it.
Schn Sys A Second channel currently used under system A
738 channel number -to change, enter new one.
OK -store it.

4-4 SAMSUNG Proprietary-Contents may change without notice
LCD Display Key in Function
Schn Sys B Second channel currently used under system B
738 channel number -to change, enter new one.
OK -store it.
CD Acq SID 1 1st Acquisition system ID, current status is displayed.
0 ID number -to change, enter new one.
OK -store it.
CD lockSID 1 1st lock system ID,current status is displayed.
0 ID number -to change, enter new one.
OK -store it.
CDMA Home SID CDMA Home system ID, current status is displayed
Yes F or E-changes the status.
OK -store it.
CDMA fSID CDMA foreign SID, current status is displayed.
Yes F or E-changes the system.
OK -store it.
CDMA fNID CDMA foreign NID, current status is displayed.
Yes F or E-changes the system.
OK -store it.
SID #1 first SID written in the list, current status is displayed.
2222 number -to change, enter new one.
OK -store it.
NID #1 first NID written in the list, current status is displayed.
1 number -to change, enter new one.
OK -store it.
SID #2 2nd SID written in the list, current status is displayed.
2222 number -to change, enter new one.
OK -store it.
NID #2 2nd NID written in the list, current status is displayed.
2 number -to change, enter new one.
OK -store it.
SID #3 3rd SID written in the list, current status is displayed.
2222 number -to change, enter new one.
OK -store it.
NID #3 3rd SID written in the list, current status is displayed.
3 number -to change, enter new one.
OK -store it.

SAMSUNG Proprietary-Contents may change without notice 4-5
4-3 Setting Up NAM2,3,4
The NAM2,3,4 setup program is the same as Ô4-2 Setting Up NAM1Õ.
LCD Display Key in Function
SID #4 4th SID written in the list, current status is displayed.
2222 number -to change, enter new one.
OK -store it.
NID #4 4th NID written in the list, current status is displayed.
15 number -to change, enter new one.
OK -store it.
Setup NAM1 LCD returns to the NAM1 setup mode.
1:Phone #
2:FM
3:CDMA

5. Product Support Tools
5-1 General
IMPORTANT INFORMATION
Purpose
The Product Support Tool (PST) offers you the ability to interface with the SAMSUNG CDMA telephone using
a PC. With this tool you can program the phones network system requirements and functionality, swap phone
data, and download software upgrades. This document supports UniPST version 1.xx.
NOTE: This software must be executed in the Windows95/98 mode.
EQUIPMENT REQUIRED
Make sure you have the following equipment setup:
1. Minimum PC configuration: 586 CPU, 16MB RAM, Windows95/98, 5MB of disk space free for software
upgrade.
2. PST Software with appropriate cable (DM Cable for SAMSUNG CDMA phone).
3. Serial Port (16550 Serial Interface Card).
4. POWER SUPPLY (3.8V) OR BATTERY
INSTALLATION
Software
1.Insert the PST floppy disk into drive (A:\).
2.Create an appropriate directory on the C:\ drive for PST software, Execute Setup.exe file,
The installation program creates folder and task bar on the windows95/98 start bar.
SAMSUNG CDMA Phone
The serial port should be configured to COM1 or COM2.
Use the following procedure to connect the phone, cable, and PC .
Plug the female end of the DM Cable into the 16550 card.
Pull the black rubber connector away from the socket at the base of the phone.
Plug the special connector on the cable into the socket at the base of the phone.
5-1 SAMSUNG Proprietary-Contents may change without notice
