1. SGH-Z500 Specification
ThisDocumentcan notbe used withoutSamsung'sauthorization
1-1
1.GSMGeneralSpecification
EGSM900 DCS1800 PCS1900 W-CDMA
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960 1710~1785 1805~1880 1850~1910 1930~1990 1920~1980 2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 UL:9612~9888 DL:10562~10838
Tx/Rx spacing 45MHz95MHz80MHz190MHz
Mod.Bitrate/
BitPeriod 270.833kbps 3.692us270.833kbps 3.692us270.833kbps 3.692us3.84Mcps
TimeSlot
Period/Frame
Period
576.9us
4.615ms576.9us 4.615ms576.9us 4.615msFramelength:10ms Slotlength:0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
MS Power33dBm~5dBm30dBm~0dBm30dBm~0dBm24dBm~-50dBm
PowerClass 4
(max+33dBm)1 (max+30dBm)1 (max+30dBm)3 (max+24dBm)
Sensitivity-102dBm-100dBm-100dBm-106.7dBm
TDMAMux8 8 8
Cell Radius35Km2Km2Km2Km

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
Specification
1-2
2.GSMTX powerclass
TX Power
control levelPCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control levelGSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control levelDCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
2. SGH-Z500 Circuit Description
ThisDocumentcan notbe used withoutSamsung'sauthorization
2-1
1.SGH-Z500 RFCircuitDescription
1.Antenna SwitchModule(U101)
The antenna switchmodule allowsmultiple operating bandsand modestosharethe same antenna.Acommon
antenna connectsto one of five paths:1)UMTS-2100 Rx/Tx,2)EGSM-900 Rx,3)EGSM-900 Tx,4)DCS-1800
Rx,and 5)DCS-1800 Tx.6)PCS-1900 Tx,7)PCS-1900 Rx,UMTSoperation requires simultaneousreception
and transmission.
2.Filter
ToconvertElectromagneticFieldWavetoAcousticWave and then pass the specificfrequency band.
-GSMRxFILTER(F101)→Forfiltering the frequency band between 925 ~960 MHz.
-DCSRxFILTER(U103)→Forfiltering the frequency band 1805 and 1880 MHz.
-DCSRxFILTER(F102)→Forfiltering the frequency band 1930 and 1990 MHz.
-WCDMARxFILTER(F201)→Forfiltering the frequency band 2110 and 2170 MHz.
-WCDMATxFILTER(F202)→Forfiltering the frequency band 1920 and 1980 MHz.
3.VCTCXO(OSC201)
To generatethe 19.2MHzreferenceclock to drivethe logicand RF.
4.Duplexer (F203)
Aduplexersplitsasingle operating band intoreceive and transmitpaths.
5.UMTS PAM(U201)
Thisisakey componentinthe transmitterchain and mustcomplement the RTR6250 ICprecisely;jointlythey
dominatethe UMTStransmitterperformancecharacteristics.Parameters such asgain,outputpowerlevel,ACLR,
harmonics,Rx-band noise,and powersupply currentarecritical.
6.GSM/DCS/PCS PAM(U105)
The PAMisakey componentin anytransmitterchain and mustcomplement the restof the transmitterprecisely.
ForGSM,DCS,PCSoperation, the closed-loop transmitpowercontrolfunctionsadd even morerequirements
relativetothe UMTS PA. In addition to gaincontroland switching requirements, the usualRFparameters such
asgain,outputpowerlevel,severaloutputspectrumrequirements,and powersupply currentarecritical.
7.GSM/DCS/PCSlTxVCO(U104)
The TxVCOoutputsforEGSM,DCS,PCSdrivearesistive networkthatsplitsthe activesignal intotwosignals:
1)the input tothe activePAM?thisisthe lowloss path,and 2)the OPLL feedback signal.
8.RFVCO(OSC202)
The single-band UHFVCOisakey componentwithinitsphase-locked loop;VCOperformance directlyimpacts
PLL and transceiverperformance.UMTSRxLOsignal isgenerated fromthisVCO'soutput.

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
CircuitDescription
2-2
9.RFL6200 (U202)
The RFL6200 includesan LNAcircuitoptimized forUMTS-2100 operation.The LNAis separated fromall other
receivefunctions contained withinthe RFR6200 receiverICtoimprovemixerLOtoRFisolation ? a critical
parameterinthe Zero-IFarchitecture.
10.RFR6200 (U203)
The RFR6200 providesthe Zero-IFreceiversignalpath, fromRFto analog baseband, forUMTS-2100
applications.The RFR6200 acceptsitsUMTSinputsignalfromthe handsetRFfront-end design.The UMTSinput
is configured differentiallyto optimizesecond-orderinter-modulation and common mode rejection performance,and
implementsMSM-controlled gain adjustmentsto extend the receiverdynamicrange.
11.RTR6250 (U102)
The RTR6250 supportsmulti-band,multi-mode phoneswithtworeceiversignalpathsand three transmittersignal
paths:
1)Receiverpaths
-EGSM-900
-DCS-1800
-PCS-1900
2)Transmitterpaths
-EGSM-900 (using OPLL technique)
-DCS-1800 (using OPLL technique)
-PCS-1900
-UMTS-2100
Numerous secondaryfunctionsareintegrated on-chip aswell:

SAMSUNG Proprietary-Contents may change without notice
CircuitDescription
ThisDocumentcan notbe used withoutSamsung'sauthorization
2-3
2.Baseband CircuitdescriptionofSGH-Z500
1.PM6650
1.1.PowerManagement
Ten low-dropoutregulatorsdesigned specificallyforGSMapplicationspowerthe terminaland help ensure optimal
systemperformance and long batterylife.ItprovidesLDOs support for1.375V,1.8V,2.6V,2.85V,
3.3V.
IC-level interfacesinclude the three-line serialbusinterface(SBI)used bythe MSM6250 devicetocontrol
and statusthe PM6650 IC.
1.2.Keypad Backlight
The Keypad backlightdriveroutputisatpin23(KYPD_BACKLIGHT_DRV)and isdesigned to drive parallel
connected LEDsdirectly. Itsoutputcurrentlevel isSBI-programmable and meetsthe performancespecified below.
Inputparametersare notspecified sincetheyareinternal.
1.3.TCXOControllerand Buffers
The PM6650 ICincludes circuitsforcontrolling the TCXOwarm-up and buffering its signalfordistribution
throughout the handset. Performancespecificationsare presented below.
2.Connector
2-1.LCD Connector
LCD is consisted ofmain LCD(color262KTFT LCD)and small LCD(OLEDcolor65KLCD).Chipselectsignals
inthe U302,MAIN_LCD_CScan enablemain LCD and SUB_LCD_CScan enablesmall LCD.CAM_PWR_ON
signalenableswhite LEDofmain LCD.MAIN_LCD_RESETsignal initiatesthe reset
process of the main LCD.SUB_LCD_RESETsignal initiatesthe Resetprocess of the small LCD.
16-bitdatalines(D2(0)~D(15)) transfersdata and commandsto LCD.Data and commandsuse"RS"signal.
If this signal ishigh, Inputsto LCD arecommands.Ifitislow, Inputsto LCD are data.The signalwhichinforms
the inputoroutputstateto LCD,isrequired.But this systemisnotnecessarythis signal.
PowersignalsforLCD are"VBATT_LCD"."SPKP_RCVP"and "SPKP_RCVN"fromU603 are used foraudio
speaker.And "MOTOR_EN"fromU302 enablesthe motor.
2-2.Key
Thisis consisted ofkeyinterface pinsamong U302,KEYSENSE_N(0:4).Thesesignals composethe matrix.
Resultofmatrixinformsthe key statustokeyinterfaceinthe U302.Poweron/off keyis seperated fromthe
matrix.The keyLEDusethe "VBATT"supply voltage."KEY_LED"signalenablesLEDswithcurrentcontrol.
"HALL_SW"informsthe statusof folder (open orclosed)tothe.Thisusesthe hall effect IC,A3212ELH.

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
CircuitDescription
2-4
2-3.EMIESDFilter
This systemusesthe EMIESDfilter,GMF05LCto protectnoisefromIFCONNECTORpart.
2-4. IFconnetor
It is24-pinconnector.Theyare designed to useVBATT,CF,UART1_TX,UART1_RX,UART1_RFR,
UART1_CTS,JIG_ON,RTCK,TCK,TDI, TDO,TMSand GND.They connected to powersupplyIC,
microprocessorand signalprocessorIC.
3.Audio
EAR1OPand EAR1ONfromU302 areconnected tothe mainspeaker.AUXOPand AUXONareconnected to
the DigitalAMP.MIC1Pand MIC1Nareconnected tothe mainMIC.And MIC2Pand MIC2Nareconnected to
the Earphone.
YMU765 hasa built-in amplifier,and thus,isan idealdeviceforoutputting soundsthatare used bymobile
phonesin addition to gamesoundsand ringing melodiesthatarereplayed byasynthesizer.
The synthesizersection adopts"stereophonichybridsynthesizersystem"thatare given advantagesofbothFM
synthesizersand WaveTablesynthesizersto allowsimultaneousgeneration ofup to 32 FMvoicesand 32 Wave
Tablevoices.Furthermore,YMU765 hasa built-in hardwaresequencerthathelpstorealizecomplexplaywithout
heavilyloading the hostCPU.And thisdevice also hasa built-incircuit forcontrolling vibratorsand LEDs
synchronizing with playofmusic.The consumed electric currentcan be stopped tothe minimumbypowerdown
mode when notoperating.
The hardwaresequence builtinthisdevice allowsplaying of the complexmusicwithoutgiving excessiveload to
the CPUof the portabletelephones.Moreover, the registersof the FMsynthesizercan be operated directlyfor
realtimesound generation,allowing, forexample,utilization ofvarious sound effectswhen using the game
softwareinstalled inthe portabletelephone.
4.Memory
The signalsinthe MSM6250 enabletwomemories.Theyuse onlyone voltsupply voltage,VDD_LPfrom
the PM6650.This systemusesSEC'smemory,KBE00F005M-F411. It is consisted of1GbitsflashNAND
memoryand 512MbitsSDRAM memory. It has16 bitdataline,D1[0~15]whichis connected toMSM6250.
It has22 bitaddress lines,A[1~22]. ROM_CSand RAM_CSsignalsis chipselect.
6.Camera
The cameramoduleconsistsofMega pixeland VGApixel.The Mega cameraisa highlyintegrated CMOScolor
image sensorimplemented byHynixCOMSsensorprocess realizing high sensitivityand wide dynamicrange.
Totalpixelarray sizeis1184Hx914V,and 1170Hx880Vpixelsare active.The VGAcameraisa
highlyintegrated CMOScolorimage sensorimplemented byHynixCOMSsensorprocess realizing high sensitivity
and wide dynamicrange.Totalpixelarray sizeis656Hx492V,and 656Hx488Vpixelsare active.
7. Irda
This systemusesIRDAmodule,HSDL_3208,Agilent's.Thishas signals,"IRA_DOWN"(enaglesignal),
"RXD0"(Inputdata)and "TXD0"(outputdata).Thesesignalsareconnected toU302(MSN6200).Itusestwo power
signals."VDD_LP"isused forcircuitand "VBATT"isused forLED.

SAMSUNG Proprietary-Contents may change without notice
3. SGH-Z500 ExplodedViewand Parts List
ThisDocumentcan notbe used withoutSamsung'sauthorization
3-1
1.CellularphoneExplodedView
QAN02
QBA01
QCA01
QCW01
QCR03
QFL01
QCR11
QCR26
QCW04
QFR01
QFU01
QIF01
QKP01
QLC01 QME01
QMO01
QMP01
QRF01
QRF03
QSC07
QSC10
QSH01
QSK02
QSP01
QCK01
QWD03
QWD02
QMW01
QCW01
QRE01

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
Explodedviewand PartList
3-2
2.CellularphonePartslist
LocationNO.DescriptionSEC CODE
QCK01 CAMERAKEYGH75-02915B
QSK02 SIDEKEYGH75-02914A
QSC07 RMO-SCREWCAP(R)GH73-01891A
QSC10 RMO-SCREWCAP(L)GH73-01890A
QFR01 FRONTCASEGH75-06679A
QKP01 KEYPADGH75-06680A
QME01 UNITKEYPADGH59-02137A
QSH01 MEC-SHIELDBRAKETGH75-07057A
QMP01 PBAMAINGH92-02098A
QCR26 SCREWMACHINE6001-001850
QAN02 INTENNAGH42-00554A
QRE01 REARCASEGH75-06688A
QCW04 TFLASHCOVER GH72-20529A
QIF01 IFCOVER GH72-20530A
QRF03 EARCOVER GH72-20528A
QRF01 RFSHEETGH74-14930A
QCR11 SCREW-MACHINE6001-001654
QBA01 BATTERYGH43-01740A
QWD03 DECOSUBWINDOWGH70-00473A
QWD02 SUBWINDOWLCDGH72-20933A
QFU01 FOLDER UPPER GH75-06682A
QCW01 MEC-WINDOWVGACAMERAGH75-06687A
QCA01 UNITCAMERAGH59-02041A
QLC01 LCDGH07-00675A
QSP01 SPEAKER 3001-001751
QMO01 MOTORDCGH31-00154A
QFL01 FOLDER LOWER GH75-06683A
QCR03 SCREWMACHINE6001-001811
QMW01 MAINWINDOWGH75-02919B

SAMSUNG Proprietary-Contents may change without notice
Explodedviewand PartList
ThisDocumentcan notbe used withoutSamsung'sauthorization
3-3
DescriptionSEC CODE
BAGPE;LDPE,T0.05,W80,L180,TRP,-,-6902-000634
CBFINTERFACE-SGHZ110 TESTCAB;SGH-ZGH39-00337E
CBFINTERFACE-SGHZ110 TESTCAB;SGH-ZGH39-00337G
CBFINTERFACE-PCDATACABLE;SGH-Z500 GH39-00395A
CHARGER-TCH;TCH137ESE,SGH-X910,AC/DCGH44-00701A
S/WCD-EASYSTUDIOCD;SGH-Z500,SGH-ZGH46-00145A
UNIT-EARPHONE;SGH-X910,AEP277SSE,-,EGH59-01392A
LABEL(P)-WATERSOAK;SCH-X110,NORGE,1GH68-02026A
MANUAL-SVRCARD;SGH-R210S,XEP,PORTUG GH68-02552A
MANUAL-USE;SGH-Z500,TMN,PORTUGUESE,PGH68-06925A
MANUAL-WEEE CARD;SGH-E720,SEC,ENGLISGH68-07013A
LABEL(R)-MAIN(EU);SGH-Z500,EU,POLYESGH68-07210A
BOX(P)-UNIT(EU);SGH-Z500,SC240G,-,20 GH69-02772A
CUSHION-CASE(OPEN);SGH-Z500,PULP,T0.GH69-03001A
MPR-WINDOWBOHOTAPE;SCH-A8800,VINYLGH74-00152B
MPR-WINDOWDUMMY VINYL;SPH-X7500,VINGH74-02725A
MPR-SPONGEANTENNA;SGH-E700,PORON,12 GH74-05930B
MPR-FRONTFILTER;SGH-E700,BUZICPO,16 GH74-05962A
MPR-BOHOFOLDERUPPER;SGH-E700,3M41 GH74-05964A
MPR-BOHOUPPER;SGH-E700,#950,68.3X37 GH74-05967A
MPR-BOHOUPPER;SGH-E700,staelectricGH74-05967B
MPR-VINYLMAINLCD;SGH-E700,STAELECGH74-05968A
MPR-BOHOVINYLIF;SGH-E720,#950,85X1GH74-13606A
MPR-BOHOVINYLREAR;SGH-E720,SP-600,GH74-14335A
MEC-HANGER;SGH-Z500,TMN,STRAP,-,BLK,GH75-03673H

SAMSUNG Proprietary-Contents may change without notice
ThisDocumentcan notbe used withoutSamsung'sauthorization
Explodedviewand PartList
3-4

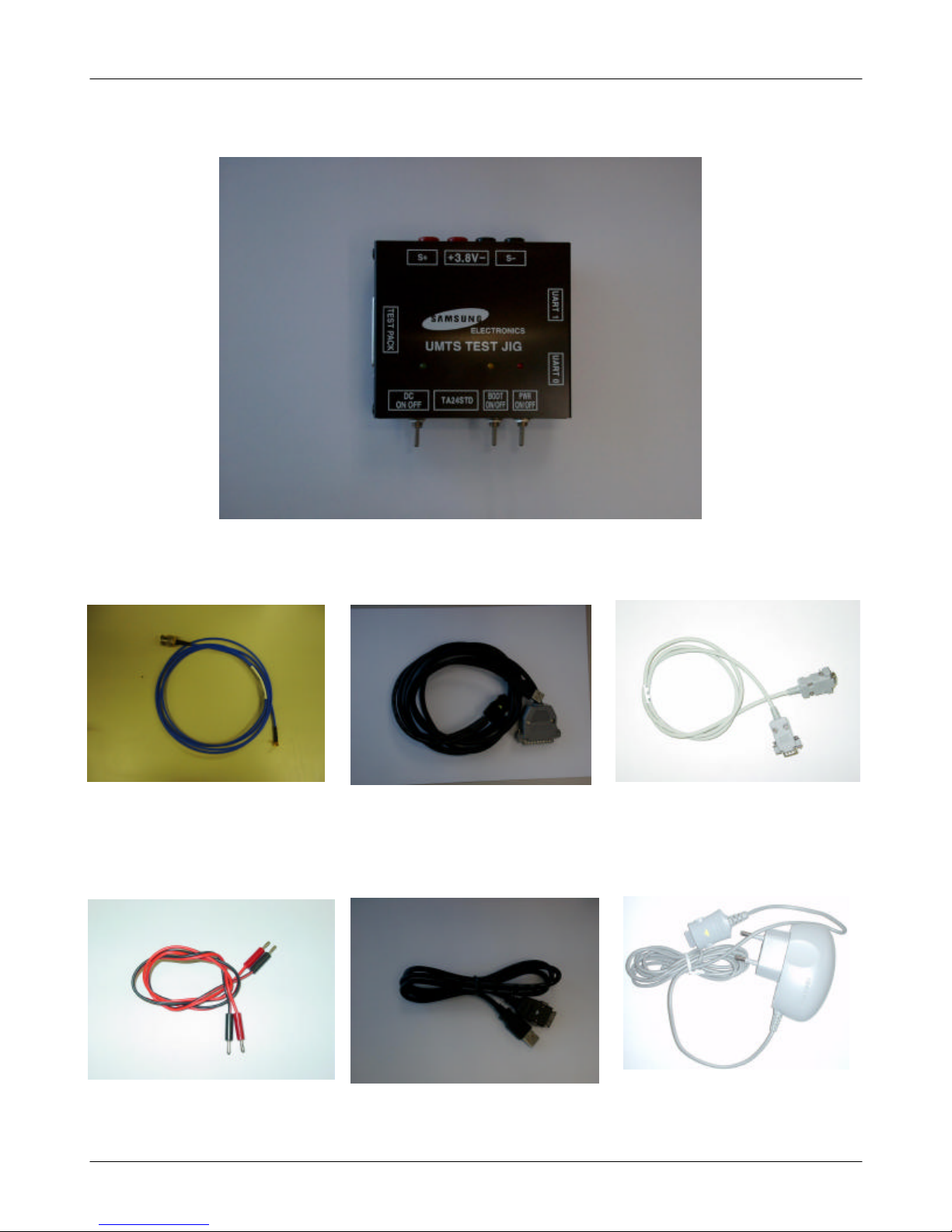

3.TestJig(GH80-03305A)
3-1.RFTestCable
(GH39-00105A)3-2.TestCable (GH39-00210A)3-3.SerialCable
3-4.PowerSupplyCable3-5.DATACABLE
(GH39-00395A)3-6.TC (GH44-00482A)

SAMSUNG Proprietary-Contents may change without notice
4. SGH-Z500 ElectricalParts List
4-1
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
ㅤPCB-SGHZ500,PCB GH41-00806A
AN1 ANTENNA-CHIP 4202-001043
BACKUP401 BATTERY-LI(2ND) 4302-001177
C101 C-CER,CHIP 2203-006093
C102 C-CER,CHIP 2203-000438
C106 C-CER,CHIP 2203-001072
C107 C-CER,CHIP 2203-000885
C110 C-CER,CHIP 2203-000812
C111 C-CER,CHIP 2203-000233
C112 C-CER,CHIP 2203-006093
C113 C-CER,CHIP 2203-000812
C114 C-CER,CHIP 2203-000233
C115 C-CER,CHIP 2203-000233
C116 C-CER,CHIP 2203-000233
C117 C-FILM,SMD-PPS 2301-001512
C118 C-CER,CHIP 2203-000233
C119 C-CER,CHIP 2203-005061
C120 C-CER,CHIP 2203-000836
C121 C-CER,CHIP 2203-000628
C122 C-CER,CHIP 2203-005061
C123 C-CER,CHIP 2203-000233
C124 C-CER,CHIP 2203-000854
C125 C-CER,CHIP 2203-005061
C126 C-CER,CHIP 2203-000812
C127 C-CER,CHIP 2203-000812
C128 C-CER,CHIP 2203-005061
C129 C-CER,CHIP 2203-000233
C130 C-CER,CHIP 2203-000438
C131 C-CER,CHIP 2203-006093
C132 C-CER,CHIP 2203-000854
C133 C-CER,CHIP 2203-005061
C134 C-CER,CHIP 2203-000812
C135 C-CER,CHIP 2203-006093
C136 C-CER,CHIP 2203-000995
C137 C-CER,CHIP 2203-000812
C139 C-CER,CHIP 2203-000854
C140 C-CER,CHIP 2203-006093

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-2
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C141 C-CER,CHIP 2203-000854
C142 C-CER,CHIP 2203-000254
C143 C-CER,CHIP 2203-000359
C145 C-CER,CHIP 2203-005061
C146 C-CER,CHIP 2203-000359
C147 C-CER,CHIP 2203-001385
C149 C-CER,CHIP 2203-000438
C150 C-CER,CHIP 2203-006208
C151 C-TA,CHIP 2404-001274
C152 C-CER,CHIP 2203-000311
C153 C-FILM,SMD 2301-001736
C154 C-CER,CHIP 2203-005482
C155 C-CER,CHIP 2203-000995
C156 C-CER,CHIP 2203-006137
C157 C-CER,CHIP 2203-006201
C158 C-CER,CHIP 2203-006201
C161 C-CER,CHIP 2203-000812
C164 C-CER,CHIP 2203-006201
C165 C-CER,CHIP 2203-006093
C166 C-CER,CHIP 2203-000386
C167 C-CER,CHIP 2203-005482
C168 C-CER,CHIP 2203-005482
C169 C-CER,CHIP 2203-005482
C170 R-CHIP 2007-007008
C172 C-CER,CHIP 2203-000386
C173 C-CER,CHIP 2203-005482
C174 C-CER,CHIP 2203-005503
C175 C-CER,CHIP 2203-002443
C176 C-CER,CHIP 2203-005234
C177 C-CER,CHIP 2203-000359
C178 C-CER,CHIP 2203-000359
C181 C-CER,CHIP 2203-000995
C182 C-CER,CHIP 2203-000995
C184 C-CER,CHIP 2203-000438
C201 C-CER,CHIP 2203-000233
C202 C-CER,CHIP 2203-000885
C203 C-CER,CHIP 2203-006324

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-3
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C205 C-CER,CHIP 2203-000233
C206 C-CER,CHIP 2203-005482
C207 C-CER,CHIP 2203-000278
C208 C-CER,CHIP 2203-000233
C209 C-CER,CHIP 2203-000330
C210 C-CER,CHIP 2203-000330
C211 C-CER,CHIP 2203-001178
C212 C-CER,CHIP 2203-000995
C213 C-CER,CHIP 2203-000330
C216 C-CER,CHIP 2203-000330
C221 C-CER,CHIP 2203-005234
C222 C-CER,CHIP 2203-001383
C224 C-CER,CHIP 2203-000233
C225 C-CER,CHIP 2203-005482
C226 C-CER,CHIP 2203-000278
C227 C-CER,CHIP 2203-000233
C228 C-CER,CHIP 2203-005482
C229 C-CER,CHIP 2203-000233
C230 C-CER,CHIP 2203-000254
C231 C-CER,CHIP 2203-005288
C232 C-CER,CHIP 2203-000438
C233 C-CER,CHIP 2203-005482
C234 C-CER,CHIP 2203-000254
C235 C-CER,CHIP 2203-005482
C236 C-CER,CHIP 2203-000438
C237 C-CER,CHIP 2203-005288
C238 C-CER,CHIP 2203-005482
C239 C-CER,CHIP 2203-000233
C242 C-CER,CHIP 2203-000679
C243 C-CER,CHIP 2203-006208
C244 C-CER,CHIP 2203-005482
C245 C-CER,CHIP 2203-000233
C246 C-CER,CHIP 2203-006208
C247 C-CER,CHIP 2203-000386
C248 C-CER,CHIP 2203-005482
C249 C-CER,CHIP 2203-000330
C250 C-CER,CHIP 2203-005482

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-4
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C251 C-CER,CHIP 2203-000233
C252 C-CER,CHIP 2203-000679
C254 C-CER,CHIP 2203-001221
C255 C-FILM,SMD-PPS 2301-001419
C256 C-CER,CHIP 2203-000233
C301 C-CER,CHIP 2203-006208
C302 C-CER,CHIP 2203-005061
C303 C-CER,CHIP 2203-005061
C304 C-CER,CHIP 2203-005061
C305 C-CER,CHIP 2203-005061
C306 C-CER,CHIP 2203-000233
C307 C-TA,CHIP 2404-001225
C308 C-CER,CHIP 2203-000254
C309 C-CER,CHIP 2203-000254
C310 C-CER,CHIP 2203-000254
C311 C-CER,CHIP 2203-000254
C313 C-CER,CHIP 2203-005482
C314 C-CER,CHIP 2203-005482
C315 C-CER,CHIP 2203-005482
C316 C-CER,CHIP 2203-005482
C318 C-CER,CHIP 2203-006208
C319 C-CER,CHIP 2203-005061
C320 C-CER,CHIP 2203-005061
C321 C-CER,CHIP 2203-005061
C322 C-CER,CHIP 2203-006208
C323 C-CER,CHIP 2203-005482
C324 C-CER,CHIP 2203-005482
C325 C-CER,CHIP 2203-005482
C326 C-CER,CHIP 2203-006208
C327 C-CER,CHIP 2203-000438
C328 C-CER,CHIP 2203-000438
C329 C-CER,CHIP 2203-000438
C330 C-CER,CHIP 2203-000438
C331 C-CER,CHIP 2203-000438
C332 C-CER,CHIP 2203-000438
C333 C-CER,CHIP 2203-000438
C335 C-CER,CHIP 2203-006208

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-5
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C336 C-CER,CHIP 2203-006093
C337 C-CER,CHIP 2203-005482
C339 C-CER,CHIP 2203-000254
C340 C-CER,CHIP 2203-000254
C341 C-CER,CHIP 2203-000254
C342 C-CER,CHIP 2203-000254
C343 C-CER,CHIP 2203-006093
C344 C-CER,CHIP 2203-006093
C345 C-CER,CHIP 2203-000254
C346 C-CER,CHIP 2203-000254
C347 C-CER,CHIP 2203-000254
C349 C-CER,CHIP 2203-006208
C350 C-CER,CHIP 2203-006208
C352 C-CER,CHIP 2203-005482
C353 C-CER,CHIP 2203-005482
C354 C-CER,CHIP 2203-005482
C355 C-CER,CHIP 2203-005482
C356 C-CER,CHIP 2203-005482
C357 C-CER,CHIP 2203-005482
C358 C-CER,CHIP 2203-006093
C359 C-CER,CHIP 2203-000254
C360 C-CER,CHIP 2203-000254
C361 C-CER,CHIP 2203-005482
C362 C-CER,CHIP 2203-005482
C363 C-CER,CHIP 2203-005482
C364 C-CER,CHIP 2203-005482
C365 C-TA,CHIP 2404-001225
C367 C-CER,CHIP 2203-005061
C368 C-CER,CHIP 2203-005482
C369 C-CER,CHIP 2203-000628
C370 C-CER,CHIP 2203-000628
C371 C-CER,CHIP 2203-000489
C373 C-CER,CHIP 2203-000812
C374 C-CER,CHIP 2203-000254
C375 C-CER,CHIP 2203-005480
C376 C-CER,CHIP 2203-000254
C377 C-CER,CHIP 2203-000233

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-6
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C378 C-CER,CHIP 2203-005482
C379 C-CER,CHIP 2203-006093
C380 C-CER,CHIP 2203-005482
C381 C-CER,CHIP 2203-006091
C382 C-CER,CHIP 2203-005482
C383 C-CER,CHIP 2203-005482
C384 C-CER,CHIP 2203-006091
C385 C-CER,CHIP 2203-005482
C386 C-TA,CHIP 2404-001386
C387 C-CER,CHIP 2203-006257
C401 C-TA,CHIP 2404-001339
C402 C-CER,CHIP 2203-005138
C403 C-CER,CHIP 2203-000254
C404 C-CER,CHIP 2203-005138
C405 C-CER,CHIP 2203-006093
C406 C-TA,CHIP 2404-001339
C407 C-CER,CHIP 2203-005061
C409 C-CER,CHIP 2203-000425
C410 C-CER,CHIP 2203-005061
C411 C-CER,CHIP 2203-000628
C412 C-CER,CHIP 2203-005061
C413 C-CER,CHIP 2203-000278
C414 C-CER,CHIP 2203-005065
C415 C-CER,CHIP 2203-006208
C416 C-CER,CHIP 2203-000278
C417 C-CER,CHIP 2203-000278
C418 C-CER,CHIP 2203-006201
C419 C-CER,CHIP 2203-000278
C420 C-CER,CHIP 2203-006201
C421 C-CER,CHIP 2203-006201
C422 C-CER,CHIP 2203-006201
C423 C-CER,CHIP 2203-006208
C424 C-CER,CHIP 2203-000278
C425 C-CER,CHIP 2203-006208
C426 C-CER,CHIP 2203-006201
C427 C-CER,CHIP 2203-006208
C428 C-CER,CHIP 2203-006093

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-7
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C429 C-CER,CHIP 2203-006208
C430 C-CER,CHIP 2203-006208
C431 C-CER,CHIP 2203-000438
C432 C-CER,CHIP 2203-000438
C435 C-CER,CHIP 2203-000812
C436 C-CER,CHIP 2203-000812
C437 C-CER,CHIP 2203-005061
C438 C-CER,CHIP 2203-000812
C439 C-CER,CHIP 2203-006708
C440 C-CER,CHIP 2203-006708
C441 C-CER,CHIP 2203-006708
C442 C-CER,CHIP 2203-005482
C443 C-CER,CHIP 2203-005482
C444 C-CER,CHIP 2203-005482
C445 C-CER,CHIP 2203-005482
C446 C-CER,CHIP 2203-005482
C447 C-CER,CHIP 2203-005482
C448 C-CER,CHIP 2203-005482
C450 C-TA,CHIP 2404-001274
C451 C-CER,CHIP 2203-005482
C455 C-TA,CHIP 2404-001339
C456 C-TA,CHIP 2404-001339
C457 C-CER,CHIP 2203-000254
C458 C-TA,CHIP 2404-001339
C459 C-CER,CHIP 2203-006208
C460 C-CER,CHIP 2203-006208
C461 C-CER,CHIP 2203-000254
C462 C-TA,CHIP 2404-001339
C463 C-CER,CHIP 2203-006208
C464 C-TA,CHIP 2404-001339
C465 C-CER,CHIP 2203-005061
C466 C-TA,CHIP 2404-001394
C467 C-CER,CHIP 2203-005482
C468 C-CER,CHIP 2203-005065
C469 C-CER,CHIP 2203-006141
C470 C-CER,CHIP 2203-000233
C471 C-TA,CHIP 2404-001394

SAMSUNG Proprietary-Contents may change without notice
ElectricalPartsList
4-8
ThisDocumentcan notbe used withoutSamsung'sauthorization
Design LOC Description SEC CODE
C474 C-CER,CHIP 2203-006208
C475 C-CER,CHIP 2203-006201
C476 C-CER,CHIP 2203-006093
C477 C-CER,CHIP 2203-000995
C478 C-CER,CHIP 2203-000940
C479 C-CER,CHIP 2203-000854
C501 C-CER,CHIP 2203-000812
C502 C-CER,CHIP 2203-000278
C503 C-CER,CHIP 2203-000812
C504 C-CER,CHIP 2203-006208
C505 C-CER,CHIP 2203-005482
C506 C-CER,CHIP 2203-000278
C507 C-CER,CHIP 2203-000233
C508 C-CER,CHIP 2203-000812
C511 C-CER,CHIP 2203-006208
C512 C-CER,CHIP 2203-005482
C513 C-CER,CHIP 2203-005482
C514 C-CER,CHIP 2203-000438
C515 C-CER,CHIP 2203-000233
C516 C-CER,CHIP 2203-000812
C517 C-CER,CHIP 2203-000725
C518 C-TA,CHIP 2404-001339
C519 C-CER,CHIP 2203-005482
C520 C-CER,CHIP 2203-000654
C521 C-CER,CHIP 2203-006093
C522 C-CER,CHIP 2203-005061
C523 C-CER,CHIP 2203-006093
C524 C-CER,CHIP 2203-006093
C525 C-CER,CHIP 2203-000995
C526 C-CER,CHIP 2203-005050
C527 C-TA,CHIP 2404-001339
C530 C-CER,CHIP 2203-000278
C531 C-CER,CHIP 2203-000278
C532 C-CER,CHIP 2203-005061
C533 C-CER,CHIP 2203-005061
C534 C-CER,CHIP 2203-006137
C535 C-CER,CHIP 2203-006137
