2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100 WCDMA 1900 WCDMA 900 WCMDA 850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1920~1980
2110~2170
1852~1907
1932~1987 880~915 925~960 824~849 869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:
9612~9888
DL:
10562~10838
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~
-50dBm 24dBm~ -50dBm 24dBm~ -50dBm 24dBm~ -50dBm
Power
Class 5pcl ~19
pcl 5pcl ~19 pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•Android OS: Kitket (4.4.4)
•PM8916 Quad-Core 1.2GHz Processor
•109.2
mm 4.5" TFT LCD(480x800, WVGA)
•2000mAh Battery
•CMOS, 5.0MP, FF, Flash +2.0
MP Camera
•8GBytes (eMMC) +1GBytes (LPDDR3)
•HSPA+ 42Mbps(850/900/2100 MHz)
•A-GPS /BT v4.0 /USB v2.0 /WiFi (802.11 b/g/n 2.4GHz)
•Sensors: Accelerometer, Proximity
•Additional :
-TouchWiz Essence
-Wi-Fi Direct

9. Reference Abbreviate
9-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

6. Level 1Repair
6-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-1. S/W installation
6-1-1. Required items in order to install S/W
Installation program: Downloader Program (Odin3 v3.09.exe)
SM-G360BT/DS Mobile Phone
Data Cable
ŸJIG BOX (GH81-11888A)
•JIG Cable (GH81-10958A)
•Adapter (GH81-11888K)
•Serial Cable
Mobile device specific S/W: Binary files
※Settings

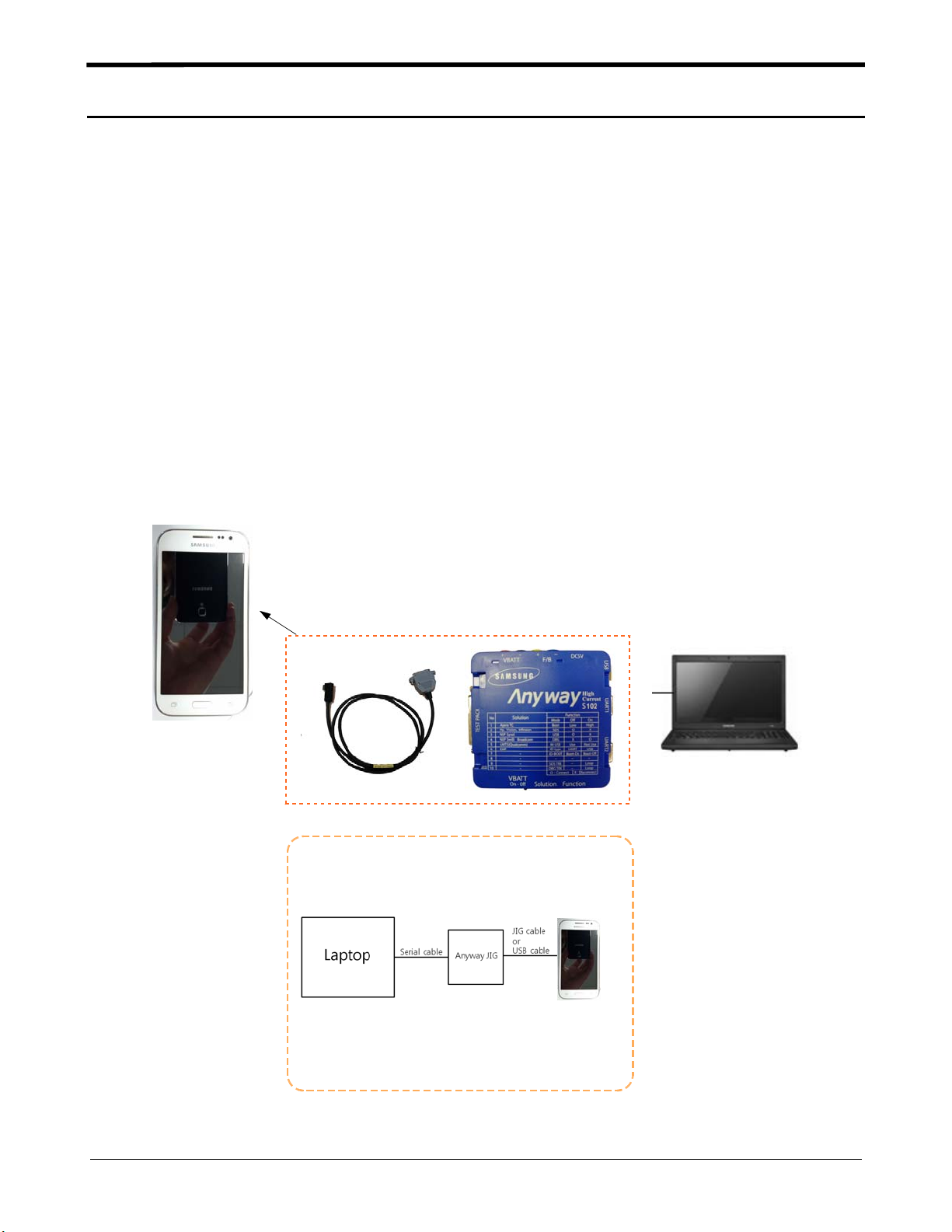

Connect ANYWAY JIG BOX
with JIG CABLE (Phone to JIG)
or PC to Phone Using Data Cable

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-2
6-1-2. S/W Installation Program (Downloader program)

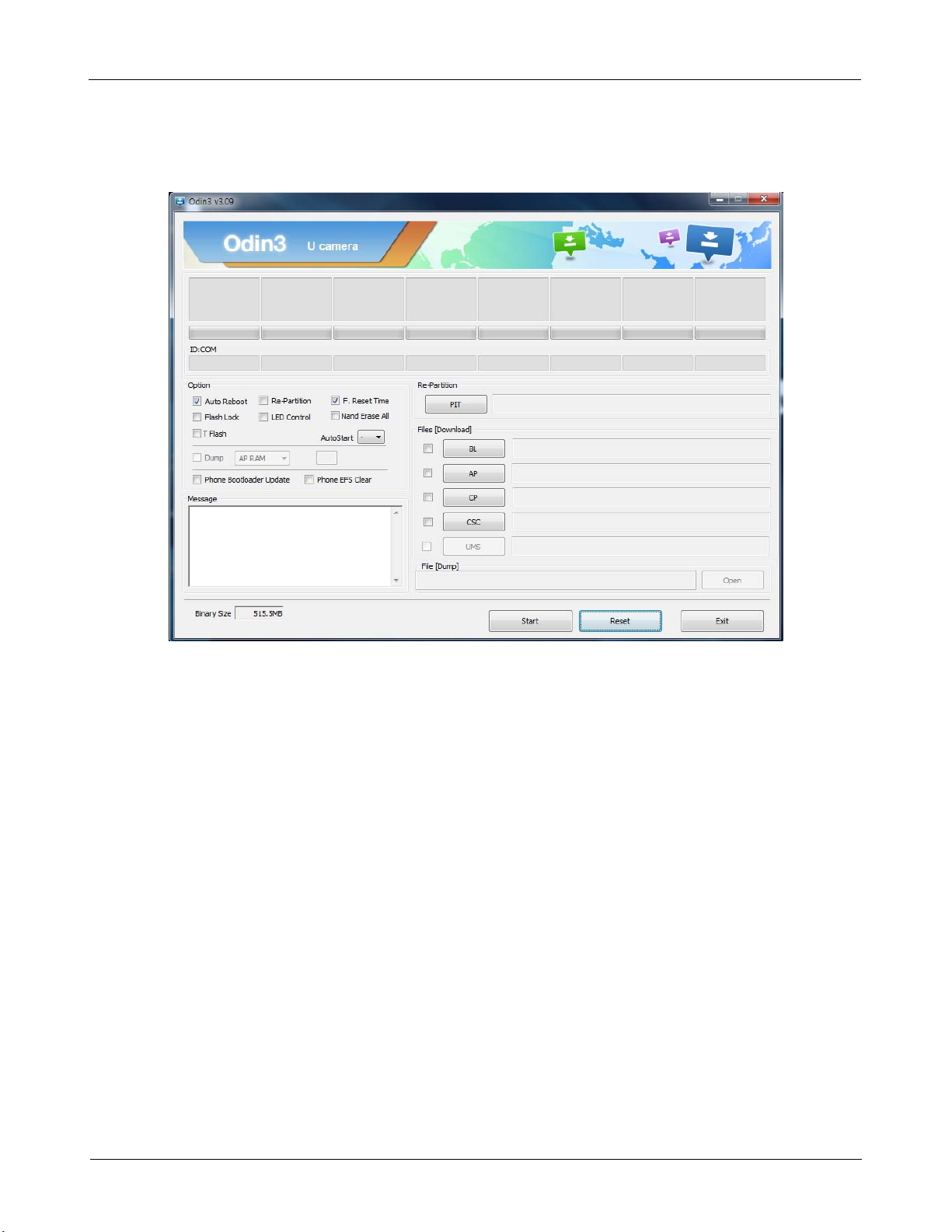

Open up the S/W Installation Program by executing the "Odin3 v3.09.exe"

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-3

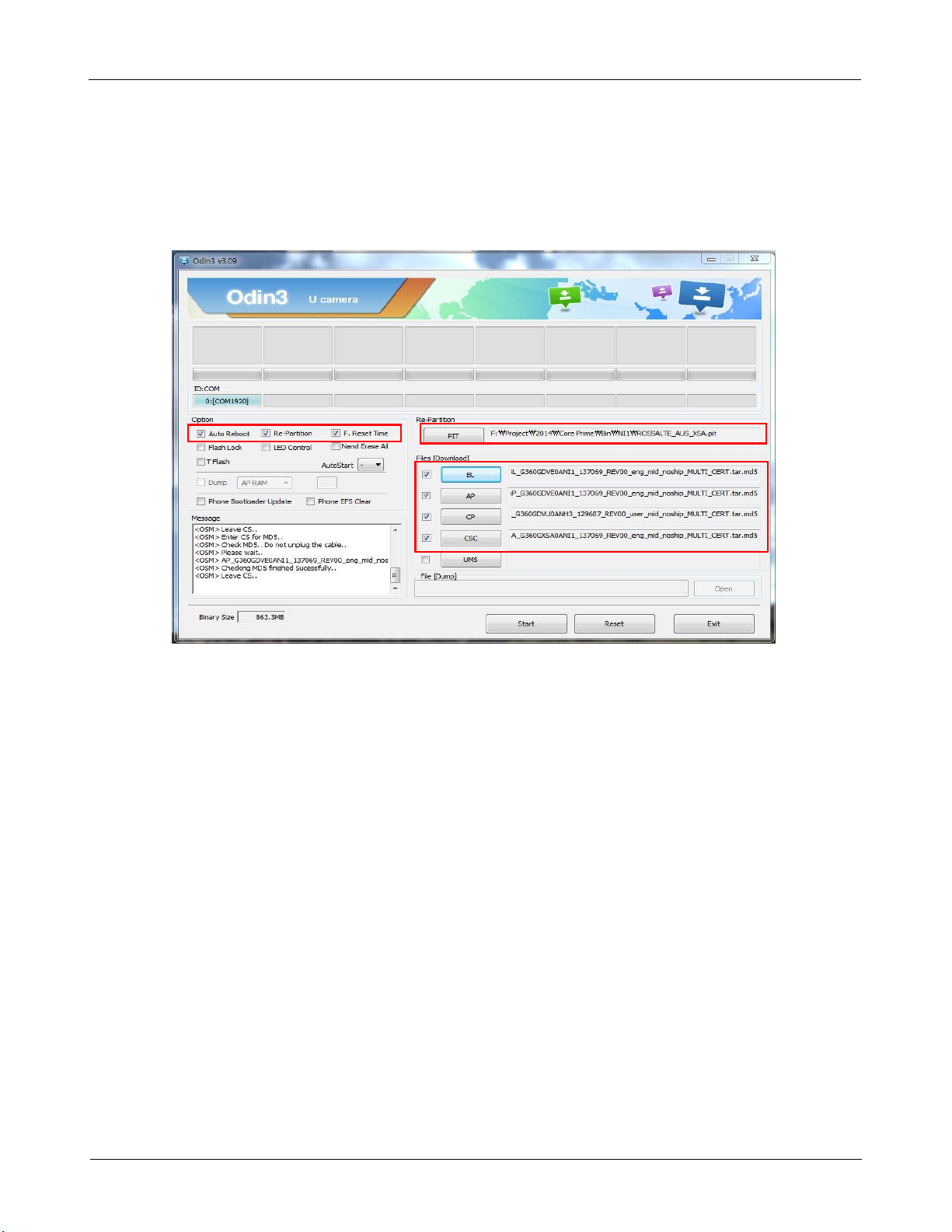

1.Enable the check mark by click on the following options,
-Check option (Auto Reboot /Re-Partition /F.Reset Time)
-Check PIT
-Check BL /AP /CP /CSC

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-4
2.Enter into Download Mode
-Enter into Download Mode by pressing Volume Down button, OK button, and
ON/OFF Button simultaneously.

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-5
3.Connect the device to PC via Data Cable.
Make sure that the one of communication port [ID:COM] box is highlighted in
yellow. The device is now connected with the PC and ready to download the
binary file into the device.

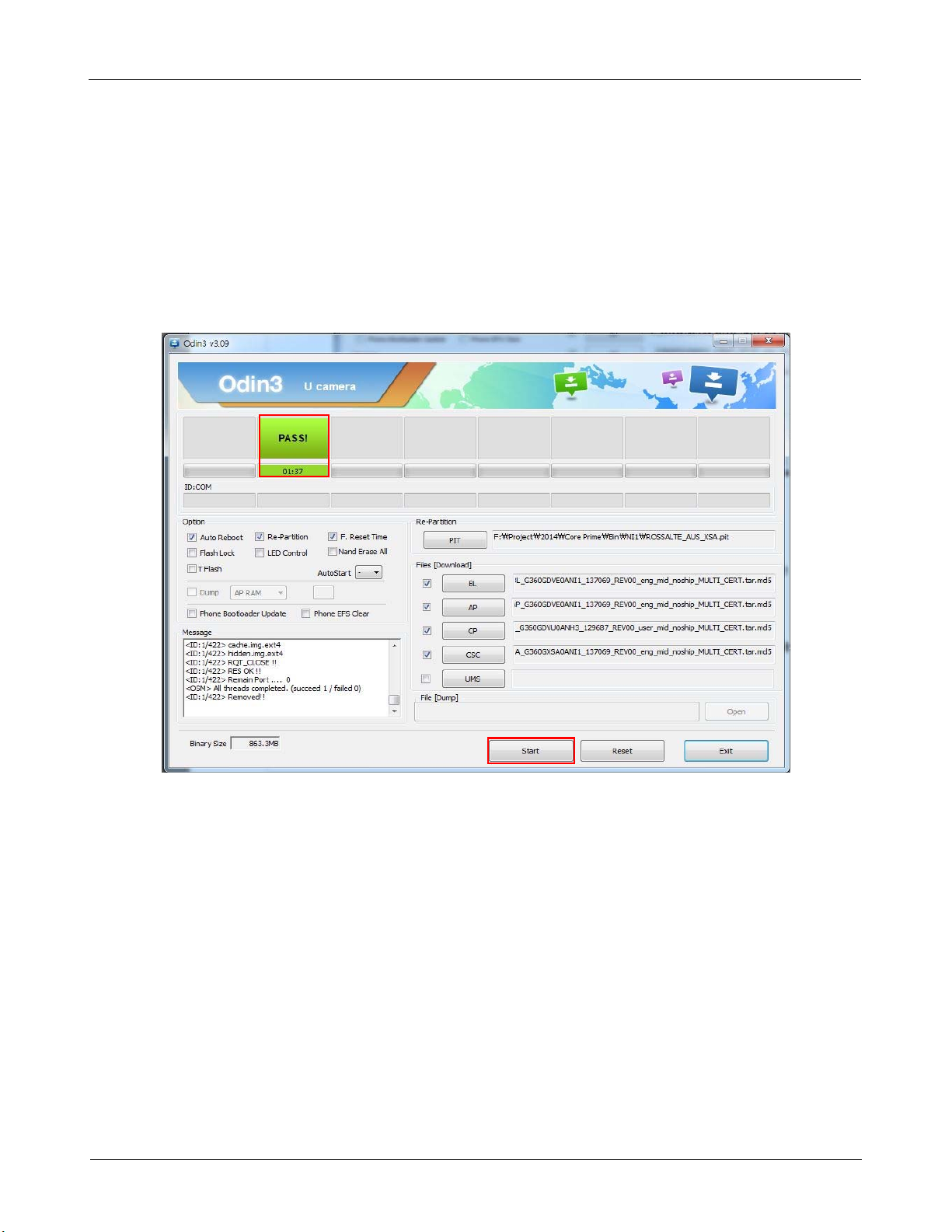

4.Start downloading binary file into the device by clicking Start Button on the screen.
the green colored "PASS!" sign will appear on the upper-left box if the binary file
has been successfully downloaded into the device.
5. Disconnect the device from the Data cable.
6.Once the device boots up, you can check the version of the binary file or name
by pressing the following code in sequence;
*#1234#
You can perform factory reset by pressing the following code in sequence;
*#87976633#

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-6
6-2 IMEI writing
6-2-1 Preparation
-New IMEI writing Program has been released.
-Supported Model :Models which CAB files are uploaded on HHPsvc INI File
category, instead of ini file.
-Refer to below IMEI writing procedure.

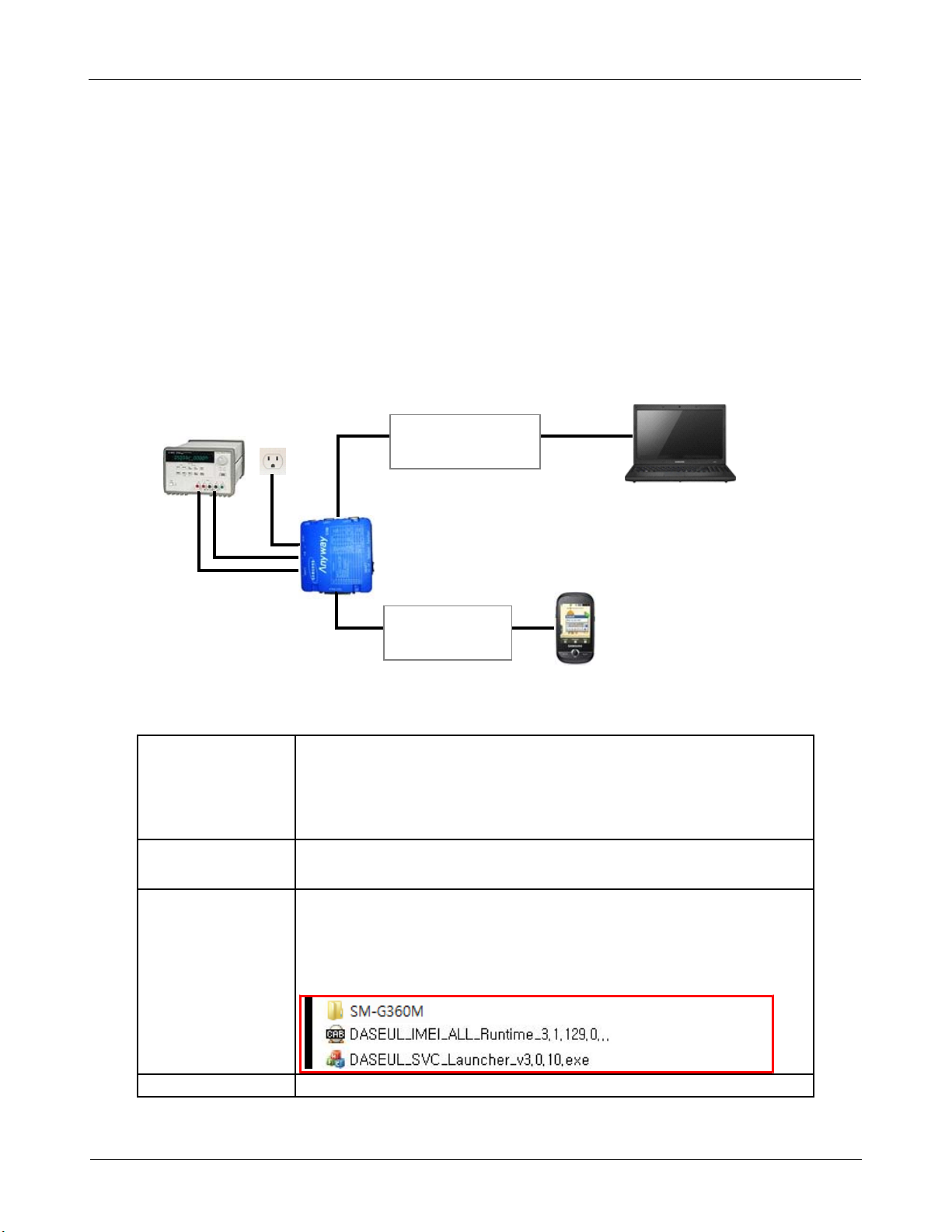

-H/W

SerialCable
Test Cable
PC
Power
Supply
Phone
Anyway
JIG
-S/W
①Library Install To use Daseul, library files should be installed.
Refer to SVC Bulletin
“(11-82) Daseul (New IMEI writing Program) Library Install gui
de_rev1.0”
②Launcher DASEUL_SVC_Launcher_v3_0_10 or higher
-Uploaded on HHPsvc Notice
③Runtime File 1. DASEUL_IMEI_ALL_Runtime_129_r00165 .CAB or higher
-Uploaded on HHPsvc Notice
2. Make ‘ModelName’folder at the same position with
launcher &Runtime file.
④Model File Copy Model File under the ‘Model Name’folder

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-7
6-2-2 IMEI writing Process
1. Run DASEUL_SVC_Launcher_v3.0.10.exe
2. Select Service Mode
3. Click and Select folder where the Launcher exists

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-8
4. Select Model
5. Check IMEI and click ‘System Setting’
※Once you setup the setting, you don’t have to do it again, unless there is ch
ange.From second run of the IMEI program, check IMEI and click ‘Extract &Run’.
①
②

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-9

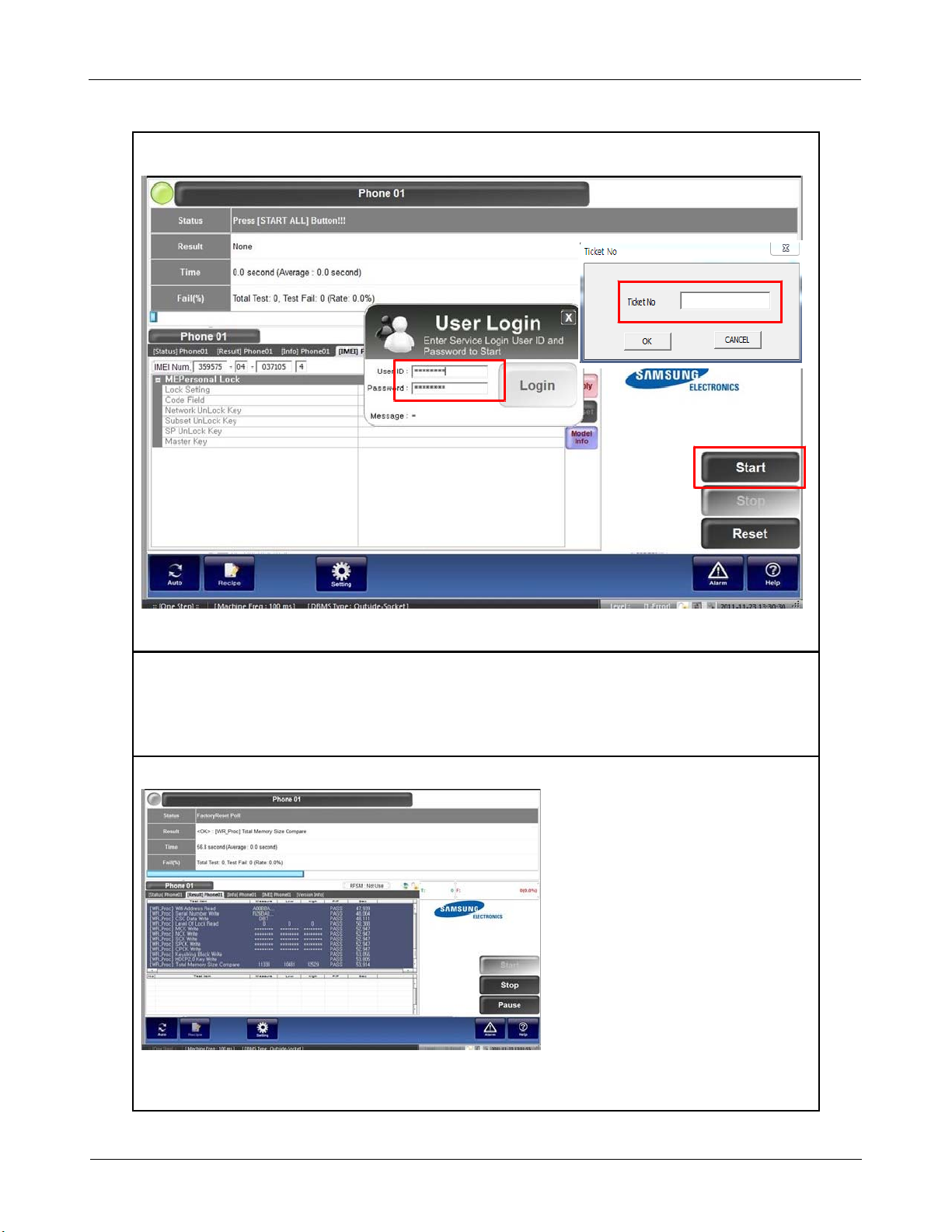

6. Check ‘IMEI Write /IMEI Check’, and click ‘IMEI SVC &Repair Option’
7. Check ‘SVC ,User Ticket No’and click OK
②
①

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-10
8. Click ‘Hardware Config’
9. Click ‘Port Setting’

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-11

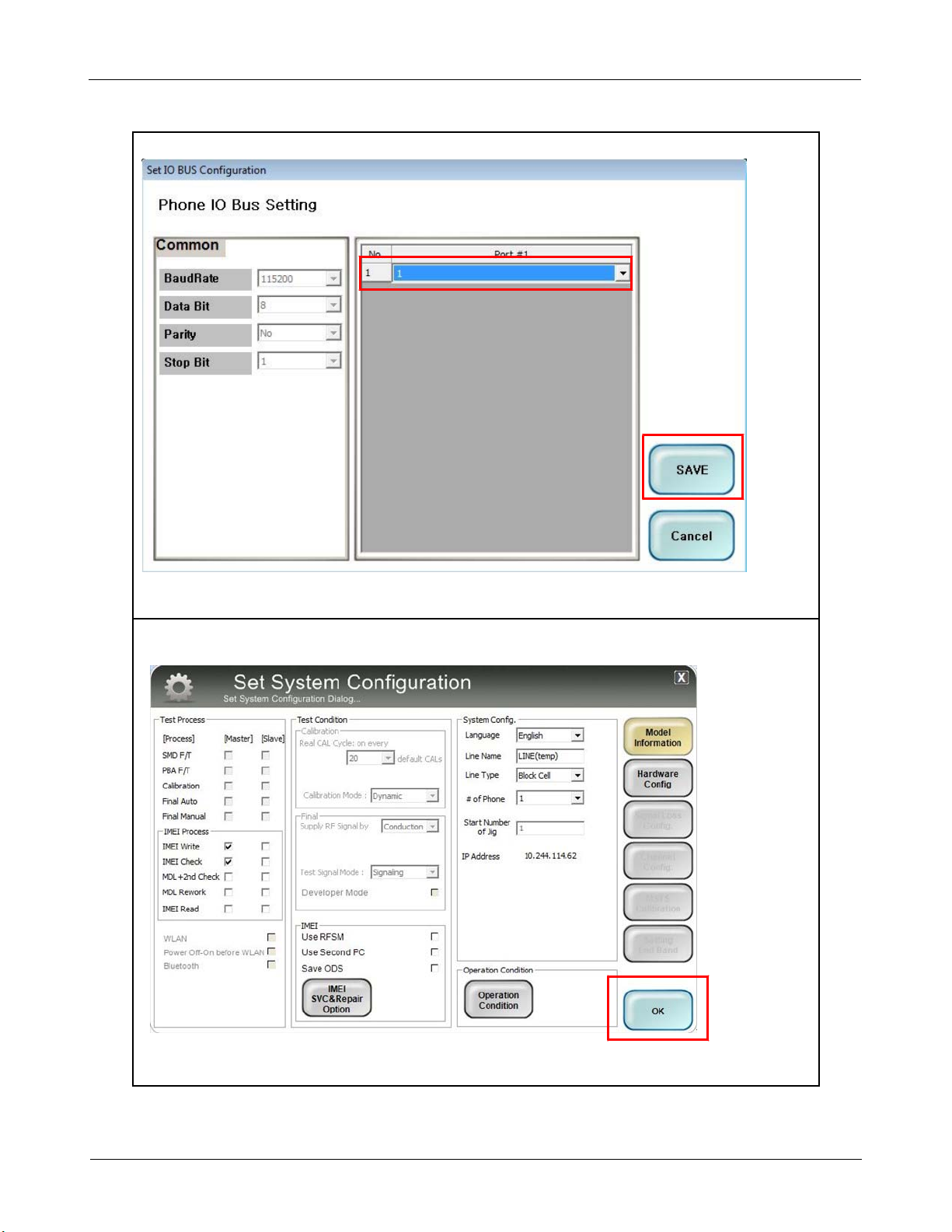

10. Select Port Number and SAVE
11.Click OK to proceed

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-12

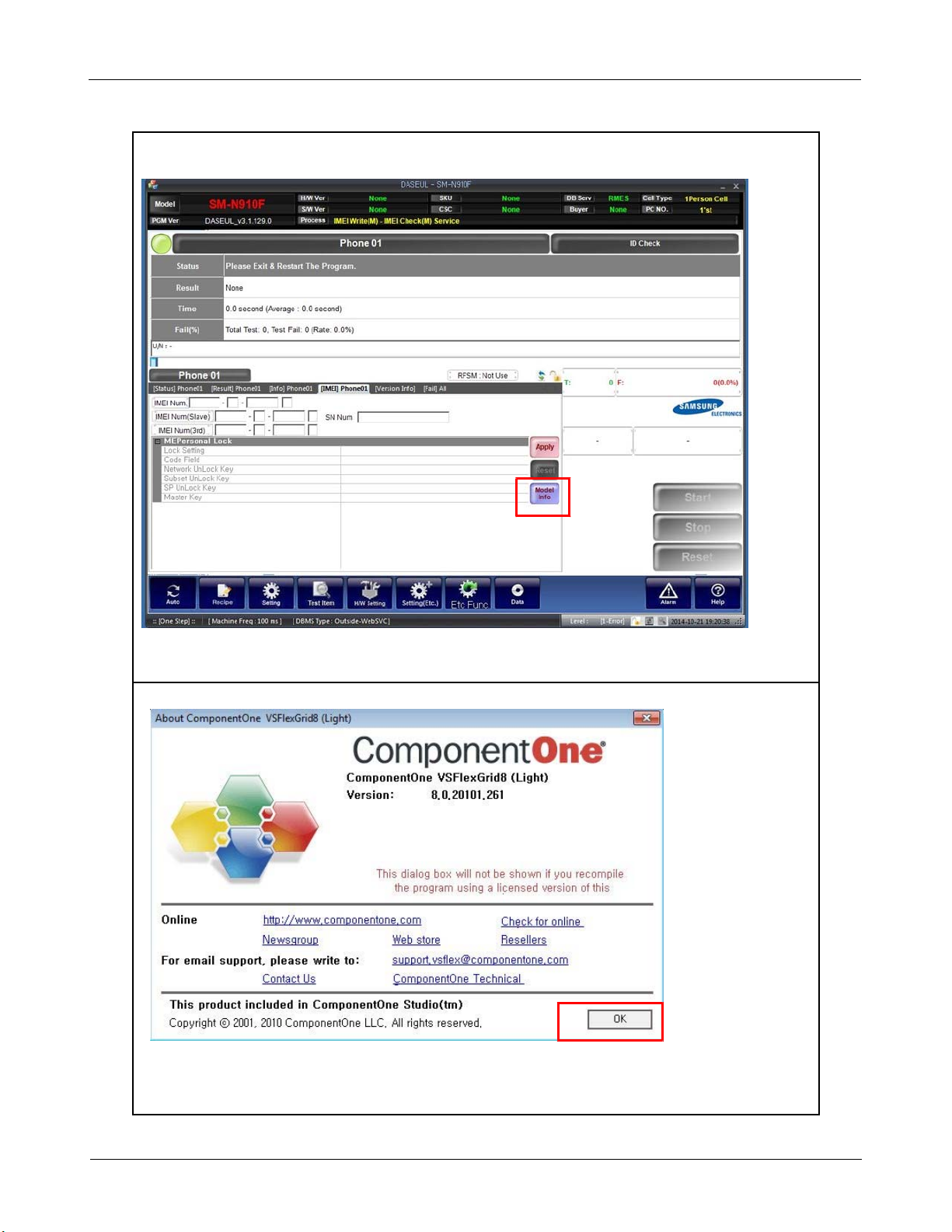

12. Click Model Info and OK when pop-up shows
13. Click OK

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-13
14. Input SKU_CODE and BUYER, then click Save button.
※Refer to HHPsvc→IMEI Review to check SKU Code and buyer
15. Input IMEI Number and click Apply

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-14
16. ①Click Start, and input IMEI writing ID and Password →②inputTicketNo
17. Connect the phone to Anyway JIG
※When you connect the phone, the phone should be turned off.
After connecting the phone, the phone will be booted automatically.
18. IMEI Writing Proceeding
