Samsung SM-G800F User manual

www.samsung.com
User Manual
SM-G800F
SM-G800Y
English. 02/2016. Rev.1.1

2
Table of Contents
Read me first
Getting started
8 Package contents
9 Device layout
11 Using the SIM or USIM card and
battery
17 Using a memory card
19 Turning the device on and off
20 Locking and unlocking the screen
Basics
21 Using the touch screen
24 Home screen layout
29 Notifications and quick setting panels
32 Opening apps
33 Installing or uninstalling apps
35 Entering text
37 Screen capture
38 My Files
40 Power saving feature
42 Viewing help information
Network connectivity
43 Mobile data
43 Wi-Fi
45 Tethering and Mobile hotspot
47 Internet
Motions & usability features
49 Motions and gestures
52 Air view
52 Toolbox
53 Increasing touch screen sensitivity
Personalising
54 Managing the Home and Apps screens
57 Setting wallpaper and ringtones
58 Changing the screen lock method
59 Finger Scanner
62 Private mode
64 Easy mode
64 Transferring data from your previous
device
66 Setting up accounts

Table of Contents
3
Security features
105 Emergency mode
106 Help message
Useful apps and features
107 Kids Mode
110 S Finder
111 S Planner
114 S Health
117 S Voice
119 Clock
121 Calculator
121 Memo
123 Voice Recorder
125 Dropbox
126 Flipboard
126 Smart Remote
128 Torch
129 Magnifier
129 Google apps
Connecting with other
devices
132 Bluetooth
134 Wi-Fi Direct
136 Quick connect
138 Screen Mirroring
140 Mobile printing
Phone
67 Making calls
70 Receiving calls
71 Options during calls
Contacts
73 Adding contacts
74 Managing contacts
Messages & email
77 Messages
80 Email
Camera
83 Basic shooting
85 Shooting modes
90 Camera settings
Gallery
92 Viewing photos or videos
94 Editing photos or videos
98 Gallery settings
Multimedia
99 Music
102 Video

Table of Contents
4
183 Setting flash notification
183 Turning off all sounds
183 Caption settings
184 Adjusting the sound balance
184 Mono audio
185 Assistive menu
187 Setting tap and hold delay options
187 Interaction control
188 Answering or ending calls
188 Using single tap mode
188 Managing accessibility settings
190 Using other useful features
Troubleshooting
Device & data manager
141 Upgrading the device
142 Transferring files between the device
and a computer
143 Backing up and restoring data
144 Performing a data reset
Settings
145 About Settings
145 Quick settings
145 Network connections
149 Connect and share
150 Sound and display
153 Personalisation
155 Motion
156 User and backup
157 System
163 Applications
Accessibility
170 About Accessibility
171 Using the Home button to open
accessibility menus
171 Voice feedback (TalkBack)
181 Changing the font size
181 Magnifying the screen
181 Setting notification reminders
182 Reversing the display colours
182 Colour adjustment

5
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider,
model specifications, or device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.

Read me first
6
Maintaining water and dust resistance
The device may be damaged if water or dust enters the device. Follow these tips carefully to
prevent damage to the device and to maintain the water- and dust-resistant performance of
the device.
•
Do not immerse the device in water deeper than 1 m and keep it submerged for more
than 30 minutes.
•
Ensure that the back cover is tightly closed. Otherwise, it may not provide protection
from water and dust.
•
Do not immerse the device in water for extended periods.
•
Do not expose the device to water moving with force, such as water running from a tap,
ocean waves, or waterfalls.
•
Do not open the device’s covers when the device is in water or in very humid places, such
as swimming pools or bathrooms.
•
Do not open the back cover using wet hands or when the device is wet.
•
The rubber seal fitted to the back cover is an important component of the device. Take
care when opening and closing the back cover to avoid damaging the rubber seal. Also,
ensure that the rubber seal is free from debris, such as sand or dust to prevent damage to
the device.
•
If the device is exposed to freshwater, dry it thoroughly with a clean, soft cloth. If the
device is exposed to any liquid other than freshwater, rinse the device with freshwater
immediately and dry it thoroughly with a clean, soft cloth. Failure to rinse the device
in freshwater and dry it as instructed may cause the device to suffer from operability
or cosmetic issues.
•
The back cover may be loosened if the device is dropped or receives an impact. Ensure
that all the covers are properly aligned and tightly closed.

Read me first
7
•
If the device has been immersed in water or the microphone or the speaker is wet,
sound may not be heard clearly during a call. Ensure that the microphone or the speaker
is clean and dry by wiping it with a dry cloth.
•
The water-resistant design of the device causes it to vibrate slightly in certain conditions.
Vibrations in these conditions, such as when the volume level is high, are normal and do
not affect the device’s performance.
•
The touch screen and other features may not work properly if the device is used in water
or in other liquids.
•
Your device has been tested in a controlled environment and certified to be water-
and dust-resistant in specific situations (meets requirements of classification IP67 as
described by the international standard IEC 60529 - Degrees of Protection provided
by Enclosures [IP Code]; test conditions: 15 - 35 °C, 86 - 106 kPa, 1 metre, 30 minutes).
Despite this classification, your device is not impervious to water damage in any
situation.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information

8
Getting started
Package contents
Check the product box for the following items:
•
Device
•
Battery
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Some accessories, such as docking
devices, may not have the same water- and dust-resistance certification.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Getting started
9
Device layout
Microphone
Touch screen
Earpiece
Infrared LED
Notification light
Multipurpose jack
Home button
Recent apps button
Power button
Front camera
Proximity/Light sensor
Back button
Headset jack
GPS antenna
Rear camera
Flash
Back cover
Speaker
Volume button
NFC antenna (on the
battery)
Main antenna
Microphone

Getting started
10
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Using a Samsung-approved screen protector is recommended. Unapproved screen
protectors may cause the sensors to malfunction.
Buttons
Button Function
Power
•
Press and hold to turn the device on or off.
•
Press to turn on or lock the screen.
Recent apps
•
Tap to open the list of recent apps.
•
Tap and hold to access additional options for the current
screen.
Home
•
Press to turn on the screen while the screen is locked.
•
Press to return to the Home screen.
•
Press twice to launch S Voice .
•
Press and hold to launch Google .
Back
•
Tap to return to the previous screen.
Volume
•
Press to adjust the device volume.

Getting started
11
Using the SIM or USIM card and battery
Installing the SIM or USIM card and battery
Insert the SIM or USIM card provided by the mobile telephone service provider, and the
included battery.
•
Only microSIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
1 Remove the back cover.
Be careful not to damage your fingernails when you remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.

Getting started
12
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
3 Insert the battery.
1
2

Getting started
13

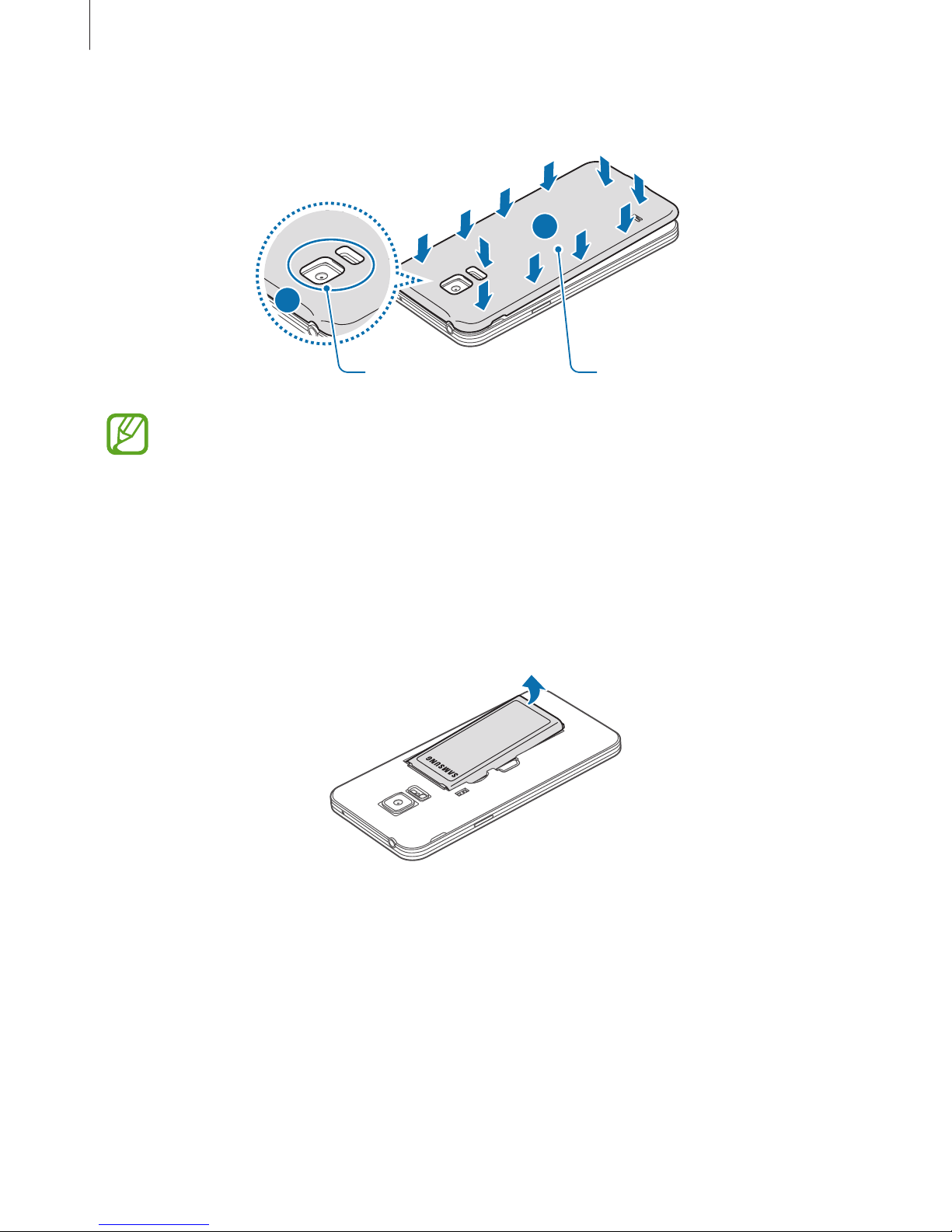

4 Replace the back cover.
2
1
Press
Align
•
Ensure that the back cover is closed tightly.
•
Use only Samsung-approved back covers and accessories with the device.
Removing the SIM or USIM card and battery
1 Remove the back cover.
2 Pull out the battery.

Getting started
14

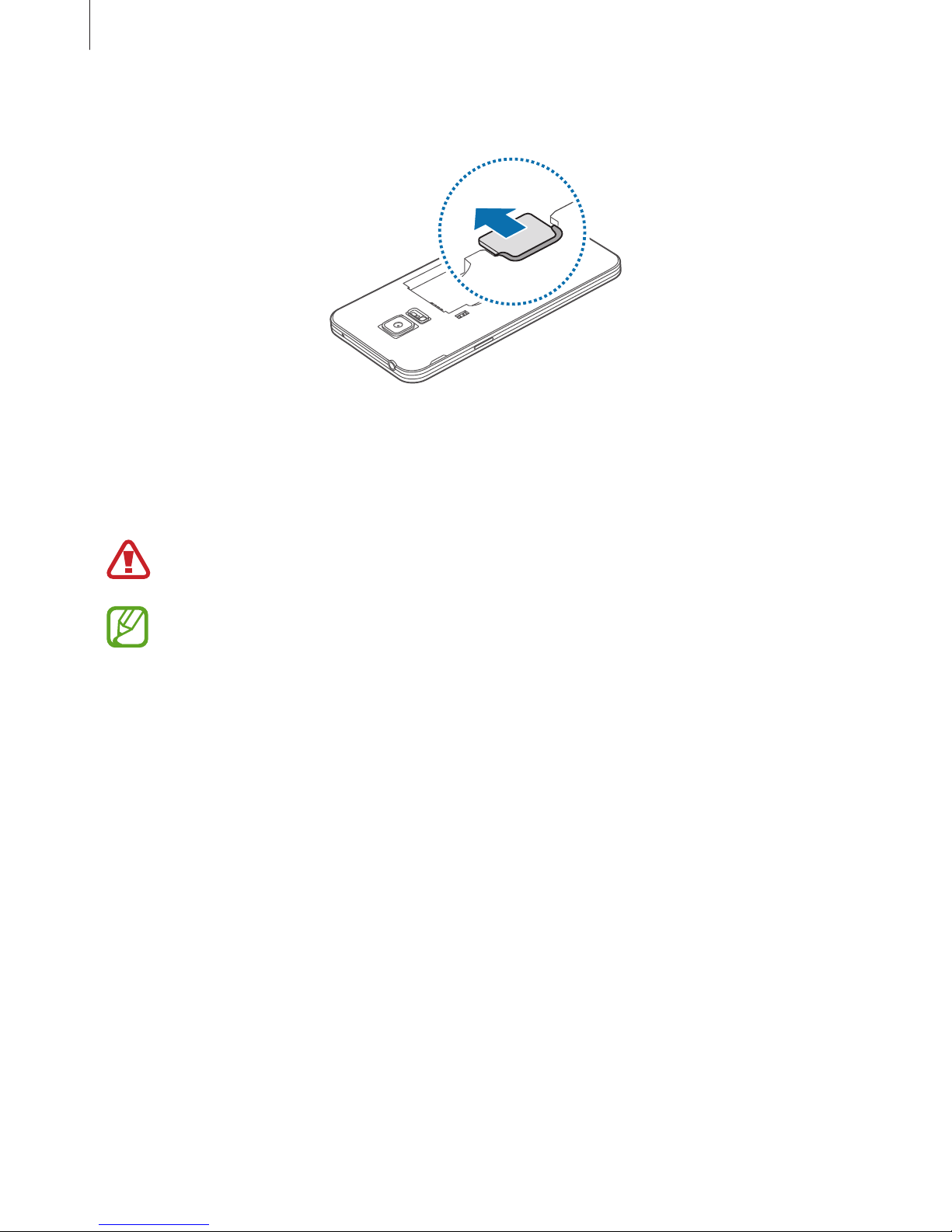

3 Press the SIM or USIM card with your finger, and then pull it out.

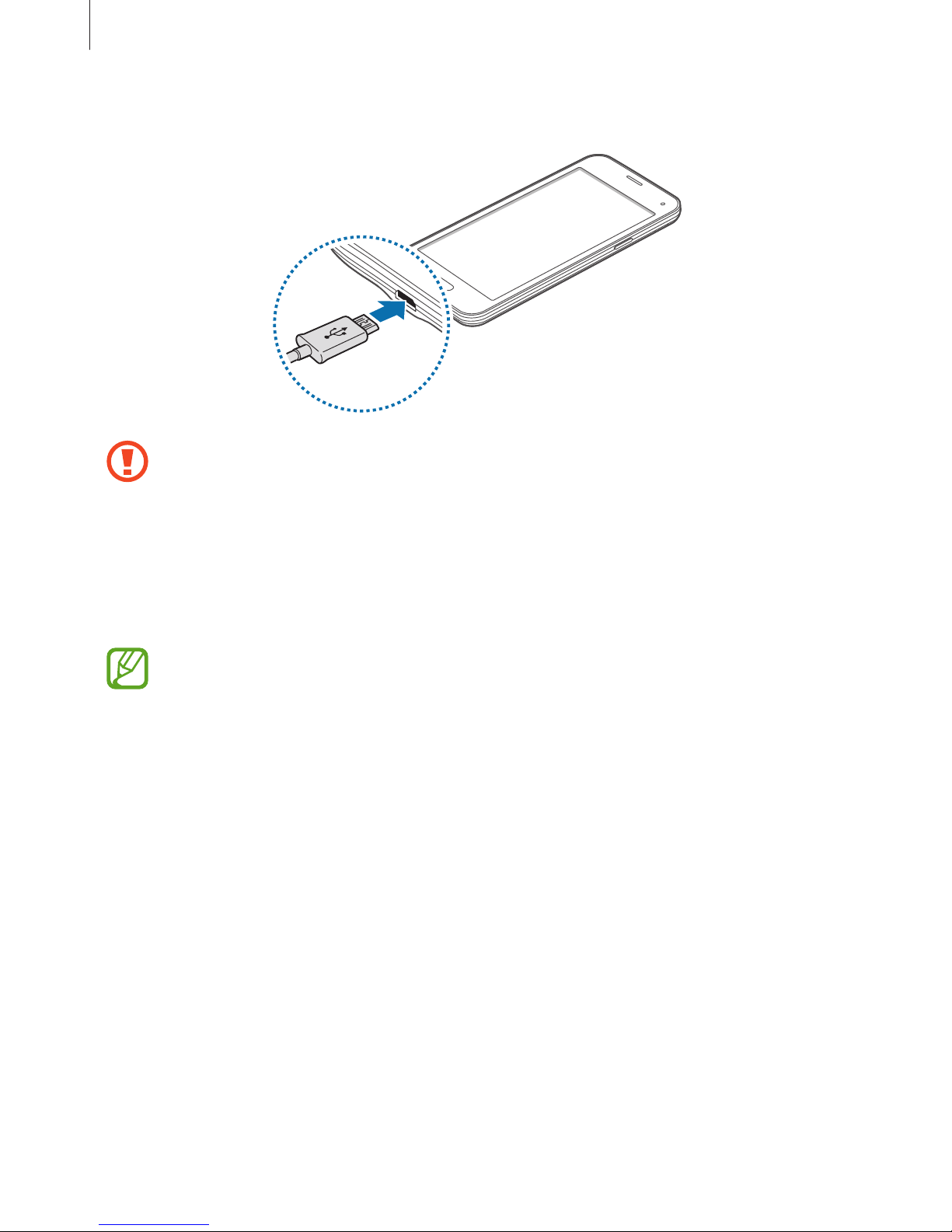

Charging the battery
Use the charger to charge the battery before using it for the first time. A computer can be also
used to charge the battery by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on
immediately when the charger is connected. Allow a depleted battery to charge for
a few minutes before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection
to another device, the battery will drain quickly. To avoid disconnecting from the
network or losing power during a data transfer, always use these apps after fully
charging the battery.
1 Connect the USB cable to the USB power adaptor.

Getting started
15
2 Plug the USB cable into the multipurpose jack.
•
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
Ensure that the the back cover is closed tightly to prevent water and dust from
entering the device. Open or loose back cover may allow water and dust to enter
the device and cause damage.
3 Plug the USB power adaptor into an electric socket.
•
The device can be used while it is charging, but it may take longer to fully charge
the battery.
•
If the device receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the device.
•
While charging, the device may heat up. This is normal and should not affect the
device’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.

Getting started
16
4 After fully charging, disconnect the device from the charger. First unplug the charger
from the device, and then unplug it from the electric socket.
Do not remove the battery before removing the charger. This may damage the
device.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
Reducing the battery consumption
Your device provides options that help you save the battery power. By customising these
options and deactivating features in the background, you can use the device longer between
charges:
•
When you are not using the device, switch to sleep mode by pressing the Power button.
•
Close unnecessary apps using the task manager.
•
Deactivate the Bluetooth feature.
•
Deactivate the Wi-Fi feature.
•
Deactivate auto-syncing of apps.
•
Decrease the backlight time.
•
Decrease the screen brightness.

Getting started
17
Using a memory card
Installing a memory card
Your device accepts memory cards with maximum capacities of 64 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card folder.
1 Remove the back cover.
2 Insert a memory card with the gold-coloured contacts facing downwards.
3 Replace the back cover.

Getting started
18
Removing the memory card
Before removing the memory card, first unmount it for safe removal. On the Home screen, tap
Apps
→
Settings
→
Storage
→
Unmount SD card .
1 Remove the back cover.
2 Pull out the memory card.
3 Replace the back cover.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or can damage the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Apps
→
Settings
→
Storage
→
Format SD card
→
FORMAT SD
CARD
→
ERASE EVERYTHING .
Before formatting the memory card, remember to make backup copies of all
important data stored in the device. The manufacturer’s warranty does not cover loss
of data resulting from user actions.

Getting started
19
Turning the device on and off
Press and hold the Power button for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-
screen instructions to set up your device.
To turn off the device, press and hold the Power button, and then tap
Power off .
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.

Getting started
20
Locking and unlocking the screen
Pressing the Power button turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.

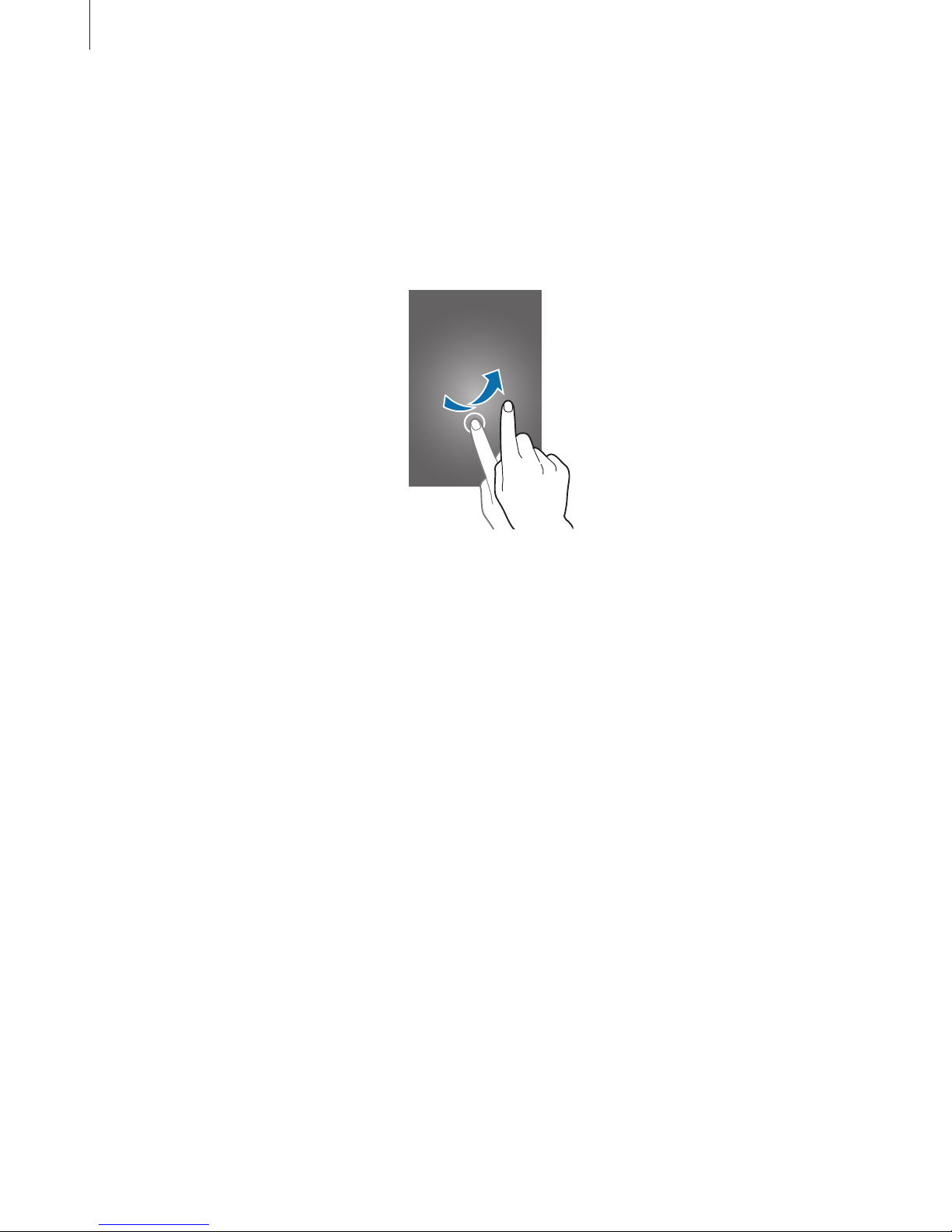

To unlock the screen, press the Power button or the Home button and flick your finger in any
direction within the unlock screen area.
You can change the unlock code to unlock the screen. Refer to Changing the screen lock
method for more information.
