Samsung AG042KSV Series User manual

DVM CHILLER
Installation manual
AG042KSVTTT / AG056KSVTTT / AG070KSVTTT Series
•Thank you for purchasing this Samsung Product.
•Before operating this unit, please read this manual carefully and retain it for future reference.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 1 2022-05-02 오전 8:59:54

2
English
Contents
InstaLLatIon
Safety information 3
Preparing for installation 8
Specications of the non-pump models 8
Specications of the pump integrated models 9
DVM CHILLER Classication 10

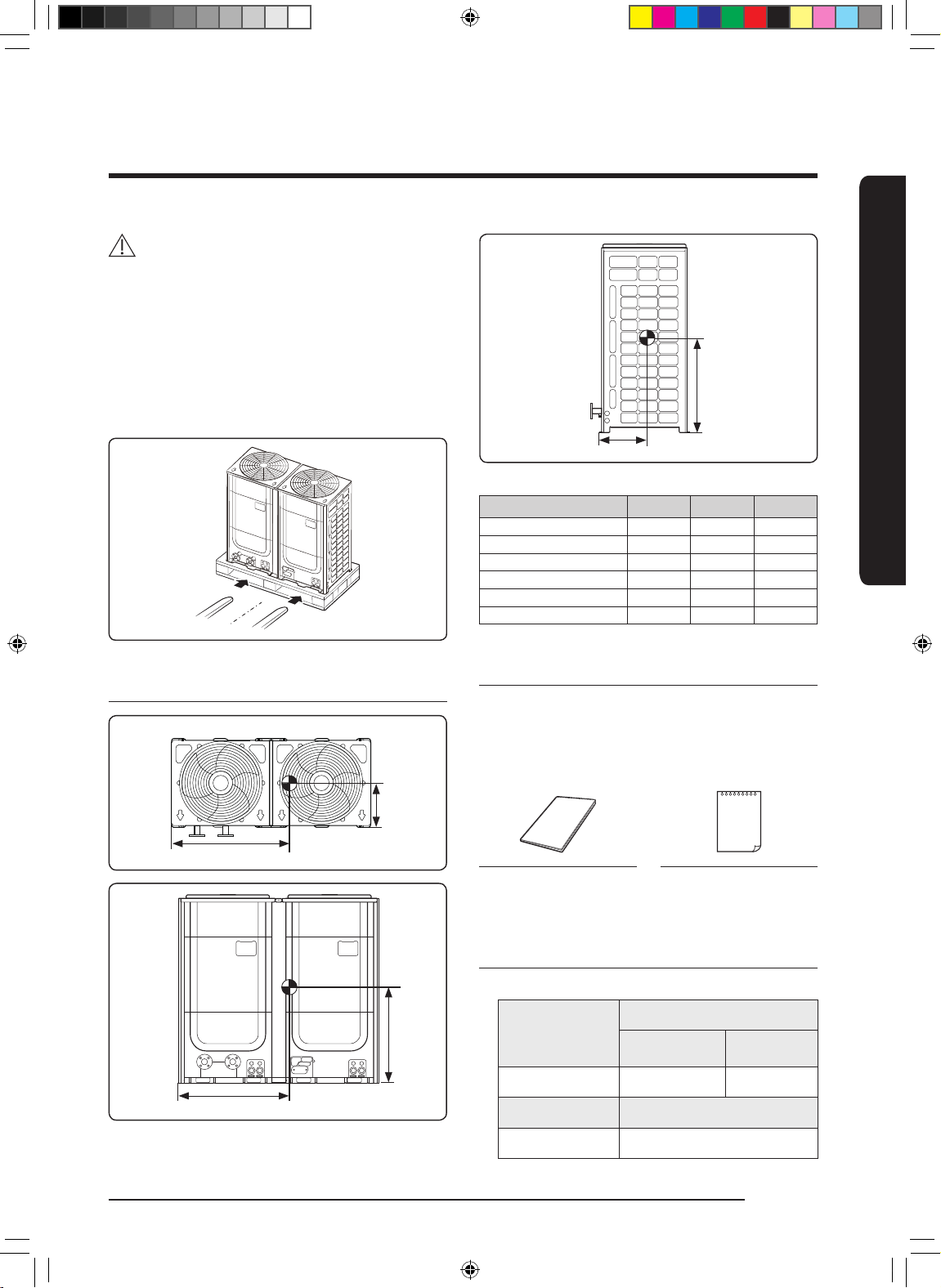

Moving the product 10
Center location 11
Accessories (Basic specication) 11
Field Supply 11
Selecting installation location 12

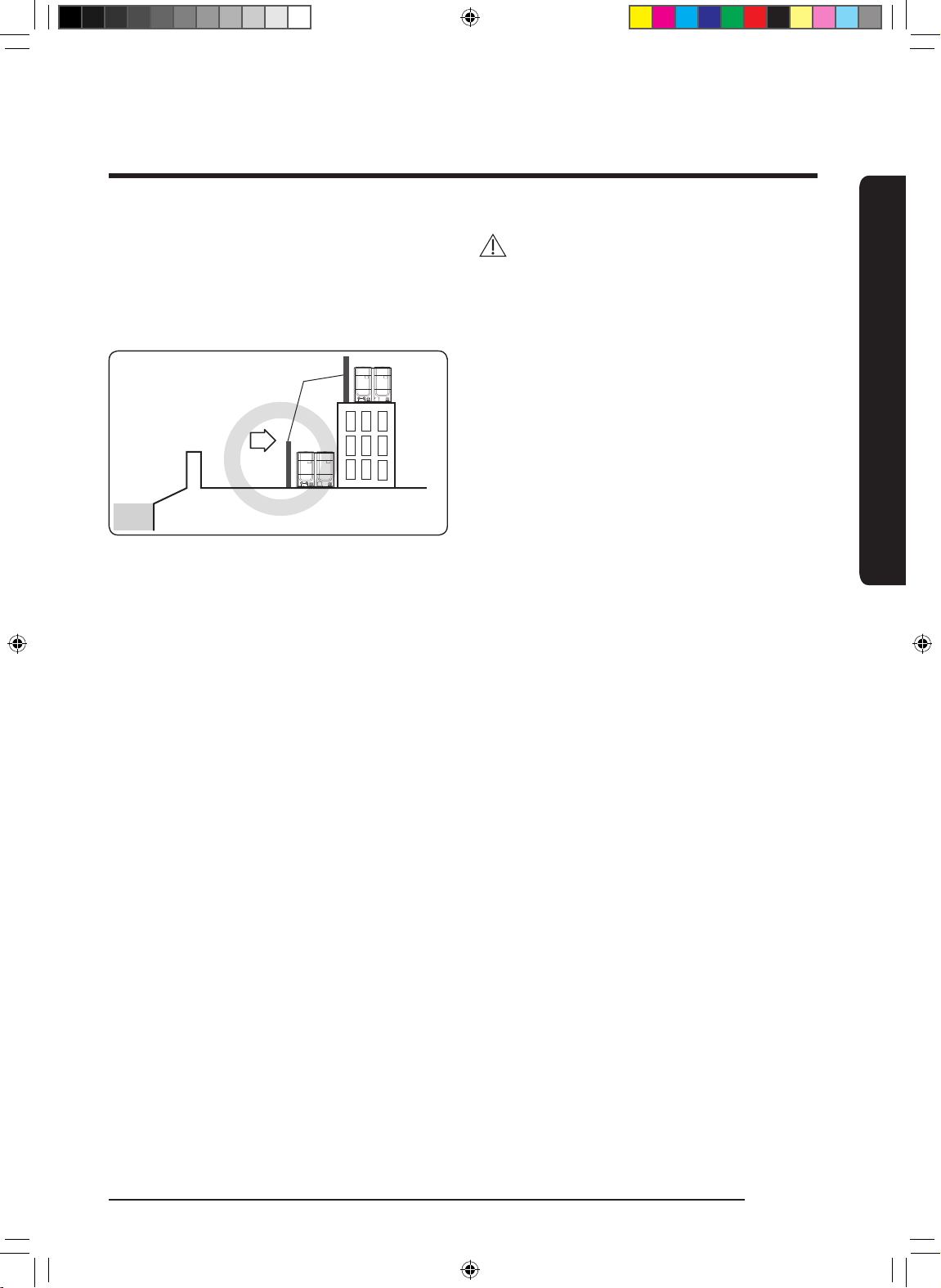

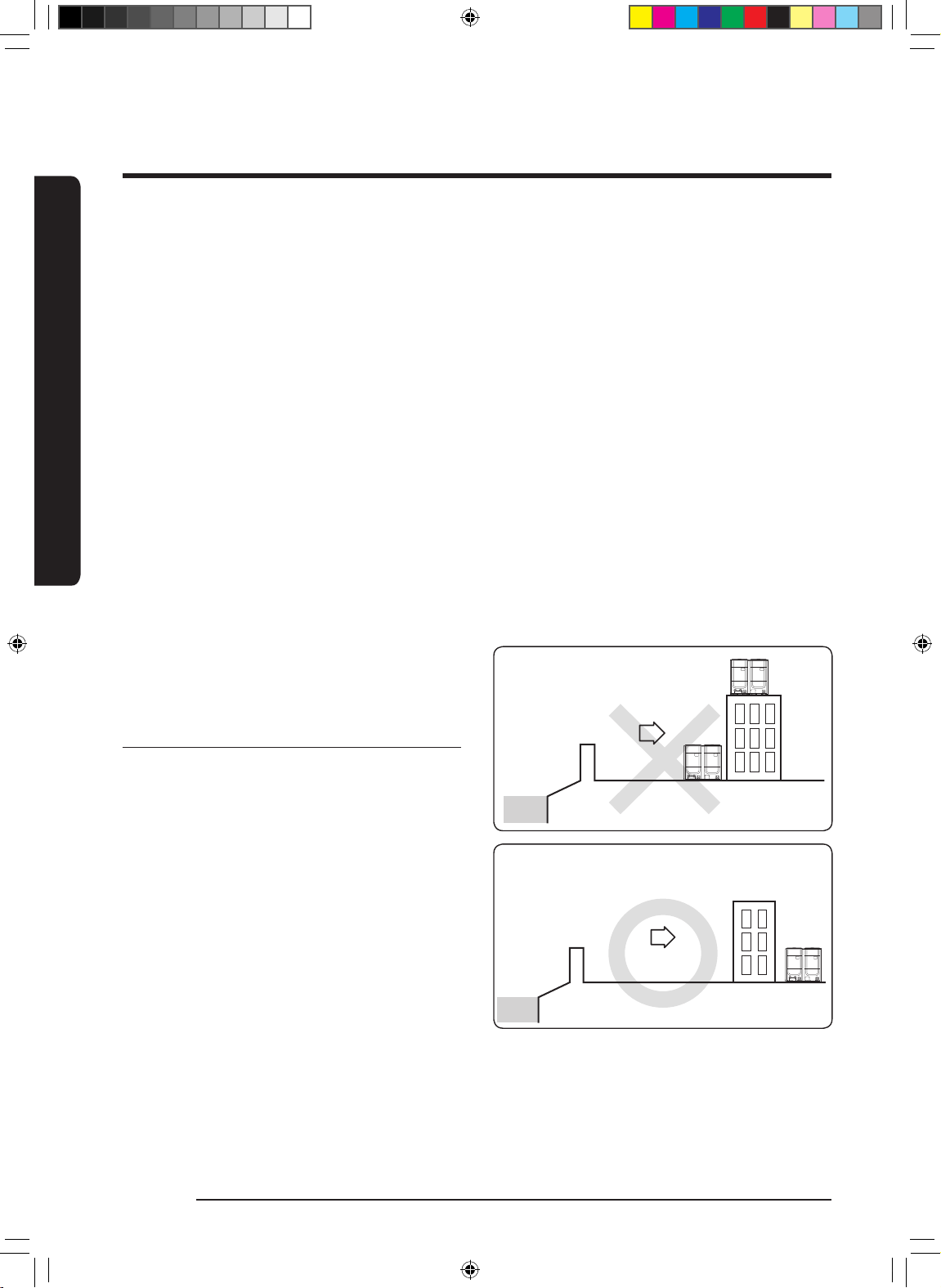

Installation Guide at the seashore 12

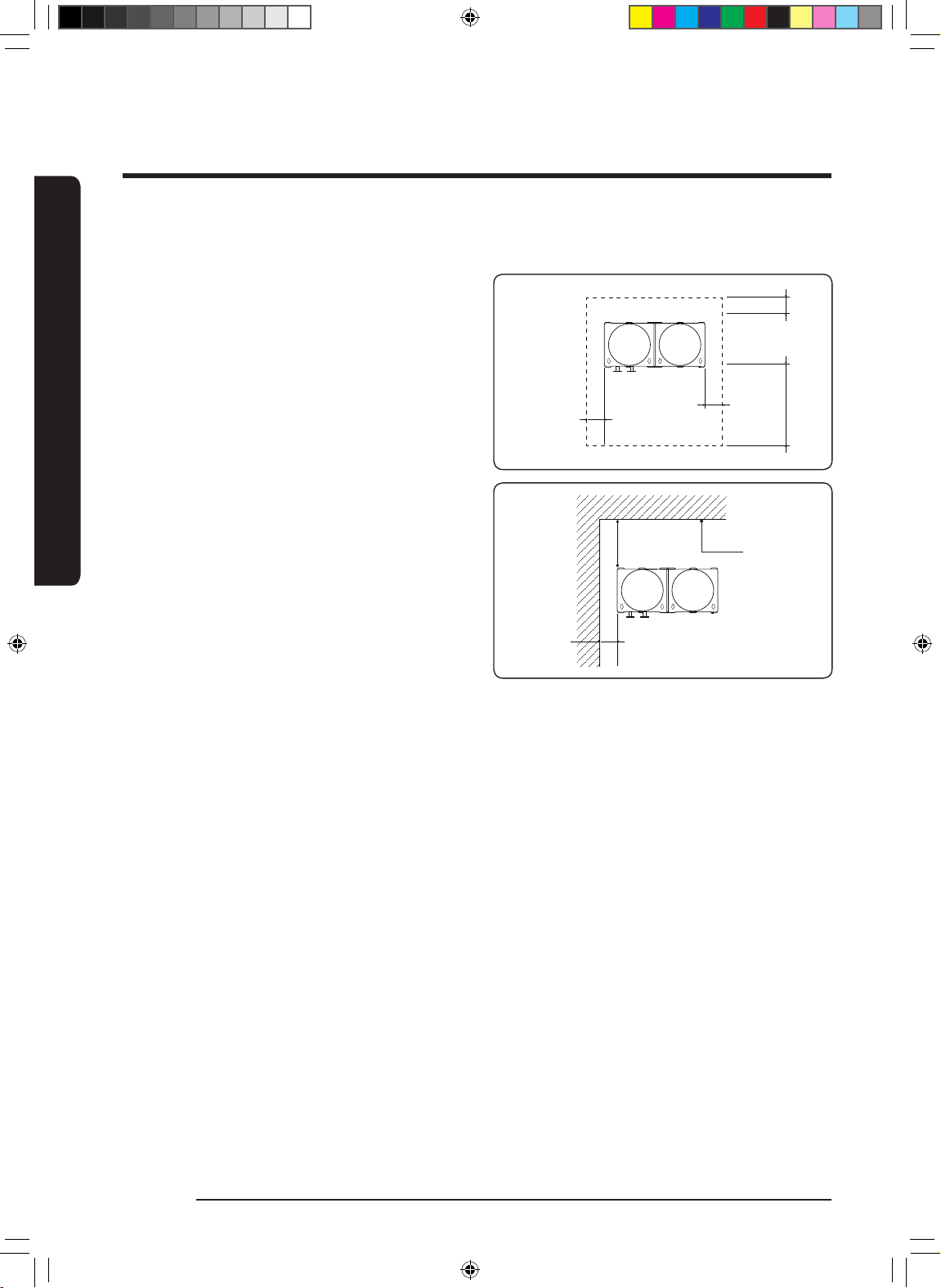

Required space for installation 14

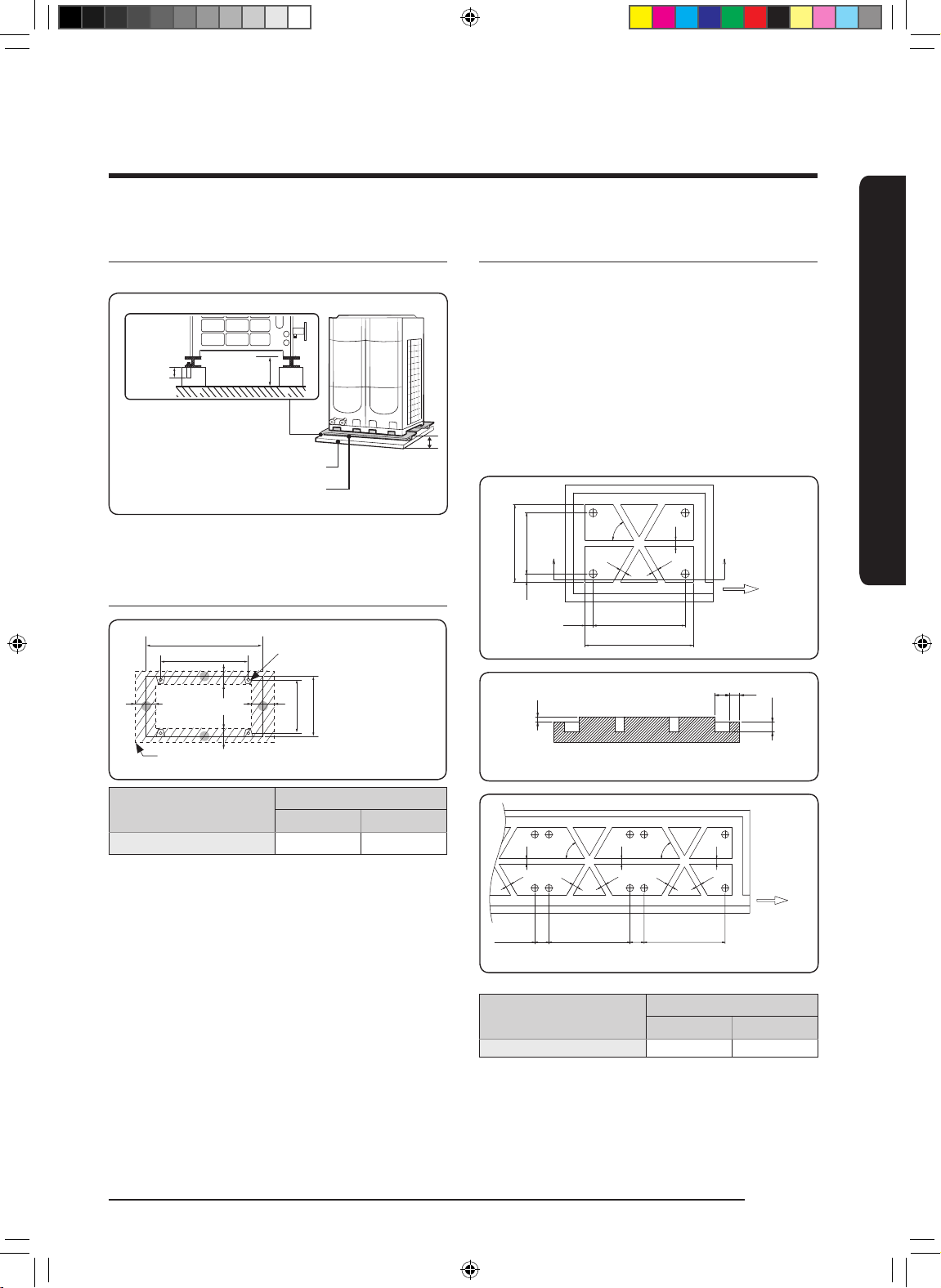

Base construction and installation 16
Supporting base construction 16
Product installation 17
Base mount and anchor bolt position 17
Examples of draining work 17
Installation precautions 18
Installing the wind/snow prevention duct 20
Installing the discharge duct around the obstacles 20
Installing the discharge duct in cold regions 20
Installing the discharge duct in regions with strong wind 21
Water pipe installation 22
Water pipe diagram 22
Water pipe installation 23
Securing water storage 26
Water pipe installation 26
Startup 27
Maintenance 27
Using the pump 27
Pump performance chart 28
Fault nding 29
ELECtRICaL woRk
Electrical wiring work 31
Circuit breaker and power cable specication 31
Power and communication cable conguration 32
Connecting the power cable 33
Connecting the communication cable 34
External contact wiring work 34
Selecting solderless ring terminal 40
Connecting the power terminal 41
Fixing the power cable 43
Fixing the ground cable 43
Withdrawing the power cable 44
Installing the Solution device 44
Grounding work 44
Setting key function 46
Setting hydro controller option 46
How to set hydro controller option 49
Setting inverter controller option 55
BEfoRE opERatIon
Check points after installation 61
Trial operation 62
Trial operation for each CHILLER unit 63
MaIntEnanCE
Maintenance 65
Name of the parts 65
Water pipe installation 66
Water maintenance standard 68
Maintaining plate type heat exchanger 70
Stopping during winter time 71
Stopping for a long time 71
Inspection for normal operation 72
Chilled/Heating water ow rate range 72
Chilled water management 73
Water temperature range 74
Freeze prevention 74
Error display 77
Error history display 80
Air tightness test and vacuuming 80
Important information regulation regarding the refrigerant used 81
Troubleshooting 83
Periodic maintenance 85
Quick Smart Features 88
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 2 2022-05-02 오전 8:59:54

INSTALLATION
3
English
INSTALLATION
Safety information
DVM Chiller uses R-410A refrigerant.
• When moisture or foreign substances enter into the
refrigerant pipe using R-410A, it may affect the
performance and reliability of the product. Safety
precautions must be obeyed when installing the
refrigerant pipe.
• Since R-410A is an azeotrope refrigerant, it must be
charged in liquid phase. (A blend of the refrigerant
may change if you charge in vapor phase which
could cause product malfunction.)
The manufacturer is not responsible for any installation
or performance problem of the load side indoor unit
and water pipes.
• Product for low temperature (below 5°C) must use
anti-freeze to manage freezing point (concentration
of anti-freeze) according to usage range.
• Freezing point of anti-freeze should be checked
periodically after installation during usage. (once a
year or more)
• Maintain the temperature of chilled/heating water to
recommended range for stable operation.
The manufacturer is not responsible for freezing and
bursting of heat exchanger occurred by errors on
installation.
After completing the installation and test operation,
explain to the user how to use and maintain the
product. Also, hand over this installation manual so that
it can be stored by the user.
The manufacturer of DVM Chiller is not responsible
for the incidents occurred by improper installation.
Installer is responsible for any installation related
claims from the user occurred by neglecting warnings
and cautions stated in this manual.
Generally, DVM Chiller should not be relocated after
installation. But when it has to be relocated for
inevitable reasons, please contact Samsung's qualied
dealers for DVM Chiller.
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent
electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
For operation
WARNING
Do not use water containing chemicals such as
chlorine for chilled/heating water as it can cause
corrosion on stainless steel or copper.
• This may result in product malfunction.
Do not block air inlet or outlet of the product.
• It may cause performance decrease or
malfunction of the product.
Do not attempt to disassemble, modify, or repair
the product.
• Failure to do so may result in water leakage,
electric shock or re. Contact the service center.
Do not use the product where oil particles such as
cooking oil and machine oil exist.
• There are potential risks of electric shock or re.
Do not use the product where smokes consisted
by oil particles, such as kitchen, ammable gas,
corrosive gas, or metallic dust exist.
• Failure to do so may result in re or
phenomenon.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 3 2022-05-02 오전 8:59:55

INSTALLATION
Safety information
4
English
Do not operate the product with power switch or
circuit breaker.
• Potential risk of electric shock or re.
• If automatic blackout restore is set, fan may spin
suddenly and it may cause injury.
If fuse load switch is used, do not use fuse in
incorrect capacity.
• Usage of wire may result in product malfunction
or re.
Do not use ammable gas (such as hair spray or
insecticide) near the product.
• There are potential risks of electric shock or re.
If there is any problem (such as burning smell),
stop the operation and close the circuit breaker.
• Otherwise, it may cause product malfunction,
electric shock, or re. Contact the service center.
Use chilled/heating water which is appropriate
according to water maintenance standard.
• Deterioration of water may cause water leakage.
Contact the merchandise or service center to clean
inside of the product.
• Error on selecting cleaner and cleaning the
product may harm rubber part and cause water
leakage.
• If the cleaner reaches to electric parts or motor,
it may cause product malfunction, smoke, or re.
CAUTION
Do not use the product for specic purpose.
• It may affect performance, quality, or life of
preservation of precision machinery, food, art
work, etc., and breeding animal or plants.
Do not use the holder which is worn out for
longtime usage.
• It may cause injury due to falling down of the
product.
Do not step onto the product or place any objects
on the product.
• It may cause injury due to falling down of the
product.
Do not operate the product with the cover of
exterior or electric box opened.
• It may cause electric shock or re.
Do not place any objects that are not allowed to be
wet.
• It may get wet by dripping water caused
by product or refrigerant pipe freezing,
contaminated air lter, blocked drain valve.
Do not change settings for protection device.
• It may cause re.
Do not use chilled/heating water for drinking.
• It is harmful for humans.
• For hot water supply, use undirective heat
exchange.
Do not wash the product with water.
• It may cause electric shock.
Do not operate protect devices forcibly.
• This may result in re or explosion.
Do not touch high temperature part such as
compressor and refrigerant pipe.
• It may cause burns.
Do not touch inlet or aluminum plate.
• It may cause injury.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 4 2022-05-02 오전 8:59:55

INSTALLATION
5
English
When outdoor temperatre drops below zero, take
appropriate countermeasures for frozen damage.
• Freeze protection such as using brine, heater,
pump operation, etc. is necessary.
• Drain all water and cut-off the power supply
when the product is not operated during winter
time.
Use appropriate refrigerant and refrigerant oil.
• This may result in re or explosion.
Stop the operation and close the circuit breaker
while repair service.
• Otherwise, it may cause electric shock or injury.
Be aware of step board while working on high
place.
• This may result in injury by falling down if the
step board is not stable.
Use chilled/heating water which is appropriate
according to water maintenance standard.
(Refer to page 68 for water maintenance standard.)
• Deterioration of water may cause water leakage.
Follow regulations for disposing brine, cleaner, and
refrigerant.
• It is against the law to dispose illegally.
For installation
WARNING
Do not install the product by users.
• It may result in water leakage, electric shock,
or re if installation is not precise. Contact the
merchandise or service center.
Consult qualied installer or dealer for installation.
• When the installation is done by unqualied
people, it may cause water leakage, electric
shock or re.
Installation should be done by following the
installation manual accurately.
• When installation is not done properly, it may
cause water leakage, electric shock or re.
Do not install the eld supply parts by users.
• Do not use any other product other than the
manufacturer recommended. It may result in
water leakage, electric shock, or re if installation
is not precise. Contact the merchandise or
service center.
Do not move or reinstall the product by users.
• It may result in water leakage, electric shock,
or re if installation is not precise. Contact the
merchandise or service center.
Do not close the circuit breaker for protect devices.
• Otherwise, a re may occur.
Do not install power cables between the products.
• It may cause re.
Make sure to install the product in a place strong
enough to withstand its weight.
• Otherwise, it may result in falling down,
vibration, noise of the product.
Install the product securely to resist strong wind or
earthquake.
• Otherwise, it may result in falling down,
vibration, noise of the product.
Fix the product securely to resist natural
phenomenon such as earthquake.
• If the product is not properly xed, it may fall
down and cause an accident.
• When installing the unit in a small area, take
measure to keep the refrigerant concentration
from exceeding allowable safety limits in case
of refrigerant leakage. Consult the dealer for
precautionary measure before the installation.
• When refrigerant leaks and exceed dangerous
concentration level, it may cause suffocation
accidents.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 5 2022-05-02 오전 8:59:55

INSTALLATION
Safety information
6
English
Check the followings before installation and repair/
maintenance service.
• Before brazing, remove dangerous and/or
ammable things around workplace that may
cause an explosion and re.
• Before brazing, remove the refrigerant within
the pipe or the product.
• If you perform welding while refrigerant is in
the pipe, it may increase the pressure of the
refrigerant and cause the pipe to burst. If the
pipe bursts or explodes, it may cause severe
injury to the installer.
• Use the nitrogen gas to eliminate oxide inside
the pipe during brazing.
Electric work must be done by qualied people,
complying the national wiring regulations and
installed according to the instruction stated in the
installation manual and must comply regulated
electrical specication.
• Capacity shortage on the power circuit or
improper installation may cause electric shock or
re.
Wiring must be connected with the designated
wires and it must be xed securely so that it does
not apply any external force to the connection part
of the terminals.
• If connection or xation is not properly done, it
may cause heat generation or re.
Neatly arrange the wires in the electrical parts to
make sure that electrical cover is closed securely
without any gaps.
• If the cover is not properly closed, heat may
generate on the terminal and cause electric
shock or re.
Exclusive circuit breaker (MCCB, ELB) must be
installed to the power supply.
• Use ELCB that has harmonic wave prevent
function since the product uses inverter
compressor.
• If the auxiliary circuit breaker is not installed,
power will not be cutoff in case of overcurrent
or current leakage and cause electric shock or
re.
• Do not use damaged parts. Otherwise, a re or
electric shock may occur.
You must cut-off the power before you work
on, or adjust any power supply part for product
installation, maintenance, repair or any other
services.
• This may result in electric shock.
• Even when the power is off, it is very dangerous
to touch the inverter PCB and the fan PCB since
high pressure DC voltage is charged for those
parts.
• When replacing/repairing the PCB, cut-off
the power and wait until the DC voltage is
discharged before replacing/repairing them.
(Wait for more than 15 minutes to allow those
parts to be fully discharged.)
You must ventilate the room if the refrigerant gas
leaks during the installation.
• Toxic gas can be generated when the refrigerant
gas gets in contact with ammable substance.
Use chilled/heating water which is appropriate
according to water maintenance standard.
(Refer to page 68 for water maintenance standard.)
• Deterioration of water may cause water leakage.
Contact the merchandise for refrigerant stagnating.
• When refrigerant leaks and exceed dangerous
concentration level, it may cause suffocation
accidents. When installing the unit in a small
area, take measure to keep the refrigerant
concentration from exceeding allowable safety
limits in case of refrigerant leakage.
Follow regulations for disposing brine, cleaner, and
refrigerant.
• It is against the law to dispose illegally, and also
harmful for humans and environment.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 6 2022-05-02 오전 8:59:55

INSTALLATION
7
English
Wiring must be connected with the designated
wires and it must be xed securely so that it does
not apply any external force to the connection part
of the terminals.
• If connection or xation is not properly done, it
may cause heat generation or re.
Please connect ground wire.
• If the ground wire is not properly xed, there is
potential risk of electric shock or re.
• Do not connect the grounding cable to a gas
pipe, water pipe, lightening conductor or the
grounding cable of the telephone.
CAUTION
Drain system must be constructed according to this
installation manual so that condensation water
drains properly, and drain system should be kept
warm to prevent dew condensation.
• When water management is not done properly,
water leakage may occur and cause property
damage.
Install the power cable and communication cable
of the product at least 1.5m away from the electric
appliances and install it at least 2m away from the
lightning conductor.
• Even if the cables are installed more than 2 m
away from electronics, noise can be generated
from them depending on the status of the
electric wave.
Do not leave any obstacles around the inlet and
outlet of the product.
• It may cause product failure or other accidents.
Do not install the product in following places.
• A place where noise and warm air of the product
may disturb neighbors
- It may cause property loss.
• A place full of mineral oil, place where oil
scatters or with oil vapors such as a kitchen
- Plastic parts may get damaged and cause
water leakage, or maybe even cause product
to fall down.
- The performance of the heat exchanger may
decrease or cause product failure.
• A place near exhaust pipes or ventilation outlet
where corrosive gas such as ammonia gas or
sulfurous acid gas are being generated
- Copper pipe and connection parts may corrode
causing refrigerant leakage.
• A place with a machine that generates
electromagnetic waves
- Electromagnetic waves may cause problems in
control system and product may not operate
normally.
• A place where there is a danger of combustible
gas leakage or the place where thinner or
gasoline is handled
There is a risk of re or explosion.
• A place with airborne carbon ber or ammable
dust
• A place near seashore or hot spring where there
is risk of product corrosion
Install MCCB for each product.
• Use ELCB that has harmonic wave prevent
function since the product uses inverter
compressor.
• It may cause electric shock or re if more than
two products are installed on one MCCB.
Make sure to install drain pipe for draining
performed correctly.
• If the installation is not done properly,
water leakage may occur and cause product
malfunction.
Wear protective equipment (such as safety gloves,
goggles, and headgear) during installation and
maintenance works. Installation/repair technicians
may be injured if protective equipment is not properly
equipped.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
For use in Europe : This appliance can be used by
children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 7 2022-05-02 오전 8:59:55

INSTALLATION
8
English
Preparing for installation
Specications of the non-pump models
Model AG042KSVANH AG056KSVANH AG070KSVANH
Power supply
3 Phase 4 Wires 380 ~ 415 V, 50/60 Hz
Capacity Cooling (Rated) kW
42 56 65
Heating (Rated) kW
42 56 69.5
Power
consumption
Cooling (Rated) kW
12.35 18.67 26.0
Heating (Rated) kW
11.83 17.50 24.39
Operating
current
Cooling (Rated) A
19.6 29.6 41.2
Heating (Rated) A
18.8 27.8 38.7
Refrigerant Type
R-410A R-410A R-410A
Charging amount kg
18 18 18
Water
side heat
exchanger
Type
Plate type heat exchanger
Flow rate
(Cooling/Heating) LPM
120/120 160/160 186/200
Maximum operating
pressure MPa
1.0 1.0 1.0
Head loss kPa
60 100 120
Inlet·Outlet connected
pipe size A
40 40 50
Minimum water quantity L
294 392 490
Net weight kg
446 446 465
Net dimension W X H X D mm
1795 X 1695 X
765
1795 X 1695 X
765
1795 X 1695 X
765
Remote control
Module Control
Water outlet
temperature
range
Cooling (If using brine) °C
5 ~ 25 (-10 ~ 25) 5 ~ 25 (-10 ~ 25) 5 ~ 25 (-10 ~ 25)
Heating °C
25 ~ 55 25 ~ 55 25 ~ 55
Surrounding
temperature
range
Cooling °C
-15 ~ 48 -15 ~ 48 -15 ~ 48
Heating °C
-25 ~ 43 -25 ~ 43 -25 ~ 43
MCA A
32 46 58
MFA A
40 60 75
1) Standard for rated cooling capacity: chilled water inlet/outlet temperature 12/7°C, outdoor 35°C DB, 24°C WB
2) Standard for rated heating capacity: heating water inlet/outlet temperature 40/45°C, outdoor 7°C DB, 6°C WB
3) When using brine, maintain the concentration according to temperature. (Refer to page 76.)
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 8 2022-05-02 오전 8:59:55

INSTALLATION
9
English
Specications of the pump integrated models
Model AG042KSVGNH AG056KSVGNH AG070KSVGNH
Power supply
3 Phase 4 Wires 380 ~ 415 V, 50/60 Hz
Capacity Cooling (Rated) kW
42 56 65
Heating (Rated) kW
42 56 69.5
Power
consumption
Cooling (Rated) kW
13.59 20.14 28.26
Heating (Rated) kW
12.77 18.48 25.84
Operating
current
Cooling (Rated) A
24.2 34.2 45.8
Heating (Rated) A
23.4 32.4 43.3
Refrigerant Type
R-410A R-410A R-410A
Charging amount kg
18 18 18
Water
side heat
exchanger
Type
Plate type heat exchanger
Flow rate
(Cooling/Heating) LPM
120/120 160/160 186/200
Maximum operating
pressure MPa
1.0 1.0 1.0
Head loss kPa
60 100 120
Inlet·Outlet connected
pipe size A
40 40 50
Pump
Type
End-Suction
Input x n kW
1.68 1.68 1.68
Output x n W
1.45 1.45 1.45
Normal Water Flow rate
(Cooling/Heating)
LPM
120/120 160/160 186/200
l/s
2.0/2.0 2.7/2.7 3.1/3.3
External Static Pressure
(Max.)
mAq
22.4 / 22.4 15.3 / 15.3 10.2 / 10.2
kPa
220 / 220 150 / 150 131 / 100
Minimum water quantity L
294 392 490
Net weight kg
472 472 493
Net dimension W X H X D mm
1795 X 1695 X
765
1795 X 1695 X
765
1795 X 1695 X
765
Remote control
Module Control
Water outlet
temperature
range
Cooling (If using brine) °C
5 ~ 25(-10 ~ 25) 5 ~ 25(-10 ~ 25) 5 ~ 25(-10 ~ 25)
Heating °C
25 ~ 55 25 ~ 55 25 ~ 55
Surrounding
temperature
range
Cooling °C
-15 ~ 48 -15 ~ 48 -15 ~ 48
Heating °C
-25 ~ 43 -25 ~ 43 -25 ~ 43
MCA A
39 53 65
MFA A
50 60 75
1) Standard for rated cooling capacity: chilled water inlet/outlet temperature 12/7°C, outdoor 35°C DB, 24°C WB
2) Standard for rated heating capacity: heating water inlet/outlet temperature 40/45°C, outdoor 7°C DB, 6°C WB
3) When using brine, maintain the concentration according to temperature. (Refer to page 76.)
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 9 2022-05-02 오전 8:59:55

INSTALLATION
Preparing for installation
10
English
DVM CHILLER Classication
Classication DVM CHILLER
Appearance
Applied model
AG042/056/070KSV Series
CAUTION
•Safely store or dispose the packaging materials.
- Sharp metals such as nails or wooden material
packaging that may break into pieces become a
cause for personal injury.
- Make sure to store or dispose the vinyl type
packaging material to keep it out of reach of
children. Children may put them over their face,
which is very dangerous since it may lead them
to suffocation.
Moving the product
fSelect the moving path in advance.
fBe sure that moving path can support weight of the
product.
fDo not slant the product more than 30˚ when
carrying it.
(Do not lay the product down in sideways.)
fSurface of the heat exchanger is sharp. Be careful not
to get injured while moving the product.
CAUTION
•You must use square holes in the base of the
product when moving the product.
1 When moving with a crane
fFasten the wire rope using square holes of the
product as shown in the gure.
- To protect damage or scratches, insert a piece of
cloth between the product and the wire rope.
- Insert hanging softening material to prevent load
from the rope on top of the product.
A B C
Model name Rope's Location
AGTTTKSVA Series B + C
AGTTTKSVG Series A + C
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 10 2022-05-02 오전 8:59:56

INSTALLATION
11
English
CAUTION
•Do not hang the rope on side of the water pipe.
The rope may force the water pipe to deformed or
damaged.
2 When moving with a forklift
fCarefully insert the forklift forks into the forklift
holes at the palette.
fBe careful with the forklift from damaging the
product.
Center location
A
B
A
C
B
C
Unit: mm
Model name A B C
AG042KSVANH 1020 380 590
AG056KSVANH 1020 380 590
AG070KSVANH 1020 380 590
AG042KSVGNH 950 370 550
AG056KSVGNH 950 370 550
AG070KSVGNH 950 370 550
Accessories (Basic specication)
fYou must keep following accessories not to be lost
during installation.
fHand over the installation manual to the customer
after nishing the installation.
Installation manual Installation check card
Field Supply
fStrainer
Maximum
operating
pressure
Water pipe connection part
AG042/056TT AG070TT
1.0 MPa 40 A (1-1/2") 50 A (2")
Mesh size Material (Strainer/Mesh)
50 Mesh SUS304
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 11 2022-05-02 오전 8:59:56

INSTALLATION
12
English
Decide the installation location, with the consideration
of the following conditions, under user's approval.
fPlace where hot discharge air or noise from the DVM
CHILLER may not disturb the neighbor (Especially in
residential areas, keep the operation hours in mind.)
fPlace where structure can bear the weight and
vibration of the DVM CHILLER
fPlace with at surface where rainwater does not
settle or leak
fPlace where it is not exposed to strong wind
fWell ventilated place with sufcient service place
for repairs and maintenance (Discharge duct can be
purchased separately)
fPlace where it allows easy waterproong and
draining work for the condensation water generated
from the DVM CHILLER during heating operation
fPlace where there is no risk of inammable gas
leakage
fPlace where there is no direct inuence of snow or
rain
fPlace where a large amount of water generated by
external environment does not directly affect the top
of the outdoor unit.
Installation Guide at the seashore
Make sure to follow below guides when installing at
the seashore.
fDo not install the product in a place where it is
directly exposed to sea water and sea breeze.
- Make sure to install the product behind a
structure (such as building) that can block see
breeze.
- Even when it is inevitable to install the product
in seashore, make sure that product is not
directly exposed to sea breeze by installing a
protection wall.
fConsider that the salinity particles clinging to the
external panels should be sufciently washed out.
fBecause the residual water at the bottom of the
outdoor unit signicantly promotes corrosion,
make sure that the slope does not disturb drainage.
- Keep the oor level so that rain does not
accumulate.
- Be careful not to block the drain hole due to
foreign substance
fWhen product is installed in seashore, periodically
clean it with water to remove attached salinity.
fMake sure to install the product in a place that
provides smooth water drainage. Especially, ensure
that the base part has good drainage.
fIf the product is damaged during the installation or
maintenance, make sure to repair it.
fCheck the condition of the product periodically.
- Check the installation site every 3 months and
perform anti-corrosion treatment such as R-Pro
supplied by SAMSUNG (Code : MOK-220SA) or
commercial water repellent grease and wax, etc.,
based on the product condition.
- When the product is to be shut down for a long
period of time, such as off-peak hours, take
appropriate measures like covering the product.
fIf the product installed within 500m of seashore,
special anti-corrosion treatment is required.
※Please contact your local SAMSUNG
representative for further details.
Sea
Sea breeze
DVM
CHILLER
DVM
CHILLER
Sea
Sea breeze
DVM
CHILLER
Selecting installation location
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 12 2022-05-02 오전 8:59:56

INSTALLATION
13
English
fProtection wall should be constructed with a solid
material that can block the sea breeze and the height
and width of the wall should be 1.5times larger than
the size of the DVMCHILLER. (You must secure more
than 700mm of space between the protection wall
and the DVMCHILLER for air circulation.)
Sea
Sea breeze
DVM
CHILLER
Protection wall
DVM
CHILLER
CAUTION
•In regions with heavy snowfall, make sure to install
the DVM CHILLER where there is no concerns of
direct snowfall on the DVM CHILLER. Also, build
higher base support so that accumulated snow does
not block the air inlet or the heat exchanger.
•R-410A refrigerant is a safe, nontoxic and
nonammable refrigerant. However, if the place
holds any concerns for exceeding dangerous level
of refrigerant concentration in case of refrigerant
leakage, extra ventilation system is required.
•When you install the product in a high places such
as roof, install fence or guardrail around it. When
there is no fence or guardrail, service person could
fall.
•Do not install the product in places where corrosive
gases such as sulfur oxides, ammonia, and sulfurous
gases are produced. (e.g. Toilet outlet, ventilation
opening, sewage works, dyeing complex, cattle
shed, sulfuric hot spring, nuclear power plant, ship
etc.) When installing the product in those places,
contact an installation specialty store as the copper
pipe and brazing part will need additional corrosion
proof or anti-rust additive to prevent corrosion.
•Make sure to keep any inammable materials (such
as wooden materials, oil etc.) around the DVM
CHILLER. When there's re, those inammable
material will easily catch the re and may pass it on
to the product.
•Depending on the condition of power supply,
unstable power or voltage may cause malfunction
of the parts or control system.
(At the ship or places using power supply from
electric generator, etc.)
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 13 2022-05-02 오전 8:59:56

INSTALLATION
14
English
Required space for installation
fSpace requirement was decided based on the
following conditions; Cooling mode, outdoor
temperature of 35°C. Larger space is required if the
outdoor temperature is higher than 35°C or if the
place is heated easily by quantity of solar radiation.
fWhen you secure installation space, consider path for
people and the direction of the wind.
fSecure installation space as shown in the gure,
considering ventilation and the service space.
fIf the installation space is narrow, installer or other
worker may get injured during work and may also
cause a problem with the product.
fIf you install multiple number of DVM CHILLERs in
one space, make sure to secure enough ventilation
space if there's any walls around the product that
may disturb the air ow. If enough ventilation space
is not secured, the product may malfunction.
fYou could install the DVM CHILLERs with 100 mm
of space between each unit, but performance may
decrease depending on the installation environment.
1 Single installation
Unit: mm
Front side
100 or more
100 or
more
500 or more (S1) 100 or
more (S2)
<Case 1>
Front side
100 or
more
300 or
more Height of
the wall is
unlimited
<Case 2>
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 14 2022-05-02 오전 8:59:57

INSTALLATION
15
English

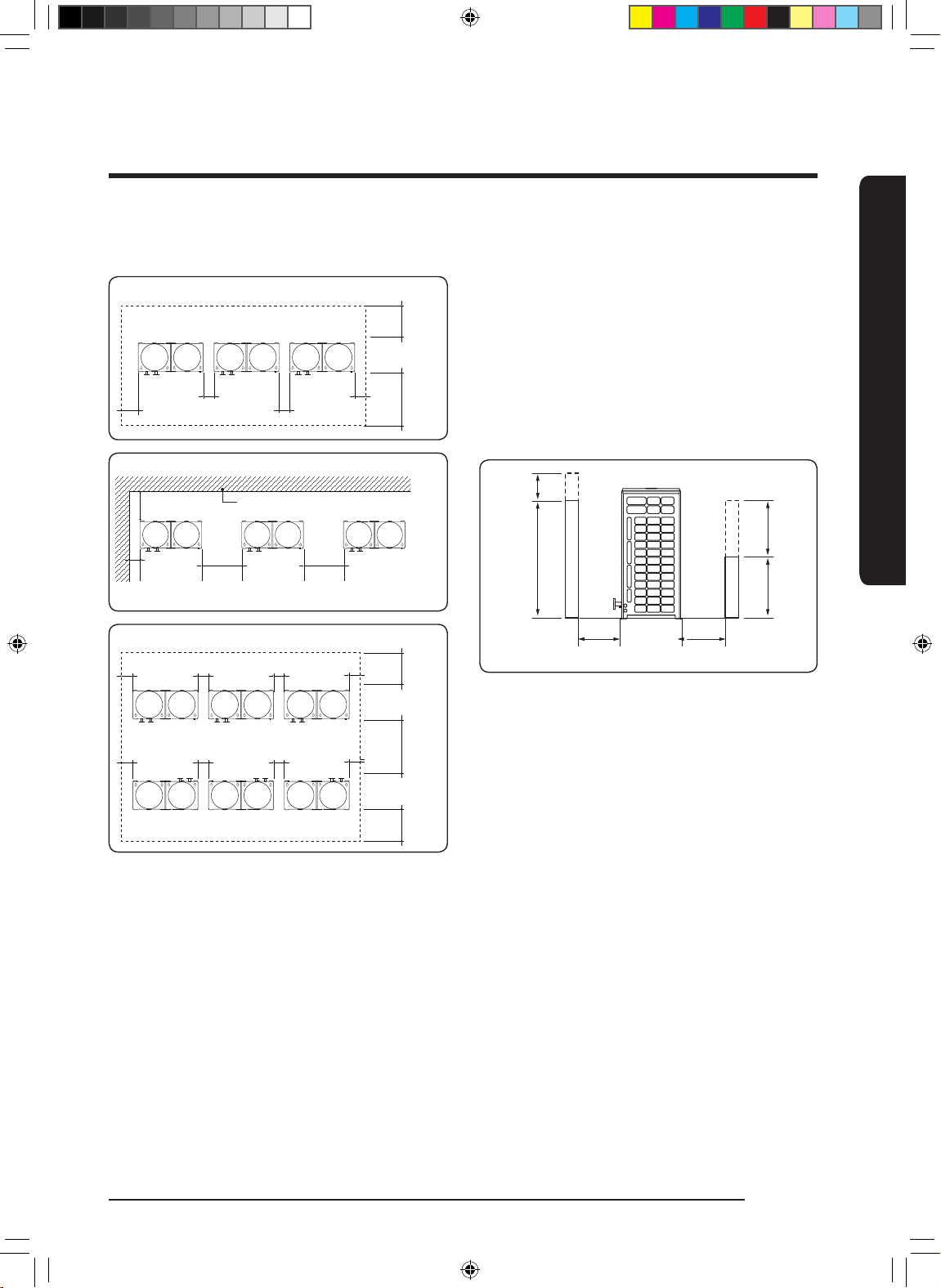

2 Module installation
Unit: mm
Front side
100 or more
200 or more 100 or more
100 or more
300 or
more (S2)
500 or
more (S1)
<Case 1>
<Case 2>
400 or
more
400 or
more
200 or
more Front side
300 or more Height of the wall is unlimited
Front side
Front side
100 or more
100 or more
100 or
more
100 or
more
100 or more
100 or more
100 or
more
100 or
more
500 or
more
500 or
more
600 or
more
<Case 3>
fInstalling by <Case 1> or <Case 3>
- Height of the wall on the front side should not
be higher than 1500mm.
- Height of the wall on the air inlet side should not
be higher than 500mm.
- Height of the wall on the side is not limited.
- If the height of the wall exceeds by certain value
(h1, h2), additional clearance [(h1)/2, (h2)/2 : Half
of the exceeded distance] should be added to the
service space (S1, S2).
Unit: mm
1500 h1
500 h2
Front side
Air inlet side
S1+h1/2 S2+h2/2
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 15 2022-05-02 오전 8:59:57

INSTALLATION
16
English
WARNING
•Make sure to remove the wooden pallet before
installing the DVMCHILLER. If you do not remove
the wooden pallet, there is risk of re during
welding the pipes. If the DVMCHILLER is installed
with wooden pallet on, and it was used for long
period time, wooden palette may break and cause
electrical hazard or high pressure may damage the
pipes.
•Fix DVMCHILLER rmly on the base ground with
anchor bolts.
CAUTION
•Manufacturer is not responsible for the damage
occurred by not following the installation standards.
1 Make sure that the height of the base ground is
200mm or higher to protect the product from rain
water or other external conditions. Also, install
a drainage hole around the supporting base and
connect the drain pipe to the drainage pit.
2 Considering the vibration and weight of the product,
strength of the base ground must be strong to
prevent noise and the top surface of it should be at.
3 Area of the base ground should be 1.5 times larger
than the bottom of the product.
4 Product must be xed rmly so that it can withstand
the wind speed of 30m/s. If you cannot x the
DVMCHILLER on the supporting base, x it by side
or use extra structure.
5 In heating operation, defrost water may form
so you must really care about the drainage and
waterproong the oor. To prevent defrost water
from stagnating or freezing, construct a drainage pit
with over 1/50 slant. (Ice may form on the oor in
the winter time.)
6 It is necessary to add wire mesh or steel bar during
concrete construction for the base ground to prevent
damage or cracks.
7 When installing multiple DVM CHILLERs at the same
place, construct an H beam or a vibration-isolation
frame on the base ground to install the product.
8 After installing an H beam or a vibration-isolation
frame, apply corrosion protection and other
necessary coating.
9 When concrete construction for product installation is
complete, install an isolation pad (t = 20 mm or more)
or a vibration-isolation frame to prevent vibration of
the product from transferring to the supporting base.
10 Place the product on an H beam or a vibration
isolation frame and x it with the anchor bolt, nut
and washer. (The bearing capacity of the anchor bolt
has to be over 3.5 kN)
Supporting base construction
Unit: mm
When installing on the ground
Draining pit 200 or more
When installing on the roof
Bottom surface of
the supporting base
must be horizontally
leveled
200 or more
200 or more
Base construction and installation
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 16 2022-05-02 오전 8:59:57

INSTALLATION
17
English
Product installation
Unit: mm
200 or more
200 or
more
50 or
more
H beam or vibration-isolation frame
Supporting base
Base mount and anchor bolt
position
A
B
54
761
803
54
Product - vibration-isolation
frame (4 - Ø12)
Supporting base (H beam or vibraition-isolation frame)
Applied model Net dimension
A B
AG042/056/070TT 1,795 1,655
•When applying vibration-isolation frame additionally
on supporting base, specication of xed holes with
the base should be referred to specication of the
frame.
Examples of draining work
fUse concrete or steel bar for draining work to
prevent any damage or cracks.
fFor smooth draining of defrost water, make sure to
apply 1/50 slant.
fConstruct a drainage around the product to prevent
the defrost water (from the product) from stagnating,
overowing or freezing near the installation space.
fWhen the product is installed on the roof, check the
strength and waterproof status of the roof.
Unit: mm
960
760
100
80
80
80
60°
100
XX’
Direction of the
drainage
(1/50 slant)
B
A
50
100
150 100
X-X’ SECTION
80
80
80
80
80
80
80
80
60°
60°
200
B B
200
Direction
of the
drainage
(1/50 slant)
Applied model Net dimension
A B
AG042/045/070TT 1,855 1,655
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 17 2022-05-02 오전 8:59:58

INSTALLATION
Base construction and installation
18
English
Installation precautions
Connecting the anchor bolt
CAUTION
Plastic (rubber)
washer
•Tighten the rubber washer to
prevent the bolt connection
part of the DVM CHILLER from
corroding.
Anchor specication
a
b
c
m
•Use the anchor bolts and nuts
that is zinc plated or made
of STS material. Regular
anchor bolts or nuts may get
damaged by corrosion.
Size Diameter of
drill bit (a)
Anchor
length (b)
Sleeve
length (c)
Insertion
depth
Fastening
torque
ø10 14 mm 75 mm 40 mm 50 mm 30 N·m
Connecting the pipe
Water inlet pipe
Water outlet pipe
fIf you install the DVMCHILLER on the rooftop,
check the strength and make sure to waterproof the
rooftop.
fConstruct draining pit around the supporting base
and pay attention to the drainage around the
product. (Condensation or defrost water may form
during product operation.)
fIf there's any possibility of small animals entering
into the product through pipe outlet, block the outlet.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 18 2022-05-02 오전 8:59:58

INSTALLATION
19
English

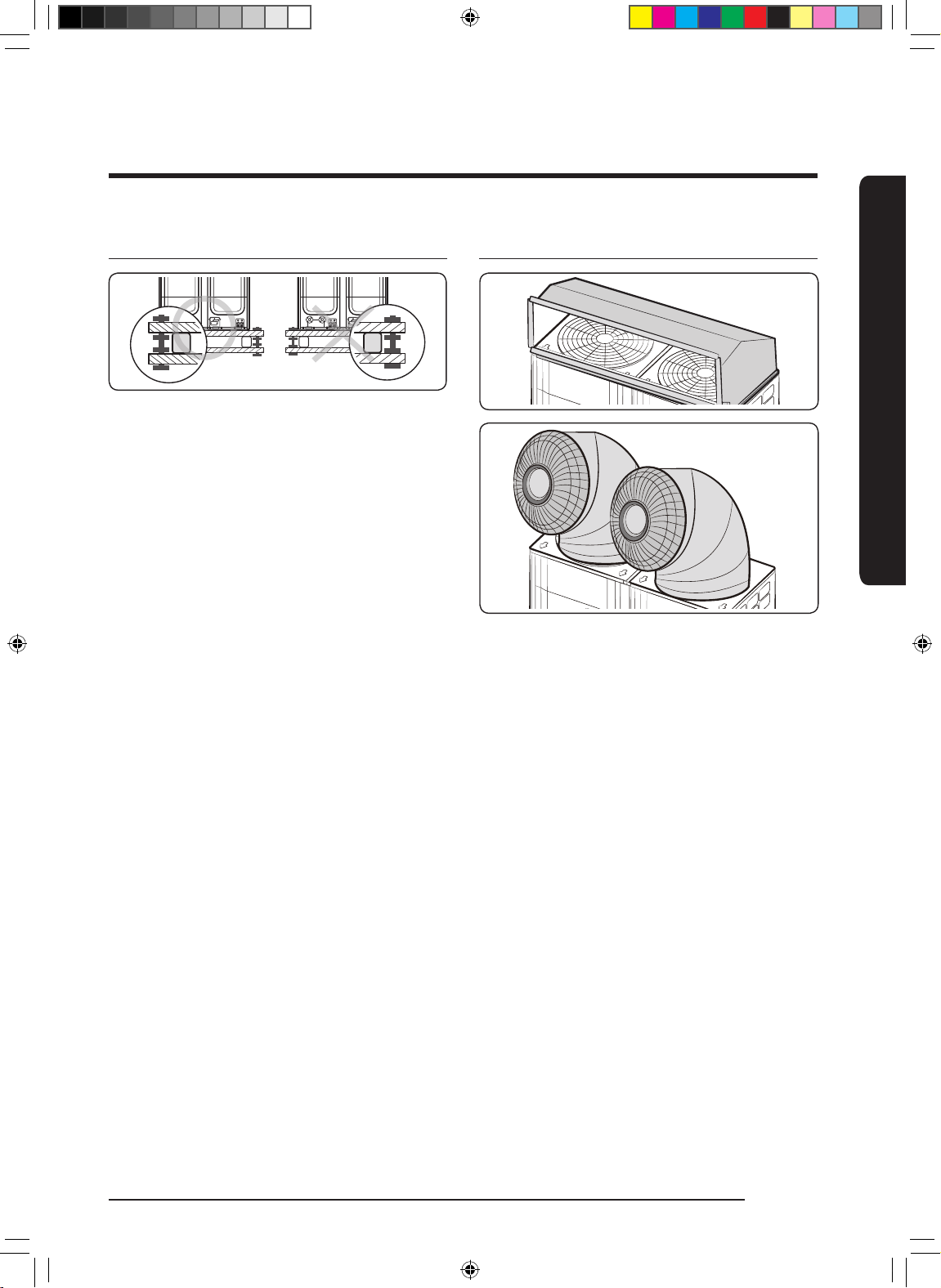

Installing vibraiton-isolation frame
fDuring installation, make sure there is no gap
between the supporting base and the extra structures
such as vibration-isolation frame or H beam.
fSupporting base must be constructed strongly to
support the bottom part of the vibration-isolation
mount.
fAfter installing the vibration-isolation frame, unscrew
the xing part on the top and bottom part of the
frame.
Installing discharge duct
fStatic pressure of the discharge duct should be within
the standard specication (78.5 Pa) when installing
the duct.
fIf you remove the fan guard to install the discharge
duct, make sure to install a safety net on the duct
outlet.
Foreign substance may enter into the product and
there could be a risk of personal injury.
fWear protection equipment at all times when making
galvanized sheet metal duct, since the worker may
get injured by the sharp parts.
fWhen installing the product under the tree or
near forest, leafs may get into the product and
cause problems on the product. Therefore, install
a discharge duct to prevent foreign substance
inltration.
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 19 2022-05-02 오전 8:59:59

INSTALLATION
20
English
Installing the discharge duct
around the obstacles
Ex.) Balcony
Upper oor
Discharged air
Ex.) Mechanical room
Discharged
air
Grille/
louver
Suction air
fIt is necessary to install a wind/snow prevention
duct (eld supply) to direct exhaust from the fan
horizontally, when it is difcult to provide a minimum
space of 2m between the air outlet and a nearby
obstacle.
Installing the discharge duct in
cold regions
h
fIn cold regions with lots of snowfall, install a snow
prevention duct, as a sufcient countermeasure, to
prevent snow from accumulating on the product.
When the snow prevention duct is not installed
properly, frost may accumulate on the heat exchanger
and heating operation may not work normally.
fAir outlet of the duct should not be directed to the
enclosed space.
CAUTION
Cautions regarding on installing the frame and selecting
the base ground
•Height (h) of the frame and the base ground should
be higher than the "heaviest expected snowfall".
•Area of the frame and the supporting base should
not be larger than the area of the product. Snow
may accumulate if the area of the frame or the base
ground is larger.
Installing the wind/snow prevention duct
DB68-05916A-09_IM_DVM Chiller Outdoor_EU_EN_.indd 20 2022-05-02 오전 8:59:59
This manual suits for next models
2
Table of contents
Other Samsung Chiller manuals
Popular Chiller manuals by other brands

ACS
ACS GP Series Operation and installation manual

Hitecsa
Hitecsa EKWXA Installation, operation and maintenance manual

Cold Shot Chillers
Cold Shot Chillers ACWC-024-E-DR-LT-0-2 Installation, operation and maintenance instructions

York
York YVWA manual

KIRLOSKAR
KIRLOSKAR KAC Installation, start-up, operation

Moffat
Moffat Friginox RR36A Specification sheet

Quantech
Quantech QTC2015T manual

Current
Current 2645 instruction manual

lancer
lancer 2500 REMOTE series installation guide

AERMEC
AERMEC 1251 Technical installation manual

Solid State Cooling Systems
Solid State Cooling Systems THERMOCUBE 200 product manual

Holland Green Science
Holland Green Science 10303001 user manual
