Samsung OH85N User manual

Smart Signage User Manual (By Model)
This manual provides information about your Smart Signage including supported types and product specications per model.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.
OH85N OH85N-DK OH85N-DJ
The color and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.

Table of contents
Preparations
Checking the Components 3
Parts 4
Ports 5
OH85N 5
OH85N-DK/OH85N-DJ 6
Before Installing the Product (Installation
Guide) 7
Rotation 7
Ventilation 7
Before connecting cables 8
Power cable connection guide 11
Wall Mount Specifications 16
2
Specifications
General 17
Preset Timing Modes 18
Appendix
License 20

3
Preparations
Chapter 01
"Contact the vendor where you
purchased the product if any
components are missing.
"The appearance of the components
may differ from the images shown.
Checking the Components
Quick Setup Guide Warranty card
(Not available in some locations) Regulatory guide Batteries (AAA x 2) (Not available in some locations)
Remote Control Cover-Cap x 16
(Supported model: OH85N)
Clamper x 6
(Supported model: OH85N-DK,
OH85N-DJ)

4
Parts
"The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.

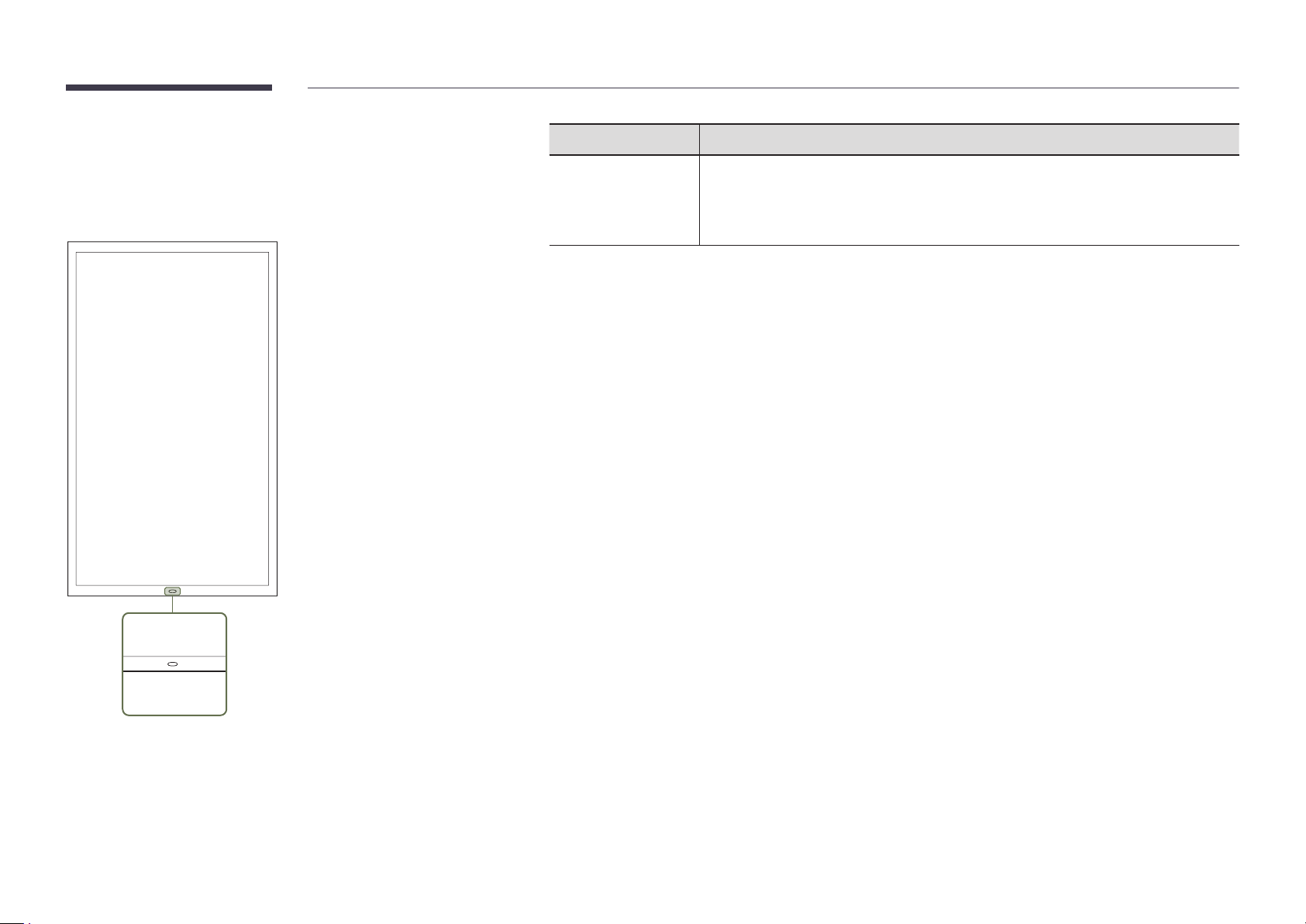

Remote sensor
Parts Description
Remote sensor
Press a button on the remote control pointing at the sensor on the front of the product
to perform the corresponding function.
"Using other display devices in the same space as the remote control of this product
can cause the other display devices to be inadvertently controlled.
Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and
right.
"Store used batteries out of reach of children and recycle.
"Do not use a new and used battery together. Replace both batteries at the same time.
"Remove batteries when the remote control is not to be used for an extended period of time.

5
Ports
OH85N
"The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
Air inlet
Air outlet
Port Description
USB ¨
Connect to a USB memory device.
RJ45
Connects to MDC using a LAN cable. (10/100 Mbps)
"Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
HDMI 1, HDMI 2
Connects to a source device using a HDMI cable or HDMI-DVI cable.
DP IN (UHD 60Hz)
Connects to a PC using a DP cable.
"Obtain sharp picture quality when viewing UHD content at 60Hz.
AUDIO OUT
Outputs sound to an audio device via an audio cable.
RS232C IN
Connects to MDC using an RS232C adapter.
": Cover-cap locations

6
OH85N-DK/OH85N-DJ
"The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
Air inlet
Air outlet
Port Description
1 USB ¨Connect to a USB memory device.
2 RJ45
Connects to MDC using a LAN cable. (10/100 Mbps)
"Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
3 HDMI 1, HDMI 2 Connects to a source device using a HDMI cable or HDMI-DVI cable.
4 DP IN (UHD 60Hz) Connects to a PC using a DP cable.
"Obtain sharp picture quality when viewing UHD content at 60Hz.
5 AUDIO OUT Outputs sound to an audio device via an audio cable.
6 RS232C IN Connects to MDC using an RS232C adapter.
": Noise filter
Warning: Do not touch this device and connected cables to avoid the risk of electrical shock.

7
Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Ensure that an authorized installation company installs the wall mount.
• Otherwise, it may fall and cause personal injury.
• Make sure to install the specified wall mount.
Rotation
"Supported model: OH85N
"Contact Samsung Customer Service Center for further details.

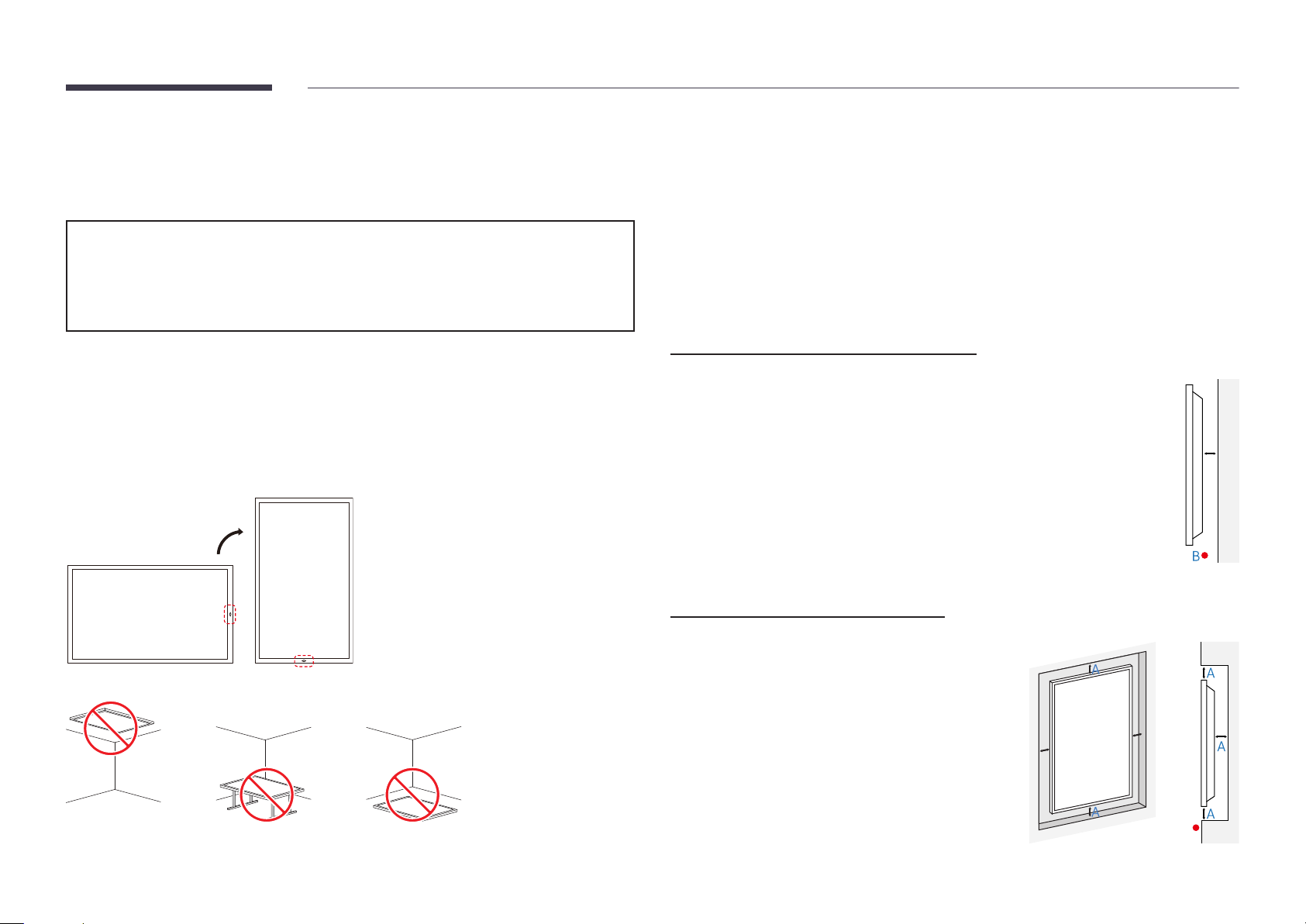

• To use the product in Portrait mode, rotate clockwise until the power indicator (A) is
positioned as shown in the images below.
15°
A
A
"Do not use this model installed on a ceiling, floor, or table.
Ventilation
"Supported model: OH85N
"OH85N-DK and OH85N-DJ are double-sided display models. When installing the
product, allow space of at least 200 mm from the ceiling and floor, and keep the ambient
temperature below 50 °C.
"Contact Samsung Customer Service Center for further details.
"For outdoor products, add a partition between the inlet and outlet to keep air paths
separated.
Installation on a PerpendicularWall
AMinimum 200 mm
B Ambient temperature: Under 50 °C
"When installing the product on a perpendicularwall, allow at
least 200 mm of space between the product and wall surface for
ventilation and ensure that the ambient temperature is kept below
50 °C.
A
Installation on an Indented Wall
AMinimum 200 mm
B Ambient temperature: Under 50 °C
"When installing the product on an indented
wall, allow at least the space specified above
between the product and wall forventilation
and ensure that the ambient temperature is
kept below 50 °C.
A
A
B

8
Before connecting cables
OH85N
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Unfasten the screws, then remove the cover.
4
The cable should be connected as shown.
2
Silicone bar
Remove the appropriate silicone bar for the thickness
of the cable to connect.
Different hole sizes and corresponding cable thickness
for each:
"7 Ø hole x 1: Insert the 7 Ø cable
"5.5 Ø hole x 6: Insert the 5.5 Ø cable
"3 Ø hole x 2: Insert the 3 Ø cable
"8.5 Ø hole x 1: Insert the 8.5 Ø cable
Close the cover, then fasten the screws.
"After all the cables are connected, make sure to
close the cover and fasten the screws to ensure it
is water tight.
"Recommended torque: 10 - 12 kgf.cm
3
Insert the appropriate cable into the hole from which
the silicone bar was removed.

9

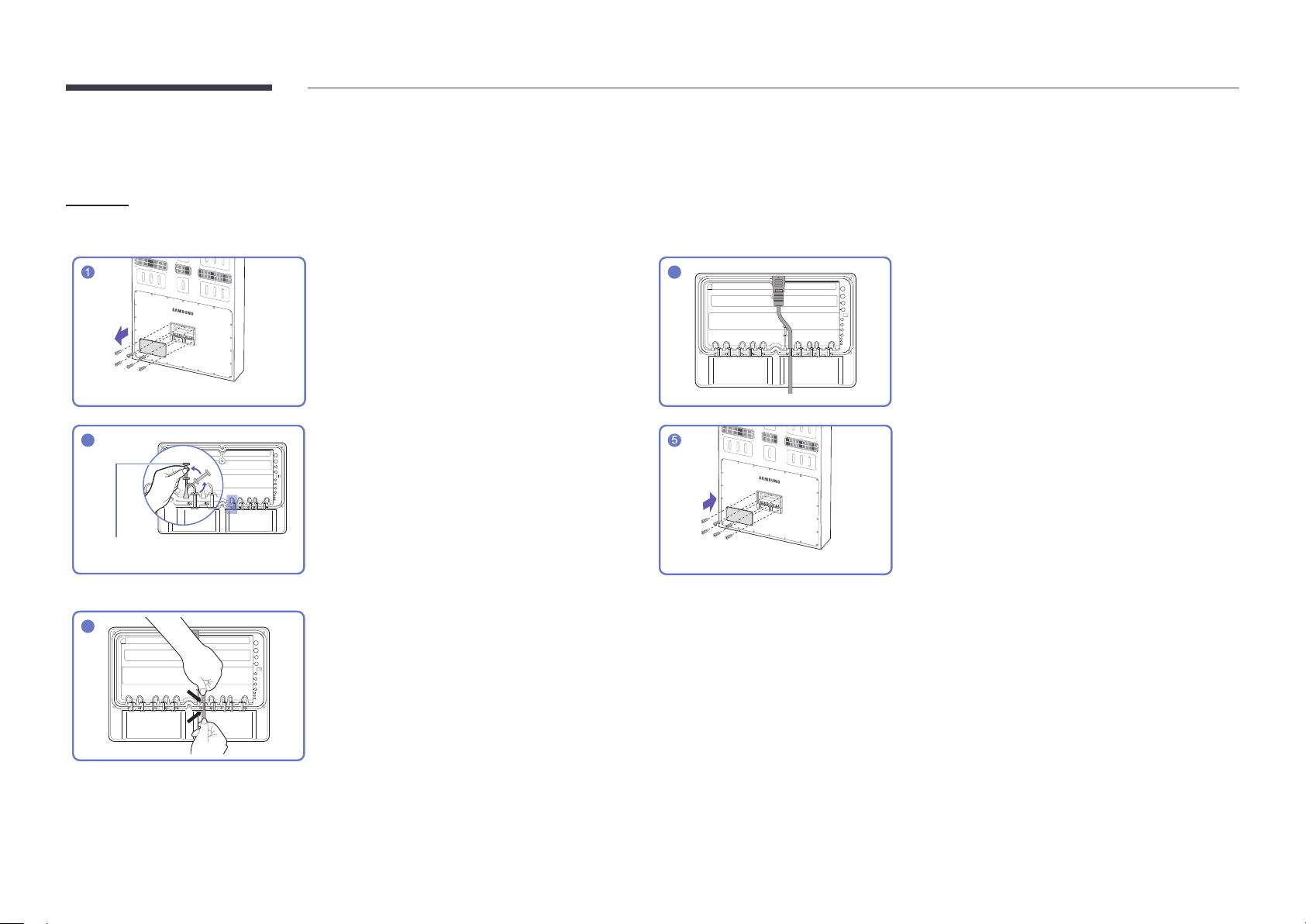

OH85N-DK
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

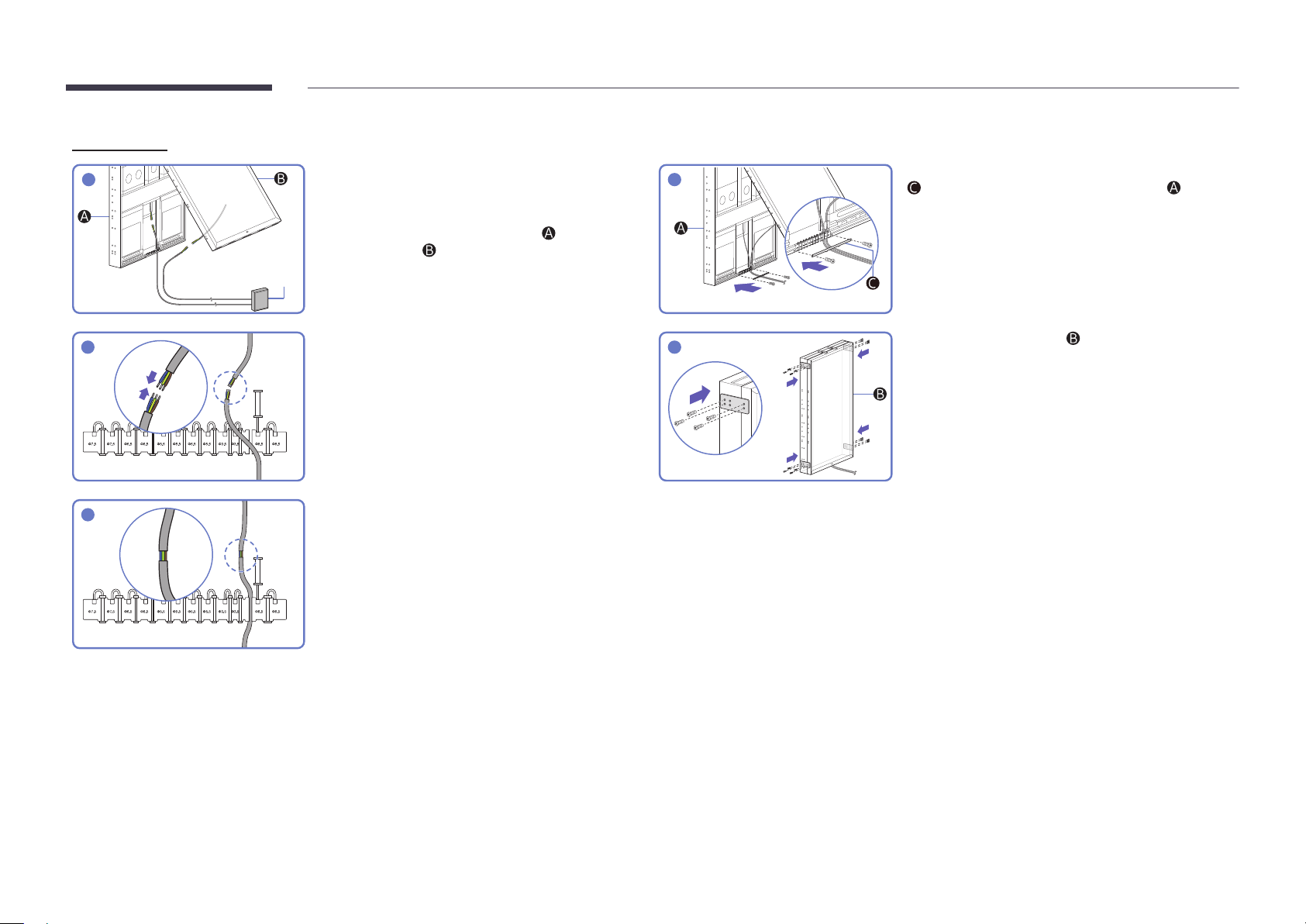

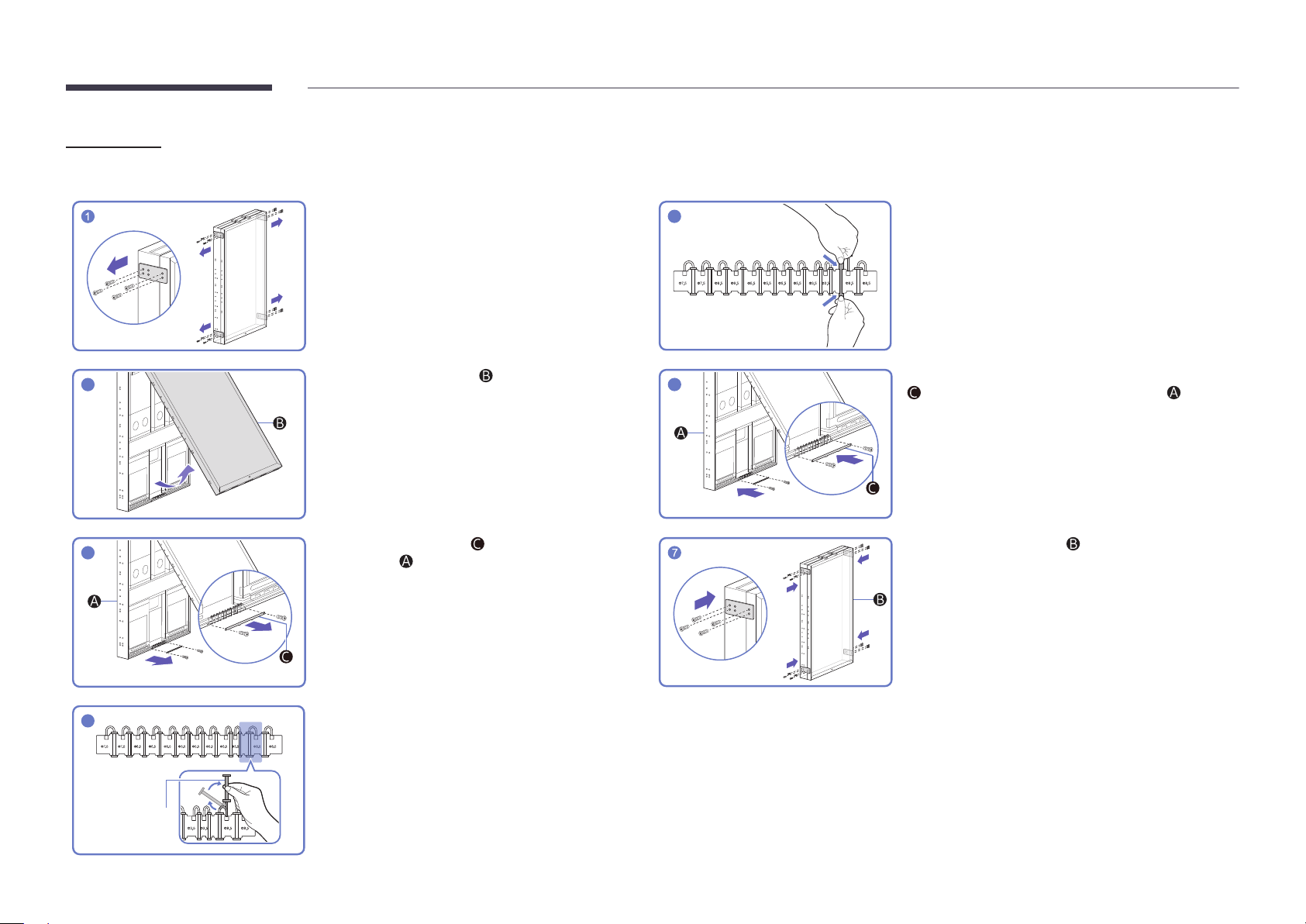

Remove screws from the brackets on both sides of the
product.
5
Insert the appropriate cable into the hole from which
the silicone bar was removed.
2
Open the auxiliary display ( ).
6
Once all cables are connected, place the cable staple
() back to the bottom of the main display ( ).
3
Remove the cable staple ( ) at the bottom of the
main display ( ).
Close the auxiliary display ( ) completely, then fasten
the brackets on both sides of the product.
4
Silicone bar
Remove the appropriate silicone bar for the thickness
of the cable to connect.

10
OH85N-DJ
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Remove screws from the brackets on both sides of the
product.
5
Insert the appropriate cable into the hole from which
the silicone bar was removed.
2
Open the auxiliary display ( ).
6
Once all cables are connected, place the bracket PCB
() back to the bottom of the main display ( ).
3
Remove the bracket PCB ( ) at the bottom of the
main display ( ).
Close the auxiliary display ( ) completely, then fasten
the brackets on both sides of the product.
4
Silicone bar
Remove the appropriate silicone bar for the thickness
of the cable to connect.

11

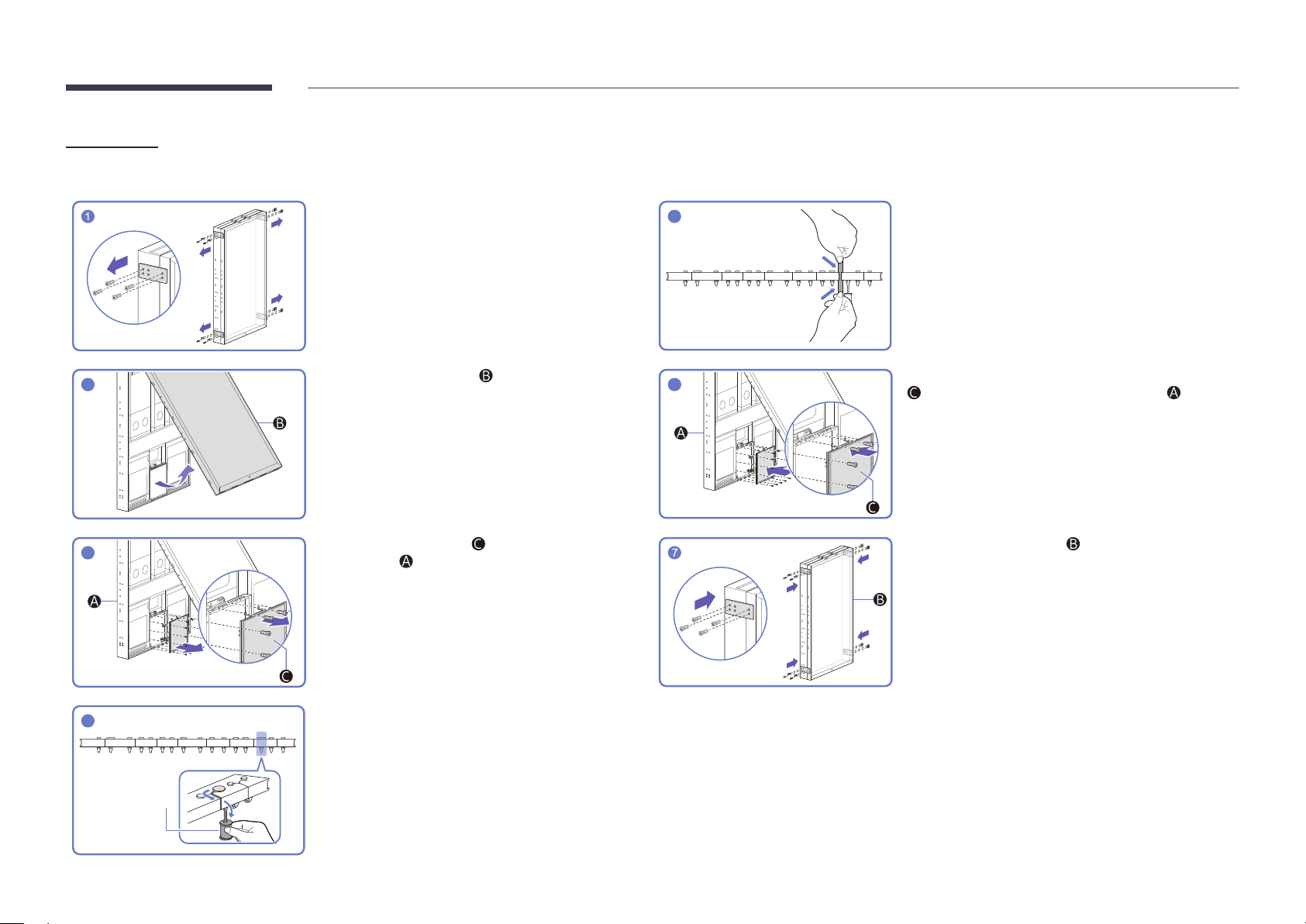

Power cable connection guide
"The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
OH85N
1
Distribution
switchboard
Make sure that you have a 8.5 mm diameter
waterproof power cable that can withstand 1800 W or
higher.
"The power cable must be connected to a 20 A or higher
amperage circuit.
3
Put the soldered (connected) part of the power cables
inside the product.
2
Connect the two power cables to each other. Solder
and insulate the connected part.
4
Close the rear cover and fasten the screws.

12
OH85N-DK
1
Distribution
switchboard
Make sure that you have a 8.5 mm diameter
waterproof power cable that can withstand 1800 W or
higher.
"The power cables from the main display ( ) and the
auxiliary display ( ) should be connected to 40 A (20 A x 2)
or higher amperage circuits.
4
Once all cables are connected, place the cable staple
() back to the bottom of the main display ( ).
2
Connect the two power cables to each other. Solder
and insulate the connected part.
5
Close the auxiliary display ( ) completely, then fasten
the brackets on both sides of the product.
3
Put the soldered (connected) part of the power cables
inside the product.

13
OH85N-DJ
1
Distribution
switchboard
Make sure that you have a 8.5 mm diameter
waterproof power cable that can withstand 1800 W or
higher.
"The power cables from the main display ( ) and the
auxiliary display ( ) should be connected to 40 A (20 A x 2)
or higher amperage circuits.
4
Once all cables are connected, place the bracket PCB
() back to the bottom of the main display ( ).
2
Connect the two power cables to each other. Solder
and insulate the connected part.
5
Close the auxiliary display ( ) completely, then fasten
the brackets on both sides of the product.
3
Put the soldered (connected) part of the power cables
inside the product.

14

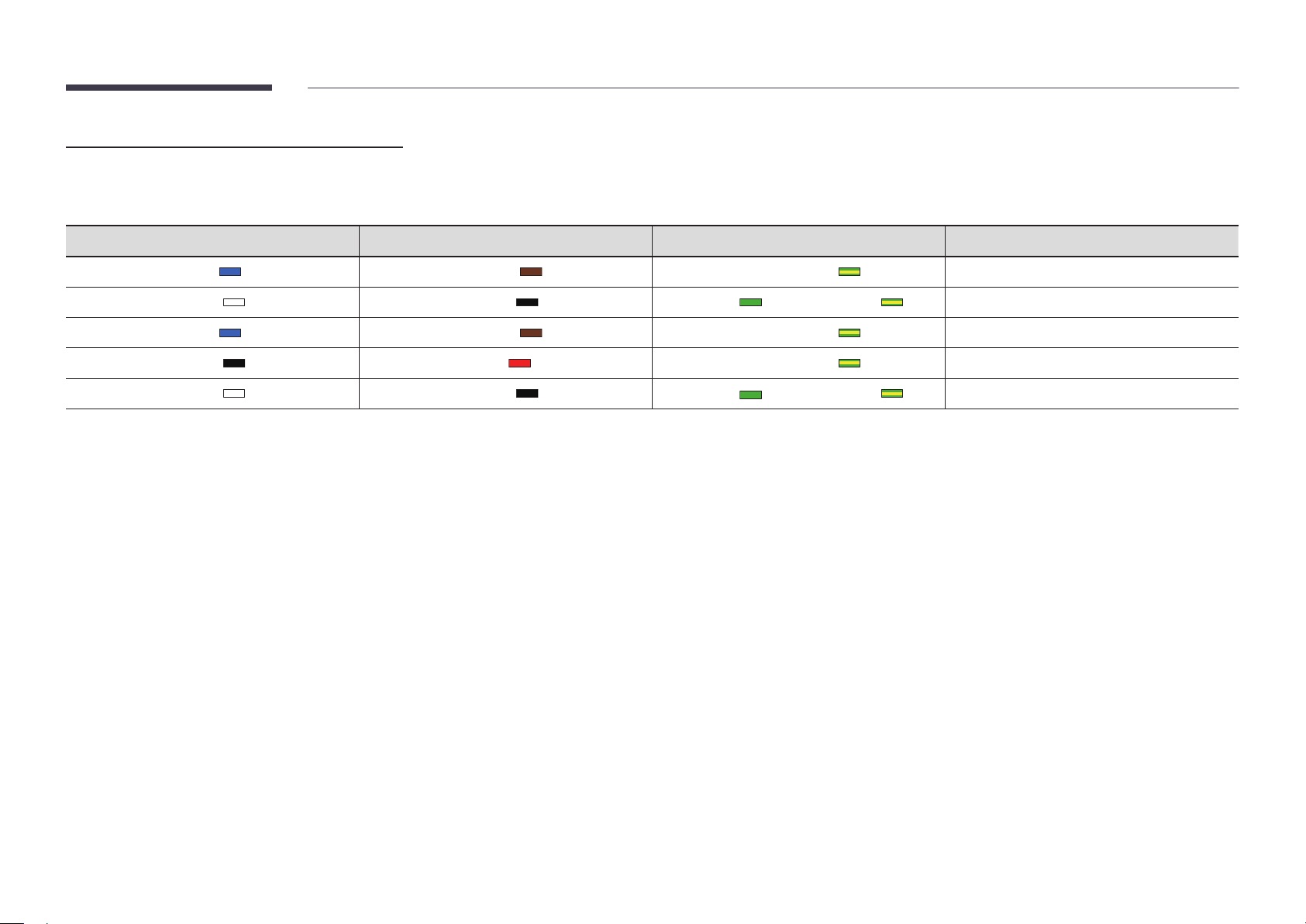

Different power cable colors by country
When connecting an external power cable, be sure to match the colors of its wires with those of the 3 wires inside the product’s power cable. The meaning (Neutral, Live or Ground) of each wire
color of the external power cable may differ depending on the country.
"Be sure to refer to the following table to correctly connect wires by the same meaning:
Neutral Live Ground Country
BLUE BROWN GREEN/YELLOW Others
WHITE BLACK GREEN or GREEN/YELLOW America
BLUE BROWN GREEN/YELLOW Europe
BLACK RED GREEN/YELLOW India
WHITE BLACK GREEN or GREEN/YELLOW Taiwan & Japan

15

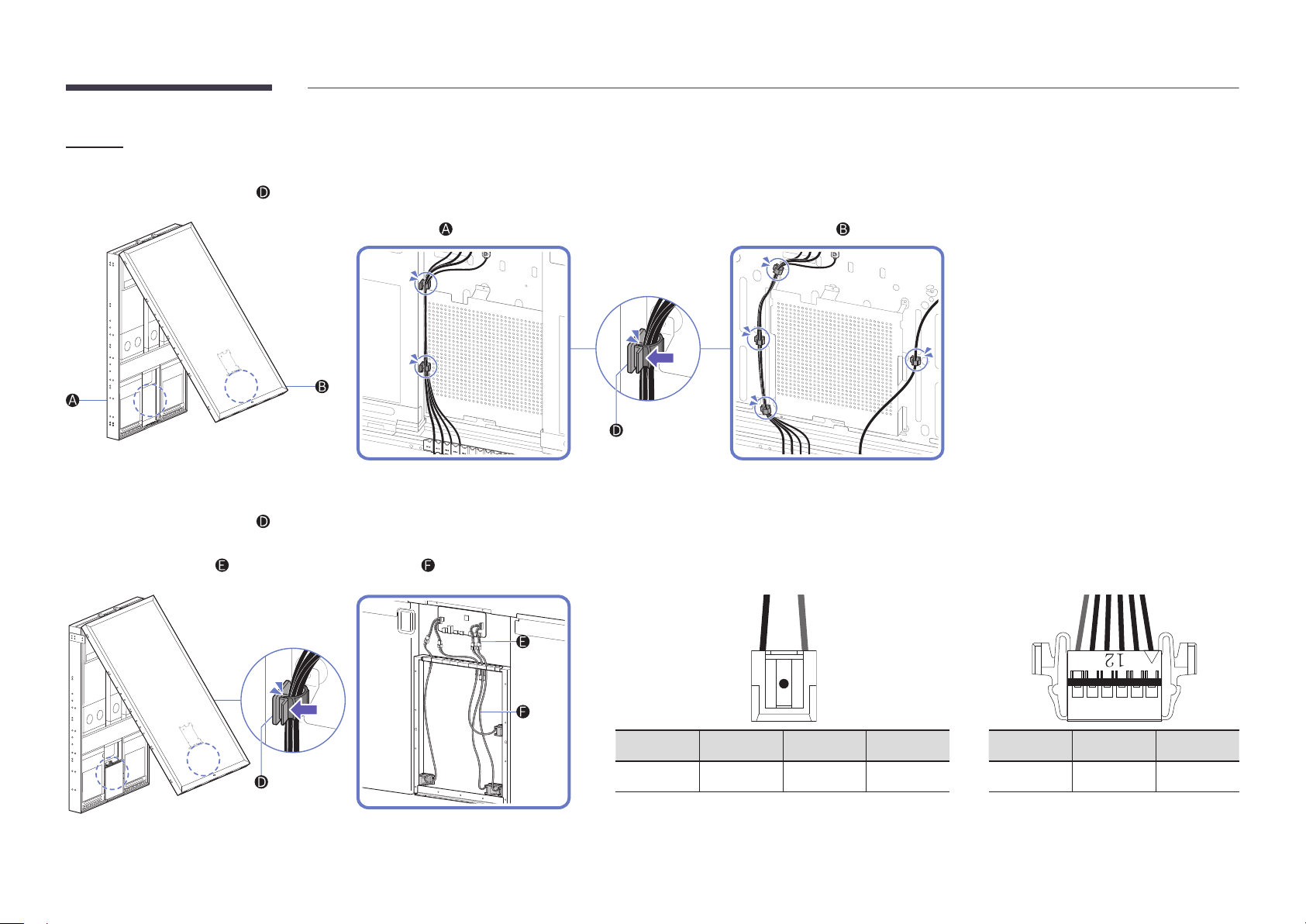

Wiring
"Supported model: OH85N-DK
• Use the enclosed clampers ( ) to securely organize cables as shown in the below images.
Main display ( ) Auxiliary display ( )
"Supported model: OH85N-DJ
• Use the enclosed clampers ( ) to securely organize cables as shown in the below images.
• Refer to the pin map to connect the AC power input and DC power output when using the products at inner space.
•Connect 4 Fan cable ( ) at main board extended cable ( ) in order to cool off heat when using the product at inner space.
13
Pin No. 1 2 3
Spec. LIVE - NEUTRAL
111
Pin No. 2~6 7~12
Spec. 24 V GND

16
Wall Mount Specications "Supported model: OH85N
"Install the wall mount on a solid wall that is perpendicular to the floor. If you install the product on a slanted
wall, it may fall and result in severe personal injury.
Before attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for
additional information.
"Do not use a wall mount that can tilt.
"Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.
"Do not keep the product turned on during the installation of the wall mount. It may result in personal injury due
to electric shock.
"Do not use the guide holes for wall mounting.
Unit: mm
A 1000
B 500
C1118.4
D 750
E92.5
F40.8
G94.8
BOLT SIZE M8
: Wall Mount Holes (8 Points)
: Guide Holes (4 Points) (Do not use the guide holes for wall mounting)

17
Specications
Model Name OH85N/ OH85N-DK / OH85N-DJ
Panel
Size
85 CLASS (84.5 inches / 214.7 cm)
Display area
1872 mm (H) x 1053 mm (V)
Power Supply
AC100-240V~ 50/60Hz
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Environmental
considerations
Operating
Temperature: -22 °F – 122 °F (-30 °C – 50 °C)
* Refer to Installation Guide for installation with an enclosure
exposed to direct sunlight.
Humidity: 10% – 80%, non-condensing
Storage
Temperature: -4 °F – 122 °F (-20 °C – 50 °C)
Humidity: 5% – 95%, non-condensing
* Applicable before the product package is unpacked.
"Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-
way data exchange between the monitor and PC system optimizes the monitor settings.
Monitor installation takes place automatically. However, you can customize the installation
settings if desired.
"Due to the nature of the manufacturing of this product, approximately1 pixel per
million (1ppm) may appear brighter or darker on the panel. This does not affect product
performance.
"For detailed device specifications, visit the Samsung Electronics website.
Chapter 02
General

18
Preset Timing Modes
"This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a
resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution
specified for your product.
Model Name OH85N/ OH85N-DK / OH85N-DJ
Synchronization
Horizontal Frequency
15 - 135 kHz (HDMI), 30 - 135 kHz (DP)
Vertical Frequency 24 - 75 Hz (HDMI), 30 - 75 Hz (DP)
Resolution
Optimum resolution
3840 x 2160 @ 60 Hz
Maximum resolution 3840 x 2160 @ 60 Hz
"Horizontal Frequency
The time required to scan a single
line from the left to the right side
of the screen is called a horizontal
cycle. The reciprocal number of a
horizontal cycle is called horizontal
frequency. Horizontal frequency is
measured in kHz.
"Vertical Frequency
The product displays a single image
multiple times per second (like a
uorescent light) to display what
the viewer sees. The rate of a single
image being displayed repeatedly per
second is called vertical frequency
or refresh rate. Vertical frequency is
measured in Hz.

19
The screen will automatically be adjusted if a signal that belongs to the following standard
signal modes is transmitted from your PC. If the signal transmitted from the PC does not belong
to the standard signal modes, the screen may be blank with the power indicator on. In such a
case, change the settings according to the following table by referring to the graphics card user
manual.
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1366 x 768 47.712 59.790 85.500 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
VESA, 2560 x 1440 88.787 59.951 241.500 +/-
CEA, 3840 x 2160
(HDMI) 135.000 60.000 148.500 +/+
VESA, 3840 x 2160
(DP) 133.313 59.997 533.250 +/-

20
Appendix
License
Chapter 03
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the
product menu. Open Source License Notice is written only English.
For information on the Open Source License Notice, contact the Samsung Customer center
or send email to [e-mail].
THIS PRODUCT IS SOLD WITH A LIMITED LICENCE AND IS AUTHORISED TO BE USED
ONLY IN CONNECTION WITH HEVC CONTENT THAT MEETS EACH OF THE THREE
FOLLOWING QUALIFICATIONS: (1) HEVC CONTENT ONLY FOR PERSONAL USE; (2) HEVC
CONTENT THAT IS NOT OFFERED FOR SALE; AND (3) HEVC CONTENT THAT IS CREATED
BY THE OWNER OF THE PRODUCT.
THIS PRODUCT MAY NOT BE USED IN CONNECTION WITH HEVC ENCODED CONTENT
CREATED BY A THIRD PARTY, WHICH THE USER HAS ORDERED OR PURCHASED FROM
A THIRD PARTY, UNLESS THE USER IS SEPARATELY GRANTED RIGHTS TO USE THE
PRODUCT WITH SUCH CONTENT BY A LICENSED SELLER OF THE CONTENT.
YOUR USE OF THIS PRODUCT IN CONNECTION WITH HEVC ENCODED CONTENT IS
DEEMED ACCEPTANCE OF THE LIMITED AUTHORITY TO USE AS NOTED ABOVE.
