Samsung 100705 User manual

www.samsung.com/ca
Printed in China
Code No.: GH68-28534G
America B. 06/2010. Rev.1.1

English...................................................................................1
Français...............................................................................25

English
1
Getting started
Your headset overview ......................................................................... 3
Button functions.................................................................................... 4
Charging the headset ........................................................................... 5
Wearing the headset ............................................................................ 8
Using your headset
Turning the headset on or off.............................................................. 10
Pairing and connecting the headset ................................................... 10
Pairing via the Active pairing feature .................................................. 14
Using call functions............................................................................. 15
Appendix
Frequently asked questions................................................................ 19
Certication and Safety approvals ..................................................... 21
UL certied travel adapter .................................................................. 22
Warranty and parts replacement ........................................................ 23
Specications ..................................................................................... 24
Contents
English

2
Read this user manual before you start to use your new Bluetooth
headset.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc.
worldwide — Bluetooth QD ID: B016470
More information about Bluetooth is available at www.bluetooth.com.
Safety precautions
Never disassemble or modify your headset for any reason. Doing this may•
cause the headset to malfunction or become combustible. Bring the headset to
an authorized service center to repair it.
When using your headset while driving, follow local regulations in the region •
you are in.
Avoid storage at high temperatures (above 50 °C/122 °F), such as in a hot •
vehicle or in direct sunlight, as this can damage performance and reduce
battery life.
Do not expose the headset or any of its supplied parts to rain or other liquids.•
Excessive exposure to sound at high volumes can cause hearing damage. Always
turn the volume down before plugging the earphones into an audio source and use
only the minimum volume setting necessary to hear your conversation or music.

English
3
Getting started
This section explains what to remember for the proper use of your Bluetooth
headset.
Your headset overview
Make sure you have the following items with your headset: charging cradle, travel • adapter and user manual.
The items supplied with your headset may vary depending on your region and may•appear different from the illustrations in this manual.
Power button
Volume button
Talk button
Charging contacts
Microphone
Earpiece
Ear hook
Indicator light

4
Button functions
Button Function
Power Press and hold to turn the headset on or off.
Talk
Press and hold to enter Pairing mode.•
Press to make or answer a call.•
Press to end a call.•
Volume
Press to adjust the volume.•
Press and hold to turn the microphone on or off.•
In Pairing mode, press and hold the Volume up button •
to turn the Multi-point feature on.
In Pairing mode, press and hold the Volume down •
button to turn the Multi-point feature off.
You can hear a beep when the volume level of the headset reaches to the lowest
or highest level.

English
5
Charging the headset
This headset has a rechargeable internal battery which is non-removable. Ensure
that you fully charge the battery before using the headset for the rst time.
Plug the headset into the charging cradle.1

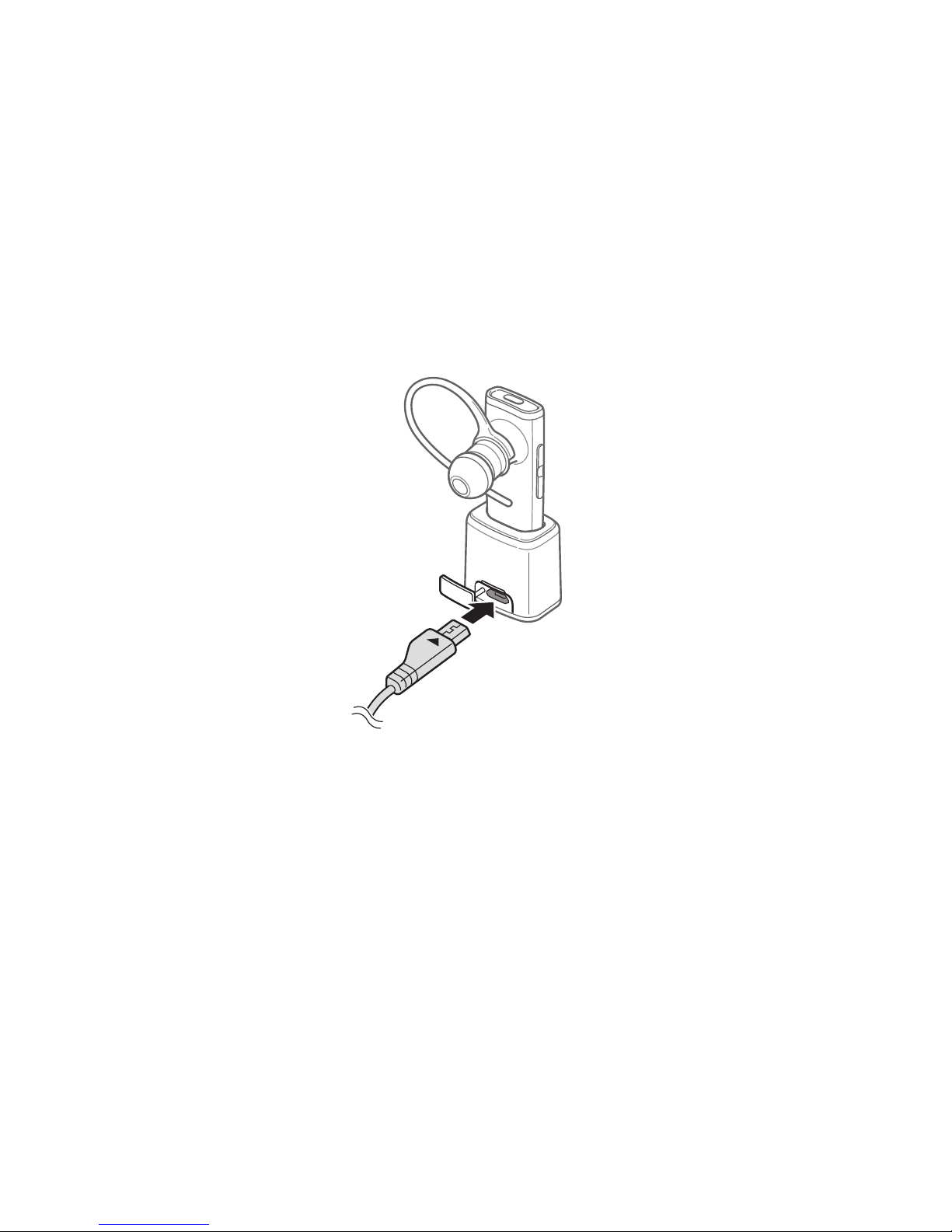

Open the cover to the charger jack on the back of the charging cradle.2

6
Plug the small end of the travel adapter into the charger jack.3
Plug the large end of the travel adapter into a power outlet.4
During charging, the indicator light will turn red. If charging does not begin,
unplug the travel adapter and plug it in again.

English
7
When the headset is fully charged, the indicator light changes to blue. Unplug 5
the travel adapter from the power outlet and unplug the headset from the
charging cradle.
Use only a Samsung-approved travel adapter. Unauthorized travel adapters may • cause an explosion or damage to the headset.
The battery will gradually wear out while charging or discharging because it is a•consumable part.
While charging, the headset goes into charging mode and deactivates other • functions.
When the battery charge gets low
The headset beeps and the indicator light ashes red. Recharge the battery. If the
headset powers off during a call, the call will be automatically transferred to the
phone.

8
Checking the battery level
At the same time, press and hold the Volume down and the Talk button. Depending
on the battery level, the indicator light ashes 5 times in one of the following colors:
Battery level Indicator light color
Above 80% Blue
80 ~20% Violet
Below 20% Red
Wearing the headset
Place the headset on your ear.

English
9
Depending on what ear you are going to wear the headset, simply remove and
replace the ear hook.
Right Left
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
Activated functions and features may differ depending on the phone type.•
Some devices, especially those that are not tested or approved by Bluetooth SIG, • may be incompatible with your headset.

10
Turning the headset on or off
To turn the headset on, press and hold the power button. The blue indicator light •
ashes 4 times.
To turn the headset off, press and hold the power button. The indicator light •
turns off after the blue indicator light changes to red.
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetooth
enabled devices, such as a Bluetooth phone and a Bluetooth headset.
To use the headset with other Bluetooth devices, the devices must be paired. When
trying to pair the two devices, keep the headset and the phone reasonably close
together. After pairing, you can connect the two devices.

English
11
Pairing and connecting the headset with a phone
Enter Pairing mode.1
Turn on your headset and press and hold the Talk button until the blue•
indicator light stays lit.
If you turn on the headset for the rst time, it proceeds into Pairing mode •
immediately.
Activate the Bluetooth feature on your phone and search for the headset (see2
your phone’s user manual).
Select the headset (HM3200) from the list of devices found by your phone.3
Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your 4
phone.
Your headset supports the Simple Pairing feature which allows the headset to be
paired with a phone without requesting a PIN. This feature is available for phones
that are compliant with Bluetooth version 2.1 or higher.
The headset also can be paired via the Active pairing feature, see page 14.

12
Connecting with two Bluetooth phones
With the Multi-point feature activated, your headset can be connected with two
Bluetooth phones at the same time.
After connecting with the rst Bluetooth phone, press and hold the Talk button 1
until the blue indicator light stays lit.
Press and hold the Volume up button to activate the Multi-point feature.2
Activate the Bluetooth feature on the second Bluetooth phone and search for3
the headset (see your phone’s user manual).
Select the headset (HM3200) from the list of devices found by the second 4
Bluetooth phone.
Enter the Bluetooth PIN (0000, 4 zeros) to connect the headset to the phone.5
Reconnect to the headset from the rst Bluetooth phone.6

English
13
You can set the headset automatically to reconnect to the recently connected•phones each time you turn it on.
To reconnect to the two most recently connected phones, activate the Multi-- point feature. Press and hold the Volume up button in Pairing mode until the
blue indicator light ashes twice.
To reconnect to only the most recently connected phone, deactivate the Multi-- point feature. Press and hold the Volume down button in Pairing mode until the
red indicator light ashes twice.
When the headset connects to two Bluetooth phones, some phones may not • connect to the headset as the second Bluetooth phone.
Disconnecting the headset
To disconnect the headset from your phone,
Turn off the headset.•
Use the Bluetooth menu on your phone.•

14
Reconnecting the headset
When the headset is paired with a phone, it will attempt to automatically reconnect
each time you turn it on.
If the headset does not automatically attempt to reconnect,
Press the Talk button.•
Use the Bluetooth menu on your phone.•
Pairing via the Active pairing feature
With the Active pairing feature, your headset can automatically search for a
Bluetooth phone and try to make a connection with it.
This feature is available for
mobile phones, but the phone’s Bluetooth visibility option must be set to on.
Turn on the headset.1
Press and hold the Talk button to enter Pairing mode.2
Press and hold the Talk button until the violet indicator light turns on.3
The headset will switch to Active Pairing mode, search a Bluetooth phone
within range, and attempt to pair with it.

English
15
Ensure the phone you wish to connect to is within range of the headset. Place the•headset and phone close to each other to avoid pairing with other devices.
The headset will attempt Active pairing for up to 20 seconds.•
The Bluetooth phone you want to connect with must not be paired with other•devices. If the phone is already connected to another device, end the connection
and restart Active pairing feature.
This feature may be unavailable depending on the some PDAs.•
Using call functions
Making a call
Redialing the last number
Press and hold the Talk button to redial the last number of the most recently
connected phone.
Press the Talk button twice to redial the last number of the other phone, see page 12.

16
Dialing a number by voice
Press the Talk button to dial a number of the rst phone by voice, and say a name.
Available call functions may vary by the phone.
Answering a call
Press the Talk button to answer a call when you hear incoming call tones.
When two calls from the two connected phones come in, you can answer the call
of the rst phone.
Ending a call
Press the Talk button to end a call.
Rejecting a call
Press and hold the Talk button to reject a call when a call comes in.
When two calls from the two connected phones come in, you can reject the call of
the rst phone.

English
17
Using options during a call
You can use the following functions to control your call during a call.
Adjusting the volume
Press the Volume up or down button to adjust the volume.
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone is
turned off, the headset beeps at regular intervals. Press and hold the Volume up or
down button again to turn the microphone back on.
Transferring a call from the phone to the headset
Press the Talk button to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold the Talk button to place the current call on hold.
When the headset is connected with two phones, this function is not available.
