Samsung AE040JXEDEH User manual

ECO HEATING SYSTEM CONTENTS
ECO HEATING SYSTEM
OUTDOOR UNIT HYDRO UNIT
1. Precautions
2. Product Specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. PCB Diagram
6. Wiring Diagram
7. Reference Sheet
Model : AE040JXEDEH
AE060JXEDEH
AE090JXEDEH
AE120JXEDEH
AE140JXEDEH
AE160JXEDEH
AE090JXEDGH
AE120JXEDGH
AE140JXEDGH
AE160JXEDGH
AE090JNYDEH
AE090JNYDGH
AE160JNYDEH
AE160JNYDGH

Samsung Electronics 3
1. Precautions
1-1 Precautions for the Service
 Use the standard parts when replacing the electric parts.
– Confirm the model name, rated voltage, rated current of the electric parts.
 When repairing the equipment, connection of the harness parts must be firm and solid.
– A loose connection may cause noise or other malfunction.
 When assembling and disassembling the equipment while it is laid down, lay it on soft cloth.
– Otherwise it may scratch the back of the exterior of the product.
 Remove dust or dirt completely from the housing block, wiring block and service parts during repair.
– This helps prevent the danger of fire caused by tracking or short circuit.
 Fasten the valve caps of service valves and charging valves of outdoor unit as much as possible using adjustable wrenches.
 Check the status of the components’ assembly after repair service.
– The status must be the same as before the repair service.
1-2 Precautions related to static electricity and PL
The PCB power supply block is susceptible to static electricity. Therefore, care must be taken during repair or measuring
while the power is on.
– Wear insulation gloves for PCB repair or measuring.
Check whether the installation location is at least two meters away from other electronic products such as TV, video, or
audio.
– Otherwise, the video quality might be degraded or noise might be generated.
Do not let end users repair the products themselves.
– Unauthorized disassembly might cause electric shock or fire.

Precautions
4 Samsung Electronics
1-3 Precautions for the Safety
Do not pull any electric wires and do not touch an auxiliary power switch with a wet hand.
– There is a danger of electric shock or fire.
In case any wire or power plug has been damaged, replace it to eliminate any possible danger.
Do not bend the power cord by force and do not put any heavy object on the power cord.
– There is a danger of electric shock or fire.
Do not use multi socket.
– There is a danger of electric shock or fire.
Ground the product if necessary.
– Be sure to ground the product if there is any danger of electric leakage due to water or moisture.
Be sure to turn off the auxiliary power switch or pull out the power plug during replacement or repair of electric parts.
– There is a danger of electric shock.
 The installation must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.
– Installation by an unqualified person may cause a water leakage, electric shock or fire and so on.
 The electric work must be done by service agent or similarly qualified persons according to national wiring regulations and use
only rated cable.
– If the capacity of the power cable is insufficient or electric work is not properly completed, electric shock or fire may occur.
 Use only rated parts and tools.
– If you don't use the rated parts and tools, it can cause trouble with the air conditioner and bring about injury.
 If any gas or impurities except R410A refrigerant come into the refrigerant pipe, serious problem may occur and it may cause
injury.
 Leak test must be done using only Nitrogen(NO 2 )gas.
 R410A refrigerant is used for EHS.
– When using R410A, moisture or foreign substances may affect to the capacity and reliability of the product. Safety precautions
must be taken when installing the refrigerant pipe.
– The design pressure of the unit is 4.1MPa. Select appropriate material and thickness according to the regulations.
– R410A is a quasi-azeotrope of two refrigerants.
Make sure to charge liquid one when adding refrigerant.
If you charge gaseous refrigerant, it may affect the capacity and reliability of the product as a result of change formation of the
refrigerant.

Precautions
Samsung Electronics 5
1-4 Precautions for handling a system containing refrigerants
All system containing refrigerants shall be removed under regional regulations prior to the disposal to
prevent the potential health and environmental consequences.
Harmful for human body
– When emitted liquid refrigerant contacts human body, contacted area may get frostbite, blister or become numb.
If refrigerant leaks in airtight area, lack of oxygen may cause suffocation. When refrigerant is heated, it may generate harmful gas.
Precautions for handling container
– Do not apply shock or heat to the refrigerant container.
1-5 Precautions for the brazing
Clear any dangerous or inflammable materials in surrounding environment.
Make sure to empty the remaining refrigerant in the product or pipe before brazing.
– Brazing with the refrigerant still remaining in the product or pipe may cause poor result and generate harmful gas. Furthermore,
pressure of the refrigerant may increase and cause damage to the leaking part. This may lead harmful refrigerant and oil to spurt
out which can be dangerous for service personnel.
Use nitrogen gas to get rid of the oxide forming during brazing.
– Using other type of gas may cause damage to the product or the exterior.
1-6 Precautions for charging refrigerants
Add quantity of the refrigerant using a scale and perform a test operation with S-net.
– Product performance may decrease if you add excessive amount of refrigerant.
Do not charge refrigerants while heating the container up.
– The container may get damaged by the heat and result in explosions.
Do not operate the product without pressure switch(for product protection) and sensor.
– If there are any internal blockage, high refrigerant pressure increase may damage the product or exterior.

6 Samsung Electronics
2. General Overview
2-1 Features of the System
POWER SAVING
EHS(Eco Heating System) considers the trend in air conditioner use. It optimizes the
energy efficiency of loads ranging from partial to full. It achieves an excellent energy
effect for the users of the air conditioner.
Samsung patented compressor
Samsung has been researching and developing compressors since the 70's.
It has developed power saving compressors for more than thirty years.
The EHS(Eco Heating System) compressor adopts a double-rotor BLDC compressor with permanent magnets made by Samsung.
Electricity for the compressor rotor is obtained from a neodium-iron-boron permanent magnetic material (boron magnet can attract iron
material weighing 1000 times its own weight.) It strengthens the rotary moment of the compressor to maximize the entire efficiency of the
compressor.
BLDC electricity
Permanent magnet, strong magnetic rotor
Double rotor compression cylinder
Nd-Fe-B Neodium-Iron-Boron magnet
SAMSUNG's double-rotor compressor has the upper and lower rotors designed symmetrically.
The double rotor in symmetry can remove vibrations caused by the eccentric design of the cylinder.
2 rotors balancing the rotary moment
Centered symmetry
Upper rotor
Permanent magnet rotor
Lower cylinder
Upper cylinder
Lower rotor
High efficiency heat exchanger
EHS(Eco Heating System) uses new multiple-teeth screw pipes with a diameter of 8 mm to improve the heat exchangeability of the pipe by
30.8%.
The water-friendly aluminum foil in the heat exchanger uses the G-fin patent design to improve the efficiency of heat exchange by 13%.
DC fan electricity
The EHS(Eco Heating System) outdoor machine uses DC fan electricity. The rotational speed of electricity is 100 RPM to 1050 RPM with
step-free control. The electrical efficiency is improved by about 33% compared to AC electricity.
Efficiency
Multiple-teeth screw pipes General screw pipes

General Overview
Samsung Electronics 7
2-1-1 Key features of the EHS(SPLIT)
 Integrated Heating & Cooling system
Plate Heat exchanger is a integral part in heating & cooling system. For user’s convenience, PHE is integrated into the system.
This concept will help space saving and lower costs for pipe line reduction.
 Running Costs-Reduction of Up to 33.5%
Samsung EHS, known for its world class efficiency (12kW floor heating system with 4.63), can reduce 33.5% of your running
costs as compared to a gas boiler.
 High Performance at Low Temperature
Samsung EHS is made up of an inverter compressor optimally operated according to the outdoor temperature, offering heating
performance of 90% at -10°C and reliable frost protection at -25°C.
 Heat pump operating range of DHW : -25 ~ 35 °C
At the temperature below -25 °C, operation is available but correct performance cannot be guaranteed.

8 Samsung Electronics
General Overview
Samsung Electronics 9

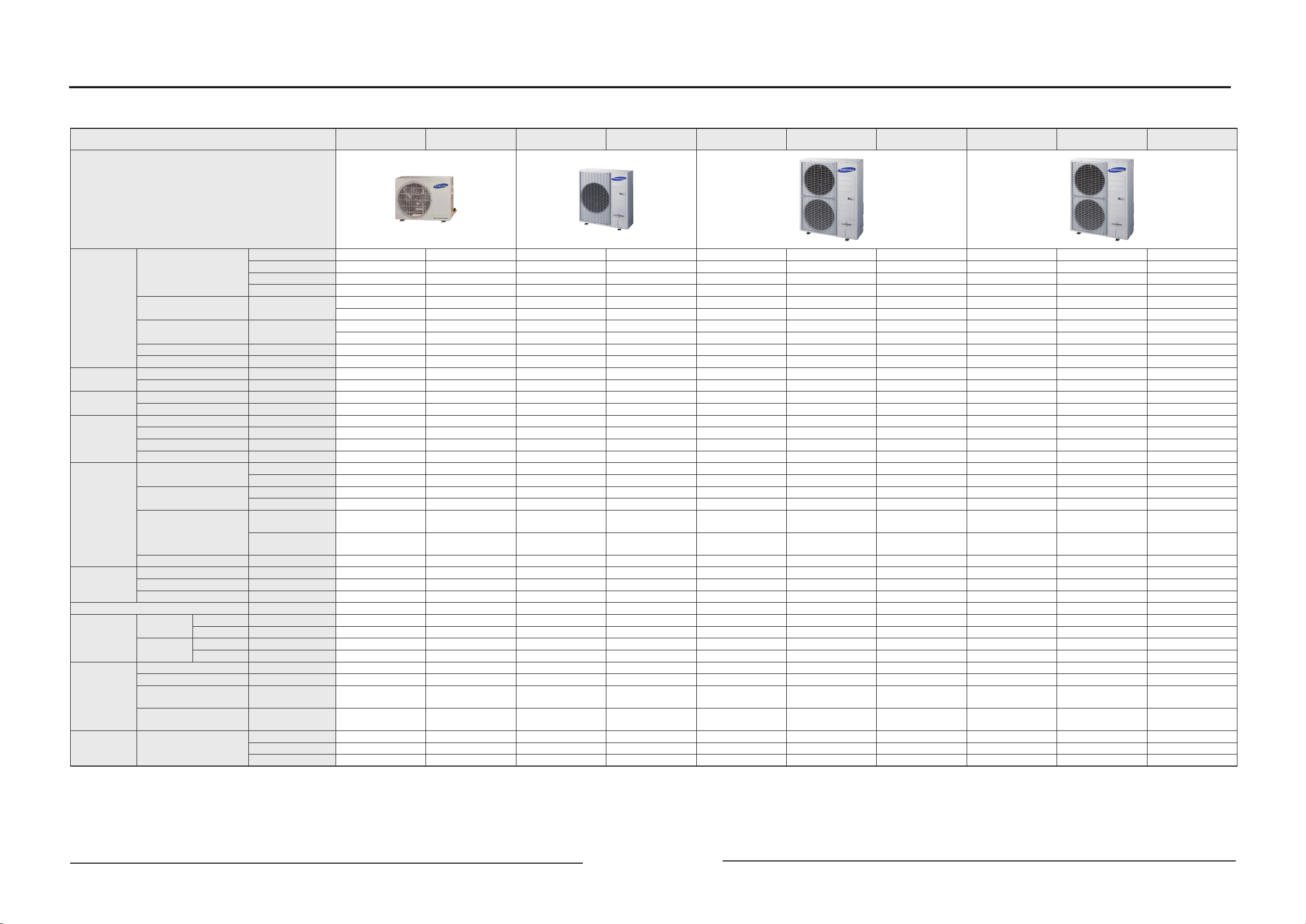

2-2 Product Specifications
2-2-1 Outdoor Unit
Model Code AE040JXEDEH/EU AE060JXEDEH/EU AE090JXEDEH/EU AE090JXEDGH/EU AE120JXEDEH/EU AE140JXEDEH/EU AE160JXEDEH/EU AE120JXEDGH/EU AE140JXEDGH/EU AE160JXEDGH/EU
Outdoor Unit
A2W
Condition #1.
(A7/W35) *1
Nominal Capacity
W 4,400 6,000 9,000 9,000 12,000 14,000 16,000 12,000 14,000 16,000
Btu/h 15,000 20,500 30,700 30,700 40,900 47,800 54,600 40,900 47,800 54,600
W 5,000 6,500 8,000 7,500 12,000 14,000 15,000 12,000 14,000 15,000
Btu/h 17,100 22,200 27,300 25,600 40,900 47,800 51,200 40,900 47,800 51,200
Power Input
(Nominal) W860 1,250 2,010 2,010 2,590 3,150 3,760 2,590 3,150 3,760
1260 1750 2200 2060 3100 3800 4140 3100 3800 4140
Current Input
(Nominal) A4.1 5.7 9.2 3.3 11.7 14.3 16.9 4.1 4.7 5.7
5.7 8.0 10.1 3.4 14.0 17.0 18.6 4.7 5.7 6.2
COP (Nominal Heating) W/W 5.10 4.80 4.48 4.48 4.63 4.44 4.26 4.63 4.44 4.26
EER (Nominal Cooling) W/W 3.97 3.71 3.64 3.64 3.87 3.68 3.62 3.87 3.68 3.62
A2/W35 Capacity W 3400 4600 7700 7700 9800 11200 12500 9800 11200 12500
COP W/W 3.52 3.31 3.38 3.38 3.28 3.25 3.14 3.28 3.25 3.14
A-7/W35 Capacity W 3750 5100 7600 7600 10,300 11,800 13,400 10,300 11,800 13,400
COP W/W 2.62 2.49 2.45 2.45 2.57 2.55 2.50 2.57 2.55 2.50
Field
Wiring
MCA A 20 20 22 10 28 30 32 10 11 12
MFA A 25 25 27.5 12.5 35 37.5 40 12.5 13.8 15
Power Source Wire ㎡ ←←←←←←←←←
Transmission Cable ㎡ ←←←←←←←←←
Refrigerant
Connections
Liquid Pipe Φ, mm 6.35 6.35 6.35 6.35 9.52 9.52 9.52 9.52 9.52 9.52
Φ, inch 1/4 1/4 1/4 1/4 3/8 3/8 3/8 3/8 3/8 3/8
Gas Pipe Φ, mm 15.88 15.88 15.88 15.88 15.88 15.88 15.88 15.88 15.88 15.88
Φ, inch 5/8 5/8 5/8 5/8 5/8 5/8 5/8 5/8 5/8 5/8
Installation
Limitation
Max. Length
(Outdoor to, m) 30 30 50 50 50 50 50 50 50 50
Max Height
(Between ID/OD, m) 20 20 30 30 30 30 30 30 30 30
Chargeless Length m 15 15 15 15 15 15 15 15 15 15
Refrigerant
Type - R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Control Method - EEV EEV EEV EEV EEV EEV EEV EEV EEV EEV
Factory Charging g 1,400 1,400 1,700 1,900 2,980 2,980 2,980 2,980 2,980 2,980
Power Supply Φ, #, V, Hz E(220~240V, 50Hz, 1Ф) E(220~240V, 50Hz, 1Ф) E(220~240V, 50Hz, 1Ф) G(380~4150V, 50Hz, 3Ф) E(220~240V, 50Hz, 1Ф) E(220~240V, 50Hz, 1Ф) E(220~240V, 50Hz, 1Ф) G(380~4150V, 50Hz, 3Ф) G(380~4150V, 50Hz, 3Ф) G(380~4150V, 50Hz, 3Ф)
Sound *3
Sound
Pressure
Heating Std dB(A) 46 47 49 49 50 50 52 50 50 52
Cooling Std dB(A) 46 47 50 50 50 52 54 50 52 54
Sound
Power
Heating Std dB(A) 61 61 64 64 64 64 66 64 64 66
Cooling Std dB(A) 63 63 63 63 64 66 69 64 66 69
External
Dimension
Net Weight kg 48.5 48.5 68.0 76.0 100.0 100.0 100.0 101.5 101.5 101.5
Shipping Weight kg 51.5 51.5 78.0 84.5 109.5 109.5 109.5 111.0 111.0 111.0
Net Dimensions
(WxHxD) mm 880 x 638 x 310 880 x 638 x 310 940 x 998 x 330 940 x 998 x 330 940 x 1,420 x 330 940 x 1,420 x 330 940 x 1,420 x 330 940 x 1,420 x 330 940 x 1,420 x 330 940 x 1,420 x 330
Shipping Dimensions
(WxHxD) mm 1,023 x 725 x 413 1,023 x 725 x 413 995 x 1,178 x 426 995 x 1,178 x 426 995 x 1,598 x 426 995 x 1,598 x 426 995 x 1,598 x 426 995 x 1,598 x 426 995 x 1,598 x 426 995 x 1,598 x 426
Operating
Temp. Range A2W
℃-25~35 -25~35 -25~35 -25~35 -25~35 -25~35 -25~35 -25~35 -25~35 -25~35
℃10~46 10~46 10~46 10~46 10~46 10~46 10~46 10~46 10~46 10~46
℃-25~43 -25~43 -25~43 -25~43 -25~43 -25~43 -25~43 -25~43 -25~43 -25~43
*1) A2W Condition #1 : (Heating) Water In/Out 30 ℃ /35℃, Outdoor Air 7℃DB/6℃WB; (Cooling) Water In/Out 23 ℃ /18℃, Outdoor Air 35℃DB.
*2) A2W Condition for ESEER(Cooling) at Water Out 18℃.
*3) Sound pressure was acquired in an anechoic room. Thus actual noise level may be different depending on the installation conditions.

General Overview
10 Samsung Electronics
Product Specifications (cont.)
Model Code AE090JNYDEH/EU AE160JNYDEH/EU AE090JNYDGH/EU AE160JNYDGH/EU
Hydro Unit
Water
Connections
Water Flow Rate (Std)[H/C] LPM 13/15 35/35 26/22 46/44
Water Pressure (Max) bar 3 3 3 3
Water Pipe Inlet Φ, inch BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4
Outlet Φ, inch BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4
Leaving Water
Temperature
Heating °C 25~55 25~55 25~55 25~55
Cooling °C 5~25 5~25 5~25 5~25
Refrigerant
Connections
Liquid Pipe Φ, mm 6.35 9.52 6.35 9.52
Φ, inch 1/4 3/8 1/4 3/8
Gas Pipe Φ, mm 15.88 15.88 15.88 15.88
Φ, inch 5/8 5/8 5/8 5/8
Installation
Limitation
Max. Length
(Outdoor to
indoor)
m 30 50 50 50
Max. Height
(Between ID/OD) m 20 30 30 30
Chargeless Length m 15 15 15 15
Power Supply Φ, #, V, Hz E(220~240V,
50Hz, 1Ф)
E(220~240V, 5
0Hz, 1Ф)
G(380~4150V,
50Hz, 3Ф)
G(380~4150V,
50Hz, 3Ф)
Water
Pump
Type - Centrifurugal
(UPM3 25-7.5)
Centrifurugal
(Stratos 25 1-9)
Centrifurugal
(UPM3 25-7.5)
Centrifurugal
(Stratos 25 1-9)
Motor Input W 60 90 60 90
Number of Unit EA 1 1 1 1
Flow Switch Type - Magnetic,
Decreasing
Magnetic,
Decreasing
Magnetic,
Decreasing
Magnetic,
Decreasing
Min. flow rates LPM 7 ± 1.5 12 ± 1.5 7 ± 1.5 12 ± 1.5
Electric Heater W 4,000 6,000 6,000 6,000
Expansion Vessel Liter 8 8 8 8
Pressure Relief Valve bar 2.9 2.9 2.9 2.9
Air Purge Valve Ф, inch BSPP male 3/8 BSPP male 3/8 BSPP male 3/8 BSPP male 3/8
Service Valve Ф, inch BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4 BSPP male 1 1/4
Sound *3 Sound Pressure Heating Std dB(A) 26 33 26 33 Cooling Std dB(A) 26 33 26 33
Sound Power Heating Std dB(A) 40 47 40 47
External
Dimension
Net Weight kg 45.0 45.0 46.5 46.5
Shipping Weight kg 55.0 55.0 56.0 56.0
Net Dimensions (WxHxD) mm 510 x 850 x 315 510 x 850 x 315 510 x 850 x 315 510 x 850 x 315
Shipping Dimensions (WxHxD) mm 564 x 1,024 x 412 564 x 1,024 x 412 564 x 1,024 x 412 564 x 1,024 x 412

Samsung Electronics 11
Item Description Code No. Q’ty Remark
Cap Drain DB63-10355C 5 Essential Offer
(Outdoor Unit)
Drain Plug DB67-00806A 2 Provided for AE090/120/140/160 Models
Drain Plug DB67-00477A 1 Provided for AE040/060 Models
Rubber Leg DB73-20134A 4 Essential Offer
(Outdoor Unit)
ASSY-INSTALLATION
MANUAL (Outdoor Unit) DB68-05328A 1 Provided for AE090/120/140/160 Models
ASSY-INSTALLATION
MANUAL (Outdoor Unit) DB68-05132A 1 Provided for AE040/060 Models
ASSY-USER
MANUAL DB68-05130A 1
Essential Offer
(Hydro unit)
ASSY-INSTALLATION
MANUAL DB68-05131A 1
Pattern sheet DB98-32365A 1
service valve DB96-13833A/B 1
wall mounting bracket DB61-04402A 1
ASSY THERMISTOR-WATER TANK DB95-05023A 1
SENSOR TEMP-MIXING VALVE DB32-00213A 1
Ring band DB81-01572B 1
Sensor holder DB61-40055A 1
Sensor clip DB81-00635A 1
Cable-tie DB65-10088C 4
Aluminum Tape DB72-30040A 1
Rubber Tape DB62-11304A 1
Insulatior DB62-04785A 1
Assy Connector Wire DB93-13255A 1
2-3 Specifications of optional items
2-3-1 Accessories

12 Samsung Electronics
Hand Tool sets
3. Disassembly and Reassembly
Item Remark
+Screw Driver
Adjustable wrench
–Screw Driver
Nipper
Electric Motion Driver
L-Wrench
Torque Lench
Latchet Lench

Samsung Electronics 13
No Parts Procedure Remark
1 Panel 1) Remove 4 cover screws from the Hydro Unit.
(Use + Screw Driver)
2 Controller
&
Manometer
1) Remove 3 screws from it.
(Use + Screw Driver)
2) Remove pressure sensor by adjustable wrench.
(Use adjustable wrench-230kgf·cm)
3) Pull the manometer out.
4) Push the 2 hooks of cover.
5) Pull the bottom of remocon body up.
3-1 Hydro Unit
AEN160YD∗/AEN080YD∗
Be sure that the power switch is in the OFF and the power source cord shall be unplugged prior to disassembly and reassembly works.

Disassembly and Reassembly
14 Samsung Electronics
No Parts Procedure Remark
5) Remove the connector from the PCB board.
6) Remove the upper case of the controller.
7) Remove 5 screws. Set a side the drain pan
and hydro unit.

Disassembly and Reassembly
Samsung Electronics 15
No Parts Procedure Remark
3 Water Pump 1) Remove 4 screws. (Use + Screw Driver)
2) Remove the cabi-control top.
3) Remove the flow switch and connector.
4) Remove a pipe from the backup Heater.
(Use adjustable wrench-380kgf·cm)
Use the Torque Wrench when you
assemble it.

Disassembly and Reassembly
16 Samsung Electronics
No Parts Procedure Remark
5) After removing insulation material, remove
the Thermostat.
6) Remove 2 screws. (Use + Screw Driver)
7) Remove 2 screws. (Use + Screw Driver)
8) Pull the water pump & pipes up, out.
AE090JNYSSS
AE160JNYSSS

Disassembly and Reassembly
Samsung Electronics 17
No Parts Procedure Remark
4 Expansion Vessle 1) Remove the tube of the expansion vessel
and the backup heater by adjustable wrench.
(Use adjustable wrench-150kgf·cm)
Use the Torque Wrench when you
assemble it.
2) Remove 2 screws. (Use + Screw Driver)
3) After removing the nut. Pull the bracket out.
4) Pull the expansion vessel up, out.
5 Plate Heat
Exchanger
1) Remove 4 insulations.

Disassembly and Reassembly
18 Samsung Electronics
No Parts Procedure Remark
2) Remove 4 Thermostats.
3) Remove the Thermostat connector on the
PCB of the Control box.
4) Remove the pipe from the Backup Heater.
(Use adjustable wrench-380kgf·cm)
Use the Torque Wrench when you
assemble it.
5) Remove 6 screws. (Use + Screw Driver)
6) Pull the PHE out of the unit.

Disassembly and Reassembly
Samsung Electronics 19
No Parts Procedure Remark
6 Control Box 1) Remoce Thermostats and connectors
2) Remove 3 screws. (Use + Screw Driver)
3) Pull the cabi-control bottom out by pushing
as indicated diretion.
1 Phase (AESSSJNYDEH)
3 Phase (AESSSJNYDGH)

Disassembly and Reassembly
20 Samsung Electronics
No Parts Procedure Remark
7 Backup Heater 1) Remove the Drain Hose.
2) After removing 4 screws, set a side the
backup heater and the unit.
(Use + Screw Driver)

Samsung Electronics 21
No Parts Procedure Remark
1 CABI FRONT RH
You must turn off the power before
disassembling.
1) Unscrew and remove the three screws on the
CABI FRONT RH.
(Use '+' type screw driver)
2 CABI TOP 1) Unscrew and remove the nine screws
on each side of the CABI TOP.
(Use '+' type screw driver)
3 CABI INSTALL
FRONT
1) Unscrew and remove the screw
on the CABI INSTALL FRONT.
(Use '+' type screw driver)
AEX100EDS/AEX125EDS/AEX140EDS/AEX160EDS
3-2 Outdoor Unit

Disassembly and Reassembly
22 Samsung Electronics
No Parts Procedure Remark
4 GUARD COND 1) Pull the sensor from Guard Cond.
2) Unscrew and remove the four screws
on the GUARD COND.
(Use '+' type screw driver)
