Samsung Samsung 18-55mm User manual

ENG / FRE / GER / SPA / ITA / POR /
RUS / S.CHI / T.CHI / TUR / KOR
This User Manual has been specially
designed to guide you through the
basic functions and features of your
device. Please read the User Manual
carefully to ensure safe and correct use.
User Manual
18-55mm, 50-200mm, 30mm
Front cover_NX11_Lens.indd 2 2011-06-23 오후 4:05:09

2
Before using this product
Thank you for purchasing the Samsung Lens.
This product is specifically designed for the SAMSUNG NX-series digital camera only.
The SAMSUNG GX-series digital cameras and other types of camera that use
35 mm film are not compatible with this product.
Before using the product, please read this user's manual carefully for proper use.
To use the camera, please refer to the user's manual of camera.
To use this device with NX5 or NX10 cameras, you must update the camera
firmware. Please visit www.samsung.com to download the new firmware.
The illustrations used in this user's manual may differ from your actual items.
NX11_18-55 Lens.indb 2 2011-01-21 오후 6:35:19

3
English
Notices in Using the Lens
Please read the following safety tips carefully before using this lens.
Warning
This warning sign warns about the risk of problem and damage.
When handling the product improperly by ignoring this warning, it may cause
bodily injury. Therefore, please read the manual in order to fully understand
the use of this product.
Caution
This sign represents information about the operation in order to use this
product properly. Please thoroughly read this manual for convenient and
proper use of the product.
Warning
Do not stare at the sun through the lens or camera.
This may cause fatal damage to your eyes.
Caution
Do not store the lens in direct sunlight without the lens cap.
Direct sun light that passes through the lens may combust if it contacts
with flammable materials.
NX11_18-55 Lens.indb 3 2011-01-21 오후 6:35:20

4
Lens Storage and Maintenance
1. Storage and Bacteria Prevention
Store the lens in a dry and well ventilated area.
Do not store the lens in a closet, car, or confined area with chemicals.
Do not store the lens in high temperature or humidity.
2. This lens is not water-proof. Be careful not to allow it to get wet when using it near water.
3. Do not use chemicals such as thinner, alcohol, or benzene to remove dust.
4. The lens is a precise optical product. Do not drop the lens or apply excessive shock to it.
5. Avoid using the lens anywhere there is a sudden temperature change as condensation may form on
the inside or outside of the lens.
Keep the lens in a plastic bag or camera case and use it in normal temperature.
6. When not mounting the lens onto the camera, place the lens cap and lens mount cover on the lens to
prevent foreign particles from entering the lens.
7. Do not keep the camera mounted on a tripod without the lens cap.
The inside of the camera can be damaged by a direct ray of light.
8. Check the lens once in every year or two for best performance.
NX11_18-55 Lens.indb 4 2011-01-21 오후 6:35:20

5
English
Table of Contents
Before using this product.........................................................................................................2
Notices in Using the Lens ........................................................................................................3
Lens Storage and Maintenance...............................................................................................4
Table of Contents .....................................................................................................................5
Unpacking.................................................................................................................................6
Layout .......................................................................................................................................7
Description of each part of the zoom lens.................................................................................7
Description of each part of the single focus lens .......................................................................8
Using the Lens..........................................................................................................................9
Mounting/Dismounting the lens................................................................................................9
Using the Lens Hood ............................................................................................................11
Setting the Auto/Manual Focus..............................................................................................12
Using the i-Scene mode........................................................................................................13
Using the i-Function in PASM modes..................................................................................14
Using the Zoom Ring.............................................................................................................16
Using a Filter...........................................................................................................................17
Cautions when using a flash with the lens............................................................................19
Built-in flash ..........................................................................................................................19
Product Specifications...........................................................................................................20
NX11_18-55 Lens.indb 5 2011-01-21 오후 6:35:20

6
Unpacking
Check your product box for the following items.
The actual lens may differ depending on the focal length of the lens.
Please check that the product is identical to the focal length of the purchased lens.
 The specifications of lens may differ depending on the model.
 Each component may differ depending on the model.
Unpacking
Lens Lens cap Lens mount cover Lens hood User manual leather case
SAMSUNG 50-200 mm F4-5.6 ED OIS II
Lens Lens cap Lens mount cover Lens hood Lens Lens cap Lens mount cover Lens hood
SAMSUNG 30 mm F2 SAMSUNG 18-55 mm F3.5-5.6 OIS II
Optional
Item
NX11_18-55 Lens.indb 6 2011-01-21 오후 6:35:21

7
English
Layout
This chapter provides a description of each component.
Description of each part of the zoom lens
In order to explain the basics of the zoom lens, this chapter uses the SAMSUNG 18-55 mm F3.5-5.6
OIS II lens as an example and may differ from the product purchased.
Lens hood
mount index
Lens
Focus ring
Zoom ring
AF/MF switch
i-Function button
Lens contacts
Lens mount index
NX11_18-55 Lens.indb 7 2011-01-21 오후 6:35:21

8
Layout

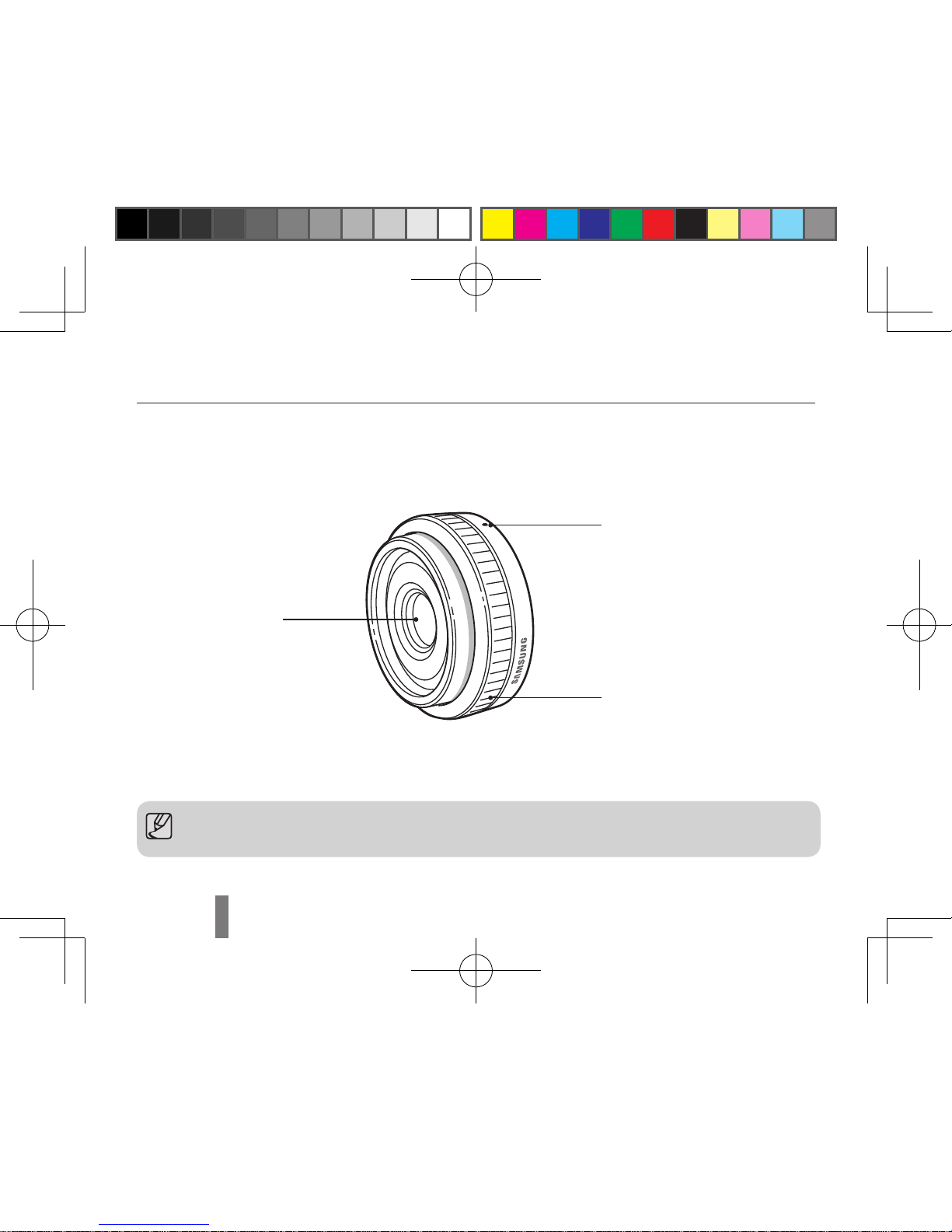

Description of each part of the single focus lens
In order to explain the basics of the single focus lens, this chapter uses SAMSUNG 30 mm F2
lens as an example and may differ from the product purchased.
Lens mount
Focus ring
Lens
NX11_18-55 Lens.indb 8 2011-01-21 오후 6:35:22

9
English
Using the Lens
Mounting/Dismounting the lens

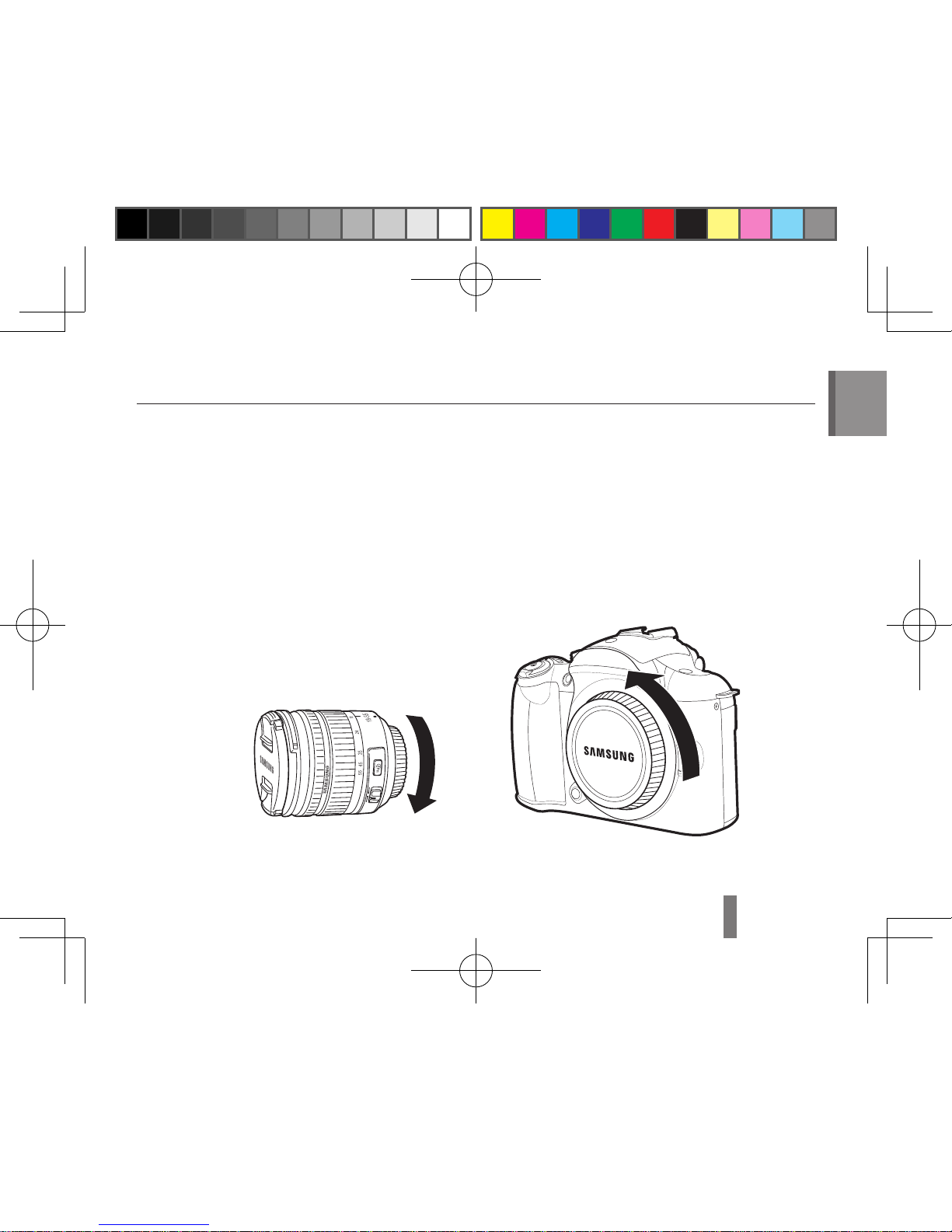

Remove the lens mount cover and body cap before mounting the lens.
Before mounting the lens
NX11_18-55 Lens.indb 9 2011-01-21 오후 6:35:22

10
Using the Lens
For safe use of the lens, mount or dismount the lens while the camera is turned off.
Samsung is not responsible for any damage incurred by using other manufacturers’ lenses.
The body cap protects the product from scratch or dust in transportation.

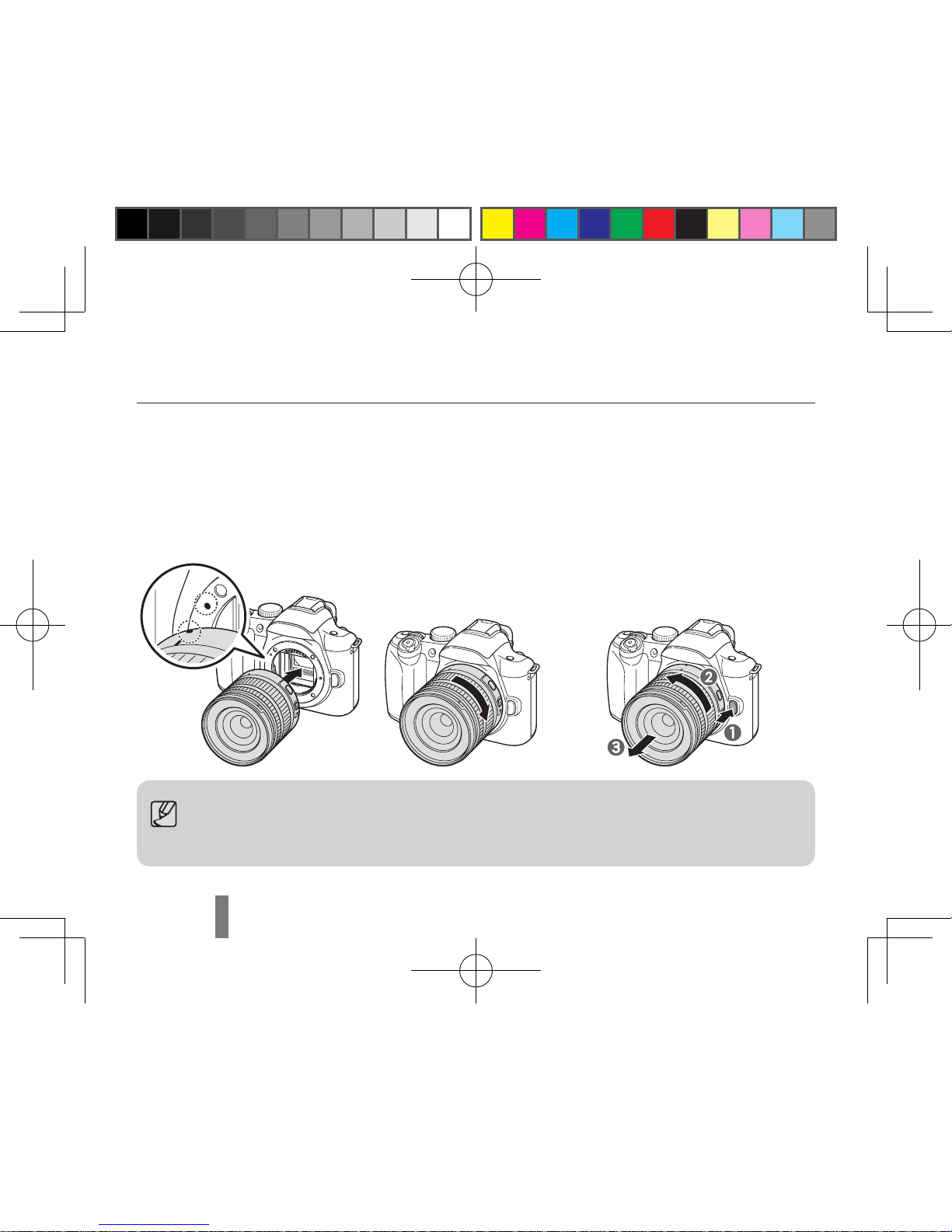

Mounting the lens Dismounting the lens
Align the red mark on the lens with the red mark on the camera body, and then rotate
the lens clockwise until it locks into space. To remove the lens, press and hold the lens
release button, and then rotate the lens counter-clockwise.
NX11_18-55 Lens.indb 10 2011-01-21 오후 6:35:23

11
English
Using the Lens
Using the Lens Hood
To prevent deterioration of image quality due to internal reflection of light, use a lens
hood.
Depending on the model of lens, hood installation may differ.
When installing the lens hood, be careful not to rotate the focus ring or zoom ring.
When not using the lens hood, you can attach the lens hood on the lens in the opposite direction.
A lens hood is not available for some lenses.
Align the mount index on the lens hood and the mount index on the lens.
Install the lens hood as shown in the picture.
Lens hood
mount index
When using the single focus lensWhen using the zoom lens
NX11_18-55 Lens.indb 11 2011-01-21 오후 6:35:23

12
Using the Lens

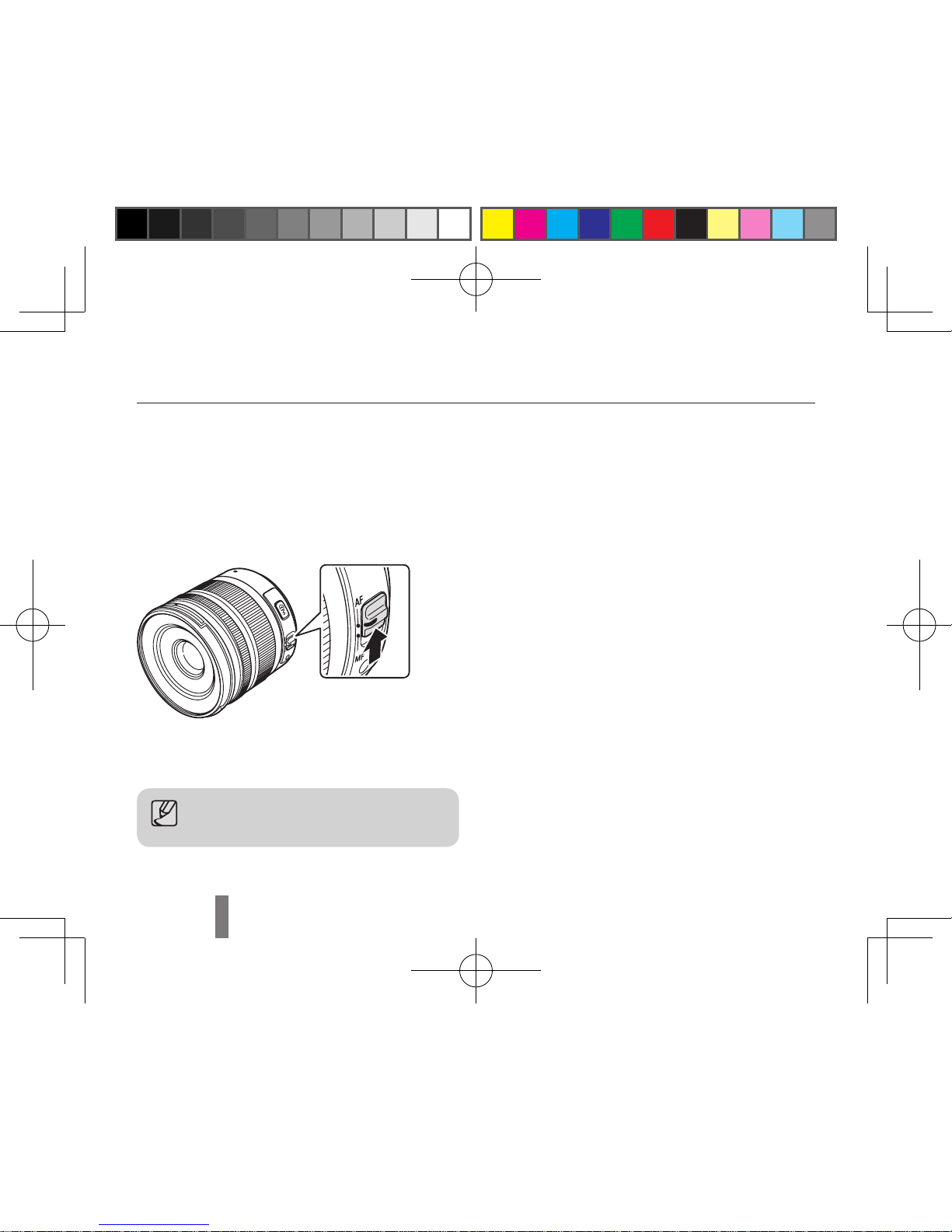

Setting the Auto/Manual Focus
The focus can be adjusted automatically or manually by using the AF/MF switch on a
lens.
1. Auto focus
Set the AF/MF switch on the lens to AF.
The focus is adjusted automatically when
you half-press [Shutter].
2. Manual focus
Set the AF/MF switch to MF. The focus
can be adjusted manually by turning the
focus ring.
Some lenses do not have an AF/MF switch.
Check that before you use the lens.
NX11_18-55 Lens.indb 12 2011-01-21 오후 6:35:24

13
English

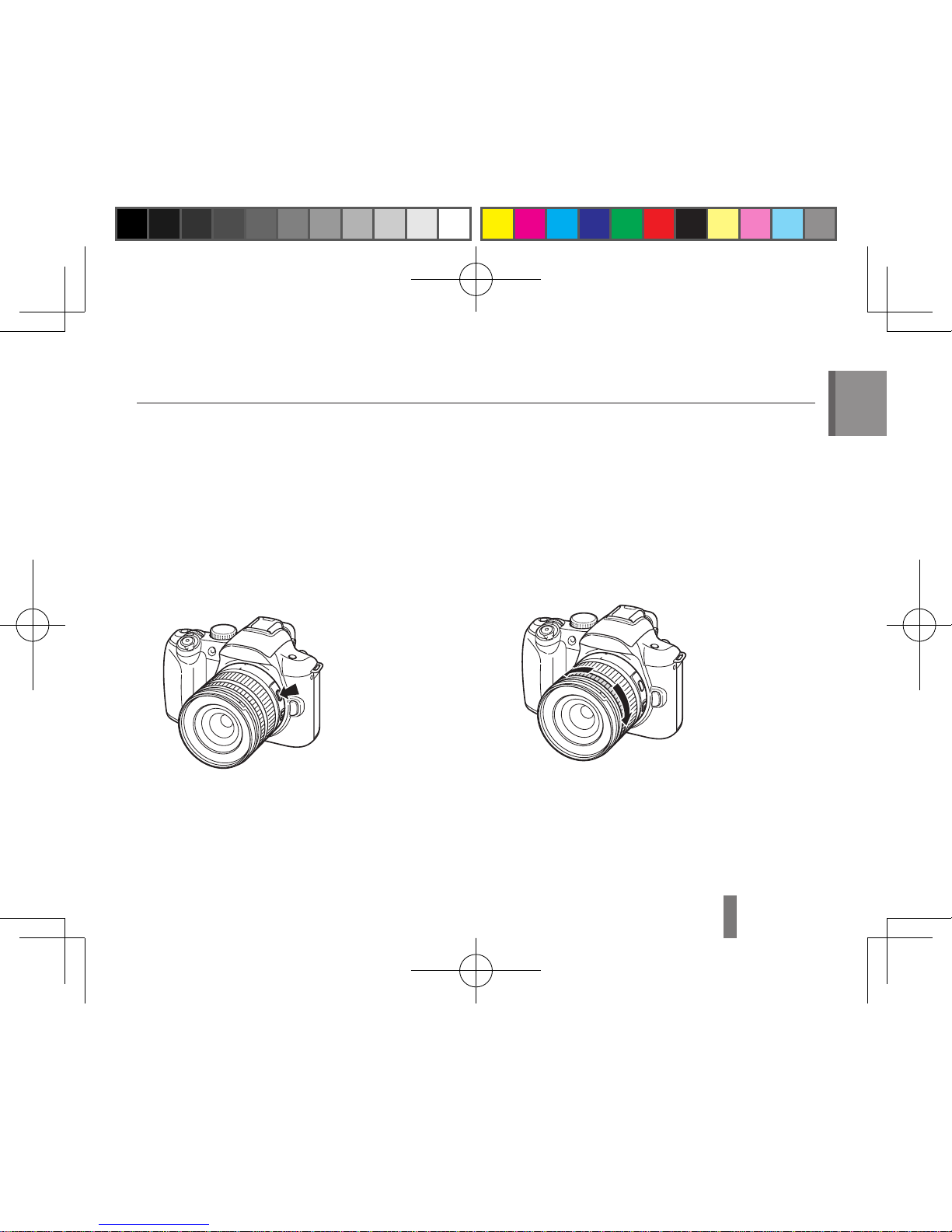

Using the i-Scene mode
You can choose a preset i-Scene optimized for the lens you use. This mode is available
only when your camera supports it. Available scenes may differ depending on the lens
attached.
Using the Lens
Rotate the mode dial to
1 i.
Press [
2 i-Function].
Adjust the focus ring to select a
3
scene.
Half-press [
4 Shutter] to save.
Fully press [
5 Shutter] to capture a
photo.
NX11_18-55 Lens.indb 13 2011-01-21 오후 6:35:25

14
Using the Lens
Using the i-Function in PASM modes
You can manually select and adjust shutter speed, aperture value, exposure value, ISO
sensitivity, and while balance on the lens. This feature is available only when your camera
supports it.
Press [
1 i-Function] on the lens to
select a setting.
Available settings may differ depending•
on the shooting mode.
Shooting mode
P A S M
Shutter speed - - O O
Aperture value -O-O
ISO
NX11_18-55 Lens.indb 14 2011-01-21 오후 6:35:26

15
English
Using the Lens
Shooting mode
P A S M
Exposure value O O O -
White balance OOOO
ISO OOOO
Rotate the focus ring to select an
2
option. Half-press [
3 Shutter] to save options.
Fully press [
4 Shutter] to capture a
photo.
ISO
NX11_18-55 Lens.indb 15 2011-01-21 오후 6:35:27

16
Using the Lens
Using the Zoom Ring
This function is available only when you use the zoom lens.
Rotate the zoom ring clockwise to capture a telephoto shot or counter-clockwise to
capture a wide shot. The focus ring is located in front of the zoom lens and the zoom
ring is behind it.
Set the composition of the photo (the focal distance of the lens) by turning the
zoom ring.
When you use the zoom function, focus can be slightly changed. Adjust the focus again before you capture
a photo.
Zoom ring
NX11_18-55 Lens.indb 16 2011-01-21 오후 6:35:27

17
English
Check the filter size for compatibility, and then install it on the front of the lens.
Using a Filter
Refer to “Product Specifications” for compatible filter size (p. 20).
Filter
NX11_18-55 Lens.indb 17 2011-01-21 오후 6:35:27

18
The filter installed onto the lens is a precise optical product. Keep it away from dust, dirt or scratch.
Do not install 2 or more filters at the same time.
Using 2 or more filters at the same time may deteriorate the image quality and may cause vignetting.
In case of a thick framed filter, the vignetting can occur with a wide-angle lens.
What is vignetting?
Vignetting refers to when the edges or outer parts of an image get dark or are hidden in black due to
the reduced intensity of light in surroundings of the screen. It can also occur when accessories such as
converters or filters are mounted, as the viewing angle of the lens is hidden.
Using the Filter
NX11_18-55 Lens.indb 18 2011-01-21 오후 6:35:27

19
English
Cautions when using a flash with the lens
Built-in flash
When you use a flash in situations where the distance from a subject and the camera
is close, the flash light is partially blocked by the lens, causing some parts of the photo
appear dark.
Check the distance between the camera and subjects when you capture photos.
Distance interrupted by the flash light may vary depending on the type of lens.
When you use a lens hood, light from the flash may be blocked by the hood.
Remove the lens hood when you use the flash.
NX11_18-55 Lens.indb 19 2011-01-21 오후 6:35:27

20
Product Specifications
Lens Name SAMSUNG 30 mm F2 SAMSUNG 18-55 mm
F3.5-5.6 OIS II
SAMSUNG 50-200 mm
F4-5.6 ED OIS II
Focal Length 30 mm (equivalent to 46.2 mm in
35 mm format)
18 - 55 mm (equivalent to 27.7
- 84.7 mm in 35 mm format)
50 - 200 mm (equivalent to
77 - 308 mm in 35 mm format)
Elements in Groups 5 elements in 5 groups
(1 Aspherical lens included)
12 elements in 9 groups
(1 Aspherical lens included)
17 elements in 13 groups
(2 Extra-low Dispersion lens
included)
Angle of View 50.2° 75.9°- 28.7° 31.4°- 8.0°
Aperture
F2 (Min. F22), (Number of
Blades : 7 , Circular Aperture
Diaphragm)
F3.5 - 5.6 (Min. F22), (Number
of Blades : 7 , Circular Aperture
Diaphragm)
F4 - 5.6 (Min. F22), (Number of
Blades : 7 , Circular Aperture
Diaphragm)
Mount Type Samsung NX Mount Samsung NX Mount Samsung NX Mount
Optical Image Stabilizer No Yes Yes
Minimum Focus Distance 0.25 m ~ ∞
0.28 m ~ ∞0.98 m ~ ∞
Maximum Magnification Approx. 0.16X Approx. 0.22X Approx. 0.2X
i-Scene Mode Not Supported
Supported (Beauty Shot, Portrait,
Children, Backlight, Landscape,
Sunset, Dawn, Beach & Snow,
Night)
Supported (Beauty Shot,
Portrait, Children, Backlight,
Sports)
Lens Hood Optional Included Included
Filter Size 43 mm 58 mm 52 mm
Max. Diameter x Length 61.5 x 21.5 mm 63 x 65.1 mm 70 x 100.5 mm
Weight Approx. 85 g (without hood) Approx. 198 g (without hood) Approx. 417 g (without hood)
Operating Temperature 0 ~ 40 °C 0 ~ 40 °C 0 ~ 40 °C
Operating Humidity 5 ~ 85 % 5 ~ 85 % 5 ~ 85 %
NX11_18-55 Lens.indb 20 2011-01-21 오후 6:35:27
