Samsung S27BM500EE User manual

The colour and the appearance may differ depending on the product, and the specifications are
subject to change without prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung
Samsung owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung is
prohibited.
Trademarks other than that of Samsung are owned by their respective owners.
User Manual
S27BM50* S32BM50* S32BM70* S43BM70* S32BM80*
(Singapore only: S27BM500EE, S27BM501EE, S32BM500EE, S32BM501EE, S32BM700UE, S32BM701UE,
S43BM702UE, S32BM801UE, S32BM80BUE, S32BM80GUE, S32BM80PUE)

Contents
Contents
Precautions and Notes
Read After Installing the product
34 Picture sizes and input signals
Supported Resolutions for UHD Input Signals
35 If Input Signal Plus is set to Off
35 If Input Signal Plus is set to On
Read Before Connecting a Computer (Supported Resolutions)
36 VESA DMT
37 VESA CVT
Supported Resolutions forVideo Signals
38 CTA-861
39 List of graphic cards supporting HDR10
Specifications
General
Appendix
Responsibility for the Pay Service (Cost to Customers)
42 Not a product defect
43 A Product damage caused by customer’s fault
43 Others
Before Using the Product
Safety Precautions
3 Electricity and Safety
4 Installation
5 Operation
Cleaning
Correct posture to use the product
Preparations
Installation
9 Attaching the Stand
Connecting the camera to the product
13 Precautions for moving the product
15 Checking the space around the product
16 Adjusting the Product Tilt and Height
18 Anti-theft Lock
19 Wall Mount Kit Specifications (VESA)
Control Panel
Connections
Ports
Tidying Up the Connected Cables
Remote Control and Peripherals
About the Samsung Smart Remote (M7*B / M8*B Series
Models)
About the Remote Control (M5*B Series Model)
33 Connecting the Samsung Smart Remote to the product

- 3 -
Before Using the Product
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

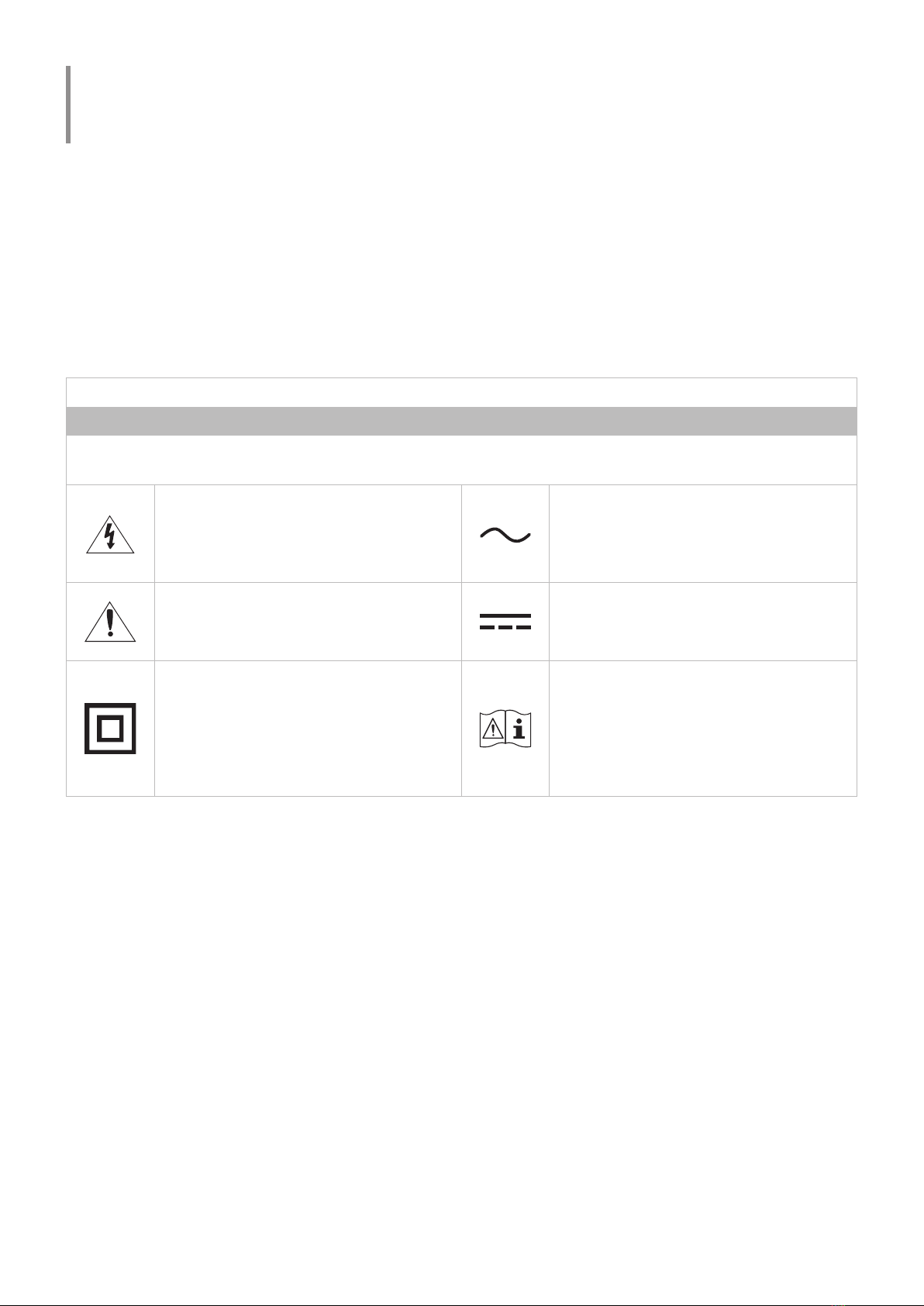

This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
AC voltage: Rated voltage marked with this
symbol is AC voltage.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
DC voltage: Rated voltage marked with this
symbol is DC voltage.
Class II product: This symbol indicates that a
safety connection to electrical earth (ground)
is not required. If this symbol is not present
on a product with a mains lead, the product
MUST have a reliable connection to protective
earth (ground).
Caution. Consult instructions for use: This
symbol instructs the user to consult the user
manual for further safety related information.
Electricity and Safety
Warning
●Do not use a damaged power cord or plug, or a loose power socket.
●Do not use multiple products with a single power socket.
●Do not touch the power plug with wet hands.
●Insert the power plug all the way in so it is not loose.
●Connect the power plug to a grounded power socket (type 1 insulated devices only).

- 4 -
●Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.
●Do not place the power cord or product near heat sources.
●Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
●Do not disconnect the power cord while the product is being used.
●Only use the power cord provided with your product by Samsung. Do not use the power cord with other
products.
●Keep the power socket where the power cord is connected unobstructed.
–The power cord must be disconnected to cut off power to the product when an issue occurs.
●Hold the plug when disconnecting the power cord from the power socket.
Installation
Warning
●DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL
THE PRODUCT NEAR HEAT SOURCES.
●Keep the plastic packaging out of the reach of children.
–Children may suffocate.
●Do not install the product on an unstable orvibrating surface (insecure shelf, sloped surface, etc.)
–The product may fall and become damaged and/or cause an injury.
–Using the product in an area with excess vibration may damage the product or cause a fire.
●Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.
●Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
–The product lifespan may be reduced or a fire may result.
●Do not install the product within the reach of young children.
–The product may fall and injure children.
●Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil pollution.
And do not install or use the product in the kitchen or near the kitchen stove.

- 5 -
Caution
●Do not drop the product while moving.
●Do not set down the product on its front.
●When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product
is not protruding.
–The product may fall and become damaged and/or cause an injury.
–Install the product only on cabinets or shelves of the right size.
●Set down the product gently.
–Product failure or personal injury may result.
●Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme
temperatures or a significant presence of moisture, or a place where the product will operate continuously for
an extended period of time) may seriously affect its performance.
–Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.
●Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
Operation
Warning
●There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
–Contact Samsung Customer Service Centre for repairs.
●To move the product, first disconnect all the cables from it, including the power cable.
●If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately
and contact Samsung Customer Service Centre.
●Do not let children hang from the product or climb on top of it.
–Children may become injured or seriously harmed.
●If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then
contact Samsung Customer Service Centre.
–Continued use can result in a fire or electric shock.

- 6 -
●Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
–The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious
injury.
●During a lightning or thunderstorm, power off the product and remove the power cable.
●Do not drop objects on the product or apply impact.
●Do not move the product by pulling the power cord or any cable.
●If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.
●Do not lift or move the product by pulling the power cord or any cable.
●Do not use or keep combustible spray or an inflammable substance near the product.
●Ensure the vents are not blocked by tablecloths or curtains.
–An increased internal temperature may cause a fire.
●Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc)
into the product (via the vent or input/output ports, etc).
–Be sure to power off the product and disconnect the power cord when water or other foreign substances
have entered the product. Then contact Samsung Customer Service Centre.
●Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.
–Be sure to power off the product and disconnect the power cord when water or other foreign substances
have entered the product. Then contact Samsung Customer Service Centre.
Caution
●Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or
defective pixels.
–Set the screen to power-saving mode or moving-picture screen saverwhen not using the product for an
extended period of time.
●Disconnect the power cord from the power socket if you do not plan on using the product for an extended
period of time (vacation, etc).
–Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
●Use the product at the recommended resolution and frequency.
–Your eyesight may deteriorate.

- 7 -
●Do not hold the product upside-down or move it by holding the stand.
–The product may fall and become damaged or cause an injury.
●Looking at the screen too close for an extended period of time can deteriorate your eyesight.
●Do not use humidifiers or stoves around the product.
●Rest your eyes for more than 5 minutes or look at distance objects for every1 hour of product use.
●Do not touch the screen when the product has been turned on for an extended period of time as it will become
hot.
●Store small accessories out of the reach of children.
●Exercise caution when adjusting the product angle or stand height.
–Your hand or finger may get stuck and injured.
–Tilting the product at an excessive angle may cause the product to fall and an injury may result.
●Do not place heavy objects on the product.
–Product failure or personal injury may result.
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.
"Contact your nearest Samsung Customer Service Centre if you want to clean the inside of the product (Service fee will be
charged.)
Do not press the product screen with hands or other objects. There is a risk of damaging the screen.
"Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the product and PC.
2. Disconnect the power cord from the product.
"Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
3. Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product clean.
●Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
●Do not spray water or detergent directly on the product.
4. Connect the power cord to the product when cleaning is finished.
5. Power on the product and PC.

- 8 -
Correct posture to use the product
Use the product in the correct posture as follows:
●Straighten your back.
●Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen.
●Keep your eyes directly in front of the screen.
●Adjust the angle so light does not reflect on the screen.
●Keep your forearms perpendicular to your upper arms and level with the back of your hands.
●Keep your elbows at about a right angle.
●Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to
the floor, and your arms lower than your heart.
●Do the Eye excercises or blink frequently, then eye fatigue will be relieved.

- 9 -
Preparations
Installation
Attaching the Stand
"Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
"Disassembly is the reverse order of assembly.

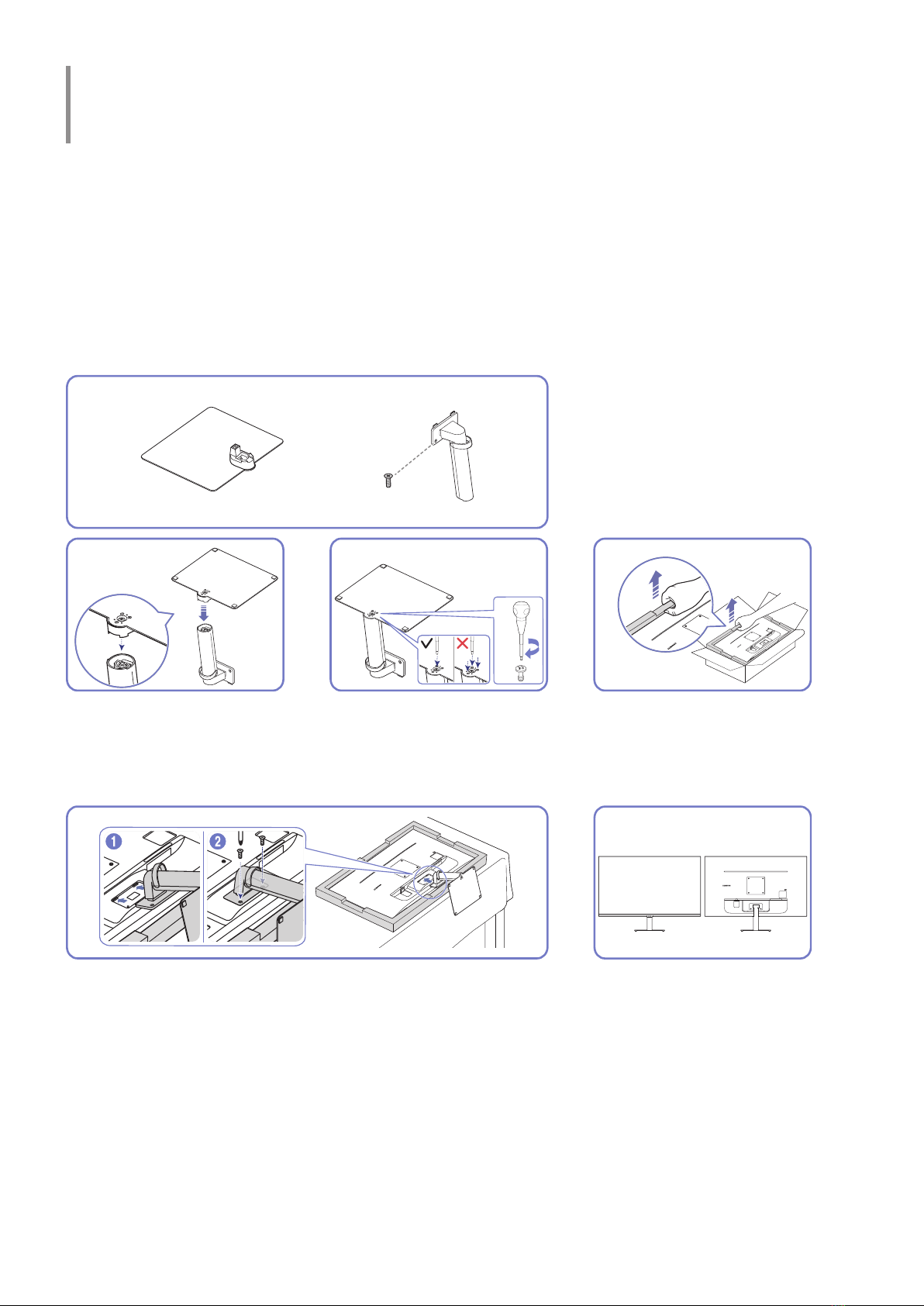

S27BM50* / S32BM50* / S32BM70*
x 2
1
124
3
Put the stand base onto the stand
neck as the direction shown in the
figure. Check that the stand neck is
firmly connected.
Tightly fasten the connecting
screw at the bottom of the stand
base. Fasten the large screw in the
middle for assembly.
As shown in the figure, remove
the product and foam cushion, and
then place the product on the table
with its front side facing the floor.
3
44
5
Push the assembled stand into the main body in the direction of the arrow
as shown in the figure. Tightly fasten the connecting screw at the bottom
of the main body.
Stand assembly is complete.

- 10 -
S43BM70*
x 4x 3
11
2
As shown in the figure, remove the product and foam cushion, and then
place the product on the table with its front side facing the floor.
Put the stand base onto the stand
neck as the direction shown in the
figure. Check that the stand neck is
firmly connected.
33
4
Tightly fasten the connecting screw
at the bottom of the stand base.
Push the assembled stand into the main body in the direction of the arrow
as shown in the figure. Tightly fasten the connecting screw at the bottom
of the main body.
4
54
6
Stand up the monitor as shown in the figure.
●Hold the lower corners or edges of the product when moving it.
●Do not directly apply pressure on the screen.
●Do not hold the screen when moving the product.
●Do not hold the product upside down only by the stand.
Stand assembly is complete.

- 11 -
S32BM80*
123
Put the stand base onto the stand
neck as the direction shown in the
figure. Check that the stand neck is
firmly connected.
Tightly fasten the connecting screw
at the bottom of the stand base.
As shown in the figure, remove
the product and foam cushion, and
then place the product on the table
with its front side facing the floor.
45
Push the assembled stand into the main body in the direction of the arrow
as shown in the figure.
Stand assembly is complete.

- 12 -
Connecting the camera to the product
Camera Specifications
Resolution 1920 x 1080, 30 fps (FHD)
Automatic light compensation O
Privacy Cover O
Viewing angle 85°
Connection USB Type-C (USB 2.0)
"Before using the product, use a soft dry cloth to wipe the camera connector, to prevent malfunction due to foreign matter.

- 13 -

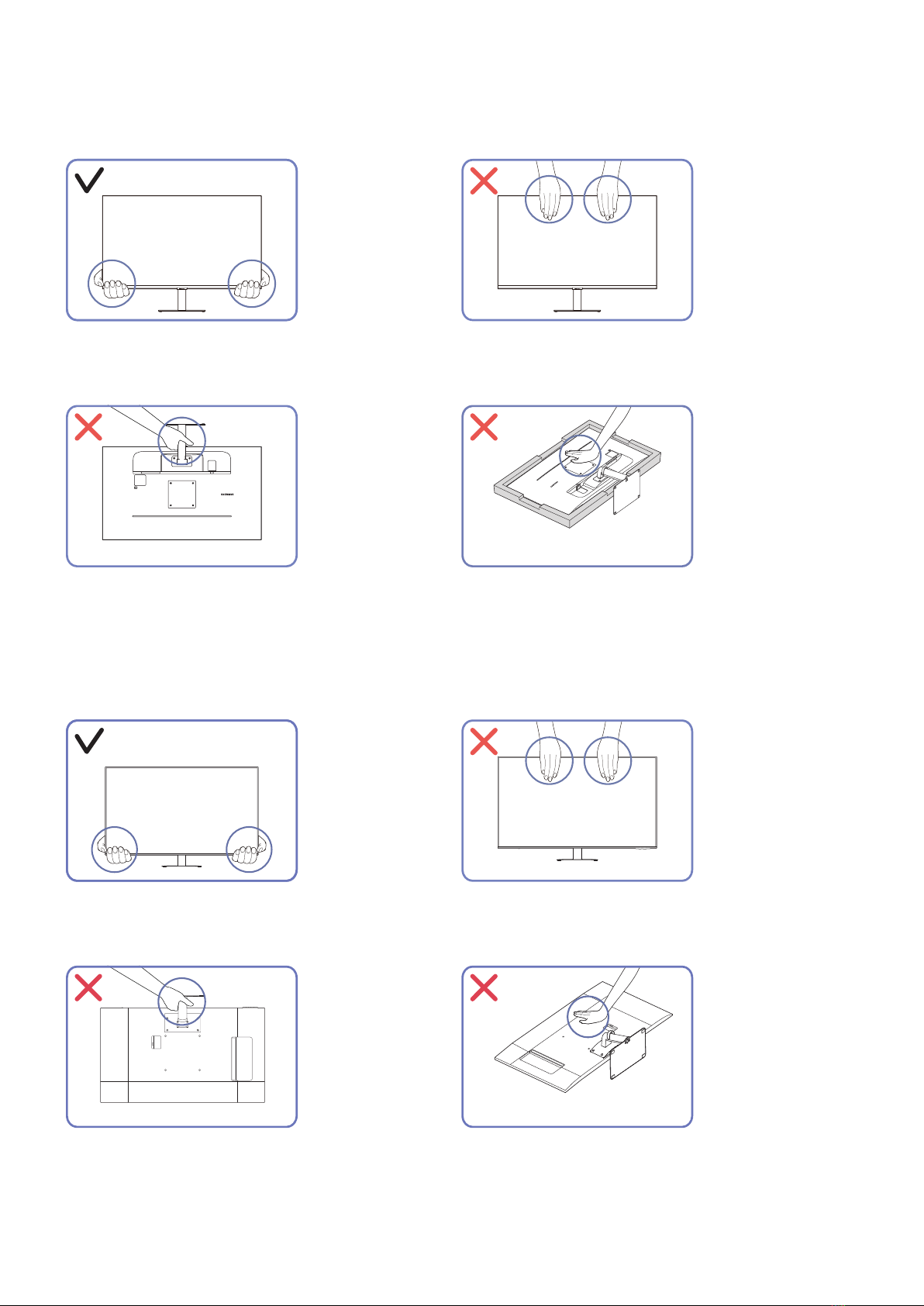

Precautions for moving the product
S27BM50* / S32BM50* / S32BM70*
●Hold the lower corners or edges of the product
when moving it.
●Do not directly apply pressure on the screen.
●Do not hold the screen when moving the product.
●Do not hold the product upside down only by the
stand.
●Do not press down on the product. There is a risk
of damaging the product.
S43BM70*
●Hold the lower corners or edges of the product
when moving it.
●Do not directly apply pressure on the screen.
●Do not hold the screen when moving the product.
●Do not hold the product upside down only by the
stand.
●Do not press down on the product. There is a risk
of damaging the product.

- 14 -
S32BM80*
●Hold the lower corners or edges of the product
when moving it.
●Do not directly apply pressure on the screen.
●Do not hold the screen when moving the product.
●Do not hold the product upside down only by the
stand.
●Do not press down on the product. There is a risk
of damaging the product.

- 15 -

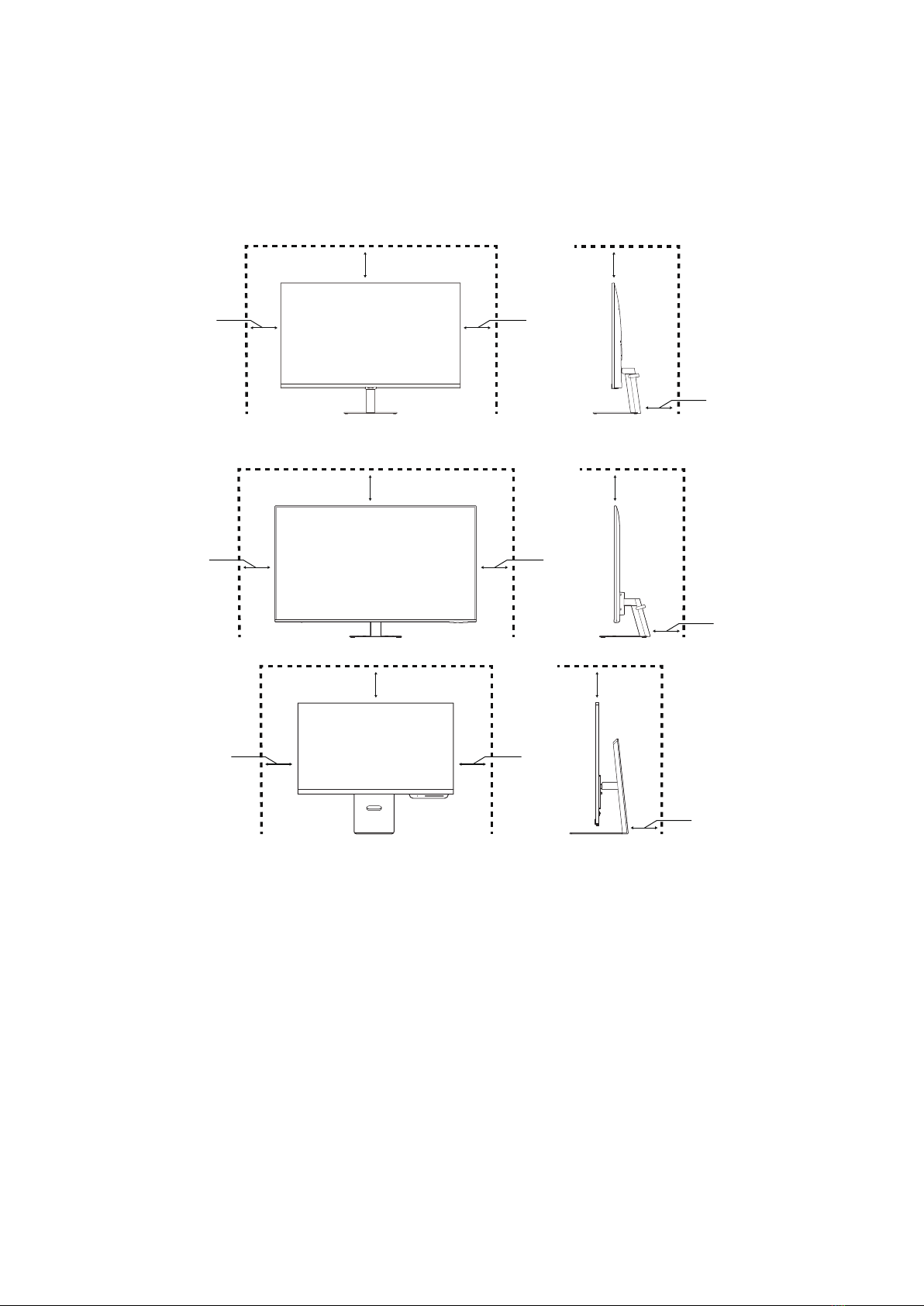

Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise may cause
fire and damage the product. Maintain enough space around the product as shown in the diagram when installing
the product.
"The exterior may differ depending on the product.
S27BM50* / S32BM50* / S32BM70*
10 cm10 cm
10 cm 10 cm
10 cm
S43BM70*
10 cm
10 cm10 cm
10 cm
10 cm
S32BM80*
10 cm
10 cm10 cm
10 cm 10 cm

- 16 -
Adjusting the Product Tilt and Height
"The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to
improve quality.
S27BM50* / S32BM50* / S32BM70*
-2.0° (±2.0°) ~ 22.0° (±2.0°) -2.0° (±1.0°) ~ 2.0° (±1.0°)
S43BM70*
-2.0° (±2.0°) ~ 20.0° (±2.0°) -2.0° (±1.0°) ~ 2.0° (±1.0°)

- 17 -
S32BM80*
-2.0° (±2.0°) ~ 15.0° (±2.0°) 0 ~ 120.0 mm (±5.0 mm)
●The product tilt and height can be adjusted.
●When adjusting the tilt and height, hold both sides of the product and avoid using excessive force to prevent
damage.
●When adjusting the stand height, you may hear a noise. This noise is generated because the ball inside the
stand slides when the stand height is adjusted. It is a normal noise and not a product malfunction.

- 18 -
Anti-theft Lock
"An anti-theft lock allows you to use the product securely even in public places.
"The locking device shape and locking method depend on the manufacturer. Refer to the manuals provided with your anti-
theft locking device for details.
"S27BM50* / S32BM50* / S32BM70* model only.
To lock an anti-theft locking device:
1. Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2. Put one end of the cable through the loop on the other end.
3. Insert the locking device into the anti-theft lock slot at the back of the product.
4. Lock the locking device.
–An anti-theft locking device can be purchased separately.
–Refer to the manuals provided with your anti-theft locking device for details.
–Anti-theft locking devices can be purchased at electronics retailers or online.

- 19 -
Wall Mount Kit Specifications (VESA)
"Install yourwall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than
plaster board, please contact your nearest dealer for additional information. If you install the product on a slanted wall, it
may fall and result in severe personal injury. Samsung wall mount kits contain a detailed installation manual and all parts
necessary for assembly are provided.
●Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
●Forwall mounts that do not comply with the VESA standard screw specifications, the length of the screws may
differ depending on the wall mount specifications.
●Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.
●Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is
used or the consumer fails to follow the product installation instructions.
●Do not mount the product at more than a 15 degree tilt.
●Standard dimensions for wall mount kits are shown in the table below.
Model
name
VESA screw hole
specs (A * B) in
millimeters
CStandard
Screw Quantity
c
Product
Wall mount bracket
S27BM50*
S32BM50*
S32BM70*
100.0 x 100.0 6.7 ~ 8.7
mm M4 4 EA
S43BM70* 200.0 x 200.0 11.0 ~ 13.0
mm M8 4 EA
"S32BM80* models are not supported.
"Do not install yourWall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.

- 20 -

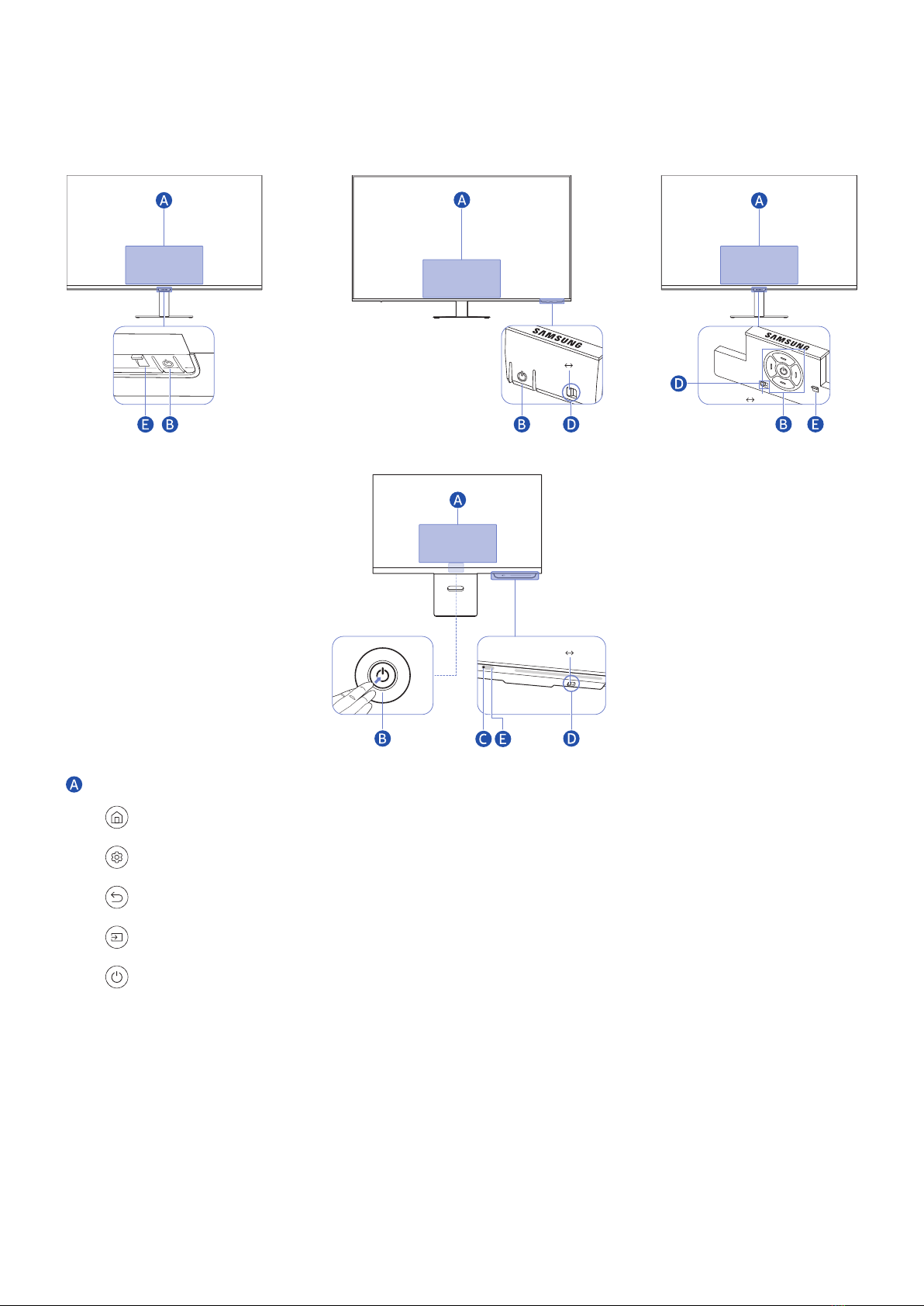

Control Panel
"You can turn on the product with the Power button at the bottom of the product, and then use the Control menu. The
Control menu appears when the Power button is pressed while the product is On.
S27BM50* / S32BM50* S43BM70* S32BM70*
S32BM80*
<Rear>
On Off
On Off
On Off
Control menu
●Home
●Settings
●Return
●Source
●Power Off
