Samsung SP-P300ME User manual

| Power Related | Installation Related | Cleaning and Use Related |
To avoid injuries or damage to property, please read the following precautions carefully and use the
product accordingly.
Failure to follow the instructions marked with this symbol may cause personal injury or even fatality.
Failure to follow the instructions marked with this symbol, may cause personal injury or damage to
the product or property.
Be sure to plug the plug in tightly as failing to do so may cause fire.
zWhen the connection is incomplete, it may cause fire.
Do not use loose power outlets or damaged power cables.
zThere is a danger of electric shock or fire.
Under no circumstances touch the power plug with wet hands.
zThere is a danger of electric shock.
Do not plug multiple appliances into a single wall outlet.
zThere is a danger of fire.
Do not place heavy objects on the power cord. Avoid bending, pulling or twisting the
power cord.
zThere is a danger of electric shock or fire.
Before moving the product, make sure that the power is off and remove the power
cord from the wall outlet. In addition, make sure that all connection cables are
disconnected from other devices before moving it.
zMoving the product without disconnecting the power cord may damage the
power cord and may cause fire or electric shock.

Always unplug the unit by holding the power plug and not the power cable.
zThere is a danger of fire.
Unplug the power plug before cleaning the product.
zThere is a danger of electric shock or fire.

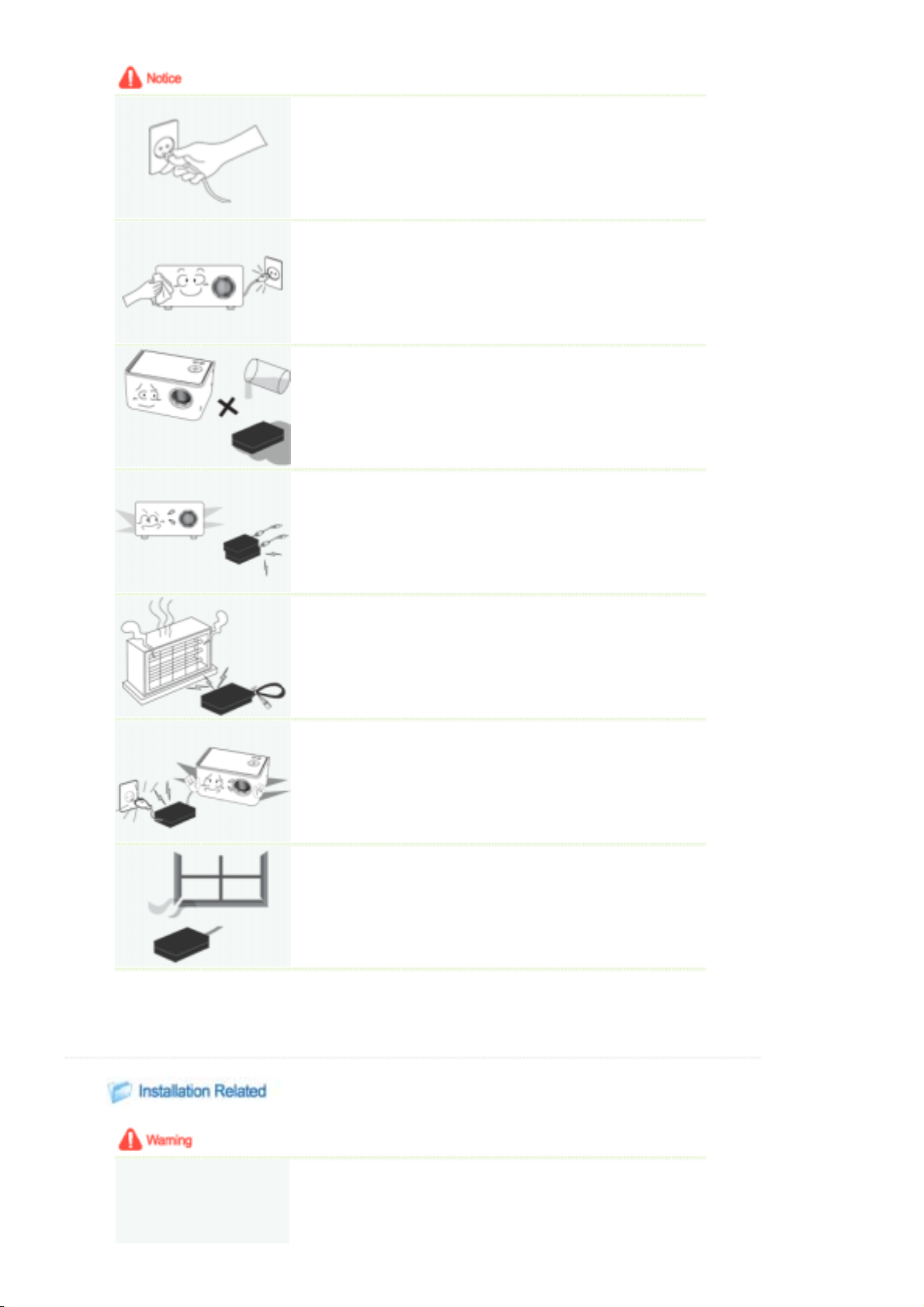

Do not let water or any liquid come into contact with the adapter.
zThis may cause fire or electric shock.
zAvoid using the product near liquids or outdoors (i.e. rain, snow).
zEnsure that the adapter is not exposed to wetness when cleaning the floor
with water.
Do not plug in two power adapters next to each other.
zThere is a danger of fire.
Keep the adapter away from heaters.
zThere is a danger of fire.
Strip the adapter of the plastic packaging before use.
zThere is a danger of fire.
Keep the adapter in a well-ventilated location.
| Power Related | Installation Related | Cleaning and Use Related |
Do not place candles, mosquito sticks, cigarettes, etc. over the product.
zThere is a danger of fire.

When installing the product in a cabinet or on a shelf, do not let the front part of the
product project out of the cabinet or shelf.
zA falling product may damage the product or cause injury.
Keep the power cord away from heaters.
zThe coating of the power cord may melt and cause electric shock or fire.
Do not install the product in locations exposed to oil, smoke, moisture or water
(rainwater), or in a vehicle.
zThere is a danger of electric shock or fire.
Do not install the product in locations without ventilation such as a bookshelf or a
wall closet.
zThis may cause fire or damage to the product.
Do not install to an unstable location, for example on a stand that is smaller than the
product.
zIf the product falls it may injure children or become damaged. Install on a
stable location as the front section is heavy.
In case of lightning, immediately turn the system off and disconnect the power cord
from the wall outlet.
zThere is a danger of electric shock or fire.
Make sure the product's vents are not blocked by a tablecloth or curtain.
zThis may cause fire or damage the product.
Place the product on the ground carefully.
zFailing to do so may cause damage or injury.

Do not drop the product while moving it.
zFailing to do so may cause damage or injury.
Keep the product out of children’s reach.
zA falling product may cause harm to children. Since the front part of the
product is heavier than the back part, install the product on a flat and
stable location.
| Power Related | Installation Related | Cleaning and Use Related |

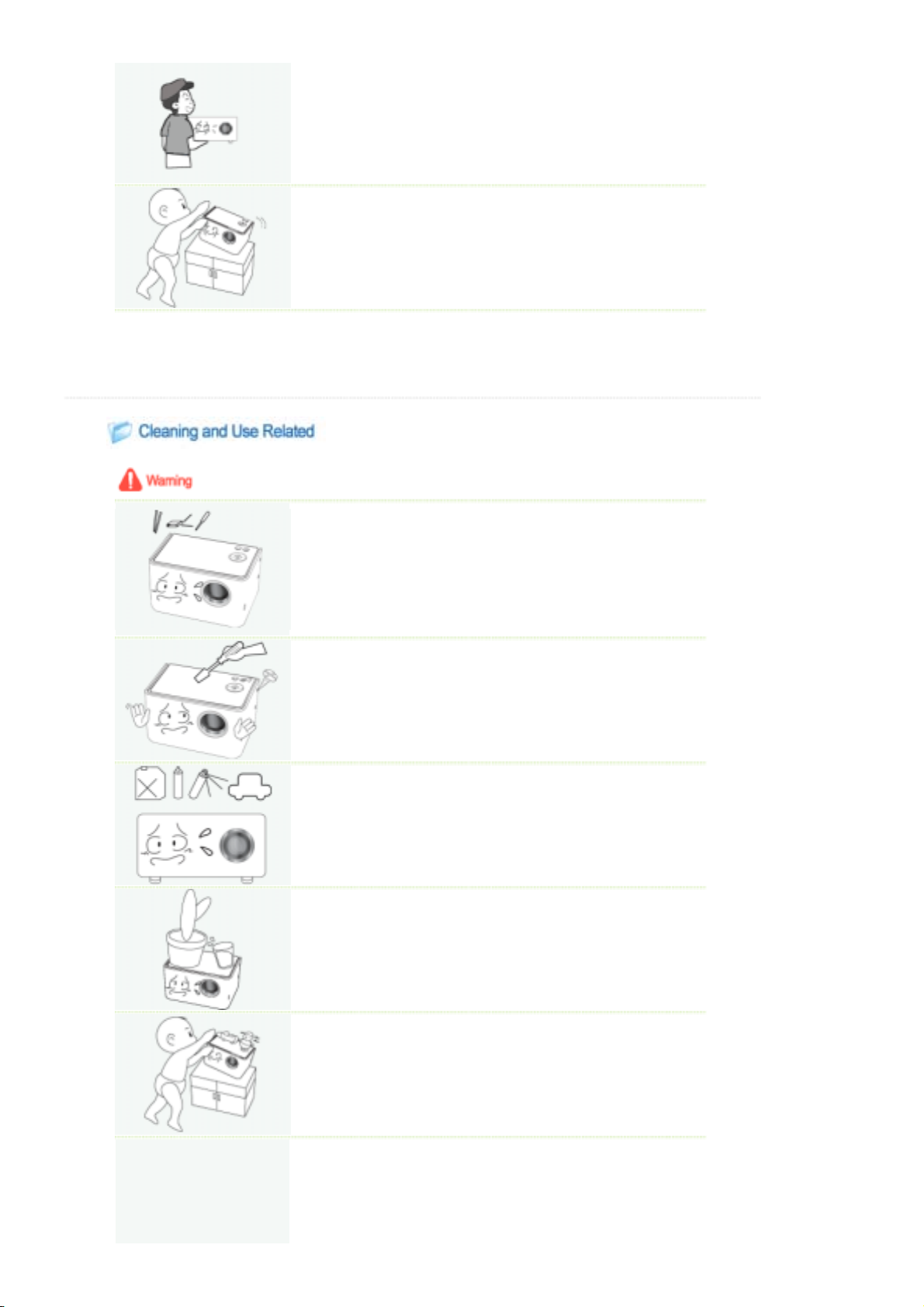

To not insert any metal such as chopsticks, wires, gimlets, or inflammable
substances such as paper and matches into the vents of the product or the AV
ports.
zThere is a danger of electric shock or fire.
If water or an alien substance gets into the product, turn the product off,
disconnect the power cord from a wall outlet and contact a Service Center.
Do not disassemble, or attempt to fix or modify the product.
zWhen the product requires repairs, contact a Service Center.
There is a danger of electric shock or damage to the product.
Keep the product away from inflammable sprays or other such substances.
zThere is a danger of fire or explosion.
Do not place containers with water, vases, drinks, chemicals, small metal parts or
heavy objects on the product.
zIf any object or liquid gets into the product, it may cause electric shock, fire
or personal injury.
Do not allow any children to place objects such as toys or cookies on the product.
zIf a child tries to reach for any of these objects, the product may fall and
injure the child.

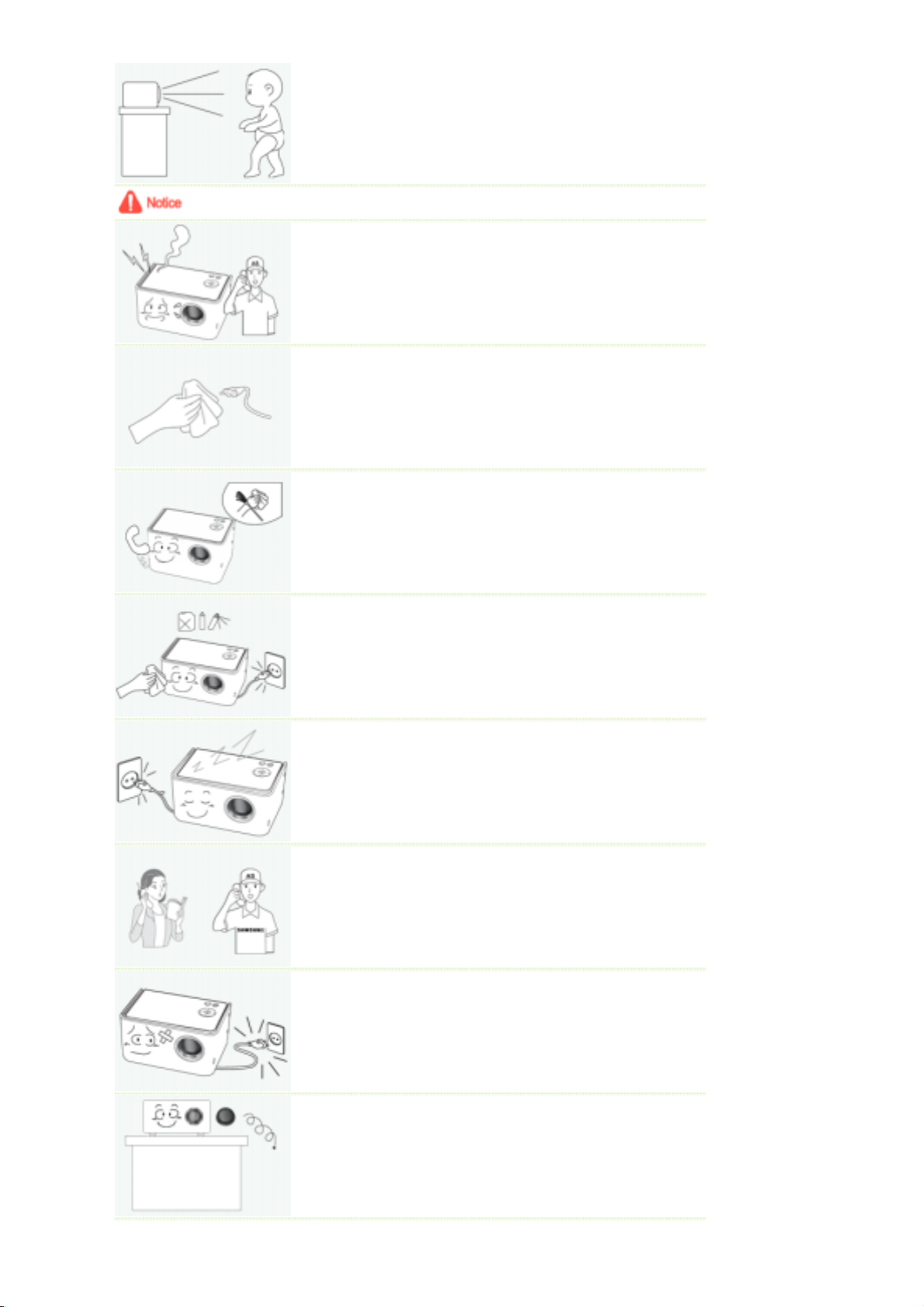

Never look directly at the light of the lamp at the front of the product and never
project the picture onto eyes.
zThis is dangerous especially for children.

If the product emits smoke, unusual noise, or there is a burning smell, turn the
system off immediately, disconnect the power plug from the wall outlet, and contact
a Service Center.
zThere is a danger of electric shock or fire.
If the power plug pin or jack is exposed to dust, water or alien substances, clean it.
zThere is a danger of electric shock or fire.
Ask a Customer Center or Service Center to internally clean the product at least once
a year.
zIf the dust within the product is not cleaned over a long time, it may cause a
problem with the product or even fire.
Clean the product lightly using a soft dry cloth or towel after disconnecting the
power cord from the wall outlet.
zDo not clean the product using chemicals such as wax, benzene, alcohol,
paint thinners, mosquito repellant, aromatics, lubricant, cleansing solutions,
etc.
For long periods where the product is not being used, disconnect the power plug.
zThere is a danger of electric shock or fire.
Be sure to contact an authorized Service Center when installing your set in a location
with heavy dust, high or low temperatures, high humidity, and chemical substances,
or where it will be operated for 24 hours continuously such as an airport, train station
or etc.
zFailure to do so may cause serious damage to your set.
When the product is dropped or its case is broken, turn the product off and plug out
the power plug, as this may cause electric shock or fire.
zIn this case, contact a Service Center.
Take care not to lose the lens cover of the product.
zFailing to use the lens without the lens cover, may damage the lens.

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.

| Product Features | Product Views | Battery (sold separately) | Product Specifications |

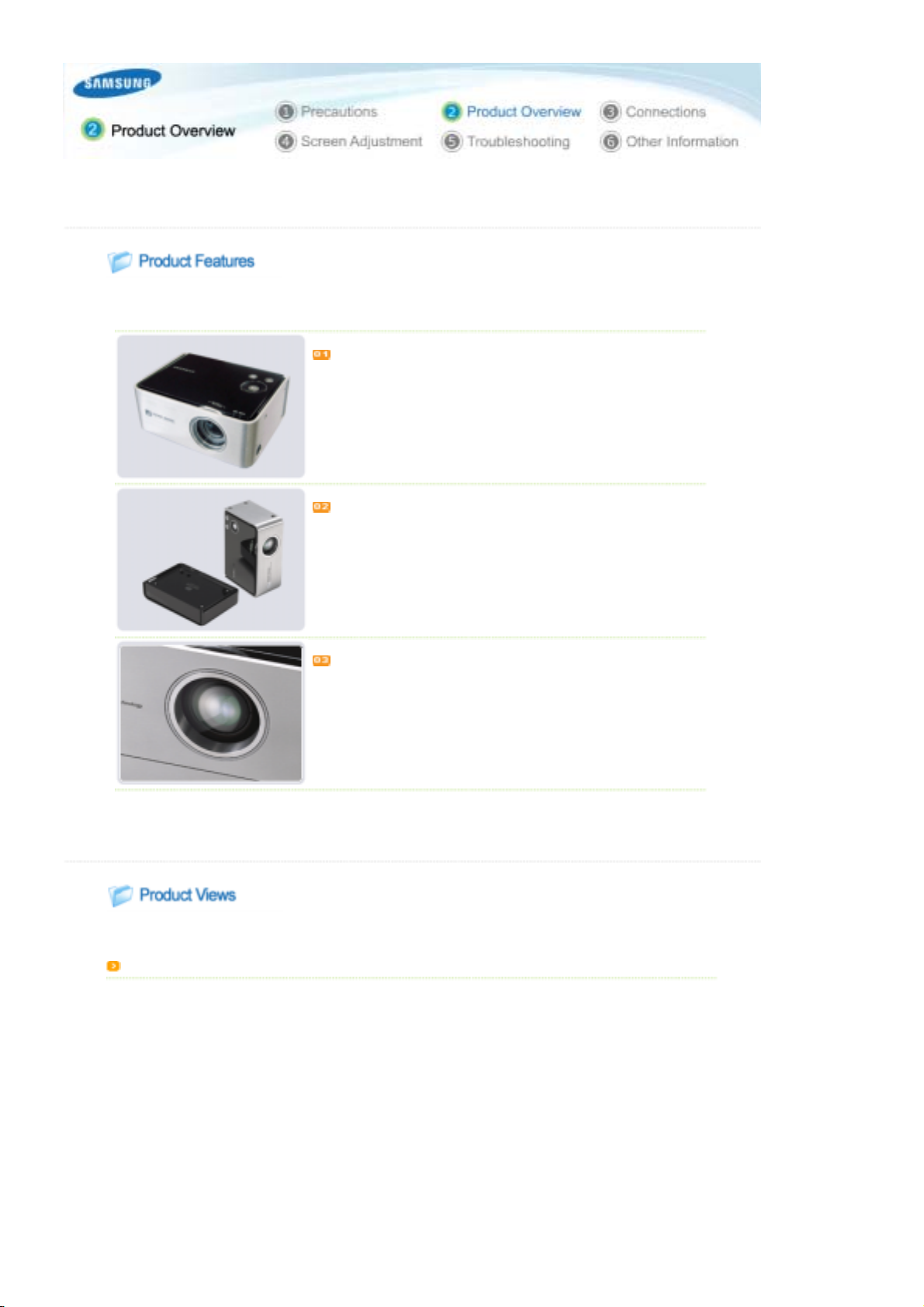

A custom made new projector designed for important marketing activities and presentations of the active business man!
The Portable Projector SP-P300ME provides high mobility and ease of use at a reasonable price.
The New Concept Projector for High Mobility
- Small Size.
- Lightweight.
A Battery Pack that Enables Projections without Connecting a Power
Cord
(For more information about the battery, refer to the battery description.)
- The Projector is operable with a charged battery.
- You can enjoy wide screen viewing without connecting the power cord.
Next Generation Backlight Light Source, LED Lamp
- Effective energy saving through the use of low voltage.
- Semi-permanent long lifetime guaranteed.
| Product Features | Product Views | Battery (sold separately) | Product Specifications |
Your Projector

1. Power Button[]
To turn it on
Press the Power button. The Power LED will light
up and the power is turned on.
To turn it off
Press the Power button until the Power LED is
turned off.
2. Menu Button[]
Press to display the OSD menu.
This is also used to exit the OSD or to return
to a higher level of the OSD menu.
3. Adjustment Button[]
Press to move the OSD menu or to adjust a
value on the OSD menu screen.
4. Enter Button []/ SOURCE Button
Press to select an OSD menu.
When pressing the 'SOURCE' button when
the menu screen is not displayed the input
source (PC, Composite)is switched.
5. SERVICE
The SERVICE terminal is used for after-sales
services.
6. PC/COMPOSITE
To connect a PC or VCR, the PC/Composite
cable must be connected here.
7. POWER LED
If you turn the projector on, the Power LED
lights up and if you turn it off, the Power LED
turns off accordingly.
8. TEMP LED
This lights up when the product is out of order.
Refer to the Status of the Operating LEDs.

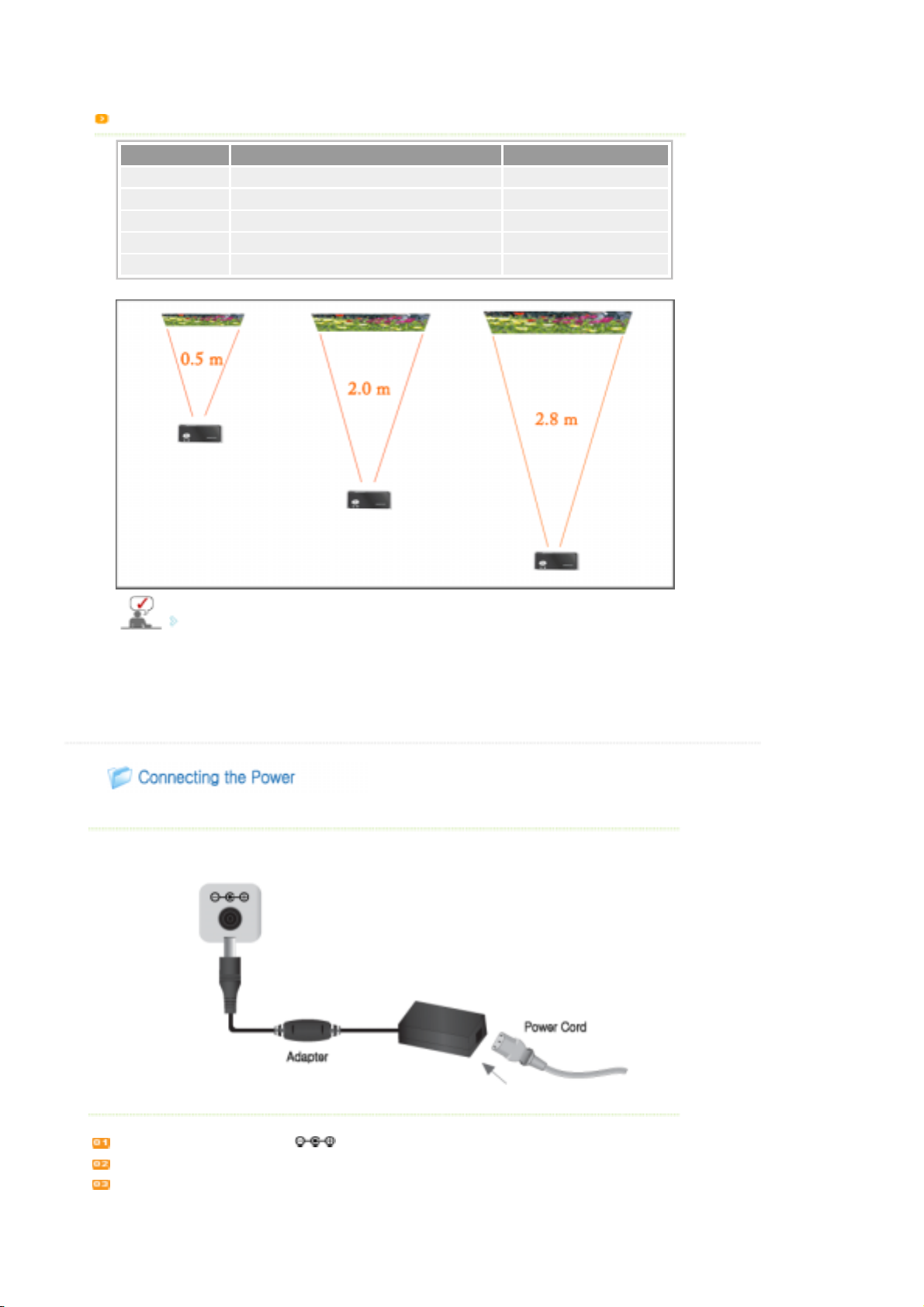

9. Power Port[]
To supply power, the power adapter must be
connected.
10.Lens
11.Focus Ring
Move it to the left or right to sharpen the image.
12.Battery Port
Install the battery into the battery port.
(For more information about the battery, refer to
the battery description.)

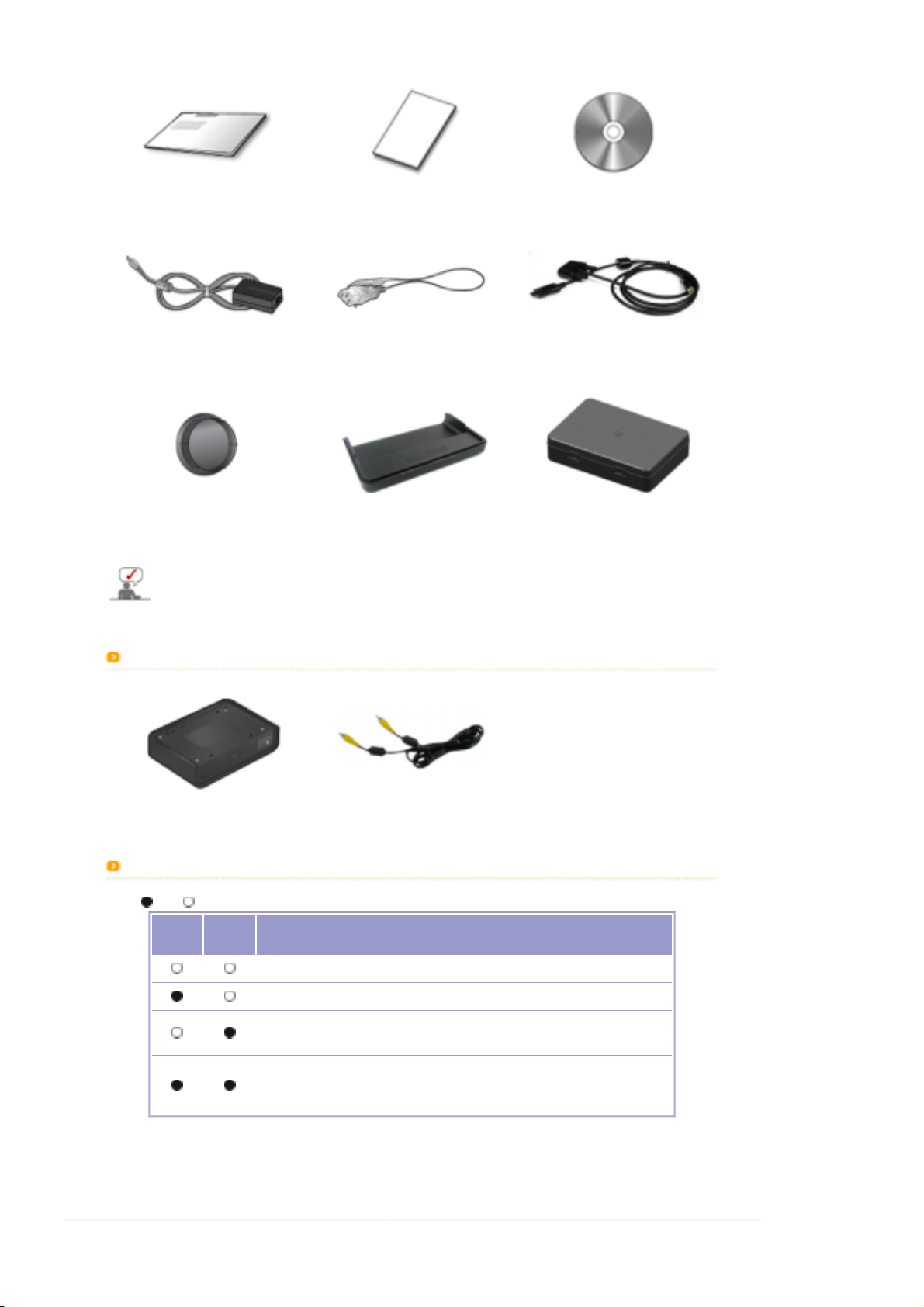

Accessories

Quick Installation Guide Warranty User Manual CD
Adapter Power Cord PC/Composite cable
Lens Cap Stand (View Stand Installation) Carrying Case
Use only the adapter supplied with the product.
For purchasing an additional adapter, contact your dealer or nearby service center.
Optional Module
Battery Video Cable
Status of Operating LEDs
: On, : Off
POWER
(BLUE) TEMP (RED) Description
The set is power off.
The set is normally operating.
Check if the inside temperature is higher than the level of normal operating caused
by blocked ventilation hole or failed cooling system.
Check Whether A cooling fan inside of the set is not operating normally or if the
ventilation hole on the rear of the set is blocked, because if the inner temperature
is too high, the power will shut off.
| Product Features | Product Views | Battery (sold separately) | Product Specifications |

Your Battery
1. Locking hole
A part for installing the battery into the projector.
2. Power Terminal
A part for connecting the power to charge only the battery.
3. Battery Latch
A part to fix the battery onto the projector.

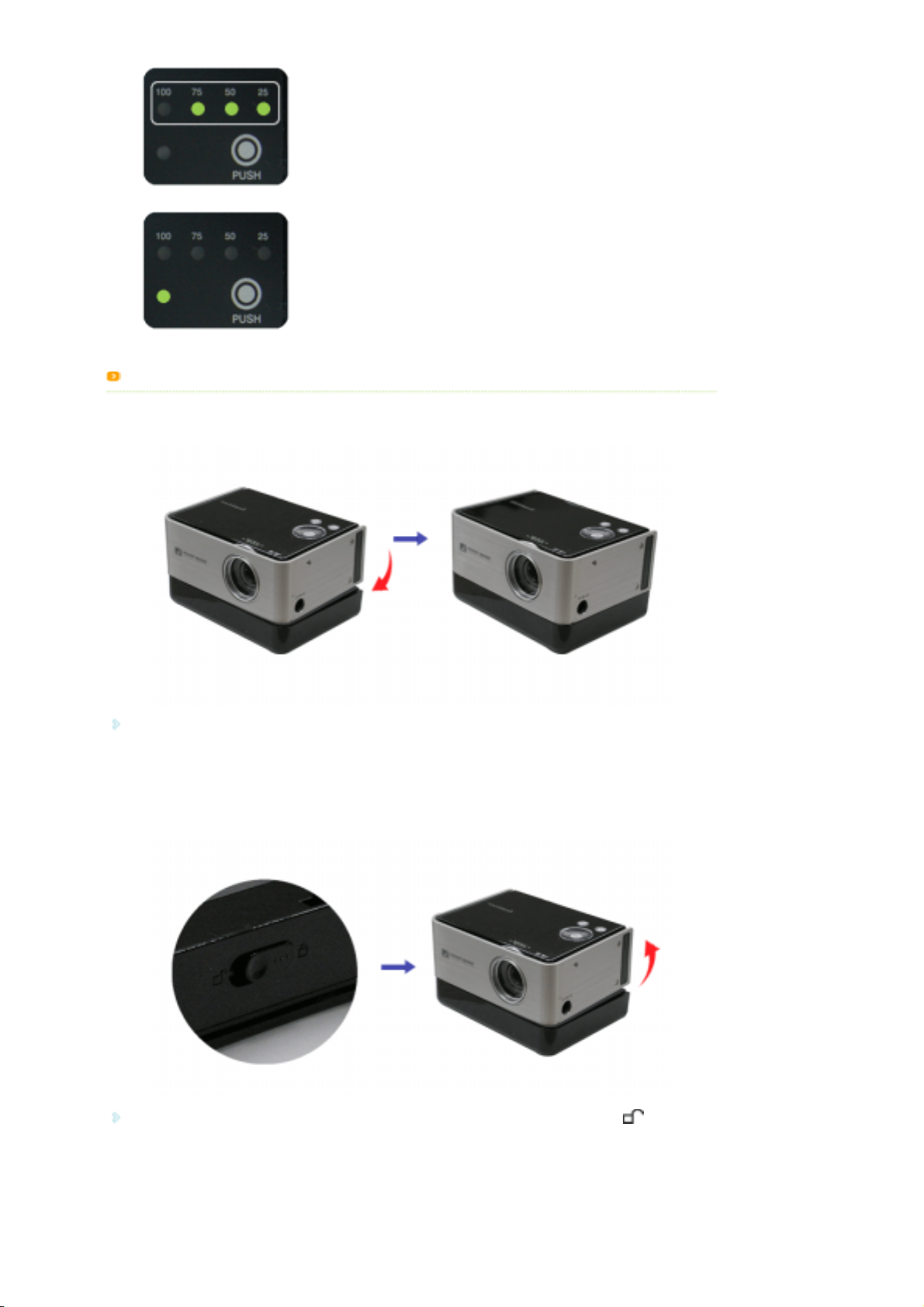

4. Battery Charge Indicator
Shows the remaining battery charge.
While charging the battery (by connecting the AC adapter), the
LED lights up red.
To check the remaining battery charge, press the PUSH button at

the bottom left of the battery. The green LEDs show the
remaining battery charge and are automatically turned off after a
while.
When the AC power is connected through the adapter and the
battery is being charged, the green LED lights up.
Battery Installation and Precautions.
1. Installing the Battery
Place the projector over the battery and push it down pushing the back of the projector forward.
When the projector is connected to the battery, the screen is displayed automatically. Do not look directly at the lens
while connecting the battery.
2. Removing the Battery
Hold the rear part of the projector and lift it up sliding the latch on the back of the battery to the left ( ).
3. Battery Use Time
zUse Time: 2.5 Hours / Charge Time: 3 Hours

4. Charging the Battery
Charging the battery when the battery is separated from the projector.
zAdapter Standard : DC 14 V, 3.5 A
Charging the battery when the battery is installed in the projector.
5. Battery Use Instructions
Please follow the instructions below when using the battery.
Use only an authorized battery.
Using an unauthorized battery may damage the projector and the battery may explode during use.
Avoid heat or impact to the battery.
Avoid strong force/impact to the battery, such as dropping or throwing the battery. Avoid exposing
the battery to high temperatures such as a sauna. This may generate heat or cause a fire or the
battery to explode. If the battery generates heat or fire, is damaged or deformed, immediately
remove the battery from the projector, and isolate the battery in a safe location as it may generate
heat or cause a fire or explosion. Contact a nearby service center immediately.
Do not apply strong pressure to the battery hard and do not impact the battery with a sharp object.
Do not press the battery hard when it is in a bag or do not punch the battery with a sharp object
such as gimlet, nail or tack. It may damage the battery or cause a heat, fire or explosion.
When not using the battery over a long period
As leaving the projector with the battery installed over a long time may result in the battery being
discharged, or the projector to become inoperable even if the power is switched off, remove the
battery from the projector when not using it for long periods. When using the rechargeable battery
for the first time or after a long period of not being used, charge the battery fully first.
Turn the power off first.
As removing the battery when the power is on may damage the projector, never remove the battery
when the power is on.
Use only an authorized adapter.
If an unauthorized adaptor is used, the projector battery may become damaged or explode.
Do not stare directly at the lens when installing the battery.
When the battery is connected to the main body, the screen is automatically turned on. If you stare

at the lamp light or the light is projected onto your eyes, it may cause damage to your eyesight.
Avoid touching the battery charging terminals with metal objects such as necklaces, coins, keys, etc.
There is a danger of fire or explosion.
Avoid keeping the battery in air-tight locations exposed to high temperatures such as within a vehicle
exposed to the sun. Keep the battery around room temperature (between 0°C and +40°C).
There is a danger of external deformation or explosion.
Keep the battery out of reach of children or pets.
If the battery is flooded or damaged, the battery may explode.
There is a danger of fire.
Coming into contact with a damaged battery (also orally) may affect the human body. If the battery
is broken and the battery fluid comes into contact with your skin, wash the fluid off with flowing
water for 1 or 2 minutes so that the fluid is completely washed off.
| Product Features | Product Views | Battery (sold separately) | Product Specifications |
The external design and product specifications may change without prior notice due to improvements to the product
performance.
Product Specifications
Model SP-P300ME
Panel Size 0.55"
Resolution 800 x 600 (SVGA)
Light Source LED
Power
Power
Consumption Less than 25 W (without Battery)
Standard
Voltage DC 14 V, 3.5 A
Dimension 127.2 mm x 94.5 mm x 50.8 mm
Weight 700 g
Major
Functions
Brightness 25 ANSI lm
Contrast 1000:1
Screen Size Diagonal 12.5" ~ 63"
Projection
Distance 0.5~2.8 m
Keystone Vertical
Input/Output
(24Pin)
PC 1) Connector Type : 15Pin D-Sub
2) Frequency (Refer to the Supported Display Modes.)
Composite Supported Broadcast Signals : NTSC, PAL, SECAM
(PAL-60 is not supported.)
Operating
Environment
Temperature
and Humidity
Operating temperature (0°C~40°C / 32°F~104°F), Humidity (10~80%)
Storage temperature (-20°C~45°C / -4°F~113°F), Humidity (5~95%)
EMI Class B
Noise Maximum 25 dB (by Samsung Reference)
This Class B equipment is designed for home and office use.
The equipment has been registered regarding EMI for residential use. It may be used
in all areas. Class A is for office use. Class A is for business while class B emits less electromagnetic waves

than class A.
Supported Display Mode
Resolution Horizontal
Frequency
(kHz)
Vertical Frequency
(Hz) Clock Frequency (MHz)
Polarity
(Horizontal
/Vertical)
VGA, 640 x 350 31.469 70.086 25.175 +/-
VGA, 640 x 350 37.861 85.080 31.500 +/-
VGA, 640 X 400 37.861 85.080 31.500 -/+
VGA, 640 x 480 31.469 59.940 25.175 -/-
VGA, 640 x 480 31.469 59.940 25.175 -/-
VGA, 640 x 480 37.500 75.000 31.500 -/-
VGA, 640 x 480 43.269 85.008 36.000 -/-
VGA, 640 x 480 35.000 66.667 30.240 -/-
VGA, 720 x 400 31.469 70.087 28.322 -/+
VGA, 720 x 400 37.927 85.039 35.500 +/+
SVGA, 800 x 600 35.156 56.250 36.000 +/+
SVGA, 800 x 600 37.879 60.317 40.000 +/+
SVGA, 800 x 600 48.077 72.188 50.000 +/+
SVGA, 800 x 600 46.875 75.000 49.500 +/+
SVGA, 800 x 600 53.674 85.061 56.250 +/+
SVGA, 848 x 480 31.020 60.000 33.750 +/+
SVGA, 832 x 624 49.726 74.551 57.284 +/+
XGA, 1024 x 768 35.522 43.479 44.900 +/+
XGA, 1024 x 768 48.636 60.004 65.000 -/-
XGA, 1024 x 768 56.476 70.069 75.000 -/-
XGA, 1024 x 768 60.023 75.029 78.750 +/+
XGA, 1024 x 768 68.677 84.997 94.500 +/+
XGA, 1024 x 768 48.78 60.001 64.000 -/-
XGA, 1024 x 768 60.241 74.927 80.000 -/-
The DMD Panel used in Samsung Projectors consists of several hundred thousand micro mirrors. As with other
visual display elements, the DMD Panel may include a few bad pixels, Samsung and the DMD Panel manufacturer
have a rigid, bad pixel identification and limitation procedure in place and products will not exceed the maximum
number of bad pixels set by our standards. Rarely, non-displayable pixels may exist, however it does not affect
the overall picture quality nor the lifespan of the product.

| Basic Settings | Connecting the Power | Connecting with a PC | Connecting with an AV device |
Installing a Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
Place the projector so that the lens is at the center of the screen.
If the screen is not vertically installed, the picture on the screen may not be a rectangle.
Do not install the screen in a bright surrounding. If the screen is too bright, the picture on the screen is not
displayed clearly.
When installing the screen in a bright surrounding, use curtains or blinds to darken the surroundings.
You can install the projector to the front floor / front ceiling / rear floor / rear ceiling.
(To view the installation position settings)
To view the picture when installing the projector to the rear of the screen,
install a semi-transparent screen.
Select Menu > Setup > Install > Rear-Floor
To view the picture when installing the projector to the front of the screen,
install the projector at the side where you are watching
the screen.
Select Menu > Setup > Install > Front-Floor
Focusing
Turn the Focus Ring left or right until the picture on the screen is displayed
clearly.
If the distance between the projector and the screen is farther or shorter
than the specified projection distance (Refer to the Screen Size and
Projection Distance), the focus adjustment might fail.

Screen Size and Projection Distance
Distance Picture size(mm x mm) Diagonal inch
0.5 m 25.5 * 19.1 12.5"
1.0 m 50.8 * 38.1 25.0"
1.64 m 83.3 * 62.5 41.0"
2.0 m 101.6 * 76.2 50.0"
2.8 m 127.0 * 95.3 63.0"
The screen is designed to be optimal at 41".
| Basic Settings | Connecting the Power | Connecting with a PC | Connecting with an AV device |
Connect the adapter to a wall outlet( ).
Connect the power cord to the adapter and connect it to a wall outlet.
When the power is connected, the screen turns on automatically. Do not stare at the lens while connecting the power.

Use only an authorized adapter.
| Basic Settings | Connecting the Power | Connecting with a PC | Connecting with an AV device |
Connect the [PC/COMPOSITE] port on the side of the projector and the Monitor OUT port [D-Sub] of the PC using a
PC/Composite cable.
When all the connections above have been connected, turn the projector and the PC on.
Using the Projector
Selecting the external input source.
Select PC IN by using the Menu and Adjust buttons. ( SOURCE )
Select PC input using the Adjust buttons. ( Menu > Input > Source List > PC )
Adjust the screen so that the picture can be viewed comfortably.
To listen to audio, an additional audio system is required.
| Basic Settings | Connecting the Power | Connecting with a PC | Connecting with an AV device |
