Samsung RB44TS134 Series User manual

English
User servicing manual
MODEL CODE: RB44TS134**, RB46TS334**, RB50RS334**, RB56TS754**
1. You may find the installation, maintenance, repair, cleaning information about the device,
the list of spare parts of the device, and the necessary information for ordering spare
parts that can be supplied by authorized service at http://samsung.com/support or
call center 4447711.
2. Visit the part purchase site and enter the model code of your product to check the parts
available for purchase. The model code is labelled on the outer side of your product.
- You can check the model code and version on the barcode label at the bottom left of
the product.
3. For replacement parts, make sure the part name matches that of the illustration in this
manual.
- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and
hinges.
NOTE
Following the repair by a non-authorised service provider, self-repair or non-professional
repair of the product, Samsung is not liable for any damage to the product, any injury or
any other product safety issue caused by any attempt to repair the product which does
not carefully follow these repair and maintenance instructions. Any damage to the product
caused by an attempt to repair the product by any person other than a Samsung certied
service provider will not be covered by the warranty.
CAUTION
•The part name listed on the site may differ from that in this manual. Please make sure you
choose the right part name.
•Replacing hinges requires extreme caution because it involves detaching the door.
•Be sure to wear safety gloves while making repairs.
RB3000RM_User-servicing-manual_EN.indd 1 2021-02-09  5:03:11

English
The actual image and provided parts of the refrigerator may differ, depending on the model
and the country.
01
03
05
04
02
02
06
03
01 Top hinge 02 Gasket
03 Drawer 04 Middle hinge
05 Bottom hinge 06 Barcode label
RB3000RM_User-servicing-manual_EN.indd 2 2021-02-09  5:03:11

English
Handle replacement
CAUTION
•When replacing the door handle, take care not to scratch the front of the door.
•Firmly press the handles at the supports. Make sure there is no gap between the supports
and the door.
•Tightly fasten the screws when attaching the handle.
•Check that the handle is rmly attached before using the product.
Tools required (not provided)
Phillips screwdriver Flat-head
screwdriver
To detach the handles

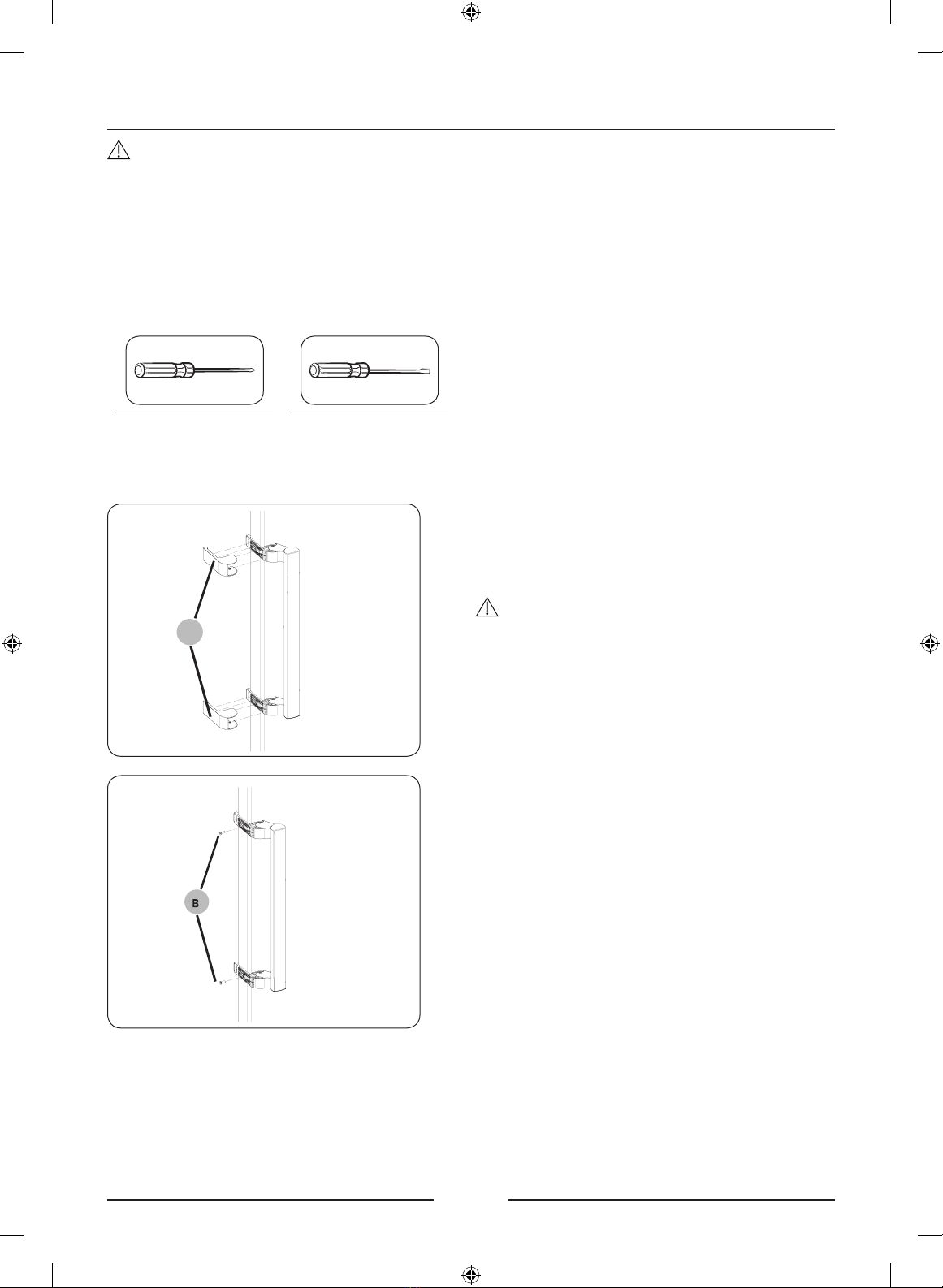

A
1. Use a Flat-head screwdriver to remove
handle hinge covers
2. Removing two screws by Phillips
screwdriver disassemble the handle.
CAUTION
•Be careful not to scratch.
•When disassembling, make sure the unit
turned off if you want to assembly by
reverse order.
3. Assemble the new handle in the reverse
order of disassembly.
RB3000RM_User-servicing-manual_EN.indd 3 2021-02-09  5:03:12

English
Gasket replacement
CAUTION
Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.
To remove the gasket
Open the door and remove the gasket from
the door.
To replace the gasket
Attach a new gasket to the refrigerator door.
Make sure there is no gap between the new
gasket and the door.
Drawer replacement
CAUTION
Check that the drawer is inserted properly into the rail during assembly.
To remove the drawer
Gently lift up the front of the drawer and
slide it out.
To reattach the drawers
Reattaching the drawers follows the reverse order of their respective removal steps.
RB3000RM_User-servicing-manual_EN.indd 4 2021-02-09  5:03:12

English
Hinge replacement
To replace the hinges, you must remove the doors rst.
CAUTION
•When removing the doors, take extreme caution because the doors are heavy.
•Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent
scratches on the door when you place the doors down.
•As the hinges must be handled carefully and replaced by two or more persons, we
recommend you to call for professional technical service.
•If you remove the hinge without holding the door, the door may fall and cause injury.
•Ensure that the shaft is rmly tightened on the hinge.
•Check that the hinge is rmly attached to the cabinet.
•Make sure the wire connectors are connected properly.
•Be careful not to damage the wires when fastening the top cover.
WARNING
•Tilting/laying the refrigerator requires a minimum of 2 people.
•Disconnect the power cord before reversing the doors.
Tools required (not provided)
Phillips screwdriver Flat-head screwdriver
NOTE
For the models with handles, reverse the handles rst. (For detailed information, see the
“Reversing the door handle position (For models with bar handles)” section.)

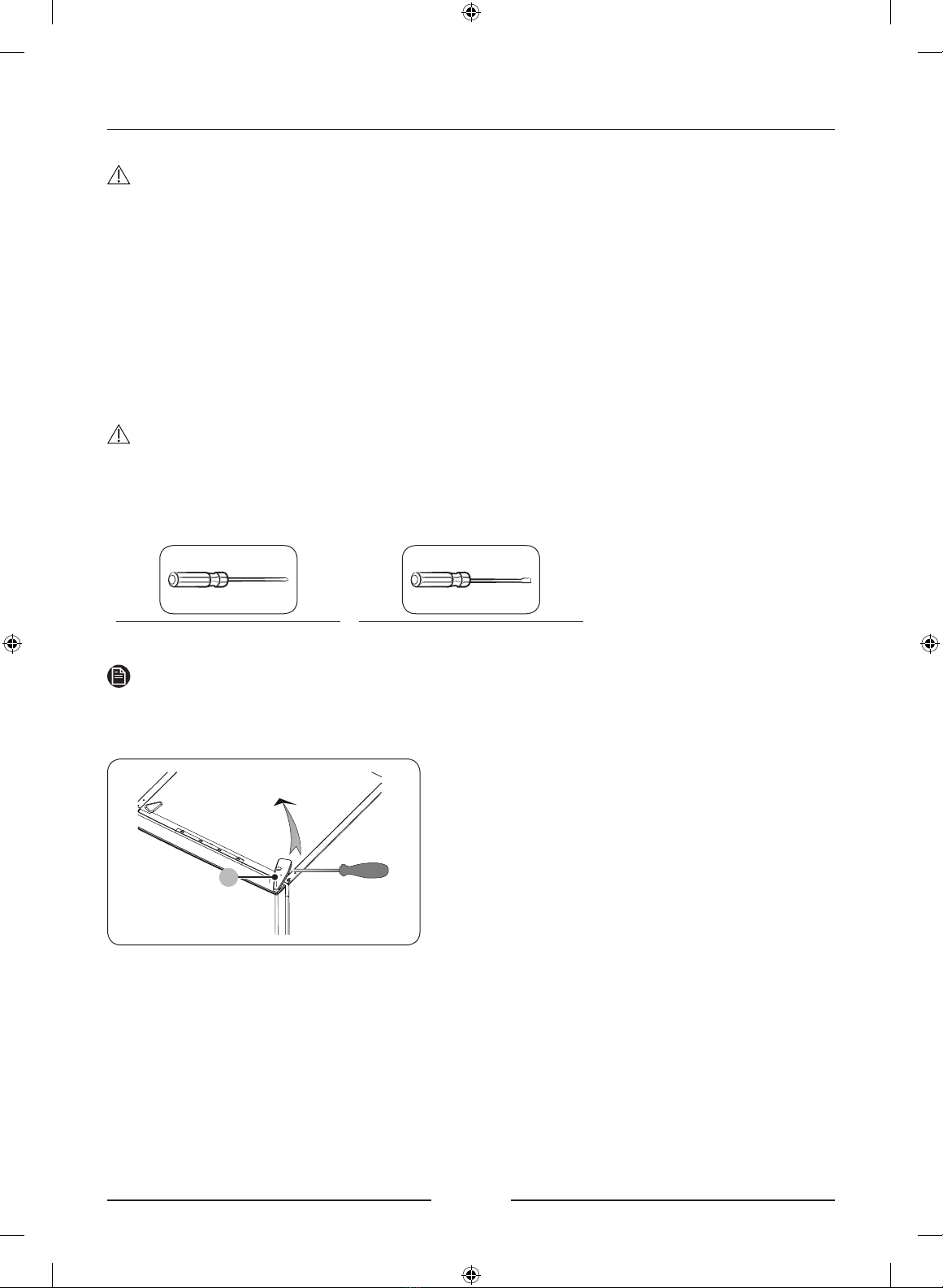

A
1. With the fridge door closed, use a Flat-
head screwdriver to remove top hinge
cover (A) and remove it toward that
direction. Gently lift the top hinge cover
(A) and place it on top of the refrigerator.
RB3000RM_User-servicing-manual_EN.indd 5 2021-02-09  5:03:12

English

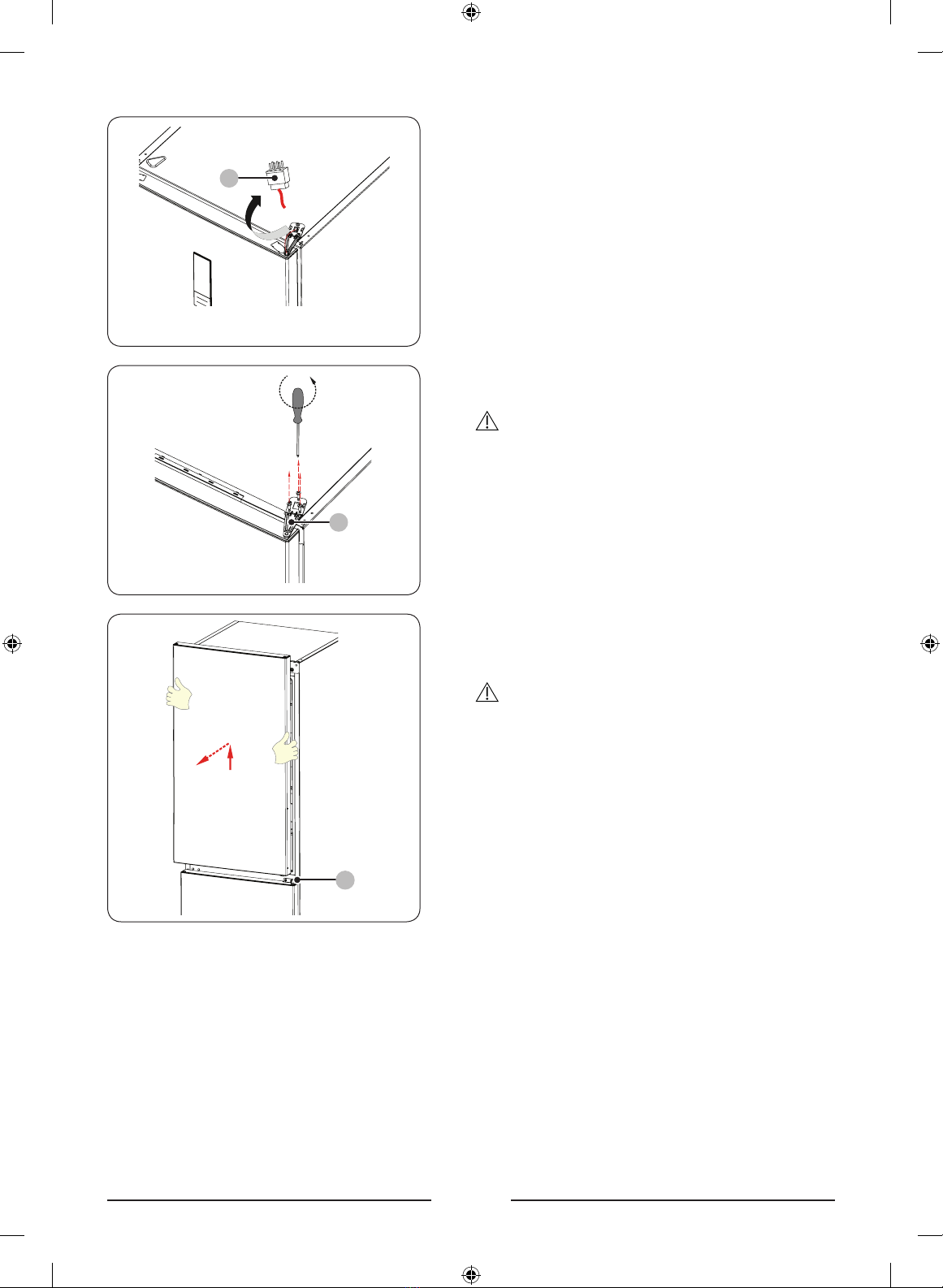

A
Display on door
2. Disconnect the wire connector (A).
- This step may not apply to some
models.
A
3. Unscrew the screws xing the top hinge
(A) and remove it.
CAUTION
To prevent the fridge door from falling,
make sure to hold it tight while removing the
screws.
A
4. lift the fridge door to remove it from the
middle hinge (A). Keep the door in a safe
place.
CAUTION
The door is heavy. To prevent damage or
injury, use caution while removing the door.
RB3000RM_User-servicing-manual_EN.indd 6 2021-02-09  5:03:13

English
A
5. Use a Phillips screwdriver to remove the
screws fastening the middle hinge (A).
CAUTION
To prevent the freezer door from falling,
make sure to hold it tight while removing the
screws.
A
6. lift the door to remove it from the bottom
hinge (A). Keep the door in a safe place.
CAUTION
The door is heavy. To prevent damage or
injury, use caution while removing the door.
To prevent the freezer door from falling,
make sure to hold the freezer door tight until
it is safely removed from the bottom hinge
(A).
A
A
7. Use a Phillips screwdriver to remove the
screws fastening the bottom hinge (A).
8. Reassemble in the opposite order of
disassembly after replacing the top,
middle, and/or bottom hinge.
CAUTION
•Make sure the wire connectors are
connected properly.
•Be careful not to damage the wires when
fastening the top hinge cover.
RB3000RM_User-servicing-manual_EN.indd 7 2021-02-09  5:03:13

Türkçe
Kullanıcı servis kılavuzu
MODEL KODU: RB44TS134**, RB46TS334**, RB50RS334**, RB56TS754**
1.
Cihaza ilişkin kurulum, bakım, onarım, temizlik bilgileri, cihazın yedek parçalarının listesi ve
yetkili servis aracılığıyla temin edilebilecek yedek parçaların siparişi için gerekli bilgilere
http://samsung.com/support adresinden veya 4447711 numaralı çağrı merkezinden
ulaşabilirsiniz.
2. Parça satın alma sitesini ziyaret edin ve satın almak için mevcut yedek parçaları
görmek için ürününüzün model kodunu girin. Model kodu ürününüzün dış tarafına
etiketlenmiştir.
- Model kodunu ve sürümü ürünün sol altında bulunan barkod etiketinde görebilirsiniz.
3. Yedek parçalar için parça adının bu kılavuzdaki çizimdekiyle eşleştiğinden emin olun.
- Kullanıcının bakımını yapabileceği parçalar kollar (yalnızca bazı modellerde), contalar,
çekmeceler ve menteşeler ile sınırlıdır.
NOT
Yetkisi olmayan bir servis sağlayıcının yaptığı onarım, kendi kendini onarım veya
ürünün profesyonel olmayan onarımı sonrasında, üründe meydana gelen hasarlardan,
yaralanmalardan veya bu onarım ve bakım talimatlarını dikkatli bir şekilde izlemeden
onarmaya çalışmaktan kaynaklanan ürünle ilgili diğer güvenlik sorunlarından Samsung
sorumlu değildir. Samsung yetkili servis sağlayıcısı haricinde birinin ürünü onarmaya
çalışmasından kaynaklanan üründeki hasarlar garanti kapsamına alınmaz.
DİKKAT
• Sitede listelenen parça adı bu kılavuzdakinden farklı olabilir. Lütfen doğru parça adını
seçtiğinizden emin olun.
• Kapıyı çıkarmak gerektiğinden menteşeleri değiştirme aşırı dikkat gerektirir.
• Onarım yaparken güvenlik eldiveni taktığınızdan emin olun.
RB3000RM_User-servicing-manual_TR.indd 1 2021-02-09  5:03:15

Türkçe
Buzdolabının gerçek görüntüsü ve sağlanan parçalar modele ve ülkeye bağlı olarak
değişebilir.
01
03
05
04
02
02
06
03
01Üst menteşe 02Conta
03Çekmece 04Orta menteşe
05Alt menteşe 06Barkod etiketi
RB3000RM_User-servicing-manual_TR.indd 2 2021-02-09  5:03:16

Türkçe
Kol değiştirme
DİKKAT
• Kapı kolunu değiştirirken kapının önünü çizmemeye dikkat edin.
• Sıkıca desteklerdeki kollara basın. Destekler ve kapı arasında hiç boşluk olmadığından
emin olun.
• Kolu takarken vidaları iyice sıkın.
• Ürünü kullanmadan önce kolun iyice takıldığını kontrol edin.
Gerekli aletler (sağlanmaz)
Yıldız tornavida Düz tornavida
Kolları çıkarmak için

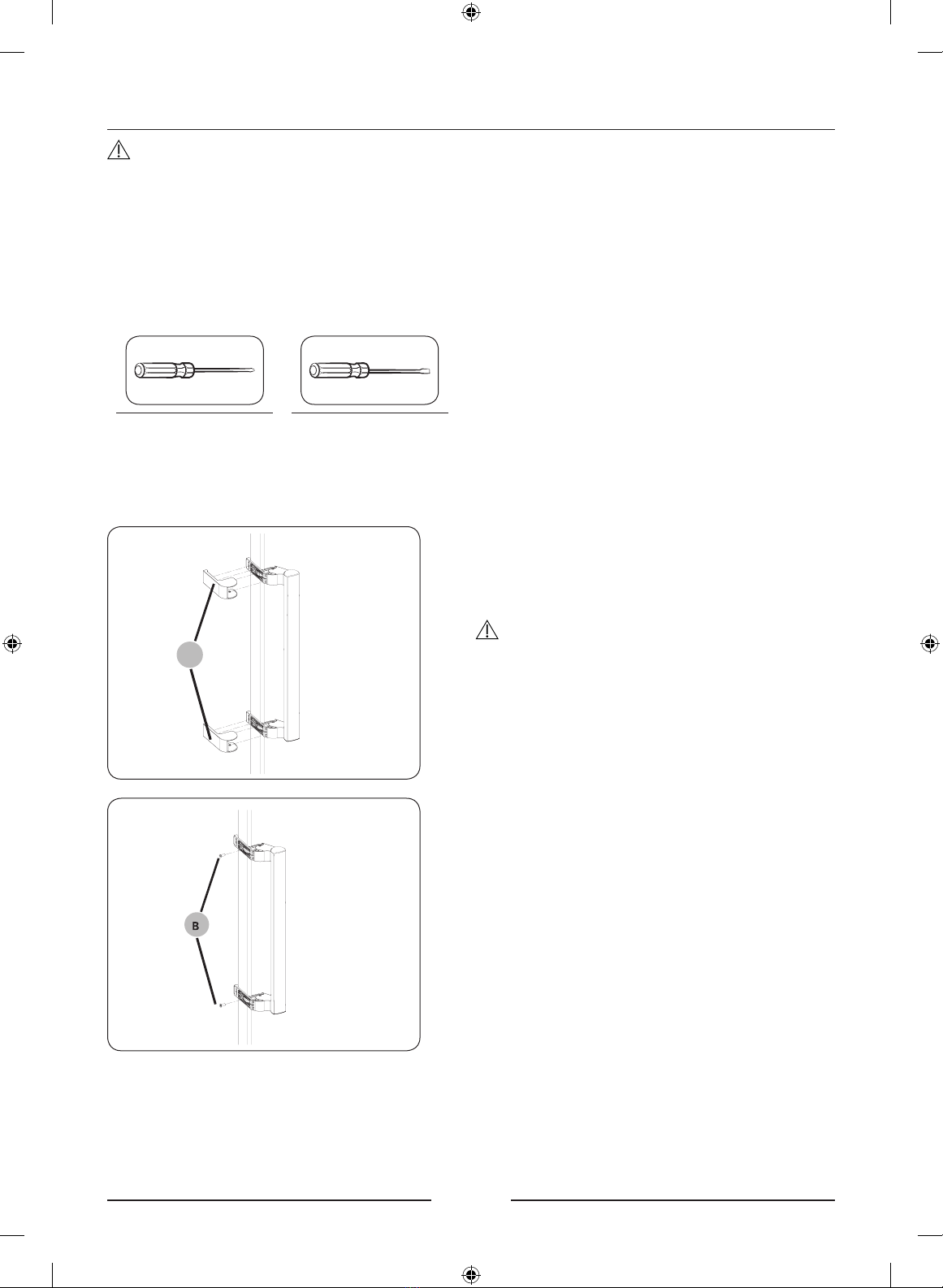

A
1. Kol menteşesi kapaklarını çıkarmak için
düz tornavida kullanın
2. Yıldız tornavida ile iki vidayı çıkararak
kolu sökün.
DİKKAT
• Çizmemeye dikkat edin.
• Sökerken ünitenin kapalı olduğundan
emin olun; birleştirmek istiyorsanız aynı
adımları tersten uygulayın.
3. Yeni kolu sökme adımlarını tersinden
uygulayarak takın.
RB3000RM_User-servicing-manual_TR.indd 3 2021-02-09  5:03:16
