Samsung MWR-WE11N User manual

Air Conditioner
User manual
Wired remote controller MWR-WE11N
•Thank you for purchasing this Samsung Product.
•Before operating this unit, please read this user manual carefully and retain it for future reference.
DB68-06362A-01
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 1 2016-08-01 오전 9:17:53

2
Contents
Preparation
Safety Precautions ............................................................................................................................................................................................................................... 4
Part Names ............................................................................................................................................................................................................................................ 6
Air Conditioner
Basic Operation of Air Conditioner ........................................................................................................................................................................................... 10
Air Flow .................................................................................................................................................................................................................................................. 12
Indoor Temperature Checking Function ................................................................................................................................................................................ 13
Blade Selection.................................................................................................................................................................................................................................... 13
Quiet/Sleep Operation .................................................................................................................................................................................................................... 14
Motion Detect Sensor ...................................................................................................................................................................................................................... 15
Outdoor Air Intake............................................................................................................................................................................................................................. 15
Humidifying Operation ................................................................................................................................................................................................................... 16
S-Plasma Ion ......................................................................................................................................................................................................................................... 16
Power Consumption Check .......................................................................................................................................................................................................... 17
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 2 2016-08-01 오전 9:17:53

3
ENGLISH
Ventilator(ERV)
Basic Operation of Ventilator(ERV) ............................................................................................................................................................................................ 18
Energy Saving Operation ............................................................................................................................................................................................................... 20
Clean Up ................................................................................................................................................................................................................................................ 20
S-Plasma Ion ........................................................................................................................................................................................................................................ 21
External Interconnection Control .............................................................................................................................................................................................. 21
Range Hood Interconnection Control ..................................................................................................................................................................................... 21
Advanced Instruction
Weekly Schedule Setting ............................................................................................................................................................................................................... 22
Setting Holidays during the Weekly Schedule .................................................................................................................................................................... 25
Canceling a Weekly Schedule ...................................................................................................................................................................................................... 26
Initializing a Weekly Schedule ..................................................................................................................................................................................................... 27
Setting Additional User Functions
How to Set the Additional User Functions ............................................................................................................................................................................ 28
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 3 2016-08-01 오전 9:17:53

4
Safety Precautions
This content is intended to protect the user’s safety and prevent property damage. Please read it carefully
for correct use of the product.
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions. Unplug the power plug from
the wall socket.
Do NOT attempt. Do NOT disassemble.
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION
WARNING
The installation of this appliance must be performed by a qualied technician or service company.
Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.
You must connect the product with rated power upon installation.
Failing to do so may result in problems with the product, electric shock, or fire.
Do not install this appliance near a heater, inammable material. Do not install this appliance in a humid, oily or
dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a
location where gas may leak.
This may result in electric shock or fire.
FOR INSTALLATION
CAUTION
Install the product on a hard and even place that can support its weight.
If the place cannot support its weight, the product may fall down and it may cause product damage.
FOR POWER SUPPLY
WARNING
Do not bend or pull the power cord excessively.
Do not twist or tie up the power cord.
This may result in electric shock or fire.
PREPARATION
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 4 2016-08-01 오전 9:17:53

5
ENGLISH
FOR OPERATION
WARNING
If the appliance generates a strange noise, a burning smell or smoke, stop the operation immediately and
contact your nearest service center.
Failing to do so may result in electric shock or fire.
To reinstall the air conditioner, please contact your nearest service center.
Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
A delivery service for the product is not provided. If you reinstall the product in another location, additional construction
expenses and an installation fee will be charged.
If the malfunction diagnosis indicator appears or malfunctions, then stop operation immediately.
If you detect any burning smells from the product or it malfunctions, then immediately turn off the air conditioner/
Ventilator(ERV) and power, and then contact the service center. Continuing to use the device in this state can cause
electrical shock, fire, or damage to the product.
If the E836 indicator appears, then it means that it is time to contact the service center for periodic inspection. Neglecting
these periodic inspections can result in malfunctions (only applicable to GHP model).
Do not attempt to repair, disassemble, or modify the appliance yourself.
This may result in electric shock, fire, problems with the product, or injury.
FOR OPERATION
CAUTION
Do not allow water to enter the product.
This may result in fire or electric shock.
Do not operate the appliance with wet hands.
This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Do not apply a strong impact to the remote controller and do not disassemble the remote controller.
Do not use this product for other purposes.
This product is designed to only be used as a system air conditioner.
Do not press the buttons with any sharp objects.
This may result in electrical shock or part damage.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner, alcohol or acetone to
clean the appliance.
This may result in discoloration, deformation, damage, electric shock or fire.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 5 2016-08-01 오전 9:17:54

6

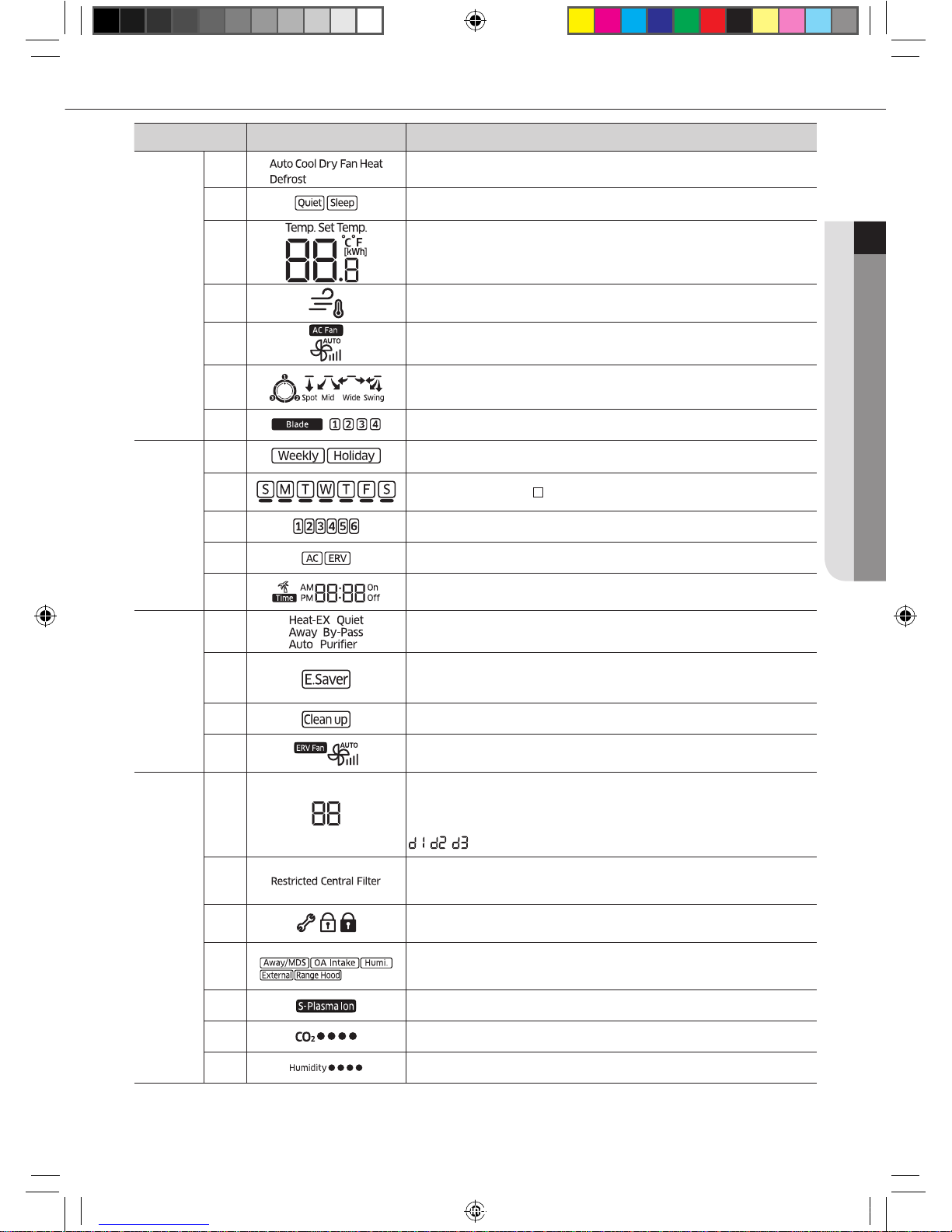

Part Names
Display
• Without opening the cover of your wired remote controller, you can turn the air-conditioner
power on/o or set the desired temperature.
③
①
②
⑳
⑲
⑮

Operation On/Off button
LED Indicator
(Green : Normal / Red : Need to be checked)
Temperature Setting Button
④ ⑤ ⑧ ⑨ ⑩ ⑪ ⑬
⑥
⑰  
⑯
⑭⑫
⑦
⑱
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 6 2016-08-01 오전 9:17:54

7
ENGLISH
Classication Indication Function
Air
Conditioner
Related
Information
①
Displays air conditioner operation
②
Displays Quiet/Sleep operation
③
Displays indoor temperature/set temperature/power consumption
④
Displays discharge temperature control
⑤
Displays AC fan speed
⑥
Displays air flows
⑦
Displays blade selection
Schedule
related
information
⑧
Weekly schedule/Holiday setting displays
⑨
Displays current day( ) or scheduled day(_)
⑩
Displays scheduled number
⑪
Displays scheduled device selection
⑫
Displays current time/summer time/scheduled time
Ventilator
(ERV)
related
information
⑬
Displays ventilator (ERV) operation
⑭
Displays Energy Saving Operation
⑮
Displays Clean up
⑯
Displays ventilator (ERV) fan speed
Common
function
related
information
⑰
Displays remaining time of the auto stop time/ERV delay time
- Solid: Hour unit, Blinking: Minute unit
Displays Demand Response Mode during a Demand Response Event :
, , (It is applicable to some models for Australia only.)
⑱
Displays invalid operation/central control/filter cleaning (filter
cleaning period)
⑲
Displays check/partial locking/full locking
⑳
Displays Away/Motion detect sensor/Outdoor air supply intake/
Humidifying/External interconnection control/Range hood

Displays S-Plasma Ion

Displays indoor CO2density

Displays indoor humidity
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 7 2016-08-01 오전 9:17:55

8
Buttons
③
⑥
①
②
⑧
⑫
⑤
④

⑬
⑯

⑰


⑲
⑪ ⑭ ⑱ ⑮⑳  ⑩
⑦

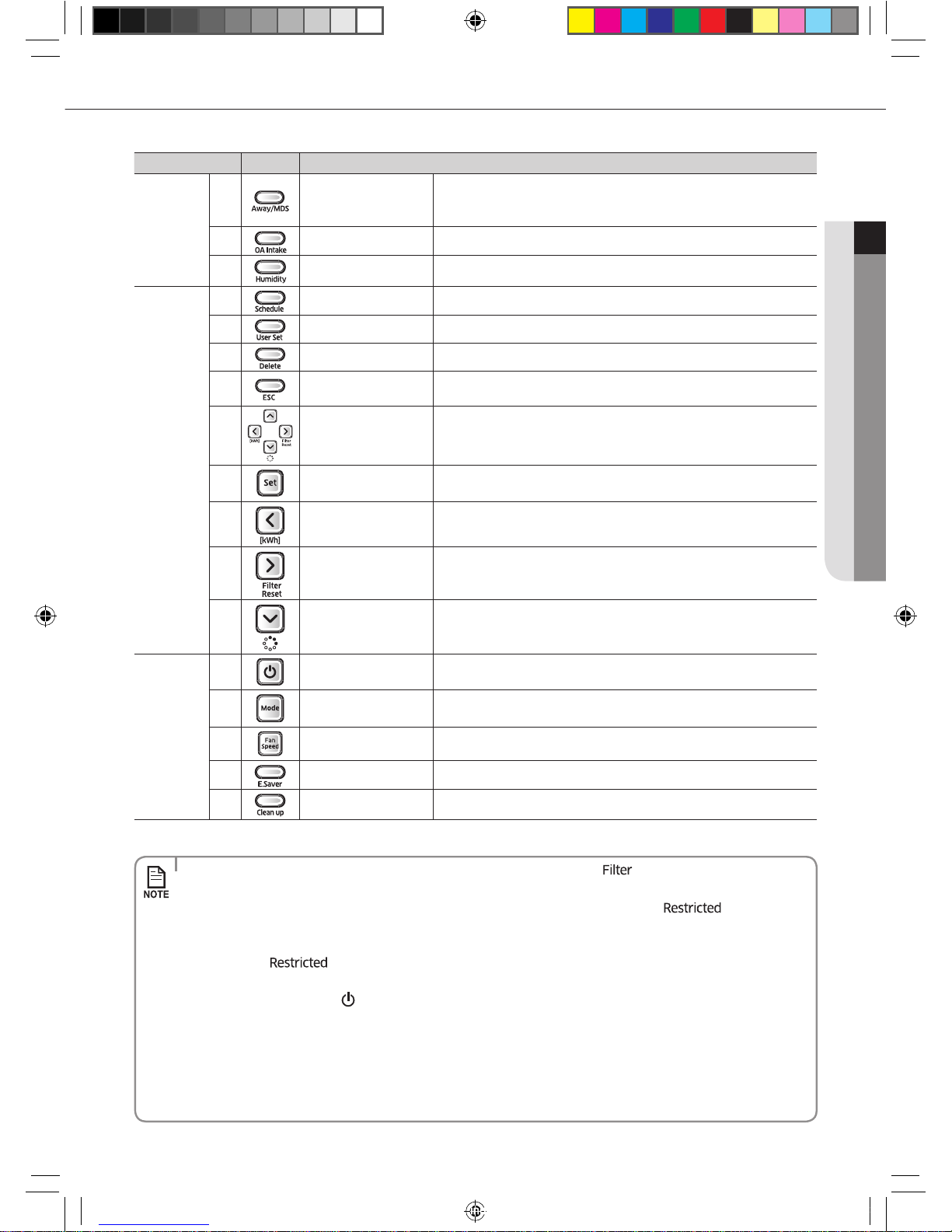

Classication Button Function
Air
conditioner
related
information
①
Operation On/Off
button Turns the air conditioner power On/Off
②
Mode button Selects the desired air conditioner operation
③
Temperature setting
button Sets the desired temperature
④
Fan speed button Changes the air conditioner’s fan speed
⑤
Air Flow button Changes the air flow direction
⑥
Temp. button Checks the indoor temperature
⑦
Blade button Selects a blade for individual control
⑧
Quiet/Sleep button Selects Quiet or Sleep operation for the air conditioner
Part Names
⑨
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 8 2016-08-01 오전 9:17:57

9
ENGLISH
Classication Button Function
Air
conditioner
related
information
⑨
Away / Motion detect
sensor button
Selects when no one is detected in an indoor area, when the air
conditioner needs to be turned off automatically, when the AWAY
operation is set;
⑩
Outdoor air intake Selects the MINI AHU indoor unit Outdoor intake function
⑪
Humidity button Turns the MINI AHU indoor unit humidifying function On/Off
Special
function
displays
⑫
Schedule Button Selects the schedule setting function
⑬
User Set Button Selects the detailed setting function
⑭
Delete button Cancels the schedule setting
⑮
ESC button
Returns to general mode from schedule and detailed setting
screens
⑯
Navigational buttons Moves between items or change the item value
⑰
Set button Saves your new settings
⑱
kWh button Displays the amount of the power consumption
⑲
Filter Reset button Turns off the filter cleaning displays (filter using time reset)
⑳
S-Plasma Ion button Selects the S-Plasma Ion function
Ventilator
(ERV)
related
buttons

Operation On/Off
button
Turns the Ventilator(ERV) On/Off

Mode button Selects the desired operation for the Ventilator(ERV)

Fan speed button Changes the fan speed for your Ventilator(ERV)

E.Saver button Starts Energy Saving Operation

Clean up button Selects air purification through the in/out load controls
• After cleaning the lter, please press the Filter Reset button. The lamp will turn o, and it will
be turned on again upon the next cleaning period.
• If you press a functional button not supported by the indoor unit, then the
lamp will
turn on.
• If the temperature display setting is set to indoor temperature and you press the
Room Temp.
button, the lamp display will appear. (When you install the Wired Remote Controller, the
setting is available.)
• If you press the On/Off button when your Ventilator(ERV) is connected to a Wired Remote
Controller, then the air conditioner and the Ventilator(ERV) might operate or stop at the same
time or only the air conditioner might operate or stop. The factory setting is set to simultaneous
operation/stop. (When you install the Wired Remote Controller, the setting is available.)
•
Although the air conditioner and the Ventilator(ERV) are set to simultaneous operation/stop,
you can individually control the air conditioner and the Ventilator(ERV) by using another controller
(e.g. wireless remote controller, central controller, S-net mini) except for a Wired Remote Controller.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 9 2016-08-01 오전 9:17:58

10

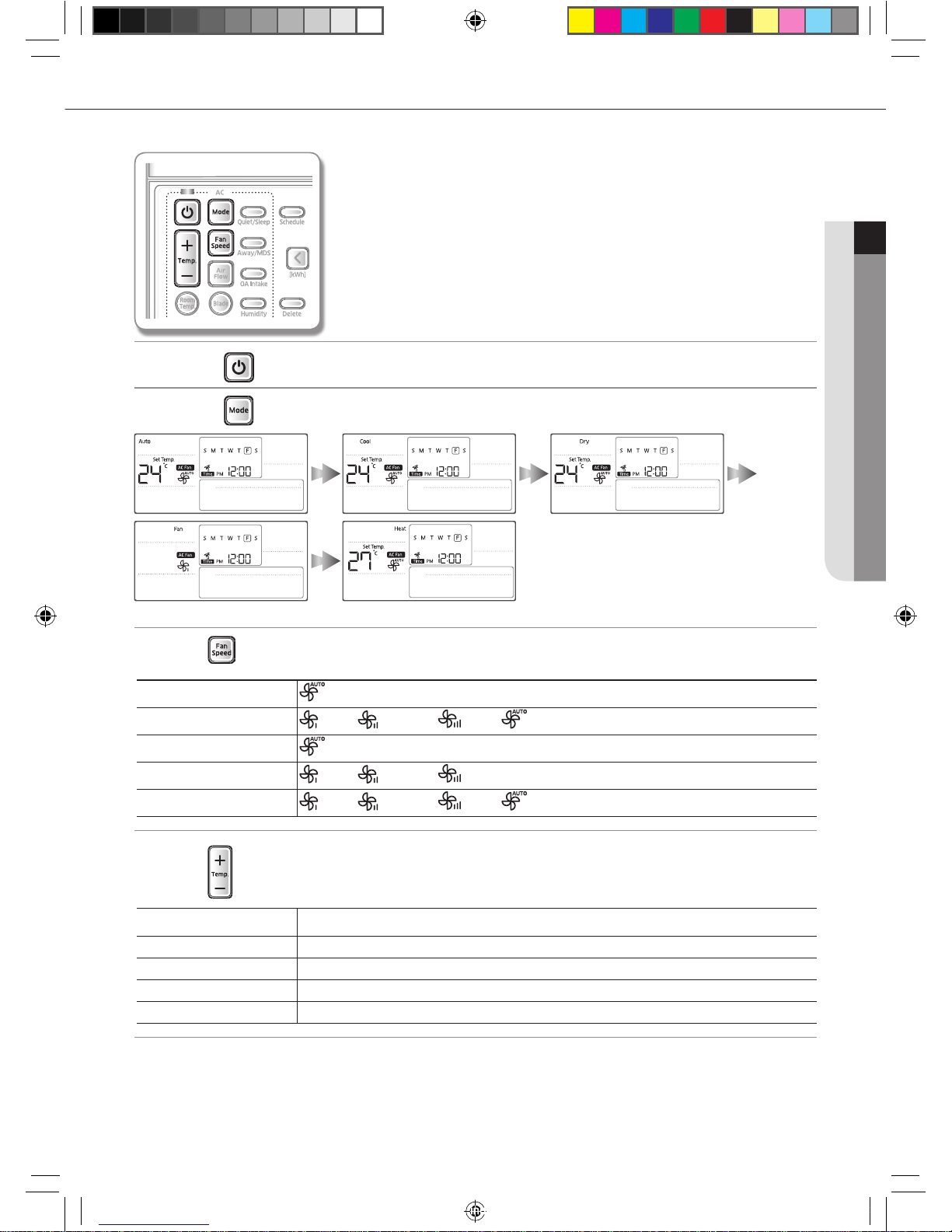

Basic operations can be selected after pressing the Mode button.
Auto
This function allows you to automatically adjust the temperature and the fan speed to maximize your comfort.
• When the indoor temperature is very high, the device will produce a strong, cold wind. When the temperature
cools down, then weaker wind will be produced.
Dry
This operation eectively removes all excess humidity so that you can feel refreshed during rainy days.
Fan
This operation produces wind, just like a powerful fan, so that you can enjoy a refreshing breeze.
Cool
Heat
This is a frequently used operation that allows you to adjust the fan speed, temperature, and wind direction the
way you like.
• If you select heating operation during cooling operation, then the cooling operation is canceled.
This function produces warm wind so that you can use it in the fall or winter.
• Immediately after starting the heating operation, the air conditioner system may stop producing any wind at
all for a while to avoid generating any cold wind.
• Defrost indicator (Defrost)
- If you start removing frost from the outdoor unit during heating operation, the indicator will turn on.
When defrosting is over, the indicator will turn o.
(When the frost is being removed, the indoor unit does not generate any breeze.)
• If you stop the air conditioner after the heating operation, the air conditioner will produce some wind to
discharge all the heat from the indoor unit.
• If you select the cooling operation during heating operation, then the heating operation is canceled.
Basic Operation of Air Conditioner
AIR CONDITIONER
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 10 2016-08-01 오전 9:17:59

11
ENGLISH
Press the button to begin operating the air conditioner.
Press the
button to select the desired operation.
Press the button to select a fan speed.
Auto (Auto)
Cool (Low) , (Medium), (High), (Auto)
Dry (Auto)
Fan (Low) , (Medium), (High)
Heat (Low) , (Medium), (High), (Auto)
Press the button to set the desired temperature.
Auto You can adjust the desired temperature by 1 °C(1 °F) within a range of 18 °C~30 °C(65 °F~86 °F).
Cool You can adjust the desired temperature by 1 °C(1 °F) within a range of 18 °C~30 °C(65 °F~86 °F).
Dry You can adjust the desired temperature by 1 °C(1 °F) within a range of 18 °C~30 °C(65 °F~86 °F).
Fan You can’t change the desired temperature.
Heat You can adjust the desired temperature by 1 °C(1 °F) within a range of 16 °C~30 °C(61 °F~86 °F).
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 11 2016-08-01 오전 9:18:00

12

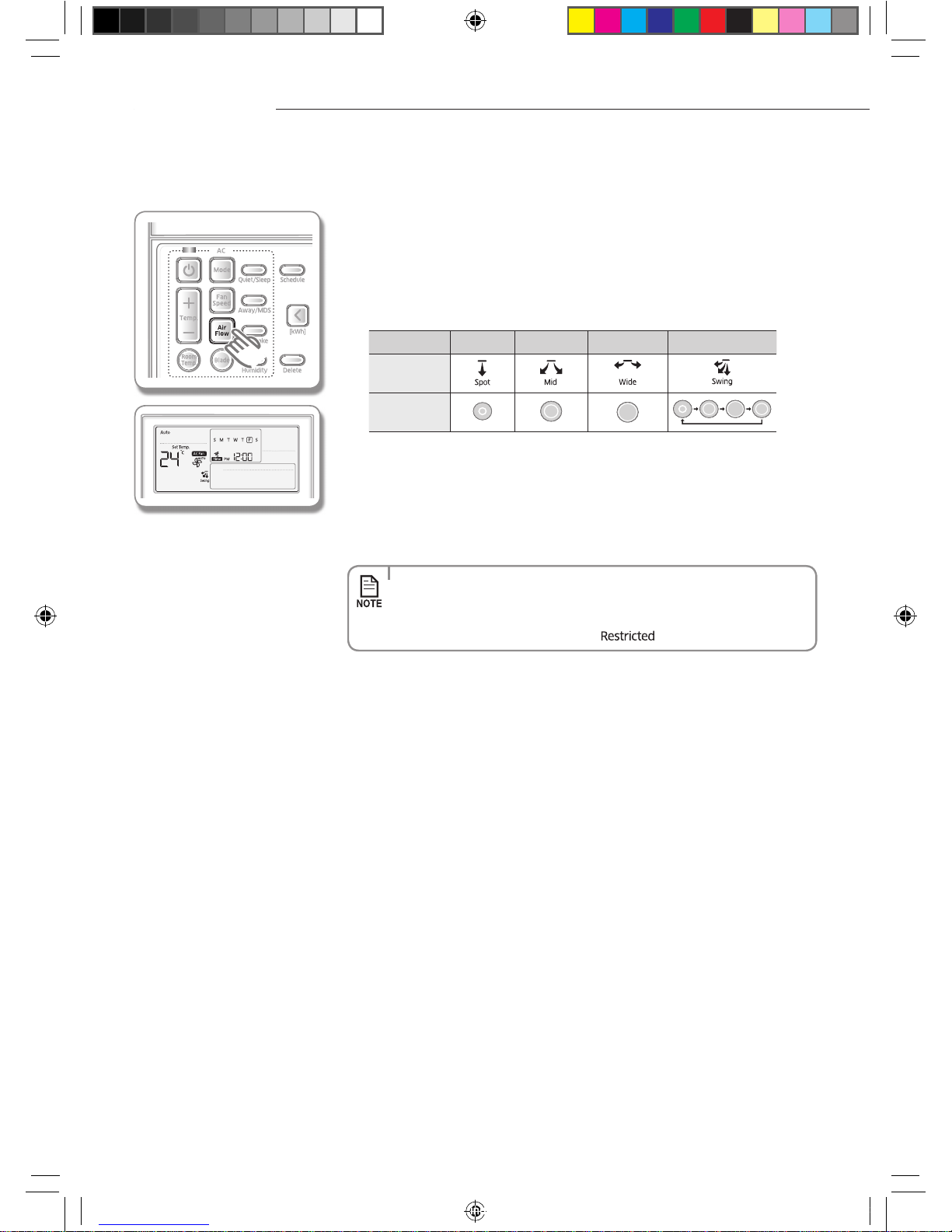

Air Flow
This function allows you to select the desired air ow direction.
Press the Air Flow button to change the air ow direction.
For the models that have no function of selecting air ow direction.
Press the Air Flow button to move the air ow up and down. To keep the air ow
direction, press the Air Flow button again when the air ow blade reaches the desired
position.
For the 360 cassette model, each time you press the Air Flow button, the air ow
direction is changed as follows:
If you press the button to switch the air ow direction to Spot, Mid, or Wide when
a 360 cassette indoor unit is installed together with other types of indoor units, the
blades of other types of indoor units will be xed without movement. Thus, the air
ow direction will not change.
• Even though you change the operation mode or turn on or o the remote
controller, the selected air ow is not aected.
• For the duct type indoor units, when the Air Flow button is pressed, the air
ow direction is not changed but the
lamp will appear.
Display Type Spot Mid Wide Swing
Wired remote
controller display
Indication on
the display
※For some wired remote controllers, the icons for air ow directions are not
displayed.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 12 2016-08-01 오전 9:18:02

ENGLISH
13
Indoor Temperature Checking Function
This function allows you to check the current indoor temperature.
Press the Room Temp. button to check the current indoor temperature.
The current indoor temperature will be displayed.
3 seconds after displaying the indoor temperature, the set temperature
will appear.
• Indoor unit temperature will be indicated by 0.5 °C(1 °F) units.
• Depending on the installation location of your Wired Remote
Controller, the current indoor temperature can be dierent.
• If the temperature display setting is set to indoor temperature
and you press the Room Temp. button, then the
lamp
will appear.
Blade Selection
Select only the desired blade to set Air ow function.
When the air conditioner is on
1. Press the Blade button to select a blade to set the wind direction.

Each time you press the button, it will toggle between 󱁿󱂀󱂁󱂂 → 󱁿 →
󱂀 → 󱂁 → 󱂂 .

The number corresponding to the selected blade will blink.
2.
Press the Air Flow button to select the Air ow direction of the selected blade.
• Depending on the individual setting, a dierent blade could be
selected.
• The blade that can be selected may dier depending on the
model.
• If the indoor unit is o or the blade selection function is not
supported, and you have pressed the Blade button, then the
lamp will be displayed.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 13 2016-08-01 오전 9:18:03

14
Quiet / Sleep Operation
Press the Quiet/Sleep button to select the desired operation.
Quiet operation reduces noise of the operation and with sleeping operation you can have the air conditioner turn o
automatically after six hours without stopping the operation in the middle of the night.
If the air conditioner has both quiet and sleep operation function.
Auto Quiet Cancel is repeated.
Cool Quiet Sleep Quiet/Sleep Cancel is repeated.
Dry Quiet Cancel is repeated.
Fan Restricted lamp will appear.
Heat Quiet Sleep Quiet/Sleep Cancel is repeated.
If the air conditioner has quiet operation function only.
Auto Quiet Cancel is repeated.
Cool Quiet Cancel is repeated.
Dry Quiet Cancel is repeated.
Fan Restricted lamp will appear.
Heat Quiet Cancel is repeated.
If the air conditioner has sleep operation function only.
Auto Restricted lamp will appear.
Cool Sleep Cancel is repeated.
Dry Restricted lamp will appear.
Fan Restricted lamp will appear.
Heat Sleep Cancel is repeated.
• If the air conditioner does not support the quiet and sleep operation,
will appear when you press Quiet/Sleep button.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 14 2016-08-01 오전 9:18:04

ENGLISH
15
Outdoor Air Intake
When a Wired Remote Controller is connected to the MINI AHU indoor unit, you can use Air Intake function for the MINI
AHU indoor unit.
When the air conditioner is on, press the OA Intake button to select the outdoor air intake function.
will be displayed and the function will begin operation.
Press the OA Intake button one more time.Cancel
• If the indoor unit is o or the outdoor air intake function is not
supported, and you have pressed the OA Intake button, then
the lamp will appear.

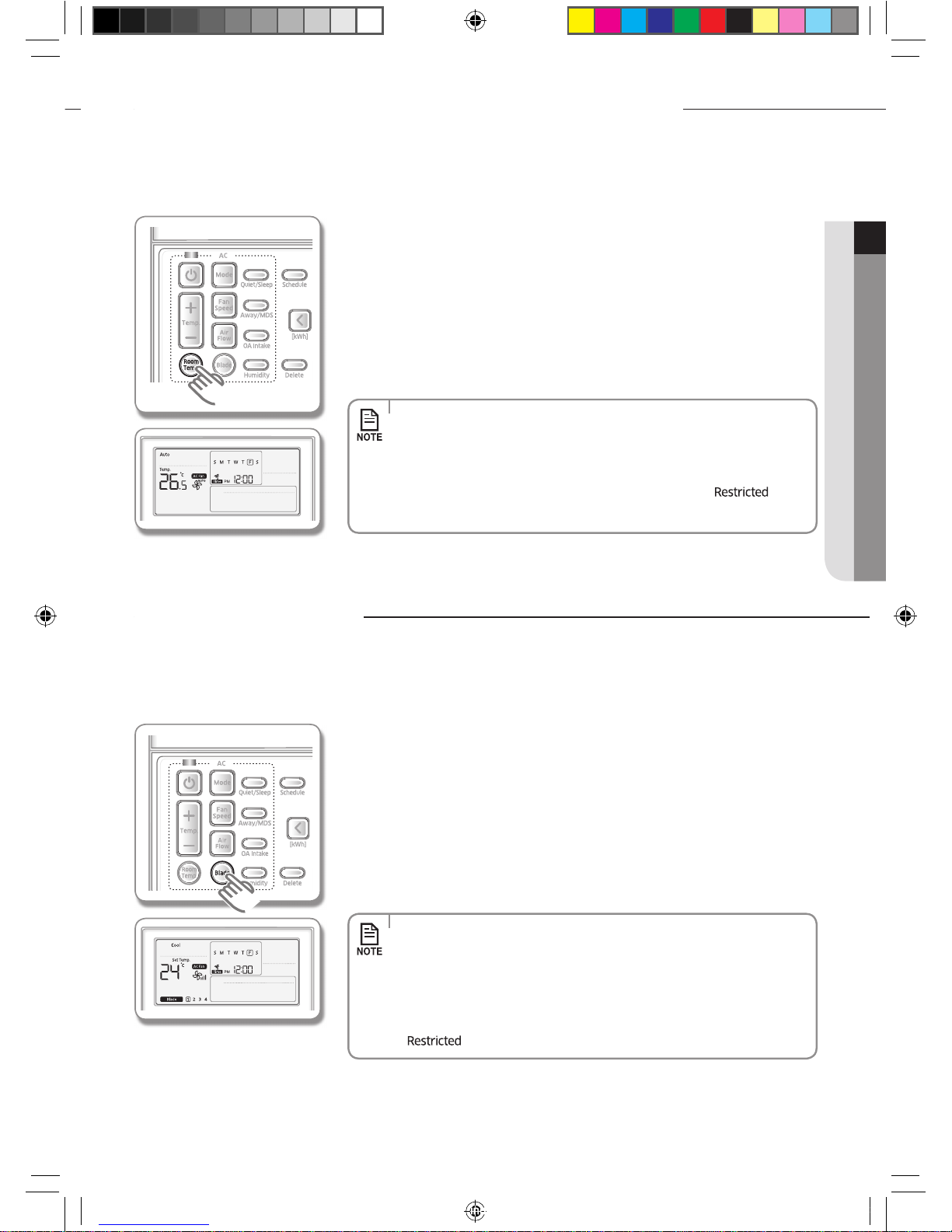

Motion Detect Sensor
Press the Away/MDS button to use the motion detection function.
Automatically turn o the power when there is nobody in the room.
will be displayed and the motion detection function will begin
operation.
Press the Away/MDS button one more time.Cancel
• The Away function is applicable only for the duct inverter
model with Away function.
• If an indoor unit does not support MDS or AWAY operation, but
you press the Away/MDS button, the
lamp will be
displayed.
When the wired remote controller is connected with a duct
will be displayed and AWAY operation will operate.
* Away
Automatically turns o the power after running the energy saving operation for
a certain amount of time.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 15 2016-08-01 오전 9:18:06

16

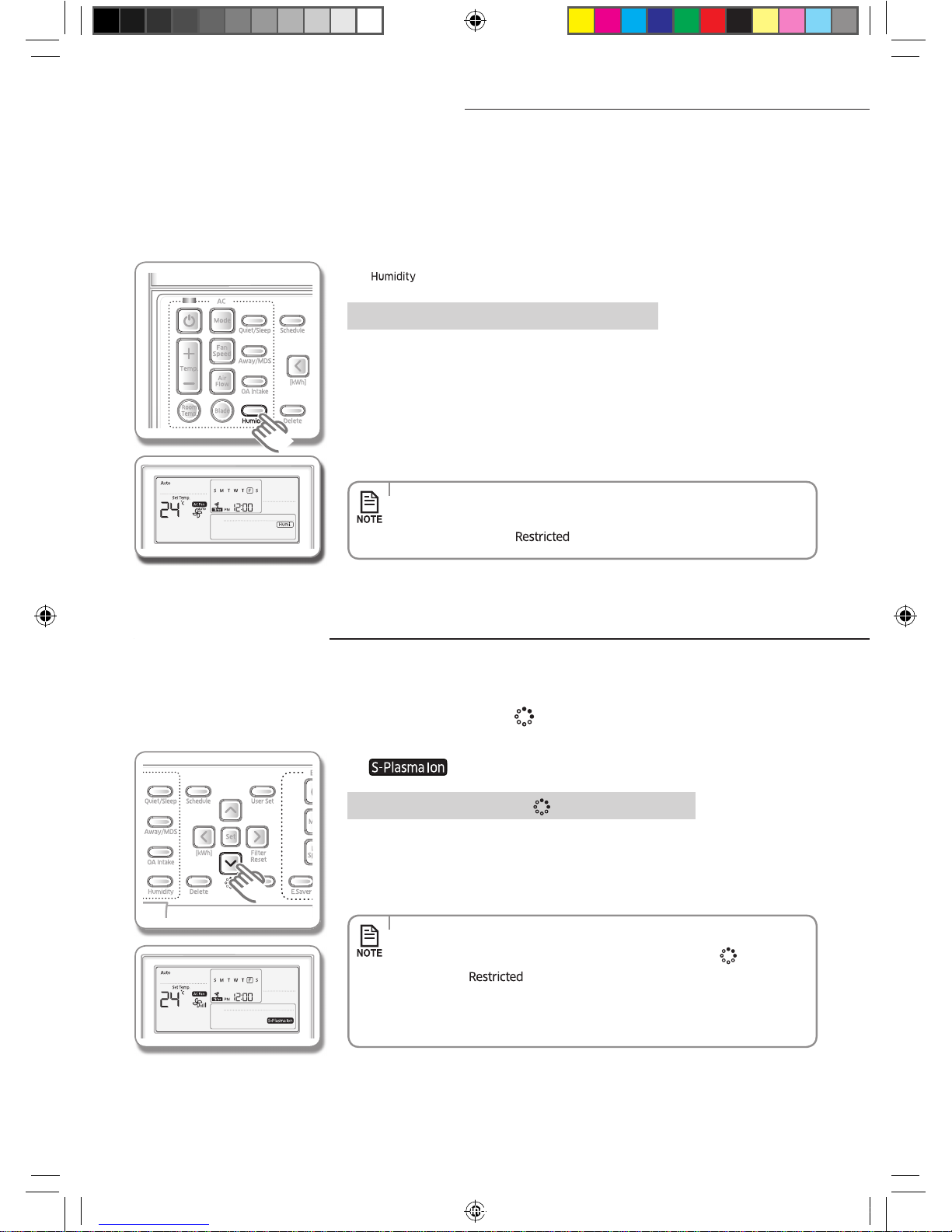

Humidifying Operation
This function allows you to use the humidifying operation of MINI AHU indoor unit when the Wired Remote Controller
is connected to MINI AHU indoor unit. Increase the moisture of dry indoor air and adjust the indoor humidity for a more
refreshing indoor environment.
While the air conditioner is on, press the Humidity button to begin the humidifying operation.
will be displayed and the humidifying operation will start.
Press the Humidity button one more time.Cancel
• If the indoor unit is turned o or it does not support
humidifying operation, and you have pressed the Humidity
button, then the lamp will be displayed.
S-Plasma Ion
Eliminate dangerous airborne contaminants and allergens, as well as bacteria and virus.
When the air conditioner is on, press the S-Plasma Ion button to select the S-Plasma Ion function.
will be displayed and the S-Plasma Ion function is activated.
Press the S-Plasma Ion button one more time.
Cancel
• If the indoor unit is turned o or the S-Plasma Ion is not
supported, and you have pressed the S-Plasma Ion button,
then the lamp will appear.
• This button may not operate in an Ventilator(ERV), but it will
be displayed if the S-Plasma Ion is installed for operation in an
Ventilator(ERV).
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 16 2016-08-01 오전 9:18:08

ENGLISH
17
Power Consumption Check
When the air conditioner is on
Displays the amount of power consumption.
Press the [kWh] button once Press the [kWh] button twice
The power consumption is displayed. The temperature is displayed.
When pressing the [kWh] button once
When pressing the [kWh] button twice
• If you don't press any button for 10 seconds, the desired
temperature will be displayed.
• If the indoor unit is turned o or the [kWh] is not displayed and
you have pressed the [kWh] button, then the
lamp
will appear.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 17 2016-08-01 오전 9:18:09

18
Basic operations can be selected by pressing the Mode button.
Heat-EX
Energy loss is minimized by recovering energy exhausted when indoor heating or cooling.
By-Pass
This activates the intake of external air so that it comes indoors.
Quiet
Reduce the noise generated from Ventilator(ERV) operation.
Auto
This can be automatically adjusted depending on the degree of pollution in your indoor air.
Purier
This cleans and puries your air.
• You can use this function after connecting the Ventilator(ERV) to the IAQ.
Heat-EX/Purier
This can simultaneously operate the Heat-ex mode with purier mode.
By-Pass/Purier
This function can clean the air through an intake of fresh external air.
Intake fresh air will be puried at the same time when this function is used.
Auto/Purier
This function can automatically perform Ventilator(ERV) and cleaning at the same time.
Basic Operation of Ventilator(ERV)
VENTILATOR (ERV)
Away
This function allows you to operate the Ventilator(ERV) while you are away from home.
• If the operational status is changed by another controller, the Away Operation is canceled.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 18 2016-08-01 오전 9:18:10

19
ENGLISH
Press the button to begin the Ventilator(ERV) operation.
Press the
button to select the desired operation.
• The following operation can only take place if all the options for your Ventilator(ERV) are selected.
(When you install the Wired Remote Controller, the setting is available.)
Press the button to change the fan speed.
Heat-EX (High)
▷ (Turbo) ▷ (Low)
Quiet Can’t change the fan speed.
Away (Low)
By-Pass (High)
▷ (Turbo) ▷ (Low)
Auto (High)
▷ (Turbo) ▷ (Low)
Purier (High)
▷ (Turbo) ▷ (Auto) ▷
(Low)
Heat-EX/Purier (High)
▷ (Turbo) ▷ (Low)
By-Pass/Purier (High)
▷ (Turbo) ▷ (Low)
Auto/Purier (High)
▷ (Turbo) ▷ (Low)
※ After installing a CO2sensor in your Ventilator(ERV), you can select from (High) ▹ (Turbo) ▹
(Auto)▹ (Low).
(Exception : Quiet Operation, Away Operation)
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 19 2016-08-01 오전 9:18:12

20

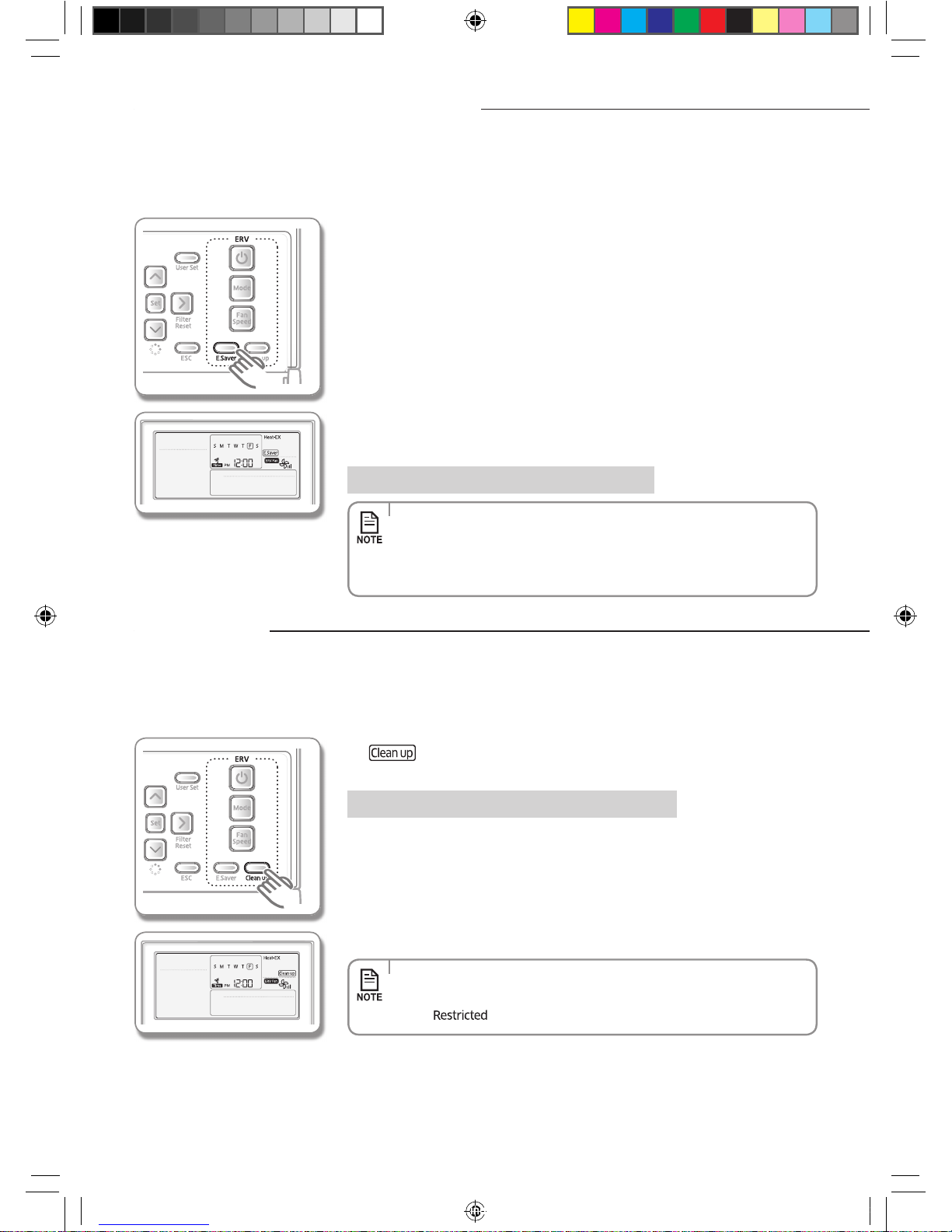

Energy Saving Operation
Clean Up
Reduce your power consumption and save money on your electric bill.
Prevent odor and dust from getting in to the area where you are by making the airow input bigger than the airow output.
Press the E.Saver button to select Power Saving Operation.
When the ventilator(ERV) is on, press the Clean Up button to select the clean up function.
is displayed and the clean up function is activated.
Press the E.Saver button one more time.Cancel
Press the Clean Up button one more time.Cancel
• Energy Saving Operation may not activate when central
control, external control, or a range hood is used.
• When the Air conditioner is connected individually,
Energy Saving Operation is not available.
• If the ventilator(ERV) is on or the clean up function is not
supported, and you have pressed the Clean Up button, then
the lamp will appear.
When the ventilator (ERV) and the air conditioner is connected together
This function compares the outdoor and indoor temperatures, and then
automatically selects Heat-EX operation or By-Pass operation.
When the ventilator (ERV) is installed individually
(Setting On/Off alternating operation)
The ventilator (ERV) will turn On and O in Quiet (Low) mode every 30 minutes.
When the ventilator (ERV) is installed individually
(Setting outdoor air cooling operation for different temperature setting)
Temperature can be adjusted with Temperature setting button.
Either Heat-EX or By-Pass mode will be selected and operate depending on the set
temperature.
NASA_Wired Remote Control_MWR-WE10N_EN_IB_DB68-06362A-01.indd 20 2016-08-01 오전 9:18:13
