Samsung MWR-SH00 User manual

Wired Remote Control
MWR-SH00
Air Conditioner
user manual
EDB98-28134A(3)
imagine the possibilities
Thank you for purchasing this Samsung product.
MWR-SH00_IB_E_28134-3.indd 13 2010-09-03 오후 1:30:16

E-2
Safety Precautions
Do not attempt to install or repair this wired remote
control by yourself.
 This remote control contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for
disconnection and installation of the remote control.
Ensure that the wall is strong enough to support the
weight of the remote control.
Must install the remote control with rated power supply.
In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION
 Do not use inflammable gases near the remote control.
 Do not spill water into the wired remote control.
 Do not operate the remote control with wet hands.
 Do not install the remote control in a location where
it will come into contact with the combustible gases,
machine oil, sulphide gas, etc.
 Do not press buttons with a pointed thing.
 Do not pull or bend the wired remote control cable
excessively.
 Do not use this wired remote control for other purpose.
 Do not spray an insecticide or other combustible things
on the wired remote control.
 Do not clean the wired remote control with benzene,
solvents or other chemicals.
 Do not give a shock to the wired remote control or
disassemble it by yourself.
• Before using the wired remote control, read carefully these instructions.
• After reading the instructions, keep this user's manual in a handy and safe place.
If a user is changed, you must hand over the manuals.
• Never attempt to install the air conditioning system or to move the wired remote
control by yourself.
MWR-SH00_IB_E_28134.indd 2 2007-06-22 ｿﾀﾈﾄ 2:07:47

E-3
Contents
 WIRED REMOTE CONTROL .............................................................. 4
 GETTING STARTED ........................................................................... 5
 SELECTING THE AUTO MODE .......................................................... 6
 SELECTING THE COOL MODE .......................................................... 7
 SELECTING THE HEAT MODE .......................................................... 8
 SELECTING THE DRY MODE ............................................................ 9
 SELECTING THE FAN MODE ............................................................ 10
 DISPLAYING THE DEICE MODE ...................................................... 11
 ADJUSTING THE FAN SPEED ........................................................... 11
MWR-SH00_IB_E_28134.indd 3 2007-06-22 ｿﾀﾈﾄ 2:07:47

E-4
Getting Started
You have just purchased a wired remote control and it has been
installed by your installation specialist.
Your User’s Manual contains much valuable information on using your
wired remote control. Please take time to read it as it will help you take full
advantages of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.

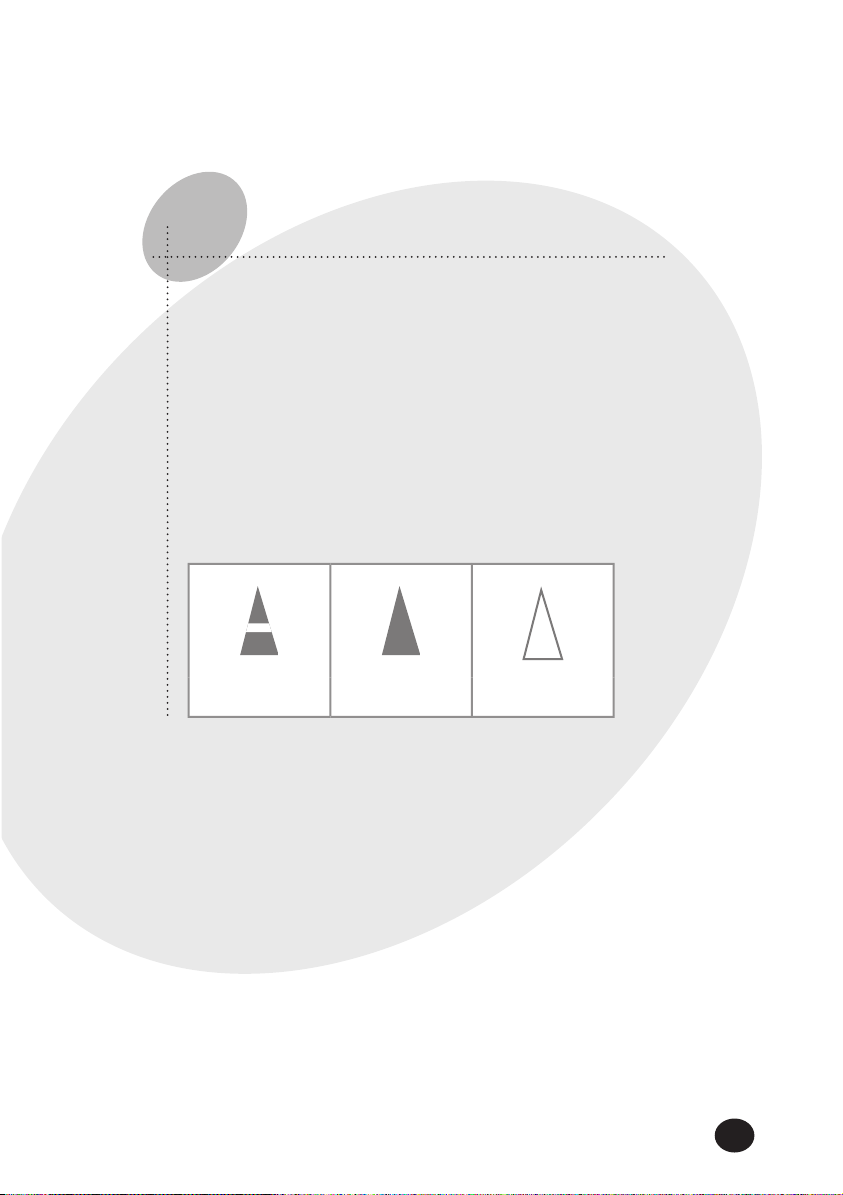

The illustrations in the step-by-step procedures use 3 different symbols:
PRESS PUSH HOLD DOWN

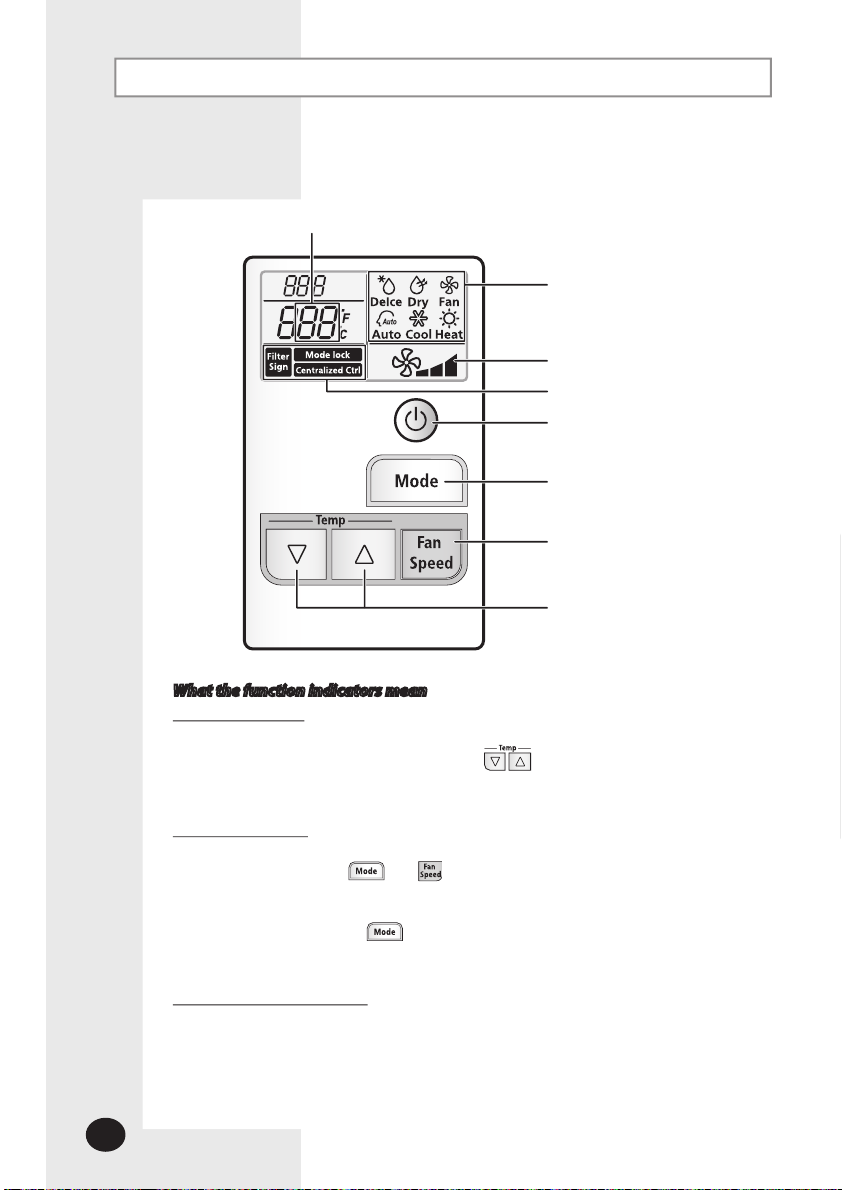

Wired Remote Control
The wired remote control is installed on the wall.
What the function indicators mean
Filter sign indicator
 On : The filter inserted in the air conditioner needs to be cleaned. Clean up the filter
and reset the indicator by pressing the buttons at once for 5 seconds.
 Off : The filter inserted in the air conditioner is working well.
No action needed.
Mode lock indicator
 On : The mode lock function is activating. You can not change the operation mode.
Press and hold the and buttons for 5 seconds to activate and
deactivate the function.
 Off : The mode lock function is deactivating. You can change the operation mode
by short pressing the button.
You cannot activate the function with slave wired remote controls. Slave
wired remote controls just display the activating status only.
Centralized control indicator
 On : The upper controllers (For example, centralized controllers and S-NET series)
activate central control. You cannot control the devices with the wired remote
control when central control is activating.
 Off : Central control is deactivating. You can control the connected devices with the
wired remote control.
Operation mode indicator
Temperature indicator
Fan speed indicator
On/Off button
Mode selection button
Fan speed button
Temperature adjustment buttons
Function indicator
MWR-SH00_IB_E_28134.indd 4 2007-07-03 ｿﾀﾈﾄ 6:03:12

E-5
Getting Started
You have just purchased a wired remote control and it has been
installed by your installation specialist.
Your User’s Manual contains much valuable information on using your
wired remote control. Please take time to read it as it will help you take full
advantages of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use 3 different symbols:
PRESS PUSH HOLD DOWN
MWR-SH00_IB_E_28134.indd 5 2007-06-22 ｿﾀﾈﾄ 2:07:48

E-6

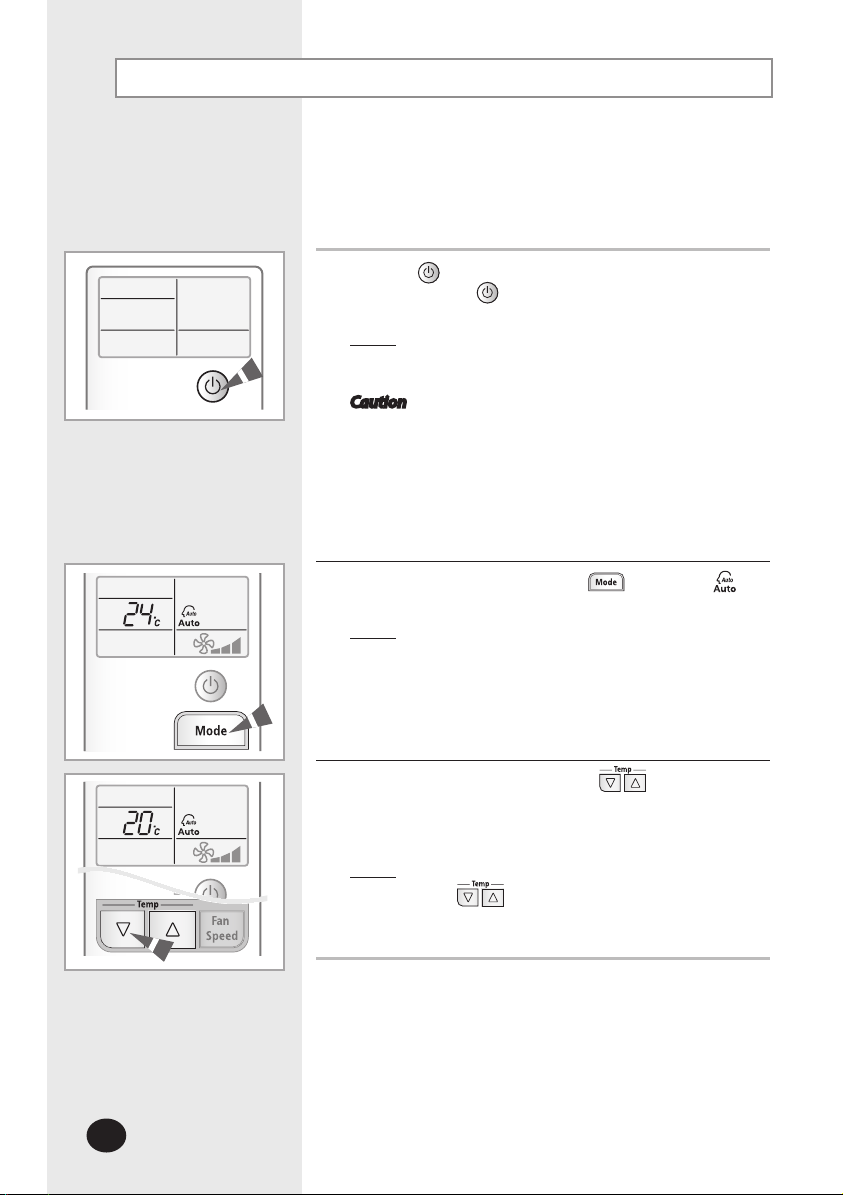

Selecting the Auto Mode
The room temperature and the fan speed are controlled
automatically in the Auto mode.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the Auto mode, press the button until is
displayed on the remote control.
Result: The air conditioner will run in Auto mode.
3
To adjust the temperature, press the buttons to set
the desired temperature.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result: The temperature is adjusted by 1°C(1°F) when
the buttons are pressed.
MWR-SH00_IB_E_28134(2).indd 6 2009-03-02 ｿﾀﾈﾄ 2:16:32

E-7
Selecting the Cool Mode
Select the Cool mode to lower the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the Cool mode, press the button until is
displayed on the remote control.
Result: The air conditioner will run in Cool mode.
3
To adjust the temperature, press the buttons to set
the desired temperature.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result:  The temperature is adjusted by 1°C(1°F) when
the buttons are pressed.
 The air conditioner will start cooling if
the temperature set is lower than the room
temperature.
 The fan will run even if the temperature set is
higher than the room temperature.
4 To adjust the fan speed, refer to page 11.
Note The Cool and Heat mode cannot be selected at
the same time.
MWR-SH00_IB_E_28134(2).indd 7 2009-03-02 ｿﾀﾈﾄ 2:16:33

E-8
Selecting the Heat Mode
Select the Heat mode to raise the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the Heat mode, press the button until is
displayed on the remote control.
Result: The air conditioner will run in Heat mode.
3
To adjust the temperature, press the buttons to set
the desired temperature.
The temperature can be set between 16°C(61°F) and
30°C(86°F).
Result:  The temperature is adjusted by 1°C(1°F) when
the buttons are pressed.
 The air conditioner will start heating if
the temperature set is higher than the room
temperature.
 The fan will run even if the temperature set is
lower than the room temperature.
4 To adjust the fan speed, refer to page 11.
Note The Cool and Heat mode cannot be selected at
the same time.
The Heat mode can be selected only on the heat pump models.
MWR-SH00_IB_E_28134(2).indd 8 2009-03-02 ｿﾀﾈﾄ 2:16:34

E-9
Selecting the Dry Mode
Select the Dry mode if the room is too humid.
Using this mode will slightly lower the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the Dry mode, press the button until is
displayed on the remote control.
Result: The air conditioner will run in Dry mode.
3
To adjust the temperature, press the buttons to set
the desired temperature.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result:  The temperature is adjusted by 1°C(1°F) when
the buttons are pressed.
 The fan speed is adjusted automatically in the
Dry mode.
MWR-SH00_IB_E_28134(2).indd 9 2009-03-02 ｿﾀﾈﾄ 2:16:35

E-10
Selecting the Fan Mode
Select the Fan mode to circulate air without changing the
temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the Fan mode, press the button until is
displayed on the remote control.
Result: The air conditioner will run in Fan mode.
3 To adjust the fan speed, refer to page 11.
Note When the air conditioner is operating in the fan
mode, you can not select the automatic fan speed.
MWR-SH00_IB_E_28134.indd 10 2007-06-22 ｿﾀﾈﾄ 2:07:52

E-11

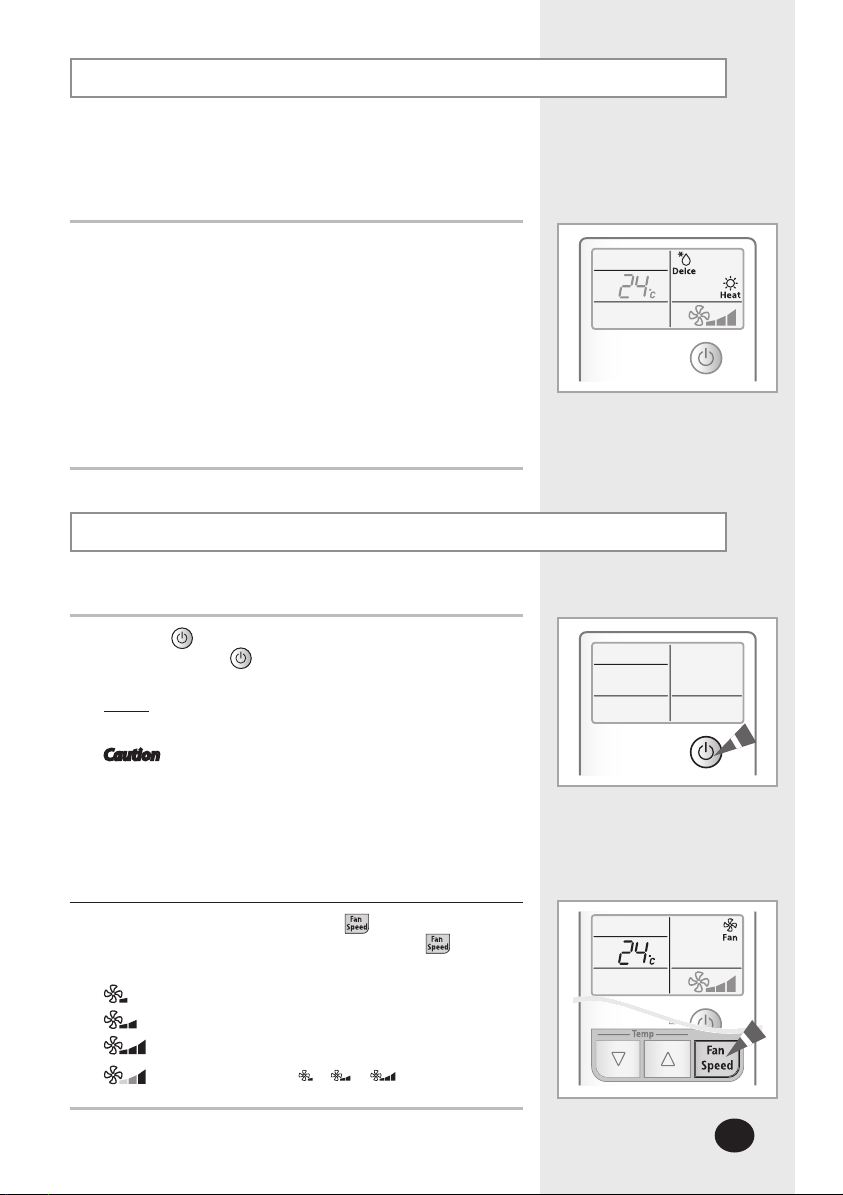

Displaying the Deice Mode
When the Deice mode indicator is on, it means that the air
conditioner is defrosting its outdoor unit under the Heat mode.
When the air conditioner is under heating operation in cold
weather, there may be frost generated by difference of the
temperatures. Under this circumstance, the air conditioner
defrosts by itself to increase the efficiency and save energy.
You can not activate the Deice mode because it is activated
automatically and just displayed on the wired remote control.
Though you change the operation mode before the
defrosting is completed, the Deice mode indicator is on until
the air conditioner finishes the operation. The Deice mode
indicator is off after the air conditioner completes defrosting.
Adjusting the Fan Speed
Change the fan speed fit in your circumstances.
1
Press the (ON/OFF) button to turn on the indoor unit.
(Do not press the (ON/OFF) button if the remote
control is on).
Result: The air conditioner will be turned on with the
mode selected when the unit was last used.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To adjust the fan speed, press the button.
The fan speed is adjusted as follow when the button is
pressed.
Low
Medium
High
Automatic(rotated :   )
MWR-SH00_IB_E_28134.indd 11 2007-06-22 ｿﾀﾈﾄ 2:07:52

MWR-SH00_IB_E_28134-3.indd 12 2010-08-30 오후 9:07:31
