Safety precautions
Important to read and understand at all times
During installation
During operation
Others
Cautions when storing and cleaning discs
RoHS and WEEE
Specifications
Exterior
LED status
System requirements
Product Specifications
How to set up
How to install your Optical Smart Hub
How to connect the cables
How to connect the USB storage device
How to confirm USB 2.0 and installing the USB driver
How to confirm the installation of the device driver
How to remove the USB cable
How to configure the basic setup of the Optical Smart Hub
How to configure the Wi-Fi connection
How to configure the local network connection
How to configure the iSCSI Initiator
How to configure the settings of the Optical Smart Hub
How to log in the Optical Smart Hub
How to configure System
How to configure Network Service
How to configure Maintenance
How to use
How to use the ODD
How to use the discs
How to use DVD±R/RW and other discs
How to use the AV Connectivity function
How to access the Optical Smart Hub
How to access from mobile device
How to access via internet
Troubleshooting

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
FAQ (Frequently Asked Questions)
Cautions for the possible errors
Appendix
Warranty statement
Glossary
Compliance Notice
Samsung's OMS (Optical Media Solution) Customer Support Website (www.samsung-ODD.com) offers the latest versions of
firmware for ODD products, user instructions and product information.
SAFETY PRECAUTIONS
Important to read and understand at all times
Warning
This symbol indicates explanations about extremely dangerous matters. If users ignore this
symbol and handle the device the wrong way, this can cause serious injury or death.
Caution
This symbol indicates explanations about dangerous matters. If users ignore this symbol
and handle the device the wrong way, this can cause damage to the product.
Important Important to read and understand at all times.
Note Note
Important
IF A SOFTWARE PROGRAM IS TO BE BUNDLED WITH THE Optical Smart Hub PROVIDED BY SAMSUNG, THEN YOU MUST HAVE A
SEPARATE, VALID LICENSE FOR SUCH BUNDLED SOFTWARE WITH RESPECT TO THE MANUFACTURE, SALE OR DISTRIBUTION
OF THE PRODUCT (SUCH AS A PERSONAL COMPUTER) CONTAINING THE OPTICAL DISC DRIVE AND THE BUNDLED
SOFTWARE AS ITS COMPONENTS. OTHER THAN THOSE THIRD PARTY LICENSES EXPRESSLY STATED TO BE INCLUDED,
SAMSUNG PROVIDES NO OTHER THIRD PARTY LICENSES, AND HEREBY DISCLAIMS ANY AND ALL LIABILITY WITH RESPECT
THERETO.
During installation

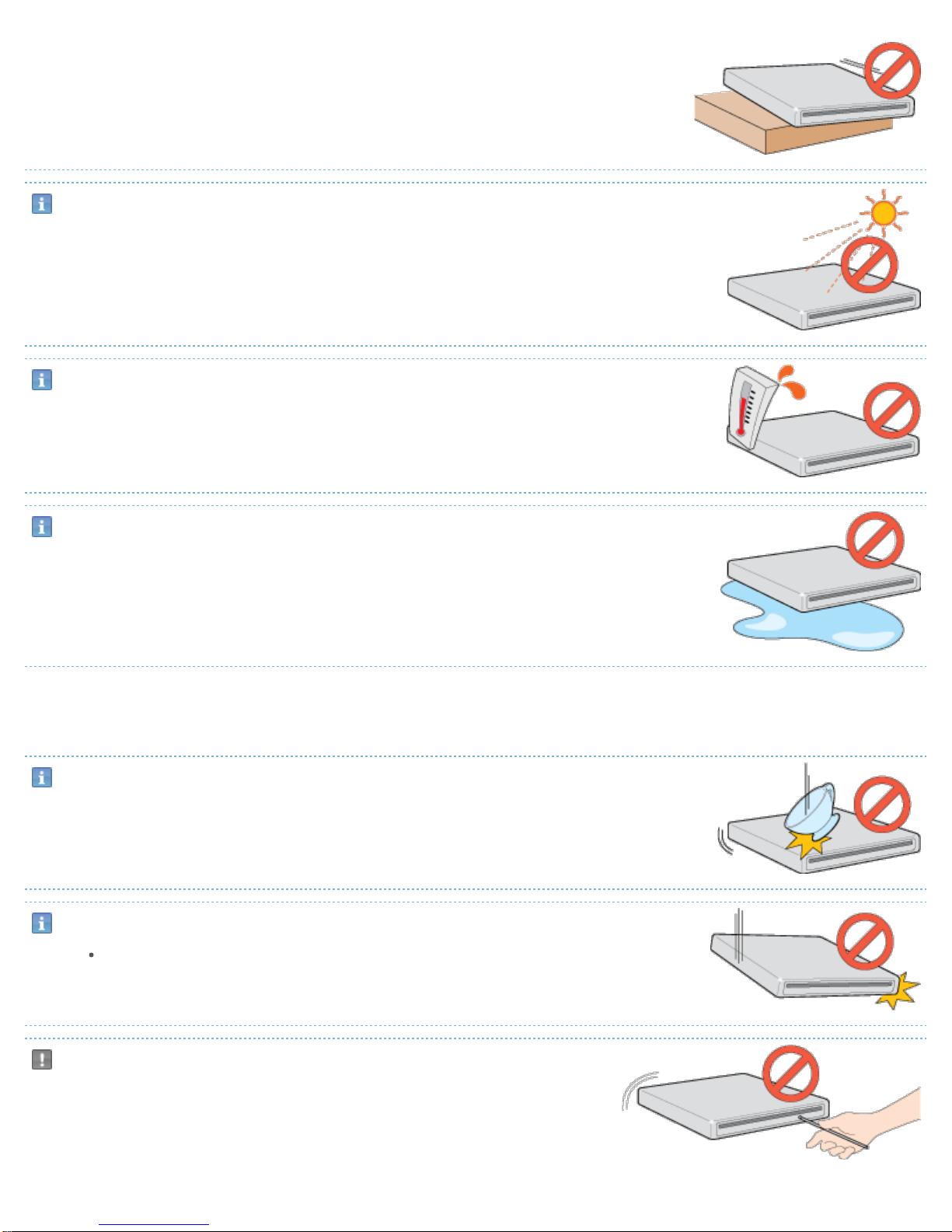

Do not install the Optical Smart Hub on the unstable surface.
SMARTLINK

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
Do not place the Optical Smart Hub in direct sunlight.
Avoid very low or high temperatures.
Avoid high humidity.
During operation
Handle the Optical Smart Hub carefully to prevent damage from an external shock.
Do not drop the Optical Smart Hub. Protect the Optical Smart Hub from severe shocks.
If you do not protect it, this can cause damage to the Optical Smart Hub
Do not move the Optical Smart Hub while in operation. Do not attempt to open the
disc tray by force.
Make sure that you close all open applications before you open the tray. Always
use the Eject button to open and close the tray.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
Do not insert a pin into the emergency hole while the drive is in
operation.
Keep your hand away from the tray while the drive is in operation.
This can result in damage to the product or human body.
Do not use cracked, distorted or damaged discs.
A disc with a crack can break while you use it, especially when the crack is near the
center of the disc.
Before you use the disc, always make sure that it does not have a crack. If the disc has a
crack, we recommend to make a copy of the disc and then use the copy. When you
continue to use a cracked disc, the size of the crack will increase. This will cause irreparable damage to the disc.
Do not use low-quality discs (illegal, scratched, damaged, etc.).
If you use such discs, Samsung is not responsible for the damage that this can cause.
Do not put any heavy items on the Optical Smart Hub
Be careful you do not hurt yourself with the sharp edge of the disc tray while you open or close
it.
Others
Make sure that no foreign material enters the Optical Smart Hub casing.
To protect against fire, do not use any flammable liquids such as alcohol or benzene on the
Optical Smart Hub
Do not disassemble, repair or modify the device without our approval.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
To reduce the risk of damage, electric shock and fire.
Cautions when storing and cleaning discs
Important
This part of the manual gives information to prevent damage or data loss.
Read carefully and follow it correctly.
Storing discs
Do not place it in direct sunlight.
Store discs so that they are lying face down on a flat surface.
Do not scratch the disc or put a label on it.
Handle the disc carefully to prevent damage from an external shock.
Do not expose it to large temperature changes.
(Exposure to such environment can cause congealing.)
Cleaning discs
Do not touch the surface of the disc.
Put your fingers on the edge of the disc to hold it.
Use a soft cotton cloth to clean the disc. Start from the center and move to the edge of the disc.
Use only disc-cleaning liquids. Do not use benzene, paint thinner or other solvents.
Note
If the disc surface becomes dirty with fingerprints, foreign substances or dust, the disc will not function properly.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
RoHS and WEEE
RoHS
Planet First logo
This logo shows consumers that Samsung develops eco-friendly products and demonstrates Samsung’s
continuous efforts to develop eco-friendly products.
RoHS (Restriction of the use of certain hazardous substances in electrical and electronic equipment)
The RoHS, the environmental regulation announced by European Union, restricts the use of lead, mercury, cadmium, hexavalent
chromium, PBB, and PBDE in products put on the market in the European Union after July 1, 2006.
WEEE
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, separate these items
from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not
be mixed with other commercial waste for disposal.
SPECIFICATIONS
Exterior
Front

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]

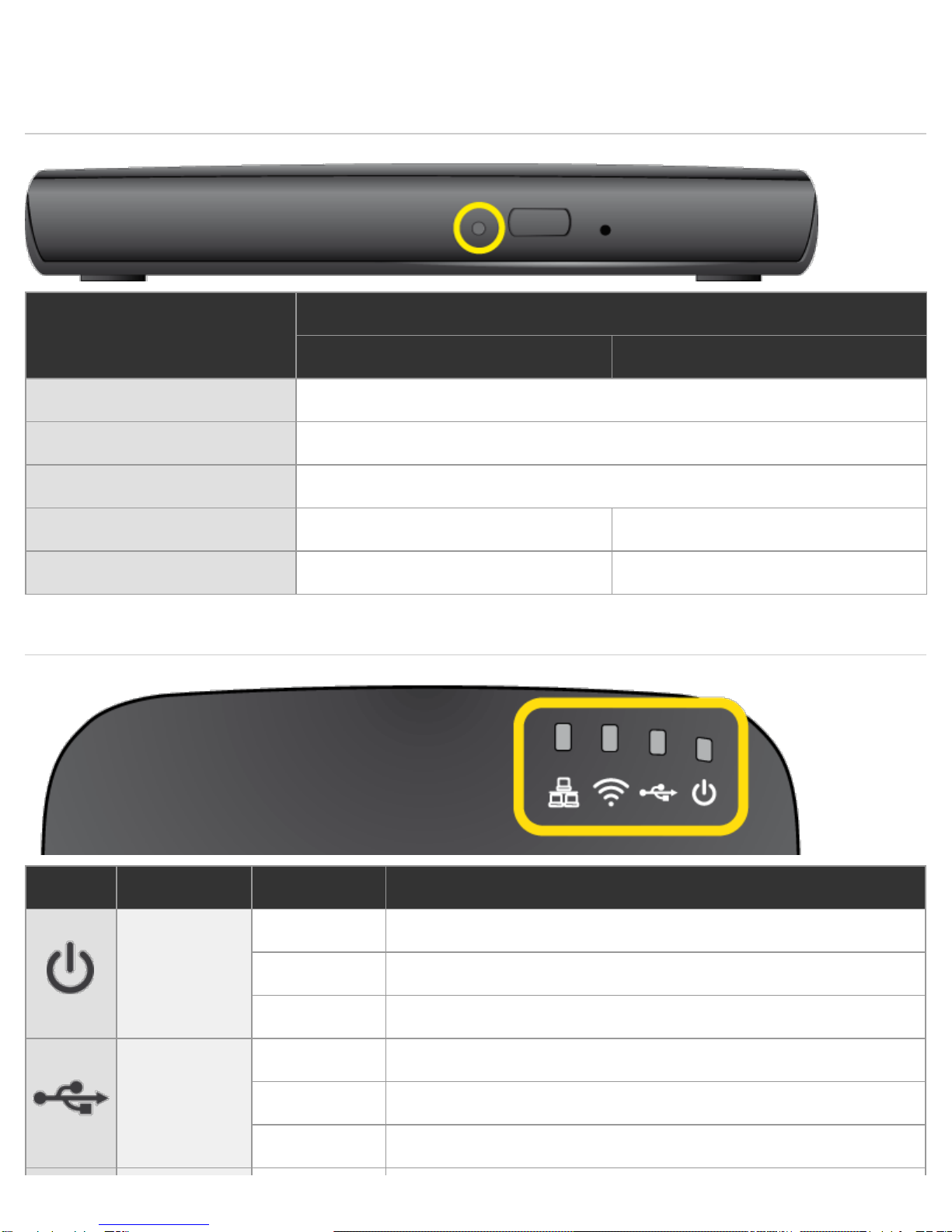

1. ODD LED
2. Eject button
3. Emergency hole
Note
Design and specifications are subject to change without prior notice.
Back
1. EXTERNAL: for connecting the USB storage device
2. RESET: for restoring the factory setting
3. PC/AV: USB interface port for connecting PC/AV
4. WAN: 10/100 Mbps ethernet port for internet connection
5. POWER: for connecting the adapter
Components
Optical Smart Hub
Quick installation guide
Application software & user manual CD
USB Y-cable
Adaptor
Plug
Note
The type of accessories varies depending on a product model. Some accessories are subject to change without notice.
Software for Macintosh not included.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
LED status
ODD LED
Status
LED
General ODD mode AV system support mode
Disc Lead-In Blinks every 0.3 seconds.
Writing Blinks every 0.3 seconds.
Reading Blinks every 0.3 seconds.
Standby Off On
No Disc Off On
LED
LED Name Status Description
POWER
On Optical Smart Hub is turned on.
Blinks Optical Smart Hub is booting.
Off Optical Smart Hubis turned off.
USB
On USB storage device is connected.
Blinks Transferring data via USB is in progress.
Off USB storage device is not connected.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
WLAN
On Wi-Fi connection is turned on.
Blinks Transferring data via Wi-Fi is in progress.
Off Wi-Fi connection is turned off.
WAN
On Internet connection is turned on.
Blinks Transferring data via internet is in progress.
Off Internet connection is turned off.
System requirements
Basic system requirements
Item Description
OS
Microsoft Windows 2000 (SP4) / XP(SP1.0 or above) / Vista / 7
MAC OS X (10.4.6 or above)
CPU Pentium4 2.0 GHz or above / Atom 1.6 GHz or above
RAM 512 MB or more (Windows 2000 / XP), 1 GB or more (Windows Vista / 7)
Interface
USB 2.0 interface connector (For External ODD)
10/100 Base-T/TX Ethernet for wired networking
802.11 b/g for wireless networking
Note
The Optical Smart Hub will not always be able to achieve its maximum performance. This depends on the PC system environment
and user’s network environment.
System requirements for using the AV connectivity function
Item Description
OS Linux, WinCE
Device function Video, photo & music file playing function through a USB interface
USB port current 1.4 A or higher

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
Note
Even if the above requirements are satisfied, the function may not work on some devices.
Using the function with a device to which an external USB storage device can be connected, is recommended
Product Specifications
Category
SE-208BW
ODD
Disc
Usable discs
DVD:
DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-ROM, DVD-Video,
DVD+R DL, DVD-R DL, DVD-RAM
CD:
CD-ROM, CD-R, CD-RW, CD-DA, CD+E(G), CD-MIDI, CD-TEXT,
CD-ROM XA, Mixed Mode CD, CD-I, CD-I Bridge (Photo-CD,
Video-CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio)
Disc diameter
3.15 inch or 4.72 inch
(80 mm or 120 mm)
Interface support Interface port USB 2.0
Access time (random)
DVD-ROM 190 ms
CD-ROM 190 ms
Data transfer speed (max)
Media type Read Write
DVD-R CAV 8X PCAV 8X
DVD-RW CAV 8X ZCLV 6X
DVD-R DL CAV 8X ZCLV 6X
DVD+R CAV 8X PCAV 8X
DVD+RW CAV 8X ZCLV 8X
DVD+R DL CAV 8X ZCLV 8X
DVD-ROM CAV 8X -

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
DVD-RAM PCAV 5X PCAV 5X
CD-R CAV 24X PCAV 24X
CD-RW CAV 24X ZCLV 24X
CD-ROM CAV 24X -
Buffer memory 1 MB
Drive installation Horizontal
Operating environment
Temperature 0 °F ~ 122 °F (0 °C ~ 50 °C)
Humidity 5% ~ 80% (RH)
Dimensions
(width x height x length)
140 mm X 15.5 mm X 190 mm
Weight 450 g
Note
Use the USB cable provided with the product for the best ODD performance.
Cannot playback or record on both sides of a dual layer disc simultaneously.
The read/write capacity of the supported discs depends on the condition of the disc and the recording format of the
drive. Therefore, the read/write quality may not be perfect.
Firmly install the product into the PC before use.
Specifications are subject to change without notice.
Important
The product specifications above may be changed to improve device performance without prior notice.
Category
SE-208BW
Optical Smart Hub
Wireless
Compliant Standard
IEEE802.11 b/g
(802.11n can be supported)
Frequency range 2.412~2.462 MHz (802.11 b/g/n), 2.422~2.452 (802.11n)
Access method CSMA / CA
Data transfer method DDSS, OFDM, Half Duplex
802.11b – 11 Mbps

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
Data transfer speed (max)
802.11g – 54 Mbps
802.11n – 150 Mbps(1Tx-1Rx-2CH bonding)
WDS Supported
Encryption type WEP, WPA-PSK, WPA2-PSK, MIXED
WAN
Compliant Standard
IEEE802.3 / 802.3u / 802.3ab
(10base-T, 100base-Tx)
Access method CSMA / CD
ISP protocols supported 1Static IP, DHCP Client, PPPoE
Interface connector type Auto MDI-X, RJ-45
DLNA DMS Supported (Samsung AllShare supported)
iSCSI Supported
CDDA Supported with the iOS/Android Optical Smart Hub app only
DVD Play back Supported with the iOS/Android Optical Smart Hub app only
Smart Backup
USB Supported with the iOS/Android Optical Smart Hub app only
ODD Supported with the iOS/Android Optical Smart Hub app only
FTP Supported (Using the FTP client software is recommended.)
SAMBA Supported
Note
Transfer rate may vary based on the user’s network environment. For the best performance, avoid interference with
other equipment.
DLNA : NFLC2.1 (manufactured by ACCESS Korea Co. Ltd.) is used.
HOW TO SET UP
How to install your Optical Smart Hub
How to connect the cables
Note

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
If you want to use your Optical Smart Hub as the external ODD only, you do not need to connect the adapter and internet cable to
the Optical Smart Hub.
1. Connect the adapter and internet cable to the Optical Smart Hub.
Caution
Use the adapter provided with the product. Failing to do so may result in damage to the Optical Smart Hub
2. The POWER LED blinks while the Optical Smart Hub is booting.
After the booting is completed, the POWER LED remains
turned on.
For detailed information on LED indications, refer to the “Features – Product Information” page.
3. Connect the USB cable to the USB connector on the Optical Smart Hub.
4. Connect the other end of the USB cable to your PC, TV or other devices.
Connecting to the TV
Connecting to the PC

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
Caution

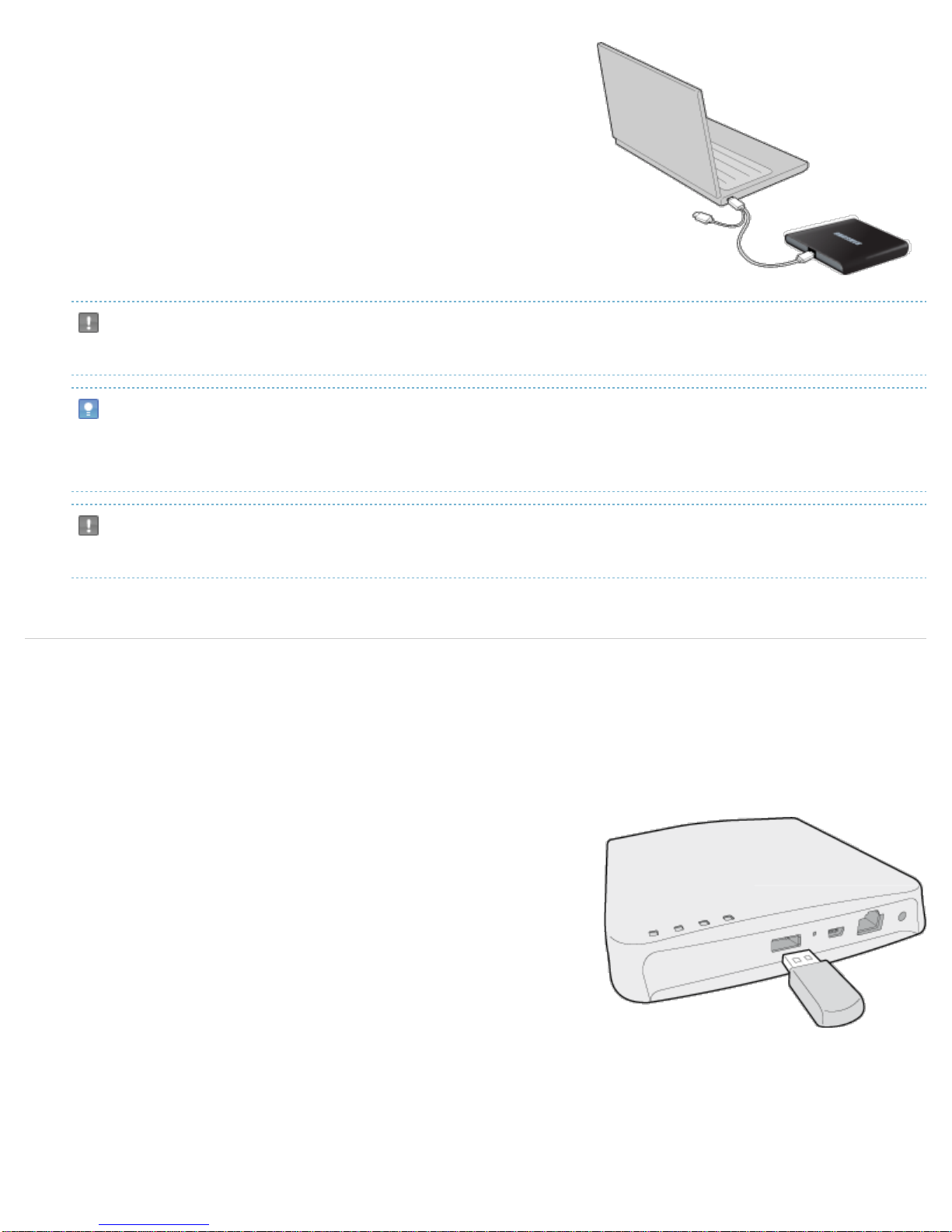

Normal operation is not guaranteed if you use a USB hub or unspecified cables.
Note
PCs, TVs and other devices with insufficient USB bus power will not work correctly if you use only one USB port. To
avoid this, connect the Optical Smart Hubto 2 USB ports like the pictures of below.
Caution
If your computer does not have a USB connector, install a USB interface card.
How to connect the USB storage device
You can use your external HDD or USB memory stick as the additional storage space by connecting it to the external port of the
Optical Smart Hub.
How to connect the external HDD
1. Connect the USB cable to the USB connector on your external HDD.
2. Connect the other end of the USB cable to the external port at the back of
the Optical Smart Hub.
How to connect the external HDD
1. Connect your USB memory stick to the
external port at the back of the Optical Smart Hub.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
How to confirm USB 2.0 and installing the USB driver
How to confirm USB 2.0
If your PC does not have a USB 2.0 port and you want to use the Optical Smart Hub at its highest speed, you must install a USB 2.0
adapter card. The Optical Smart Hub can also operate with USB 1.1, but at a lower speed. You can check the type of USB 2.0 adapter card
for your PC as follows.
How to install the USB driver
Windows
1. Right-click the My Computer icon on your desktop and select Properties.
2. Click on the Hardware tab. Click the Device Manager button.
3. Look at the Universal Serial Bus Controller entry. If a yellow exclamation point shows next to this entry, contact the
manufacturer of the USB card or PC.
Macintosh
1. Click on About This Mac. Click on More Info….
2. Look at the Universal Serial Bus Controller entry. If a yellow exclamation point shows next to this entry, contact the
manufacturer of the USB card or PC.
How to confirm the installation of the device driver
Windows 7
1. Click Start - Control Panel - System and Security - System Device Manager.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
2. Click the drive in the Device Manager window.
Windows Vista
1. Click Start - Control Panel - System - Device Manager.
2. Click the drive in the Device Manager window.
Windows XP
1. Click Start - Settings - Control Panel - Performance and Maintenance.
2. Click the Administrative Tools icon in the Performance and Maintenance window.
3. Click the Computer Management icon in the Administrative Tools window.
4. Click the Device Manager icon in the Administrative Tools window and then click the drive.
Windows 2000
1. Click Start - Settings - Control Panel - System.
2. Click on the Hardware tab in the System Properties window.
3. Click on the Device Manager tab.
4. Click the drive in the Device Manager window.
Macintosh
1. Click Macintosh - More Info….
2. Click the Device Manager button.
How to remove the USB cable
Warning
Do not disconnect the USB cable while the drive is in operation or the computer starts.
Windows
This device supports Windows Plug & Play.
To remove the USB cable:
1. Close all active software programs.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
2. Click the icon in the lower right part of the screen. See the picture.
3. Disconnect the USB cable.
Macintosh
This device supports Macintosh Plug & Play.
To remove the USB cable:
1. Click the icon in the left menu. See the picture.
2. Disconnect the USB cable.
How to configure the basic setup of the Optical Smart Hub
How to configure the Wi-Fi connection
1. Insert the provided bundle CD into the CD drive on the PC equipped with a wireless LAN card.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
2. A window as shown in the figure will be displayed. Then enter the SSID and password of the
Optical Smart Hub and then click the Next button.
Note
For the factory default SSID and password, see the label attached to the bottom side of the Optical Smart Hub.
3. The PC finds and connects to the Optical Smart Hub via Wi-Fi.
4. When connected, the connected Optical Smart Hub is displayed as shown in the figure at right. If you
want to change the SSID and password, enter a new SSID and password and then click the Next
button.
Note
If you don't want to change them, leave the input fields blank and click the Next button.
5. The Wi-Fi configuration has been completed. Click the Next button to move to the window
where you can configure the local network connection.
How to configure the local network connection

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]

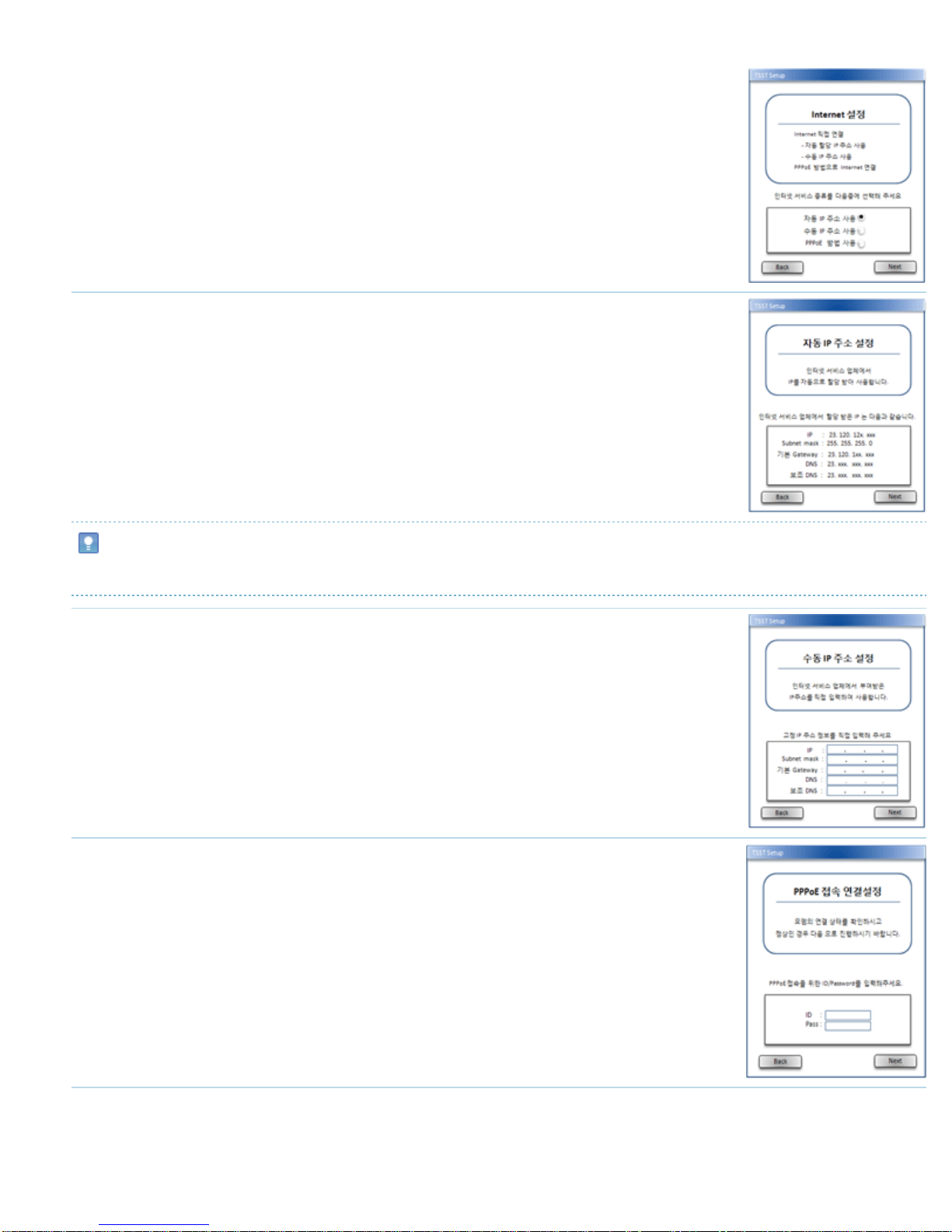

1. Select the type of the internet service you are using and then click the Next button.
2. If the 'Automatic IP address' option is selected, the IP address allocated by the ISP is detected
automatically and displayed. If the IP address has been detected successfully, click the Next
button.
Note
If the IP address failed to be detected, contact your ISP company.
3. If the 'Manual IP address' option is selected, manually enter the fixed IP address settings being
used and then click the Next button.
4. If the PPPoE connection option is selected, enter the ID and password received from the ISP and
then click the Next button.
5. The local network connection configuration has been completed. Click the Next button to move
to the window where you can configure the iSCSI Initiator.

SE-208BW User manual
file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46]
How to configure the iSCSI Initiator
Windows 7 / Vista
1. When you are moved to the iSCSI Initiator configuration window, a message window asking you to
agree to start the iSCSI service will be displayed as shown in the figure right. You must agree to start
the service to run the Microsoft iSCSI Initiator. If you agree, click the Yes button.
2. Then move to the iSCSI Initiator configuration window and click the Next button.
Note
In Windows Vista, when you click the Next button the message “Do you want to unblock the Microsoft iSCSI service so
that it can communicate with an Internet storage name service through Windows Firewall?” is displayed. Since this is
related to the firewall configuration, click the Yes button.
3. The iSCSI Initiator configuration has been completed.
Windows XP / 2000
1. When you are moved to the iSCSI Initiator configuration window, the Microsoft iSCSI Initiator
program provided by Microsoft starts to be installed automatically.
