Getting started
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Some content may differ from your device depending on the device’s software version,
the app’s version, or model specifications. Content is subject to change without prior
notice.
•
Before using the SmartThings Wifi/Hub, make sure it is compatible with your device.
•
The SmartThings Wifi/Hub’s performance may differ depending on the environment.
•
This product includes certain free/open source software. To see the instructions for
viewing the open source licence, go to the Samsung website (opensource.samsung.com).
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
English (UK)
1

Getting started
4
About SmartThings Wifi/Hub
The SmartThings Wifi/Hub is a Wi-Fi router that can connect your smartphone to your smart
home appliances via Wi-Fi. You can also connect Internet of Things (IoT) devices to this
SmartThings Wifi/Hub via the Samsung SmartThings Hub feature.
For larger homes, you can connect more SmartThings Wifi/Hubs.
Package contents
Check the product box for the following items:
•
SmartThings Wifi/Hub
•
Ethernet cable
•
AC/DC adapter (hereafter“adapter”)
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
English (UK)
2

Getting started
5
Device layout
AC/DC adapter
connector
WAN port (IN)
LAN port (OUT)
Reset hole
Fan vent
Indicator light
Ethernet cable
AC/DC adapter
The appearance and internal structure of the product may vary depending on the
model.
English (UK)
3

Getting started
6
Indicator light
The indicator light alerts you to the SmartThings Wifi/Hub status.
Colour Status
Green Power on, Working
Flashes green Booting/resetting the system
Flashes green and red Waiting for devices to connect
Flashes red Function error
Power consumption
•
Overall standby power consumption (when all network ports are turned on: 4.5 W
English (UK)
4

7
Using the SmartThings Wifi/
Hub
Connecting with a mobile device
To connect the SmartThings Wifi/Hub with a mobile device, you must install the SmartThings
app on the mobile device. You can download the app from
Galaxy Apps , Play Store , or App
Store
.
•
Visit www.samsung.com to see compatible devices with the SmartThings app.
•
You must register and sign in to your Samsung account to use the SmartThings
app.
•
Supported features may vary depending on your mobile device and its operating
system.
•
The SmartThings Wifi/Hub’s Bluetooth feature is automatically turned on to
establish a connection. When the connection is complete, the Bluetooth feature
will turn off automatically.
English (UK)
5

Using the SmartThings Wifi/Hub
8
SmartThings Wifi/Hub
1 Connect one end of the Ethernet cable to the hub’s WAN port (IN) and the other end to
the modem’s LAN port.
2 Connect the adapter to the SmartThings Wifi/Hub.
The SmartThings Wifi/Hub will turn on and the indicator light will flash green.
Use only Samsung-approved adapters (12 V/2.1 A or higher).
•
You can use the SmartThings Wifi/Hub only when you connect the SmartThings
Wifi/Hub to an adapter.
•
If the SmartThings Wifi/Hub temperature exceeds 55 °C, the internal fan will
automatically activate (ET-WV533 only).
•
If the SmartThings Wifi/Hub overheats for a prolonged period, the SmartThings
Wifi/Hub may automatically turn off or reset. When this happens continually,
disconnect the adapter from the SmartThings Wifi/Hub and contact a Samsung
Service Centre.
•
To save energy, unplug the adapter when not in use. The adapter does not have a
power switch, so you must unplug the adapter from the electric socket when not in
use to avoid wasting power. The adapter should remain close to the electric socket
and be easily accessible while using it.
•
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Mobile device
3 Launch the
SmartThings app on the mobile device.
4 Follow the pop-up window’s instructions to turn on the Wi-Fi and Bluetooth auto on
feature.
When you launch the
SmartThings app, the Wi-Fi and Bluetooth features will be
automatically activated.
English (UK)
6

Using the SmartThings Wifi/Hub
9
5 The SmartThings Wifi/Hub will be detected automatically. Tap
ADD NOW .
If the SmartThings Wifi/Hub is not detected, tap
Add device on the dashboard. Then, tap
under ADD DEVICE MANUALLY
→
Wi-Fi Hub , and tap your SmartThings Wifi/
Hub’s name.
6 Enter a network name and password to assign to the SmartThings Wifi/Hub.
To register IoT devices via the Samsung SmartThings Hub feature, confirm the
Set up
SmartThings Hub
feature is activated.
7 Follow the on-screen instructions to complete the connection.
When the connection is completed, the following screen appears.
The SmartThings Wifi/Hub is a single product but it is registered as two separate devices
according to their respective features, the Wi-Fi router feature and the Samsung SmartThings
Hub feature.
English (UK)
7

Using the SmartThings Wifi/Hub
10
Adding additional SmartThings Wifi/Hubs

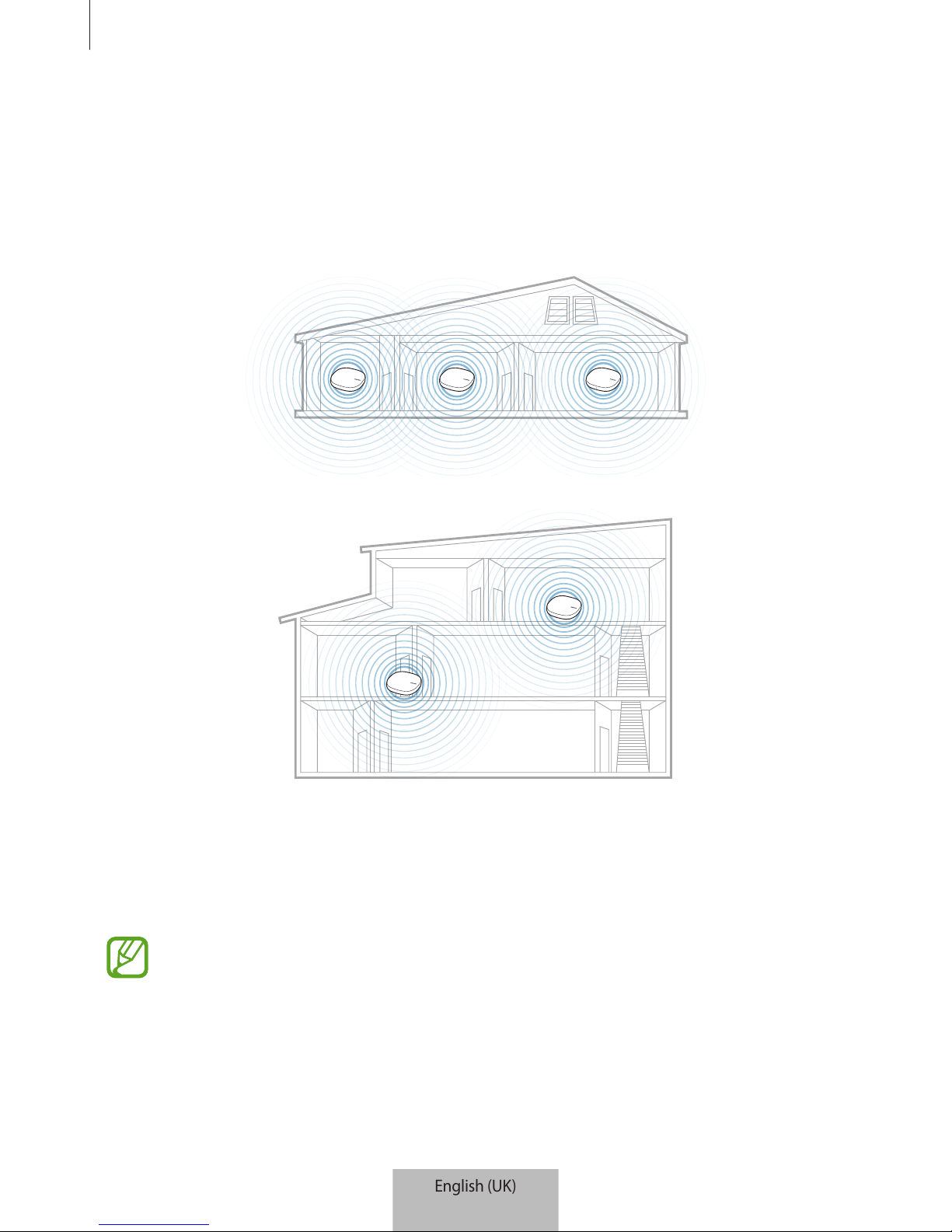

One SmartThings Wifi/Hub can cover a 140 m2connection range (based on timber buildings)
but can differ depending on the usage environment.
Install an additional SmartThings Wifi/Hub to connect to a larger area beyond the connection
range with a Wi-Fi network.
1 Connect the AC/DC adapter to the additional SmartThings Wifi/Hub.
2 On the mobile device, launch the
SmartThings app and follow the on-screen instructions
to complete the connection.
You can connect up to four additional SmartThings Wifi/Hubs.
English (UK)
8

Using the SmartThings Wifi/Hub
11
Notices for connecting a SmartThings Wifi/Hub
•
Install a SmartThings Wifi/Hub near the devices to be registered.
•
When you add additional SmartThings Wifi/Hubs, install them within the connection
range.
•
Do not place obstacles between the SmartThings Wifi/Hub and the devices to be
registered.
•
Obstacles such as the human bodies, walls, corners, or fences can weaken the signals.
•
When using the SmartThings Wifi/Hub, it should be connected via the Ethernet cable.
Notices for using Bluetooth
•
To avoid problems when connecting your SmartThings Wifi/Hub to another device, place
the devices close to each other.
•
Ensure that your SmartThings Wifi/Hub and the other Bluetooth device are within the
maximum Bluetooth range (5 m). The distance may vary depending on the environment
the devices are used in.
•
Ensure that there are no obstacles between the SmartThings Wifi/Hub and a connected
device, including human bodies, walls, corners, or fences.
•
Do not touch the Bluetooth antenna of a connected device.
•
Bluetooth uses the same frequency as some industrial, scientific, medical, and low power
products and interference may occur when making connections near these types of
products.
•
Some devices, especially those that are not tested or approved by the Bluetooth SIG, may
be incompatible with your SmartThings Wifi/Hub.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files
or illegally tapping communications for commercial purposes).
English (UK)
9

Using the SmartThings Wifi/Hub
12
Configuring the Wi-Fi router feature
You can configure the detailed settings of the Wi-Fi router feature of the SmartThings Wifi/
Hub.

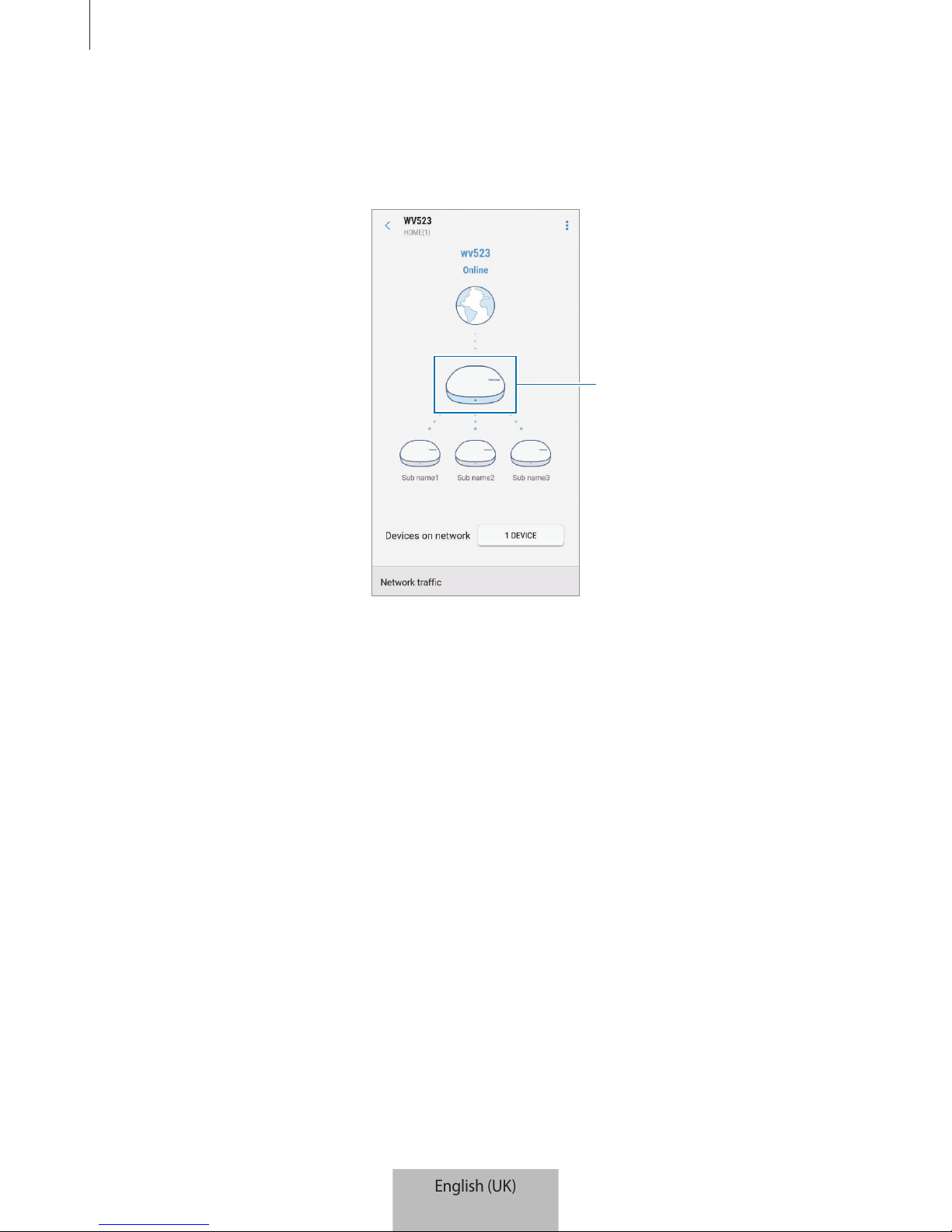

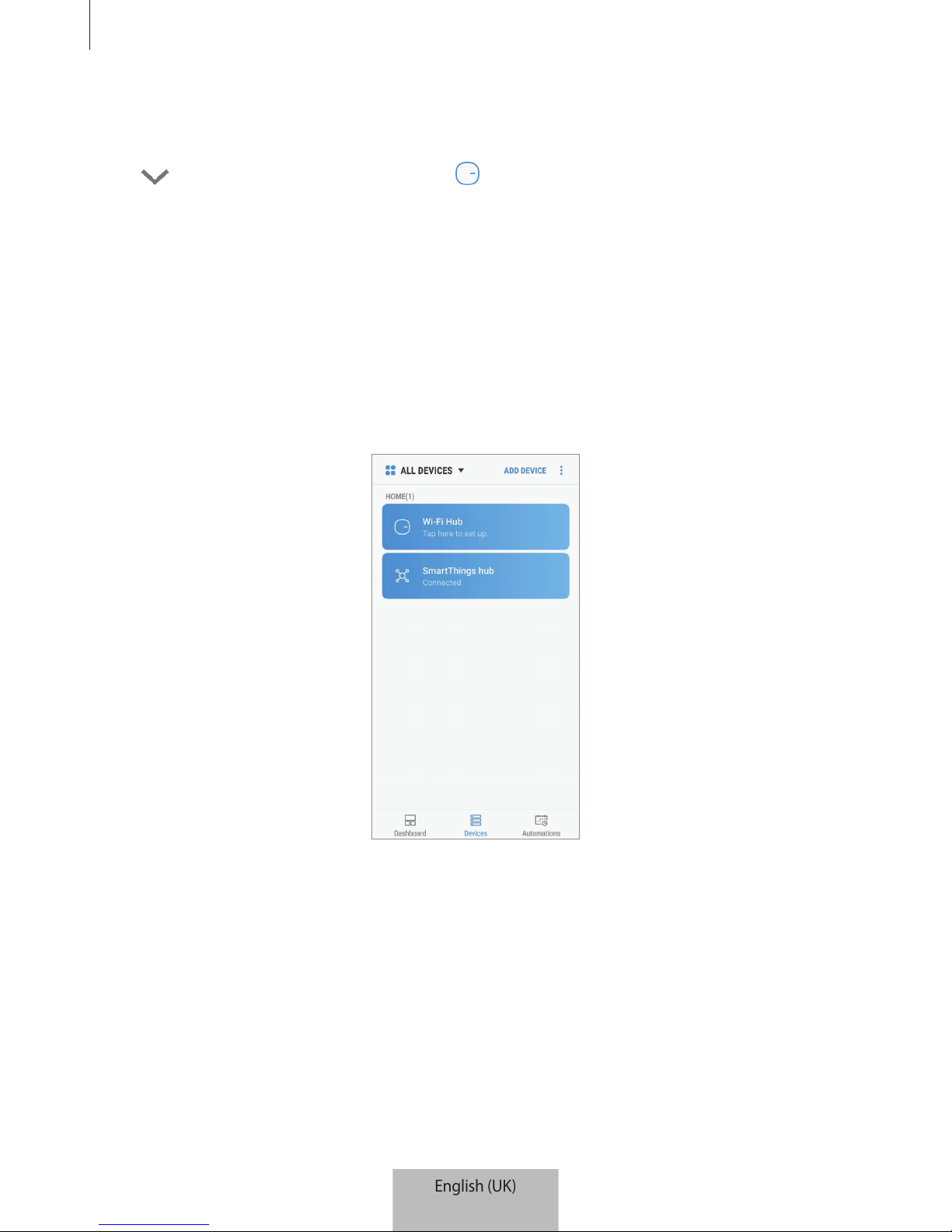

1 On the SmartThings screen, tap
Devices .
2 On the registered devices list, tap the Wi-Fi hub.
When you use the Wi-Fi router feature of the SmartThings Wifi/Hub for the first time, tap
the Wi-Fi hub to download the controller for it.
3 Select an option and configure the Wi-Fi router feature.

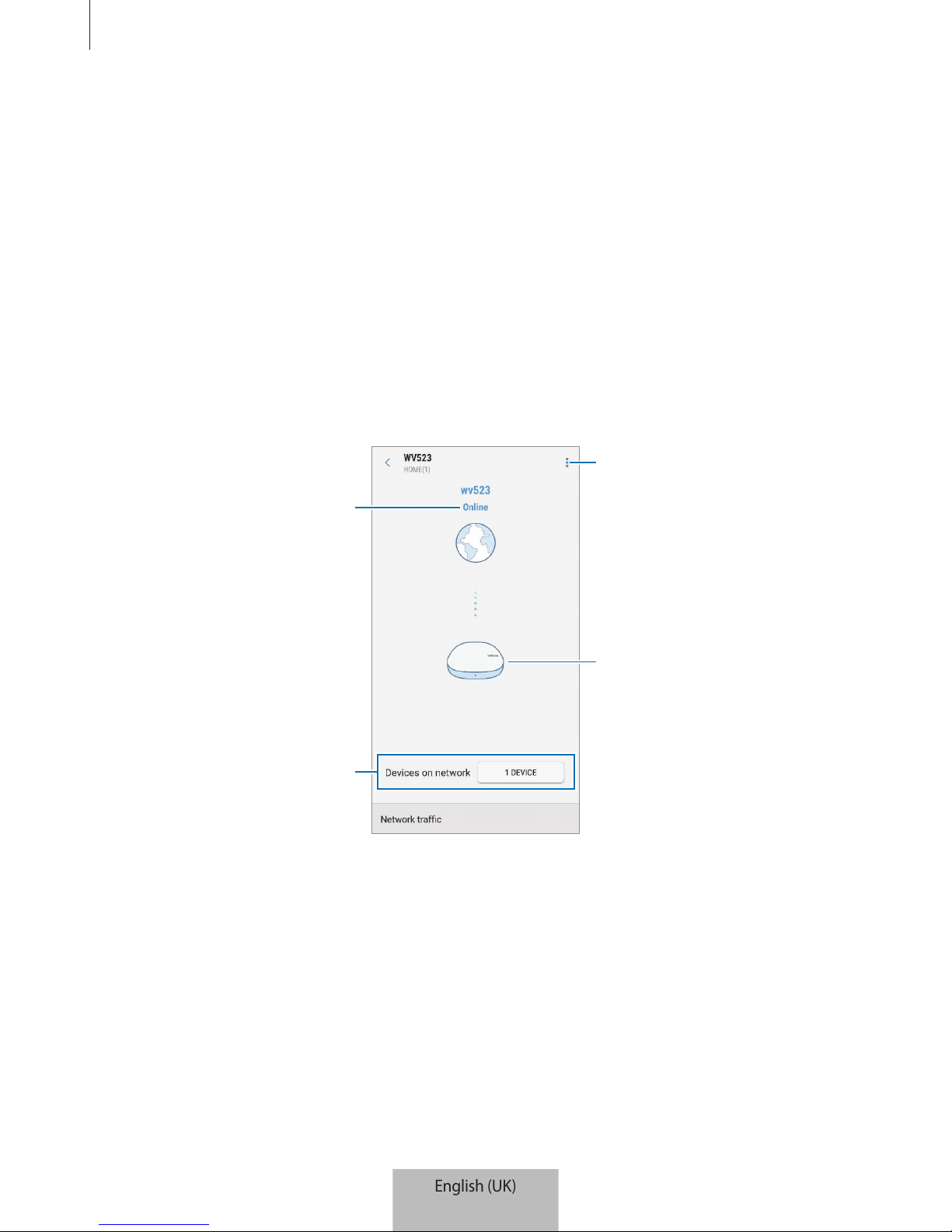

Wi-Fi network status
Devices connected to the
SmartThings Wifi/Hub's Wi-Fi
network
Access additional options.
Registered SmartThings
Wifi/Hub. Tap to view its
information.
English (UK)
10

Using the SmartThings Wifi/Hub
13
Assigning priority to a connected device
You can set the prior connection for the specified devices connected to the SmartThings Wifi/
Hub’s Wi-Fi network.
1 Tap the button next to
Devices on network .
2 On the connected devices list, select a device to give priority to the SmartThings Wifi/
Hub’s Wi-Fi network.
3 Tap the
Highest bandwidth priority switch to activate it.
Restricting time for using the Wi-Fi network
You can restrict the time for the connected devices to use the SmartThings Wifi/Hub’s Wi-Fi
network.
1 Tap the button next to
Devices on network .
2 On the connected devices list, select a device to restrict the time to use the SmartThings
Wifi/Hub’s Wi-Fi network.
3 Tap
Restrict usage time
→
Add restricted time .
4 Set days and time, and then tap
ADD .
Adding guest network
You can add a guest network separated from the main Wi-Fi network.
1 Tap
→
Guest access
→
Add guest network .
2 Enter a network name and password and tap
DONE .
English (UK)
11

Using the SmartThings Wifi/Hub
14
Activating or deactivating the Wi-Fi router feature
1 Tap the main SmartThings Wifi/Hub among the registered SmartThings Wifi/Hubs.
Main hub
2 Tap the
Wi-Fi switch to activate or deactivate the Wi-Fi router feature.
English (UK)
12

Using the SmartThings Wifi/Hub
15
Configuring the Samsung SmartThings Hub
feature
You can configure the detailed settings of the Samsung SmartThings Hub feature of the
SmartThings Wifi/Hub.
1 On the SmartThings screen, tap
Devices .
2 On the registered devices list, tap the SmartThings hub.
3 Select an option and configure the Samsung SmartThings Hub feature.

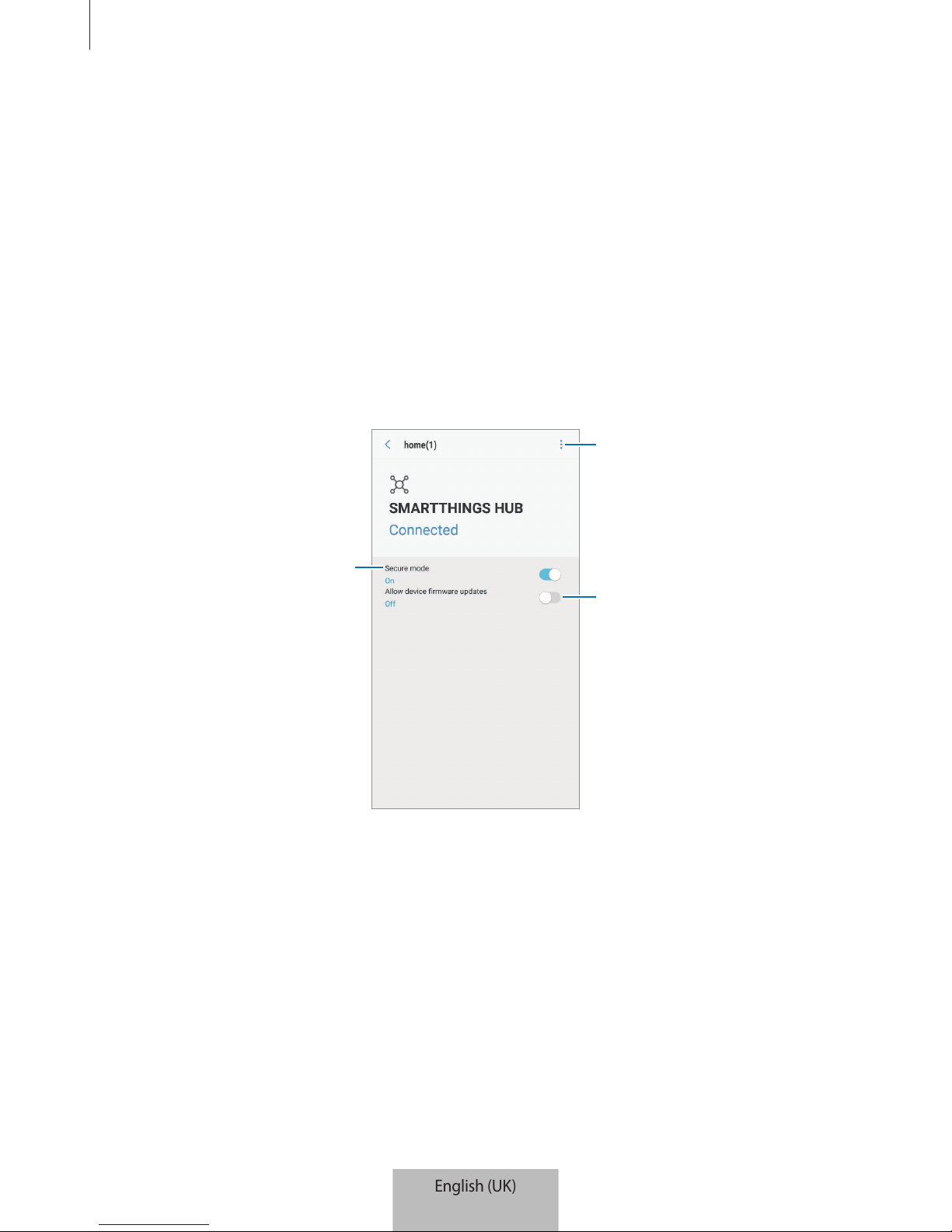

Set to whether to prevent
automatic reconnection of
Zigbee devices.
View the SmartThings hub
information or exclude Z-wave
devices.
Set to whether to allow
automatic firmware updates.
English (UK)
13

16
SmartThings app
Introduction
Register Internet of Things (IoT) devices and smart home appliances to the SmartThings
app on your mobile device, and check their status or control them. To control the devices by
location, such as your home or office, create a location and assign registered devices to it.
You can also set a scene to control many devices at the same time or set an automation to
perform actions automatically at a preset time.

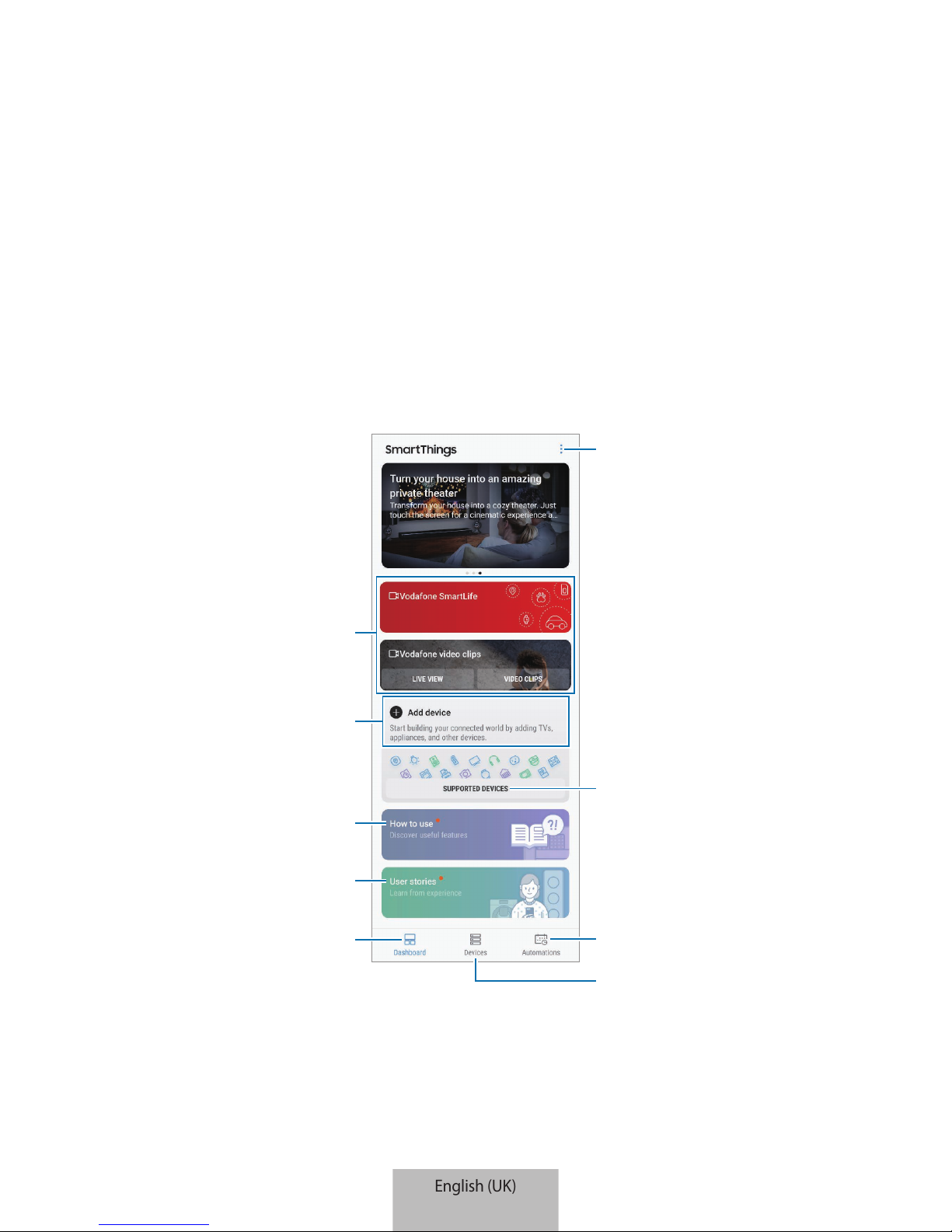

Access additional options.
SmartThings tips
User stories
Dashboard
Supported devices
Search for and register nearby
devices.
Vodafone apps
Manage locations and devices.
Manage automations.
English (UK)
14

SmartThings app
17
Configuring the dashboard and the SmartThings app
Configure the dashboard and the SmartThings app settings. On the dashboard, tap and use
the following options.
•
Manage dashboard : Set the items to show on the dashboard.
•
Notifications : View the notifications from the SmartThings app. You can also change the
notification settings.
•
Settings : Access information about the SmartThings app and Samsung account
information. You can also set the SmartThings panel to be displayed on the notification
panel.
•
Notices : View the notices from the SmartThings service.
•
Contact us : Ask questions or view frequently asked questions.
Registering devices
Registering smart home appliances via Wi-Fi
Register smart home appliances that support Wi-Fi to the SmartThings app and control them.
For instructions on how to register devices, refer to the other devices’ user manuals.
•
To view the supported devices, tap SUPPORTED DEVICES on the dashboard.
•
Connected devices’ own errors or defects are not covered by the Samsung
warranty. When errors or defects occur on the connected devices, contact the
device’s manufacturer.
English (UK)
15

SmartThings app
18
Registering IoT devices via the Samsung SmartThings Hub
feature
Register the Internet of Things (IoT) devices that support Z-Wave, zigbee, LAN, or Cloud-to-
Cloud to the SmartThings app and control them.
1 On the dashboard, tap
Add device .
2 Tap under
ADD DEVICE MANUALLY .
3 Select a category of the device to register.
Alternatively, enter the device’s name in the search input field and tap
ADD next to your
device.
4 Follow the on-screen instructions to complete the registration.
•
The Samsung SmartThings Hub feature may not be available depending on the
region. Visit www.samsung.com for details.
•
You can only register the IoT devices approved by Samsung. Visit
www.samsung.com to see a list of compatible devices.
•
Refer to the other devices’user manuals for instructions on how to pair with them.
English (UK)
16

SmartThings app
19
Controlling the registered devices
On the SmartThings screen, tap Devices .
On the registered devices list, tap a device.
The controller for the device will be downloaded.
With the downloaded controller, remotely control the registered devices via the SmartThings
app.
Creating locations
You can register devices by location and manage them.
1 On the SmartThings screen, tap
Devices .
2 Tap
ALL DEVICES
→
Add location .
3 Enter a location name and select an icon for the location.
4 Tap
Geolocation to select a location on the map and tap DONE .
5 Tap
SAVE .
Your location will be added.
6 Tap
ADD DEVICE to register devices.
If you want to manage the location room by room, tap
→
Add room , and set the room and
devices for it.
English (UK)
17

SmartThings app
20
Inviting members to the created location
Invite other members to the created location to control the devices and scenes assigned to
that location.
1 On the SmartThings screen, tap
Devices .
2 Tap
ALL DEVICES and scroll up or down to select a location.
3 Tap
→
Invite member .
4 Tap
Enter Samsung account ID , enter the Samsung account for the person you want to
invite, and then tap .
You can invite users by scanning the QR code. Tap
CREATE QR CODE and invite other
users to scan it.
•
You can only invite the users login the Samsung account via SmartThings app.
•
To accept the invitation, on the SmartThings screen, tap the invitation pop-up and
tap
ACCEPT . To accept the invitation by scanning the QR code, on the dashboard,
tap
→
Settings
→
Accept invitation (QR code) and then scan the QR code.
5 Follow the on-screen instruction to complete the invitation.
English (UK)
18
