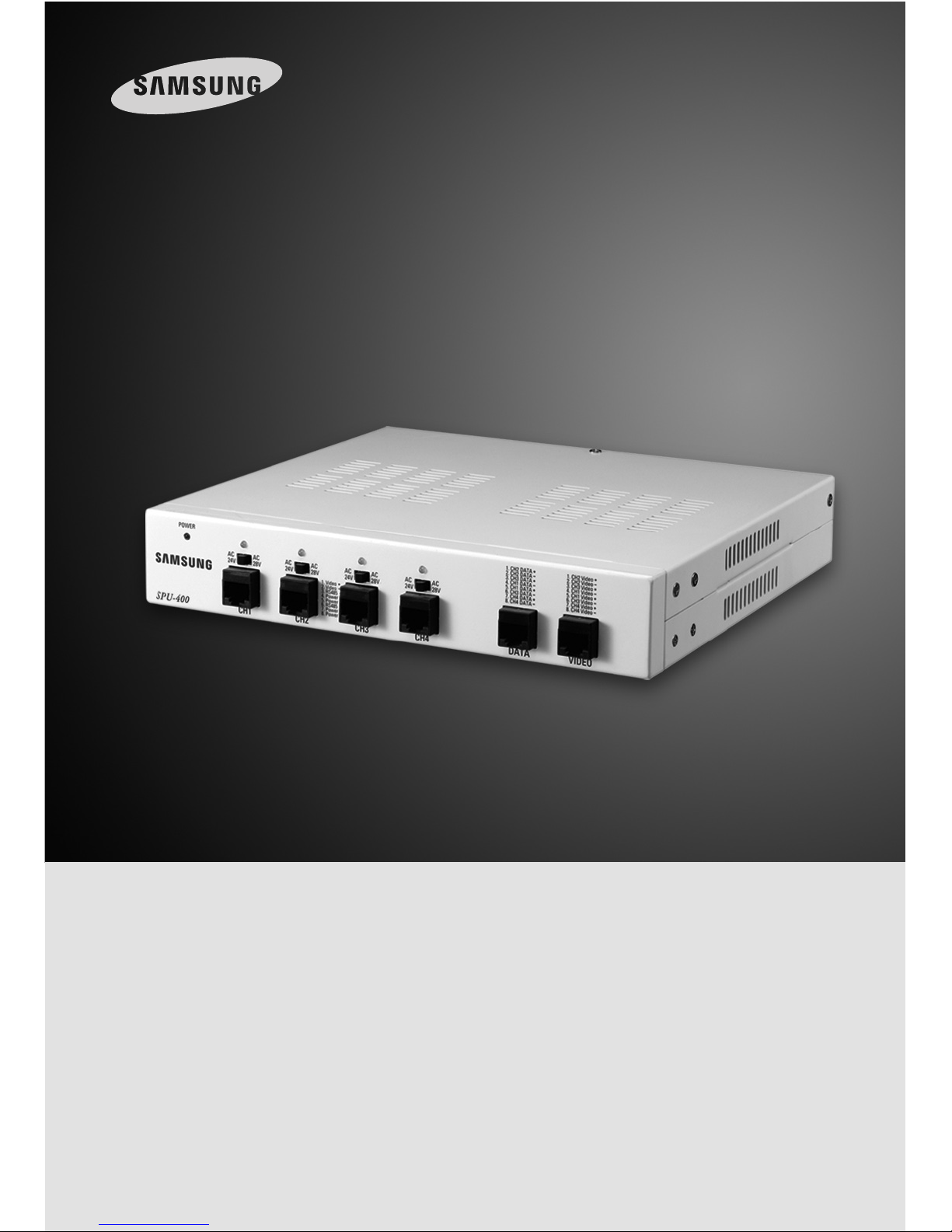

Samsung SPU-400 User manual

Before installing and operating this product,
please read this manual thoroughly.
UTP Power Supply Hub SPU-400 User Guide
ENGLISH

UTP Power Supply Hub User Guide
2
UTP Power Supply Hub User Guide
3
Table of Contents
Before installing this product, please read the following cautions and warnings
carefully.
Do not install the product in the following locations.
■Places under extremely high or low temperature conditions.
Use this product under temperature conditions only between -10°and +50°to prevent low
performance and product malfunctions.
■Places exposed to rain, snow, or high humidity.
Avoid water and moisture leakage into the product; it may cause the product to malfunction.
■Places containing or exposed to oil and gas.
Oil, moisture, and gas leakage into the product may cause product malfunctions.
■Places exposed to vibration and shock.
Vibration and shock may cause product malfunctions.
■Places under direct sunlight or exposed to outdoor weather conditions.
Direct sunlight and severe weather conditions may cause product malfunctions.
■Places exposed to radio waves (RF) or near power cables.
Radio communication devices and electromagnetic waves from power lines may cause
product malfunctions.
Thank you for purchasing a Samsung Techwin product. Before attempting to connect or
operate this product, please read this instruction book carefully and save it for future use.
If you find this manual too difficult to understand, or experience problems with installing
or using it, please contact our service center or sales department for assistance.
Cautions for Installation
Cautions for Use
1. Product Introduction ……………………………………………… 4
1-1. Overview …………………………………………………… 4
1-2. Product Features …………………………………………… 4
2. Package Contents………………………………………………… 4
3. Product Parts and Peripheral Device Connection…………………… 5
3-1. Part Names and Functions …………………………………… 5
3-1-1. Front ………………………………………………………………5
3-1-2. Back ………………………………………………………………5
3-2. Installing SPU-400 and Connecting UTP Cable ………………… 6
3-2-1. Camera-Side UTP Cable ……………………………………………6
3-2-2. DVR-Side UTP Cable ………………………………………………6
3-3. SPU-400 Connector Wiring Chart ……………………………… 7
3-4. Connecting Peripheral Devices ………………………………… 8
4. Product Specifications …………………………………………… 9
5. Product Warranty ………………………………………………… 10
■Do not disassemble the product or allow foreign objects to get into the product.
Disassembly of the product or insertion of foreign objects such as metal may break or
damage the unit.
■Make sure to turn off the product prior to installation.
Before installing your product, please check its voltage rating and then turn on the power switch.
■Do not subject the product to physical shock or exert excessive force to operate the
product.
Shocks and excessive force on the components such as circuits may break or seriously
damage the unit.

UTP Power Supply Hub User Guide
4
UTP Power Supply Hub User Guide
5
1. Product Introduction
2. Package Contents
The SPU-400 UTP power supply can be used both to transfer power to the AC 24V UTP
cameras(SUB-2000 and SUD-2080/2080F) and transmit up to 4 video signals—from a camera
or the SPU-100TR UTP transceiver to a receiver—via TP (UTP, STP, FTP) cable. It also provides an
RS-485 data port.
Transfers power to a camera only up to 400m.(This product is compatible with our 2 models of
UTP-integrated cameras, the SPU-100TR, and the NVT and NITEK products. The maximum power
transfer distance may vary depending on the voltage rating of the cameras and the type of cables.)
①AC Input Power Switch ②AC Inlet
- AC 115 V / AC 230 V
∙Transfers power up to 400 m via CAT.5 UTP cable (Max. 1A)
∙Equipped with an AC 24/28 V switch to adjust the power supply distance to the location of the
camera.
- 300m or Shorter : AC 24 V
- 300~400m : AC 28 V
∙Automatically shuts down when the UTP cable becomes shorted out from a close distance
∙UTP Cable Status LED
- OFF : No load
- Green : Normal
- Amber : Overload
- Red : Shorted
∙ RS-485 data port for controlling camera
∙ Lightning surge protection
1-1. Overview
3. Product Parts and Peripheral Device Connection
3-1. Part Names and Functions
3-1-1. Front
3-1-2. Back
1-2. Product Features
SPU-400
❶ SPU-400 2 User Guide 3 19” Rack Mount
① ②
①Power ON Status LED
②UTP Cable Status LED
- OFF : No load
- Green : Normal
- Amber : Overload
- Red : Shorted
③AC 24/28 V Switch
- AC 24 V : For a 300 m or shorter UTP cable
- AC 28 V : For a 300 to 400 m UTP cable
※The recommended distance is based on CAT.5 UTP cable. Depending on the type and
model of UTP cables and cameras, the power supply distance may vary.
④Camera UTP Cable Terminal : Receives video signals and transfers power to a camera.
⑤RS-485 Data Port
⑥Receiver-Side : 4 video signal output ports
※Recommended Cameras : The SUB-2000 and SUD-2080/2080F
POWER
CH1 CH2 CH3 CH4
D AT A VIDEO
AC
24V
AC
28V
AC
24V
AC
28V
AC
24V
AC
28V
AC
24V
AC
28V
SPU-400

UTP Power Supply Hub User Guide
6
UTP Power Supply Hub User Guide
7
RJ-45 Connector Wiring Chart for Video Input (Camera ↔SPU-400)
RJ-45 Connector Wiring Chart for Video Output (SPU-400 ↔Receiver)
RJ-45 Connector Wiring Chart for Data Input (SPU-400 ↔Controller)
No. Color Function
1 Orange + White Video Output +
2 Orange Video Output -
3 Green + White RS-485 TX +
4 Blue AC Power -
5 Blue + White AC Power +
6 Green RS-485 TX -
7 Brown + White AC Power +
8 Brown AC Power -
No. Color Function
1 Orange + White Camera 2, (+)
2 Orange Camera 2, (-)
3 Green + White Camera 3, (+)
4 Blue Camera 1, (-)
5 Blue + White Camera 1, (+)
6 Green Camera 3, (-)
7 Brown + White Camera 4, (+)
8 Brown Camera 4, (-)
No. Color Function
1 Orange + White RS-485 2, (+)
2 Orange RS-485 2, (-)
3 Green + White RS-485 3, (+)
4 Blue RS-485 1, (-)
5 Blue + White RS-485 1, (+)
6 Green RS-485 3, (-)
7 Brown + White RS-485 4, (+)
8 Brown RS-485 4, (-)
3-2. Installing the SPU-400 and Connecting UTP Cable 3-3. SPU-400 Connector Wiring Chart
3-2-2. Receiver-Side UTP Cable
①Connect an RJ-45 Plug to a camera UTP cable.
•The following pin alignment complies with the communication cable standards and is
provided for your convenient installation.
①Connect the RJ-45 plugs to the CH1 to 4 ports on the SPU-400.
②Connect RS-485 data cables according to the signals: positive and negative. (For
RS-485 data.)
③This equipment is indoor use and all the communication wirings are limited to
inside of the building
①Connect an RJ-45 Plug to a Receiver UTP cable.
②Connect an RJ-45 plug to a Receiver connector on the SPU-400.
③Connect the AC power plug to the AC Inlet on the SPU-400.
④ Double check the UTP connections, and then turn on the power switch on the back side.
The camera starts operating as the front LED turns green.
⑤At the Receiver end, check the video signaling status.
⑥This equipment is indoor use and all the communication wirings are limited to inside of
the building
Copper Connector
UTP Coating
Copper Connector
UTP Coating
3-2-1. Camera-Side UTP Cable
3. Product Parts and Peripheral Device Connection

UTP Power Supply Hub User Guide
8
UTP Power Supply Hub User Guide
9
3-4. Connecting Peripheral Devices
4. Product Specifications
Model SPU-400
Video Input Signal Cable Link Only
Power
Input AC 115/230 V 50/60 Hz
Output 24 VAC/28 VAC, 1 amp.
Optional Feature 24 VAC/Off/28 VAC switchable
Power On Display Green
Protection 4 A Fuse
Maximum
Distance
(CAT. 5e UTP
Cable)
Camera Power
(SUB-2000 Camera)
24 VAC 300m
28 VAC 400m
Video/Data Signal Cable link only
Connection Port
Video Input 4-Port (RJ-45 )
Video Output 1-Port (RJ-45)
Data 1-Port (RJ-45)
LED Display
Off Not connected
Green Load connected and working
Amber Overload
Red Short shutdown condition
Operating Temperature/Humidity -10ºC ~+50ºC / 0 ~ 80%
Material/Weight Steel/4kg
Dimension 260(W) x 44(H) x 225.2(D)
3. Product Parts and Peripheral Device Connection
Controller
SUB-2000
SUD-2080F
SPU-400
SMX-25632
SPU-400R
DVR
300m(1000ft) or less
900m(3000ft) or less
Rack Mount Instructions
1) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient. Therefore,
consideration should be given to installing the equipment in an environment compatible with
the maximum ambient temperature (Tma) specified by the manufacturer.
2) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of
air flow required for safe operation of the equipment is not compromised.
3) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous
condition is not achieved due to uneven mechanical loading.
4) Circuit Overloading - Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
5) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connections to the
branch circuit (e.g. use of power strips)."
Notes

UTP Power Supply Hub User Guide
10
UTP Power Supply Hub User Guide
11
5. Product Warranty DECLARATION OF CONFORMITY
Application of Council Directive(s) 89 / 336 / EEC
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
European Representative Name
European Representative Address
Equipment Type/Environment UTP Power Supply Hub
Model Name SPU-400
Beginning Serial NO. S7090001
Year of Manufacture 2010. 01. 01
Conformance to EN61000-6-4:2007
EMC-Directive 89/336 EEC and 92/31/EEC
EN61000-6-2:2005
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe
Signature Signature
Full Name BONJENG GU Full Name
Position QUALITY CONTROL MANAGER Position
Place CHANGWON, KOREA Place
Date 2010. 01. 01 Date
INPUT
5-M3 X H:10.0mm STAND OFF
14-M3 STUD BOLT H=8
M3 BURRING TAP
16.8 56
4-M3 X H:13.0mm
STAND OFF
9 25 12 11
260
87.5
M4 X H:8.0mm
STAND OFF
15
"B"
2
Ø3.2
225.2
44
2x2-Ø4.3
1x1-M3
BURRING TAP
Class A Divice
NOTE : This equipment has been tested and found to comply with the limits for class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
resonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CAUTION : Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user's authority to operate the equipment.

UTP Power Supply Hub User Guide
12
UTP Power Supply Hub User Guide
13
MEMO MEMO

UTP Power Supply Hub User Guide
14
UTP Power Supply Hub User Guide
15
MEMO MEMO

VAN 10.03
www.samsungtechwin.com
www.samsungcctv.com
•SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si Gyeonggi-do, Korea, 462-703
TEL : [phone]~8 FAX : [phone]
•SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : [phone] FAX : [phone]
•SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : [phone] FAX : [phone]
www.samsungcctvusa.com
SALES NETWORK
