Samsung GT-B3410W User manual

GSM TELEPHONE
GT-B3410W
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
GSM850
Phase 1
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
824.2~848.8
869.2~893.8
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 &
975~1023 128~251 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~15
pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMAMux8888
Cell Radius 35Km 35Km 2Km -

Speclflcation
2-2
TX Power
control level
GSM850
GSM900
533±3
dBm
631±3
dBm
729±3
dBm
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Quad Band(850/900/1800/1900)
-QWERTY KEY
-102.3ｘ52.4 ｘ15.9 mm
-2Mega Pixel Camera
-USB v2.0 High-speed, Bluetooth v2.1
-WAP 2.0 Browser
-MP3/AAC/AAC+/EAAC+/WMA
-MicroSD Card Support
-FM Radio
-SMS/MMS/EMS (OMA v1.2)

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
ㆍDownloader Program (Downloader V5.62)
ㆍGT-B3410W Mobile Phone
ㆍData Cable
ㆍBinary files
4-2-1. S/W Downloader Program
■1. Load the binary download program by executing the "Downloader V5.62"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

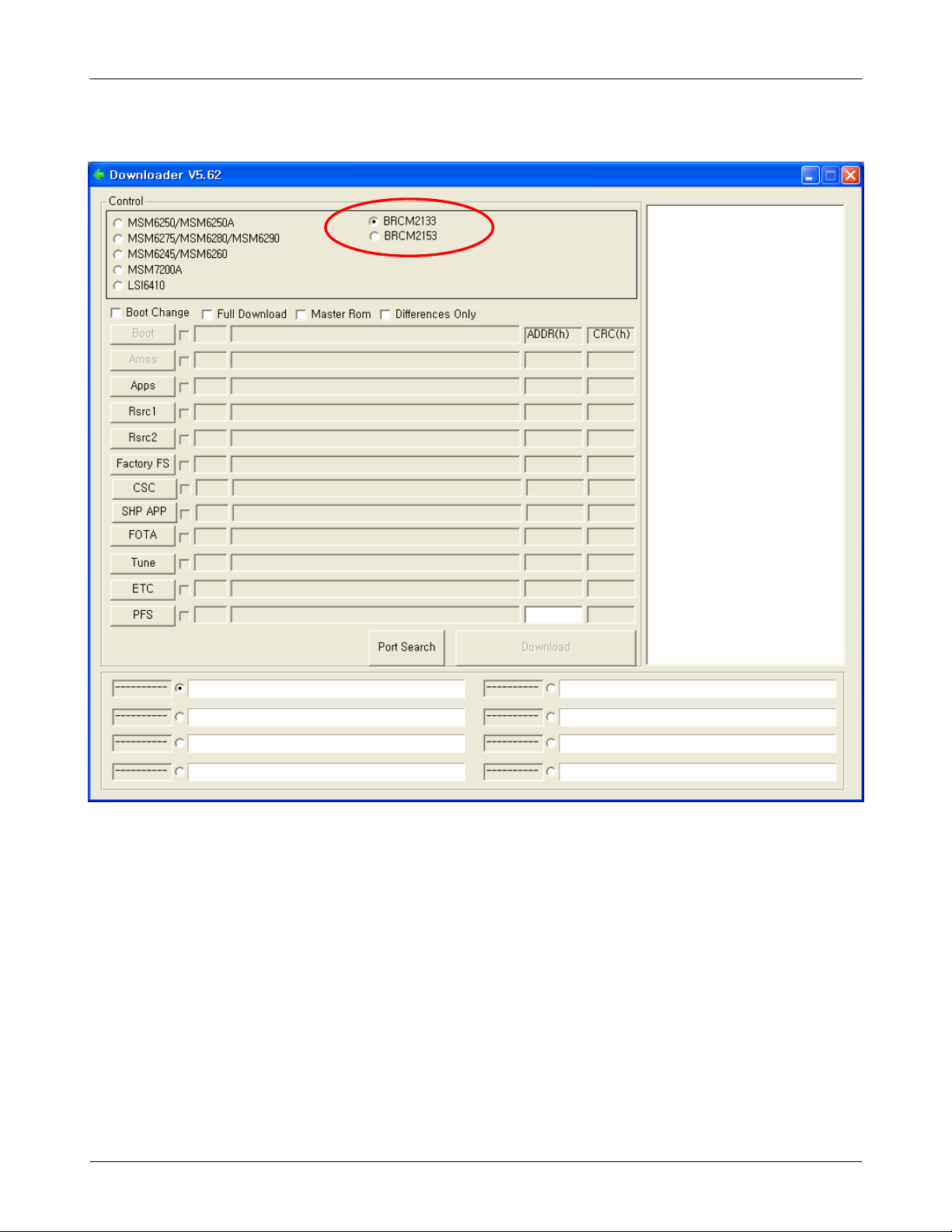

2. Select the "BRCM2133".as Control.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

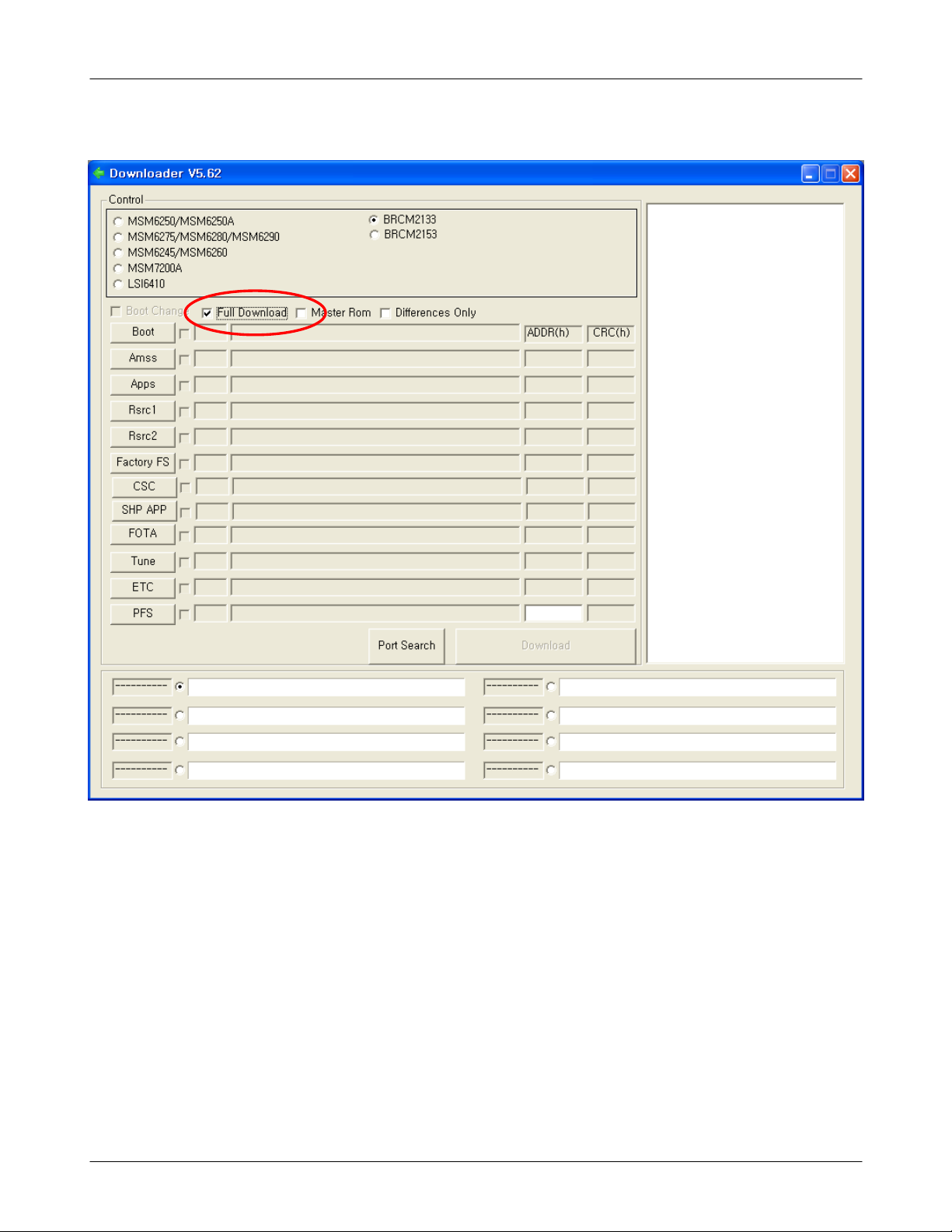

3. Select the Full Download.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Load the file of Boot, Amss, Apps, Rsrc 1. Rsrc2, Factory FS from the folder that
you saved the binary files.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click the Port Search button when the download cable is connected to PC.
cf. You have to set the phone as adownload mode by pressing Volume down +
Camera +End key simultaneously before connecting to PC .

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
6. Then the down loader can search the port.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization

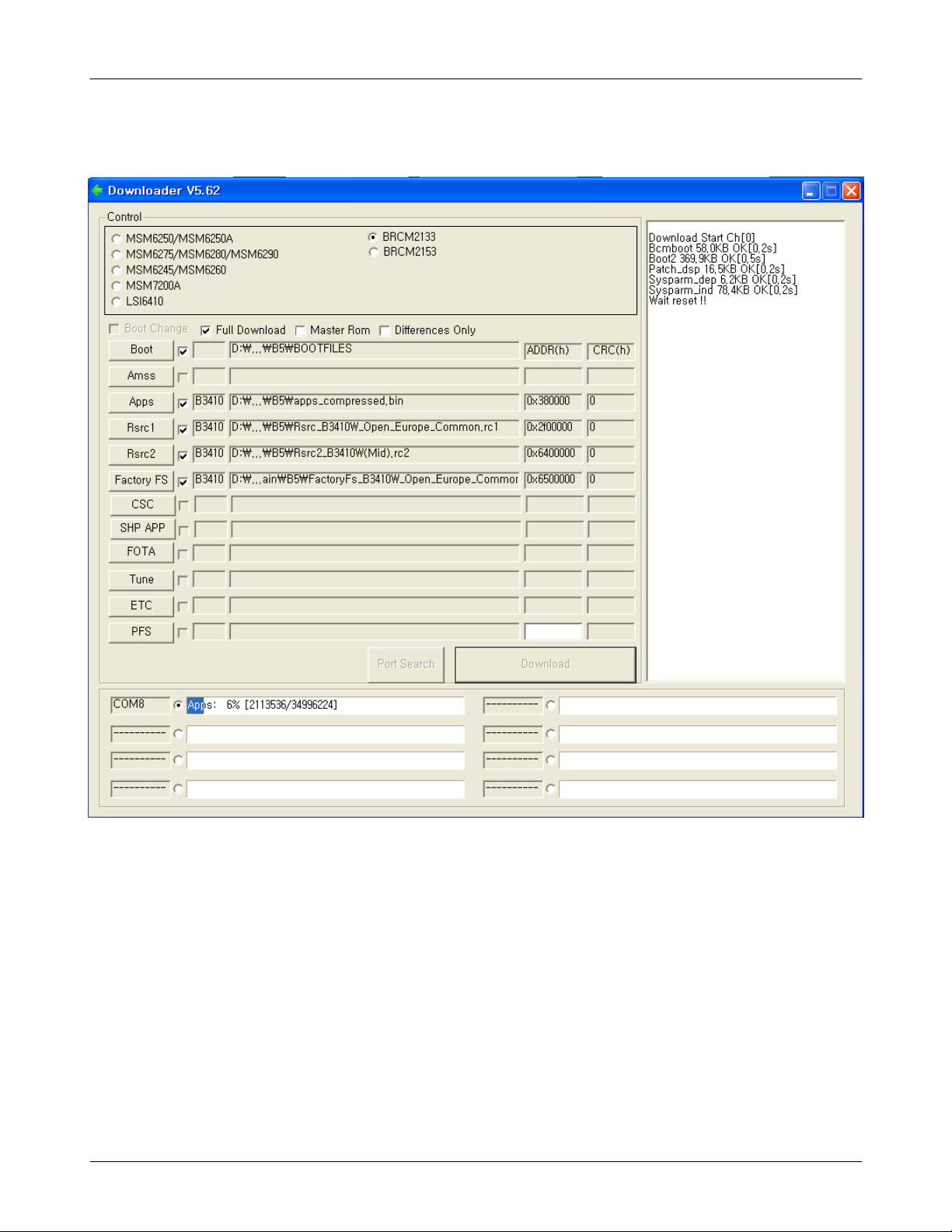

7. Click the Download button when the Port searched.
It will start to download.
8. When downloading is finished successfully, there is a"
All files complete"message.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFL01
QCR72
QSC01
QME03 QVO01
QCL02
QVK01
QCR03
QCA01
QSP01
QVK03
QFU01
QAR01
QLC01
QPC01
QFR01
QCK01
QCR68
QKP01
QCK02
QMP01
QCR96
QAN02
QRE01
QCR03
QBA01
QBC01
QME01
QKP02
QME02
QMI01
QLC02
QIF01
QCR68
QHI02
QHI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001409
QCR03 SCREW-MACHINE 6001-001811
QCR03 SCREW-MACHINE 6001-001811
QCR72 SCREW-MACHINE 6001-002051
QCR68 SCREW-MACHINE 6001-002067
QCR96 SCREW-MACHINE 6001-002259
QMI01 MICROPHONE-ASSY-GT-B3410 GH30-00618A
QAN02 INTENNA-MAIN(GT-B3410W) GH42-02397A
QBA01 INNER BATTERY PACK-AB463651BU,960MAH GH43-03216A
QLC02 ASSY ETC-LCD MAIN PBA(GT-B3410) GH59-08336A
QME02 KEY FPCB-SUB KEY PBA(GT-B3410) GH59-08347A
QPC01 KEY FPCB-SLIDE FPCB ASSY(GT-B3410) GH59-08348A
QME01 DOME SHEET-TF,GT-B3410 GH59-08349A
QSP01 MODULE-SPK+MOT MODULE(B3410W) GH59-08359B
QVK03 KEY FPCB-HOLD KEY,GT-B3410 GH59-08381A
QVK01 KEY FPCB-VOL KEY,GT-B3410 GH59-08382A
QCK02 KEY FPCB-CAM KEY,GT-B3410 GH59-08388A
QME03 TOUCH/PANEL-TSP,B3410W(BLK) GH59-08996A
QVO01 PMO KEY-VOL GH72-56591D
QCK01 PMO KEY-CAMERA GH72-56592D
QCL02 PMO KEY-SIDE GH72-56595D
QKP01 RMO KEY-QWERTY_SPAIN GH73-13578D
QSC01 TAPE-SCREW CAP GH74-46962D
QMP01 A/S ASSY-PBA MAIN(COMM)GT-B3410W GH82-04693A
QLC01 ASSY LCD-2.6" TFT (GT-B3410) GH96-04098A
QCA01 ASSY CAMERA-MODULE,GT-B3410W(2M) GH96-04341A
QKP02 ASSY KEYPAD-SUB GH98-15082A
QBC01 ASSY COVER-BATT GH98-15453C
QFU01 ASSY CASE-SLIDE UPPER GH98-16043A
QRE01 ASSY CASE-REAR GH98-16044A
QFR01 ASSY CASE-FRONT GH98-15068D
QIF01 PMO COVER-IF GH72-56587D
QFL01 ASSY CASE-SLIDE LOWER GH98-15071D
QCR68 SCREW-MACHINE 6001-002067
QHI01 ASSY HINGE-SLIDE LGH98-15072D
QHI02 ASSY HINGE-SLIDE RGH98-15073D
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC DESCRIPTION
0403-001688 ZD300 DIODE
0404-001504 ZD100,ZD101 DIODE
0406-001267 ZD301,ZD302,ZD303 DIODE
0406-001267 ZD304,ZD407 DIODE
0406-001281 ZD305,ZD403,ZD404 DIODE
0406-001286 ZD400,ZD401,ZD405 DIODE
0406-001286 ZD406 DIODE
0601-002048 LED400,LED401,LED402 SSC-SWTS907
0601-002048 LED403 SSC-SWTS907
0801-003026 U300 IC
0801-003130 U200 IC
1001-001447 U302 IC
1001-001547 U400 IC
1001-001581 U100 IC
1001-001607 U103 IC
1009-001036 U303 IC
1108-000296 UME200 MEMORY
1201-002675 U301 IC
1201-002933 PAM100 IC
1203-004983 U304 IC
1203-006176 PM300 IC
1205-003656 UCP200 IC
1205-003809 U305 IC
1205-003839 U101 IC
1205-003868 U102 IC
1404-001221 VR200 THERMISTOR
2007-000143 R200 R-CHIP
2007-000144 R209,R217,R218,R219 R-CHIP
2007-000144 R220 R-CHIP
2007-000162 R101,R102,R224 R-CHIP
2007-000172 R318,R415,R416,R417 R-CHIP
2007-000172 R418 R-CHIP
2007-001291 R305,R306 R-CHIP
2007-001341 R404 R-CHIP
2007-003001 R313 R-CHIP
2007-003018 R116,R117 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC DESCRIPTION
2007-007014 R303,R304 R-CHIP
2007-007132 R109,R110 R-CHIP
2007-007156 R228 R-CHIP
2007-007312 R221 R-CHIP
2007-007315 R225 R-CHIP
2007-007981 R201,R202 R-CHIP
2007-008045 R100,R215,R300,R322 R-CHIP
2007-008045 R405 R-CHIP
2007-008052 R316,R317 R-CHIP
2007-008055 R106,R107,R111,R113 R-CHIP
2007-008055 R114,R314,R400,R409 R-CHIP
2007-008055 R410,R420 R-CHIP
2007-008211 R312 R-CHIP
2007-008275 R308 R-CHIP
2007-008401 R205 R-CHIP
2007-008486 R212 R-CHIP
2007-008516 R213 R-CHIP
2007-008517 R206 R-CHIP
2007-008531 R319,R324,R408,R421 R-CHIP
2007-008531 R426 R-CHIP
2007-008548 R222,R223 R-CHIP
2007-008588 R203,R204,R407,R413 R-CHIP
2007-008588 R414,R425 R-CHIP
2007-008806 R310,R311,R320,R321 R-CHIP
2007-008806 R406,R422 R-CHIP
2203-000233 C133,C137,C140,C141 C-CERAMIC,CHIP
2203-000233 C145,C237,C241,C404 C-CERAMIC,CHIP
2203-000254 C116,C224,C240,C316 C-CERAMIC,CHIP
2203-000254 C408 C-CERAMIC,CHIP
2203-000278 C104,C115 C-CERAMIC,CHIP
2203-000359 L120,L124 C-CERAMIC,CHIP
2203-000386 C310,C311,C357,C358 C-CERAMIC,CHIP
2203-000386 C416,C418,C419 C-CERAMIC,CHIP
2203-000425 C221 C-CERAMIC,CHIP
2203-000438 C232,C402,C403 C-CERAMIC,CHIP
2203-000585 C242 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC DESCRIPTION
2203-000627 C305,C307 C-CERAMIC,CHIP
2203-000696 C149 C-CERAMIC,CHIP
2203-000812 C144,C146 C-CERAMIC,CHIP
2203-000854 C201,C231 C-CERAMIC,CHIP
2203-000995 C218,C411,C420 C-CERAMIC,CHIP
2203-001072 C124,C132,C138 C-CERAMIC,CHIP
2203-001101 C225 C-CERAMIC,CHIP
2203-002668 L121 C-CERAMIC,CHIP
2203-002677 C143,L113 C-CERAMIC,CHIP
2203-003054 C129 C-CERAMIC,CHIP
2203-005056 C121 C-CERAMIC,CHIP
2203-005057 C131 C-CERAMIC,CHIP
2203-005234 C134 C-CERAMIC,CHIP
2203-005383 C233,C234 C-CERAMIC,CHIP
2203-005450 C125 C-CERAMIC,CHIP
2203-005682 C348 C-CERAMIC,CHIP
2203-006048 C117,C118,C205,C210 C-CERAMIC,CHIP
2203-006048 C212,C213,C214,C215 C-CERAMIC,CHIP
2203-006048 C219,C308,C324,C326 C-CERAMIC,CHIP
2203-006048 C347,C410,C412,C414 C-CERAMIC,CHIP
2203-006048 C415 C-CERAMIC,CHIP
2203-006120 C361,C400,C407 C-CERAMIC,CHIP
2203-006194 C103 C-CERAMIC,CHIP
2203-006260 C130 C-CERAMIC,CHIP
2203-006348 C300,C322,C351 C-CERAMIC,CHIP
2203-006399 C107,C127,C200,C202 C-CERAMIC,CHIP
2203-006399 C306,C325,C335,C346 C-CERAMIC,CHIP
2203-006423 C152,C220,C314,C315 C-CERAMIC,CHIP
2203-006423 C327,C349,C350,C406 C-CERAMIC,CHIP
2203-006556 C230 C-CERAMIC,CHIP
2203-006562 C303,C352 C-CERAMIC,CHIP
2203-006611 C229 C-CERAMIC,CHIP
2203-006668 C301,C323 C-CERAMIC,CHIP
2203-006681 C216,C217,C227,C228 C-CERAMIC,CHIP
2203-006681 C401 C-CERAMIC,CHIP
2203-006824 C101 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC DESCRIPTION
2203-006825 C345 C-CERAMIC,CHIP
2203-006838 C100 C-CERAMIC,CHIP
2203-006839 C105,C106,C108,C128 C-CERAMIC,CHIP
2203-006841 C109 C-CERAMIC,CHIP
2203-006872 C113,C114,C126,C207 C-CERAMIC,CHIP
2203-006872 C208,C222,C223,C226 C-CERAMIC,CHIP
2203-006872 C332,C333,C341,C342 C-CERAMIC,CHIP
2203-006872 C343,C344 C-CERAMIC,CHIP
2203-006890 C318,C319 C-CERAMIC,CHIP
2203-007133 C413 C-CERAMIC,CHIP
2203-007210 C111,C112 C-CERAMIC,CHIP
2203-007270 C147 C-CERAMIC,CHIP
2203-007279 C302 C-CERAMIC,CHIP
2203-007317 C102,C110,C119,C120 C-CERAMIC,CHIP
2203-007317 C203,C204 C-CERAMIC,CHIP
2203-007369 C206,C209,C211,C236 C-CERAMIC,CHIP
2203-007369 C238,C304,C320,C328 C-CERAMIC,CHIP
2203-007369 C329,C330,C331,C334 C-CERAMIC,CHIP
2203-007369 C336,C337,C338,C339 C-CERAMIC,CHIP
2203-007369 C340,C353,C354,C355 C-CERAMIC,CHIP
2203-007369 C356,C359 C-CERAMIC,CHIP
2203-007391 C122,C123,C317,C321 C-CERAMIC,CHIP
2404-001377 TA401 C-TA,CHIP
2404-001430 TA300 C-TA,CHIP
2409-001172 BAT300 CAPACITOR
2703-001726 L127,L128,L201 INDUCTOR-SMD
2703-001729 L115,L118 INDUCTOR-SMD
2703-002203 L107,L111 INDUCTOR-SMD
2703-002205 L106,L112 INDUCTOR-SMD
2703-002207 L119 INDUCTOR-SMD
2703-002208 L108,L109,L116,L117 INDUCTOR-SMD
2703-002268 L126 INDUCTOR-SMD
2703-002269 L110 INDUCTOR-SMD
2703-002281 L122,L123,L125,L129 INDUCTOR-SMD
2703-002308 L402,L407 INDUCTOR-SMD
2703-002367 L114 INDUCTOR-SMD
