Samsung GT-P3110 User manual

GSM TELEPHONE
GT-P3110
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2012. 03. Rev.1.0
ⓒ

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•AndroidOS:IceCreamSandwich(ICS)
•Main 3M FF, VGA
•7.0"
WSGA 16M TFT LCD (PLS_type)
•GPS /BT v3.0 USB v2.0 /WiFi (802.11 b/g/n) /OTG
•Recording definition: 720p / Playback at 1080p resolution
•Sensors: Accelerometer, Electromagnetic, Light
•Additional :
-1
GHz Dual Core CPU
-Application store /Precise Motion UI
-Seamless Sharing Experience.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
yDownloader Program (Odin3 v1.85.exe)
yGT-P3110 Mobile Phone
yData Link Cable (GH39-01440H)
yBinary files
Settings
Data Link Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
Load the binary download program by executing the
"Odin3 v1.85.exe" ÅRun this file.
1.Option Selection
-Check Auto Reboot and F. Reset Time, then select PIT File

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2.Enter Device into Download Mode

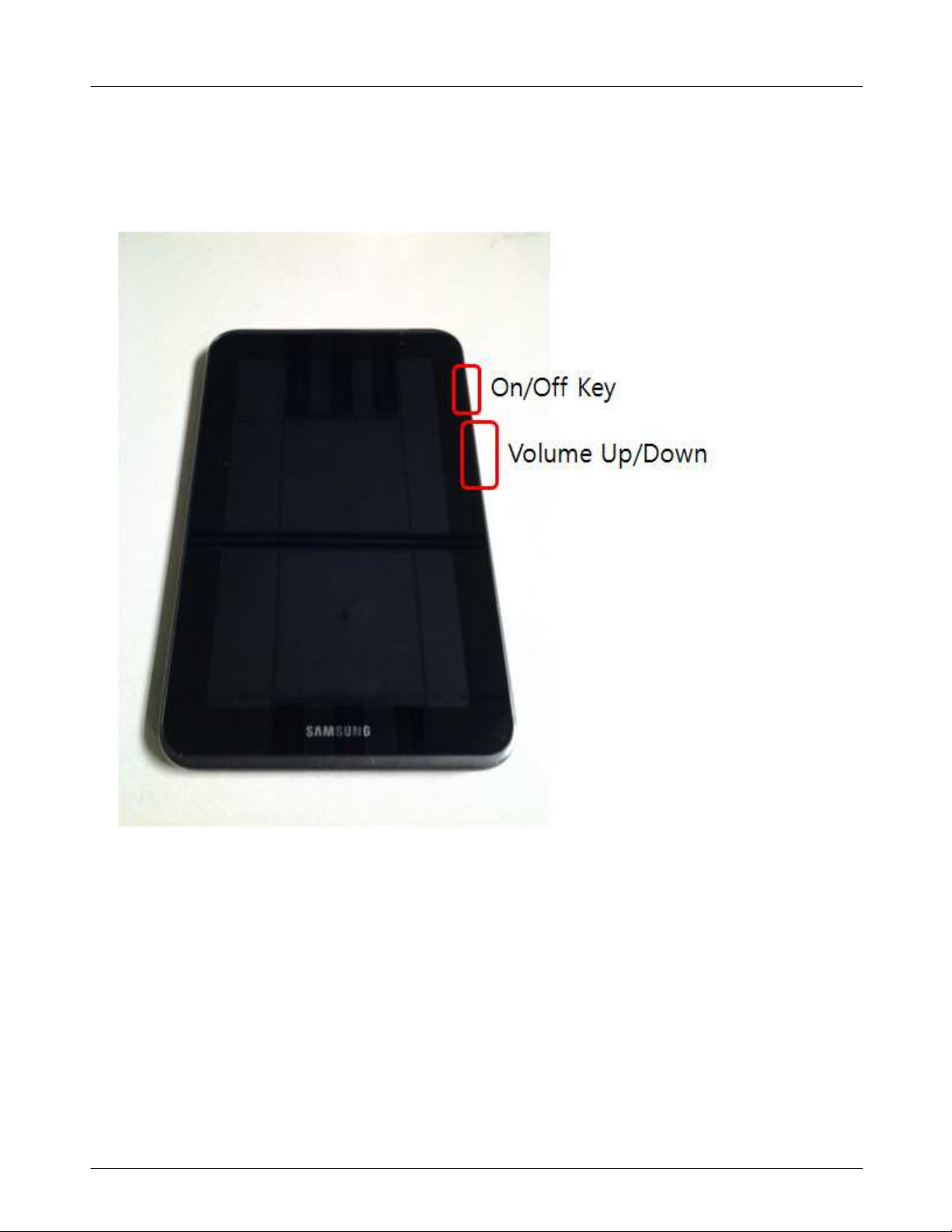

-Press down on Volume Down button and power key at same time for 10 seconds
-Press down on Volume Up button to enter device into download mode

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.Connect the Device to PC via Data Cable.
Make sure ID:COM box highlighted yellow that the device is connected to the PC.
4.Enable the check mark by click on the following options,
-Check BOOTLOADER, PDA and CSC Files

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

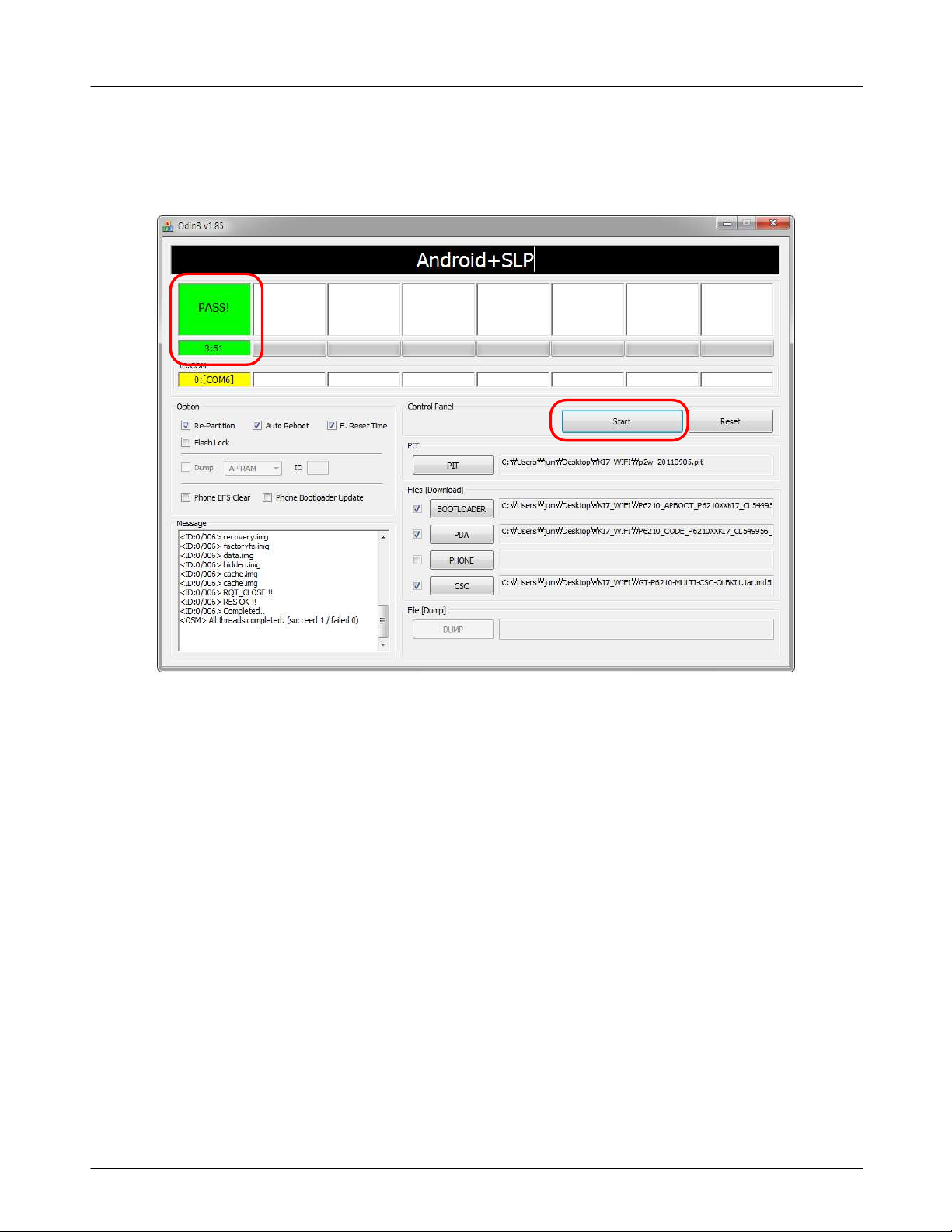

5.Start downloading binary file into the device by clicking Start Button on the screen.
the green colored "PASS!" sign will appear on the upper-left box if the binary file
has been successfully downloaded into the device.
6. Disconnect the device from the Data cable.
7.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

9. Reference Abbreviate
9-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Reference Abbreviate
―AAC: AdvancedAudioCoding.
―AVC: AdvancedVideoCoding.
―BER: BitErrorRate
―BPSK: BinaryPhaseShiftKeying
―CA: ConditionalAccess
―CDM: CodeDivisionMultiplexing
―C/I: CarriertoInterference
―DMB: DigitalMultimediaBroadcasting
―두:EuropeanStandard
―ES: ElementaryStream
―ETSI: EuropeanTelecommunicationsStandardsInstitute
―MPEG: MovingPictureExpertsGroup
―PN: Pseudo-randomNoise
―PS: PilotSymbol
―QPSK: QuadraturePhaseShiftKeying
―RS: Reed-Solomon
―SI: ServiceInformation
―TDM: TimeDivisionMultiplexing
―TS: TransportStream

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

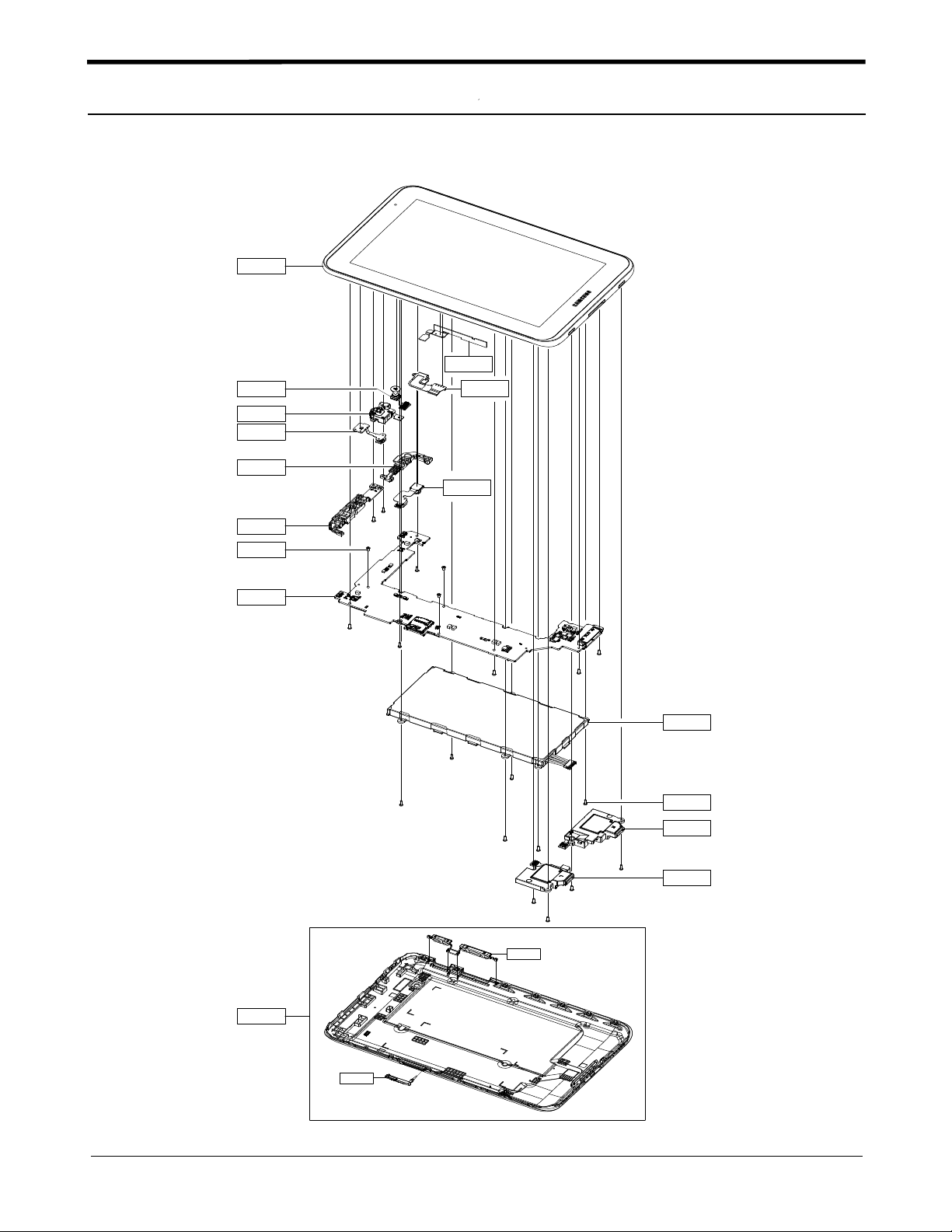

4-1. Cellular phone Exploded View
QRE01
QFR01
QCA02
QVK01
QSN01
QAN02
QAN05
QMP01
QCR47
QJK01
QCK01
QSP02
QCA01
QME16
QSP01
QBA01
QCR03
QSD01

Exploded View and Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
4-2
Design LOC Description SEC CODE
QCR47 SCREW-MACHINE 6001-001695
QCR03 SCREW-MACHINE 6001-001811
QAN02 INTENNA-GPS_(GT-P3100) GH42-03569A
QBA01 BATTERY-4000MAH GH43-03615A
QME16 UNIT-CON TO CON FPCB GH59-11578A
QVK01 KEY FPCB-SIDE_(GT-P3100) GH59-12113A
QCA02 CAMERA MODULE-VGA VT_1/10_SF MIPI(GT-P31 GH59-12126A
QJK01 MODULE-GT_P3100 EARJACK+MIC FPCB GH59-12128A
QSN01 ASSY ETC-SENSOR FPCB(GT_P3110) GH59-12129A
QSP01 UNIT-GT-P3110_SPK(L) GH59-12139A
QSP02 UNIT-GT-P3110_SPK(R) GH59-12140A
QCA01 CAMERA MODULE-3M_FF_1/5 LSI(GT-P3110) GH59-12197A
QAN05 DUMMY-MAIN_ANTTENA GH61-00752A
QMP01 A/S ASSY-PBA MAIN GT-P3110 GH82-06426A
QFR01 ETC ASSY-LCD ASSY(SVC) GH97-13516A
QRE01 ASSY CASE-REAR_WIFI_AS GH98-23237A
QSD01 COVER-SD_V4 GH63-00655A
QCK01 KEY-SIDE_V2_1 GH64-00352A
4-2. Cellular phone Parts list

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0403-001688 D504,ZD501,ZD701 DIODE-ZENER
0406-001239 D500,D501,D502,D503 DIODE-TVS
0406-001267 ZD500,ZD700 DIODE-TVS
0406-001375 ZD502,ZD503,ZD504 DIODE-TVS
0406-001375 ZD505,ZD506,ZD800 DIODE-TVS
0406-001413 ZD900,ZD901 DIODE-TVS
0406-001506 ZD402,ZD403,ZD404 DIODE-TVS
0406-001506 ZD405 DIODE-TVS
0407-001002 D700 DIODE-ARRAY
0504-001113 TR700,TR702,TR703 TR-DIGITAL
0504-001171 TR500 TR-DIGITAL
0505-001518 Q800 FET-SILICON
0505-002720 TR701 FET-SILICON
0505-002748 TR704,TR705 FET-SILICON
0505-003052 U703 FET-SILICON
0801-003031 U609 IC-ANALOG SWITCH
0801-003079 U606,U608 IC-ANALOG SWITCH
0902-002849 UCP600 IC-MICROPROCESSOR
0903-001762 U900 IC-TOUCH IC
1001-001410 U405 IC-ANALOG SWITCH
1001-001481 U504,U505 IC-USB SWITCH IC
1003-002132 U503 IC-LEVEL DRIVER
1003-002216 U601,U602,U603 IC-LEVEL DRIVER
1107-002134 U607 IC-FLASH
1201-003378 U200 IC-GPS LNA
1202-001121 U500 IC-ANALOG SWITCH
1202-001123 U401 IC-COMPARATOR
1203-004776 U803 IC-DC/DC CONVERTER
1203-004818 U605 IC-DC/DC CONVERTER
1203-004819 U403,U700,U901 IC-DC/DC CONVERTER
1203-005069 U707 IC-DC/DC CONVERTER
1203-005396 U404 IC-DC/DC CONVERTER
1203-005521 U705 IC-DC/DC CONVERTER
1203-006115 U913 IC-POWER SUPERVISOR
1203-006346 U704 IC-RESET IC
1203-006392 U702 IC-FUELGAUGE

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
1203-006493 U706 IC-POWER SUPERVISOR
1203-006766 U502 IC-SWITCH
1203-006794 U501 IC-POWER SUPERVISOR
1203-006817 U904 IC-DC/DC CONVERTER
1203-006986 U800 IC-DC/DC CONVERTER
1203-007142 U604 IC-DC/DC CONVERTER
1203-007210 U701 IC-POWER SUPERVISOR
1205-003692 U400 IC-ADC IC
1205-004004 U805 IC-DC/DC CONVERTER
1205-004313 U801 IC-TRANSMITTER
1205-004396 U201 IC-GPS
1205-004402 U203 IC-Wifi
1205-004509 U406 IC-CODEC
1209-002085 U902 IC-SENSOR
1209-002106 U903 IC-SENSOR
1404-001728 TH700 THERMISTOR
1405-001091 VAR402,VAR403 VARISTOR
1405-001346 VAR700 VARISTOR
2007-000138 R421,R628,R629 R-CHIP
2007-000140 R532,R533 R-CHIP
2007-000141 R419,R635,R636,R670 R-CHIP
2007-000141 R671 R-CHIP
2007-000143 R720,R729,R901,R912 R-CHIP
2007-000143 R913 R-CHIP
2007-000147 R907 R-CHIP
2007-000148 R322,R608,R609,R614 R-CHIP
2007-000148 R615,R672,R691,R693 R-CHIP
2007-000148 R717,R726,R728 R-CHIP
2007-000155 R721 R-CHIP
2007-000157 R209,R210,R211,R212 R-CHIP
2007-000157 R213,R500,R503,R504 R-CHIP
2007-000157 R505,R506,R507 R-CHIP
2007-000162 R402,R524,R534,R657 R-CHIP
2007-000162 R658,R664,R690,R704 R-CHIP
2007-000162 R708,R711,R722,R727 R-CHIP
2007-000162 R810 R-CHIP
SEC CODE Design LOC Description

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
2007-000163 R512,R513 R-CHIP
2007-000164 R516,R517 R-CHIP
2007-000167 R508 R-CHIP
2007-000170 R420,R515 R-CHIP
2007-000172 R825 R-CHIP
2007-000173 R684,R900 R-CHIP
2007-001217 R502 R-CHIP
2007-001292 R630,R689,R694,R695 R-CHIP
2007-001295 R801,R802,R803,R804 R-CHIP
2007-001295 R805,R806,R807,R808 R-CHIP
2007-001295 R809 R-CHIP
2007-001298 R404,R520,R521 R-CHIP
2007-001306 R731 R-CHIP
2007-003015 R529,R530 R-CHIP
2007-007014 R673,R674,R675,R676 R-CHIP
2007-007014 R677,R678,R679,R680 R-CHIP
2007-007014 R681 R-CHIP
2007-007092 R531 R-CHIP
2007-007099 R525 R-CHIP
2007-007131 R824 R-CHIP
2007-007132 R208 R-CHIP
2007-007137 R410,R414,R416 R-CHIP
2007-007142 R526,R527,R528 R-CHIP
2007-007156 R422,R423 R-CHIP
2007-007195 R909,R911 R-CHIP
2007-007312 R424,R823 R-CHIP
2007-007318 R409,R412,R418 R-CHIP
2007-007517 R687,R688 R-CHIP
2007-007529 R509 R-CHIP
2007-007538 R661 R-CHIP
2007-007573 R510 R-CHIP
2007-007700 R407 R-CHIP
2007-007875 R405 R-CHIP
2007-007942 R403 R-CHIP
2007-008045 R626,R627,R638,R639 R-CHIP
2007-008045 R735 R-CHIP
SEC CODE Design LOC Description

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
2007-008055 R430,R709,R902 R-CHIP
2007-008211 R518,R519,R903,R919 R-CHIP
2007-008275 R511 R-CHIP
2007-008354 R656 R-CHIP
2007-008403 R501 R-CHIP
2007-008483 R522,R523,R712 R-CHIP
2007-008502 R406 R-CHIP
2007-008516 R643,R644,R813,R817 R-CHIP
2007-008516 R904 R-CHIP
2007-008579 R207 R-CHIP
2007-008588 R400,R625,R637,R669 R-CHIP
2007-008588 R685,R686 R-CHIP
2007-008774 R634,R908 R-CHIP
2007-009108 R668 R-CHIP
2007-009155 R667 R-CHIP
2007-009233 R701 R-CHIP
2007-009314 R733,R734 R-CHIP
2007-009354 R600,R617 R-CHIP
2007-010509 R713 R-CHIP
2007-010856 R736 R-CHIP
2203-000233 C206,C235,C236 C-CERAMIC,CHIP
2203-000254 C747,C802 C-CERAMIC,CHIP
2203-000278 C231,C232,C234,C239 C-CERAMIC,CHIP
2203-000278 C240,C241,C242,C244 C-CERAMIC,CHIP
2203-000278 C247,C825 C-CERAMIC,CHIP
2203-000386 C436,C437 C-CERAMIC,CHIP
2203-000425 C439,C443,C444 C-CERAMIC,CHIP
2203-000438 C233 C-CERAMIC,CHIP
2203-000585 C228,C695 C-CERAMIC,CHIP
2203-000696 C210 C-CERAMIC,CHIP
2203-001153 C431,C438 C-CERAMIC,CHIP
2203-001239 C440,C441,C442,C924 C-CERAMIC,CHIP
2203-001239 C925 C-CERAMIC,CHIP
2203-001437 C238 C-CERAMIC,CHIP
2203-002687 C746 C-CERAMIC,CHIP
2203-002709 C211 C-CERAMIC,CHIP
SEC CODE Design LOC Description

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
2203-005395 C248 C-CERAMIC,CHIP
2203-005725 C214 C-CERAMIC,CHIP
2203-005727 C224,C715,C716,C912 C-CERAMIC,CHIP
2203-005729 C222,C429 C-CERAMIC,CHIP
2203-005732 C432 C-CERAMIC,CHIP
2203-005736 C200,C250 C-CERAMIC,CHIP
2203-005806 C203 C-CERAMIC,CHIP
2203-006048 C220,C221,C223,C243 C-CERAMIC,CHIP
2203-006048 C507,C508,C607,C612 C-CERAMIC,CHIP
2203-006048 C651,C654,C668,C684 C-CERAMIC,CHIP
2203-006048 C685,C748,C932 C-CERAMIC,CHIP
2203-006190 C655,C691,C693,C694 C-CERAMIC,CHIP
2203-006190 C731 C-CERAMIC,CHIP
2203-006194 C216 C-CERAMIC,CHIP
2203-006348 C513 C-CERAMIC,CHIP
2203-006399 C411,C416,C619,C620 C-CERAMIC,CHIP
2203-006399 C666,C675,C689,C724 C-CERAMIC,CHIP
2203-006423 C204,C402,C407,C601 C-CERAMIC,CHIP
2203-006423 C602,C603,C604,C606 C-CERAMIC,CHIP
2203-006423 C608,C609,C611,C613 C-CERAMIC,CHIP
2203-006423 C614,C621,C622,C625 C-CERAMIC,CHIP
2203-006423 C626,C627,C630,C631 C-CERAMIC,CHIP
2203-006423 C632,C634,C635,C636 C-CERAMIC,CHIP
2203-006423 C637,C638,C640,C641 C-CERAMIC,CHIP
2203-006423 C642,C649,C652,C653 C-CERAMIC,CHIP
2203-006423 C661,C662,C663,C664 C-CERAMIC,CHIP
2203-006423 C667,C669,C670,C671 C-CERAMIC,CHIP
2203-006423 C678,C682,C909,C910 C-CERAMIC,CHIP
2203-006423 C915 C-CERAMIC,CHIP
2203-006562 C226,C400,C401,C413 C-CERAMIC,CHIP
2203-006562 C415,C505,C506,C510 C-CERAMIC,CHIP
2203-006562 C600,C688,C723,C743 C-CERAMIC,CHIP
2203-006562 C749,C803,C804,C805 C-CERAMIC,CHIP
2203-006562 C900,C901,C902,C903 C-CERAMIC,CHIP
2203-006562 C905,C907,C919,C920 C-CERAMIC,CHIP
2203-006681 C753,C823 C-CERAMIC,CHIP
SEC CODE Design LOC Description

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
2203-006824 C729,C732 C-CERAMIC,CHIP
2203-006839 C215,C679,C683,C714 C-CERAMIC,CHIP
2203-006839 C921 C-CERAMIC,CHIP
2203-006841 C701 C-CERAMIC,CHIP
2203-006844 C623 C-CERAMIC,CHIP
2203-006872 C201,C202,C212,C213 C-CERAMIC,CHIP
2203-006872 C403,C425,C427,C428 C-CERAMIC,CHIP
2203-006872 C690,C703,C704,C708 C-CERAMIC,CHIP
2203-006872 C709,C713,C754 C-CERAMIC,CHIP
2203-006979 C207,C751 C-CERAMIC,CHIP
2203-007133 C511,C733 C-CERAMIC,CHIP
2203-007210 C628,C629,C633,C656 C-CERAMIC,CHIP
2203-007210 C657,C658,C659,C660 C-CERAMIC,CHIP
2203-007210 C665,C673,C674 C-CERAMIC,CHIP
2203-007240 C686,C734 C-CERAMIC,CHIP
2203-007269 C744 C-CERAMIC,CHIP
2203-007270 C741,C742,C817 C-CERAMIC,CHIP
2203-007271 C205,C230,C702,C705 C-CERAMIC,CHIP
2203-007271 C707,C710,C756,C800 C-CERAMIC,CHIP
2203-007271 C815,C816,C906,C908 C-CERAMIC,CHIP
2203-007271 C911,C913,C929,C930 C-CERAMIC,CHIP
2203-007271 C931,C933,C934,C936 C-CERAMIC,CHIP
2203-007279 C725,C726,C735,C736 C-CERAMIC,CHIP
2203-007279 C737,C738,C739,C740 C-CERAMIC,CHIP
2203-007317 C218,C219,C229,C504 C-CERAMIC,CHIP
2203-007342 C706,C824 C-CERAMIC,CHIP
2203-007391 C605,C610,C624,C650 C-CERAMIC,CHIP
2203-007392 C717 C-CERAMIC,CHIP
2203-007393 C217,C227,C617,C618 C-CERAMIC,CHIP
2203-007393 C639,C647,C648,C687 C-CERAMIC,CHIP
2203-007393 C700,C718,C719,C720 C-CERAMIC,CHIP
2203-007393 C721,C722,C752 C-CERAMIC,CHIP
2203-007449 C643,C644,C672,C676 C-CERAMIC,CHIP
2203-007449 C696,C697,C730,C914 C-CERAMIC,CHIP
2203-007449 C916,C917,C918,C926 C-CERAMIC,CHIP
2203-007449 C927,C928,C935 C-CERAMIC,CHIP
SEC CODE Design LOC Description

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
2203-007474 C246,C512 C-CERAMIC,CHIP
2203-007634 C509 C-CERAMIC,CHIP
2203-007693 C727,C728 C-CERAMIC,CHIP
2203-007755 C245 C-CERAMIC,CHIP
2203-007775 C404,C405,C406,C410 C-CERAMIC,CHIP
2203-007775 C419,C692,C711,C712 C-CERAMIC,CHIP
2203-007775 C755 C-CERAMIC,CHIP
2203-007781 C500,C501,C502,C503 C-CERAMIC,CHIP
2203-007795 C615,C616,C645,C646 C-CERAMIC,CHIP
2203-007796 C408,C409,C417,C418 C-CERAMIC,CHIP
2203-007796 C422,C423,C424,C426 C-CERAMIC,CHIP
2203-007840 C801 C-CERAMIC,CHIP
2404-001561 TA400,TA402 C-TA,CHIP
2703-001737 L211 INDUCTOR-SMD
2703-002649 L214 INDUCTOR-SMD
2703-003533 L600 INDUCTOR-SMD
2703-003545 L212 INDUCTOR-SMD
2703-003687 L500 INDUCTOR-SMD
2703-003754 L901 INDUCTOR-SMD
2703-003911 L700,L701,L702,L703 INDUCTOR-SMD
2703-003911 L704 INDUCTOR-SMD
2703-004088 L207 INDUCTOR-SMD
2703-004225 L705 INDUCTOR-SMD
2801-004551 OSC700 CRYSTAL-UNIT
2801-005107 OSC201 CRYSTAL-UNIT
2804-001884 OSC600 OSCILLATOR-CLOCK
2804-001935 OSC400 OSCILLATOR-CLOCK
2809-001374 OSC200 OSCILLATOR-VCTCXO
2901-001674 F800,F801,F802,F900 FILTER-EMI
2901-001674 F901 FILTER-EMI
2904-001988 F200 FILTER-SAW
2909-001307 F201 FILTER-DUPLEXER
2911-000168 U202 FILTER
3301-001659 L201 CORE-FERRITE
3301-001885 L403,L404,L406,L407 CORE-FERRITE
3301-001885 L408,L409,L410 CORE-FERRITE
SEC CODE Design LOC Description
