Samsung SM-T531 User manual

N
GSM TELEPHONE
SM-T531
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2014. 04. Rev.1.0
ⓒ

2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100 WCDMA 1900 WCDMA 900 WCMDA 850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 1852~1907 1932~1987 880~915 925~960 824~849 869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:
9612~9888
DL:
10562~10838
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~
-50dBm 24dBm~ -50dBm 24dBm~ -50dBm 24dBm~ -50dBm
Power
Class 5pcl ~19
pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•Android OS: Kikat (4.4.2)
•Main 3.0 MP, Sub 1.3 MP
• 10.1" WXGA TFT Full Touch (C-Type)
•A-GPS /GLONASS /BT v4.0 +EDR with LE /USB v2.0 /Wi-Fi (802.11 a/b/g/n HT40)/ OTG
•Recording definition: 1080p
•Sensors: Accelerometer, Hall IC Sensor
•Additional :
-1.2
GHz Quad Core CPU

9. Reference Abbreviate
9-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

6. Level 1Repair
6-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
Downloader Program (Odin3 v3.09.3.exe)
SM-T531
Data Link Cable (GH39-01688A)
Binary files
Settings

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-2

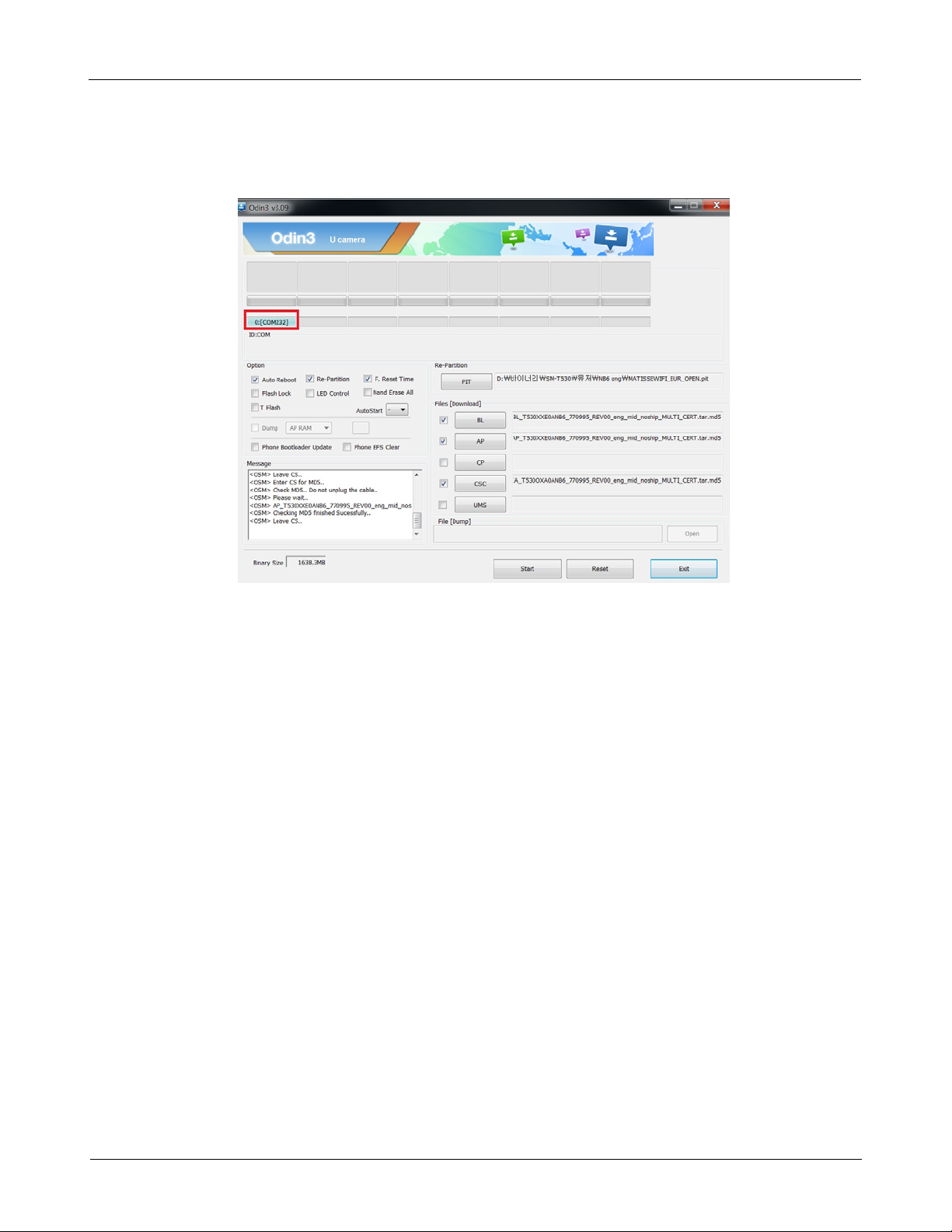

6-1-2. S/W Downloader Program
Load the binary download program by executing the
"Odin3 v3.09.3.exe" Run this file.
1.Option checking and select files
-Check Auto Reboot, Re-Partition and F. Reset Time,
then select PIT, BL, AP and CSC File.

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-3
2.Enter Device into Download Mode
-Press volume down button, power key and Home Key at same time for 5seconds,
then you can see below display.
-Press volume up button to enter device into download mode.

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-4
3.Connect the Device to PC via Data Cable.
Make sure ID:COM box highlighted blue that the device is connected to the PC.

Level 1Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
6-5
4.Start Downloading PIT, BL, AP and CSC files by clicking Start button.
Then wait for "PASS" to be appear on the screen.
5.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
Apps >Settings >Backup and reset >Factory data reset

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4-1. Cellular phone Exploded View

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0403-001972 ZD700 DIODE-ZENER
0403-002001 ZD606 DIODE-ZENER
0404-001250 D700 DIODE-SCHOTTKY
0404-001669 D800 DIODE-SCHOTTKY
0406-001267 ZD306,ZD600,ZD601 DIODE-TVS
0406-001293 ZD701, ZD702 DIODE-TVS
0406-001361 ZD300 DIODE-TVS
0406-001390 ZD900 DIODE-TVS
0406-001413 ZD502 DIODE-TVS
0406-001494 ZD301,ZD302,ZD303,ZD304 DIODE-TVS
0406-001494 ZD305, ZD610 DIODE-TVS
0406-001505 D500 D501,ZD500,ZD501 DIODE-TVS
0406-001549 ZD607,ZD608,ZD609 DIODE-TVS
0406-001561 ZD602 DIODE-TVS
0406-001606 ZD504,ZD505,ZD506,ZD507 DIODE-TVS
0406-001606 ZD508 DIODE-TVS
0505-002088 TR600,TR700,TR704 FET-SILICON
0505-002341 Q900,TR703 FET-SILICON
0505-002384 TR500 FET-SILICON
0505-002720 TR702,U606 FET-SILICON
0801-003437 U102,U501 IC-CMOS LOGIC
1001-001841 U703 IC-ANALOG MULTIPLEX
1001-001846 U500 IC-ANALOG MULTIPLEX
1003-002277 U603 IC-MOTOR DRIVER
1009-001066 U605 IC-HALL EFFECT S/W
1105-002593 U401UP IC-DDR2 SDRAM
1107-002297 UME300 IC-EMMC
1201-003126 U505,U506 IC-AUDIO AMP
1201-003564 U200 IC-IF/RF AMP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
1201-003600 PAM100 IC-POWER AMP
1201-003701 PAM101 IC-POWER AMP
1201-003702 PAM102 IC-POWER AMP
1202-001122 U502,U503 IC-VOLTAGE COMP.
1203-004818 U101,U900,U901 IC-POSI.FIXED REG.
1203-004819 U902,U903 IC-POSI.FIXED REG.
1203-006044 U905 IC-DC/DC CONVERTER
1203-006182 U601 IC-VOL. DETECTOR
1203-006768 U801 IC-DC/DC CONVERTER
1203-006874 U800 IC-MULTI REG.
1203-007623 TR701 IC-BATTERY ISOLATOR
1203-007834 U702 IC-BATTERY
1203-007977 U802 IC-SWITCH REG.
1203-008057 U701 IC-POWER SUPERVISOR
1203-008192 U600 IC-VOL. DETECTOR
1205-004548 U803 IC-TRANSMITTER
1205-004803 U904 IC-COMM. CONTROLLER
1205-004825 U201 IC-WIFI
1205-004829 U104 IC-TRANSCEIVER
1205-004833 U504 IC-CODEC
1205-004931 U401 IC-MODEM
1209-002252 U103 IC-SENSOR
1209-002275 U604 IC-SENSOR
1404-001724 TH100,TH401 THERMISTOR-NTC
1405-001375 V100 VARISTOR
2007-000138 R727,R738 R-CHIP
2007-000140 R739 R-CHIP
2007-000141 R405,R406,R409,R410 R-CHIP
2007-000141 R411,R412,R413,R414 R-CHIP
2007-000141 R415,R416 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
2007-000148 R503,R607,R613,R900 R-CHIP
2007-000148 R902,R903,R904,R908 R-CHIP
2007-000151 R303 R-CHIP
2007-000162 R302,R523,R526,R604 R-CHIP
2007-000162 R606,R719,R729,R730 R-CHIP
2007-000162 R735,R736,R740,R741 R-CHIP
2007-000162 R915 R-CHIP
2007-000165 R732 R-CHIP
2007-000166 R100 R-CHIP
2007-000169 R101 R-CHIP
2007-000170 R500,R501,R609,R616 R-CHIP
2007-000170 R737 R-CHIP
2007-000172 R502 R-CHIP
2007-000566 R518 R-CHIP
2007-000758 R301 R-CHIP
2007-001284 R300 R-CHIP
2007-001298 R508 R-CHIP
2007-003015 R608,R906 R-CHIP
2007-007107 R734 R-CHIP
2007-007131 R913 R-CHIP
2007-007137 R510 R-CHIP
2007-007142 R612,R724,R916 R-CHIP
2007-007306 R119,R120 R-CHIP
2007-007315 R417 R-CHIP
2007-007316 R901,R907 R-CHIP
2007-007317 R521,R522,R524,R525 R-CHIP
2007-007318 R115,R590 R-CHIP
2007-007321 R116 R-CHIP
2007-007480 R516 R-CHIP
2007-007573 R512 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
2007-007589 R121 R-CHIP
2007-007590 R912 R-CHIP
2007-007741 R435 R-CHIP
2007-007942 R513,R519 R-CHIP
2007-007981 R611,R914 R-CHIP
2007-008045 R910 R-CHIP
2007-008055 R610,R801,R917 R-CHIP
2007-008312 R517 R-CHIP
2007-008354 R803 R-CHIP
2007-008419 R918 R-CHIP
2007-008420 R705 R-CHIP
2007-008516 R319,R400,R440,R441 R-CHIP
2007-008516 R445,R446,R459,R720 R-CHIP
2007-008516 R911 R-CHIP
2007-008588 R108,R109,R110,R111 R-CHIP
2007-008588 R112,R407,R408,R456 R-CHIP
2007-008588 R457,R617,R618 R-CHIP
2007-008721 R802 R-CHIP
2007-008774 R425,R614,R615,R905 R-CHIP
2007-008774 R909 R-CHIP
2007-008806 R103,R118,R507,R514 R-CHIP
2007-008806 R515 R-CHIP
2007-009084 R438,R439,R453,R800 R-CHIP
2007-009111 R317, R427 R-CHIP
2007-009157 R402, R700 R-CHIP
2007-009354 R602,R603,R619 R-CHIP
2007-009920 R442,R443,R449 R-CHIP
2007-010856 R728 R-CHIP
2007-011043 R421 R-CHIP
2203-000233 C116,C139,C140,C171 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
2203-000233 C174,C175 C-CER,CHIP
2203-000254 C803,C938 C-CER,CHIP
2203-000278 C239 C-CER,CHIP
2203-000330 C238 C-CER,CHIP
2203-000386 C508,C509,C519 C-CER,CHIP
2203-000425 C183,C502,C503,C504 C-CER,CHIP
2203-000627 C173 C-CER,CHIP
2203-000725 C621 C-CER,CHIP
2203-000812 C128,C129,C141,C600 C-CER,CHIP
2203-000812 C601 C-CER,CHIP
2203-000854 C313,C812,C815 C-CER,CHIP
2203-001101 C620 C-CER,CHIP
2203-001153 C507,C510,C520 C-CER,CHIP
2203-001239 C501,C505,C506,C612 C-CER,CHIP
2203-002668 C102,C133,C170 C-CER,CHIP
2203-002687 C767,C769,C783,C784 C-CER,CHIP
2203-005056 C100,C104,C231 C-CER,CHIP
2203-005281 C117 C-CER,CHIP
2203-005288 C235,C814 C-CER,CHIP
2203-005552 C240 C-CER,CHIP
2203-005682 C108,C138,C233,C236 C-CER,CHIP
2203-005682 C485,C602 C-CER,CHIP
2203-005725 C115,C134,C168,C481 C-CER,CHIP
2203-005725 C482,C483,C484 C-CER,CHIP
2203-005729 C928,C940 C-CER,CHIP
2203-005736 C107,C201,C202,C213 C-CER,CHIP
2203-005736 C215,C216,C218,C219 C-CER,CHIP
2203-005736 C223 C-CER,CHIP
2203-005740 C941 C-CER,CHIP
2203-005777 C203,C229 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
2203-005806 C430,C500,C702 C-CER,CHIP
2203-006047 C776 C-CER,CHIP
2203-006048 C106,C130,C149,C150 C-CER,CHIP
2203-006048 C151,C152,C155,C156 C-CER,CHIP
2203-006048 C157,C158,C159,C164 C-CER,CHIP
2203-006048 C165,C166,C514,C516 C-CER,CHIP
2203-006048 C518,C524,C528,C529 C-CER,CHIP
2203-006048 C532,C534,C537,C538 C-CER,CHIP
2203-006048 C604,C609,C625,C802 C-CER,CHIP
2203-006048 C901,C902,C903,C904 C-CER,CHIP
2203-006194 C460 C-CER,CHIP
2203-006305 C312 C-CER,CHIP
2203-006348 C908 C-CER,CHIP
2203-006377 C766 C-CER,CHIP
2203-006399 C522,C523,C531 C-CER,CHIP
2203-006400 C200, C205 C-CER,CHIP
2203-006423 C300,C302,C400,C415 C-CER,CHIP
2203-006423 C416,C417,C418,C419 C-CER,CHIP
2203-006423 C420,C421,C423,C426 C-CER,CHIP
2203-006423 C427,C436,C438,C439 C-CER,CHIP
2203-006423 C440,C441,C442,C443 C-CER,CHIP
2203-006423 C444,C445,C446,C447 C-CER,CHIP
2203-006423 C448,C449,C450,C451 C-CER,CHIP
2203-006423 C452,C453,C456,C458 C-CER,CHIP
2203-006423 C459,C463,C466,C468 C-CER,CHIP
2203-006423 C469,C470,C471,C472 C-CER,CHIP
2203-006423 C473,C474,C475,C476 C-CER,CHIP
2203-006423 C477,C478,C479,C480 C-CER,CHIP
2203-006423 C487,C606,C718,C720 C-CER,CHIP
2203-006423 C765,C905,C906,C912 C-CER,CHIP
