Samsung GT-C3510T User manual

GSM TELEPHONE
GT-C3510T
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions
12. Schematic Diagram

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. General CH and Freq. Table
GSM 850 EGSM 900 DCS1800 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 4
(max +33dBm) 4 (max +33dBm) 1 (max +30dBm) 1 (max +30dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM General Specification
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM850
GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-EDGE
-1.3Mega Pixel Camera
-GSM 850/900/1800/1900
-Analog TV
-Music player
-Bluetooth
-FM Radio
-MicroSD Card Support
-Automatic EQ &DNSe 2.0

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

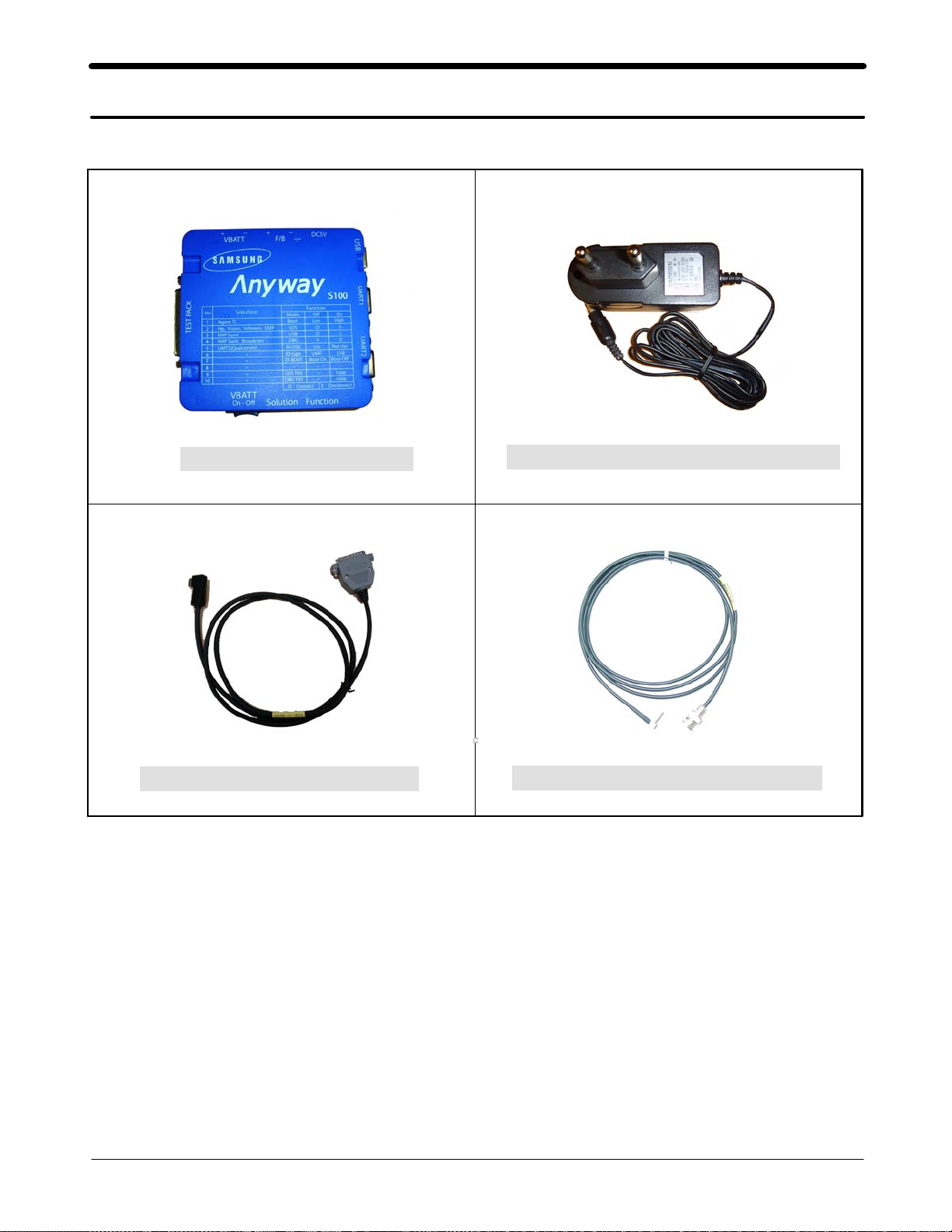

Test Jig (GH99-36900A)
4-1. Software Adjustments
Test Cable (GH39-01313A) RF Test Cable (GH39-00985A)
INA-XPLUG ADAPTER(GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requisite for Downloading
•Downloader Program(Downloader V5.56)
•GT-C3510T Mobile Phone
•Data Cable
•Binary file
4-2-2. S/W Downloader Program
■1. Load the binary download program by executing the “Downloader V5.56”

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

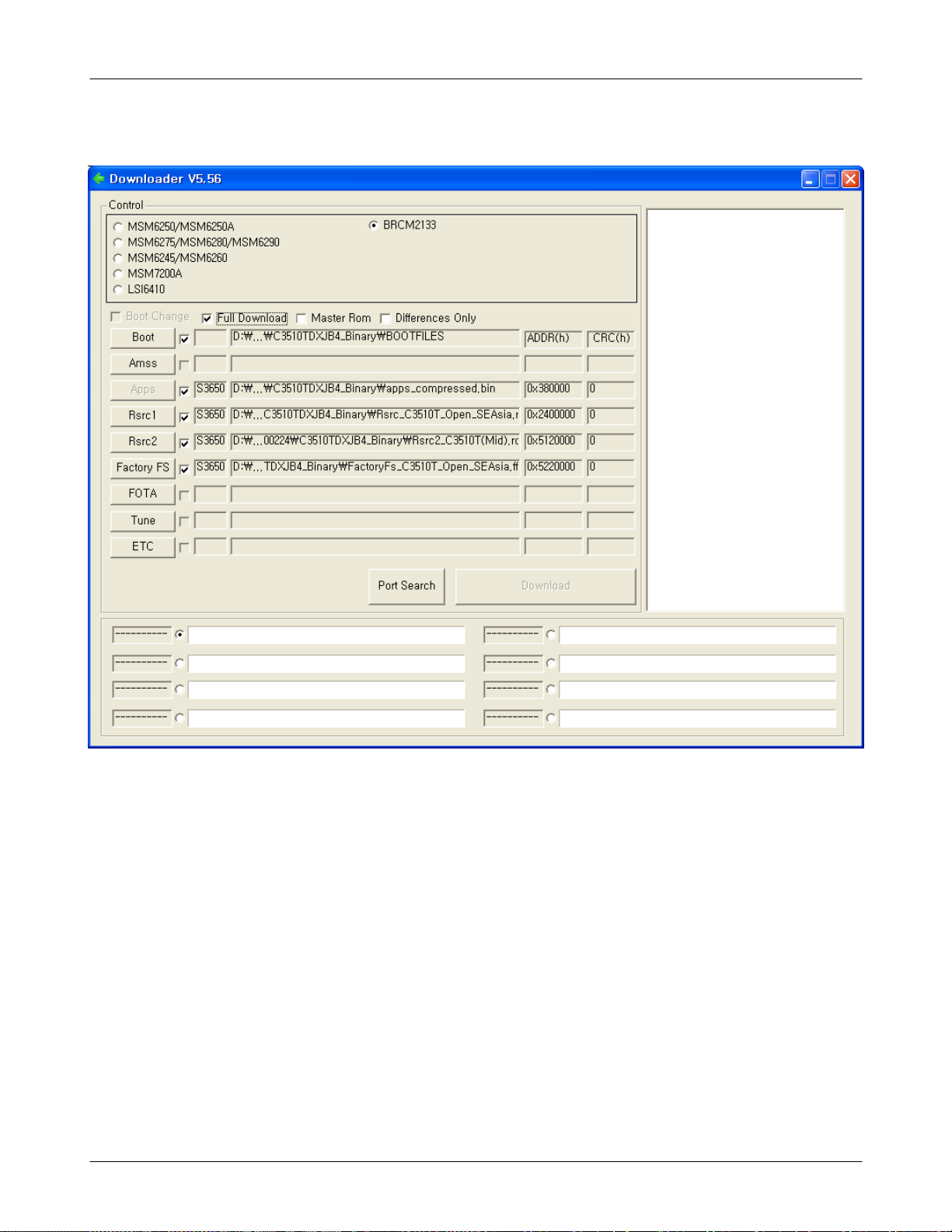

2. Select the "BRCM2133"as Control.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the Full Download.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Load the file of Boot, Apps, Rsrc 1, Rsrc2, Factory FS from the folder that you saved the binary files.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click the Port Search button when the download cable is connected to PC.
cf. You have to set the phone as adownload mode by pressing Volume Volume +Camera +End key
simultaneously before connecting to PC

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

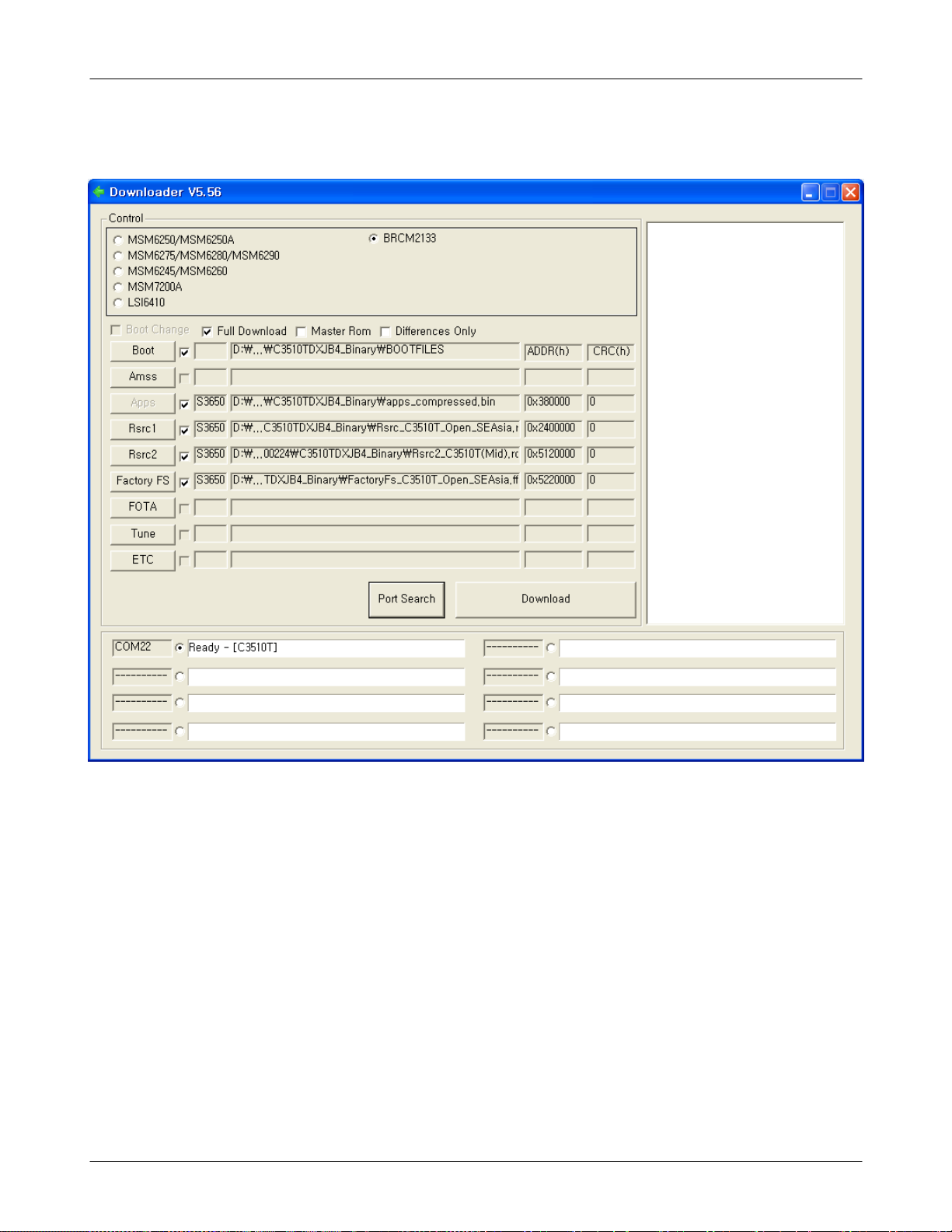

6. Then the down loader can search the port.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization

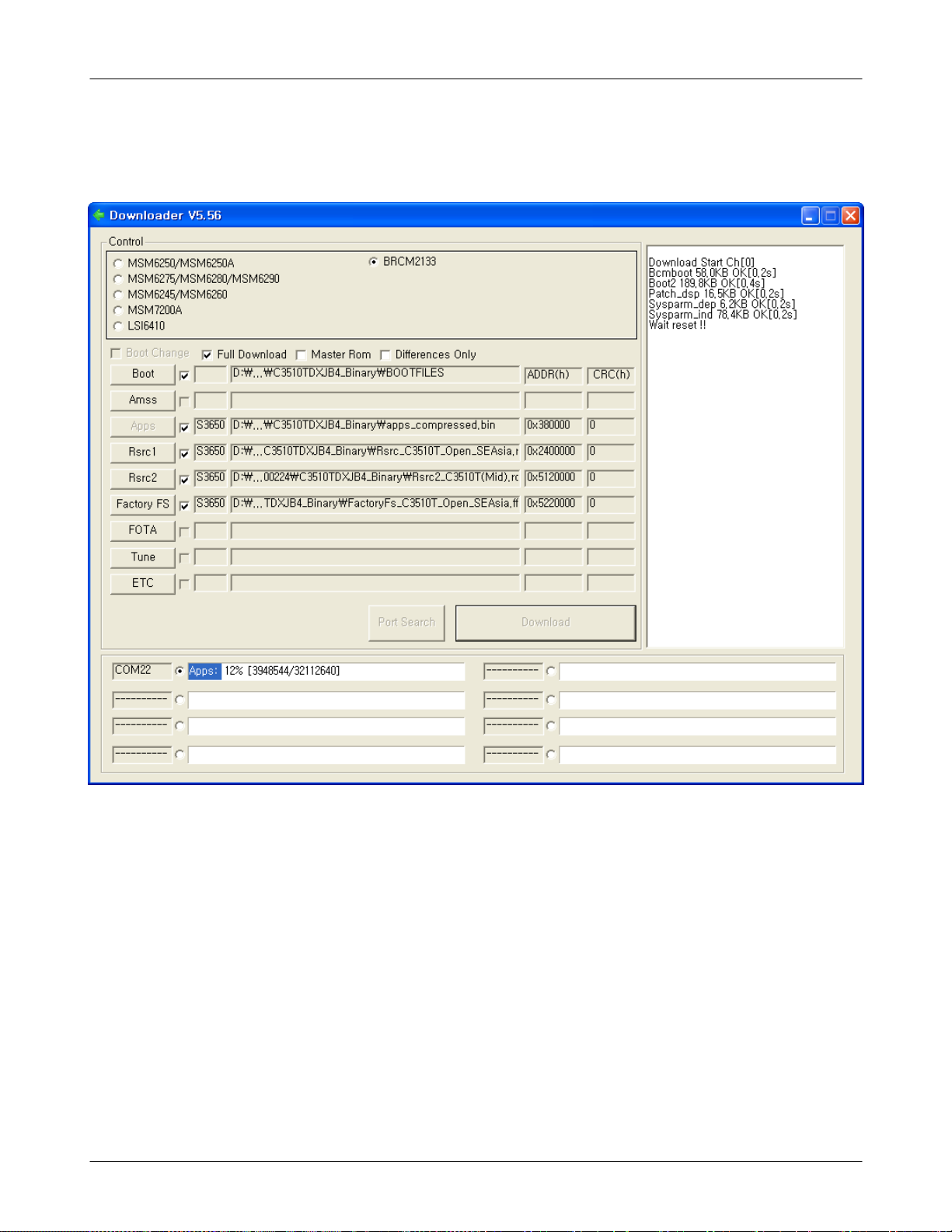

7. Click the Download button when the Port searched.
It will start to download.
7. When downloading is finished successfully, there is a"
All files complete" message.
4-3. Memory Full reset
:You should take following procedures in order.
Memory Full reset
- *2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

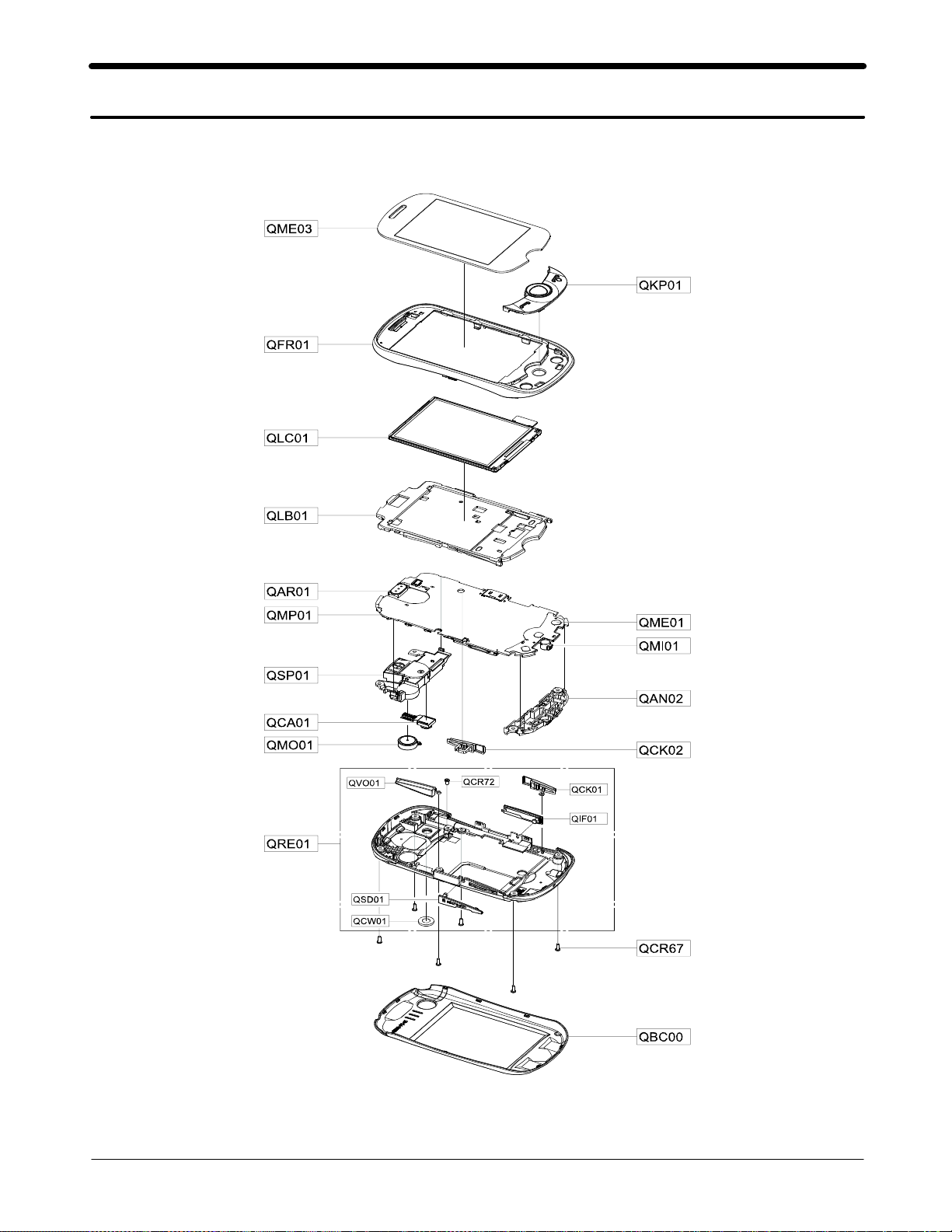

5-1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAR01 AUDIO-RECEIVER 3009-001483
QCR67 SCREW-MACHINE 6001-002083
QMI01 MICROPHONE-ASSY-GT_I6230 GH30-00647A
QMO01 MOTOR LINEAR VIBRATION-GT_S7330 GH31-00449A
QAN02 INTENNA-MAIN(GT-C3510T) GH42-02429A
QCA01 CAMERA MODULE-GT-I6230 GH59-08983A
QME01 DOME SHEET-GTI6230 GH59-09015A
QSP01 MODULE-GTI6230_SPK+CARRIER GH59-09024A
QME03 TOUCH/PANEL-GT-C3510T(BLK) GH59-09160A
QLB01 NDC BRACKET-SHIELD GH71-09331A
QMP01 A/S ASSY-GTC3510T_PBA MAIN (SVC) GH82-04811A
QLC01 ASSY LCD-2.8",TFT(GT-C3510T) GH96-04422A
QFR01 ASSY CASE-FRONT(XEM/BLK) GH98-16118A
QBC00 ASSY COVER-BATT GH98-16124A
QKP01 ASSY KEYPAD-FRONT GH98-16151A
QCK02 ASSY KEY-HOLD GH98-16671A
QRE01 ASSY CASE-REAR GH98-16958A
QCR72 SCREW-MACHINE 6001-002051
QCW01 PCT WINDOW-CAMERA GH72-58060A
QCK01 ASSY KEY-CAM GH98-16667A
QVO01 ASSY KEY-VOLUME GH98-16668A
QSD01 ASSY COVER-SD GH98-16669A
QIF01 ASSY COVER-IF GH98-16670A
5-2. Cellular phone Parts list

6. Main Electrical Parts List
SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
6-1
SEC CODE Design LOC Discription
0403-001688 D300 DIODE-ZENER
0404-001504 ZD100,ZD101,ZD102 DIODE-SCHOTTKY
0404-001504 ZD103 DIODE-SCHOTTKY
0406-001231 ZD300,ZD301,ZD302 DIODE-TVS
0406-001231 ZD303,ZD304,ZD402 DIODE-TVS
0406-001231 ZD403,ZD404 DIODE-TVS
0406-001286 ZD305,ZD400 DIODE-TVS
0406-001293 D403 DIODE-TVS
0406-001329 D400,D405,D406,ZD104 DIODE-TVS
0406-001329 ZD105 DIODE-TVS
0505-002207 U101 FET-SILICON
0801-003026 U301 IC
0801-003130 U200 IC
1001-001546 U102,U300 IC
1108-000296 UME200 MEMORY
1201-002675 U302 IC
1201-002933 PAM100 IC
1203-006070 U400 IC
1203-006176 PM300 IC
1204-003103 U103 IC
1205-003656 UCP200 IC
1205-003839 U100 IC
1404-001221 VR200 THERMISTOR
2007-000138 R109,R207,R301 R-CHIP
2007-000141 R409,R410,R414,R415 R-CHIP
2007-000143 R204 R-CHIP
2007-000144 R208,R209,R210,R211 R-CHIP
2007-000144 R315 R-CHIP
2007-000146 R407 R-CHIP
2007-000148 R408 R-CHIP
2007-000149 R126 R-CHIP
2007-000151 R102 R-CHIP
2007-000152 R214 R-CHIP
2007-000156 R318 R-CHIP
2007-000159 R319,R320 R-CHIP
2007-000160 R406 R-CHIP
2007-000162 R100,R101,R218,R400 R-CHIP

SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
6-2
Main Electrical Parts List
SEC CODE Design LOC Discription
2007-000162 R401,R412,R413 R-CHIP
2007-000165 R312 R-CHIP
2007-000172 R404,R405 R-CHIP
2007-001291 R303,R304,R305,R306 R-CHIP
2007-001313 R115,R116,R117,R118 R-CHIP
2007-001313 R119,R120,R121,R122 R-CHIP
2007-001313 R123,R124,R125 R-CHIP
2007-001319 R202,R203,R215,R216 R-CHIP
2007-001333 R321 R-CHIP
2007-001339 R200,R201 R-CHIP
2007-001341 R420 R-CHIP
2007-003010 R106 R-CHIP
2007-003013 R107,R108,R112,R113 R-CHIP
2007-003018 R104,R105 R-CHIP
2007-007001 R217 R-CHIP
2007-007156 R424 R-CHIP
2007-008401 R205 R-CHIP
2007-008517 R206 R-CHIP
2007-008776 R411 R-CHIP
2007-008780 R127,R128,R417,R419 R-CHIP
2007-008780 R421 R-CHIP
2203-000233 C110,C237,C358,C400 C-CERAMIC,CHIP
2203-000233 C442 C-CERAMIC,CHIP
2203-000254 C104,C141,C151,C155 C-CERAMIC,CHIP
2203-000254 C159,C165,C166,C235 C-CERAMIC,CHIP
2203-000254 C325,C326,C356,C429 C-CERAMIC,CHIP
2203-000278 C100,C103 C-CERAMIC,CHIP
2203-000311 C154,C162 C-CERAMIC,CHIP
2203-000386 C152,C153,C315,C316 C-CERAMIC,CHIP
2203-000386 C409,C423,C428,C431 C-CERAMIC,CHIP
2203-000425 C219 C-CERAMIC,CHIP
2203-000438 C113,C145,C148,C150 C-CERAMIC,CHIP
2203-000438 C160,C161,C402,C404 C-CERAMIC,CHIP
2203-000438 C410,C420,C430 C-CERAMIC,CHIP
2203-000466 C108 C-CERAMIC,CHIP
2203-000489 C350,C351 C-CERAMIC,CHIP
2203-000550 C307,C312 C-CERAMIC,CHIP

SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
6-3
Main Electrical Parts List
SEC CODE Design LOC Discription
2203-000627 C163,C164 C-CERAMIC,CHIP
2203-000812 C129,C140,C168,C354 C-CERAMIC,CHIP
2203-000812 C363,C406,C412 C-CERAMIC,CHIP
2203-000854 C228,C232 C-CERAMIC,CHIP
2203-000995 C205,C216,C231 C-CERAMIC,CHIP
2203-001072 C125,C126 C-CERAMIC,CHIP
2203-001101 C138,C139,C223 C-CERAMIC,CHIP
2203-002709 C131,C132,C156,C157 C-CERAMIC,CHIP
2203-002709 C158,C305 C-CERAMIC,CHIP
2203-005234 C115,C236 C-CERAMIC,CHIP
2203-005383 C169 C-CERAMIC,CHIP
2203-005446 C230 C-CERAMIC,CHIP
2203-005450 C114 C-CERAMIC,CHIP
2203-006048 C105,C106,C200,C208 C-CERAMIC,CHIP
2203-006048 C210,C211,C212,C213 C-CERAMIC,CHIP
2203-006048 C217,C218,C306,C308 C-CERAMIC,CHIP
2203-006048 C309,C311,C344,C345 C-CERAMIC,CHIP
2203-006048 C346,C355,C408,C411 C-CERAMIC,CHIP
2203-006048 C413,C417,C427,C432 C-CERAMIC,CHIP
2203-006257 C313,C314 C-CERAMIC,CHIP
2203-006348 C303,C323,C401,C403 C-CERAMIC,CHIP
2203-006377 C424,C425 C-CERAMIC,CHIP
2203-006399 C101,C102,C120,C130 C-CERAMIC,CHIP
2203-006399 C133,C134,C135,C142 C-CERAMIC,CHIP
2203-006399 C144,C147,C149,C201 C-CERAMIC,CHIP
2203-006399 C207,C209,C227,C229 C-CERAMIC,CHIP
2203-006399 C310,C327,C328,C330 C-CERAMIC,CHIP
2203-006399 C333,C334,C335,C336 C-CERAMIC,CHIP
2203-006399 C337,C338,C339,C348 C-CERAMIC,CHIP
2203-006399 C349,C352,C357,C359 C-CERAMIC,CHIP
2203-006399 C362,C434,C446,C447 C-CERAMIC,CHIP
2203-006399 C448 C-CERAMIC,CHIP
2203-006585 C136,C137 C-CERAMIC,CHIP
2203-006681 C214,C215,C225,C226 C-CERAMIC,CHIP
2203-006681 C443,C449 C-CERAMIC,CHIP
2203-006842 C440,C441 C-CERAMIC,CHIP
2203-006872 C107,C117,C203,C204 C-CERAMIC,CHIP

SAMSUNGProprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
6-4
Main Electrical Parts List
SEC CODE Design LOC Discription
2203-006872 C206,C220,C221,C224 C-CERAMIC,CHIP
2203-006872 C331,C332,C340,C341 C-CERAMIC,CHIP
2203-006872 C342,C343 C-CERAMIC,CHIP
2203-006890 C143,C146,C321,C322 C-CERAMIC,CHIP
2203-006890 C347 C-CERAMIC,CHIP
2203-007240 C439 C-CERAMIC,CHIP
2203-007270 C302,C304 C-CERAMIC,CHIP
2203-007279 C123,C353,C407,C422 C-CERAMIC,CHIP
2203-007317 C421 C-CERAMIC,CHIP
2203-007393 C418 C-CERAMIC,CHIP
2409-001172 BAT300 CAPACITOR
2703-001178 L102,L119,L124,L129 INDUCTOR-SMD
2703-001726 L112,L114,L137,L141 INDUCTOR-SMD
2703-001726 L201 INDUCTOR-SMD
2703-002170 L108,L109 INDUCTOR-SMD
2703-002176 L118,L121 INDUCTOR-SMD
2703-002200 L134 INDUCTOR-SMD
2703-002203 L125,L127 INDUCTOR-SMD
2703-002206 L138,L142 INDUCTOR-SMD
2703-002208 L104,L107 INDUCTOR-SMD
2703-002269 L103 INDUCTOR-SMD
2703-002281 L110,L111,L116,L117 INDUCTOR-SMD
2703-002281 L122 INDUCTOR-SMD
2703-002365 C127,C128 INDUCTOR-SMD
2703-002367 L204 INDUCTOR-SMD
2703-002369 L105 INDUCTOR-SMD
2703-002495 L130 INDUCTOR-SMD
2703-002544 L139,L140 INDUCTOR-SMD
2703-002589 L128,L131 INDUCTOR-SMD
2703-002596 L133,L135,L136 INDUCTOR-SMD
2703-003260 L300,L301 INDUCTOR-SMD
2703-003476 L400,L417 INDUCTOR-SMD
2703-003748 L403,L404 INDUCTOR-SMD
2801-004340 OSC100 CRYSTAL-UNIT
2801-004893 OSC200 CRYSTAL-UNIT
2801-004909 OSC300 CRYSTAL-UNIT
2901-001435 F400,F401,F402 FILTER-EMI SMD
