Samsung SC06H70 H Series User manual

English
Vacuum Cleaner
user manual
Thank you for purchasing a Samsung product.
✻Please read the User Manual thoroughly before operating the vacuum.
✻For indoor use only.
SC06H70**H Series
DJ68-00721L-04.indb 1 2015. 7. 29. �� 2:17

Contents
YOUR VACUUM CLEANER
6
BEFORE USING THE VACUUM
CLEANER
7
7 Assembly
8 Installing the Dust Sensor (Option)
8 Using accessory
OPERATING CLEANER
10
10 Power cord
10 Check filter
10 ON/OFF
11 Power control
12 Dust Sensor (Option)
MAINTENANCE
13
13 Cleaning the dust bin and grille
16 Cleaning the outlet filter
17 Maintain floor tools
TROUBLESHOOTING
18
PRODUCT FICHE
19
DJ68-00721L-04.indb 2 2015. 7. 29. �� 2:17

English - 3
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a risk of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
This vacuum cleaner is designed for household use only.
Do not use this vacuum cleaner to clean building waste or debris.
Regularly keep the filters in clean conditions to prevent of collecting fine dust in
them.
Do not use this vacuum cleaner with any of the filters removed.
Failure to meet these requirements could cause injury, damage the vacuum
cleaner and void your warranty.
DJ68-00721L-04.indb 3 2015. 7. 29. �� 2:17

English - 4
IMPORTANT SAFEGUARDS
GENERAL
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or floor is
wet. Do not use to suck up water.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts. Keep the vacuum cleaner away from stoves and
other heat sources. Heat can deform and discolour the plastic
parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before emptying the dust bin.
To avoid damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
DJ68-00721L-04.indb 4 2015. 7. 29. �� 2:17

English - 5
Children shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
DJ68-00721L-04.indb 5 2015. 7. 29. �� 2:17

English - 6
Your vacuum cleaner
Handle
Hose
Cyclone
Combination accessory
Pipe
2-Step brush
OPTION (Depending on model) *
Power Turo Plus * ECO Hard floor * Parquet master *
*
Dust sensor *
DJ68-00721L-04.indb 6 2015. 7. 29. �� 2:17

English - 7
BEFORE USING THE VACUUM CLEANER
ASSEMBLY
Connecting the Hose
Connecting the handle and pipe
Connecting the brush
Before using the vacuum cleaner
DJ68-00721L-04.indb 7 2015. 7. 29. �� 2:17

English - 8
INSTALLING THE DUST SENSOR (OPTION)
Assemble the dust sensor
between the brush and the pipe
between the pipe and the hose
USING ACCESSORY
Combination accessory (Option)
Dusting brush Crevice tool
1
2
DJ68-00721L-04.indb 8 2015. 7. 29. �� 2:17

English - 9
BEFORE USING THE VACUUM CLEANER
Pipe
Adjust the length of pipe by pushing the
[PUSH] button of the pipe.
For storage, park the floor nozzle
Do not pick up a machine while the
floor nozzle parked.
CAUTION
DJ68-00721L-04.indb 9 2015. 7. 29. �� 2:17

English - 10
POWER CORD
CAUTION
When removing the plug from the electrical outlet, grasp the plug,
not the cord.
CHECK FILTER ON/OFF
The filter light is illuminated when the dust
bin or filter requires emptying or cleaning.
Operating cleaner
DJ68-00721L-04.indb 10 2015. 7. 29. �� 2:17

English - 11
OPERATING CLEANER
POWER CONTROL
Hose (controlled by radio frequency signals)
ON/OFF
Select a higher power
Select a lower power
Transmitter
• Don’t cover the handle transmitter when you use a handle control.
• If no button is pressed for 30 minutes while cleaning, the power will shut off as
a precaution. If this happens, press the button on the main unit or replug the
power cord in again.
DJ68-00721L-04.indb 11 2015. 7. 29. �� 2:17

English - 12
DUST SENSOR (OPTION)
Dust Sensor Operations
• Indicates if dust is being picked up and
passing by the sensor which assist the
user to clean more efficiently.
• The dust sensor is activated automatically
when the cleaner runs and is turned off
when the cleaner is stopped.
Green : Amount of dust passing
sensor is small.
Red : Amount of dust passing
sensor is large.
If the red light does not light
up when cleaning a dusty
location
- Clean the sensors (2EA) with a
dry cloth.
- Take care when you use the
cleaner because the dust
sensor may malfunction or may
break due to an impact.
Installing the Batteries
If the dest sensor does not work, change the
batteries.
BATTERY TYPE : AAA Size
DJ68-00721L-04.indb 12 2015. 7. 29. �� 2:17

English - 13
MAINTENANCE
CLEANING THE DUST BIN AND GRILLE
Empty the dust bin, if dust reaches 'MAX' or
Check filter ( ) light is illuminating. 1
Take the dust bin out by lifting the handle. 2
Push the button aside. 3
Turn the grille and take out it. 4
Maintenance
DJ68-00721L-04.indb 13 2015. 7. 29. �� 2:17

English - 14

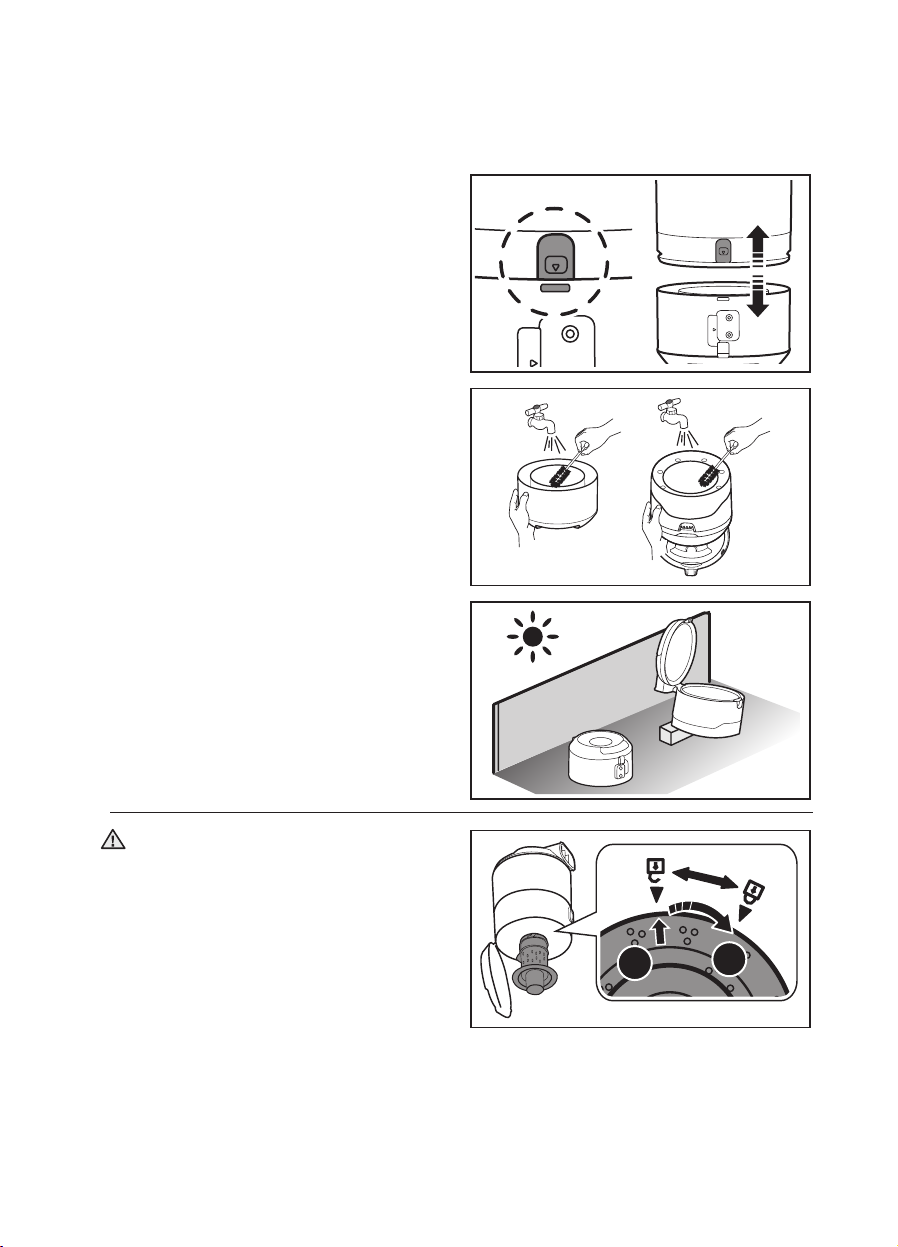

Push the button.
Separate the dust bin from body. 5
Clean the dust bin and body with water. 6
Leave the dust bin and body in the shade
until completely dry. 7
Install the grille and turn to clockwise.
12
CAUTION
DJ68-00721L-04.indb 14 2015. 7. 29. �� 2:17

English - 15
MAINTENANCE
CLEANING THE DUST FILTER
1 2
Pull the dust bin cover to open. Remove the filter from the dust bin.
3 4
Shake the filter to remove dust, then wash
the filter.
Let the filter dry for more than 12 hours.
5
Put the filter into the dust bin.
Make sure the filter is completely dry before putting it back into the vacuum cleaner.
Allow 12 hours for it to dry.
Do not use wet filter.
Replace the dust filter if it becomes damaged or deformed.
The dust bin cover will not close if the filter is not installed correctly.
DJ68-00721L-04.indb 15 2015. 7. 29. �� 2:17

English - 16
CLEANING THE OUTLET FILTER
1 2
Take the dust bin out by lifting the handle. Pull out the Filter.
3 4
Shake the Filter to clean. Install the filter and holder in main body.
• The filter can be replaced and
separated from holder by pulling.
• Clean the outlet filter when suction is noticeably reduced continuously or the
vacuum cleaner abnormal overheats.
Note: Filters are not washable.
Replace filter if cleaning does not resolve the problem.
• Recommend that Filter should be changed once in 6 month.
DJ68-00721L-04.indb 16 2015. 7. 29. �� 2:17

English - 17
MAINTENANCE
MAINTAIN FLOOR TOOLS
2-Step Brush
• Adjust the inlet lever according to the floor
surface.
Floor
Carpet
• Remove waste matter completely if the
inlet is blocked.
Power Turo Plus (Option)
1 2
341
2
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matted or
tangled hair.
DJ68-00721L-04.indb 17 2015. 7. 29. �� 2:17

English - 18
Troubleshooting
PROBLEM SOLUTION
Motor does not start. • Check cable, plug and socket.
• Leave to cool.
Suction force is
gradually decreasing.
• Check for blockage and remove.
• Please unclog the intake.
In operation, the
vacuum cleaner stops
after repeating runs
and stops three times.
Cord does not rewind
fully. • Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner does
not pick up dirt. • Check hose and replace if required.
Low or decreasing
suction.
• Please check filter and, if required, clean as illustrated in the
instructions. if filters are out of condition change them to new
ones.
Body overheating. • Please check filters, if required clean as illustrated in the
instruction.
Static electicity
discharge.
• Please decrease power suction.
• This can also occur when air in the room is very dry.
Please ventilate the room till air humidity becomes normal.
The vacuum cleaner
makes a strange
noise.
• In order to protect the motor in the cleaner, it rotates slowly
when you just turn on the cleaner.
(Before the motor stabilizes,) this causes the loud noise at the
initial state and it is not failure in the machine.
This vacuum cleaner is compliant with the following regulations:
- RTTE Directive(1999/5/EC)
- Electromagnetic Compatibility Directive : 2004/108/EEC
- Low Voltage Directive : 2006/95/EC
The official Declaration of conformity may be found at http://www.samsung.com, go to Support
Please search Product Support and enter the model name.
DJ68-00721L-04.indb 18 2015. 7. 29. �� 2:17

English - 19
Product fiche
[English]
According to Commission Regulation (EU) No 665/2013 and No 666/2013
ASupplier Samsung Electronics., Co. Ltd
BModel SC06H70E0H SC06H70F0H SC06H70F1H SC06H70E1H
CEnergy Efficiency Class A
DAnnual Energy Consumption
(kWh/yr) 27.0
ECarpet Cleaning Performance Class D
FHardfloor Cleaning Performance
Class A
GDust Re-Emission Class A
HSound Power Level (dBA) 79
IRated Input Power (W) 600
JType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.
Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on methods in
EN60312-1 and EN60704.
Notes on the energy label
• Declared energy efficiency and cleaning performance class on
carpet can be met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the enclosed
"Eco Hard Floor" brush which is designed to meet the energy
efficiency and cleaning performance class on hard floor with joints
and gaps.
• The values provided on the energy label have been determinded
according to the prescribed measuring process (in accordance
with EN60312 - 1).
Eco Hard Floor
DJ68-00721L-04.indb 19 2015. 7. 29. �� 2:17

If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
Country Customer Care Center ☎Web Site
AUSTRIA 0800 - SAMSUNG (0800-7267864) www.samsung.com/at/support
SWITZERLAND 0848-726-78-64(0848-SAMSUNG)
www.samsung.com/ch/support
(German)
www.samsung.com/ch_fr/support
(French)
DJ68-00721L-04.indb 20 2015. 7. 29. �� 2:17
