Samsung SC54Q0 User manual

Vacuum Cleaner
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only. English
SC54** Series
DJ68-00541W-04.indb 1 14. 8. 29. �� 1:59

02_ safety information
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Notes on the energy label
• Declared energy efficiency and cleaning performance class on
carpet can be met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the
enclosed "Eco Hard Floor" brush which is designed to meet
the energy efficiency and cleaning performance class on hard
floor with joints and gaps.
• The values provided on the energy label have been
determinded according to the prescribed measuring process
(in accordance with EN60312 - 1).
Eco Hard Floor
WARNING
WARNING
DJ68-00541W-04.indb 2 14. 8. 29. �� 1:59

safety information _03
IMPORTANT SAFEGUARDS
1. Read all instructions carefully. Before switching
on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating
plate on the bottom of the cleaner.
2. WARNING : Do not use the vacuum cleaner when
rug or floor is wet. Do not use to suck up water.
3. Do not use the vacuum cleaner without a dust
bag. Change the dust bag before it is full in order
to maintain the best efficiency.
4. Slide to the Stop(or Min)position before inserting a
plug into the electrical outlet.
5. Do not use the vacuum cleaner to pick up
matches, live ashes or cigarette butts.
Keep the vacuum cleaner away from stoves
and other heat sources. Heat can deform and
discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the
vacuum cleaner as they may damage the cleaner
parts. Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the
machine before unplugging from the electrical
outlet. Disconnect the plug from the electrical
outlet before changing the dust bag or dust
DJ68-00541W-04.indb 3 14. 8. 29. �� 1:59

04_ safety information
container. To avoid damage, please remove the
plug by grasping the plug itself, not by pulling on
the cord.
8. This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved.
9. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children without supervision.
10. The plug must be removed from the socket outlet
before cleaning or maintaining the appliance.
11. The use of an extension cord is not recommended.
12. If your vacuum cleaner is not operating correctly,
switch off the power supply and consult an
authorized service agent.
13. If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
14. Don’t carry the vacuum cleaner by holding the
hose. Use the handle on the vacuum cleaner set.
15. Unplug the cleaner when not in use. Turn off the
power switch before unplugging.
DJ68-00541W-04.indb 4 14. 8. 29. �� 1:59

contents _05
contents
ASSEMBLING THE CLEANER
06
OPERATING THE CLEANER
07
07 ON/OFF Switch
07 Power Cord
08 Power-Control
MAINTAIN TOOLS AND FILTER
09
09 Using accessory
10 Maintain floor tools
11 Cleaning the cyclone filter (optional)
11 Dust full indicator
12 Changing the dust bag
12 Cleaning inlet filter
13 Cleaning the outlet filter
14 Change the battery (optional)
TROUBLESHOOTING
15
DJ68-00541W-04.indb 5 14. 8. 29. �� 1:59

06_ assembling
assembling the cleaner
For storage, park the floor nozzle.
OPTION
Features may vary according to model.
OPTION
DJ68-00541W-04.indb 6 14. 8. 29. �� 1:59

operating _07
02 OPERATING
operating the cleaner
ON/OFF SWITCH
1) BODY CONTROL
TYPE
2) ON/OFF TYPE 3) HANDLE CONTROL
TYPE
• When removing the plug from the electrical outlet, grasp
the plug, not the cord.
POWER CORD
CAUTION
DJ68-00541W-04.indb 7 14. 8. 29. �� 1:59

08_ operating
POWER-CONTROL
BODY-CONTROL TYPE / ON/OFF TYPE
• HOSE
To reduce suction for cleaning draperies,
small rugs, and other light fabrics, pull
the tap air until the hole is open.
• BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net
curtains.
MAX = For hard floors and heavily soiled
carpets.
HANDLE CONTROL TYPE
• HOSE
Vacuum cleaner MODE (MIN/MID,MAX)
Press the MODE button repeatedly
to select the correct mode.
(ON) MIN
→
MID
→
MAX
sender
Handle Control
The cleaner is controlled by
using infrared signals.
DJ68-00541W-04.indb 8 14. 8. 29. �� 1:59

maintain _09
03 MAINTAIN
maintain tools and filter
USING ACCESSORY
Pipe (Option)
• Adjust the length of the telescopic pipe by
sliding the length control button located in the
center of the telescopic pipe back and forth.
• To check for blockages, separate the
telescopic pipe and adjust to shorten. This
allows for easier removal of waste clogging the
tube.
Accessory
• Dusting brush for furniture. shelves, books,
etc.
• Crevice tool for radiators, crevices, corners,
between cushions.
DJ68-00541W-04.indb 9 14. 8. 29. �� 1:59

10_ maintain
MAINTAIN FLOOR TOOLS
2-Step Brush (Option)
• Adjust the inlet lever according to the floor
surface.
• Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning Floor Cleaning
Pet Brush (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
Blanket brush (Option)
For picking up pet hair and fibre on upholstery and bed linen.
Clogs on turbine keep brush from turning, thus need to be unclogged
as follows.
Remove waste matter completely when inlet is blocked.
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
To reassemble, align the cover to the front of the main
body and close. After closing the cover, ensure that the
lock button is turned to the ‘LOCK’ position.
Use for bedclothes only. Be cautious not to
damage brush during unclogging.
Turbine
Brush
WARNING
DJ68-00541W-04.indb 10 14. 8. 29. �� 1:59

maintain _11
03 MAINTAIN
maintain tools and filter
CLEANING THE CYCLONE FILTER (OPTIONAL)

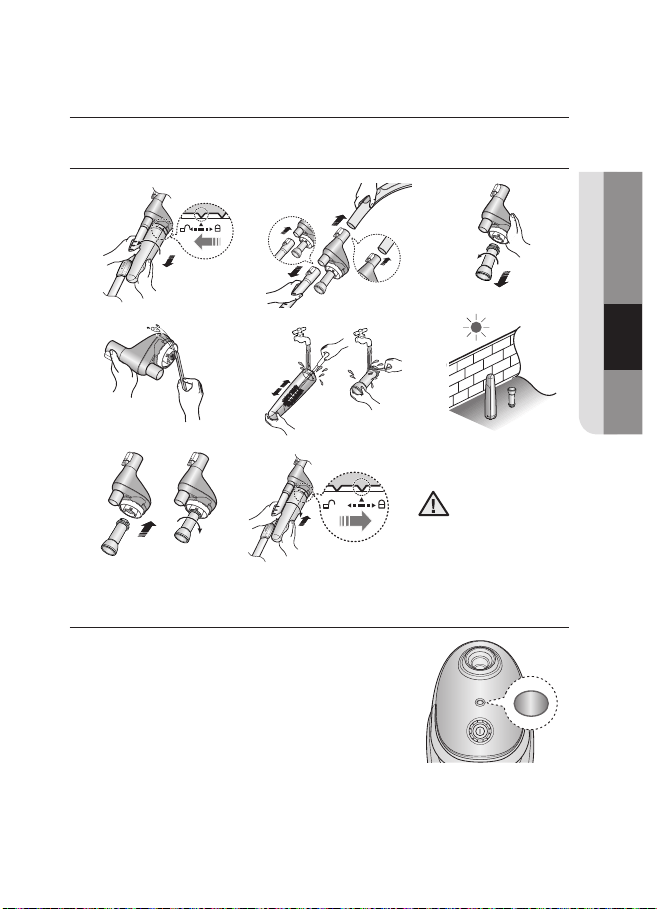

DUST FULL INDICATOR
When the indicator color has changed, you have to
replace the dust bag.
1 2 3
4 5 6
78
It is necessary to use
Cyclone Filter while
cleaning.
CAUTION
DJ68-00541W-04.indb 11 14. 8. 29. �� 1:59

12_ maintain
CHANGING THE DUST BAG
OPTIONAL
• For Cloth Bag
After using, if the cloth bag is full of dust, clean the cloth bag and use it
again.
You can purchase dust bags in the shops where you bought this vacuum
cleaner.
If required paper bags can be used (VP-54).
CLEANING INLET FILTER
Don’t throw away the filter.
1 2 3
1 2 3
DJ68-00541W-04.indb 12 14. 8. 29. �� 1:59

maintain _13
03 MAINTAIN
maintain tools and filter
CLEANING THE OUTLET FILTER
Replacement filters are available at your local
Samsung distributor.
OPTION
Press the fixed frame part at
the back of the main body to
remove.
OPTION - MICRO FILTER
Remove and replace the blocked
outlet filter.
DJ68-00541W-04.indb 13 14. 8. 29. �� 1:59

14_ maintain
CHANGE THE BATTERY (OPTIONAL)
1. When the vacuum cleaner does not work, replace the batteries. If the problem
persists, please contact our authorized dealer.
2. Use 2 batteries of size AA.
1. Never disassemble or recharge the
batteries.
2. Never heat up the batteries or throw
them into fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries property.
BATTERY TYPE : AA Size
WARNING
DJ68-00541W-04.indb 14 14. 8. 29. �� 1:59

troubleshooting _15
04 TROUBLESHOOTING
troubleshooting
PROBLEM SOLUTION
Motor does not start. • Check cable, plug and socket.
• Leave to cool.
Suction force is gradually
decreasing. • Check for blockage and remove.
Cord does not rewind fully. • Pull the cord out 2-3m and push down the cord
rewind button.
Vacuum cleaner does not pick
up dirt. • Check hose and replace if required.
Low or decreasing suction • Please check filter and, if required, clean as illustrated in the instructions. if filters are out of
condition change them to new ones.
Body overheating • Please check filters, If required clean as
illustrated in the instruction.
Static electricity discharge • Please decrease power suction.
This Vacuum cleaner is approved the following.
EMC Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
DJ68-00541W-04.indb 15 14. 8. 29. �� 1:59

Product fiche
[English]
According to Commission Regulation (EU) No 665/2013 and No 666/2013
ASupplier Samsung Electronics., Co. Ltd
BModel SC54Q0 SC54Q5 SC54J0 SC54F0 SC54F5
CEnergy Efficiency Class B E F
DAnnual Energy Consumption
(kWh/yr) 34 52 58
ECarpet Cleaning Performance
Class E E D
FHardfloor Cleaning
Performance Class A D E
GDust Re-Emission Class B C C
HSound Power Level (dBA) 81 81 81
IRated Input Power (W) 750 1100 1300
JType General purpose vacuum cleaner
1) Indicative annual energy consumption (kWh per year), based on 50 cleaning
tasks.Actual annual energy consumption will depend on how the appliance is
used.
2) Measurements for power consumption and performance are based on methods
in EN 60312-1 and EN 60704.
DJ68-00541W-04.indb 16 14. 8. 29. �� 1:59

Memo
DJ68-00541W-04.indb 17 14. 8. 29. �� 1:59

DJ68-00541W-04.indb 18 14. 8. 29. �� 1:59

Stofzuiger
Gebruiksaanwijzing
imagine the possibilities
Hartelijk voor uw aankoop van een Samsung product.
✻Lees deze aanwijzingen zorgvuldig door voordat u de stofzuiger in
gebruik neemt.
✻Alleen voor gebruik binnenshuis geschikt.
Nederlands
SC54** Series
DJ68-00541W-04.indb 1 14. 8. 29. �� 1:59

02_ voor uw veiligheid
voor uw veiligheid
VOOR UW VEILIGHEID
• Lees voordat u de stofzuiger gaat gebruiken deze gebruiksaanwijzing
zorgvuldig door en bewaar deze voor later gebruik.
• Omdat deze gebruiksaanwijzing voor verschillende modellen geldt, kunnen
de eigenschappen van uw stofzuiger enigszins afwijken van de modellen
die hierin worden beschreven.
WAARSCHUWINGSSYMBOLEN
WAARSCHUWING
Wijst op de mogelijkheid van ernstig of fataal lichamelijk letsel.
VOORZICHTIG
Wijst op de mogelijkheid van lichamelijk letsel of beschadiging van
uw eigendommen.
ANDERE SYMBOLEN
Betekent dat u iets NIET moet doen.
Betekent iets dat u moet opvolgen.
Betekent dat u stekker uit het stopcontact moet trekken.
Opmerkingen over het energielabel
• De opgegeven energie-efficiëntieklasse en reinigingsklasse
voor tapijt kunnen worden bereikt met de meegeleverde
2-standenborstel.
• Wanneer de harde vloer verbindingen of naden heeft, gebruikt
u de meegeleverde “Ecoborstel voor harde vloeren”.
Deze borstel is zodanig ontworpen dat wordt voldaan aan de
energie-efficiëntie- en prestatieklasse voor harde vloeren met
verbindingen of naden.
• De waarden op het energielabel zijn bepaald aan de hand van
het beschreven meetproces (overeenkomstig EN60312 - 1).
Ecoborstel voor
harde vloeren
WAARSCHUWING
WAARSCHUWING
DJ68-00541W-04.indb 2 14. 8. 29. �� 1:59
