Samsung SS80N80 Series User manual

ART WORK SPEC
Product
Model/PJT
Changes Note: New
Vacuum CleanerHQ R&D PIC: Jungran Kim
Material: Wood Free 80g VS8000ML
Design: Hyunwoo Lim
Size: 182mm x 257mm
Page: 140 Print Color: Black Part Code DJ68-00803F
Date: 2018-03-08 Post Processing : Cut Rev No 00

Vacuum cleaner
User manual
SS80N80**** / SS75N80****
• Before operating this unit, please read the instructions carefully.
• For indoor use only
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 1 2018-03-08 오전 12:03:32

2
English
Contents
PREPARATION
Safety information 3
INSTALLATION
Name of the parts 13

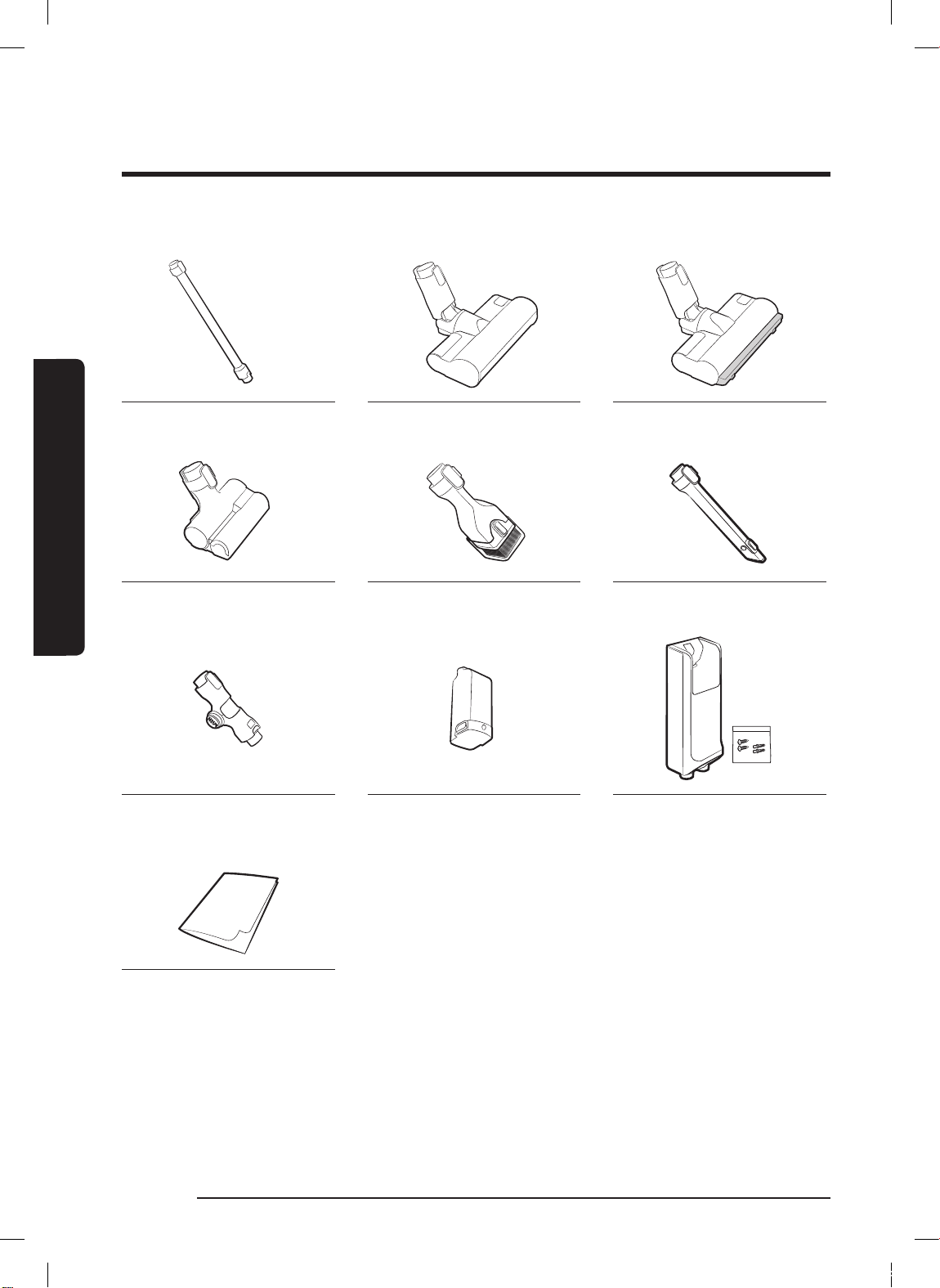

Accessories 14

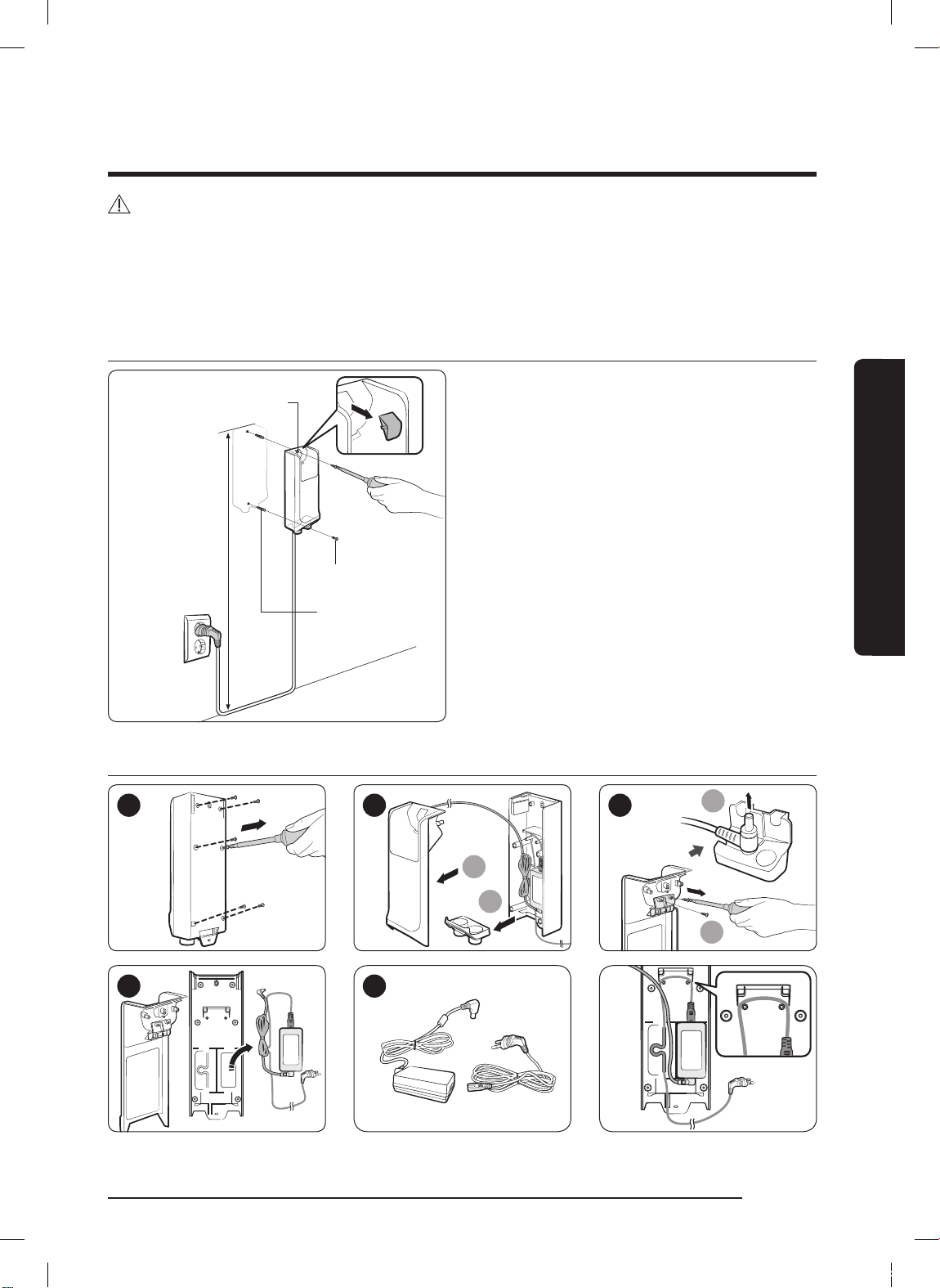

Installing the wall mount 15
Installing the wall mount 15
Disassembling the wall mount 15
OPERATION

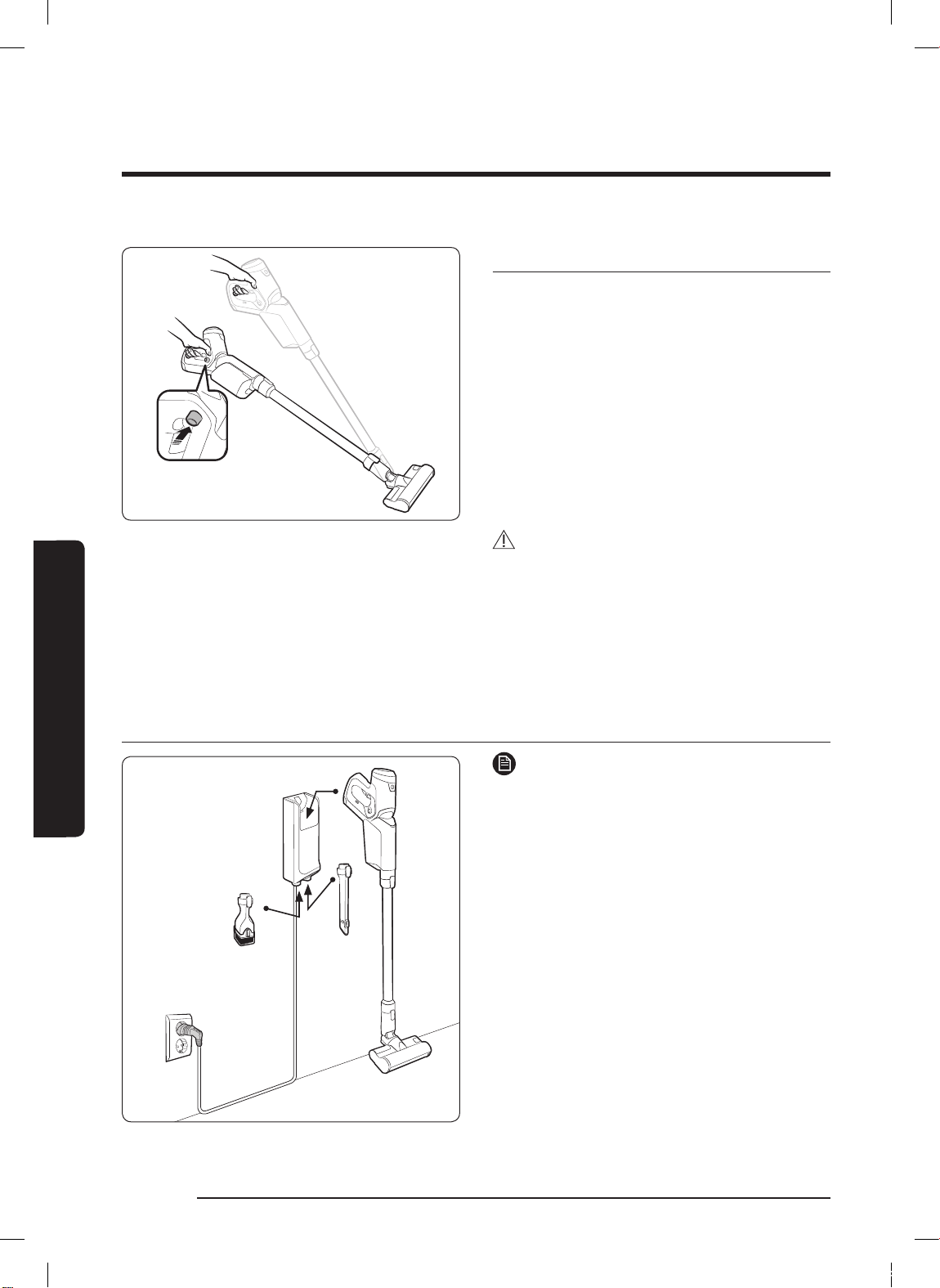

Using the vacuum cleaner 16

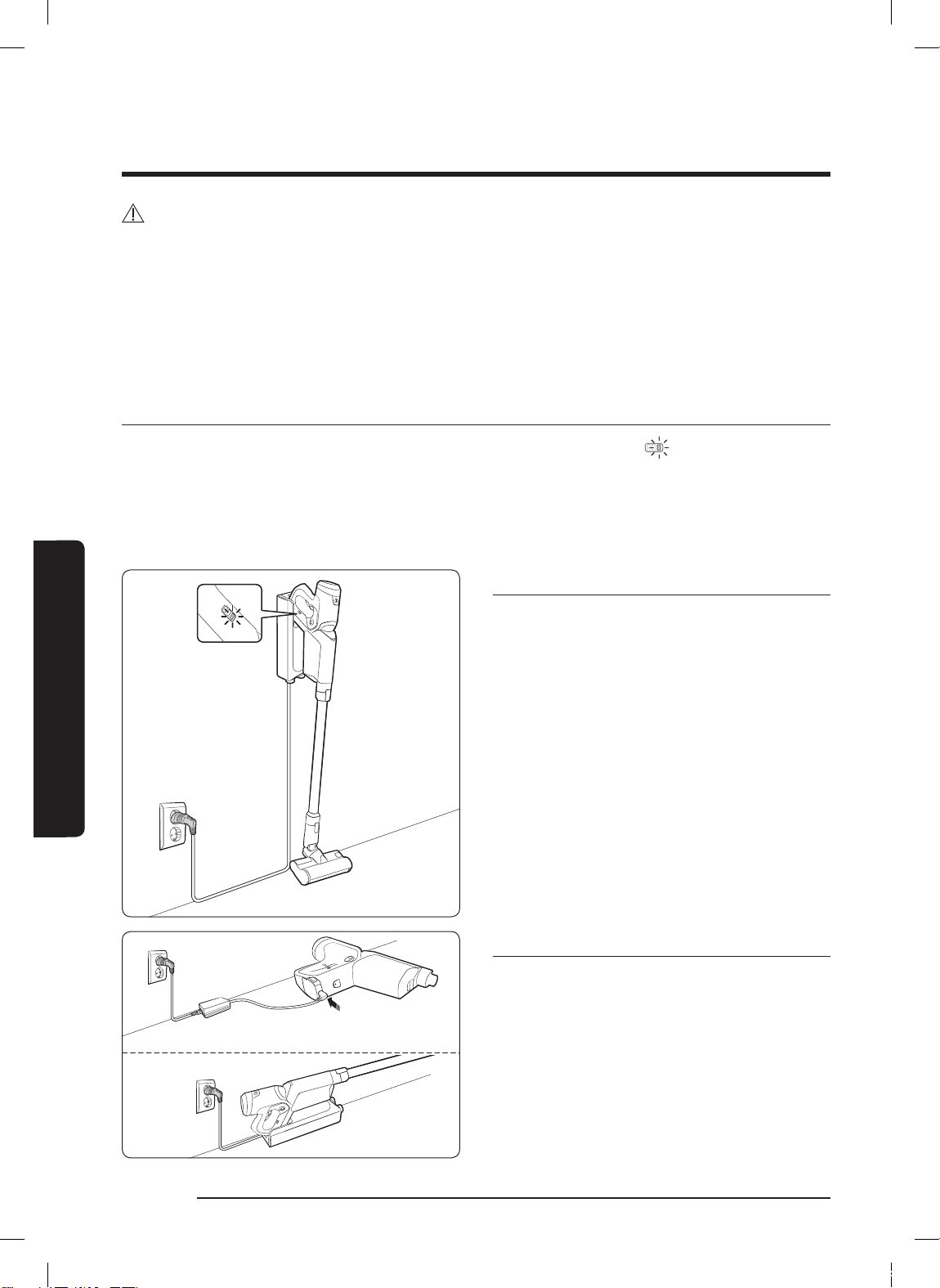

Charging the vacuum cleaner 16

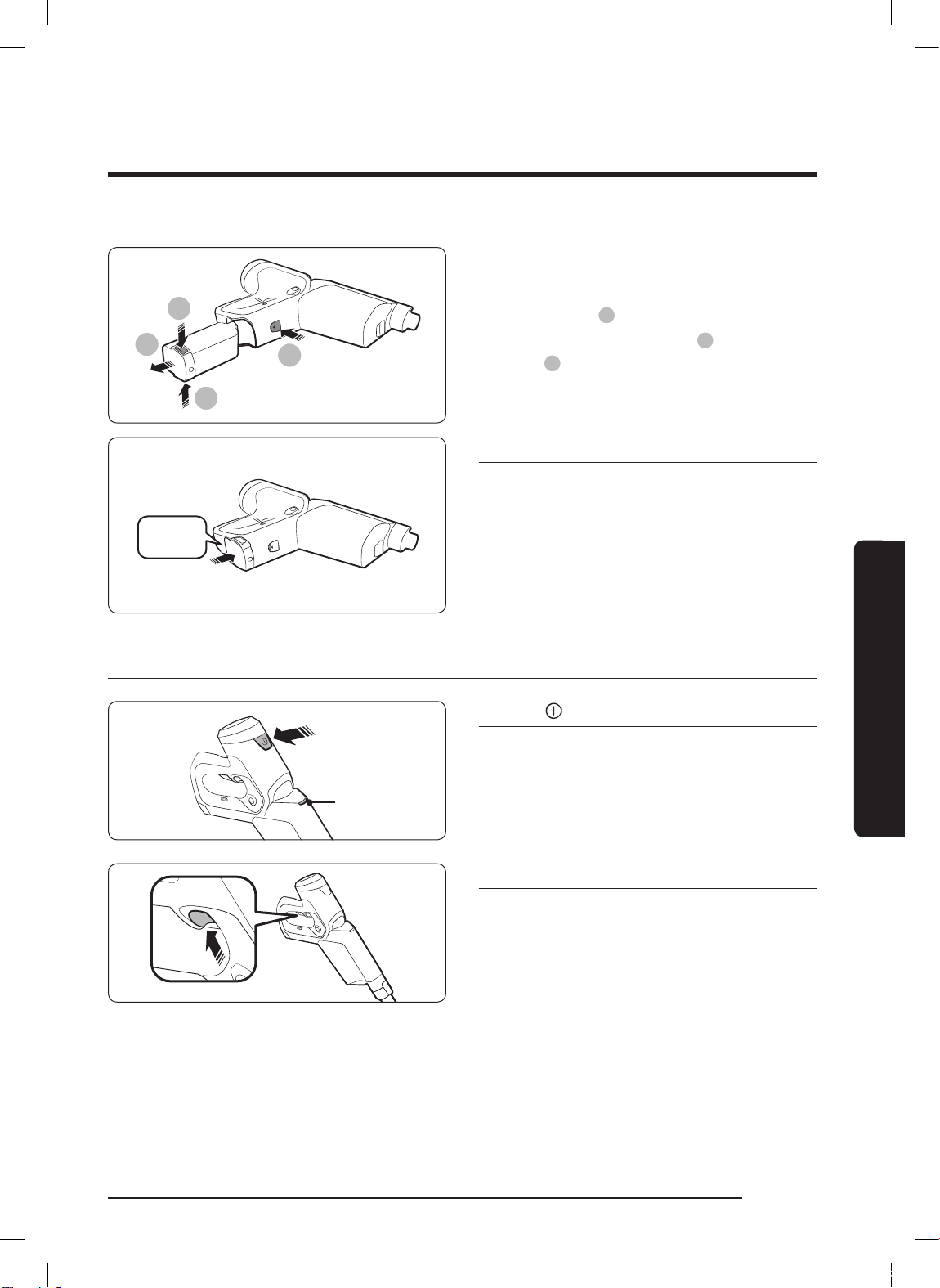

Using the handle 17
Storing the vacuum cleaner 18

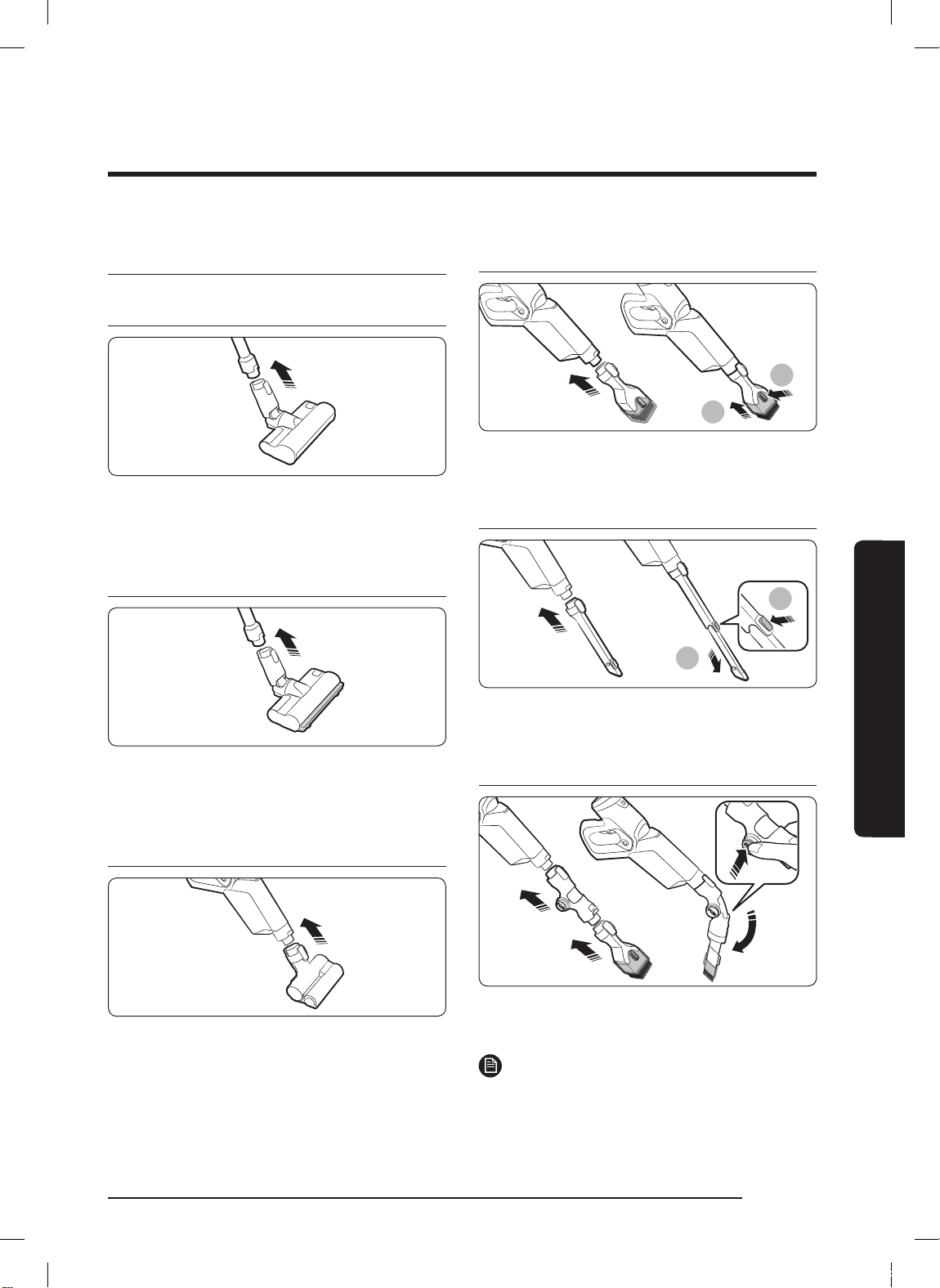

Using the accessories 19
MAINTENANCE
Maintaining the vacuum cleaner 20
When to empty the dustbin 20
Emptying the dustbin without causing dust
clouds 20
Emptying and Cleaning the dustbin 20
Cleaning the sponge lter 21
Cleaning the outlet lter 22
Cleaning the accessories 22
APPENDIX
Notes and cautions 24
Battery usage 24
Operation 25
Maintenance 26
Troubleshooting 27
Product Specication
Model SS80N80**** SS75N80****
Power 100-240 V~50-60Hz
Rated power consumption 450W 400W
Battery specication Li-ion 32.4 V, 1,600 mAh, 9 cell
Charging time 4.5 hours
Cleaning time
Handy: Approximately 40 minutes (Normal mode) /
Approximately 7 minutes (Turbo mode)
Brush assembled: Approximately 30 minutes (Normal
mode) / Approximately 7 minutes (Turbo mode)
 Charging and cleaning time may differ depending on the brushes and the conditions of
use.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 2 2018-03-08 오전 12:03:32

3
English
PREPARATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Caution/Warning symbols used
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
Other symbols used
NOTE
Indicates that the following text contains additional important information.
Failure to meet these requirements could cause damage to the internal
parts of the vacuum and void your warranty.
Safety information
PREPARATION
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 3 2018-03-08 오전 12:03:32

4
English
PREPARATION
General
• Read all instructions carefully. Before switching the vacuum on, make
sure that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the battery charger.
• WARNING : Do not use the vacuum cleaner on a wet rug or oor.
• Close supervision is necessary when any appliance is used by or near
children. Do not allow the vacuum cleaner to be used as a toy. Do not
allow the vacuum cleaner to run unattended at any time. Use the vacuum
cleaner only for its intended purpose as described in these instructions.
• Do not use the vacuum cleaner without a dustbin.
• Empty the dustbin before it is full to maintain the highest efciency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette
butts. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolor the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they
may damage the vacuum's parts.
• Do not block the suction or the exhaust port.
• To avoid damage, remove the plug by grasping the plug, not by pulling
the cord.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance.
Children should not clean or perform maintenance on the vacuum
without adult supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 4 2018-03-08 오전 12:03:33

5
English
PREPARATION
• The battery must be removed from the main unit before cleaning or
performing maintenance on the vacuum.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power
supply and consult an authorized Samsung service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualied person to avoid any electrical
hazards.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• Please contact Samsung or a Samsung service center for a replacement if
one is needed.
• For information on Samsung’s environmental commitments and product
specic regulatory obligations e.g. REACH visit: samsung.com/uk/
aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html
Battery charger
• Do not modify the polarized plug to t a non-polarized outlet or
extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the battery charger from the outlet when not in use and before
servicing.
• Use only the battery charger supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close a door on
the cord, or pull the cord around sharp edges or corners. Keep the cord
away from heated surfaces.
• Do not use extension cords or outlets with inadequately rated current.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 5 2018-03-08 오전 12:03:33

6
English
PREPARATION
• Do not charge a non-rechargeable battery.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the
cord.
• Do not mutilate or incinerate batteries as they will explode at high
temperatures.
• Do not attempt to open the battery charger. Repairs should be only
carried out by a qualied Samsung service center.
• Do not expose the battery charger to high temperatures or allow
moisture or humidity of any kind to come into contact with the battery
charger.
• The label on the wall mount shows the label for the battery charger
which goes inside the wall mount.
Vacuum cleaner
• Do not pick up hard or sharp objects such as glass, nails, screws, coins,
etc.
• Do not use without a lter in place. When servicing the unit, never put
ngers or other objects into the fan chamber in case the unit accidentally
turns on.
• Do not put any objects into openings. Do not use with any openings
blocked. Keep openings free of dust, lint, hair, and anything that may
reduce air ow.
• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner,
etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use the vacuum cleaner in an enclosed space lled with vapours
given off by oil based paint, paint thinner, moth proong substances,
ammable dust, or other explosive or toxic vapours.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 6 2018-03-08 오전 12:03:33

7
English
PREPARATION
Installation
• If you have a problem with installing the wall mount (battery charger),
contact a Samsung service center.
• Do not install the wall mount (battery charger) near water, in an area with
excessive moisture, or near window, etc.
• Do not install the wall mount (battery charger) on a wall behind which
pipes (gas or water) or electrical cables are installed.
Injury or product malfunction from not installing the wall mount (battery
charger) may not be compensated.
• The wall mount (battery charger) should be installed on the wall where it
can be rmly xed.
– To install the wall mount (battery charger) on a soft wall such as plaster
board, make sure that the mounting location is backed by a stud and
that you screw the supporting screws into the stud. Otherwise, the wall
mount can fall and cause an injury or severe product damage.
Power related
WARNING
• When installing the wall mount (battery charger), do not bend the power
cord with excessive force or put heavy objects on the power cord.
– Otherwise, electric shock or re may occur.
• If there is dust, water, etc. on a pin or contact point of the power plug,
wipe them carefully.
– Otherwise, abnormal operation or electric shock may occur.
• Do not pull the cord and do not touch the plug with wet hands.
• Do not plug the battery charger into a power source with the incorrect
voltage. Do not plug the battery charger into a multi-plug outlet or power
strip. Do not leave the power cord lying on the oor. Attach the cord
close to a wall.
– Otherwise, electric shock or re may occur.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 7 2018-03-08 오전 12:03:33

8
English
PREPARATION
• Do not use a damaged power plug, power cord, or loose power outlet.
– Otherwise, electric shock or re may occur.
• If the power cord is damaged, have a Samsung authorized service center
replace the power cord with a new power cord.
– Otherwise, electric shock or re may occur.
Operation
WARNING
• Do not touch the terminal of a battery charger with chop sticks, metal
screw drivers, forks, knives, etc.
– Otherwise, product malfunction or electric shock may occur.
• Make sure that the battery terminals of the charger do not come into
contact with a conductor such as a bracelet, watch, metal rod, nail, etc.
• Make sure that any liquid such as water or juice is not allowed to enter
the vacuum cleaner or the wall mount (battery charger).
– Otherwise, electric shock or re may occur.
• Do not use the battery charger for other purposes.
– Otherwise, severe damage to the battery charger or re may occur.
• Do not vacuum liquid, blades, pins, embers, etc. during cleaning.
– Otherwise, abnormal operation or product damage may occur.
• Do not step on the product body or strike the product.
– Otherwise, an injury or product damage may occur.
• The brush and air outlet should not be blocked during cleaning.
– Otherwise, product malfunction or re may occur due to overheating of
the product.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 8 2018-03-08 오전 12:03:34

9
English
PREPARATION
• This product is intended for household use only. Do not use this product
for heavy duty cleaning, commercial cleaning, industrial cleaning, or
cleaning outdoors, especially on stone or cement. Do not use to pick up
chalk powder in and around billiard tables or in hospital aseptic rooms.
– Otherwise, abnormal operation or product damage may occur.
• Do not use the product near heating appliances such as heaters, or in
areas containing combustible sprays, or ammable materials.
– Otherwise, re or product deformation may occur.
• Before using the product, make sure that the sponge lter is correctly
inserted.
– Otherwise, dust can enter the motor inside the main body and cause
product damage. Suction force can decrease.
• If there is a gas leak or combustible spray is used, do not touch the
power outlet and open the window for ventilation.
– Otherwise, an explosion or re may occur.
• If the vacuum makes a strange sound or emits a smell or smoke, turn off
the vacuum immediately, and then contact a Samsung service center.
– Otherwise, electric shock or re may occur.
CAUTION
• Do not use the product near combustible material. Also do not use:
– In a place where a burning candle or desk lamp is placed on the oor.
– In an area where an unattended place heater is turned on or an area in
which there are unextinguished embers in a replace, in an ashtray, etc.
– In a place where there are combustible materials such as gasoline,
alcohol, thinner, ashtrays with unextinguished cigarettes, etc.
• Do not allow children to cling to or push the wall mount (battery charger).
– Personal injury, product and oor damage may occur.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 9 2018-03-08 오전 12:03:34

10
English
PREPARATION
• When you need to store the vacuum cleaner for a short time during
cleaning, lay the vacuum on the oor.
– Otherwise, the vacuum cleaner may fall and could cause an injury or
severe product damage.
• When you charge the vacuum cleaner by directly connecting it to the
battery charger (without using the wall mount), the vacuum cleaner
must lie in a stable place (that is at, has no moisture, is out of reach
of children, and that is congured so that the vacuum will not fall).
In addition, do not charge the product near a window, heater, toilet,
bathroom, etc.
• After using the vacuum cleaner, you should store it in the wall mount
(battery charger).
– Otherwise, the product may fall and could cause an injury or severe
product damage.
• Do not store the vacuum cleaner by leaning it against a wall or table.
• Do not use the vacuum cleaner for other than its intended purpose. (Do
not allow children to ride on or play with the product.)
– An injury or product damage may occur.
• Before plugging in or unplugging the battery charger, turn off the
vacuum and make sure that the pins of the power plug do not come into
contact with your hands.
– Otherwise, re or electric shock may occur.
• When using the vacuum cleaner, be careful hurt yourself on the moving
parts.
– Be careful not to suction body parts into a brush of the vacuum cleaner
(Hair, etc.)
– When using the Flex Handle, be careful not to catch your ngers or
hands in the movement fold of the handle.
• When cleaning the wall or ceiling, use both hands.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 10 2018-03-08 오전 12:03:34

11
English
PREPARATION
• Use both hands to clean with the vacuum. If you clean with one hand,
you can damage your wrist or drop the vacuum and cause an injury or
damage the vacuum.
• When assembling the vacuum, be careful not to catch your ngers or
hands in the movement fold of the handle.
• Do not use the vacuum cleaner on objects that can be easily scratched
(monitors, stainless steel appliances, etc.).
• Do not store the vacuum cleaner inside a car.
• Do not use water to clean the vacuum cleaner when in use.
• Use the vacuum cleaner in dry places only.
• Do not use the vacuum cleaner to pick up spilled beverages or pet waste.
• Do not use the vacuum cleaner in direct sunlight or high heat.
• Do not use the vacuum cleaner in wet places or on water.
Maintenance
WARNING
• Before removing foreign matter inside the vacuum, turn off the vacuum
cleaner rst.
– If the vacuum is on while you are removing the foreign matter, you can
hurt yourself or damage the vacuum.
• When cleaning the exterior of the product, turn off the product rst and
then wipe it with dry towel. Do not spray water directly onto the product
or wipe it with volatile materials such as benzene, thinner, or alcohol.
– If water gets into the product and an error occurs, turn off the product
and contact a Samsung service center.
• After unplugging the product, clean the battery charger.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 11 2018-03-08 오전 12:03:35

12
English
PREPARATION
• When cleaning the washable parts, do not use alkaline detergent, acid,
industrial detergent, air freshener, acetic acid, etc.
– Otherwise, product damage such as plastic breakage, deformation,
discoloration, printing deterioration, etc. may occur.
Washable Parts Dustbin, sponge
Acceptable
detergent Neutral Dish washing detergent
Prohibited
detergent
Alkaline Lox, mold cleaner, etc.
Acid Parafn oil, an emulsier, etc.
Industrial cleaners NV-I, PB-I, Opti, alcohol, acetone, benzene,
thinner, etc.
Air freshener Jet spray air fresheners (coffee avor, herb, etc.)
Oils Animal oils, vegetable oils
Etc. Edible acetic acid, vinegar, glacial acetic acid, etc.
CAUTION
• Do not push the vacuum cleaner while it is stored in the wall mount
(battery charger).
– Personal injury, oor and product damage may occur.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 12 2018-03-08 오전 12:03:35

13
English
INSTALLATION
Name of the parts
INSTALLATION
01 Pipe
02 Dustbin
03 Power indicator
04 Power( ) button
05 Outlet lter
06 Handle
07 Turbo mode button
08 Battery level indicator
09 Battery release button
10 Flex Handle button
11 Battery release lock button
12 Dustbin release button
01
04
03
02
06
05
07
08
11
09
10
12
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 13 2018-03-08 오전 12:03:36

14
English
INSTALLATION
Accessories
Accessories may differ depending on the models.
Pipe Soft Action Brush Turbo Action Brush
Mini Motorized Tool Combination Tool Extension Crevice Tool
Flexible Tool Battery Wall mount
(Screws/ Screw anchors)
User manual
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 14 2018-03-08 오전 12:03:42

15
English
INSTALLATION
Installing the wall mount
CAUTION
• The wall mount's mounting screws must be afxed to a hard wall or underlying wall stud.
– If you install the wall mount on a plaster board wall, you must screw the
supporting screws into an underlying stud.
Installing the wall mount
Groove for xing
the wall mount
Screws
Screw
Anchors
118cm
01 Remove the rubber cap from the
groove for xing the wall mount.
02 Set the height of the wall mount
installation so that top of the wall
mount will be 118cm from the oor.
03 Using the wall mount as a template,
mark where the top and bottom screw
holes will be placed.
04 Drill the holes using a 6mm drill bit.
Fix the wall mount to the wall with the
provided screws. Re-Insert the rubber
cap into the groove for xing the wall
mount.
05
Plug in the wall mount, place the vacuum
into the wall mount, and then conrm
that the battery level indicator is on.
Disassembling the wall mount
1 2
01
02
302
01
4 5

 When re-assembling the wall mount, make sure the cables are placed as shown in the
illustration.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 15 2018-03-08 오전 12:03:45

16
English
OPERATION
Using the vacuum cleaner
CAUTION
• Before ejecting the battery, the product must be turned off. (If the
battery is forcibly ejected while the vacuum is operating, the vacuum can
malfunction.)
• Be careful not to drop the battery. If you do, you can injure yourself or
damage the battery.
Charging the vacuum cleaner
 When the battery level indicator is at its lowest level and blinks( ), charge the
battery.
 When charging the vacuum, make sure the vacuum cleaner is correctly mounted on the
wall mount.
 The vacuum cleaner cannot be used while it is charging.
Charging with the wall mount
• Check if the battery level indicator is
turned on.
• The battery level indicator blinks while
charging. When charging is complete,
the blinking stops and the light level
dims.
Charging without the wall mount
• You can separate the battery charger
from the wall mount. To separate the
battery charger from the mount, refer to
“Disassembling the wall mount” on page
15.
• When you charge the vacuum without
the wall mount, lay the vacuum on a
stable oor.
OPERATION
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 16 2018-03-08 오전 12:03:46

17
English
OPERATION
01
01
03
02
Ejecting the battery
Grip the handle, and then press the battery
release button 01 . While pressing the
battery release lock button 02 , eject the
battery 03 .
Click
Re-inserting the battery
Push the battery in as shown in the
illustration until you hear a click.
Using the handle
Power
indicator
Power( ) on/off
• The vacuum cleaner starts operation in
normal mode.
• When the power is turned on, the power
indicator displays.
Using the turbo mode
• Press and hold the turbo mode button to
turn on the turbo mode.
• Release the turbo mode button to return
to the normal mode.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 17 2018-03-08 오전 12:03:48

18
English
OPERATION
Using the Flex Handle
• Press the Flex Handle button to release
the Flex Handle. The Flex Handle will
now move up and down as you clean.
• The movement of the Flex Handle will
protect your wrist or arm as it helps you
to maneuver the vacuum and clean more
comfortably.
• To lock the handle in place again, move
it back to its original position. When you
hear it click, it will be locked in place.
CAUTION
• When using the Flex Handle, be
careful not to catch your ngers
or hands in the movement fold of
the handle.
Storing the vacuum cleaner
NOTE
• Store the exible tool in a
separate place.
• After cleaning, operate the turbo
mode for 5 seconds or more to
suction up the small dust particles
remaining between the pipe and
the main body.
• When disassembling the
accessories, dust can fall from
the suction part of the vacuum
cleaner. Before storing the
vacuum cleaner, vacuum up the
fallen dust.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 18 2018-03-08 오전 12:03:51

19
English
OPERATION
Using the accessories
Soft Action Brush
Use the Soft Action Brush to clean small
dust particles off a oor (wood and
linoleum).
Turbo Action Brush
Use the Turbo Action Brush to clean
various oor conditions at home, it is also
suitable to clean carpet.
Mini Motorized Tool
Use to clean bedding.
Combination Tool
02
01
Use to remove dust from curtains,
furniture, sofas, etc.
Extension Crevice Tool
02
01
Use to remove dust in grooves of window
frames, chinks, corners, etc.
Flexible Tool
Use to clean ceilings and upper or rear
parts of furniture.
NOTE
• The Flexible Tool can be
connected to the Combination
Tool and Extension Crevice Tool.
1_Stick_VS8000-V2_EN_00803F-00_SB.indd 19 2018-03-08 오전 12:03:54
