Samsung SM-R770 User manual

www.samsung.com
User Manual
English (EU). 10/2016. Rev.1.0
SM-R760
SM-R770

2
Table of Contents
Getting Started
5 About the Gear S3
6 Read me first
7 Maintaining water and dust
resistance
8 Device layout
8 Package contents
9 Gear
11 Wireless charging dock
12 Battery
12 Charging the battery
14 Battery charging tips and
precautions
15 Power saving mode
16 Wearing the Gear
16 Putting on the Gear
16 Band tips and precautions
17 Replacing the band
19 Turning the Gear on and off
20 Connecting the Gear to a mobile
device
20 Installing the Samsung Gear app
20 Connecting the Gear to a mobile
device via Bluetooth
22 Remote connection
22 Using the Gear without a mobile
device
Basics
24 Controlling the screen
24 Screen composition
25 Turning the screen on and off
25 Navigating the screen
27 Using the bezel
29 Touchscreen
32 Status panel
34 Watch
34 Watch screen
34 Changing the watch face
35 Using the Watch always on feature
35 Power-off watch mode
35 Notifications
35 Notification panel
36 Viewing incoming notifications
37 Sending app notifications to the
Gear
37 Entering text
37 Introduction
38 Using the voice input
38 Using emoticons
39 Using handwriting input mode or
the keyboard
40 GPS
41 SOS messages
42 Finding my Gear

Table of Contents
3
67 S Voice
67 Introduction
67 Setting a wake-up command
68 Using S Voice
69 Setting the language
69 Weather
69 Alarm
70 World Clock
71 Gallery
71 Importing and exporting images
72 Viewing images
72 Deleting images
73 News Briefing
73 Find My Phone
74 Email
74 Get more apps
75 Settings
75 Introduction
75 Style
75 Sounds and vibration
76 Device
77 Display
77 Call
77 Messages
78 Connections
81 Security
81 Accessibility
81 Input
81 Power saving
82 Gear info
82 Connect to new phone
82 Connect to phone
83 Updating the Gear
Applications
43 Messages
44 Phone
44 Introduction
44 Receiving calls
46 Making calls
46 Options during calls
47 Contacts
48 S Health
48 Introduction
51 24-hour Log
52 Steps
53 Floors
54 Exercise
56 Heart rate
58 Water
58 Caffeine
59 Together
60 Additional information
61 Alti-Barometer
64 Music Player
64 Introduction
64 Playing music
64 Importing music
65 Playing music on the Gear
65 Playing music from your mobile
device
65 Standalone music
66 Reminders
67 Schedule

Table of Contents
4
Samsung Gear app
84 Introduction
85 INFO
86 SETTINGS
86 Watch faces
86 Notifications
87 Apps
87 Send content to Gear
88 Send SOS requests
88 Find My Gear
89 Gear connection
89 Quick messages
89 Social network sharing
89 S Health
90 Samsung Galaxy Apps
90 About Gear
91 About Samsung Gear app
Appendix
92 Troubleshooting
96 Removing the battery

5
Getting Started

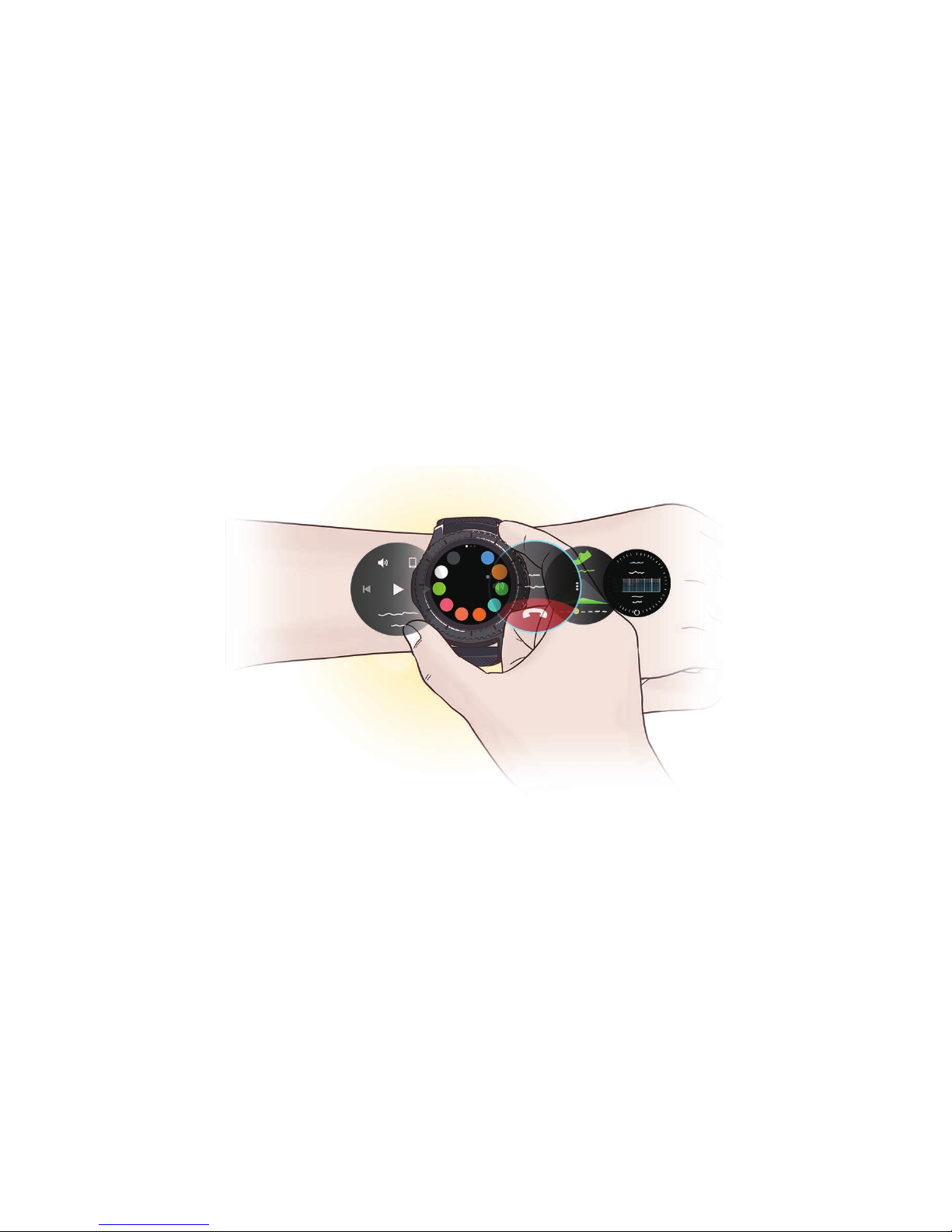

About the Gear S3
The Gear S3is a smartwatch that works as a traditional watch and allows you to use a variety
of convenient apps for making phone calls, playing music, and managing your health. By
rotating the bezel, you can access convenient features quickly and easily. You can also change
the watch face and band to your taste.
Connect your Gear S3to your mobile device to expand your mobile device experience, or use
the Gear S3by itself, without connecting to a mobile device.

Getting Started
6
Read me first
Please read this manual before using this device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider,
model specifications, or device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the Gear or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this Gear
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
Default apps that come with the Gear are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the Gear, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the Gear’s operating system or installing softwares from unofficial sources may
result in Gear malfunctions and data corruption or loss. These actions are violations of
your Samsung licence agreement and will void your warranty.
•
The images in this manual are based on the SM-R760 model.
•
Some functions may not work as described in this manual depending on the maker and
model of the mobile device you connect to the Gear.

Getting Started
7
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information
Maintaining water and dust resistance
Your device supports water- and dust-resistance. Follow these tips carefully to maintain the
water- and dust-resistance of your device. Failure to do so may result in damage to your
device.
•
Do not immerse the device in water deeper than 1.5 m or keep it submerged for more
than 30 minutes.
•
Do not expose the device to water moving with force.
•
When you are wearing the device, avoid taking a shower or going swimming.
•
If the device or your hands are wet, dry them thoroughly before handling the device.
•
If the device is exposed to clean water, dry it thoroughly with a clean, soft cloth. If
the device is exposed to other liquids, such as salt water, ionised water, or alcoholic
beverage, rinse it with clean water and dry it thoroughly with a clean, soft cloth. If you
do not follow these instructions, the device’s performance and appearance may be
affected.
•
If the device is dropped or receives an impact, the water- and dust-resistant features of
the device may be damaged.
•
If the device has been immersed in water or the microphone or speaker is wet,
sound may not be heard clearly during a call. Wipe the device with a dry cloth or dry it
thoroughly before using it.

Getting Started
8
•
The touchscreen and other features may not work properly if the device is used in water.
•
Your device has been tested in a controlled environment and certified to be water-
and dust-resistant in specific situations (meets requirements of classification IP68 as
described by the international standard IEC 60529 - Degrees of Protection provided
by Enclosures [IP Code]; test conditions: 15 - 35°C, 86 - 106 kPa, 1.5 metre, 30 minutes).
Despite this classification, it is still possible for your device to be damaged in certain
situations.
Device layout
Package contents
Check the product box for the following items:
•
Gear
•
Wireless charging dock
•
Band
•
Quick start guide
•
If the connected band is too large for your wrist, change it to a small one.
•
The items supplied with the Gear and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this Gear and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the Gear before purchase.
•
Some accessories, such as docking devices, may not have the same water- and
dust-resistance certification.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Getting Started
9
Gear
►
SM-R760
Bezel
Back key
Home key (Power
key)
Microphone
Touchscreen
NFC antenna
GPS antenna
Light sensor
Heart rate sensor
Pressure relief vent
(Atmospheric
pressure sensor)
Speaker
Band

Getting Started
10
►
SM-R770
Bezel
Light sensor
Back key
Home key (Power
key)
Microphone
Touchscreen
NFC antenna
GPS antenna
Heart rate sensor
Speaker
Pressure relief vent
(Atmospheric
pressure sensor)
Band

Getting Started
11
Keys
Key Function
/ Home/Power
•
Press and hold to turn the Gear on or off.
•
Press to turn on the screen.
•
Press and hold for more than 7 seconds to restart the Gear.
•
Press to open the Apps screen when you are on the Watch
screen.
•
Press to open the Watch screen when you are on any
other screen.
/ Back
•
Press to return to the previous screen.
Ensure that the band is kept clean. Contact with contaminants, such as dust and dye,
can cause stains on the band that may not be fully removed.
•
If the loud speaker is wet, sound may be distorted. Ensure that the loud speaker is
dry.
•
Make sure the Gear’s microphone is not obstructed when you are speaking into it.
Wireless charging dock
Charger port
LED indicator
Wireless
charging surface
Do not expose the wireless charging dock to water.

Getting Started
12
Battery
Charging the battery
Charge the battery before using it for the first time or when it has been unused for extended
periods.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the Gear.
•
Use the supplied wireless charging dock and charger. The Gear cannot be charged
properly with a third-party charger.
•
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and be easily accessible while charging.
1 Plug the small end of the charger into the multipurpose jack of the wireless charging
dock and plug the large end of the charger into an electric socket.

Getting Started
13
2 Place the Gear into the wireless charging dock.
Checking the charging status
When you connect the Gear and the wireless charging dock, the wireless charging dock’s LED
indicator flashes certain colours to indicate the battery level.
Colour Charging status
Red Charging
Green Fully charged
Orange Connected to a low-power adaptor
When a wireless charging dock error occurs, the LED indicator flashes red. Disconnect
the Gear from the wireless charging dock and reconnect them. If the error occurs
again, contact a Samsung Service Centre for service support.

Getting Started
14
Reducing the battery consumption
Your Gear provides various options that help you conserve battery power.
•
When you are not using the Gear, turn off the screen by covering the screen with your
palm.
•
Activate power saving mode.
•
Close unnecessary apps.
•
Deactivate the Bluetooth feature when not in use.
•
Deactivate the Wi-Fi feature when not in use.
•
Decrease the screen brightness.
•
Deactivate the watch always on feature.
•
Deactivate the voice wake-up feature in S Voice .
•
Customise the notification settings in Samsung Gear on the mobile device.
Battery charging tips and precautions
•
If there are obstructions between the Gear and the wireless charging dock, the Gear may
not charge properly. Prevent the Gear and the wireless charger from coming into contact
with sweat, liquids, or dust.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the Gear cannot be turned on immediately when
the charger is connected. Allow a depleted battery to charge for a few minutes before
turning on the Gear.
•
If you use multiple apps at once, the battery will drain quickly. To avoid losing power
during a data transfer, always use these apps after fully charging the battery.
•
Using a power source other than the charger, such as a computer, may result in a slower
charging speed due to a lower electric current.
•
If the Gear is being charged with other devices via a multicharger, charging may take
longer.

Getting Started
15
•
The Gear can be used while it is charging, but it may take longer to fully charge the
battery.
•
If the Gear receives an unstable power supply while charging, the touchscreen may not
function. If this happens, disconnect the Gear from the wireless charging dock.
•
While charging, the Gear may heat up. This is normal and should not affect the Gear’s
lifespan or performance. If the battery gets hotter than usual, the charger may stop
charging.
•
If the Gear is not charging properly, take the Gear to a Samsung Service Centre.
•
Avoid using a bent or damaged USB cable.
Power saving mode
Activate power saving mode to extend the battery’s usage time.
•
Displays colours on the screen as grey tones.
•
Deactivates features, excluding phone, messages, and notifications.
•
Deactivates the Wi-Fi feature.
•
Limits the performance of the Gear’s CPU.
On the Apps screen, tap (
Settings )
→
Power saving
→
. Alternatively, press and hold
the Home key and tap
Power saving
→
.
To deactivate this mode, tap
OFF
→
. Alternatively, press and hold the Home key and tap
Power saving
→
.

Getting Started
16
Wearing the Gear
Putting on the Gear
Open the buckle and place the band around your wrist. Fit the band to your wrist, insert the
pin into an adjustment hole, and then secure the buckle to close it.
Do not bend the band excessively. Doing so may damage the Gear.
To measure your heart rate more accurately with the Gear, wear the Gear firmly
around your lower arm just above the wrist. Refer to Wearing the Gear correctly for
details.
Band tips and precautions
•
Be cautious when wearing the Gear. If you have sensitive skin or fasten the Gear too
tightly, you may feel some discomfort.
•
Some people may experience discomfort when wearing the Gear for prolonged periods.
•
Skin irritation may occur if the band is exposed to soap, sweat, allergens, or pollutants for
long periods.
•
Do not wear the device too tightly. Make sure to keep the device clean and dry. Though
this device has met international safety standards, some people may experience skin
irritation if they are allergic to certain substances.

Getting Started
17
•
Keep in mind the followings to protect the leather band.
–
Avoid exposing the leather band to direct sunlight, water, and hot or humid
environments. The leather band can become discoloured or deformed.
–
The leather is permeable so it can be contaminated by oil and cosmetics. Avoid
exposing the leather band to these products.
•
Using a metal band is not recommended. Metal bands may cause connectivity problems
in areas with weak signals or poor reception.
Replacing the band
Detach the band from the Gear to replace it with a new one.
The band’s appearance may vary depending on your model.
1 Slide the band’s spring bar inwards.

Getting Started
18
2 Pull the band away from the Gear’s body.
3 Insert one end of the spring bar into the Gear’s lug.

Getting Started
19
4 Slide the spring bar inwards and connect the band.
1
2
Turning the Gear on and off
Press and hold the Home key (Power key) for a few seconds to turn on the Gear. When you
turn on the Gear for the first time or reset it, a pop-up window will appear. Follow the on-
screen instructions to download and install the Samsung Gear app on your mobile device.
Refer to Connecting the Gear to a mobile device for details.
To turn off the Gear, press and hold the Home key (Power key), and then tap
Power off .
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.

Getting Started
20
Restarting the Gear
If your Gear is frozen and unresponsive, press and hold the Home key (Power key) for more
than 7 seconds to restart it.
Connecting the Gear to a mobile device
Installing the Samsung Gear app
To connect your Gear to a mobile device, install the Samsung Gear app on the mobile device.
You can download the app from
Galaxy Apps , Play Store , or apps.samsung.com/gear.
You cannot install the Samsung Gear app on the mobile devices that do not support
Gear syncing. Ensure that your mobile device is compatible with a Gear.
Connecting the Gear to a mobile device via Bluetooth
Gear
1 Turn on the Gear.
When you turn on the Gear, a pop-up window will appear about downloading and
installing the Samsung Gear app on your mobile device.
Mobile device
2 On your mobile device, launch
Samsung Gear .
3 Tap
CONNECT TO GEAR .
4 Tap
OK when the Bluetooth activation request window appears.
