SANLI MT426 User manual

Please read this instruction manual carefully
before operating your machine.
MT426



Congratulations on choosing a Sanli Multi tool.
Thank you for purchasing a Sanli 2-stroke multi tool. We are sure that you’ll enjoy many years of
trouble-free performance, plus you have the reassurance of a 24 month warranty.
Inside this guide you will find out all you need to know to correctly operate your new Sanli Multi
tool. To ensure that you use your new multi tool responsibly and get the best results possible,
please read all of the safety and operating instructions carefully.
Contents
Sanli multi tool features
Tips on multi tool safety
Attaching the handle ---straight shaft.
Attaching the safety guard---straight shaft.
Attaching the cutting blade.
Attaching the safety guard---bent shaft.
Attaching the trimmer head
Replacing trimmer line - bent shaft
Attaching the pruner
Attaching the hedge trimmer attachment
Starting your multi tool
Using your accessories.
Technical Specifications
Fast trouble shooting
Basic maintenance made easy
Maintenance Chart
EC Declaration of Conformity
Sanli products are monitored and enhanced on an on-going basis to comply with changing
technical standards and requirements. As a result, Sanli reserves the right to alter design and
specifications at any time without prior notice.

Multi Tool Features.
1. Fuel tank
2. Air cleaner
3. Starter
4. Housing
5. Throttle cable
6. Throttle interlock
7. Throttle trigger
8. Engine switch
9. Operate handle
10. Harness hook
11. Handle
14
12. Shaft
13. Blade guard
14. Gear case
15. Blade
16. Cutting line spool
17. Gear case
18. Blade
19. Oil tank
20. Saw chain
21. Guide bar
22. Gear case
23. Connector
12
13
15
16
17
18
19
22
20
21

WARNING! The information contained within this safety section is extremely
important. Personal injury to the user and to others may result if this section
is not read and acted upon at all times.
Tips on Multi Tool Safety.
1. Before starting your multi tool inspect it carefully to ensure that there are no loose parts
and that it is in good working order.
2. Be sure of your footing. Always walk, never run, when operating the multi tool.
3. Clear the area of any stones, sticks, wire and debris before beginning, and Always ensure
that you operate your multi tool a safe distance away (over 14 metres) from adults,
children and animals.
4. Keep hands, feet and clothing away from the multi tool’s moving parts, and always
wear appropriate footwear (avoid sandals or open shoes).
5. Never put your hands or feet underneath the guard of the multi tool while the engine is
running.
6. Be aware that the machine’s exhaust area and other parts of the multi tool get very hot
during, and right after use.
7. Turn off the engine and disconnect the spark plug cap before cleaning,
transporting or making adjustments.
8. We recommend you avoid trimming when it is raining, or after nightfall.
9. Do not fill the tank, or start the multi tool indoors, or in a poorly ventilated area, as exhaust
gases contain poisonous substances and petrol fumes are flammable and dangerous.
10. Never open the fuel filter cap, or fill the tank, if the engine is still hot after use.
Please ensure that you securely tighten the petrol cap after filling.
11. Do not transport the multi tool in a vehicle, if there is any petrol in the tank.
12. Store fuel and oil in a cool well-ventilated place, away from direct sunlight and not near gas
cylinders or hot water heater systems.
14. Sanli recommends that you wear ear protectors, safety goggles and safety boots when using a
multi tool.
15. All servicing and repair work under warranty must be carried out by an Authorised Sanli Dealer,
otherwise the warranty may be void.
WARNING! The information contained within this safety section is extremely important.
Personal injury to the user and to others may result if this section is not read and acted
upon at all times.

Attaching the handle
- straight shaft.
Place the upper ergonomic handle in the desired
position (Fig 1) then while holding the lateral
handle underneath in position, insert the screws
and tighten with the allen key provided.
Insert the attachment shaft into the engine shaft,
ensure the locator on the engine shaft meets the
hole on the attachment shaft (Fig 2).
Fig 1
Fig 2
Tighten handwheel securely. (Fig 3)
Fig 3

Attaching the safety guard
- straight shaft.
While placing the multi tool on the ground, place
the guard as shown in (Fig 4) and locate the
screws through the tension plates as indicated
and tighten screws.
Attaching the cutting blade.
(straight shaft model only).
When heavy duty cutting is required
utilise the cutting blade (Fig 5).
Remove the trimmer bump head
& rotate clockwise. Then place the cutting
blade as shown and tighten in anti-clockwise
direction.
Order of components to attach the
cutter blade (Fig 6).
Attaching the safety guard
- bent shaft.
While placing the brushcutter on its back, clip the
guard onto the shaft lining the holes up with the
guides see (Fig 7) then locate the bolt through
the guard and guide plate as indicated. Place the
washer over the bolt and tighten nut.
Fig 4
Fig 5
Fig 6
Fig 7

Attaching the trimmer head - bent shaft.
Tighten clockwise the trimmer head. Use the black plastic spanner provided on the nylon head to
tighten it (Fig 8).
Fig 8
Replacing trimmer line –
bent shaft.
Take approximately 4-5 metres of 2.0-
2.4mm diameter trimmer line, fold in half to
make a loop. Hold the spool as shown in (Fig
9) and hook the loop onto the divider plate
as shown and wind the line, one on either
side of the divider plate.
Wind both lines anti-clockwise on both sides
of spool ensuring that both lines remain in
their respective channels as shown in (Fig 10).
Fig 9
Fig 10

In order to stop the line from unraveling, slip
each end into the lugs on the bottom edge
of the spool, shown in (Fig 11).
Fig 11
Insert ends of the trimmer line through the
holes in side of the spool casing and place
the spool into the centre of the casing (Fig
12).
When in position pull the ends further out of
the casing, then return the lid, click into
place and return to hub.
Attaching the pruner
1. Remove the cap on the end of
shaft.
2. Remove the screw on the end of the
gear case.
3. Insert the the shaft into end of the
gear case.
4. Line up the hole on the end of
the gear case into which the screw is to
be inserted with the hole on the shaft &
tighten the screw firmly. (Fig 13)
Fig 12
Fig 13

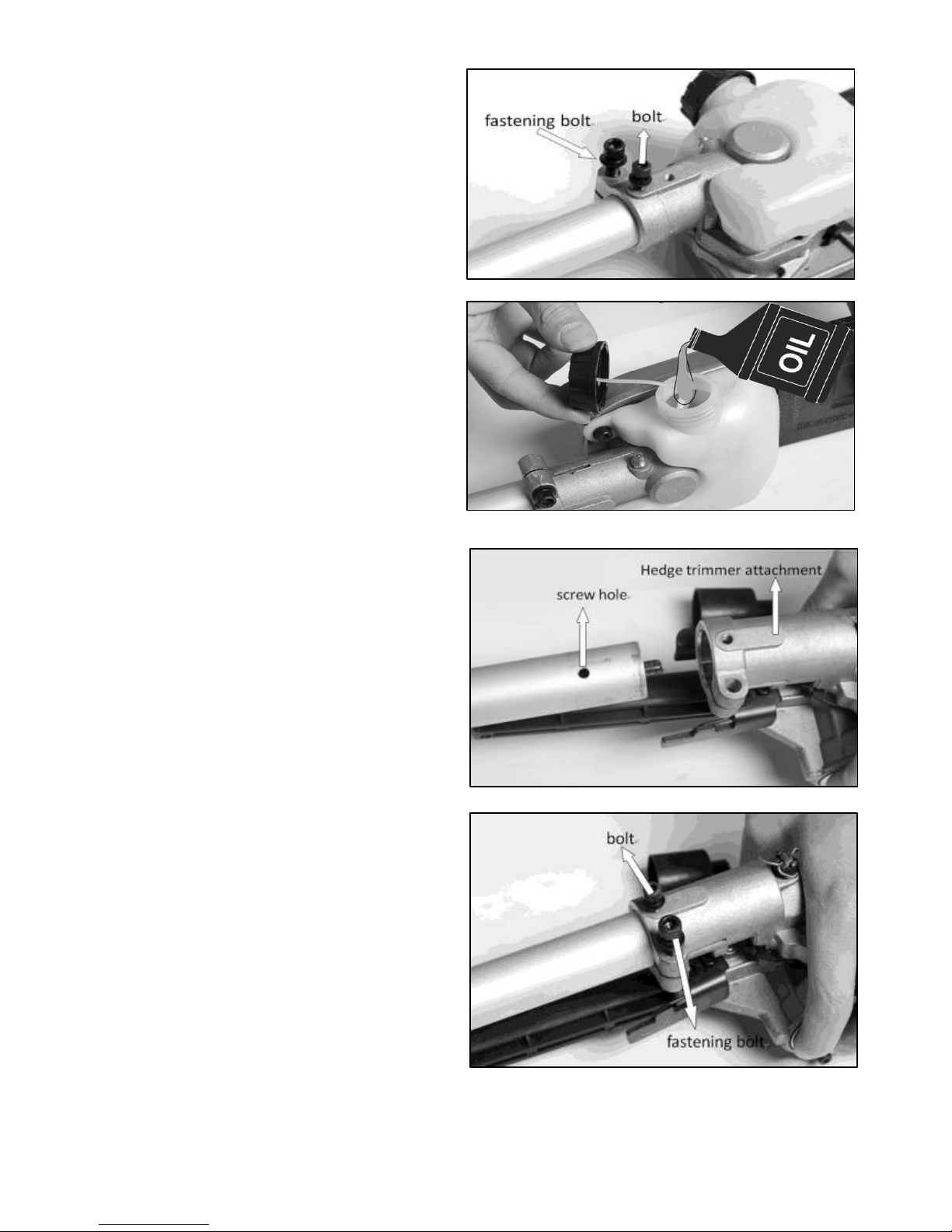

5. Using an Allen key. Tighten the bolt
provided, to fix the mechanism into
place (Fig 14).
Filling up with oil
Fill the oil tank with chainsaw oil before
using. (Fig 15)
Fig 14
Attaching the hedge trimmer
attachment.
1. Remove the screw from the end of the
hedgetrimmer a ttachment.
2. Insert the end of the shaft into the
hedgetrimmer head.
3. Line up the hole on the end of the
hedgetrimmer head with the hole on the shaft.
4. Using an Allen key, tighten the bolts provided
to fix the hedgetrimmer attachment into place.
(See Fig 16 & Fig 17)
Fig 15
Fig 16
Fig 17

Starting your multi tool.
Before operating your multi tool, mix 40 parts of regular unleaded petrol to 1 part
2- stroke oil (40:1). Do not overfill the tank as this can risk fuel spilling on hot components when
in use. It is recommended that you make your mixture with a fuel mixing bottle
Slide the ignition switch, away from the
STOP position (Fig 18).
Fig 18
Press the primer bulb three or four times
until a flow of fuel is visible inside the fuel
line (Fig 19).
Set choke lever into closed position, if
starting from cold (Fig 20).
Pull the starter cord until the multi
tool starts (or makes a false start),
then return choke to the open
position.
Re-attempt to start and after it starts, allow
the engine to warm up for at least 20 to 30
seconds. For warm restarts, do not prime,
just pull the cord and it will start after one or
two pulls.
Fig 19
Fig 20

10
To stop the engine, simply move the
ignition switch back to the STOP position
(Fig 21).
Fig 21
Using your accessories.
The shoulder strap see (Fig 22) can be
adjusted in length for the convenience of
the operator and hooks onto the eyelet
on the shaft.
Fig 22

Technical Specifications.
Model number
MT426
Drive train
Auto clutch, spiral bevel gear, rigid
shaft: line trimmer
flexible shaft: pruner, hedge trimmer,
brush cutter
Reduction gear ratio
1:1
Engine type
2-stroke vertical piston valve
Engine model
SL1E34F-2 petrol engine
Fuel mix
40:1 regular unleaded petrol to
2-stroke oil
Engine idling speed
3,000rpm
Engine power
0,75kw@7,500rpm
Spark plug type
NGK BPMR7A
Spark plug gap
0,6-0,7mm
Length of engine pipe
648mm
Length of engine drive shaft
660mm
Length of brush cutter pipe
852mm
Length of brush cutter drive shaft
862mm
Length of line trimmer pipe
850mm
Length of line trimmer drive shaft
850mm
Length of pruner pipe
1355mm
Length of pruner drive shaft
1370mm
Length of long trimmer pipe
750mm
Length of long trimmer drive shaft
767mm
Fuel tank capacity
800ml
Length of line out of hub
100-150mm
Noise level
110dB(A)
Dry weight
9.8kgs

Fast troubleshooting.
Often, a depleted, loose, or dirty spark plug is responsible for a multi tool not being able to start,
but there can be a number of other reasons. Refer below to the list of potential problems you
may encounter, along with suggested remedies.
For servicing and all warranty work, contact your local Authorised Sanli Dealer.
Problem
Likely cause
Suggested remedy
Engine does not start
Out, or almost out, of fuel
Spark plug dirty
Spark plug not connected
Fuel older than 3 months
Water in the fuel tank
Fill tank with fresh 2 stroke fuel (40:1)
Clean or replace with a new spark plug
Press firmly on the terminal cover
Drain stale fuel & replace with fresh 2 stroke fuel
Contact an authorised Sanli dealer
Engine stops often
Blocked fuel supply
Fuel cap is not venting
I ncorrect type of fuel
Ensure the fuel line is not pinched or blocked
Ensure vent hole in the fuel tank cap is clear
Drain tank and fill with 2 stroke fuel (40:1) mix
Engine loses power
Dirty air filter
Blocked fuel cap vent
holes
Clean or replace with a new Sanli air filter
Ensure vent hole in the fuel tank cap is clear
Too much vibration
Loose line trimmer head
Damaged cutting blade
(straight shaft model only)
Check & tighten nuts & bolts accordingly
Replace cutting blade

Basic maintenance made easy.

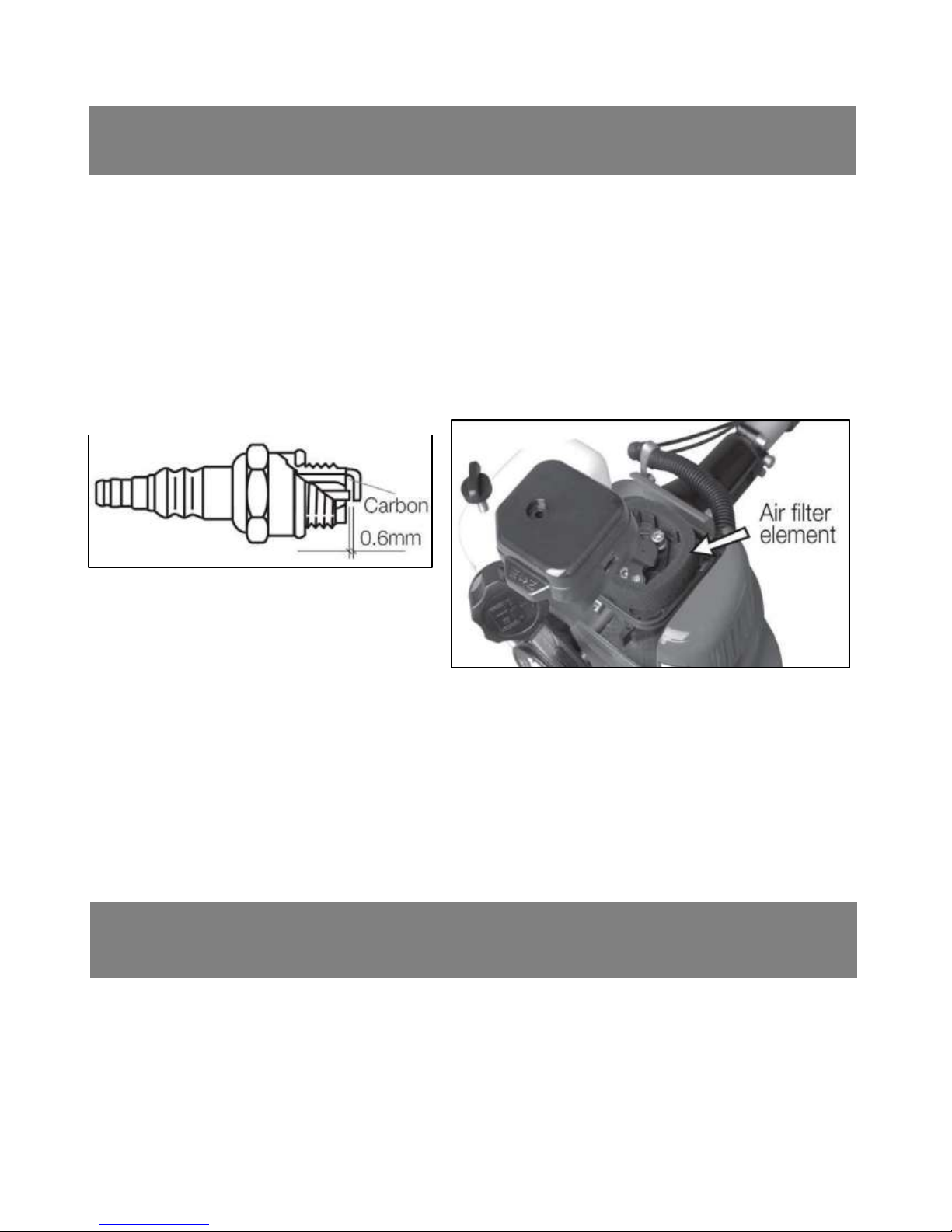

1. Spark plug.
Wait until the engine has cooled before disconnecting the spark plug located under the rubber
cover and then removing the spark plug with the box spanner supplied. If it is dirty, you can clean
the plug with a wire brush.
The applicable spark plug for this machine is the NGK BPMR7A. For optimum results we advise you
to replace the spark plug after 20 hours of use.
When refitting the spark plug take care not to over-tighten.If adjusting yourself,note that the spark
plug gap must be set initially to 0.6 but after the machine has been used for some time,
regulate the gap to 0.7 mm.
2. Air filter.
Fig 19
Ensure that the engine is cool,remove the air filter cover and then take out the air filter
element, see ( F i g 1 9), Put the cover back on the housing immediately to prevent any
objects falling into the air intake.
Carefully brush off any excess dirt particles, or clean filter element using lukewarm soapy water.
When cleaning with water, rinse thoroughly and allow to dry before replacing air filter element.
3. Storing petrol & oil.
WARNING! Petrol is highly flammable so extreme caution must be taken. Always store
petrol in approved containers and ensure petrol is less than 30 days old.
WARNING! If the multi tool is not serviced correctly, you could voidwarranty and reduce
its ability to operate effectively.

4. Maintenance Chart
System/component
Procedure
Before
use
Every
25
hours
after
Every
50
hours
after
Every
100
hours
after
Note
Fuel leaks or spillage
Wipe out
√
Fuel tank, air filter, fuel filter
Inspect /clean
√
√
Replace,if
necessary
Idle adjusting screw
√
Spark plug
Clean and re-
adjust plug gap
√
Replace, if
necessary
Cylinder fins, intake air
cooling vent
Clean
√
Muffler,spark arrester,
cylinder exhaust port
Clean
√
Cutting parts
Replace if
something is
wrong
√
Brush cutter,
Line trimmer,
Long R each
Hedgetrimmer
Gear case
Grease
√
Brush cutter,
Line trimmer
Screws/nuts/bolts
Tighten /
Replace
√
√
Not adjusting
screw
Debris guard
Make sure
attached
√
Pole Saw
Oiling guard
Clean
√
Pole Saw
Guide bar
Clean
√
Pole Saw
Sprocket
Inspect /
Replace
√
√
Pole Saw
Saw chain
Inspect /
Replace
√
Pole Saw

EC DECLARATION OF CONFORMITY
Fujian Jinjiang Sanli Engine Co., Ltd.
declares that the following equipment manufactured by Fujian Jinjiang Sanli Engine Co.,Ltd
conforms to the following Directive(s): 98/37/EC amended by directive 2004/26/EC on polluting
particles,2006/42/EC,2006/95/EC(low voltage directive) and 2000/14/EC on the noise emission in
the environment by equipment for use outdoors, amended by Directive 2005/88/EC.
Equipment Category –Multi Tool / MT426 Mass
in kg: 9.8kgs/12kgs
Net installed power: 26cc
Cutting Width:
255mm(pruner), 255mm(brush cutter), 400mm(line trimmer), 395mm(hedge trimmer)
The technical documentation is kept by:
Name:Mr.Liu Qingguo
Company: Fujian Jinjiang Sanli Engine Co.,Ltd.
Address: Wuli Industrial Park, Jinjiang,Fujian,362263 P.R.China
The conformity assessment procedure followed was in accordance with EN ISO 11806-
1:2011 and EN ISO 3744:1995 & EN ISO 3746:1995.
And annex V of Directive 2000/14/EC amended by Directive 2005/88/EC
Measured Sound Power Level: 100dB(A)
Guaranteed Sound Power Level: 110dB(A)
Place of Declaration: Wuli Industrial Park, Jinjiang,Fujian,362263 P.R.China
Date: 10/12/2014
Signed by: Mr.Hu Dingsheng
Position in Company : General Engineer
Name and address of manufacturer or Authorisedrepresentative: Fujian Jinjiang
Sanli Engine Co.,Ltd.

PAGE 18
NOTE
INSTRUCTION MANUAL

MULTI TOOL / MT426
2YEARS
