Santec MPM-210 User manual

Multi-port Optical Power Meter
Operation Manual
MPM-210

MPM-210 Operation Manual
Trademarks
is a trademark of Santec Corporation.
MPM-210, MPM-211,MPM-212 and MPM-213 are trademark of Santec Corporation.
Notes to Users
1) Copyright 2017, Santec Corporation. All rights reserved. No part of this Operation
Manual may be reproduced or transmitted in any form or by any means, electronic
or mechanical, for any purpose, without the prior written permission of Santec.
2) Information in this Operation Manual is subject to change without notice.
3) Information of this Operation Manual is prepared with careful examination, however,
in the event of any mistake, please contact us.
Notes in Bringing This Product Out of Japan
1) When this product is brought out of Japan, some laws or regulations of a destination
country may prohibit this product from being used there. In such countries, the use
of this product may lead to punishment. Please note, that in such cases Santec
Corporation shall not be held responsible in anyway.
2) When this product is exported (or brought out of Japan), and this product is applicable
to a strategic material specied in the “Foreign Exchange and Foreign Trade Control
Law”, then under law of the Japanese Government, an export permit is required.

Multi-Port Optical Power Meter MPM-210
The packing materials and box of this product are needed for long-term storage or
transportation; keep them in a safe place after unpacking the product.
NOTE
Introduction
Thank you very much for purchasing our product, the Santec Multi-Port Optical
Power Meter MPM Series. This Operation Manual contains the necessary information
for proper operation of the MPM-210, and it is intended for those with sufficient
knowledge about the dangers of lasers and their safe control. Before operating
the MPM-210, you should first read thoroughly through this Operation Manual and
become familiar with its contents. After reading this Operation Manual, keep it close
by for an easy reference anytime.

MPM-210 Operation Manual
How to Read the Manual
Before operating the MPM-210, please read this instruction manual carefully.
This Operation Manual consists of 11 Chapters:
Chapters 1 to 4 illustrate the outline of the product, safety precautions, and installation.
Chapter 5 explains information on communication functions such as external control
of the MPM-210.
Chapter 6 explains the trigger functions.
Chapter 7 explains the analog output (MPM-212).
Chapter 8 explains the specications.
Chapter 9 describes the maintenance and storage methods of the product.
Chapter 10 explains the packing instructions and shipping.
Chapter 11 describes the troubleshooting.
Before using this product, please carefully read this Operation Manual.
NOTE

Multi-Port Optical Power Meter MPM-210
Explanation of Terms
The meanings of the following terms used in this Operation Manual are defined as below:
(1) Meaning
Markings on the instrument
 This mark is used on the equipment as warning of danger.
(2) Importance of Information
From the above meanings, the priority of the terms here are as shown below:
DANGER > WARNING > CAUTION > NOTE
NOTE
This indicates pressing DANGER, and if it
is not avoided, personnel death or serious
injury results, therefore, it is the most
emphasized special information.
This indicates potential danger, and if it is
not avoided, personnel death or serious
injury may result, therefore, it is special
information.
This indicates potential danger, and if it
is not avoided, mild or slight injury may
result, therefore, it is special information. It
also indicates potential danger leading to
only physical damage.
This indicates supplementary explanation
of the text, and thus other information than
DANGER, WARNING, and CAUTION.
CAUTION
WARNING!
DANGER!!
DANGER
WARNING
CAUTION
NOTE

MPM-210 Operation Manual
1. Introduction 1-1
2. Product Composition 2-1
3. Panel Description 3-1
3-1 Front Panel 3-1
3-2 MPM-211 (Power meter module 4 ports) 3-2
3-3 MPM-212 (Power meter module and analog output 2 ports) 3-3
3-4 MPM-213 (Current meter module 4 ports) 3-4
3-5 Rear Panel 3-5
4. Installation 4-1
4-1 Warning and Caution 4-1
4-2 Environment 4-1
4-3 Line Voltage Selection 4-1
4-4 Line Fuse 4-2
4-5 Line Cord 4-2
4-6 Zeroing option (To remove electrical offsets) 4-2
4-7 Maximum input optical power 4-3
4-8 Inserting a module 4-3
5. Remote Control 5-1
5-1 GPIB Communication 5-1
5-2 TCP/IP Communication 5-1
5-3 RS-232 Communication 5-2
5-3-1 RS-232 Communication Set up 5-2
5-3-2 RS-232 Connection 5-2
5-4 Commands Form 5-3
5-5 Commands 5-4
5-5-1 Command compatible with the previous MPM-200 model 5-4
Contents
Introduction
How to Read the Manual
Instrument Markings
Explanation of Terms

Multi-Port Optical Power Meter MPM-210
5-5-2 System-related commands 5-5
5-5-3 Measurement-related commands 5-8
5-5-4 ERR? 5-16
5-5-5 A method for wavelength compensation 5-17
5-5-6 LEV/LEV? 5-18
5-6 Logging mode 5-18
5-6-1 Measurement mode (WMOD) 5-18
5-6-2 Fast Gain Switching Average Time 5-19
5-6-3 Measurement data point setting (LOGN) 5-19
5-6-4 LOGG? 5-20
5-6-5 “FREERUN” measurement mode (CEM Mode) 5-23
5-6-6 Sample code for FREERUN Commnad 5-24
5-6-7 Sample code for SME mode measurement 5-25
6. Trigger Input/Output 6-1
6-1 Trigger Input 6-1
6-2 Trigger Output 6-1
7. Analog Output (MPM-212) 7-1
8. Specications 8-1
9. Maintenance 9-1
9-1 Daily Maintenance 9-1
9-2 Cleaning the Optical Power Sensor 9-1
9-3 Replacing Fuses 9-1
9-4 Long-Term Storage 9-1
10. Re-packing and Shipping 10-1
10-1 Re-packing 10-1
10-2 Shipping 10-1
11. Troubleshooting 11-1

MPM-210 Operation Manual

Multi-Port Optical Power Meter MPM-210
1-1
Introduction
1
The MPM-210 is a multi-port optical power meter for measuring optical characteristic
of optical devices. The MPM-210 is composed of up to five MPM-211/MPM-212/
MPM213 Measurement Modules (MM). There are three types of measurement
modules: MPM-211, MPM-212 and MPM-213.
The MPM-211 MM has 4 optical power measuring ports (4 channels). The MPM-
212 has 2 optical power measuring ports and 2 analog output ports and outputs
analog voltage signal proportional the optical power per each port. The MPM-213
has 4 electrical current measuring ports (4 channels), and is used as same as MPM-
211. The MPM-210 doesn’t have front panel nor display window but it can be easily
operated by remote control. The MPM-210 is controllable by using GPIB, LAN,
RS232 communication and users can interlock the system with other system (santec,
Tunable Laser, TSL-550 or TSL-710 and Polarization Controller PCU-100) and operate
it for measuring PDL and IL. Commands for controlling the MPM-210 are listed and
described in section 5.5.

1-2
MPM-210 Operation Manual

Multi-Port Optical Power Meter MPM-210
2-1
Product Composition
2
This product is composed of the MPM-210 body and accessories.
The following parts are included:
・
MPM-210 Main Frame 1
・
MPM-211 / MPM-212 / MPM-213 Module 1 to 5
・
Power cord 1
・
USB cable 1
・
BNC cable 2
・
Operation Manual & Software 1
・
Inspection report 1
Check to make sure that the product body and the accessories have no scratches or
stains. If any item is found to have scratches or stains, please contact us.

2-2
MPM-210 Operation Manual

Multi-Port Optical Power Meter MPM-210
3-1
Panel Descriptions
3
(1)

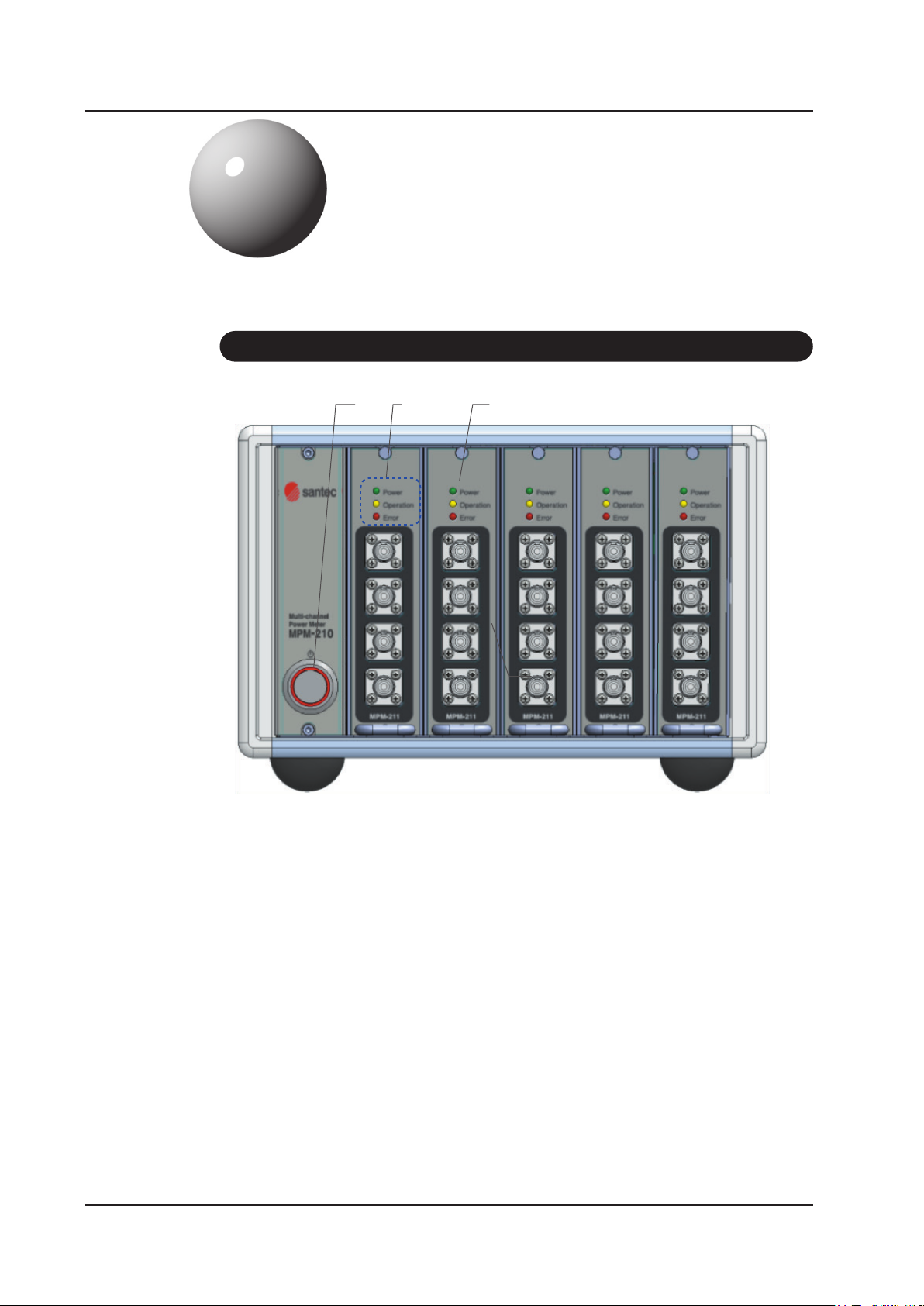

Figure 3-1. Front Panel
(2) (3)
(4)
(1) Power on switch
(2) LED for Power, Operation and Error
Power LED light will be turned on when the product is on. Operation LED light
will be on while measuring and Error LED light will be on if the product is not
connected with main body internally.
(3) Module
Optical input port will be recognized as ports for measuring optical power and
it gets assigned as port numbers (1,2,3,4..) from top to bottom.
3-1 Front Panel

3-2
MPM-210 Operation Manual
Optical input port

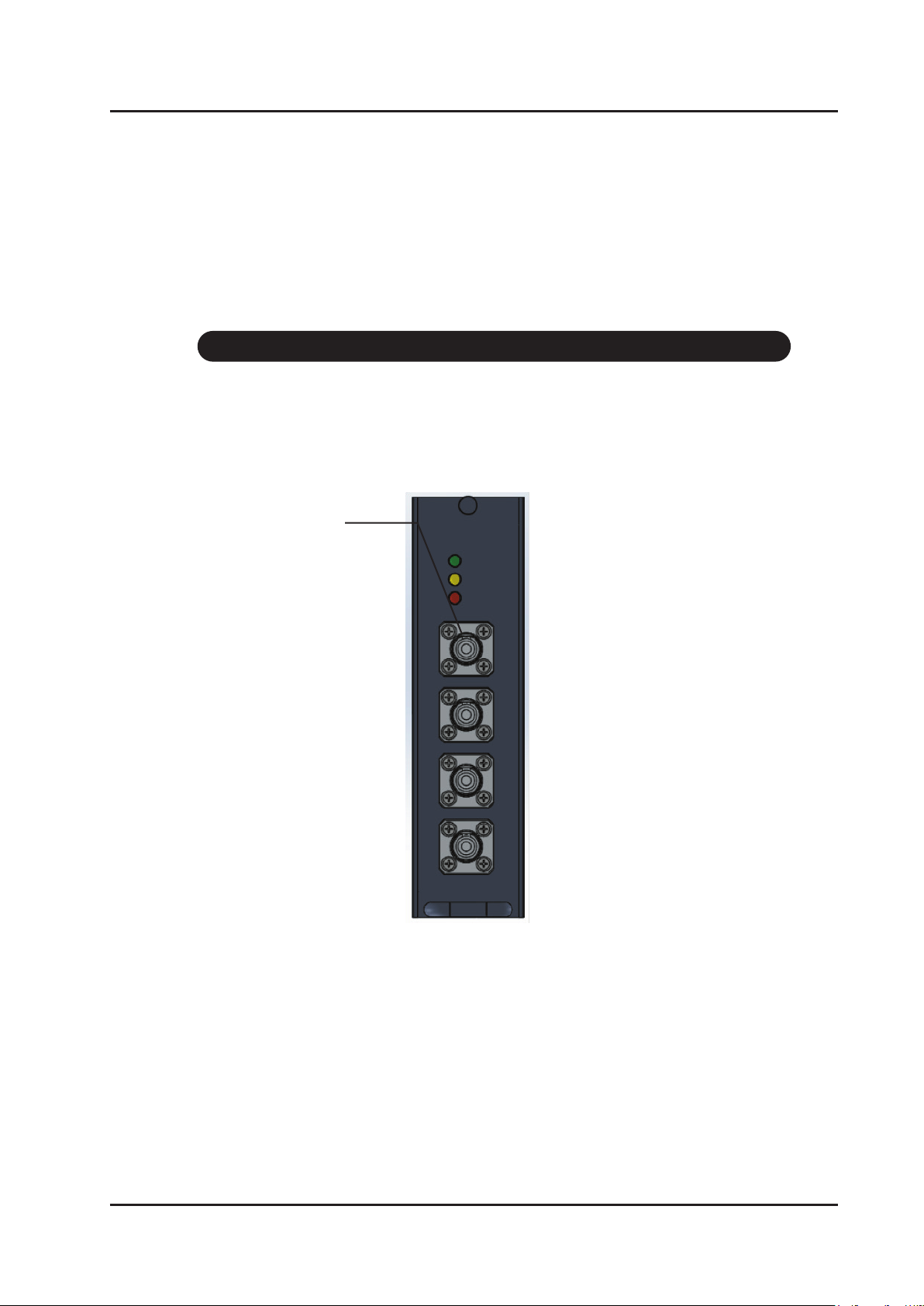

3-2 MPM-211 (Power meter module 4 ports)
The MPM-211 has 4 optical power measuring ports (4 channels). The connector of the
optical input port is a FC connector receptacle. Optical input port will be recognized as
port for measuring optical power and it gets assigned as port numbers (1,2,3,4) from
top to bottom.

Multi-Port Optical Power Meter MPM-210
3-3
The MPM-212 has 2 optical power measuring ports and 2 analog output ports and
outputs analog voltage signal proportional the optical power per each port. The
connector of the optical input port is a FC connector receptacle and the analog output
port is a BNC male connector. Optical input port 1, analog output port 1, optical input
port 2 and analog output port 2 is arranged from top to bottom.
3-3 MPM-212 (Power meter module and analog output 2 ports)
Analog voltage output port
Optical input port

3-4
MPM-210 Operation Manual
3-4 MPM-213 (Current meter module 4 ports)
The MPM-213 has 4 electrical current measuring ports (4 channels), and is used as
same as MPM-211. The connector of the current input port is a BNC male connector.
The inside (Signal) of the BNC connector is + Cathode and the outside (Grand) is –
Anode. Current input port will be recognized as ports for measuring electrical current
and it gets assigned as port numbers (1,2,3,4) from top to bottom. This module is
suitable for measuring the performance of ber optics components using transceiver-
like photodiodes (ROSA/Coherent receiver, etc.) and an optical channel monitor.
+Cathode
-Anode

Multi-Port Optical Power Meter MPM-210
3-5
(1)
Figure 3-2. Real Panel
(2) (3) (4) (9) (5)
(6)(7)(8)
(1) Trigger Output
(2) Trigger Input
(3) TSL Monitor Input (For Swept Test System)
(4) USB port (For Swept Test System)
(5) Power Connector Socket and fuse box
(6) GPIB Port
(7) RS-232 Port
(8) LAN Port
(9) Exhaust fan
3-5 Rear Panel

3-6
MPM-210 Operation Manual

Multi-Port Optical Power Meter MPM-210
4-1
Installation
4
・Dangerous voltages, capable of causing injury or death, are present in this
instrument. Use extreme caution whenever the instrument covers are removed. Do
not remove the covers while the unit is plugged into a live outlet.
・
To avoid electric shock, the power cord protective ground conductor must be
connected to ground.
・
No user serviceable part exists in this instrument. Refer all services to qualified
personnel.
・
Before using this instrument, be sure to read through operation manual and data
sheets to ensure correct operations. Contact SANTEC to obtain service support
and do not install substitute parts or perform any unauthorized modications to this
instrument.
Clearance of 5 cm at the rear side of the unit should be allowed for proper ventilation.
Don't remove rubber feet to ensure air intake.
The mainframe of the MPM-210 weighs about 6.0 kg. Please ensure that the table or
shelf upon which it is installed has sufcient strength.
4-1 Warning and Caution
4-2 Environment
4-3 Line Voltage Selection
Pay attention to the following guidelines for safe, trouble-free operation.
This product is a high-precision device:
・Do not place in direct sunlight.
・Do not place under high temperature and high humidity.
・Do not place in an environment with dust, dirt, salt, or corrosive gas.
・Do not place in an area subject to large vibrations.
・Do not place in an area subject to noise by electric eld, magnetic eld, etc.
・Do not place in an area where the unit is subject to falling objects landing on it.
・Do not place with possible exposure to water.
・Do not place with an area of altitude 2000m or more.
This Instrument operates from any single-phase AC power source that supplies
100~240V at a frequency at 50/60Hz. The power consumption is 50VA max.

4-2
MPM-210 Operation Manual
CAUTION
4-5 Line Cord
4-6 Zeroing option (To remove electrical offsets)
・This instrument has three-wire power cord for connection to the power source and to
a protective ground.
・The exposed metal chassis of the instrument is connected to ground via the power
line cord to protect against electrical shock. Always use a socket outlet that has a
properly connected protective ground.
This product is grounded by the ground line in the supplied power cable. This
product must be properly grounded to avoid electrical shock and other dangers.
Please make sure that this product is properly grounded to avoid electrical shock.
In addition, please place this product in a location that allows the user to easily
unplug the power cable, in case of any device malfunction.
The MPM-210 (Optical Power Meters) measures optical power by converting optical
power to electrical power of photo detector, and then measuring electrical power. If
there is electrical offsets, the MPM-210 may not allow you to measure optical power
with accuracy. So, we recommend you performing the zeroing whenever tuning on
this instrument or before you need an important measurement. Please refer to “5.5.3.
Measurement-related commands” for the detail.
4-4 Line Fuse
The fuse used by this instrument is T1.6A/ 250VAC.
