Santec ENZO COLLECTIONS 3670EN User manual

Installation Instruction
Bidet Fitting
ENZO COLLECTIONS
Please read the instructions completely before beginning the installation.
Enzo Collection
Model Number: 3670EN
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4” and maximum of 1-1/2”
- Remove complete trim from vacuum breaker valve.
- Install bidet elbow into threaded outlet.
- Insert gasket into bidet wye and thread onto bottom of vacuum
breaker valve.
- Remove black plastic lock nut, nylon slip washer and one
black self-seating china seal.
- Insert diverter valve body up from below and reinstall black
self-seating china seal, nylon slip washer and black plastic lock
nut being sure to tighten firmly by hand.
- Thread trim cylinder onto vacuum breaker valve and tighten
firmly. Place handle on top and secure with brass screw. Insert
handle cap with arrow facing towards front of bidet.
Rev 06/2016
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681

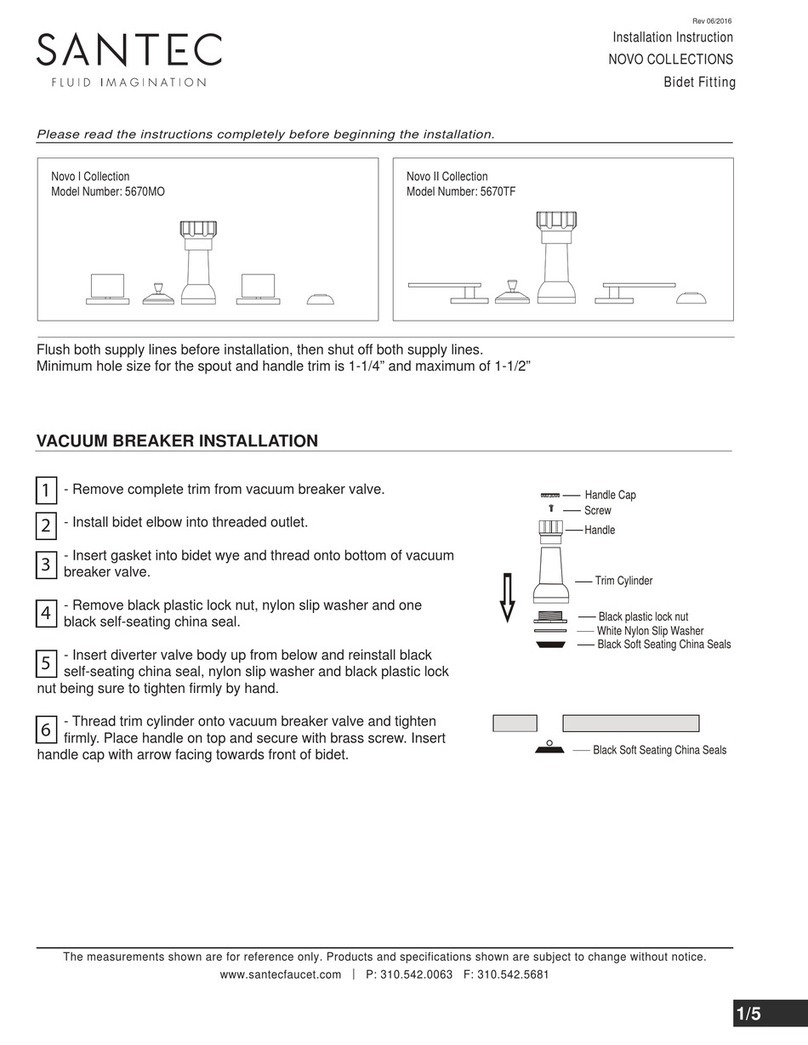

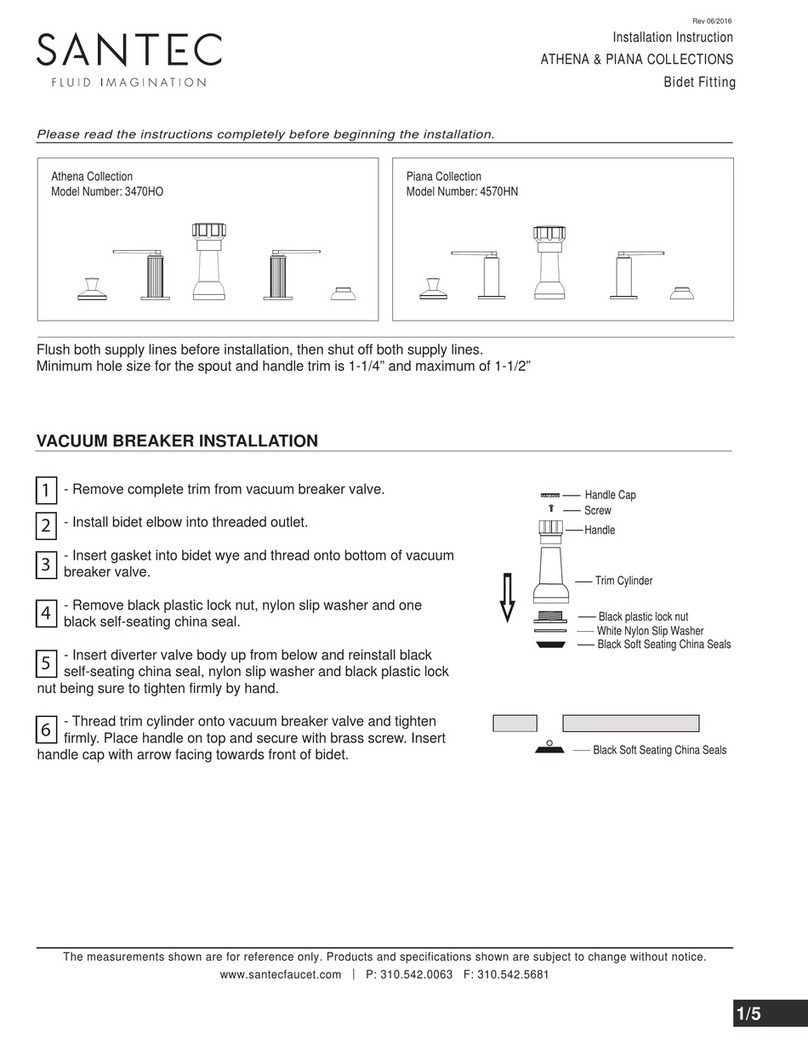

VACUUM BREAKER INSTALLATION
1/5
1
2
3
4
5
6
Black plastic lock nut
Trim Cylinder
Handle
Screw
Handle Cap
Black Soft Seating China Seals
Black Soft Seating China Seals
White Nylon Slip Washer

HANDLE TRIM INSTALLATION
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
POP-UP INSTALLATION
DO NOT DISASSEMBLE HANDLE ASSEMBLY - DROP-IN VALVES
2/5
- Remove the valve body mounting hardware from valve body.
Hot valve assembly “Red” to be mounted on left. Cold valve
assembly “Blue” to be mounted on right.
- Apply a ring of silicone caulking around the handle hole on
bidet top. DO NOT USE PLUMBERS' PUTTY, WHICH CAN
DAMAGE FINISH.
- Slip valve through appropriate hole on top of bidet. Reinstall
valve body mounting hardware, fiber washer and valve body
locknut. Align handles with respect to the bidet, and tighten valve
body locknut until secure.
- Aim outlet hoses towards bidet wye and attach securely to
avoid leakage.
1
2
3
4
- Remove decorative drain flange and drain plug from pop-up
assembly.
- Apply a ring of silicone caulking to underside of decorative
drain flange. DO NOT USE PLUMBERS' PUTTY, WHICH CAN
DAMAGE FINISH.
- Insert threaded end of the assembly up from below bidet.
Completely thread drain body into decorative drain flange and
align with ball rod hole facing back and tighten lock nut from below.
- Insert drain plug into decorative drain flange with adjustable
eye-screw facing back. Attach ball rod washers and ball rod nut
to horizontal ball rod and install into drain body. Do not over tighten,
ball rod must operate freely.
- Drop lift knob flange through appropriate hole in bidet and
attach mounting hardware. Insert lift rod and knob through lift
knob flange, lift rod strap and tighten thumbscrew.
- Gently push the horizontal ball rod down to place the drain
plug in the up position.
- Slip one leg of ball rod clip off horizontal ball rod and insert lift
rod strap, reattach leg of ball rod clip.
- Test pop-up for smooth operation and adjust if necessary.
1
2
3
4
5
6
7
8
Lift Knob
Lift Knob Flange
Lift Knob
Lift Rod Strap
Side Hole
Ball Rod Ball Rod Clip Ball Rod Nut Drain Tube
Drain Fla
Gasket
Washer
Lock Nut
Thumb Screw
Flange Shank
Rubber Washer
Metal Washer
Lock Nut

COMPLETE ASSEMBLY
SPECIFICATION SHEETS
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
3/5
INLET HOSE
INLET HOSE

We recommend that all faucets, drains, etc., be gently wiped dry with a soft cloth after use to avoid water
spotting and water deposit build-up. A mild liquid hand soap may be used occasionally if desired. Use of a
non-abrasive carnauba wax will add protection to the finish and should be used if the faucets will not be dried
after use. For clear coated finishes, it is recommended to clean your product weekly with a soft moist cloth.
WARNING: Do not clean your SANTEC product with ammonia (Window cleaner), bleach, soap, acids,
abrasives, harsh polish, harsh cleaners, a coarse surfaced cloth, coarse sponge, or any type of scouring pad.
Doing so may ruin your faucet finish and/or void the warranty.
Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been
created as works of enduring quality and sophisticated design.
