SERVICE MANUAL
CASSETTE DECK RD W266
EUROPE/U.K/CANADA/GENERAL (BLACK)
AUSTRALIA (SILVER)
SPECIFICATIONS
VAD oor oo tate te asad ae wed a Fe arene Metal, CrO2, normal tape
Recording system ............+0005 AC bias, 4-track stereo
Erasing system .. 1.2... . eee ee eee AC erasing, 2-track
Tape speed. ...........0 0. eee eee 1-7/8 i.p.s. (4.75 cm/sec)
Rewind and fast forward time......... Approx. 110 sec. (C-60)
Wow and flutter ..............000- 0.15% (WRMS)
Frequency response.......--...+--- 40 — 16,000 Hz (metal)
40 — 15,000 Hz (CrO2)
40 — 13,000 Hz (normal)
Signal to noise ratio (metal tape) ....... 65 dB (Dolby NR on)
57 dB (Dolby NR off)
Power requirements.......-2...-0-5.5 -DC: 12 V, 350 mA
Dimensions (Wx DxH)............. Approx. 420 x 200 x 135 mm
(16-1/2” x 7-7/8" x 5-5/16’")
Weight. 2c.003 4h oaox dan cea f Sans Approx. 3.0 kg
(6 Ibs. 10 ozs.)
Specifications subject to change without notice.
WM-15254

DISASSEMBLY

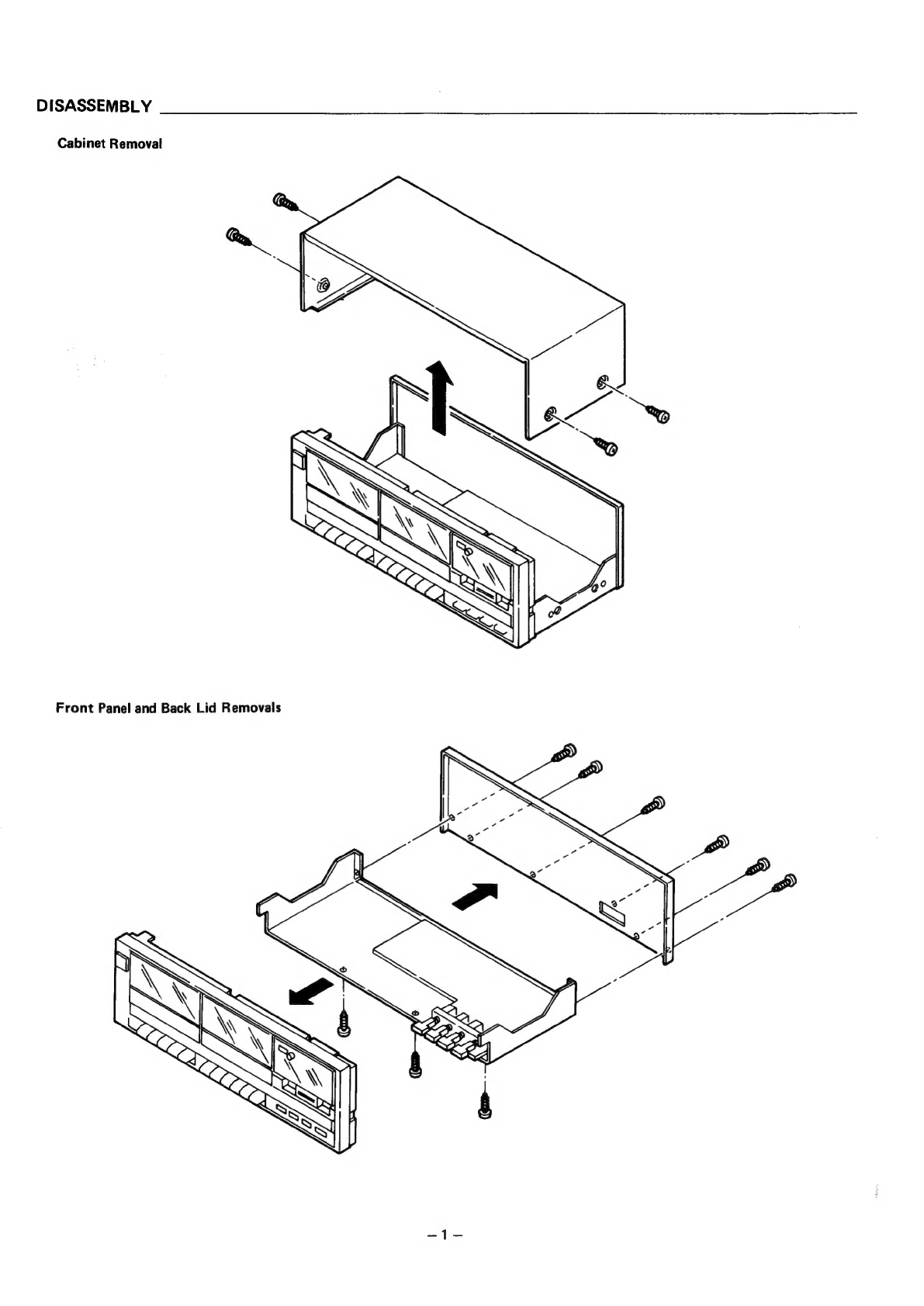

Cabinet Removal
Front Panel and Back Lid Removals

DISASSEMBLY

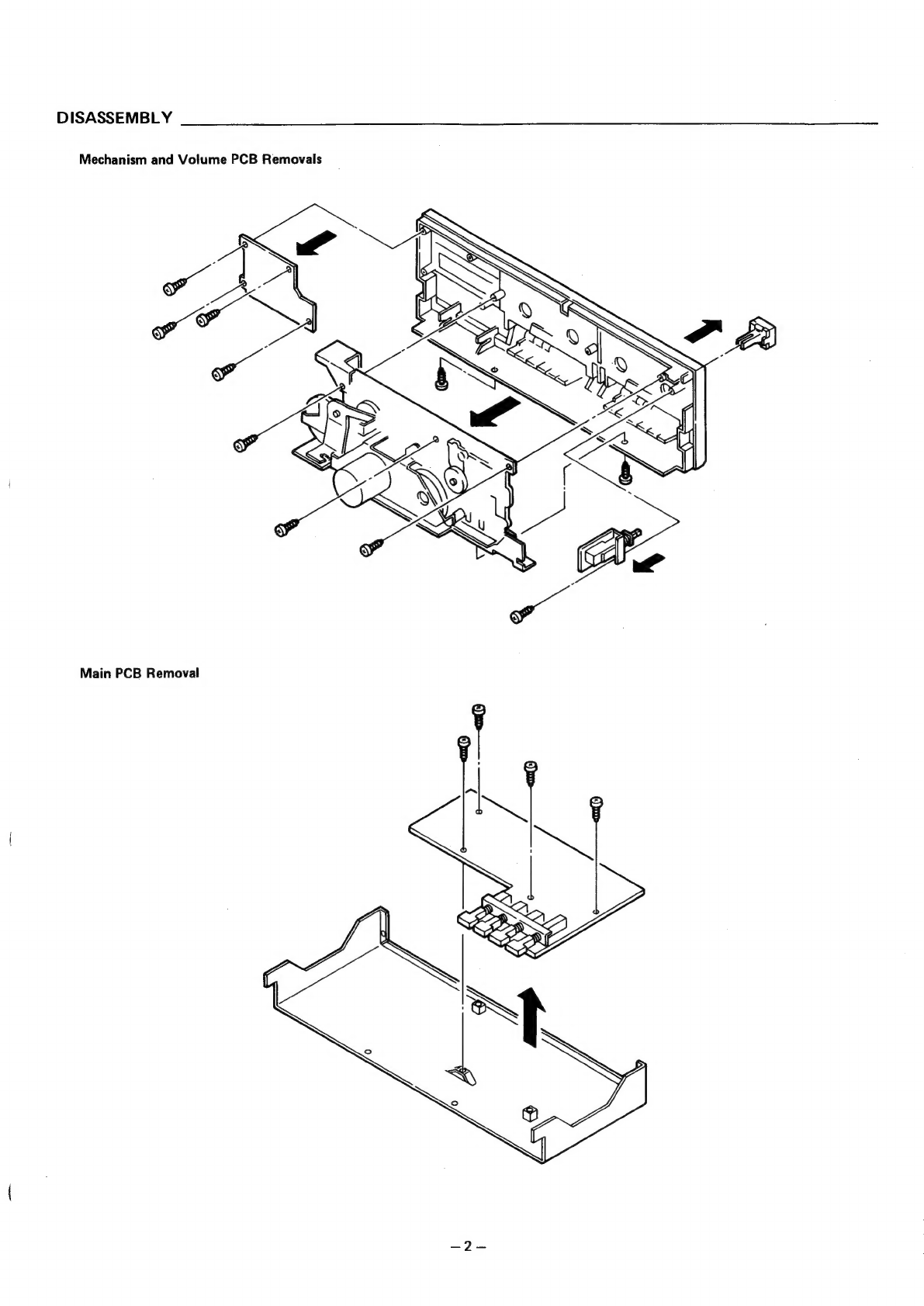

Mechanism and Volume PCB Removals
Main PCB Removal

HEAD REPLACEMENTS
MOTOR AND BELT REPLACEMENTS

MECHANISM ADJUSTMENTS
Torque Measurement
Before measurements, clean the head, capstan and pinch roller.
Pe TAKE-UP TORQUE BACK TENSION TAPE TENSION
MEASUREMENT | PLAY: TW-2111 PLAY/FWD: TW-2111 | DRIVE POWER CASSETTE
CASSETTE F.FWD/REW: TW2231 | REW: TORQUE GAGE | TW-2412
PLAY 30 — 65 g-cm | 3-5g-cm | MORE THAN 150g.
FAST FORWARD | 60 —100g-cm | 3—5gcm PINCH ROLLER
—— | PRESSURE :
REWIND 60 — 100 g-cm | 3—59-cm MORE THAN 280 9.
Head Azimuth Adjustment
Play the test tape (VTT-658 10 kHz) with TAPE A or B deck to be adjusted. Insert the philips screw driver into
Turn the azimuth adjusting screw so that the outputs of the right and left channels
hole on the front panel.
become equal and maximum.

ELECTRICAL ADJUSTMENTS
AUDIO
OSCILLATOR
PARTS
ATTE-
NUATOR
LINE IN
OSCILLOSCOPE
Before following adjustment, head cleaning is needed.
A. Playback Level Adjustment
_ TAPE SELECT switches: NORMAL
DOLBY NR Switch: OFF
Test Tape: MTT-150
1. Playback the test tape with the TAPE A deck.
2. Adjust the SVR701 (Left Channel) and SVR801
(Right Channel) to obtain 0.56 V output on VTVM.
3. Playback the test tape with the TAPE B deck.
4. Adjust the SVR702 (Left Channel) and SVR802
(Right Channel) to obtain 0.56V output on VTVM.
NOTE: When 0.56V output is obtained on VTVM,
confirm that the +3VU LED is illuminating.
Record Level Adjustment
TAPE SELECT Switches: CrO2
DOLBY NR Switch: OFF
Test Tape: AC-512
1. Insert the test tape into the TAPE B deck.
2. Press the PAUSE button and then press the RE-
CORD button.
3. Apply 1kHz, 19dB input to the LINE IN jacks of
the set.
LOCATION
4. Adjust the record monitor output to 0.36V with
INPUT LEVEL control.
5. Release the PAUSE button and record the input
signal.
6. Playback the recorded section and confirm that the
output is 0.36 V.
7. If not, adjust the SVR703 (Left Channel) and
SVR803 (Right Channel) and then repeat the re-
cord/Playback until 0.36V output on playback is
obtained.
Record/Playback Frequency Response Adjustment
TAPE SELECT Switches: NORMAL
DOLBY NR Switch: OFF
Test Tape: AC-223
1. Record the 1kHz and 10kHz 39dB input signal
continuously.
2. Playback the recorded section and compare the
output level of 10kHz with 1kHz. They should be
same output levels.
3. If there is difference of output between 1kHz and
10kHz, adjust the SVR704 (Left Channel) and
SVR804 (Right Channel}, and then repeat the
record/playback until same output level is obtained.
RECORD/PLAYBACK FREQUENCY
RESPONSE (TAPE B)
iQ) svar0«
@®)svrso.
RECORD LEVEL(TAPE B)
SVR803
Al :
@ $VR703
PLAYBACK LEVEL(TAPE 8)
©) SVR802
© SVR702
PLAYBACK LEVEL(TAPE A)
a
sero © I sveeo
Za

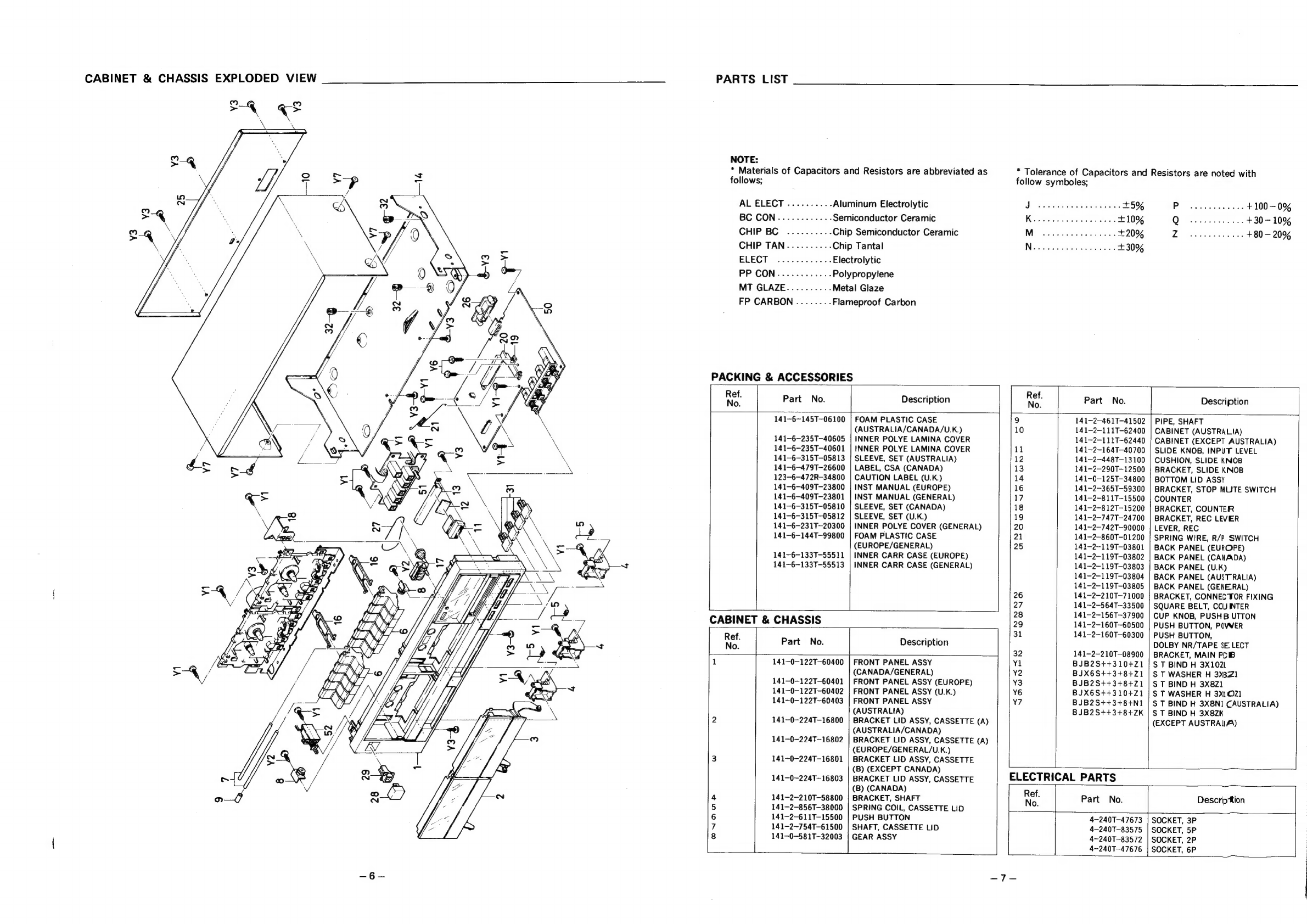

CABINET & CHASSIS EXPLODED VIEW
oq «F
PARTS LIST
NOTE:
*
Materials
of
Capacitors
and
Resistors
are
abbreviated
as
*
Tolerance
of
Capacitors
and
Resistors
are
noted
with
follows; follow symboles;
AL
ELECT..........
Aluminum
Electrolytic
Do
se
ESA
ee
eS
+5%
Ph
acing
Setar
+100-0%
BC
CON..........-.
Semiconductor
Ceramic
Keviccserhendtis
seve
et
oleate’
+10%
Q)
wssad
oh
dees
+30-
10%
CHIP:
BC.
2.6ecc62%
Chip
Semiconductor
Ceramic
Mi
wece
ged
oe
dean
ares
+20%
Z.
tale
eanie
+
80
—
20%
CHIP TAN.......... Chip Tantal Naitatitd eid eet +30%
ELECT ............ Electrolytic
PP CON...........- Polypropylene
MT GLAZE.......... Metal Glaze
FP CARBON ........ Flameproof Carbon
PACKING & ACCESSORIES
Ree
Part
No.
Description
Ref.
Part
No.
Description
0. ‘iz No.
141~6-145T-06100
|
FOAM
PLASTIC
CASE
9
141-2-461T-41502
|
PIPE,
SHAFT
(AUSTRALIA/CANADA/U.K.)
10
141-2-111T-62400
|
CABINET
(AUSTRALIA)
141-6-235T-40605
|
INNER
POLYE
LAMINA
COVER
141~2-111T-62440
|
CABINET
(EXCEPT
AUSTRALIA)
141-6-235T-40601
|
INNER
POLYE
LAMINA
COVER
11
141-2-164T-40700
|
SLIDE
KNOB,
INPUT
LEVEL
141-6-315T-05813
|
SLEEVE,
SET
(AUSTRALIA)
12
141—2-448T-13100
|
CUSHION,
SLIDE
KNOB
141-6-479T-26600
|
LABEL,
CSA
(CANADA)
13
141-2-290T-12500
|
BRACKET,
SLIDE
KNOB
123-6-472R-34800
|
CAUTION
LABEL
(U.K.)
14
141-0-125T-34800
|
BOTTOM
LID
ASSY
141-6-409T—23800
|
INST
MANUAL
(EUROPE)
16
141-2-365T-59300
|
BRACKET,
STOP
MUTE
SWITCH
141-6-409T-—23801
|
INST
MANUAL
(GENERAL)
17
141-2-811T-15500
|
COUNTER
141-6-315T-05810
|
SLEEVE,
SET
(CANADA)
18
141-2-812T-15200
|
BRACKET,
COUNTER
141-6-315T-05812
|
SLEEVE,
SET
(U.K.)
19
141-2-747T-24700
|
BRACKET,
REC
LEVER
141-6-231T-20300
|
INNER
POLYE
COVER
(GENERAL)
20
141-—2-742T-90000
|
LEVER,
REC
141-6-144T-99800
|
FOAM
PLASTIC
CASE
21
141—-2-860T-01200
|
SPRING
WIRE,
R/P
SWITCH
(EUROPE/GENERAL)
25
141-2-119T-03801
|
BACK
PANEL
(EUROPE)
141-6-133T-55511
|
INNER
CARR
CASE
(EUROPE)
141-2~119T-03802
|
BACK
PANEL
(CANADA)
141-6-133T-55513
|
INNER
CARR
CASE
(GENERAL)
141-2-119T-03803
|
BACK
PANEL
(U.K)
141-2-119T-03804 | BACK PANEL (AUSTRALIA)
141-2-119T-03805 | BACK PANEL (GENERAL)
26 141-2-210T-71000 | BRACKET, CONNECTOR FIXING
27 141-2-564T-33500 | SQUARE BELT, COQUINTER
28 141-2-156T-37900 | CUP KNOB, PUSHBUTTON
CABINET
&
CHASSIS
29
141-2-160T-60500
|
PUSH
BUTTON,
POWER
Ref.
im
31
141-2-160T-60300
|
PUSH
BUTTON,
No.
Part
No.
Description
DOLBY
NR/TAPE
SELECT
32 141-2-210T—-08900 | BRACKET, MAIN FCB
1
141—-0-122T-60400
|
FRONT
PANEL
ASSY
Y1
BJB2S++310+Z1
|S
T
BIND
H
3X102
(CANADA/GENERAL)
Y2
BJX6S++3+8+Z1
|
S
T
WASHER
H
3x8Z1
141-0~-122T-60401
|
FRONT PANEL
ASSY
(EUROPE)
Y3
BJB2S++3+8+Z1
|S
T
BIND
H
3X8Z1
141-0—122T-60402
|
FRONT
PANEL
ASSY
(U.K.)
Y6
BJX6S++310+Z1
|S
T
WASHER
H
3x1O2Z1
141—0-122T-60403
|
FRONT
PANEL
ASSY
Y7
BJB2S++3+8+N1
|
ST
BIND
H
3X8N1
CAUSTRALIA)
(AUSTRALIA)
BJB2S++3+8+ZK
|
S
T
BIND
H
3X8ZK
2
141—-0-224T-16800
|
BRACKET
LID
ASSY,
CASSETTE
(A)
(EXCEPT
AUSTRALIA)
(AUSTRALIA/CANADA)
141-0-224T-16802 | BRACKET LID ASSY, CASSETTE (A)
(EUROPE/GENERAL/U.K.)
3
141-0-224T-16801
|
BRACKET
LID
ASSY,
CASSETTE
|
(B) (EXCEPT CANADA)
141-0-224T-16803
|
BRACKET
LID
ASSY,
CASSETTE
ELECTRICAL
PARTS
(B)
(CANADA)
Ref
4
141-2-210T-58800
|
BRACKET,
SHAFT
No.
Part
No.
Description
5
141-2-856T-38000
|
SPRING
COIL,
CASSETTE
LID
:
6
141-2-611T-15500
|
PUSH
BUTTON
4-240T-47673
|
SOCKET,
3P
7
141—2-754T-61500
|
SHAFT,
CASSETTE
LID
4-240T-83575
|
SOCKET,
5P
8
141-0-581T-32003
|
GEAR
ASSY
4—240T-83572
|
SOCKET,
2P
4~240T-47676 | SOCKET, 6P

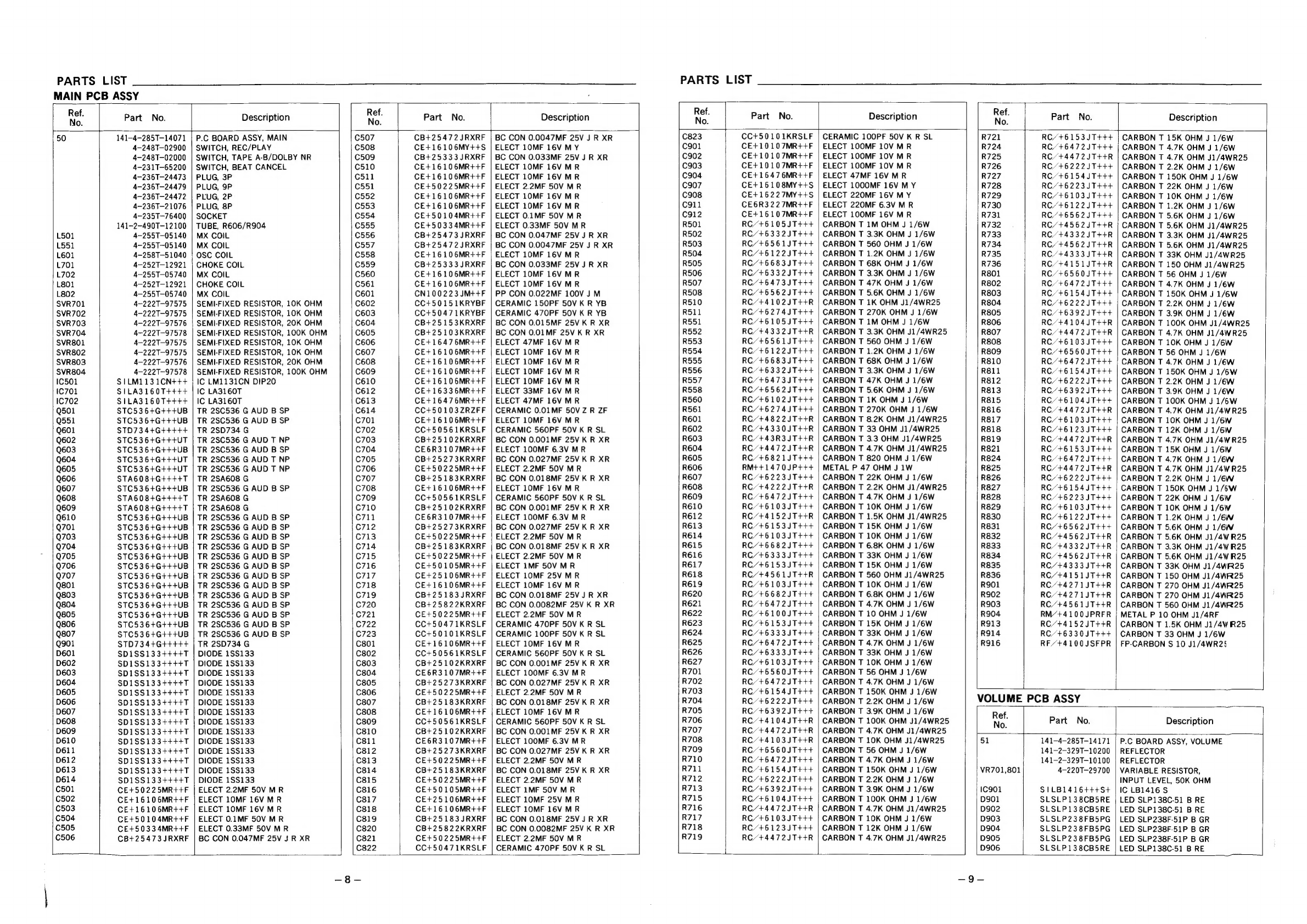

PARTS LIST
PARTS LIST
MAIN PCB ASSY
r
Ret
Part
No.
Description
ke
Part
No.
Description
50 141-4-285T-14071 | P.C BOARD ASSY, MAIN C507 CB+25472JRXRF | BC CON 0.0047MF 25V J R XR
4-248T—02900 | SWITCH, REC/PLAY C508 CE+16106MY++S | ELECT 1OMF 16VMY
4-248T-02000 | SWITCH, TAPE A-B/DOLBY NR C509 CB+25333JRXRF | BC CON 0.033MF 25V JR XR
4-231T-65200 | SWITCH, BEAT CANCEL C510 CE+16106MRt++F | ELECT 1OMF 16VMR
4-236T-24473 | PLUG, 3P C511 CE+16106MR++F | ELECT 1OMF 16VMR
4-236T-24479 | PLUG, 9P C551 CE+50225MRt++F | ELECT 2.22MF 50V MR
4-—236T-24472 | PLUG, 2P C552 CE+16106MR++F | ELECT 10OMF 16VMR
4-236T-21076 | PLUG, 8P C553 CE+16106MR++F | ELECT 10OMF 16VMR
4-235T-76400 | SOCKET C554 CE+50104MR++F | ELECT 0.1MF 50VMR
141-2-490T-12100 | TUBE, R606/R904 C555 CE+50334MR++F | ELECT 0.33MF 50V MR
L501 4-255T-05140 | MX COIL C556 CB+25473JRXRF | BC CON 0.047MF 25V JR XR
L551 4-255T-05140 | MX COIL C557 CB+25472JRXRF | BC CON 0.0047MF 25V J R XR
L601 4-—258T-51040 | OSC COIL C558 CE+16106MR++F | ELECT 10OMF 16VMR
L701 4—252T-12921 | CHOKE COIL C559 CB+25333JRXRF | BC CON 0.033MF 25V JR XR
L702 4—255T-05740 | MX COIL C560 CE+16106MR++F | ELECT 1OMF 16VMR
L801 4-252T-12921 | CHOKE COIL C561 CE+16106MR++F | ELECT 1OMF 16VMR
L802 4-255T-05740 | MX COIL C601 CN100223JM+t+F | PP CON 0.022MF 100V JM
SVR701 4~222T-97575 | SEMI-FIXED RESISTOR, 10K OHM C602 CC+50151KRYBF | CERAMIC 150PF 50V K R YB
SVR702 4-222T-97575 | SEMI-FIXED RESISTOR, 10K OHM C603 CC+50471KRYBF | CERAMIC 470PF 50V K R YB
SVR703 4-222T-97576 | SEMI-FIXED RESISTOR, 20K OHM C604 CB+25153KRXRF | BC CON 0.015MF 25V K R XR
SVR704 4-222T-97578 | SEMI-FIXED RESISTOR, 100K OHM C605 CB+25103KRXRF | BC CON 0.01MF 25V KR XR
SVR801 4-222T-97575 | SEMI-FIXED RESISTOR, 10K OHM C606 CE+16476MR++F | ELECT 47MF 16VMR
SVR802 4—222T-97575 | SEMI-FIXED RESISTOR, 10K OHM C607 CE+16106MR++F | ELECT 1OMF 16VMR
SVR803 4-222T-97576 | SEMI-FIXED RESISTOR, 20K OHM C608 CE+16106MR++F | ELECT 1OMF 16VMR
SVR804 4-222T-97578 | SEMI-FIXED RESISTOR, 100K OHM C609 CE+16106MRt++F | ELECT 1OMF 16VMR
1C501 S$1LM1131CN+++ | IC LM1131CN DIP20 C610 CE+16106MR++F | ELECT 1OMF 16VMR
(C701 SILA3160T++++ | IC LA3160T C612 CE+16336MRt++F | ELECT 33MF 16VMR
1C702 SILA3160T++++ | IC LA3160T C613 CE+16476MR++F | ELECT 47MF 16VMR
Q501 $TC536+G+++UB | TR 2SC536 G AUD B SP C614 CC+50103ZRZFF | CERAMIC 0.01MF 50V Z R ZF
Q551 $TC536+G+++UB | TR 2SC536 G AUD B SP C701 CE+16106MR++F | ELECT 1OMF 16VMR
Q601 $TD0734+Gt++++ | TR 2SD734 G C702 CC+50561KRSLF | CERAMIC 560PF 50V K R SL
Q602 S$TC536+G+++UT | TR 2SC536 G AUD T NP C703 CB+25102KRXRF | BC CON 0.001MF 25V K R XR
Q603 $TC536+G+++UB | TR 2SC536 G AUD B SP C704 CE6R3107MR++F | ELECT 100MF 6.3V MR
Q604 STC536+G+++UT | TR 2SC536 G AUD T NP C705 CB+25273KRXRF | BC CON 0.027MF 25V KR XR
Q605 $TC536+G+++UT | TR 2SC536 G AUD T NP C706 CE+50225MR++F | ELECT 2.2MF 50V MR
Q606 STA608+G++++T | TR 2SA608 G C707 CB+25183KRXRF | BC CON 0.018MF 25V K R XR
Q607 $TC536+G+++UB | TR 2SC536 G AUD B SP C708 CE+16106MR++F | ELECT 1OMF 16VMR
Q608 STA608+G++++T | TR 2SA608 G C709 CC+50561KRSLF | CERAMIC 560PF 50V K R SL
Q609 STA608+G++++T | TR 2SA608 G C710 CB+25102KRXRF | BC CON 0.001MF 25V K R XR
Q610 $TC536+G+++UB | TR 2SC536 G AUD B SP C711 CE6R3107MR++F | ELECT 100MF 6.3V MR
Q701 $TC536+G+++UB | TR 2SC536 G AUD B SP C712 CB+25273KRXRF | BC CON 0.027MF 25V K R XR
Q703 $TC536+G+++UB | TR 2SC536 G AUD B SP C713 CE+50225MRt++F | ELECT 2.2MF 50V MR
Q704 $TC536+G+++UB | TR 2SC536 G AUD B SP C714 CB+25183KRXRF | BC CON 0.018MF 25V K R XR
Q705 $TC536+G+++UB | TR 2SC536 G AUD B SP C715 CE+50225MR++F | ELECT 2.2MF 50V MR
Q706 $TC536+G+++UB | TR 2SC536 G AUD B SP C716 CE+50105MR++F | ELECT 1MF 50VMR
Q707 $TC536+G+++UB | TR 2SC536 G AUD B SP C717 CE+251L06MR++F | ELECT LOMF 25VMR
Q801 $TC536+G+++UB | TR 2SC536 G AUD B SP C718 CE+16106MR++F | ELECT 1OMF 16VMR
Q803 $TC536+G+++UB | TR 2SC536 G AUD B SP C719 CB+25183JRXRF | BC CON 0.018MF 25V JR XR
Q804 $TC536+G+++UB | TR 2SC536 G AUD B SP C720 CB+25822KRXRF | BC CON 0.0082MF 25V K R XR
Q805 $TC536+G+++UB | TR 2SC536 G AUD B SP C721 CE+50225MR++F | ELECT 2.2MF 50VMR
Q806 $TC536+G+++UB | TR 2SC536 G AUD B SP C722 CC+50471KRSLF | CERAMIC 470PF 50V K R SL
Q807 $TC536+G+++UB | TR 2SC536 G AUD B SP C723 CC+50101KRSLF | CERAMIC 100PF 50V KR SL
Q901 $TD734+G+++++ | TR 2SD734 G C801 CE+16106MR++F | ELECT 10OMF 16VMR
D601 $D1$S$133++++T | DIODE 185133 C802 CC+50561KRSLF | CERAMIC 560PF 50V K R SL
D602 $D1$$133++++T | DIODE 185133 C803 CB+25102KRXRF | BC CON 0.001MF 25V K R XR
D603 $D1S$133++++T | DIODE 1SS133 C804 CE6R3107MR++F | ELECT 100MF 6.3V MR
D604 $D1$$133++++T | DIODE 18$133 C805 CB+25273KRXRF | BC CON 0.027MF 25V K R XR
D605 $01S$133++++T | DIODE 188133 C806 CE+50225MR++F | ELECT 2.2MF 50V MR
D606 $D1$$1334++++T | DIODE 1$$133 C807 CB+25183KRXRF | BC CON 0.018MF 25V K R XR
D607 $D1$S133++++T | DIODE 188133 C808 CE+16106MR++F | ELECT 1OMF 16VMR
D608 $D1$$133++++T | DIODE 185133 C809 CC+50561KRSLF | CERAMIC 560PF 50V K R SL
D609 $D1$$133++++T | DIODE 1$$133 C810 CB+25102KRXRF | BC CON 0.001MF 25V K R XR
D610 $D1$$133++++T | DIODE 185133 C811 CE6R3107MR++F | ELECT 1OOMF 6.3V MR
D611 $D1$$133++++T | DIODE 188133 C812 CB+25273KRXRF | BC CON 0.027MF 25V K R XR
D612 $D1S$133++++T | DIODE 18S133 C813 CE+50225MR++F | ELECT 2.2MF 50V MR
D613 $D1$$133++++T | DIODE 188133 C814 CB+25183KRXRF | BC CON 0.018MF 25V K R XR
D614 $D1$$133++++T | DIODE 188133 C815 CE+50225MR++F | ELECT 2.2MF 50V MR
C501 CE+50225MR++F | ELECT 2.2MF SOVMR C816 CE+50105MR++F | ELECT 1MF 50VMR
C502 CE+16106MR++F | ELECT 1OMF 16VMR C817 CE+25106MR++F | ELECT 10MF 25V MR
C503 CE+16106MR++F | ELECT 1OMF 16VMR C818 CE+16106MR++F | ELECT 10OMF 16V MR
C504 CE+50104MR++F | ELECT 0.1MF 50VMR C819 CB+25183JRXRF | BC CON 0.018MF 25V JR XR
C505 CE+50334MR++F | ELECT 0.33MF 50V MR C820 CB+25822KRXRF | BC CON 0.0082MF 25V K R XR
C506 CB+25473JRXRF | BC CON 0.047MF 25V J R XR C821 CE+50225MR++F | ELECT 2.2MF 50V MR
C822 CC+50471KRSLF | CERAMIC 470PF 50V K R SL
Ate Part No. Description ioe Part No. Description
|
C823 CC+50101KRSLF | CERAMIC 100PF SOV K R SL R721 RC’+6153JT+++ | CARBON T 15K OHM J 1/6W
c901 CE+10107MR++F | ELECT 100MF 10VMR R724 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W
c902 CE+10107MR++F | ELECT 100MF 10VMR R725 RC’+4472JT++R | CARBON T 4.7K OHM J1/4WR25
C903 CE+10107MR++F | ELECT 100MF 10VMR R726 RC’+6222JT+++ | CARBON T 2.2K OHM J 1/6W
c904 CE+16476MR++F | ELECT 47MF 16V MR R727 RC’+6154JT+++ | CARBON T 150K OHM J 1/6W
C907 CE+16108MY++S | ELECT 1000MF 16V MY R728 RC/+6223JT+++ | CARBON T 22K OHM J 1/6W
C908 CE+16227MY++S | ELECT 220MF 16V MY R729 RC/+6103JT+++ | CARBON T 10K OHM J 1/6W
911 CE6R3227MR++F | ELECT 220MF 6.3V MR R730 RC“+6122JT+++ | CARBON T 1.2K OHM J 1/6W
e912 CE+16107MR++F | ELECT 100MF 16VMR R731 RC’+6562JT+++ | CARBON T 5.6K OHM J 1/6W
R501 RC’+6105JT+++ | CARBON T 1M OHM J 1/6W R732 RC’+4562JT++R | CARBON T 5.6K OHM J1/4WR25
R502 RC’+6332JT+++ | CARBON T 3.3K OHM J 1/6W R733 RC/+4332JT++R | CARBON T 3.3K OHM J1/4WR25
R503 RC’+6561JT+++ | CARBON T 560 OHM J 1/6W R734 RC’+4562JT++R | CARBON T 5.6K OHM J1/4WR25
R504 RC/+6122JT+++ | CARBON T 1.2K OHM J 1/6W R735 RC’+4333JT++R | CARBON T 33K OHM J1/4WR25
R505 RC/+6683JT+++ | CARBON T 68K OHM J 1/6W R736 RC/+4151JT++R | CARBON T 150 OHM J1/4WR25
R506 RC/+6332JT+++ | CARBON T 3.3K OHM J 1/6W R801 RC’+6560JT+++ | CARBON T 56 OHM J 1/6W
R507 RC/+6473JT+++ | CARBON T 47K OHM J 1/6W R802 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W
R508 RC’+6562JT+++ | CARBON T 5.6K OHM J 1/6W R803 RC+6154JT+++ | CARBON T 150K OHM J 1/6W
R510 RC’+4102JT++R | CARBON T 1K OHM J1/4WR25 R804 RC’+6222JT+++ | CARBON T 2.2K OHM J 1/6W
R511 RC’+6274JT+++ | CARBON T 270K OHM J 1/6W R805 RC’+6392JT+++ | CARBON T 3.9K OHM J 1/6W
R551 RC’+6105JT+++ | CARBON T 1M OHM J 1/6W R806 RC’+4104JT++R | CARBON T 100K OHM J1/4WR25
R552 RC’+4332JT++R | CARBON T 3.3K OHM J1/4WR25 R807 RC’+4472JT++R | CARBON T 4.7K OHM J1/4WR25
R553 RC’+6561JT+++ | CARBON T 560 OHM J 1/6W R808 RC’+6103JT+++ | CARBON T 10K OHM J 1/6W
R554 RC’+6122JT+++ | CARBON T 1.2K OHM J 1/6W R809 RC’+6560JT+++ | CARBON T 56 OHM J 1/6W
R555 RC’+6683JT+++ | CARBON T 68K OHM J 1/6W R810 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W
R556 RC’+6332JT+++ | CARBON T 3.3K OHM J 1/6W R811 RC’/+6154JT+++ | CARBON T 150K OHM J 1/6W
R557 RC’+6473JT+++ | CARBON T 47K OHM J 1/6W R812 RC’+6222JT+++ | CARBON T 2.2K OHM J 1/6W
R558
RC/+6562JT+++
|
CARBON
T
5.6K
OHM
J
1/6W
R813
RC’+6392JT+++
|
CARBON
T
3.9K
OHM
J
1/6W
R560 RC/+6102JT+++ | CARBON T 1K OHM J 1/6W R815 RC’+6104JT+++ | CARBON T 100K OHM J 1/6W
R561 RC/+6274JT+++ | CARBON T 270K OHM J 1/6W R816 RC/+4472JT++R | CARBON T 4.7K OHM J1/4WR25
R601 RC/+4822JT++R | CARBON T 8.2K OHM J1/4WR25 R817 RC’+6103JT+++ | CARBON T 10K OHM J 1/6W
R602 RC’+4330JT++R | CARBON T 33 OHM J1/4WR25 R818 RC/+6123JT+++ | CARBON T 12K OHM J 1/6W
R603 RC’+43R3JT++R | CARBON T 3.3 OHM J1/4WR25 R819 RC/+4472JT++R | CARBON T 4.7K OHM J1/4WR25
R604 RC’+4472JT++R | CARBON T 4.7K OHM J1/4WR25 R821 RC’+6153JT+++ | CARBON T 15K OHM J 1/6W
R605 RC’+6821JT+++ | CARBON T 820 OHM J 1/6W R824 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W
R606 RM++1470JP+++ | METAL P 47 OHM J 1W R825 RC/+4472JT++R | CARBON T 4.7K OHM J1/4WR25
R607 RC’+6223JT+++ | CARBON T 22K OHM J 1/6W R826 RC/+6222JT+++ | CARBON T 2.2K OHM J 1/6W
R608 RC/+4222JT++R | CARBON T 2.2K OHM J1/4WR25 R827 RC’+6154JT+++ | CARBON T 150K OHM J 1/6W
R609 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W R828 RC/+6223JT+++ | CARBON T 22K OHM J 1/6¥
R610 RC’+6103JT+++ | CARBON T 10K OHM J 1/6W R829 RC’+6103JT+++ | CARBON T 10K OHM J 1/6
R612 RC’+4152JT++R | CARBON T 1.5K OHM J1/4WR25 R830 RC/+6122JT+++ | CARBON T 1.2K OHM J 1/6V
R613 RC’+6153JT+++ | CARBON T 15K OHM J 1/6W R831 RC’+6562JT+++ | CARBON T 5.6K OHM J 1/6V
R614 RC/+6103JT+++ | CARBON T 10K OHM J 1/6W R832 RC’“+4562JT++R | CARBON T 5.6K OHM J1/4W R25
R615 RC/+6682JT+++ | CARBON T 6.8K OHM J 1/6W R833 RC’+4332JT++R | CARBON T 3.3K OHM J1/4W R25
R616 RC/+6333JT+++ | CARBON T 33K OHM J 1/6W R834 RC’+4562JT++R | CARBON T 5.6K OHM J1/4W R25
R617 RC/+6153JT+++ | CARBON T 15K OHM J 1/6W R835 RC/+4333JT++R | CARBON T 33K OHM J1/4WR25
R618 RC/+4561JT++R | CARBON T 560 OHM J1/4WR25 R836 RC/+4151JT++R | CARBON T 150 OHM J1/4WR25
R619 RC’+6103JT+++ | CARBON T 10K OHM J 1/6W R901 RC’+4271JT++R | CARBON T 270 OHM J1/4WR25
R620 RC’+6682JT+++ | CARBON T 6.8K OHM J 1/6W R902 RC/+4271JT++R | CARBON T 270 OHM J1/4WR25
R621 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W R903 RC’+4561JT++R | CARBON T 560 OHM J1/4WR25
R622 RC’+6100JT+++ | CARBON T 10 OHM J 1/6W R904 RM/+4100JPRFR | METAL P 10 OHM J1/4RF
R623 RC’+6153JT+++ | CARBON T 15K OHM J 1/6W R913 RC’+4152JT++R | CARBON T 1.5K OHM J1/4W R25
R624 RC’+6333JT+++ | CARBON T 33K OHM J 1/6W R914 RC’+6330JT+++ | CARBON T 33 OHM J 1/6W
R625 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W R916 RE“+4100JSFPR | FP-CARBON S 10 J1/4WR25
R626 RC’+6333JT+++ | CARBON T 33K OHM J 1/6W
R627 RC/+6103JT+++ | CARBON T 10K OHM J 1/6W
R701 RC’+6560JT+++ | CARBON T 56 OHM J 1/6W
R702 RC/+6472J5T+++ | CARBON T 4.7K OHM J 1/6W I
R703 RC’+6154JT+++ | CARBON T 150K OHM J 1/6W
R704 RC/+6222JT+++ | CARBON T 2.2K OHM J 1/6W VOLUME PCB ASSY
R705 RC’+6392JT+++ | CARBON T 3.9K OHM J 1/6W Ret
R706 RC’+4104JT++R | CARBON T 100K OHM J1/4WR25 No. Part No. Description
R707 RC/+4472JT++R | CARBON T 4.7K OHM J1/4WR25 : |
R708 RC/+4103JT++R | CARBON T 10K OHM J1/4WR25 51 141-4-285T-14171 | P.C BOARD ASSY, VOLUME
R709 RC’+6560JT+++ | CARBON T 56 OHM J 1/6W 141-2-329T-10200 | REFLECTOR
R710 RC’+6472JT+++ | CARBON T 4.7K OHM J 1/6W 141-2-329T-10100 | REFLECTOR
R711
RC/+6154JT+++
|
CARBON
T
150K
OHM
J
1/6W
VR701,801
4-220T-29700
|
VARIABLE
RESISTOR,
R712 RC’+6222JT+++ | CARBON T 2.2K OHM J 1/6W INPUT LEVEL, 50K OHM
R713
RC/+6392JT+++
|
CARBON
T
3.9K
OHM
J
1/6W
IC901
$1LB1416+++S+
|
IC
LB1416
§
R715
RC/+6104JT+++
|
CARBON
T
100K
OHM
J
1/6W
D901
SLSLP138CB5RE
|
LED
SLP138C-51
B
RE
R716
RC/+4472JT++R
|
CARBON
T
4.7K
OHM
J1/4WR25
D902
SLSLP138CB5RE
|
LED
SLP138C-51
B
RE
R717
RC/+6103JT+++
|
CARBON
T
10K
OHM
J
1/6W
D903
SLSLP238FB5PG
|
LED
SLP238F-51P
B
GR
R718
RC’+6123JT+++
|
CARBON
T
12K
OHM
J
1/6W
D904
SLSLP238FB5PG
|
LED
SLP238F-51P
B
GR
R719
RC/+4472JT++R
|
CARBON
T
4.7K
OHM
J1/4WR25
D905
SLSLP238FB5PG
|
LED
SLP238F-51P
B
GR
D906 SLSLP138CB5RE | LED SLP138C-51 B RE
ee

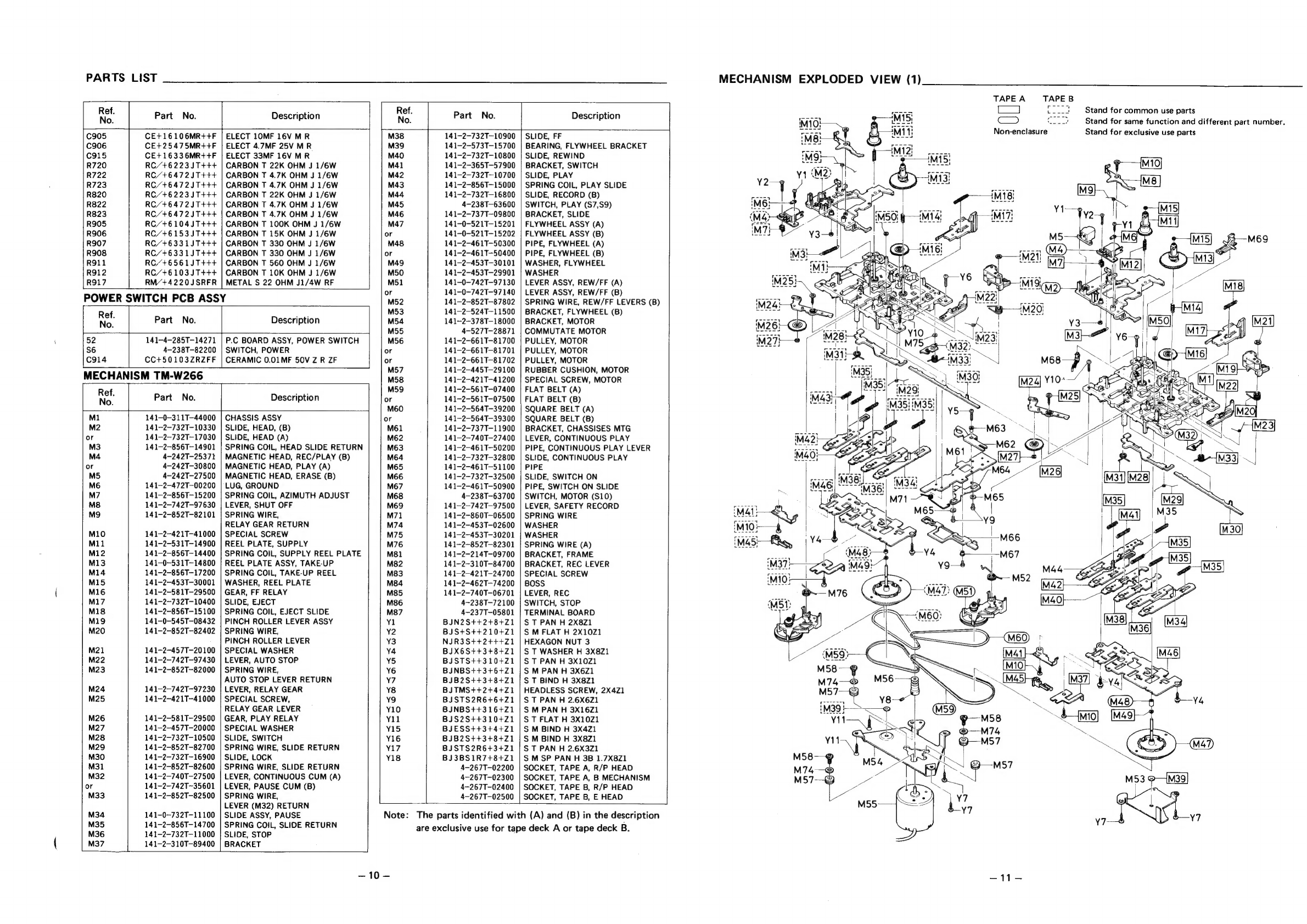

PARTS LIST
Ref. See Ref. Seg
N Part No. Description N Part No. Description
0. oO.
C905 CE+16106MR++F | ELECT 10MF 16VMR M38 141-2-732T-10900 | SLIDE, FF
C906 CE+25475MR++F | ELECT 4.7MF 25V MR M39 141-2-573T-15700 | BEARING, FLYWHEEL BRACKET
C915 CE+16336MR++F | ELECT 33MF 16V MR M40 141-2-732T-10800 | SLIDE, REWIND
R720 RC’+6223JT+++ | CARBON T 22K OHM J 1/6W M41 141-2-365T-57900 | BRACKET, SWITCH
R722 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W M42 141-2-732T-10700 | SLIDE, PLAY
R723 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W M43 141-2-856T—15000 | SPRING COIL, PLAY SLIDE
R820 RC/+6223JT+++ | CARBON T 22K OHM J 1/6W M44 141-2-732T-16800 | SLIDE, RECORD (B)
R822 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W M45 4-238T-63600 | SWITCH, PLAY (S7,S9)
R823 RC/+6472JT+++ | CARBON T 4.7K OHM J 1/6W M46 141-2-737T-09800 | BRACKET, SLIDE
R905 RC/+6104JT+++ | CARBON T 100K OHM J 1/6W M47 141-0-521T-15201 | FLYWHEEL ASSY (A)
R906 RC/+6153JT+++ | CARBON T 15K OHM J 1/6W or 141-0-521T-15202 | FLYWHEEL ASSY (B)
R907 RC/+6331JT+++ | CARBON T 330 OHM J 1/6W M48 141-2-461T-50300 | PIPE, FLYWHEEL (A)
R908 RC/+6331JT+++ | CARBON T 330 OHM J 1/6W or 141-2-461T-50400 | PIPE, FLYWHEEL (B)
R911 RC/+6561JT+++ | CARBON T 560 OHM J 1/6W M49 141-2-453T-30101 | WASHER, FLYWHEEL
R912 RC/+6103JT+++ | CARBON T 10K OHM J 1/6W M50 141-2-453T-29901 | WASHER
R917__—'|__RM/+4220JSRFR | METAL S 22 OHM J1/4W RF M51 141-0-742T-97130 | LEVER ASSY, REW/FF (A)
or 141-0-742T-97140 | LEVER ASSY, REW/FF (B)
POWER SWITCH PCB ASSY M52 141-2-852T-87802 | SPRING WIRE, REW/FF LEVERS (B)
Ref _ M53 141-2-524T-11500 | BRACKET, FLYWHEEL (B)
Aa Part No. Description M54 141-2-378T-18000 | BRACKET, MOTOR
: M55 4-527T-28871 | COMMUTATE MOTOR
52 141-4-285T-14271 | P.C BOARD ASSY, POWER SWITCH M56 141-2-661T-81700 | PULLEY, MOTOR
56 4-238T-82200 | SWITCH, POWER Ge 141-2-661T-81701 | PULLEY, MOTOR
c914 CC+50103ZRZFF | CERAMIC 0.01MF SOV Z R ZF or 141-2-661T-81702 | PULLEY, MOTOR
M57 141-2-445T-29100 | RUBBER CUSHION, MOTOR
MECHANISM TM-W266 M58 141-2-421T-41200 | SPECIAL SCREW, MOTOR
Ref -_ M59 141-2-561T-07400 | FLAT BELT (A)
No. Part No. Description or 141-2-561T-07500 | FLAT BELT (B)
M60 141-2-564T-39200 | SQUARE BELT (A)
M1 141-0-311T-44000 | CHASSIS ASSY or 141-2-564T-39300 | SQUARE BELT (B)
M2 141-2-732T-10330 | SLIDE, HEAD, (B) M61 141-2-737T-11900 | BRACKET, CHASSISES MTG
or 141-2-732T-17030 | SLIDE, HEAD (A) M62 141-2-740T-27400 | LEVER, CONTINUOUS PLAY
M3 141-2-856T-14901 | SPRING COIL, HEAD SLIDE RETURN M63 141-2-461T-50200 | PIPE, CONTINUOUS PLAY LEVER
M4 4-242T-25371 | MAGNETIC HEAD, REC/PLAY (B) M64 141-2-732T-32800 | SLIDE, CONTINUOUS PLAY
or 4-242T-30800 | MAGNETIC HEAD, PLAY (A) M65 141-2-461T-51100 | PIPE
MS 4-242T-27500 | MAGNETIC HEAD, ERASE (B) M66 141-2-732T-32500 | SLIDE, SWITCH ON
M6 141-2-472T-00200 | LUG, GROUND M67 141-2-461T-50900 | PIPE, SWITCH ON SLIDE
M7 141-2~856T—15200 | SPRING COIL, AZIMUTH ADJUST M68 4-238T-63700 | SWITCH, MOTOR (S10)
M8 141-2-742T-97630 | LEVER, SHUT OFF M69 141-2-742T-97500 | LEVER, SAFETY RECORD
Mg 141-2-852T-82101 | SPRING WIRE, M71 141-2-860T-06500 | SPRING WIRE
RELAY GEAR RETURN M74 141-2-453T-02600 | WASHER
M10 141-2-421T-41000 | SPECIAL SCREW M75 141-2-453T-30201 | WASHER
M11 141-2-531T-14900 | REEL PLATE, SUPPLY M76 141-2-852T-82301 | SPRING WIRE (A)
M12 141-2-856T-14400 | SPRING COIL, SUPPLY REEL PLATE M81 141-2-214T-09700 | BRACKET, FRAME
M13 141-0-531T-14800 | REEL PLATE ASSY, TAKE-UP M82 141-2-310T-84700 | BRACKET, REC LEVER
M14 141-2-856T-17200 | SPRING COIL, TAKE-UP REEL M83 141-2-421T-24700 | SPECIAL SCREW
M15 141-2-453T-30001 | WASHER, REEL PLATE M4 141-2-462T-74200 | BOSS
M16 141-2-581T-29500 | GEAR, FF RELAY M85 141-2-740T-06701 | LEVER, REC
M17 141-2-732T-10400 | SLIDE, EJECT M86 42387-72100 | SWITCH, STOP
M18 141-2-856T-15100 | SPRING COIL, EJECT SLIDE M87 4-237T-05801 | TERMINAL BOARD
M19 141-0-545T-08432 | PINCH ROLLER LEVER ASSY Y1 BJN2S++2+8+Z1 |S T PAN H 2X8Z1
M20 141-2-852T-82402 | SPRING WIRE, Y2 BJS+S++210+Z1 |S M FLAT H 2X10Z1
PINCH ROLLER LEVER Y3 NJR3S++2+++Z1 | HEXAGON NUT 3
M21 141-2-457T-20100 | SPECIAL WASHER YA BJX6S++3+8+Z1 | S T WASHER H 3X8Z1
M22 141-2-742T-97430 | LEVER, AUTO STOP ¥5 BJSTS++310+Z1 | ST PAN H 3X10Z1
M23 141-2-852T-82000 | SPRING WIRE, Y6 BJNBS++3+6+Z1 |S M PAN H 3X6Z1
AUTO STOP LEVER RETURN Y7 BJB2S++3+8+Z1 | ST BIND H 3X8Z1
M24 141-2-742T-97230 | LEVER, RELAY GEAR Y8 BJTMS++2+4+Z1 | HEADLESS SCREW, 2X4Z1
M25 141-2-421T-41000 | SPECIAL SCREW, Y9 BJSTS2R6+6+Z1 | ST PAN H 2.6X6Z1
RELAY GEAR LEVER Y10 BJNBS++316+Z1 |S M PAN H 3X16Z1
M26 141-2-581T-29500 | GEAR, PLAY RELAY Y11 BJS2S++310+Z1 | S$ T FLAT H 3X10Z1
M27 141-2-457T-20000 | SPECIAL WASHER Y15 BJESS++3+4+Z1 |S M BIND H 3X4Z1
M28 141-2-732T-10500 | SLIDE, SWITCH Y16 BJB2S++3+8+Z1 |S M BIND H 3X8Z1
M29 141-2-852T-82700 | SPRING WIRE, SLIDE RETURN Y17 BJSTS2R6+3+Z1 |S T PAN H 2.6X3Z1
M30 141-2-732T-16900 | SLIDE, LOCK Y18 BJ3BS1R7+8+Z1 |S MSP PAN H 3B 1.7X8Z1
M31 141-2-852T-82600 | SPRING WIRE, SLIDE RETURN 4-267T-02200 | SOCKET, TAPE A, R/P HEAD
M32 141-2-740T-27500 | LEVER, CONTINUOUS CUM (A) 4-267T-02300 | SOCKET, TAPE A, B MECHANISM
or 141-2-742T-35601 | LEVER, PAUSE CUM (B) 4-267T-02400 | SOCKET, TAPE B, R/P HEAD
M33 141-2-852T-82500 | SPRING WIRE, 4-267T-02500 | SOCKET, TAPE B, E HEAD
LEVER (M32) RETURN
M34 141-0-732T-11100 | SLIDE ASSY, PAUSE Note: The parts identified with (A) and (B) in the description
M35 141-2-856T-14700 | SPRING COIL, SLIDE RETURN ans exclusive dics for tape deck A-Graape deck B.
M36 141-2-732T-11000 | SLIDE, STOP
M37 141-2-310T-89400 | BRACKET
—10—
MECHANISM
EXPLODED VIEW (1)
TAPE A
|
Cc)
Non-enclasure
—-11-—
TAPE B
Sacactey
bia 5!
Stand for common use parts
Stand for same function and different part number,
Stand for exclusive use parts

SCHEMATIC DIAGRAM
TAPE A
C703
1000P
© c701 c702
PLAY oO 10/16 560P
BACK ?
ost xe)
R C709
560P
TAPE B
1
f
f
I
1
ro] 3
8 3
sb bs
8 3 a
S44 45
2) i)
milo
aronh
RTOTY
i6]2]g
2
1
'
a
a
nu
=
~ ge
(3 2°
— HEAD
C704
56 100/6.3
Q701 2SC536G
C803
RB02
C805
RBO! cB04
c7il
100/6.3
C708
10716
R810 C8Il2 C8il
ty
R809
707
ele
a i
3.9K Uy zs
Q801 2SC536G
IC 901 LBI416 §
R818
Q707
2SC5366
Q807
2SC536G
R721 15K
R906 3 C906
4.7725)
=
R5CE 509 0.033 o
= &S = oF ES
nd a2 3
’ 58 ¢csos oie c72t
2 Bo Rose By 2.2725 R731 5.6K
ao i tes
Ss R507 IS C720 R732 Wr
o= 4.7K ) 2 0.022 5.6K
1 ~
g g Sgte36c Q705 %8 H 2 1701
o 10/16
eo 3 28C5366 C716 wo 55. 6MH cies
ax rey 3.3K 470P
SS R717 3 1/50 5 R734 5.6K
“ R724 svr703 R725 R726 C719 sd
by
tire
BOK
IB)
4.7K
gs
35K
0.0187
|
Lig
cr
OR
: iim; re obey as
Ee Pcg-3 88-1 D
8 S4-4
Cp Z Ab " QeREI0 | & 3 NS OCR CRY OM
g Bvreoy 28 3 a cig
ee
a
ar
28)
op
my
|
R834
R618q
0804 o GS 10-4 4B B| 85 560 Y
2SC536G
7)
P
oOo}
4
to
2-
2
iy G +
0805 cer7| ““y 4-2 — cg20 Re32
2SC536G aL
2 oo C821 R831 L702
ist) a
@ Z
L802
0806
i 2SC5366
D609
1S$133
1$S133
py LINE IN MUT
D608 1SS133
R607 TAPE_A MUT
22K DOLBY NR LED
609 D613
1SS133 12.2 2807346 2 i th
$2 12
\, Cy 0609 11.6
sy 7 250608 71.6
a602
2SCB36G 2 56-8 188133 SR914 FRITS ERIE
R606 2 Z 3 1.5K 10
10,9 D610
R617
=
R626
9.5
47
1SS133F
Dé!
15K
33K
1$S 133
YD
Cy 0612 C908
y HH
© RO19S gISSI33SRE20 220/16
Oke Si-8l0 IK F Feggg F6.8k
28C536 ?
C907
100/16
ci
iu
b—4
ae
$4
4 4
a
ac
teeene- REC/PLAY SWITCH
‘ a s --DOLBY NR SWITCH
H
m x TAPE SELECT A SWITCH | 9 ‘
881 \ox B-©) Ee --TAPE SELECT B SWITCH
mS oF ao i mF & az D 2° TAPE SELECT B SWITCH S6-2
—12—
POWER SWITCH
TAPE A PLAY SWITCH
TAPE A STOP SWITCH
TAPE B PLAY SWITCH
MOTOR SWITCH
TAPE B STOP SWITCH
BEAT CANCEL SWITCH

WIRING DIAGRAM
cane ein
ee
once
temeeces .
sarees
oe
LORE ao
eos
So sO aan oMttees opener
seins
ys fe a
es
2 coe
oo ee ss
awronsanntes oe ern
ronnie ds eresotronentnae name en
TT Ee -—
ile ey
ye Ss an econ wim
. ae coca
* Sh
eee eater
UZ rnin ecompparentnenay Har
a
ae
et
IC CONNECTION
“IC501--LM 113 1CN
RANSISTOR CONNECTION
G50) gts 602.603. 604 : 805
806.807 --- ee
Q601--- 25D734G6
901 --- 250734

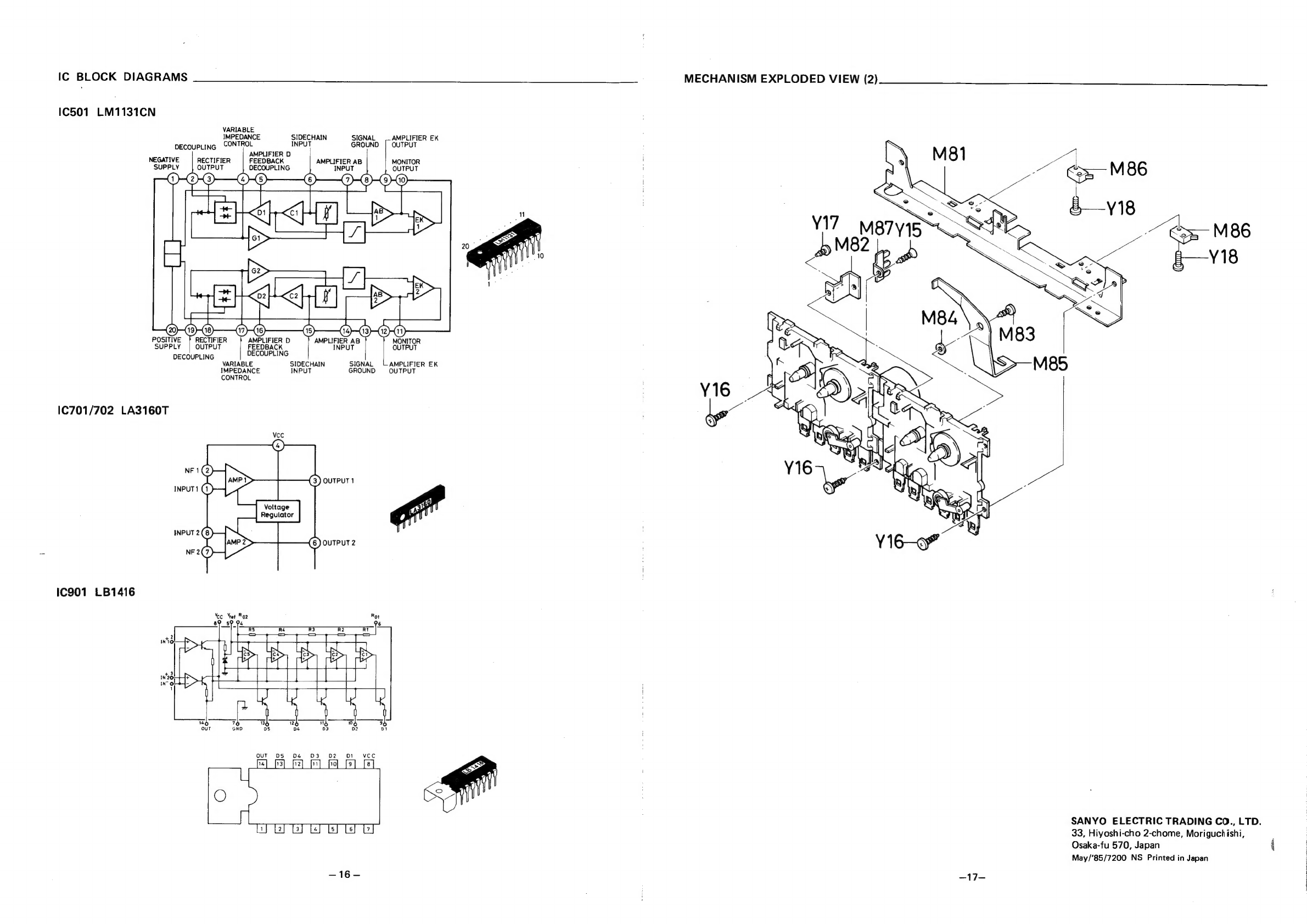

IC BLOCK DIAGRAMS
1C501 LM1131CN
VARIABLE
IMPEDANCE
DECOUPLING CONTROL
AMPLIFIER O
NEGATIVE RECTIFIER
OUTPUT DECOUPLING
SUPPLY
POSITIVE RECTIFIER AMPLIFIER D
SUPPLY OUTPUT FEE
DECOUPLING DECOUPLING
VARIABLE
IMPEDANCE
CONTROL
1€701/702 LA3160T
1¢901 LB1416
SIDECHAIN
INPUT
SIGNAL
GROUND
AMPLIFIER AB
INPUT
SIDECHAIN
INPUT
AMPLIFIER AB
INPUT
SIGNAL
GROUND
O
3465
AMPLIFIER EK
UTPUT
MONITOR
OUTPUT
MONITOR
OUTPUT
AMPLIFIER EK
OUTPUT
MECHANISM EXPLODED VIEW (2)
47
SANYO ELECTRIC TRADING CO., LTD.
33, Hiyoshi-cho 2-chome, Moriguchishi,
Osaka-fu 570, Japan
May/’85/7200 NS Printed in Japan
Bitte,
