Sanyo VAC-60 User manual

Before installing and using the unit, please read these instruction
carefully. Be sure to keep it handy for later reference.
This unit is conceived to be connected between a camera (sold
separately, and with MEN function) and its peripheral devices (such as
a multiplexer, a timelapse VCR, a monitor TV, etc.) in order to control
and set the camera’s menus remotely.
PRECAUTIONS
•Do not use the unit if smoke or a strange odour comes from the
unit, or if it seems not to function correctly.
•Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For internal settings and repairs, consult your dealer (or
a Sanyo Authorized Service Centre).

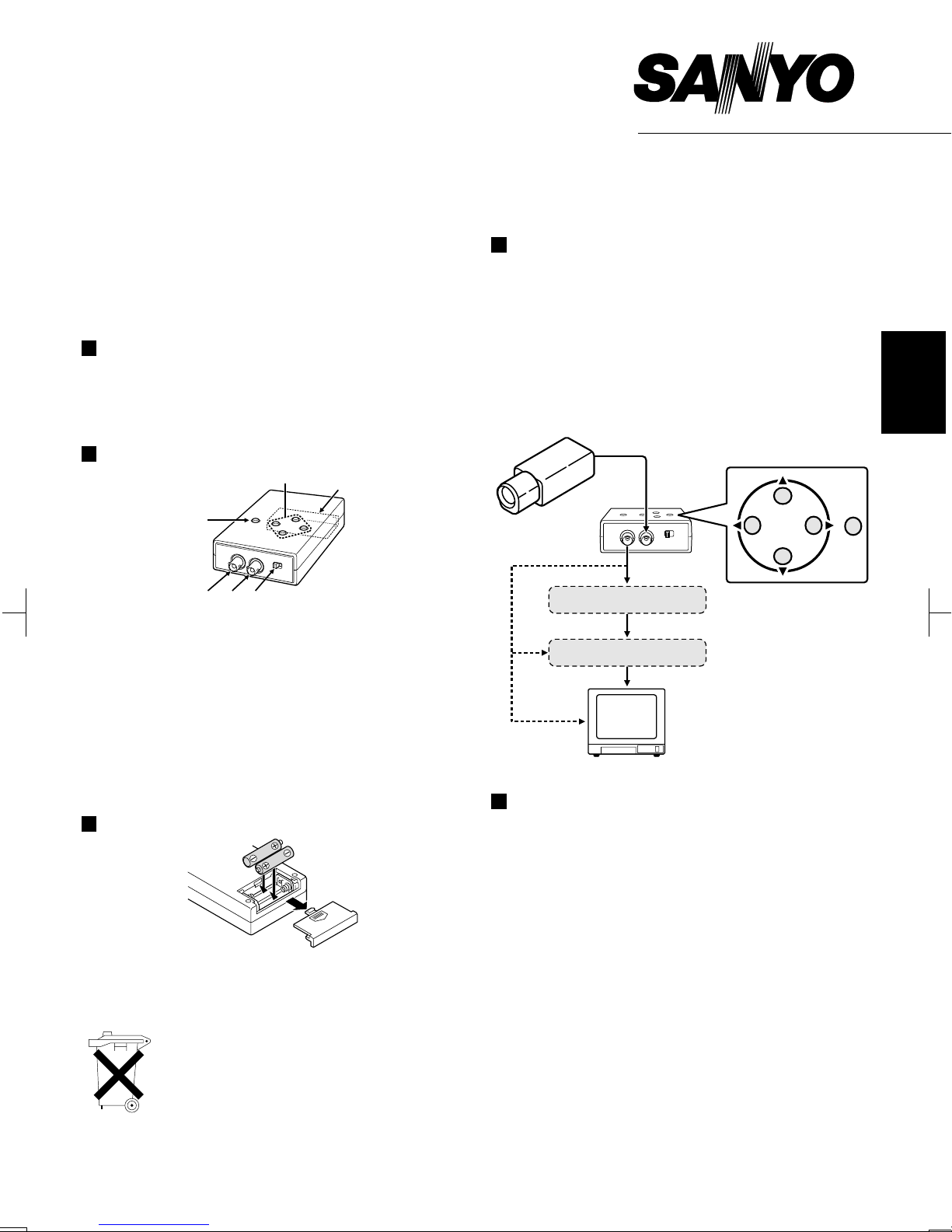

PARTS NAMES
1Video signal output terminal (VIDEO OUT)
2Camera signal input terminal (CAMERA)
3Po er s itch (POWER ON/OFF)
4Menu setting button (SET)
5Battery compartment
6Cursor button (CURSOR)
j:Press this button to move the cursor up.
c:Press this button to move the cursor to the right, or to turn the
settings ON/OFF etc.
d:Press this button to move the cursor to the left, or to turn the
settings ON/OFF etc.
l:Press this button to move the cursor down.
INSERTING THE BATTERIES
1Press the catch and remove the cover from the battery compartment.
2Insert the batteries (Manganese or Alkali type, AAA, 2 x 1.5 V).
Observe the polarity marks on the bottom of the battery compartment.
Disposal of old batteries
SANYO recommends that you do not dispose of used
batteries with domestic refuse. Please, contact your
dealer or your local authorities for information
regarding the disposal of used batteries or take them
to your nearest collection point.
CONNECTIONS AND OPERATION
1Connect this unit between the camera and the peripheral devices, as
illustrated below. Then, turn on all the devices.
2Set the unit POWER switch to the ON position.
3You can now use the CURSOR (d, c, j or l) buttons and the
SET button to control and set the camera’s menus.
For each camera menu settings details, please refer to the
concerned camera instruction manual.
NOTE: This unit is only used for easy setting of the camera(s). Once the
settings have been made, please turn off and disconnect the
unit.
SPECIFICATIONS
Video output terminal :BNC connector x1
Camera input terminal :BNC connector x1
Po er :3V DC, 2 AAA format batteries
Operating environment :Temperature (–10 to 50˚C)
Humidity (10 to 80 %)
Dimensions :90 (W) x 35 (H) x 135 (D) mm
Weight :Approx. 230 g (without batteries)
Features and specifications are subject to change without prior notice or
obligations.
123
4
5
6
Multiplexer
Monitor
Timelapse VCR
To VIDEO OUT
CAMERA IN
terminal
CURSOR
SET
lL8CBA/XE (VAC-60) GB, 2000, 3, 3
INSTRUCTIONS
Camera Control Unit
VAC-60
ENGLISH
