Sanyo DC-TS780 User manual

FILE NO.
Service Manual
CONTENTS
DVD Home Theater
System
DC-TS780 (AU)
PRODUCT CODE No.
129 688 05
REFERENCE No. SM5810561
Laser beam safety precaution .......................................... 1
DVD Mechanism Replacement ........................................ 1
Service mode ................................................................... 2
Important Note ................................................................. 5
How to load software for MPEG P.W.Board .................... 5
Cautions for PWB or IC assy exchange ........................... 5
How to take out a disk ...................................................... 5
Tuner adjustment ............................................................. 6
Exploded View (Cabinet & Chassis) ................................ 7
Parts List .......................................................................... 8
Wiring Connection ........................................................... 13
IC Block Diagram & Description ....................................... 14
Schematic Diagram .......................................................... 34
Wiring diagram ................................................................. 42
REMOTECONTROL RB-TS780

- 1 -
LASER BEAM SAFETY PRECAUTION
•Pick-up that emits a laser beam is used in this CD player section.
1. Cautionary instructions in handling the assy
(Safety instructions)
Optical pickup
The laser beam used in the pickup is classified as "class 2". Ex-
posing your eyes or skin to the beam is harmful. Take care not to
do so.
(Caution against static electricity and leakage voltage)
Ground securely the work tables, tools, fixtures, soldering irons
(including those made of ceramic) and measuring instruments
used in the production lines and inspection departments that
handle loaders. The workers shall also be grounded.
(Cautionary instructions in handling)
Do not touch the object lens when handling a loader, or the lens
will be stained, resulting in inadequate playability.
There is no power supply protection circuit provided for this prod-
uct or adjustment/inspection device. Short-circuiting may lead to
fire or damage.
Take care so as to protect from exposure to water, the entry of
metallic pieces or dew condensation.
In particular, a strong magnet adjacent to the pickup will not only
get inoperative but can damage the pickup if a small metallic
piece, such as a screw or swarm, enters.
The loader edge can cause injury if inadvertently handled.
Do not touch a rotating disk, or injury may result.
This product is a precision device. Handle carefully.
A shock or dropping will cause misalignment or destruction. If it
should occur, refer to clause 2.
This product is so designed as to endure an initial shock equiva-
lent to a drop from a height of approx. 90 cm under the packed
condition.
After the initial shock, the resistivity will still remain at a level of
50 to 60 G, but the mechanical robustness will weaken.
Do not place in a dusty location.
The entry and deposition of dirt into or on the pickup lens or
moving section will cause malfunction or degradation.
DVD MECHANISM REPLACEMENT
(Connectors)
Do not connect or disconnect while power is on.
Connecting or disconnecting signal wires or the main power cord
when the power is on may destruct the unit or fixture.
When connecting, push all the way in securely.
An insufficient insertion may cause a bad contact, leading to an
erroneous operation.
Do not connect or disconnect roughly by an excessively strong
force, or a broken wire or bad contact may result.
Semiconductors are connected. Do not touch connector termi-
nals directly.
If the worker is grounded, there is nothing to worry about static
electricity, but the rust on the connector terminal surface caused
by the touch may result in bad contact.
(Caution)
Before disconnecting FFC
cable, make it "SHORT" as
shown left.
After connecting FFC
cable,make it "OPEN" as
shown left.
(Power source)
The power source need be good in quality (free from instanta-
neous interruptions or noises).
A low quality power source may well cause malfunction.
(Storage)
Do not place or store in a dusty place or a place where dew
condensation is possible.
The entry and deposition of dirt or dust into or on the pickup lens
or moving section will cause malfunction or degradation.
Also, dew condensation causes rust; the rust penetrate into the
precision part of a pickup, causing malfunction, or degrading the
optical quality of the internal lens and reflector, which also leads
to malfunction.
(OPEN)(SHORT)
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT.......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm
CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE
FOR STRÅLING.
VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 2 -
RegionUndefined
SERVICE MODE
B. How to enter Service Mode.
You can enter Service Mode in any one of the following ways (1 to 3).
1. Using the buttons on the main unit
1-1. Dislay on "No Disc" by Function button.
1-2. Immediately (within one second) after pushing both and POWER buttons simultaneously, push PLAY button.
A. Market / Region SETUP
In the initial condition for this model, Market and Region
information are undefined.
In the following cases, be sure to set up Market/Region.
1. When updating the system using CD-R
(Part code :0PRADC9687--A A).
2. When replacing a DVD substrate.
While Market/Region information are undefined, the message
"Region Undefined" is displayed on the screen.
NOTE: Even if the condition is not under 1 or 2 above, if the
message "Region Undefined" is displayed, be sure to set up
Market/Region.
2. Pushing the covered key located beneath Book Mark key on RB-
1500 or REM-S1500.
3. Simultaneously pushing both Shift key and ON SCREEN key on RB-TS780.

- 3 -
SERVICE MODE
C. Setup Procedures
1. Displaying SERVICE MODE screen
Display Service Mode screen following the instructions "How to
enter Service Mode" above.
Region0 Market
BackendVersion S31130A0
LoaderVersion 17 Z09 Y03
Value
WM
2. Displaying Internal Setup screen
Push button within three seconds after operating the
Service Mode display.
On the Internal Setup screen shown on the right, set up Market
and Region.
3. Setting Market code
3.1. While a highlighted indicator is displayed on the right side
of the Market denotation, push numeric buttons on the
remote controller.
When you push wrong number , push CLEAR button.
(The indicator reset to "00")
Be sure to input by double figures.
Maket code of this model is "07".
3.2. Specify the code of the model in accordance with the
Market/Region Setup Table above.
3.3 Once the desired code is displayed, push p button to
move the highlighted indicator to the Region input area.
Internal Setup
Market WM
Region 1
Exit
00-WM 01-SFC 02-UK 03-XE 04-S18
05-
SS 06-PA 07-AU 08-CN 09-JP
10-FXE 11-MX 12-NT
00
Internal Setup
Market WM
Region 1
Exit
00-WM 01-SFC 02-UK 03-XE 04-S18
05-SS 06-PA 07-AU 08-CN 09-JP
10-FXE 11-MX 12-NT
00
(Reference figure)
(Reference figure)
(Reference figure)

- 4 -
SERVICE MODE
4. Setting REGION code
4.1 While a highlighted indicator is displayed on the right side
of the Region denotation, push ENT, and each button
on the remote controller. With each push the indicator will
advance as shown below.
1 <-> 2 <-> 3 <-> 4 <-> 5 <-> 6
4.2 Specify the number of the model in accordance with the
Market/Region Setup Table above.
Region code of this mode is "4".
4.3 Once the desired number is displayed, push pbutton to
move the highlighted indicator to Exit area.
5. Saving settings
5.1 Make sure that the Market and Region settings are properly
set.
(If any of the settings are incorrect, you can make a change
by moving the indicator using obutton, and following
procedures 3 and 4 above. )
5.2 After ensuring that the settings are all correct, push ENT
button while the indicator is on Exit area. The settings are
now saved.
6. Finishing settings
6.1 After a few seconds, the Internal Setup screen disappears,
and then the Service Mode screen is displayed again for
three seconds as shown on the right.
You should check the settings.
Region1 Market
BackendVersion S31204A2
LoaderVersion 17 Z09 Y03
Value
WM
6.2 Power OFF.
Internal Setup
Market 00
Region 1
Exit
00-WM 01-SFC 02-UK 03-XE 04-S18
05-
SS 06-PA 07-AU 08-CN 09-JP
10-FXE 11-MX 12-NT
1
Internal Setup
Market 00
Region 1
00-WM 01-SFC 02-UK 03-XE 04-S18
05- SS 06-PA 07-AU 08-CN 09-JP
10-FXE 11-MX 12-NT
Exit
Backend version S 31204 A 2
Brand (S : SANYO , F : FISHER)
Version ( 2 0 0 2 . 12 . 25)
Sub Version (A,B,......Z)
Region ( 0 : Region undefined
1 ~ 6 : Region defined )
Loader Version (17 Z09 Y03)
(Reference figure)
(Reference figure)
(Reference figure)

- 5 -
SERVICE MODE
D. IMPORTANT NOTE
1. Once the "Market/Region" settings are written into EEPROM (IC801) on the DVD substrate, they cannot be reset.
(However, updating the system using CD-R enables you to make new settings.)
2. While the Internal Setup screen is displayed, pushing the Power button enables you to terminate the operations without
making any settings.
HOW TO LOAD SOFTWARE FOR MPEG P.W.BOARD
1. Power on, then open tray.
2. It take on CD-ROM for UPDATE software to the tray, and tray close.
3. For the time being, tray open and FL display remain "UP DATING".
4. When software loading finished, "GOOD-BY" on a FL display disappears.
5. Next, set up market code and region code by "SERVICE MODE"
CD-ROM part code is "0PRADC9687--AA".
CAUTIONS FOR PWB OR IC ASSY EXCHANGE
After an MAIN board(614 330 2926) or IC ASSY(410 510 2805) exchange should carry out loading of the software by the
newest CD-R, and should check operation.
HOW TO TAKE OUT A DISK
Extraction of a disk in case a power supply is not turned on should
turn and take out gear shown in the left figure.

- 6 -
Input Output
IC231 3-22Pin
TP24,25
TP11 (H)
TP12 (E)
90.0MHz
106.0MHz
Input Output
1IF
Adjustment Loop Ant IC231 19Pin_DCCUT
(TP26)-GND 522kHz XF231 Maximum
603kHz
1404kHz
< 9.0V
L2102
Loop Ant
SG=80dBµV/m Maximum
TP13 (L)
TP14 (R)
TP15 (E)
FM Ant
SG=8dBµV --- Max.
Confirm voltage is > 0.8V.
Confirm voltage is < 9.0V.
3 Tracking
522kHz
---
TP13 (L)
TP14 (R)
TP15 (E)
L2151-a
TP12 (E) 1710kHz
Remark
2. AM
Step Adjusting
Circuit
Connection SG
Frequency Adjustment
108.0MHz
Tracking3
2 Cover
1. FM
Step Adjusting
Circuit
Connection Remark
SG
Frequency
2Cover
Voltage --- TP11 (H)
IF
Adjustment
1
Adjustment
---
0.0±0.05V
1.1±0.1V
FM Ant
SG=66dBµV
87.5MHz
98.0MHz XF233
TUNER ADJUSTMENT
Antenna : 75Ωunbalanced direct, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO), ±22.5kHz(STEREO),±6.75kHz(PILOT)
RF Level : dBuV EMF
Output Level : about 100mV at TP13, TP14, TP15
Anntena : IRE Loop(SG), Moduration : 1kHz 30%
RF Level : dBuV EMF
Output Level : about 100mV at TP13, TP14, TP15
• Use a plastic screw driver for adjustments. • MODE : ST (Stereo)
• Speaker impedance : 8 ohms • TUNING FM : 87.5 - 108MHz
AM : 522 - 1710 kHz
24
20 13
1210
1
242013
12 10 1
IC241
LC72121M
LC72722
IC231
LA1844
TA8176S
SH201
94V-0 F01
TP11(H) TP12(E)
0V ADJ
R2303
1AD4B10D2210C
12V
X2451
D2301
L2503
R2101
L2103
C2301
C2122
XF231
CN203
CN201
IC211
XF233
B2101
D2102 D2101
XF222
XF221
L2101
L2102
C2311
C2317
R2113
C2465
C2327
C2307
C2303
R2311
C2328 R2301
R2455 D2452
C2901
L2451
C2451
L2151
XF211
CN241
5.6V
TU-R
A-GND
TU-L
TU-DO TU-CE
TU-DATA
TU-CLK
RDS
NC
C2457
D2103
CAN
C2121
R2111
IC241
IC231
C2123
C2101
R2106
C2103
C2102
C2104
C2126
R2104
C2105
R2102 R2103
C2112C2109
C2108
C2106
R2112
C2107
C2111
D2104
C2151 C2152R2151
C2131 C2130
R2303
C2312
C2310
R2309
R2308
C2320 C2319
C2309 C2316
R2307
R2302
C2304
C2302
C2321
C2306
R2306
C2322
C2452
C2330
C2453
C2454
C2462
C2464
C2463
C2461
C2117
R2114
C2455 R2452
R2453
R2304
R2305
D2451
Q2451
R2465R2454
R2459
R2711R2811
R2463
R2464
R2462
R2461
C2902
C2314
C2308
C2315
R2153
C2113
C2305
C2456
CAN
C2318
D2151
R2458
R2460
XF233 TP26 XF231 L2102 L2101
TP25
TP24 TP12
TP11 L2151-a
TP14
TP13 TP15

- 7 -
EXPLODED VIEW (CABINET & CHASSIS)
1
23
9
57
8
6
71
72
73
SCART SOCKET
(XE,UK only)
75
76
77
7
4
19
20A
20C
5
11 12
13
14A
15
52
53
55
56
54
15
16
17 18
58
51
Y01
Y03
Y04
Y04
Y05
Y05
Y05
Y05
Y01
Y06
Y07
Y07
Y08
Y09
Y09
Y10
Y10
Y12
Y13
Y14
Y15 Y17 Y17
Y18 Y19
Y20
Y11
Y11
Y07
22
21
14B
20B
20D
20E
Y06
23
54
54
54
54
MAIN P.W.Board’s figure is
reference figure.
74
S-VIDEO SOCKET
(Except XE,UK)
Y01
(UK)
(XE,SS,KR)
(US,CA)
(AU)
(JP/TW)

- 8 -
PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P :Not available as service parts.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 330 2179 CARTON CASE,INNER
614 329 7024 CUSHION,LEFT,LEFT
614 329 7031 CUSHION,RIGHT,RIGHT
614 330 2322 CUSHION,TOP,INNER CARTON
614 330 2193 INSTRUCTION MANUAL
645 052 1621 POLY BAG-0100X0250*NC,
VIDEO/AUDIO
645 011 9736 POLY BAG-0250X0350*NC,
INST MANUAL
645 048 1994 POLY SHEET-1100X0600*NC,SET
645 063 7483 ASSY,ANTENA,LOOP
614 245 0055 ANTENNA
645 064 9370 REMOCON,RB-TS780
645 066 6377 BATTERY COVER,BATTERY COVER
645 066 9347 CABLE,VIDEO
19 614 330 0021 ASSY,BOX,SPEAKER WF,WOOFER
20A 614 329 9974 ASSY,BOX,SPEAKER FR,
SATELLITE FRONT-RIGHT
20B 614 329 9967 ASSY,BOX,SPEAKER FL,
SATELLITE FRONT-LEFT
20C 614 330 0007 ASSY,BOX,SPEAKER RR,
SATELLITE REAR-RIGHT
20D 614 329 9998 ASSY,BOX,SPEAKER RL,
SATELLITE REAR-LEFT
20E 614 329 9981 ASSY,BOX,SPEAKER FC,
SATELLITE FRONT-CENTE
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1614 328 9135 DEC,ESCUTCHEON,SLOT
2614 330 0069 ASSY,CABINET,FRONT
3614 328 9081 BUTTON,EJECT,EJECT
4614 326 1964 KNOB,VOLUME,JOG VOLUME
5614 326 1841 DEC,RING,VOL,RING VOL
6614 328 9074 BUTTON,POWER,POWER
7614 327 4476 CAP,BUTTON,FUNCTION,CAP
8614 329 7802 BUTTON,FUNCTION,PLAY/STOP
9614 330 0083 CABINET,TOP/SIDE
11 614 316 1417 MOUNTING,IC,IC-HEAT SINK
12 614 291 6568 MOUNTING,PWB,IC-HEAT SINK
13 614 328 9142 HEAT SINK
14A 614 329 3385 HOLDER,H/S LEFT,HEAT SINK
14B 614 329 3392 HOLDER,H/S RIGHT,HEAT SINK
15 614 325 5369 SPACER,MECHA,
BASE MECHA FLOATING
16 614 328 9067 ASSY,CABINET,BOTTOM
17 614 313 6545 SPRING,PLATE,EARTH
18 614 330 1493 PANEL,REAR,REAR
21 614 327 5909 ASSY,MECHA,
KIT800BASE MAB,BASE MECHA
22 614 329 7321 ASSY,MECHA,DLM1D17-11/TP,
SLOT IN MECHA UNIT
23 614 318 4492 STAND,P.T SCREW CVR
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 021 6405 SCR S-TPG BIN 3X8,
BOTTOM-FRONT
Y03 411 021 1202 SCR S-TPG BIN 2X8,
FRONT-BUTTON FUNCTION
Y04 411 165 3803 SCR S-TPG BIN 2.3X10,
FRONT-FRONT PWB
Y05 411 098 4205 SCR S-TPG BIN 3X8,CABINET
Y06 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
TUN PWB
Y07 411 021 6405 SCR S-TPG BIN 3X8,MAIN PWB
Y08 411 021 6405 SCR S-TPG BIN 3X8,POWER PWB
Y09 411 021 6405 SCR S-TPG BIN 3X8,IC-HEAT SINK
Y10 411 021 6405 SCR S-TPG BIN 3X8,
HOLDER H/S-HEAT SINK
Y11 411 020 9506 SCR S-TPG BRZ+FLG 3X16,
DVD MECHA
Y12 411 185 0103 WASHER Z 2.1X9.5X0.5,
BASE MECHA FIX
Y13 411 185 0004 SCR S-TPG BIN 2X10,
BASE MECHA FIX
Y14 411 021 6405 SCR S-TPG BIN 3X8,
EARTH SPRING PLATE
Y15 411 021 6405 SCR S-TPG BIN 3X8,
HP PWB-BOTTOM
Y17 411 021 3701 SCR S-TPG BIN 3X10,
REAR-ELECT PARTS
Y18 411 021 3701 SCR S-TPG BIN 3X10,
BOTTOM-REAR
Y19 411 021 7600 SCR S-TPG BIN 4X10,
FAN-PANEL REAR
Y20 411 001 3905 SCR S-TPG BIN 4X6,PT
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
51 !
!! 423 028 8405 FUSE 250V 1.6A
52 645 066 6346 FLEXIBLE FLAT CABLE
53 645 066 6353 FLEXIBLE FLAT CABLE
54 !
!! 645 068 1035 CORD,POWER-1.76MK
55 !
!! 645 065 3308 MOTOR,FAN DC,FAN
56 !
!! 645 067 6994 TRANS,POWER,TS780_AU
57 645 051 0656 CORE,FERRITE
or 645 042 8999 CORE,FERRITE
58 645 051 0649 CORE,FERRITE
or 645 031 7637 CORE,FERRITE

- 9 -
PARTS LIST
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 328 0538 ASSY,PWB,FRONT(Only initial)
BR601 614 328 9159 HOLDER,FL
CN601 614 035 4911 SOCKET,DIP 2P
CN602 614 328 1078 ASSY,WIRE,FRONT-MAIN
CN603 614 035 4911 SOCKET,DIP 2P
DS601 407 235 5006 PHOTO DIODE SPS-444-1-VG
FL601 645 065 2424 FLOURESCENT TUBE
IC601 410 427 6507 IC MPD16315GB-3BS
or 409 519 6907 IC PT6315
R6031 !
!! 401 019 9501 CARBON 47 JA 1/4W
S6002 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
S6003 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
S6004 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
S6005 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
S6006 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
S6007 645 006 2827 SWITCH,PUSH 1P-1T
or 614 220 5495 SWITCH,TACT
or 614 240 1088 SWITCH,TACT
POWER SW P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 328 0569 ASSY,PWB,SW,POWER SW
(Only initial)
CN620 614 035 4911 SOCKET,DIP 2P
S6201 645 037 2759 SWITCH,PUSH
or 645 006 5958 SWITCH,PUSH 1P-1T
or 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
VR P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 328 0552 ASSY,PWB,VR(Only initial)
CN610 614 035 4911 SOCKET,DIP 2P
LUG62 614 129 9082 LUG,VR-BOTTOM
S6100 645 061 4378 SWITCH,ROTARY(ENCODER)
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 330 2421 ASSY,PWB,TUNER(Only initial)
B2101 645 006 3602 INDUCTOR,1.1UH
C2457 403 259 0508 NP-ELECT 1U M 50V
CN201 645 057 1893 TERMINAL,TUNER
CN203 614 310 2298 PLUG,2P
or 645 004 2683 PLUG,2P
CN241 645 033 7833 SOCKET,11P
D2101 407 157 8109 VARACTOR DI SVC211-B
D2102 407 157 8109 VARACTOR DI SVC211-B
D2103 407 149 0807 DIODE 1SS355
D2104 407 149 0807 DIODE 1SS355
D2151 407 149 0807 DIODE 1SS355
D2301 407 063 9108 ZENER DIODE MTZJ6.8B
D2451 407 149 0807 DIODE 1SS355
D2452 407 153 7502 ZENER DIODE GZS3.0B
D2454 407 012 4406 DIODE 1SS133
IC211 409 292 5807 IC TA8176SN
IC231 409 474 3201 IC LA1844ML
IC241 409 439 4502 IC LC72121M-D
L2101 645 018 0163 COIL,AIR
L2102 645 018 0255 COIL,AIR
L2103 645 002 1534 INDUCTOR,8.2U K
L2151 645 063 0163 TUNER
L2451 645 001 4581 INDUCTOR,100U K
L2503 !
!! 645 004 0511 INDUCTOR,270U J
Q2451 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
R2101 !
!! 401 017 0708 CARBON 270 JA 1/4W
R2301 !
!! 401 017 0708 CARBON 270 JA 1/4W
R2311 !
!! 401 017 0708 CARBON 270 JA 1/4W
R2455 !
!! 401 016 2505 CARBON 220 JA 1/4W
SH201 614 325 5796 SHIELD,FM ANT
X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF221 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF222 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 231 0199 FILTER
or 614 030 5074 I.F FILTER
XF231 614 246 0849 FILTER
XF233 645 039 9923 TRANS,IF 10.7MHZ
MAIN,AMP_DVD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 330 2926 ASSY,PWB,MAIN,AMP_DVD
(Only initial)
C1900 !
!! 403 373 7902 ELECT 150U M 6.3V
C1911 !
!! 403 373 7902 ELECT 150U M 6.3V
C4102 403 325 0302 ELECT 2200U M 25V
C4103 403 325 0302 ELECT 2200U M 25V
C4108 403 325 2108 ELECT 3300U M 25V
C4109 403 325 2306 ELECT 4700U M 35V
or 403 294 7005 ELECT 4700U M 35V
C4110 403 325 2306 ELECT 4700U M 35V
or 403 294 7005 ELECT 4700U M 35V
C4120 !
!! 403 370 7004 ELECT 330U M 6.3V
C4128
!
!!
403 373 8404 ELECT 220U M 10V
C4130 !
!! 403 373 9302 ELECT 100U M 25V
C4301 403 325 0401 ELECT 1000U M 6.3V
C4648 403 184 9805 MT-POLYEST 0.22U J 50V
C4649 403 184 9805 MT-POLYEST 0.22U J 50V
C4651 403 184 9805 MT-POLYEST 0.22U J 50V
C4652 403 184 9805 MT-POLYEST 0.22U J 50V
C4653 403 184 9300 MT-POLYEST 0.047U J 50V
C4654 403 184 9300 MT-POLYEST 0.047U J 50V
C4748 403 184 9805 MT-POLYEST 0.22U J 50V
C4749 403 184 9805 MT-POLYEST 0.22U J 50V
C4751 403 184 9805 MT-POLYEST 0.22U J 50V
C4752 403 184 9805 MT-POLYEST 0.22U J 50V
C4755 !
!! 403 374 0001 ELECT 33U M 35V
C4756 !
!! 403 374 0001 ELECT 33U M 35V
C4848 403 184 9805 MT-POLYEST 0.22U J 50V
C4849 403 184 9805 MT-POLYEST 0.22U J 50V
C4854 403 184 9300 MT-POLYEST 0.047U J 50V
C4868 403 184 9805 MT-POLYEST 0.22U J 50V
C4869 403 184 9805 MT-POLYEST 0.22U J 50V
C8211 !
!! 403 373 7902 ELECT 150U M 6.3V
C8535 !
!! 403 373 7902 ELECT 150U M 6.3V
CN100 645 057 2951 SOCKET,FPC 24P
or 645 037 6207 SOCKET,FFC 24P
CN160 645 066 5004 SOCKET,FPC 7P
CN162 645 057 2814 SOCKET,FPC 6P
or 645 057 4269 SOCKET,FPC 6P
CN410 645 006 1998 PLUG,5P
CN411 614 310 2755 PLUG,4P
or 645 004 2904 PLUG,4P
CN412 614 328 1061 ASSY,WIRE
CN420 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN470 645 064 2784 TERMINAL,SPEAKER 6P,SP-6P
CN490 645 038 3670 JACK,RCA,VIDEO
CN491 645 044 9086 SOCKET,DIN 4P,S-VIDEO
CN492 645 066 7411 JACK,RCA-4,RCA-4P
CN493 645 067 7755 JACK,RCA-3,COMPONENT
or 645 057 9318 JACK,RCA-3,COMPONENT
CN496 614 310 2540 PLUG,13P
REF.NO. PART NO. DESCRIPTION

- 10 -
PARTS LIST
REF.NO. PART NO. DESCRIPTIONREF.NO. PART NO. DESCRIPTION
or 645 006 0885 PLUG,13P
CN497 645 033 7826 PLUG,11P
CN498 614 310 2458 PLUG,4P
or 645 005 8110 PLUG,4P
D1700 407 012 4406 DIODE 1SS133
D1800 407 012 4406 DIODE 1SS133
D4100 !
!! 407 196 5800 DIODE 1N5402BD82
D4101 !
!! 407 196 5800 DIODE 1N5402BD82
D4102 !
!! 407 196 5800 DIODE 1N5402BD82
D4103 !
!! 407 196 5800 DIODE 1N5402BD82
D4104 !
!! 407 196 5800 DIODE 1N5402BD82
D4105 !
!! 407 196 5800 DIODE 1N5402BD82
D4106 !
!! 407 097 8009 DIODE MPG06G
D4107 !
!! 407 097 8009 DIODE MPG06G
D4108 !
!! 407 097 8009 DIODE MPG06G
D4109 !
!! 407 097 8009 DIODE MPG06G
D4110 !
!! 407 097 8009 DIODE MPG06G
D4111 !
!! 407 097 8009 DIODE MPG06G
D4112 407 099 5204 ZENER DIODE MTZJ5.1B
D4113 407 099 8304 ZENER DIODE MTZJ22B
D4114 !
!! 408 044 6307 DIODE SB140L 19C2-004
D4115 !
!! 408 044 6307 DIODE SB140L 19C2-004
D4198 407 099 6409 ZENER DIODE MTZJ11B
D4199 407 099 4603 ZENER DIODE MTZJ3.9B
D4201 407 012 4406 DIODE 1SS133
D4202 407 012 4406 DIODE 1SS133
D4300 407 012 4406 DIODE 1SS133
D4301 407 012 4406 DIODE 1SS133
D4302 407 012 4406 DIODE 1SS133
D4303 407 012 4406 DIODE 1SS133
D4581 407 063 9108 ZENER DIODE MTZJ6.8B
D4582 407 063 9108 ZENER DIODE MTZJ6.8B
D4800 407 012 4406 DIODE 1SS133
D4804 407 012 4406 DIODE 1SS133
D4805 407 012 4406 DIODE 1SS133
IC100 409 564 4507 IC LA9703WLS-MPB
or 409 518 1507 IC LA9703WL-MPB
IC130 409 564 5702 IC LC78663NRW-UST
or 409 531 6107 IC LC78663NRW
or 409 514 5004 IC LC78663NW
IC131 410 433 0308 IC M11L416256SA-35T
IC160 409 562 8804 IC IKE80-E
IC410 !
!! 409 519 7201 IC PQ1CG21H2RZ,REG
IC411 !
!! 409 519 7201 IC PQ1CG21H2RZ,REG
IC412 !
!! 409 521 9804 IC KA7805R
IC430 410 510 6308 IC M38507M8-184FP,MICON
IC450 409 426 1903 IC KIA4558F
or 409 039 7804 IC NJM4558M
IC451 409 543 1107 IC BD3811K1,6CH-VOL
IC453 409 543 7208 IC KTC801U-Y
IC454 409 543 6409 IC KRX101U
IC455 409 543 7208 IC KTC801U-Y
IC461 409 357 2901 IC NJM4556AL
IC462 !
!! 409 497 6708 IC LM4766T
IC471 409 542 9609 IC NJM2058V
IC472 !
!! 409 497 6708 IC LM4766T
IC482 !
!! 409 497 6708 IC LM4766T
IC491 409 542 9609 IC NJM2058V
IC800 409 546 2002 IC ZR36748
IC801 410 448 8405 IC S524A40X21-SCT0
or 410 448 8504 IC S524A40X21-SCB0
or 410 429 7908 IC AT24C02N-10SI-2.7
IC802 409 505 0803 IC PST3627U
IC806 410 430 9403 IC 74VHCT08AMTCX
IC818 410 510 2805 IC ASSY
(IC SST39VF800A-70-4C-EK or
SST39VF800-70-4C-EK or
LE28DW8163T-70T-MPB or
SST39VF800A-70-4C-EK,D)
IC822 410 470 5007 IC M12L16161A-7T
or 410 453 9602 IC LC3816161ET-70-MPB
or 409 482 0209 IC K4S161622D-TC80
or 409 482 0209 IC K4S161622D-TC80
IC850 !
!! 409 534 5800 IC PQ2L2182MS
IC870 409 540 1605 IC LC708746V
L1002 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L1302 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
or 645 045 7869 IMPEDANCE,1000 OHM P
L4100 !
!! 645 053 8544 INDUCTOR,210U
L4101 !
!! 645 045 8613 INDUCTOR,10U
or !
!! 645 048 4469 INDUCTOR,22U
L4102 !
!! 645 045 8613 INDUCTOR,10U
or !
!! 645 048 4469 INDUCTOR,22U
L4103 !
!! 645 053 8544 INDUCTOR,210U
L4104 !
!! 645 045 8613 INDUCTOR,10U
or !
!! 645 048 4469 INDUCTOR,22U
L4300 645 001 4550 INDUCTOR,10U K
L4650 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4651 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4750 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4751 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4850 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4851 645 057 4405 INDUCTOR,0.7U
or 645 053 7493 INDUCTOR,0.7U
L4960 645 040 6430 INDUCTOR,2.2U M
L4961 645 040 6430 INDUCTOR,2.2U M
L4962 645 040 6430 INDUCTOR,2.2U M
L4963 645 058 3315 INDUCTOR,1U M
L4964 645 058 3315 INDUCTOR,1U M
L4965 645 058 3315 INDUCTOR,1U M
L8020 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8060 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8202 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8780 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
L8781 645 034 7887 INDUCTOR,1000 OHM
or 645 020 1813 INDUCTOR,1000 OHM
LUG01 645 006 4425 FIXER
LUG02 645 023 8987 FIXER
LUG04 645 023 8987 FIXER
LUG05 645 023 8987 FIXER
PR410 !
!! 645 042 2737 PROTECTOR,7A 125V
PR411 !
!! 645 042 2737 PROTECTOR,7A 125V
PR412 !
!! 645 042 2515 PROTECTOR,0.2A 125V
PR418 !
!! 645 025 5458 PROTECTOR,10A 125V
or !
!! 645 042 2652 PROTECTOR,10A 125V
or !
!! 645 066 9774 PROTECTOR,10A 125V
PR419 !
!! 645 025 5458 PROTECTOR,10A 125V
or !
!! 645 042 2652 PROTECTOR,10A 125V
or !
!! 645 066 9774 PROTECTOR,10A 125V
PR420 !
!! 645 042 2515 PROTECTOR,0.2A 125V
Q1002 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1003 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1004 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1005 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R
Q1006 405 158 5905 TR KTA1505-Y
or 405 035 5509 TR 2SA1036K-R

- 11 -
PARTS LIST
REF.NO. PART NO. DESCRIPTIONREF.NO. PART NO. DESCRIPTION
Q1016 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q1800 405 146 1605 TR KRC102S
or 405 132 3101 TR DTC114EKA
Q4100 !
!! 405 141 3604 TR KTA1273-Y
or !
!! 405 009 5207 TR 2SB927-S
or !
!! 405 009 5306 TR 2SB927-T
Q4101 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4102 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4209 405 143 8706 TR KTC3199-GR
or 405 017 9600 TR 2SC3330-T
or 405 017 9709 TR 2SC3330-U
or 405 011 8500 TR 2SC1740S-R
or 405 011 8609 TR 2SC1740S-S
Q4302 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4303 405 146 2107 TR KTC3875-Y
or 405 146 2206 TR KTC3875-GR
or 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
Q4620 405 166 7007 TR KTD1304
Q4621 405 166 7007 TR KTD1304
Q4622 405 166 7007 TR KTD1304
Q4623 405 166 7007 TR KTD1304
Q4640 405 166 7007 TR KTD1304
Q4641 405 166 7007 TR KTD1304
Q4740 405 166 7007 TR KTD1304
Q4741 405 166 7007 TR KTD1304
Q4840 405 166 7007 TR KTD1304
Q4841 405 166 7007 TR KTD1304
Q4842 405 166 7007 TR KTD1304
Q4843 405 151 6107 TR KRA107S
or 405 141 5707 TR DTA114YKA
Q4844 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4848 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q4852 405 166 7007 TR KTD1304
Q8880 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q8881 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
Q8882 405 159 0503 TR KRC107S
or 405 141 5608 TR DTC114YKA
R4100 401 105 1105 MT-GLAZE 12K JA 1/16W
R4101 401 105 0603 MT-GLAZE 10K JA 1/16W
R4107 !
!! 401 219 1008 MT-GLAZE 1.6K FA 1/16W
R4108 !
!! 401 230 2503 MT-GLAZE 1K FA 1/16W
R4111 !
!! 401 218 4604 MT-GLAZE 5.6K FA 1/16W
R4112 !
!! 401 230 2503 MT-GLAZE 1K FA 1/16W
R4115 !
!! 402 085 2205 RESISTOR 6.8 J- 2W
R4116 !
!! 402 095 3308 FUSIBLE RES 2.2 JA 1/4W
R4595 !
!! 402 095 4206 RESISTOR 150 J- 1W
R4596 !
!! 402 095 4206 RESISTOR 150 J- 1W
R4650 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
R4651 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
R4658 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4659 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4750 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
R4751 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
R4758 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4759 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4851 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
R4858 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4859 !
!! 402 082 2802 RESISTOR 10 J- 1W
R4867 !
!! 402 082 1300 RESISTOR 4.7 J- 1W
RN100 645 057 4252 R-NETWORK 8.2KX4 1/16W
RN101 645 057 4290 R-NETWORK 47KX4 1/16W
RN410 645 058 5043 R-NETWORK 4.7KX4 1/16W
RN801 645 057 4238 R-NETWORK 33X4 1/16W
S4100 645 043 7250 SWITCH,SLIDE 2P-2TX4
SG491 645 055 3202 SURGE-ABSORBER
SG492 645 055 3202 SURGE-ABSORBER
SG493 645 055 3202 SURGE-ABSORBER
SG497 645 055 3202 SURGE-ABSORBER
SG498 645 055 3202 SURGE-ABSORBER
SG499 645 055 3202 SURGE-ABSORBER
SG871 645 055 3202 SURGE-ABSORBER
SG872 645 055 3202 SURGE-ABSORBER
X1500 645 059 7060 OSC,CERAMIC 16.93MHZ
or 645 017 0157 OSC,CERAMIC 16.93MHZ
or 645 065 2479 OSC,CERAMIC 16.93MHZ
X4300 645 059 1570 OSC,CERAMIC 8.00MHZ
or 645 053 4393 OSC,CERAMIC 8.00MHZ
X8230 645 053 4270 OSC,CRYSTAL 27.000MHZ
or 645 045 8293 OSC,CRYSTAL 27.000MHZ
POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 330 2933 ASSY,PWB,DG(Only initial)
CN401 614 310 2502 PLUG,9P
or 645 005 8141 PLUG,9P
CN402 !
!! 645 005 9315 PLUG,2P
D4005 407 099 4603 ZENER DIODE MTZJ3.9B
D4008 407 099 6102 ZENER DIODE MTZJ10B
D4009 407 012 4406 DIODE 1SS133
D4010 407 012 4406 DIODE 1SS133
D4012 407 099 6805 ZENER DIODE MTZJ13B
D4014 407 012 4406 DIODE 1SS133
FPC41 !
!! 645 031 7903 HOLDER,FUSE
or !
!! 645 006 4760 HOLDER,FUSE
FPC42 !
!! 645 031 7903 HOLDER,FUSE
or !
!! 645 006 4760 HOLDER,FUSE
IC401 !
!! 409 463 6701 IC KIA7805API
IC402 !
!! 409 521 9705 IC KA78R12STU
L4000 !
!! 645 038 7364 INDUCTOR,70U
or !
!! 645 059 0467 INDUCTOR,13U
PR400 !
!! 645 042 2515 PROTECTOR,0.2A 125V
Q4001 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4002 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
Q4006 !
!! 405 159 1500 TR KTA1046-Y
or !
!! 405 138 6502 TR KTB1366Y
or !
!! 405 031 9303 TR 2SB1185-E
or !
!! 405 076 6602 TR 2SB1185-F
Q4007 405 143 6504 TR KTA1267-GR
or 405 004 4601 TR 2SA608-F-SPA
or 405 004 5103 TR 2SA608-G-SPA
or 405 006 1806 TR 2SA933S-R
or 405 006 1905 TR 2SA933S-S
R4008 !
!! 402 096 4205 FUSIBLE RES 10 JA 1/4W
R4013 !
!! 402 083 7707 RESISTOR 1K J- 1W
WR401 614 017 8203 TERMINAL BOARD
WR402 614 017 8203 TERMINAL BOARD

- 12 -
PARTS LIST
HEAD PHONE P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
77 614 328 0545 ASSY,PWB,HP(Only initial)
C6300 403 298 9609 CERAMIC 0.1U K 16V
C6301 403 298 9609 CERAMIC 0.1U K 16V
C6302 403 215 2201 CERAMIC 0.01U K 50V
C6303 403 215 2201 CERAMIC 0.01U K 50V
CN630 614 328 1085 ASSY,WIRE,HP-MAIN
CN631 645 053 5215 JACK,PHONE D3.6,HP
L6300 645 006 9864 INDUCTOR,80U
L6301 645 006 9864 INDUCTOR,80U
L6302 645 001 4550 INDUCTOR,10U K
LUG60 645 023 8987 FIXER
LUG61 645 023 8987 FIXER
SG630 645 055 3202 SURGE-ABSORBER
SG631 645 055 3202 SURGE-ABSORBER
SG632 645 055 3202 SURGE-ABSORBER

- 13 -

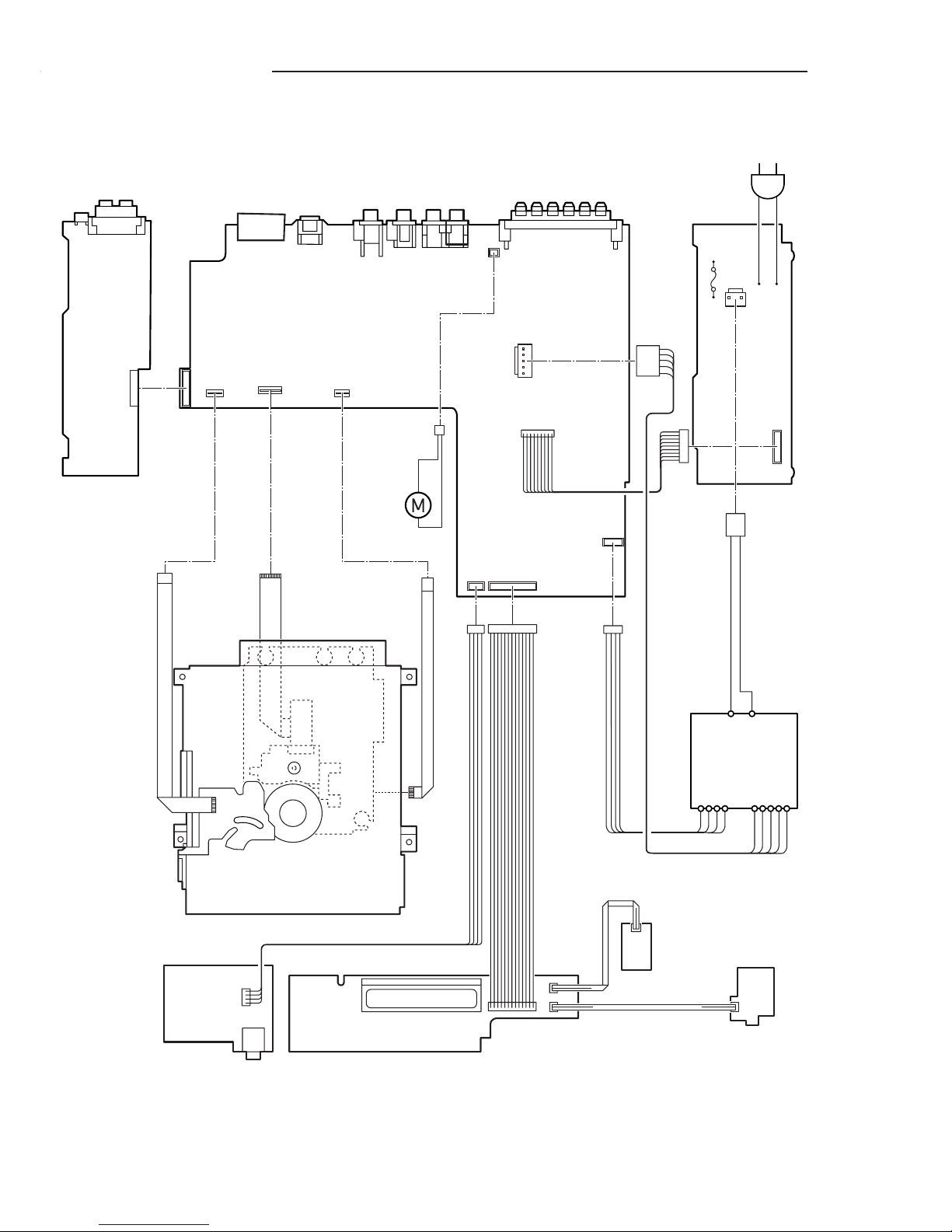

WIRING CONNECTION
CN203
(2P)
CN241
(11P)
CN160
(7P)
CN100
(24P) CN162
(6P)
COOLING
FAN
MOTOR
CN420
(2P)
CN402
(2P)
CN401
(9P)
CN610
(2P)
CN620
(2P)
CN603
(2P)
CN602
(13P) CN601
(2P)
PICK UP
MECHANISM
CN002
(6P)
PICK UP
(24P)
LOADING
MECHANISM
(7P)
CN410
(5P)
CN412
(9P)
CN411
(4P)
CN498
(4P) CN496 (13P)
CN497
(11P)
CN201
CN491 CN493 CN490 CN492
CN470
S-VIDEO
OUT
(Except UK,XE)
COMPONENT
VIDEO
OUT VIDEO
OUT
VIDEO
(AUDIO)
OUT
TUNER
P.W.B
MAIN_DVD
P.W.B
POWER
SUPPLY
P.W.B
VR
P.W.B
FRONT P.W.B
POWER SW
P.W.B
AC IN
AM
LOOP
ANT.
FM
ANT. LLRR
CENTER
FRONT
SUBWOOFER
SURROUND
SPEAKERS
FU401
125V 4A
WR402
BK
WR401
WH
P.T
DVD MECHANISUM
BOARD
TO
BOARD
SCART SOCKET
(UK,XE only)
This is a basic wiring connection.

- 14 -
FL601(Flourescent tube)
IC BLOCK DIAGRAM & DESCRIPTION
1G 2G 3G 4G 5G 6G 7G 8G 9G 10G
32 1
a
fb
j
k
h
gm
nr
ec
d
p
(1G ~ 10G)
F2 F2 NP P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP XP F1
PIN NO.
CONNECTION
Notes
1) F1,F2 : Filament pin
2) Ng : Grid pin
3) Pn : Anode pin
4) NP : No pin
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
1G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
2G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
3G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
4G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
5G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
6G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
7G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
8G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
9G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
10G
a
d
f
h
j
k
Col
g
m
c
e
r
p
n
d
Dp
PIN CONNECTION
GRID ASSIGNMENT
OUTER DIMENSIONS
ANODE CONNECTION
Col
Dp

- 15 -
IC BLOCK DIAGRAM & DESCRIPTION
IC100 LA9703WL-MPB (DVD Player Frontend Processor)
APC
LPF1
LPF2
LPF1
BPF
BH
PH
PH
DOOUT
LPF2
DPD
EQ
APC
TEBL
TEBL
LDTH
LDTH
LDON1
LDON1
LDON2
LDON2
AGOF
SREF
BCA GU
GU
GU
GU
GU
SGC
XHTR
SREF
SREF
SREF1
SREF
XHTR
XHTR
DPD/TE
WO/PP
SREF
SGC
SREF
SREF
FEBL
PREF
PREF
FEBL
DVD/CD DPD/TE WO/PP VCC TH
TH
XHTR SGC
SGC
SGC
BST
FC
FEBL
TEBL
BCA
BCA
BCA
FC BSTDVD/CD
VCC
VCC
PREF
AGOF
AGOF
GU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 23 24 25 27 28 29 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
495051525354555657596061626364 58
26
SREF1
PH
BH
ISET
WOC
PPN
PP
WO
TE
FE
RREC
TEBL
CP
FEBL
FC
BST
SGC
XHTR
TH
VCC
WO/PP
DPD/TE
DVD/CD
GU
BCA
AGOF
LDON2 LDON1
LDTH
GND
LDS2
LDD2
LDS1
LDD1
TIN2
TIN1
PIN2
PIN1
FIN2
FIN1
GND
PD4
PD3
PD2
PD1
PDRF
VCC
CAP
BCAI PHC SREF LPC N/C RFON RFOP GND FSET PREF RFN RFP CAO VCC CAN N/C
Functions
Customer OP amp. + input
Power supply (For DPD)
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Ground (For DPD)
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
Pickup signal input
APC 1 output
APC 1 monitor input
APC 2 output
APC 2 monitor input
Ground (Servo system)
APC 1 threshold change
APC 1 laser ON
APC 2 laser ON
RFAGC OFF
PH discharge coeffcient change
RF, servo signal gain up
RF, EQL band change
TE output change
WO output change
Power supply (Servo system)
Tracking hold (H:hold)
Tracking bottom band change (High band)
Servo gain control (RREC, FE, PP, TE)
Terminal No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Symbole
CAP
VCC
PDRF
PD1
PD2
PD3
PD4
GND
FIN1
FIN2
PIN1
PIN2
TIN1
TIN2
LDD1
LDS1
LDD2
LDS2
GND
LDTH
LDON1
LDON2
AGOF
BCA
GU
DVD/CD
DPD/TE
WO/PP
VCC
TH
XHTR
SGC
Terminal No Symbole Functions
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
BST
FC
FEBL
TEBL
CP
RREC
FE
TE
WO
PP
PPN
WOC
ISET
BH
PH
SREFI
BCAI
PHC
SREF
LPC
N/C
RFON
RFOP
GND
FSET
PREF
RFN
N/C
RFP
CAO
VCC
CAN
EQL boost adjusting
EQL I/O control
FE balance adjusting
TE balance adjusting
Charge pump gain setting resistor, condenser connect
Peflection output
Focus error output
Tracking error output
WO/push-pull output
Push/pull output
Push/pull gain setting resistor connect
DC cut capacity connect
BPF center frequency setting resistor connect
RF bottom detection output
RF peak detection output
SREF setting
Peak hold detection setting resistor connect (When SCA)
RF-AGC PH detection conderser connect
Servo signal voltage reference output
RE DC servo condenser connect
N/C
RF - output
RF + output
Ground (RF system)
EQL frequency setting resistor connect
Voltage refernce output (For pick)
RF signal - input
N/C
RF signal + input
Customer OP amp. output
Power supply (RF system)[
Customerm OP amp. - input

- 16 -
IC BLOCK DIAGRAM & DESCRIPTION
IC130 LC78663NRW (DVD/CD Servo Controller)
8
7
5
6
3
4
2
1
19
20
21
33
32
30
31
29
28
27
26
25
24
23
36
43
169~172
167
168
15
16
10
12
13
14
104
115
116
111
112
113
114
109
110
108
134
135
137
139
128
130
129
145~148,150~153,
156~159,161~164
62~65,
68~74
140
141
90
174
173
61
76
142
87
86
85
84
77
75
60
43,
46~52
53~59,
78~82
40
41
42
38
37
94
93
92
91
95
97~103
118
117
123
124
125
122
121
105
FE
TE
RF-PH
RF-BH
JV
RREC
AD0
AD1
BHC
WO
TEC
FG
EVENT
RFP[3:0]
DEFECTI
DEFECTO
EFMP
EFMN
SLCO1
SLCO2
SLCLPF0
SLCLPF1
EFMOUT
PISET
FISET
LF1
LF2
LF3
PCN
PPDO
FPDO
VCOCTL
DVDFR
CDFR
PCK
JVAO
JVAIN
JVRVO
JVCPC
JVCPI
XIN
XOUT
X16MIO
DVDCKIO
VPDO
VCOC
VRPFR
HDAT[7:0]
HADR[12:0]
HRDB
HWRB
HCSB
HWAITB
HWAITB
FDO
TDO
SLDO
SPDO
SGC
TBAL
FBAL
BST
FO
TSTDO
TSTDI
TESTO
HFLIO
EMPH
FSX
EFLG
DOUT
LRSY
ROMCK
ROMXA
C2F
MD[15:0]
MA[10:0]
MRASLB
MRASUB
MCASLB
MOEB
MWEB
AVACKO
AVREQI
AVDACK
AVSCTB
AVERRB
AVD[7:0]
A/D Block D/A BlockServo Block
SLC Block
8 bits
A/D
8 bits
D/A
MPX
RF I/F Block
FC Counter
TR Counter
EV Counter
FG Counter
FG Counter
(AD0)
(TEC)
(WO)
(RF BH)
(BHC)
CMP
CMP
CLV/CAV Block BCA Buff Block
SUBCODE I/F Block
EFM PLL Block
CD Frame Sync
DVD Frame Sync
JV Block
CLK GEN Block
SYS PLL Block
CPU I/F Block
DVD Dec Block AV Dec I/F Block
DRAM I/F Block
CD-ROM Dec Block
CIRC Dec Block
Audio OUT Block
EMF Block
Frame Synchronous
protection
Frame Synchronous
internal push
EMF demodulation

- 17 -
IC BLOCK DIAGRAM & DESCRIPTION
IC130 LC78663NRW (DVD/CD Servo Controller)
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
NO.
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Block
A/D
TEST pin
SLC
TEST pin
Power
supply
CMP
D/A
Power
supply
RF I/F
Microcom-
puter I/F
Power
supply
Block
Microcom-
puter I/F
DRAM I/F
NC
DRAM I/F
Microcom-
puter I/F
CD data
CD data
Pin Name
AD1
AD0
JV
RREC
RF-PH
RF-RH
TE
FE
TEST0
EFMINP
TEST1
EFMINN
SLCLPF0
SLCLPF1
SLCO1
SLCO2
AVDDI
AVSS
BHC
WO
TEC
VREF
TSTD1
TSTD0
FO
BST
TBAL
FBAL
SGC
SLDO
SPDO
TDO
FDO
DVDDO
DVSS
FG
HIRQB
HWAITB
HRESB
HRDB
HWRB
HCSB
HDATO
DVDD1
Pin Name
DVSS
HDAT1
HDAT2
HADT3
HADT4
HDAT5
HDAT6
HADT7
HADR0
HADR1
HADR2
HADR3
HADR4
HADR5
HADR6
MWEB
MRASIB
MA0
MA1
MA2
MA3
NC
NC
MA4
MA5
MA6
MA7
MA8
MA9
MA10
MOEB
MCASUB
MCASLB
HADR7
HADR8
HADR9
HADR10
HADR11
HADR12
C2F
ROMXA
ROMCK
LRSY
DVDD1
DVSS
EMPH
Supplementation
Servo A/D AD1
Servo A/D AD0
Servo A/D JV
Servo A/D RREC
Servo A/D RF-PH
Servo A/D RF-BH
Servo A/D TE
Servo A/D FE
Test input 0
(Input "L" level)
EFM/EFM+ Input
Test input 1
(Input "L" Input)
EFM- Input
SLC
SLC
SLC
SLC
A/D D/A SLC Power source
[Analogue 3.3V]
Analogue GND
Comparator input
(RE-BH)
Comparator input
Comparator input
(TE)
Sarvo D/A Voltage reference
Sarvo D/A
Sarvo D/A TSTD0
Sarvo D/A FO
Sarvo D/A BST
Sarvo D/A TBAL
Sarvo D/A FBAL
Sarvo D/A SGC
Sarvo D/A SLDO
Sarvo D/A SPDO
Sarvo D/A TDO
Sarvo D/A FDO
Internal logic power source
[Digital 2.5V]
Digital GND
FG Counter input General-purpose port in/output
Interrupt signal output
Wait signal output
Servo reset input
Reag reset input
Write signsl input
Chip select signal input
DTA BUS 0
I/O Power source [Digital 3.3V]
Supplementation
Digital GND
Data bus 1
Data bus 2
Data bus 3
Data bus 4
Data bus 5
Data bus 6
Data bus 7
Address bus 0
Address bus 1
Address bus 2
Address bus 3
Address bus 4
Address bus 5
Address bus 6
WE Output
RAS Output I
DRAM Address bus 0
DRAM Address bus 1
DRAM Address bus 2
DRAM Address bus 3
NC pin which set,"H" or "L"
(662; DRAM Power ssupply [Digital 3.3V])
NC pin which set,"H" or "L"
(662;Digital GND)
DRAM Address bus 4
DRAM Address bus 5
DRAM Address bus 6
DRAM Address bus 7
DRAM Address bus 8
DRAM Address bus 9
DRAM Address bus 10
OE Output
CAS Output (Upper Byte)
CAS Output (Lower Byte)
Address bus 7
Address bus 8
Address bus 9
Address bus 10
Address bus 11
Address bus 12
Buffer memory access selector
C2 flag output Monitor pin 4
CD data output Monitor pin 3
CD dast output Monitor pin 2
shift clock output
CD data output L/R clock output Monitor pin 1
I/O power source
Digital GND
Deemphasis monitor pin Monitor pin 0
I/O
I
I
I
I
I
I
I
I
I
I
I
I
-
-
-
-
-
-
I
I
I
O
O
O
O
O
O
O
O
O
O
O
O
-
-
I/O
O
I
I
I
I
I
I/O
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I
I
I
O
O
O
O
O
O
-
O
O
O
O
O
O
O
O
O
O
I
I
I
I
I
I
O
O
O
O
-
O
IC401 KIA7805API(Regulator)
123
1. INPUT
2. COMMON
3. OUTPUT
IC211 TA8176SN (FM Front End )
MIXER Buffer
Amp Buffer Local
Buffer
BIAS
AGC DET
IF
5
1
2
3
7 8
9 4 610
11
12
AGC
BY-PASS
RF IN
OSC
OSC
BUFFER
OUT
RF OUT MIX IN MIX OUT IF OUT Vcc
Vcc Vcc
GND FM/TV SW

- 18 -
IC BLOCK DIAGRAM & DESCRIPTION
NO.
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
I/O
I
O
O
O
O
O
O
O
O
O
O
O
O
O
O
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
O
-
-
-
-
-
-
-
-
-
-
I
O
-
I/O
I/O
I
I/O
O
O
O
-
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
-
-
I/O
I/O
I/O
I/O
-
I/O
I/O
I/O
I/O
I/O
O
I/O
I/O
I/O
I/O
I/O
I/O
NO.
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
Block
System
CLK
Moniter
CD data
Power
supply
DRAM I/F
NC
DRAM I/F
NC
DRAM I//F
NC
DRAM I/F
Power
supply
RF I/F
Power
supply
Block
AV data
I/F
RF I/F
Power
supply
EFM PLL
Power
supply
JV
Power
supply
System
CLK
Power
supply
Power supply
System
CLK
Power supply
Pin name
X16MIO
TEST2
DVDCKIO
FSX
EFLG
DOUT
DVDD1
DVSS
MD8
MD9
MD10
MD11
NC
MD12
MD13
MD14
MD15
NC
NC
MD0
MD1
MD2
MD3
NC
MD4
MD5
MD6
MD7
DVDD1
DVSS
DEFECTI
DEFECTO
RFP0
RFP1
RFP2
RFP3
TESIO
HFLIO
DVDD0
DVSS
Supplementation
External 16MHz output
Test input 2
(Input; "L" level set)
External DVD clock input
CD1 frame synchronization signal Monitor 6
Error correction C1,C2 correction Monitor 5
conditions monitor oins
Audio EIAJ data output Monitor 7
I/O power supply [Digital 3.3V]
Digital GND
Pin name
AVREQI
AVACKO
AVDACK
AVSCTB
AVERRB
AVD0
AVD1
AVD2
AVD3
AVD4
AVD5
AVD6
AVD7
EFMOUT
PCK
DVDD0
DVSS
VCOCTL
PPDO
FPDO
LF1
LF2
LF3
PCN
PISET
FISET
CDFR
DVDFR
AVDD2
AVSS
JVCPI
LVCPC
JVAO
JVAIN
JVRVO
AVDD3
AVSS
VPDO
VRPFR
VCOC
DVDD0
DVSS
DVDD2
XIN
XOUT
DVSS
Supplementation
AV data requirement flag input
AV data read strobe output
AV data read output
AV output selector synchronization outpun
AV data reliable flag output
AV data bus 0
AV data bus 1
AV data bus 2
AV data bus 3
AV data bus 4
AV data bus 5
AV data bus 6
AV data bus 7
EFM 2 value signal output
EFM playback shift clock output
Internel logic power source [Digital 2.5V]
Digital GND
VCO filter connect
Phase comparison filter connect
Frequency comparison filter connect
Filter connect 1
Filter connect 2
Filter connect 3
Voltage monitor pin(Phase comparson
charge pomp PCH control voltage)
Current setting pin for the constant current
phase comparison charge pomp
Current setting pin for the constant
frequcncy comparison charge pomp
EFM playback VCO oscillator range setting
pin [CD]
EFM playback VCO oscillator range setting
pin [DVD]
EFM PLL JV power supply [Analog 3.3V]
Analog GND
JV control
JV control
EFM playback PLL clock jitter output
JV control
JV control
SYSTEM PLL power supply [Analog 2.5V]
Analog GND
SYSTEM PLL filter connect
SYSTEM PLL VCO oscillator renge setting
SYSTEM PLL filter connect
Internal logic power source [Digital 2.5V]
Digital GND
Oscillation circuit power source [Digital 3.3V]
Oscillation circuit input
Oscillation circuit output
Digital GND
DRAM data bus 8
DRAM data bus 9
DRAM data bus 10
DRAM data bus 11
NC pin which set "H" or "L"
(662;Digital GND)
DRAM data bus 12
DRAM data bus 13
DRAM data bus 14
DRAM data bus 15
NC pin which set "H" or "L"
(662;Digital GND)
NC pin which set "H" or "L"
(662;DRAM power source [Digital 3.3V])
DRAM data bus 0
DRAM data bus 1
DRAM data bus 2
DRAM data bus 3
NC pin which set "H" or "L"
(662;DRAM power source [Digital 3.3V])
DRAM data bus 4
DRAM data bus 5
DRAM data bus 6
DRAM data bus 7
I/O power supply [Digital 3.3V]
Digital GND
Defect signal input General-purpose port
I/O 0
Defect signal output
RF general-ourpose port WRQ output
I/O 0
RF general-ourpose port
I/O 1
RF general-ourpose port HBUSYB output
I/O 2
RF general-ourpose port HFBUSYB output
I/O 3 EVENT counter input
Tracking margin signal I/O
Mirror detast signal I/O
Internal logic power supply [Digital 2.5V]
Digital GND
* TEST0~2; "L" setting
IC130 LC78663NRW (DVD/CD Servo Controller)
IC453,455 KTC801U(Switching Transistor)
IC454 KRX101U(Switching)
Q1
Q2
1
6
2
5
3
4
Q1
Q2
1
5
2 3
4

- 19 -
IC BLOCK DIAGRAM & DESCRIPTION
IC131 M11L416256SA-35T(256k x 16 DRAM)
PIN DESCRIPTIONS
PIN NO. PIN NAME TYPE DESCRIPTION
16~19,22~26 A0~A8 Input
Address Input
Row Address : A0~A8
Column Address : A0~A8
14 RAS Input Row Address Strobe
28 CASH Input Column Address Strobe / Upper Byte Control
29 CASL Input Column Address Strobe / Lower Byte Control
13 WE Input Write Enable
27 OE Input Output Enable
2~5,7~10,31~34,36~39 I/O0 ~ I/O15 Input / Output Data Input / Output
1,6,20 VCC Supply Power, 3.3V
21,35,40 VSS Ground Ground
11,12,15,30 NC - No Connect
CONTROL
LOGIC
DATA-IN BUFFER
CLOCK
GENERATOR DATA-OUT
BUFFER
COLUMN
ADDRESS
BUFFER
REFRESH
CONTROLER
REFRESH
COUNTER
ROW.
ADDRESS
BUFFERS(9)
9
A0
A1
A2
A3
A4
A5
A6
A7
COLUMN
DECODER
OE
16
ROW DECODER
512 x 512 x 16
MEMORY
ARRAY
16
SENSE AMPLIFIERS
I/O GATING 8
512 x 16
V
CC
V
SS
IO0
:
IO15
RAS
CASH
512
512
9
9
99
9
CASL
V
BB
GENERATOR
WE
16
A8
IC402 KA78R12STU(Regulator)
OVERVOLTAGE
PROTECTION
SOA PROTECTION
THERMAL SHUTDOWN
BANDGAP REFERENCE
1Vin
4Vdis
2V
O
3
GND
OUTPUT
ON/OFF
SHORT-CIRCUIT
PROTECTION
HIGH/LOW
1.4V
R1
R2
Q1
IC410,411 PQ1CG21H2RZ(Regulator)
+
-
+
-
1 2
5
4
3
Overcurrent
detection
circuit
Overheat
detection
circuit
COM
V
IN V OUT
ON/OFF
Oadj
OSC
ON/OFF
Circuit
Soft start
Constant-
voltage
circuit
QR
S
