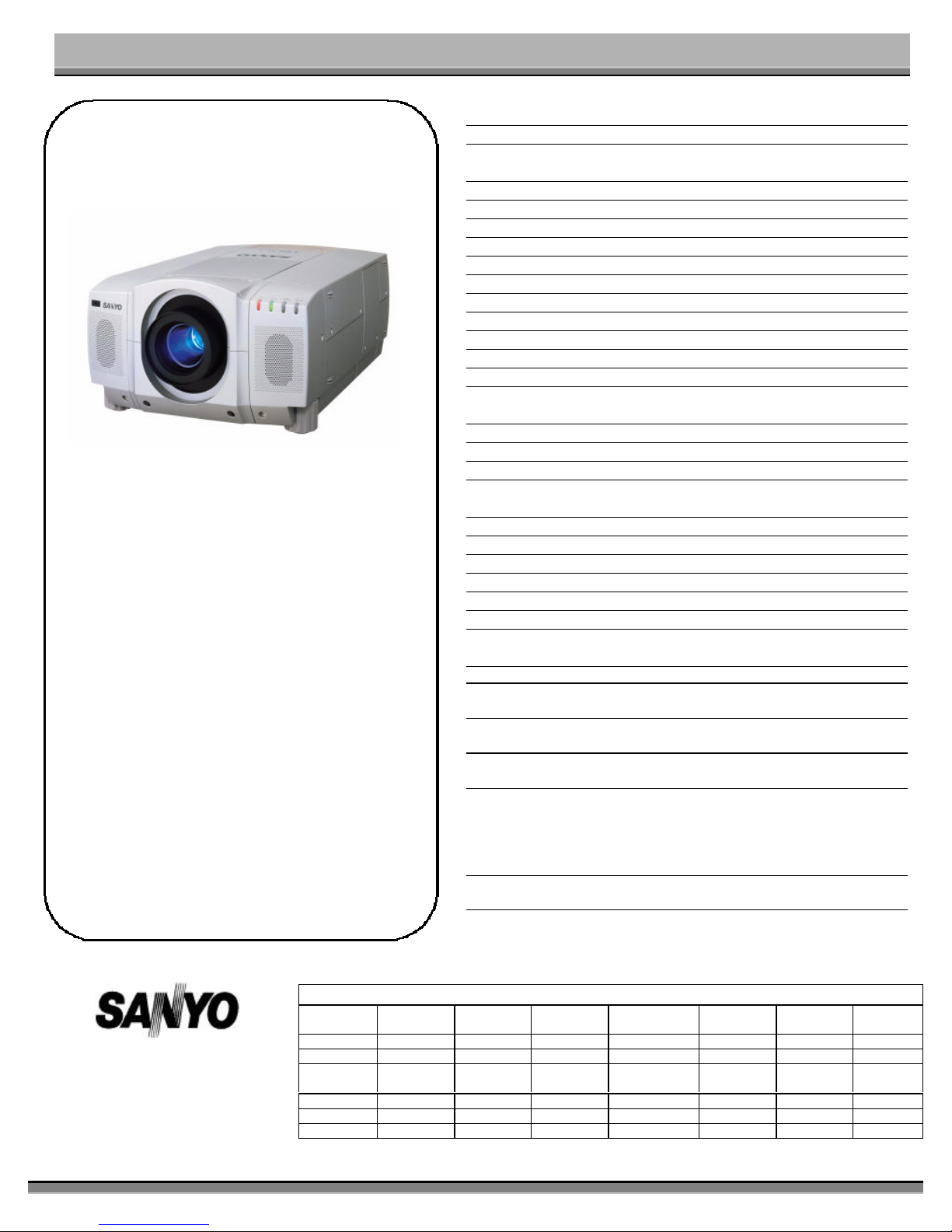

3500 ANSI LUMENS lTRUE XGA lMULTIMEDIA PROJECTOR
PLC-XF12N
XGA Multimedia Projector
DIRECT PC INTERFACE WITH PANELLINK™ TECHNOLOGY
Utilizing PanelLink™ protocol, the PLC-XF12N offers a true
digital connection to a PC. SANYO digital interfacing greatly
reduces ghosting, noise and signal degradation. It also allows
for longer cable runs and eliminates the need for complicated
adjustments such as dot clock ro synchronization of frequencies,
enabling true plug and play compatibility with PCs!
DIGITAL PROGRESSIVE SCANNING
Proprietary SANYO digital progressive scanning doubles the
video information being sent to the projector, substantially
increasing video-image detail and resolution. Each pixel is
monitored using SANYO’s original motion detection algorithm to
ensure increased vertical resolution and crisper moving images.
POWER LENS SHIFT
Results in minimal geometric distortion for up/down image
alignment when twin stacking.
SUPERIOR HDTV PERFORMANCE
HDTV Compatible, accepting the 1080i, 1035i, 720p, 575p, 575i,
480p, and 480i HDTV resolution standards.
WIDE ARRAY OF LENS OPTIONS
Seven lenses are available to provide tremendous placement
flexibility.
*Optional Lenses sold separately
ALSO AVAILABLE: PLC-XF12NL
Same features as PLC-XF12N except unit is shipped without a
lens. Purchaser can select from a variety of optional lenses
Specifications
Type XGA(1024x768)Multimedia
Brightness 3500ANSILumens
Nearly 7,000 ANSI Lumens when twin-stacked
Uniformity Over85%
LCD Panel System 1.8”TFTpolysilicontypex3
Number of Pixels 2,359,296(786,432x3)
Contrast Ratio 600:1
Projection Image (diagonal) 40”–600”
Aspect Ratio 4:3
Throw Distance 5.0’to107’
Zoom/Focus Powered
Keystone Ratio (up/down) 1:1
Power Lens Shift 10°Up/Downfromcenter
Projection System Polarizedbeamsplitterwithintegratorlens
Projection Lens F2.0to2.3;f3.0”to3.8”
ThrowRatio2.0-2.6:1
Projection Lamp 440WDCMetalHalide
Scanning Frequency Auto - H. Sync. 15-100kHz, V. Sync. 50-120Hz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility CompressedSXGA,XGA,
SVGA, VGA, MAC, PC98
Sound Output Two-piece,3-wattStereo
Voltage 100-240V AC; 50/60/Hz (auto sense/select)
BTU 2218
dB Rating 48.0
Dimensions (WxHxD) 15.4”x9.2”x22.9”
Net Weight 39.2lbs.
Warranty Threeyearspartsandlabor;90dayslamp;
QuickRepairProgramunderwarranty
User Maintenance Cleanairfilter,replacelampassembly
Computer Input Panel 1 •MDR20-pinTerminal(digital)•D-Sub15
•12-pincontrolportandUSBport
Computer Input Panel 2 •5BNC(RGBHV)
•12-pincontrolportandUSBport
A/V Input Panel •BNC Type {Video/Y, C/Cb(B-Y),Cr(R-Y)}x2
•RCAType (Audio R andL) x 2 •S-Videox2
Included Accessories •Wireless and Wired Remote •AC Power Cord
•3Mouse Control Cables(PS/2, Serial, ADB)
•VGA Computer Cable•VGA-MAC Adapter
•Wired Remote Cable•LensCap
•DustCover •Owner’sManual
Optional Accessories •DigitalGraphicsAcceleratorPC-Card
•ATA Shipping Case (PLCCSE07)
PRELIMINARY SPECIFICATION SHEET ONLY Because its products are subject to
continuous improvement, SANYO reserves the right to modify product design and
specifications without notice and without incurring any obligations.
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 818.998.7322 ext. 288
Fax [phone]
www.sanyolcd.com
Optional Lens Specifications
Standard
Zoom 1 Standard Zoom 2 Wide Fixed Wide Zoom Semi-Long Zoom Long Zoom Long Fixed
Part No. LNS-S01 LNS-S02 LNS-W01 LNS-W02KS LNS-M01 LNS-T02 LNS-T01
Zoom Yes Yes No Yes Yes Yes No
Throw
Ratio 1.8 - 2.9:1 2.0 - 2.6:1 1.2:1 1.35 - 1.8:1 3.5 - 4.6:1 4.6 - 6.0:1 7.0:1
F Stop 2.6 - 3.5 2.0 - 2.3 2.5 2.53 - 2.95 2.0 -2.6 2.0 - 2.8 2.0
Length 6.9” 8.0” 9.4” 8.3” 6.9” 9.4” 8.6”
Weight 3.74 lbs. 4.2 lbs. 12.8 lbs. 4.8 lbs. 4.2 lbs. 6.8 lbs. 8.4 lbs.
