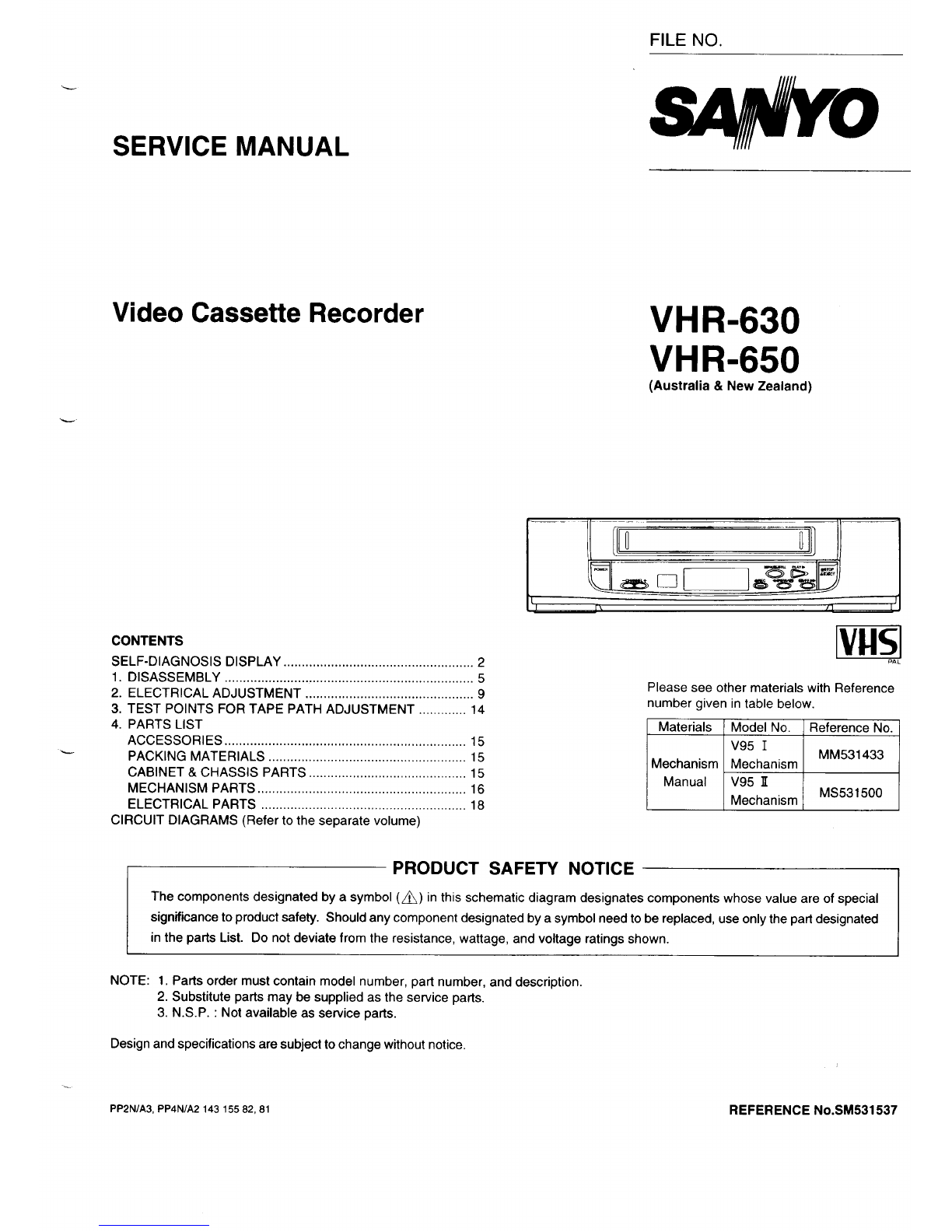

SERVICE MANUAL *O
Video Cassette Recorder VHR-630
VHR-650
(Australia &New Zealand)
CONTENTS
SELF-DIAGNOSIS DISPLAY .................................................... 2
1. DISASSEMBLY .................................................................... 5
2. ELECTRICAL ADJUSTMENT .............................................. 9Please see other materials with Reference
3. TEST POINTS FOR TAPE PATH ADJUSTMENT .............14 number given in table below.
4. PARTS LIST
Accessories .................................................................. 15
.- PACKING MATERIALS ...................................................... 15
CABINET &CHASSIS PARTS ........................................... 15
MECHANISM PARTS ......................................................... 16
ELECTRICAL PARTS ........................................................ 18
CIRCUIT DIAGRAMS (Refer to the separate volume)
Materials IModel No. ]Reference No.
IPRODUCT SAFETY NOTICE i
The components designated by asymbol (~) in this schematic diagram designates components whose value are of special
significance to product safety. Should any component designated by asymbol need to be replaced, use only the part designated
in the parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts maybe supplied as the service parts.
3. N.S.P. :Not available as service parts.
Design and specifications are subject to change without notice.
PP2NIA3, PP4NIA2 14315582,81 REFERENCE No. SM531537

SELF-DIAGNOSIS DISPLAY
Mechanism Mode Display/ Head Output Drop Warning Display/ Cylinder Rotation Accumulated -
Time Display
This unit displays the diagnosis contents of abnormalities and the mechanism, mode on its display panel in 2-digit numbers.
When the head playback output has dropped, the “L” sign will be blinked, and these models will also display the cylinder rotation
accumulated time.
These display shows the outline of the problems. Use it as areference when servicing the unit.
1.
.
●
.
.
SeIf-Diagnosis Contentes and Mechanism Mode Display
When the STOP button on the remote control is pressed for about 10 seconds continuously, the self-diagnosis number will be
displayed on the reception channel display of the display panel and number indicating the failed mechanism mode (changed mode
when being shifted) on the tape counter “seconds” display for 10 seconds each.
During self-diagnosis display, displays other than the diagnosis number/mechanism mode number and the cylinder accumulated
rotation time display described later (some models only) will be turned off and when displays end, the normal display will be
returned automatically.
Refer to “Self-Diagnosis Contents” for the self-diagnosis numbers and the “Mechanism Mode Display Contents” for the
mechanism mode numbers.
When the “O” button on the remote control unit is pressed during display, and clearing the self-diagnosis display and mechanism -
mode display.
- - ~..ss..., >.:.:.:.:. ,,..:+:.?, , . . . - -
Display panel Ill
j_!-1 liil:~:l;~~~-’
-........”’~......... ‘i”.......“’ ~~........ - -
LI
1-
Self-Diagnosis number Mechanism mode number
(Reception channel display) (Tape counter “Seconds” display)
Self-Diagnosis Contents
No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
00 There is no abnormality in the mechanism.
The cylinder motor does not rotate. ●The cylinder motor is faulty. Shifts to the STOP mode.
01 ●The control of the cylinder motor is
faulty.
●The tape winds around the cylinder.
The take-up reel does not rotate. ●The take-up reel is caught.
02 Shifts to the STOP mode.
●The reel belt is faulty.
“The take-up torque has decreased.
The capstan motor does not rotate. GThe capstan motor is faulty. Shifts to the STOP mode.
03 ●The control of the capstan motor is
faulty.
The tape cannot be loaded with the ●Error in the operations of the tape Unloads, shifts to the INITIAL mode,
cassette inserted. loading mechanism. and the power goes off.
(But unloading can be performed.) ●Foreign particles in the tape ioad-
04 ing mechanism.
●The tape end sensor is faulty.
●The reel brake of the tape cassette
has not been released.
Tape loading and unloading cannot “The tape guide is caught. The power is forcibly turned off with
05 be performed with the cassette in- ●The loading motor is faulty. the mechanism at its current position.
serted. ●The control of the loading motor is
faulty.

Note: For details of mechanism operations corresponding to the mechanism positions of the self-diagnosis numbers 08 and 09 above,
refer to the separate volume on the V95 1mechanism manual. These manual reference numbers are shown in the cover.
Mechanism Mode Display Contents
L
L
1
No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
Front unloading cannot be performed ●The cassette drive mechanism is Front loads and shifts to the STOP or
when ejecting the cassette. faulty. INITIAL mode.
(Front loading can be performed.) ●The front door is caught. ●When the power switch is turned on
before eject operations: Shifts to the
06 STOP mode.
“When the power switch is turned off
before eject operations: Shifts to the
INITIAL mode and the power goes
off.
Front loading and front unloading can- ●The tape cassette is caught in the The power is forcibly turned off with
not be performed when ejecting the cassette drive mechanism. the mechanism at its current position.
cassene. ●The main cam and front rack gear of
07 the front loading mechanism have
not engaged properly.
●The gears of the front loading drive
mechanism have not engaged prop-
erly.
The mechanism becomes 1(RE- ●The mechanism mode switch con- The power is forcibly turned off with
08 VIEW) while moving from 2(IDLER), tact is faulty. the mechanism at its current position.
3(STILL), 4(BRAKE), and to 5
(STOP).
The mechanism becomes 7(INITIAL) ●The mechanism mode switch con- Carries out tape take-up operations,
09 while moving from 1(REVIEW), 2tact is faulty. shifts to the INITIAL mode, and the
(IDLER), 3(STILL), 4(BRAKE), and power goes off.
to 5(STOP).
Mode No. Mechanism Mode Mode No. Mechanism Mode Mode No. Mechanism Mode
00 CASSETTE OUT 08 PIAY 16 VIDEO INSERT
01 STANDBY 09 REC 17 VIDEO INSERT-PAUSE
02 STOP 10 AUDIO DUBBING 18 AUDIO/VIDEO INSERT
03 STILL 11 X2 SPEED PIAY 19 REVERSE X2 SPEED PLAY
04 REC-PAUSE 12 CUE
05 AUDIO DUBBING-PAUSE 13 REVIEW
06 FRAME ADVANCE 14 FAST FORWARD
07 SLOW 15 REWIND 99 OTHERS
-1
2. Head Output Drop Warning Display
●When the STOP bunon on the remote control is pressed for 10 seconds continuously 10 seconds after play starts, “L” will be
displayed blinking at the first digit of the minutes position on the tape counter when the head output is lower than the specified
value to indicate an abnormality.
.The cause of the abnormality maybe due to drop in the playback output caused by drop in the efficiency of the cassette used or
head clogging. Refer to “Head Playback Output Voltage Check” as ameans to judge the abnormality.
Display panel 171: :’”~:InJ
lu _l !,.....!......... I_ uI_
I
I
Head output drop warning display
(Tape counter”1 st digit of Minutes.” position)
–3–

Head playback output voltage check
Warning
;assette Used Display Envelope Detection Output Voltage Main Cause
Envelope detec- 4V . .. .. .. .. .. .. .. .. . .. .. ... . .. .. .. ..-
tion output
bE.z+05-0g5v !%!!::::;::;:
When the output voltage differ-
Cassette (IC301 Pin 25 or
with normal C3016 HOTside:
playback –see Fig. 2-l-1) OV
output Switching pulse normal
(TP183: see Fig, CH-1 CH-2
2-1-2)
Envelope detec- 4V ----------------------------------- When the output voltage differ-
tion output
(IC301 Pin 25 or
“L” blinking C3016 HOTside:
see Fig. 2-1-1) OVk~~:~~han :$$W:::::::
Switching pulse been performed accurately
(TP183: see Fig. CH-1 CH-2 cOne video head is clogged
Recorded 2-1-2) ●One video head has worn out
cassette
(with tabs) When the average output volt-
Envelope detec- 4V ...................................
tion output
(IC301 Pin 25 or
C3016 HOTside:
11~1blinking see Fig, 2-l-1) ov ~,,,han ?;~::;’;;e
Switching pulse
(TP183: see Fig. CH-1 CH-2 ●Both video heads are clogged
2-1-2) ●Both video heads have worn
out
Envelope detec- Av .. ................................-
tion output
(IC301 Pin 25 or
“L” blinking C3016 HOTside:
Rental see Fig. 2-l-1) Ov k~~:$~han ::~~ed
Switching pulse been performed accurately
cassette (TPI 83: see Fig.
(without tabs) CH-1 CH-2 ●One video head is clogged
2-1-2) ●One video head has worn out
●Some rental cassettes may have extremely low video playback outputs even when both video heads are normal.
As the average output voltage of the two heads may be less than 0.5V for some, no warning displays will be
shown.
3. Cylinder rotation accumulated time display
●Press the STOP button on the remote control for approximately 10 seconds and the cylinder rotation accumulated time excluding
the cassette out and standby operation time will be displayed on the ‘(Hours” display in units of 100 hours. (“33” will be displayed
for 10 seconds for 3,200 to 3,299 hours.)
.To erase the cylinder rotation accumulated time display, press the RESET button on the remote control during the accumulated
time display.
.—.-——..———.-.—— —-...—
—.——
IAI
-
w
-.
Cylinder rotation accumulated display (Tape counter “Hoursi’ display)
–4–

1. DISASSEMBLY
1-1. REMOVAL OF CABINET, MECHANISM UNIT, AND MAIN BOARD
REMOVING THE CABINET PARTS (Fig. 1-1-1 )1. Spread out the lock clamps (C) In the arrow dlrectlon
1. Remove the cabinet and bottom cover by removing the four slightly and remove the TM-1 PWB as shown in Fig. 1-1-2.
screws @and four screws @J. 2. Remove the screw (1; at the back of the chassis.
2. Remove the front panel by removing the locks of the clamps 3. Remove the red screw @in the chassis, remove the red
(A) using ascrewdriver, etc. and slightly rotating the bottom screw .6;, and remove the holder 1in this order.
part in the direction of the arrow. 4. Remove the holder 2by removing the screw ~.
5. Remove the two screws @and two screws @of the
Notes: ●Electrical adjustments for the this model can be mecharusm unit, The two screws @of the cassette tray can
performed with only the cabinet removed. be removed easily by pushing the tray lock lever in the
●When replacing the bottom cover, do not tighten the arrow direction to remove the lock as shown in the enlarge
screws @too much. Excess tightness may damage view Aand by pushing the lid opener lever in the arrow
the screws taps on the chassis. direction to remove the lock as shown in the enlarge view
B.

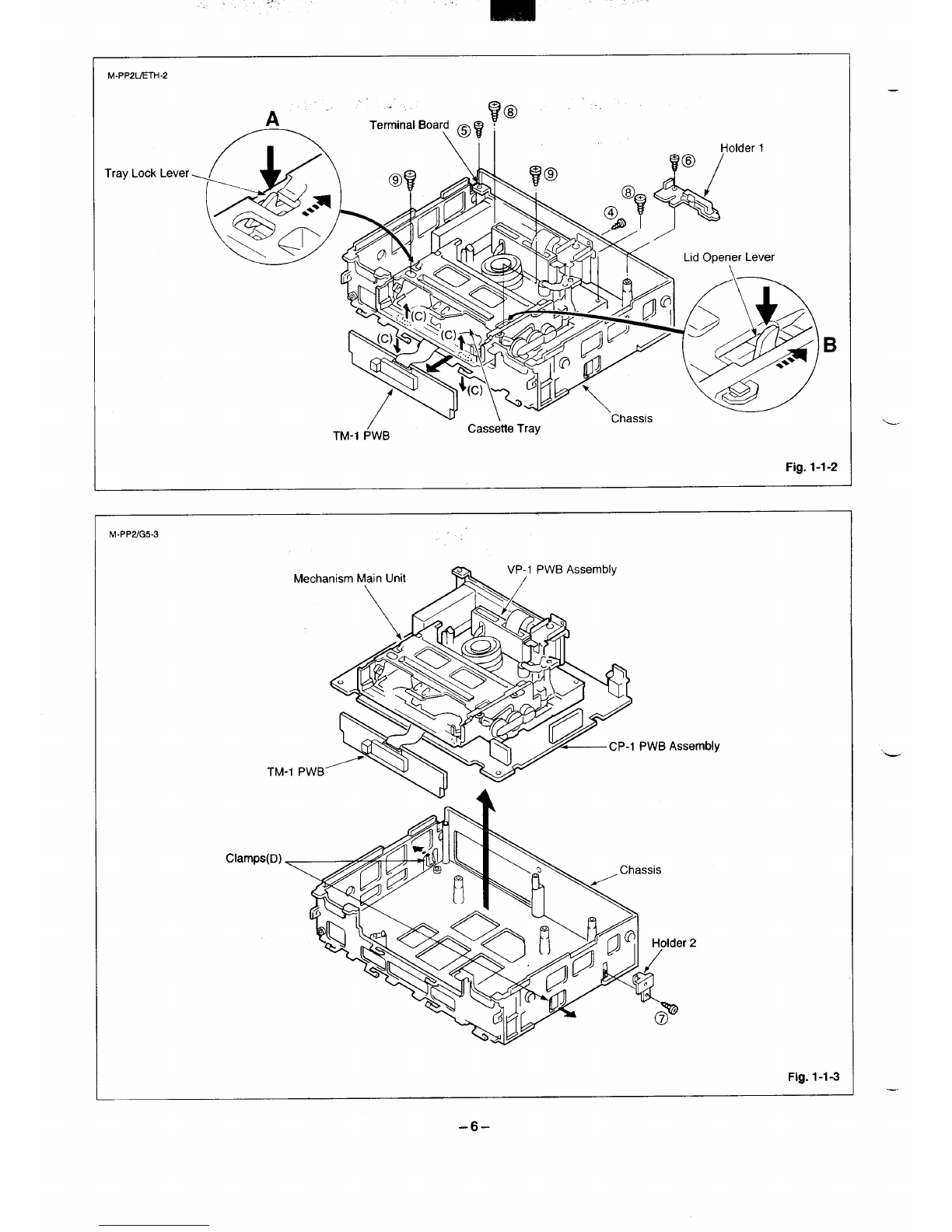

REMOVING THE MECHANISM MAIN UNIT AND THE 6. Lift up the whole mechanism unit and main board (CP-1
CP-1 PWB ASSEMBLY (Fig. 1-1-2 and l-l-3) PWB assembly), and as shown in Fig. 1-1-3, push the two
lock clamrxi (D) of the chassis in the arrow direction so that
After removing the cabinet parts, remove the mechanism unit .,
they can be removed from the chassis,
and the CP-1 PWB assembly connected as follows.
.-
L
M-PP21G5.I
Front Panel Unit
ver
Fig. 1-1-1
–’5 –

..
M-PP2UETH-2
Tray Lock Lever
B
Fig. 1-1-2
M-P P21G5-3 ,’
sembly
TM
Clamps(D)
r2
Fig. 1-1-3

1-2. TEMPORARILY SETTING UP AND CONNECTING CP-1 PWB ASSEMBLY
The following is an example of how to place and connect the main board without ajig, when repairing the CP-1 PWB assembly.
1. Place the mechanism unit and main board up side down as 2. Operete the unit using the buttons on TM-1 PWB or the
awhole on a flat surface with foil side of the main board remote control.
facing up.
M-PP21G5-4
TM-1
CP-1 PWB Assembly (Foil side)
Screws
TBoord
<
PWB
#y~
Cassette Compartment
\
Mechanism Main Unit Fig. 1-1-4
1-3. INSTALLATION OF THE FRONT PANEL
When installing the front panel to the chassis after repaires and adjustments
1. Pressing down the door opener lever of the mechanism Note: Opened cassette door position does not install the front
main unit. panel to the chassis,
2. Set the cassette door to half-opened state as shown in Fig.
1-1-5, and install the front panel to the chassis.
PP21G5-5
(Position A) Casshte Door
(Position B) Fig. 1-1-5
-7–

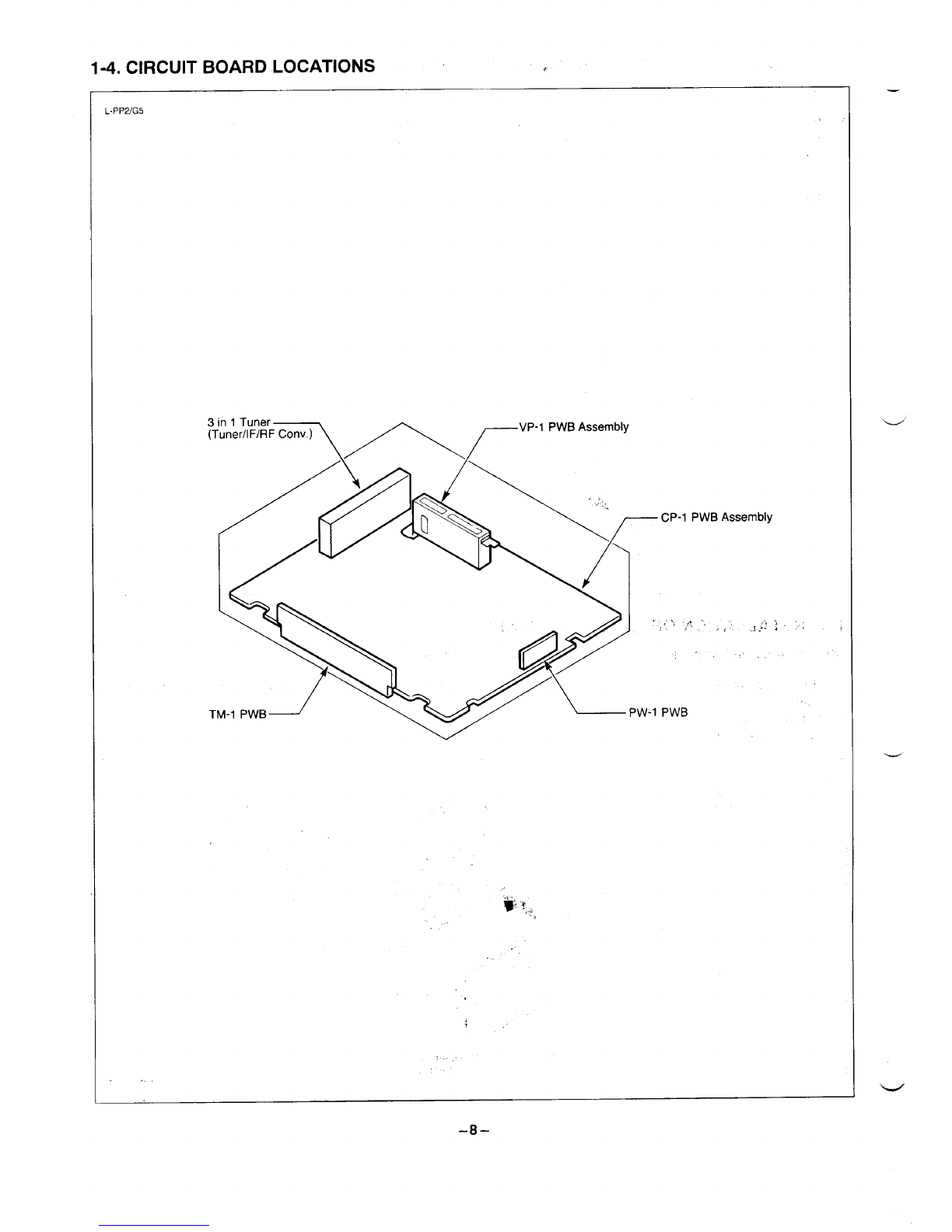

1-4. CIRCUIT BOARD LOCATIONS
L-P P21G5
-. $,,.
TM-
,,
.,
w’
-
w

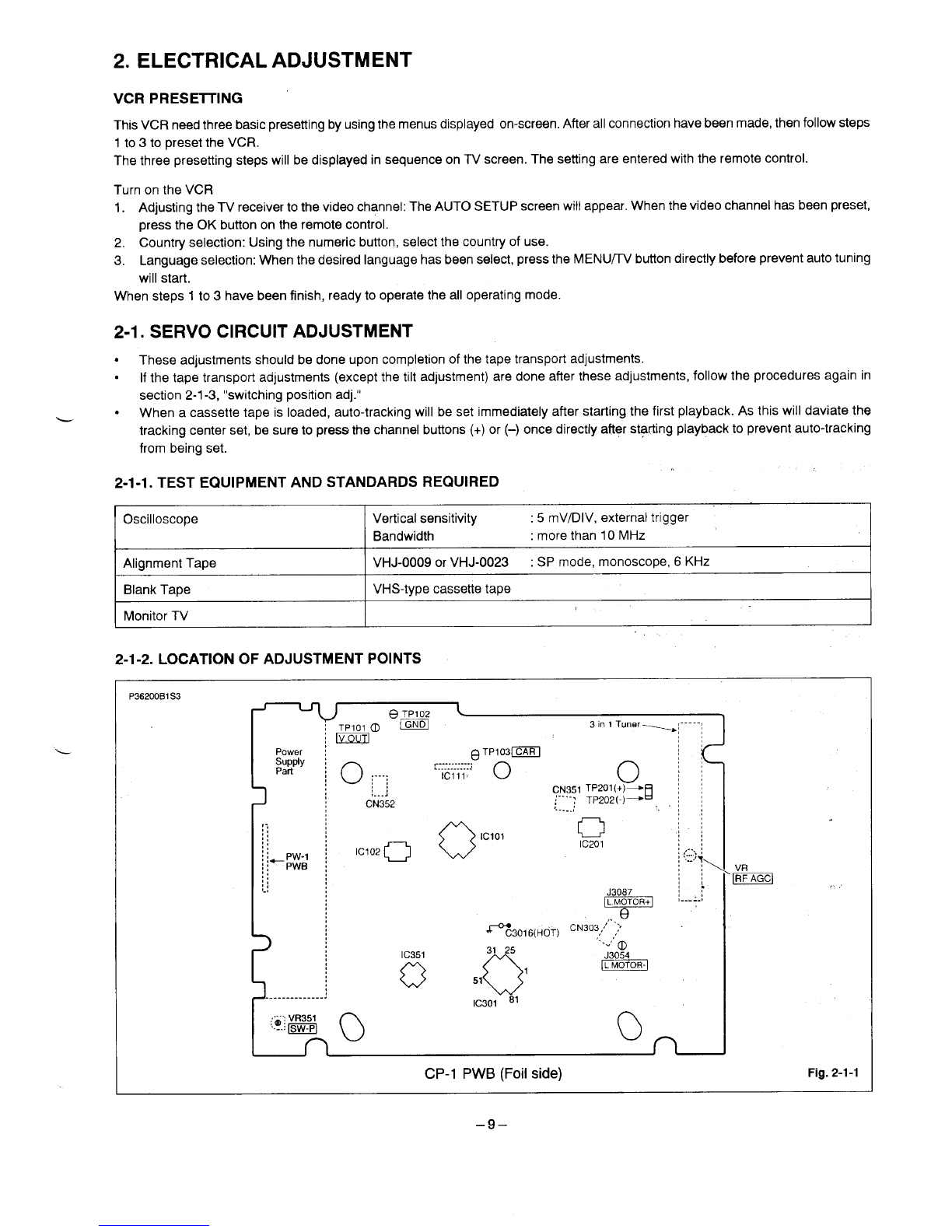

2. ELECTRICAL ADJUSTMENT
VCR PRESE17NG
This VCR need three basic presetting by using the menus displayed on-screen. After all connection have been made, then follow steps
1to 3to preset the VCR.
The three presetting steps will be displayed in sequence on TV screen. The setting are entered with the remote control.
Turn on the VCR
1. Adjusting the TV receiver to the video channel: The AUTO SETUP screen will appear. When the video channel has been preset,
press the OK button on the remote control.
2. Country selection: Using the numeric button, select the country of use.
3. Language selection: When the desired language has been select, press the MENWTV button directly before prevent auto tuning
will start.
When steps 1to 3have been finish, ready to operate the all operating mode.
2-1. SERVO CIRCUIT ADJUSTMENT
●These adjustments should be done upon completion of the tape transport adjustments.
.If the tape transport adjustments (except the tilt adjustment) are done after these adjustments, follow the procedures again in
section 2-1-3, “switching position adj.”
.When acassette tape is loaded, auto-tracking will be set immediately after starting the first playback. As this will daviate the
Ltracking center set, be sure to press the channel buttons (+) or (–) once directly after starting playback to prevent auto-tracking
from being set.
2-1-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Oscilloscope Vertical sensitivity :5 mV/DIV, external trigger
Bandwidth :more than 10 MHz
Alignment Tape VHJ-0009 or VHJ-O023 :SP mode, monoscope, 6KHz
Blank Tape VHS-type cassette tape
Monitor TV ,,
2-1-2. LOCATION OF ADJUSTMENT POINTS
P36200BI S3
.. ,.
CP-1 PWB (Foil side) Fig. 2-1-1
–9–

P36000D
Shield
VP-1 PWB Assembly Fig. 2-1-2
Note:
●Self-recording means “Record any broadcasting or video
signal and play back the just-recorded portion. ”
2-1-3. SWITCHING POSITION ADJ.
IMeasuring Point\ Measuring Equipment IAdj. Condition I
TP101 Oscilloscope PLAY mode
(VIDEO OUT) Alignment tape
TP183 (SW-P) (VHJ-0009 or
VHJ-0023)
Adj. Location Adj. Value
\VR351 (SW-P) 16.5 H=0.5H I
1. Play back the alignment tape.
2. Set the tracking control position to the center by pressing
CHANNEL buttons (+) and (–) simultaneously.
3. Adjust VR351 (SW-P) so that the width of “T’ becomes 6.5
H~0.5 Has shown in Fig. 2-1-3,
WS-SWP
T=6.5H ~0,5H
IlH 0.5H I
IFront edge of
vertical sync signal
!t
Rise RF.SW.PULSE
AFig. 2-1-3
2-1-4. SLOW TRACKING ADJ. for VHR-650
Measuring Point
Picture of
monitor TV
Measuring Equipment Adj. Condition
Color bar generator Self-recording
(SP mode)
broadcasting monitor SLOW mode
Blank tape
~
Self-recording
(LP mode)
SLOW mode
Blank tape
Adj. Location Adj. Value
CHANNEL (+) button .
CHANNEL (–) button
—
.
1.
2,
3.
4.
5.
6.
Set the tracking control to the center position by pressing
CHANNEL buttons (+) and (–) simultaneously.
Play back the self-recorded portion and set the VCR in the
SLOW mode with the remote control unit.
Confirm that there is no noise on the slow playback display. —
Press the CHANNEL button (+) about three times and
check that noise dose not appear at the upper part of the
display.
Adjust the tracking control to the center again.
Press the CHANNEL button (–) the same number of times
as in the step 4(about three times) and check that noise
dose not appear at the lower part of the display.
l-s .@3
-lo–
