Sanyo Dc-pt70 User manual

FILE NO.

Service Manual

CONTENTS

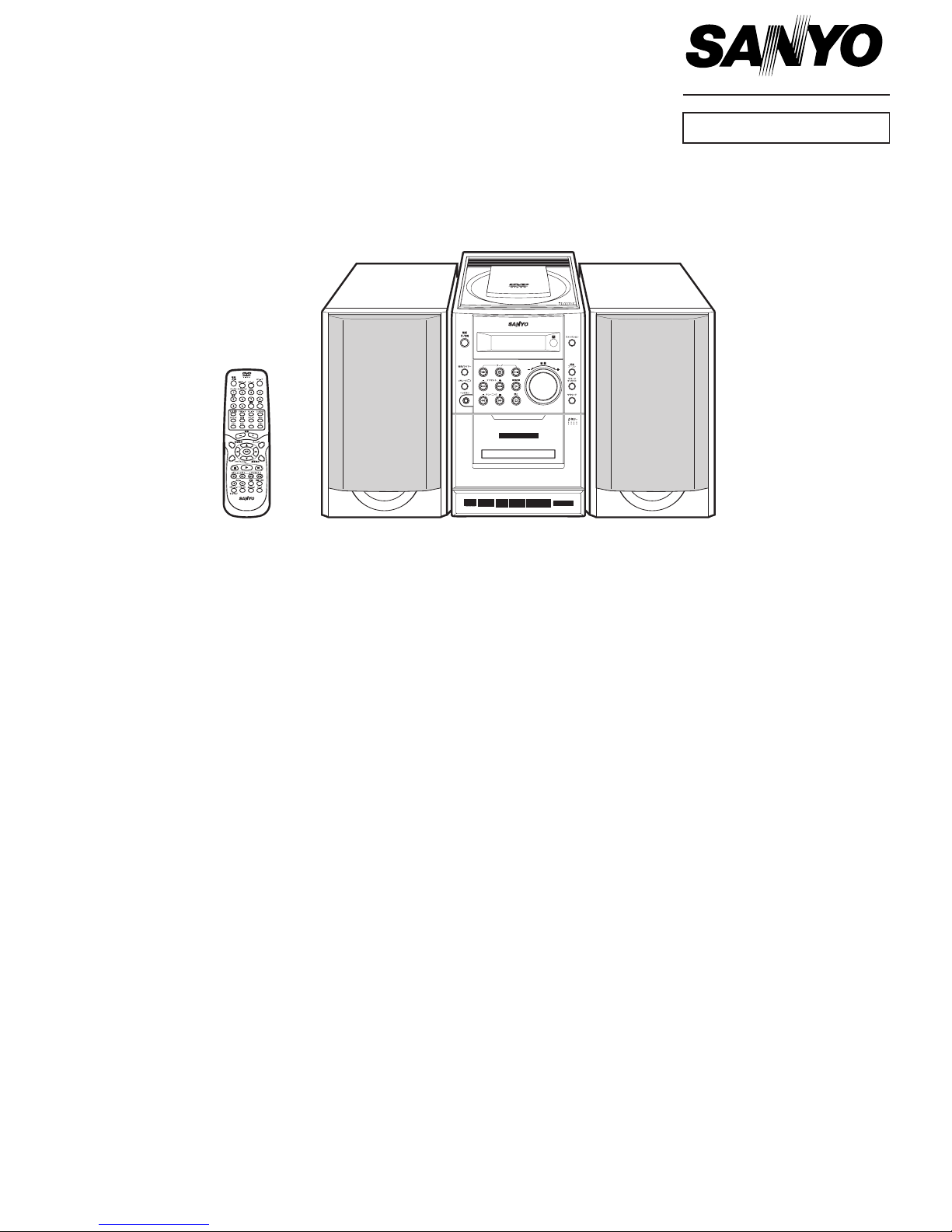

DVD Micro Component

System

DC-PT70

(UK)

(XE)

PRODUCT CODE No.

129 696 03 UK

129 696 04 XE

REFERENCE No. SM5810572

Laser beam safety precaution .......................................... 1

DVD Mechanism Replacement ........................................ 1

Service mode ................................................................... 2

Important Note ................................................................. 5

How to load software for MPEG P.W.Board .................... 5

Cautions for PWB or IC assy exchange ........................... 5

Cautions FM antenna wire ............................................... 5

How to take out a disk ...................................................... 5

Tuner adjustment ............................................................. 6

Exploded View (Cabinet & Chassis) ................................ 7

Parts List .......................................................................... 8

Wiring Connection ........................................................... 13

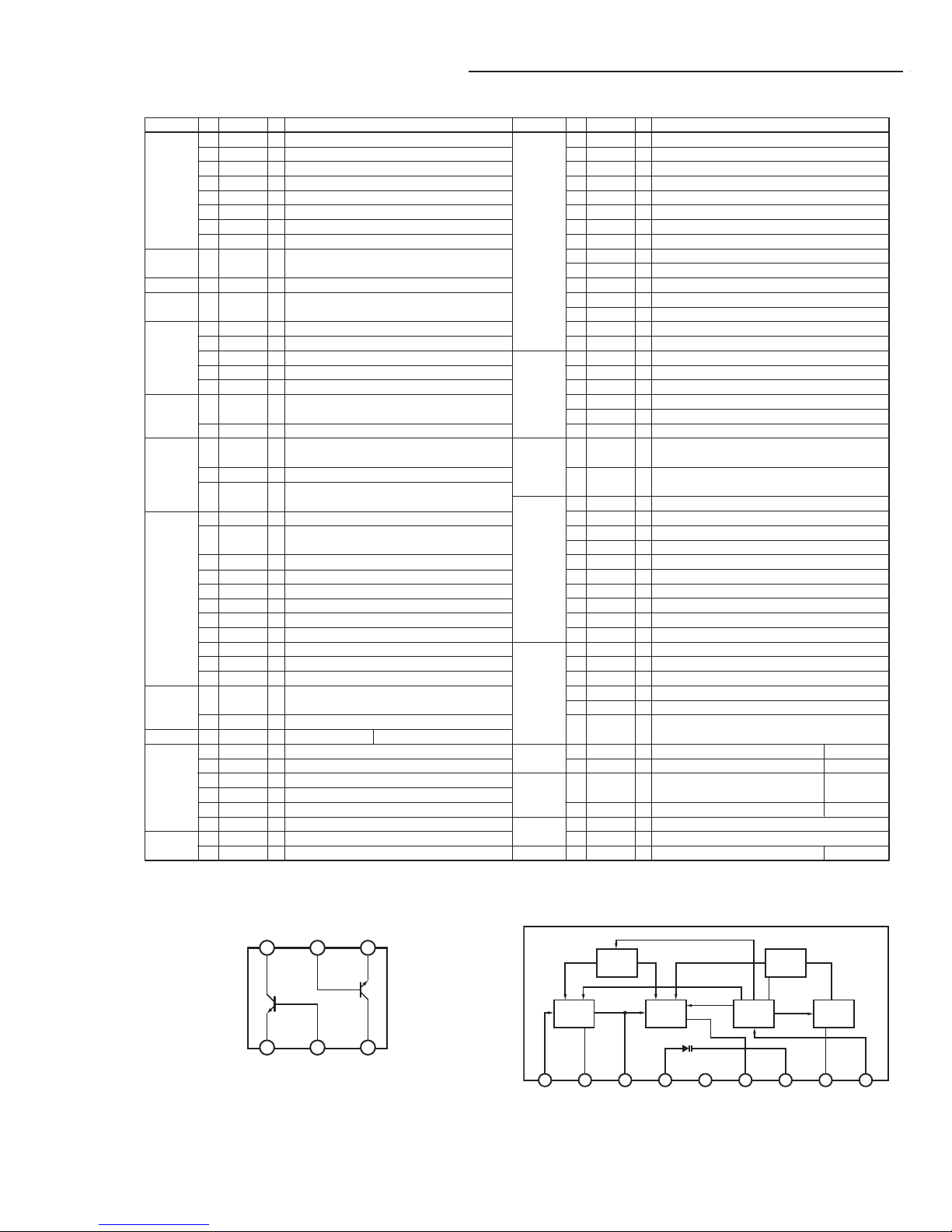

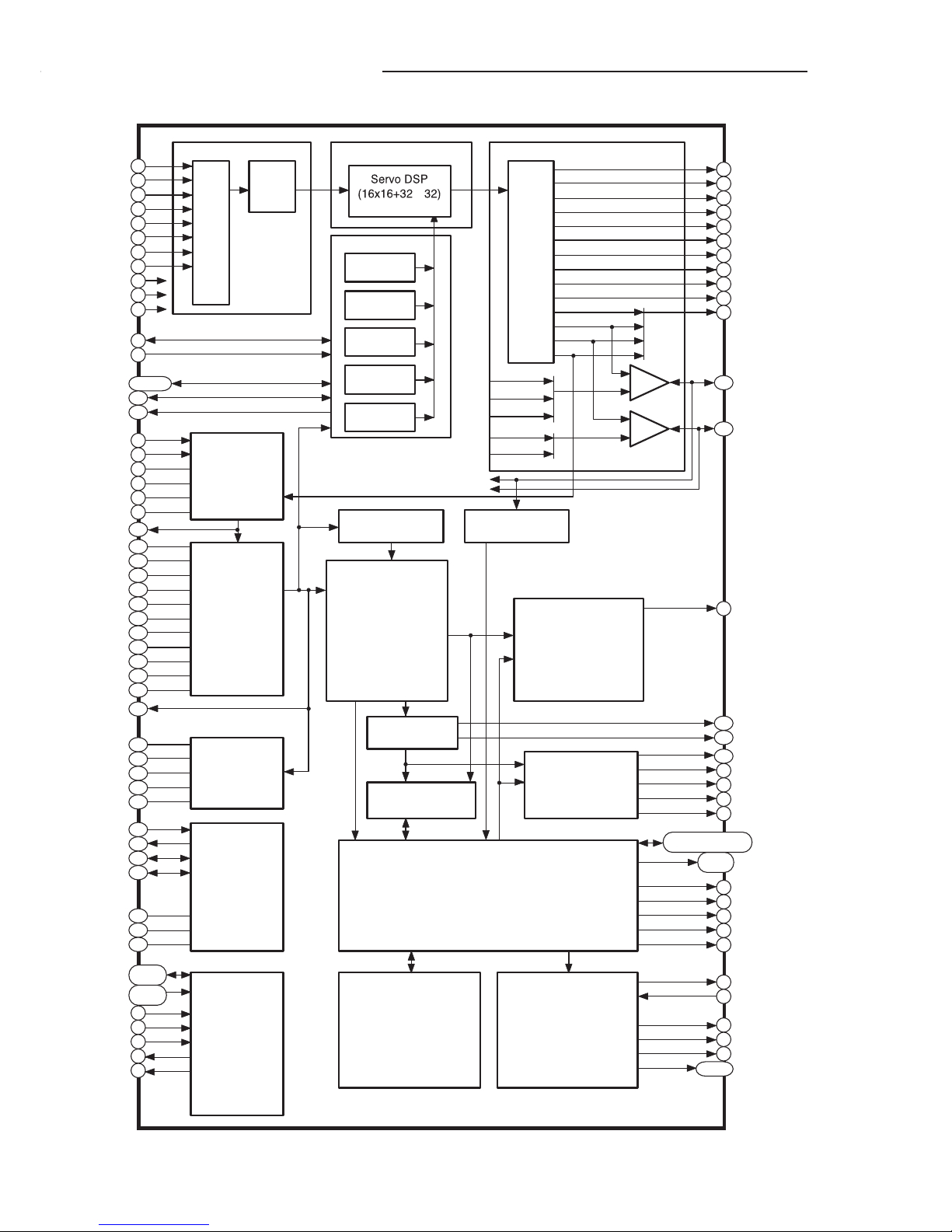

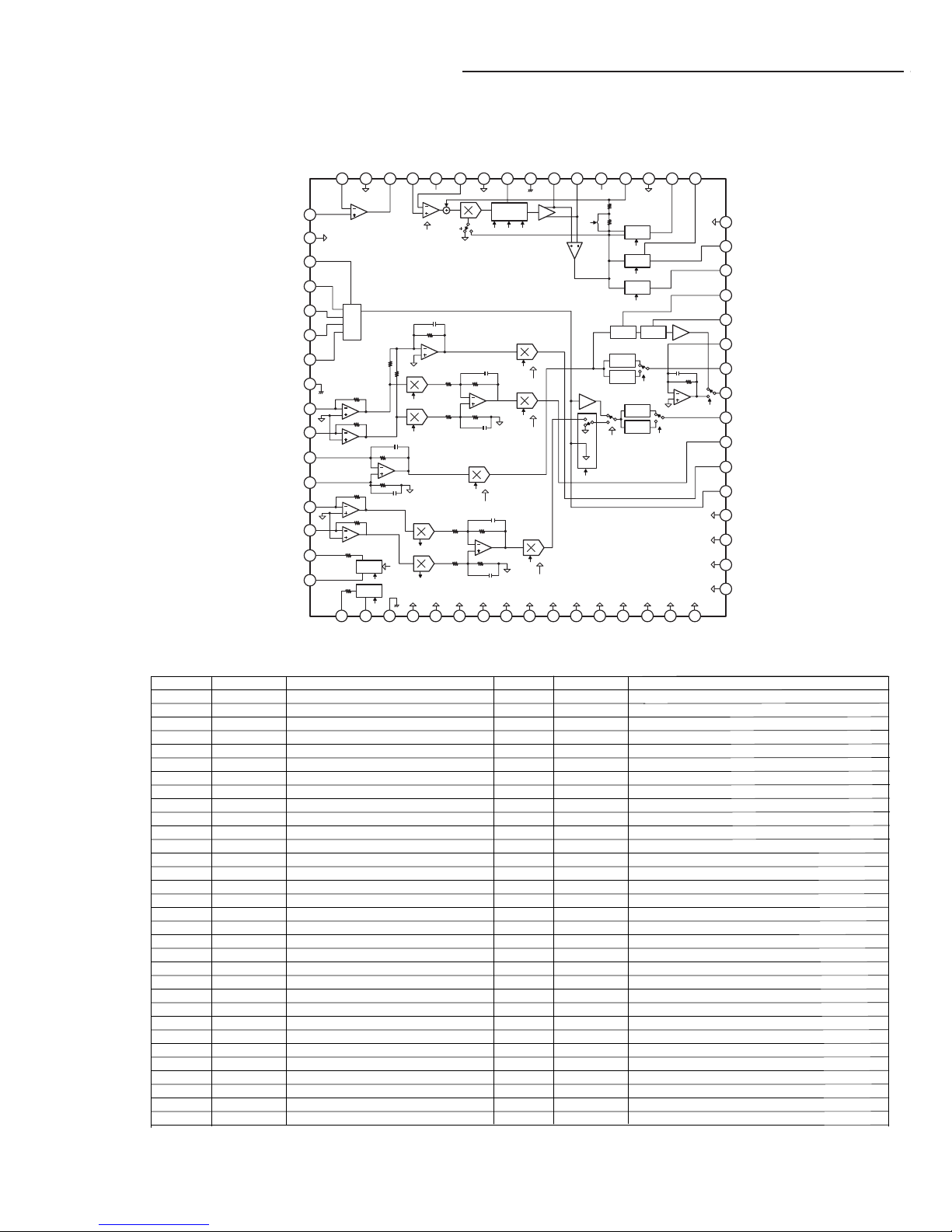

IC Block Diagram & Description ....................................... 14

Schematic Diagram .......................................................... 30

Wiring diagram ................................................................. 42

REMOTE CONTROLLERRB-DVD1JP

- 1 -

LASER BEAM SAFETY PRECAUTION

•Pick-up that emits a laser beam is used in this CD player section.

1. Cautionary instructions in handling the assy

(Safety instructions)

Optical pickup

The laser beam used in the pickup is classified as "class 2". Ex-

posing your eyes or skin to the beam is harmful. Take care not to

do so.

(Caution against static electricity and leakage voltage)

Ground securely the work tables, tools, fixtures, soldering irons

(including those made of ceramic) and measuring instruments

used in the production lines and inspection departments that

handle loaders. The workers shall also be grounded.

(Cautionary instructions in handling)

Do not touch the object lens when handling a loader, or the lens

will be stained, resulting in inadequate playability.

There is no power supply protection circuit provided for this prod-

uct or adjustment/inspection device. Short-circuiting may lead to

fire or damage.

Take care so as to protect from exposure to water, the entry of

metallic pieces or dew condensation.

In particular, a strong magnet adjacent to the pickup will not only

get inoperative but can damage the pickup if a small metallic

piece, such as a screw or swarm, enters.

The loader edge can cause injury if inadvertently handled.

Do not touch a rotating disk, or injury may result.

This product is a precision device. Handle carefully.

A shock or dropping will cause misalignment or destruction. If it

should occur, refer to clause 2.

This product is so designed as to endure an initial shock equiva-

lent to a drop from a height of approx. 90 cm under the packed

condition.

After the initial shock, the resistivity will still remain at a level of

50 to 60 G, but the mechanical robustness will weaken.

Do not place in a dusty location.

The entry and deposition of dirt into or on the pickup lens or

moving section will cause malfunction or degradation.

DVD MECHANISM REPLACEMENT

(Connectors)

Do not connect or disconnect while power is on.

Connecting or disconnecting signal wires or the main power cord

when the power is on may destruct the unit or fixture.

When connecting, push all the way in securely.

An insufficient insertion may cause a bad contact, leading to an

erroneous operation.

Do not connect or disconnect roughly by an excessively strong

force, or a broken wire or bad contact may result.

Semiconductors are connected. Do not touch connector termi-

nals directly.

If the worker is grounded, there is nothing to worry about static

electricity, but the rust on the connector terminal surface caused

by the touch may result in bad contact.

(Caution)

Before disconnecting FFC

cable, make it "SHORT" as

shown left.

After connecting FFC

cable,make it "OPEN" as

shown left.

(Power source)

The power source need be good in quality (free from instanta-

neous interruptions or noises).

A low quality power source may well cause malfunction.

(Storage)

Do not place or store in a dusty place or a place where dew

condensation is possible.

The entry and deposition of dirt or dust into or on the pickup lens

or moving section will cause malfunction or degradation.

Also, dew condensation causes rust; the rust penetrate into the

precision part of a pickup, causing malfunction, or degrading the

optical quality of the internal lens and reflector, which also leads

to malfunction.

(OPEN)(SHORT)

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE

LASER OUTPUT.......... 0.6 mW Max. (CW)

WAVELENGTH ............. 790 nm

CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE

FOR STRÅLING.

VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD

OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.

VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN

DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG

ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.

VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

- 2 -

RegionUndefined

SERVICE MODE

B. How to enter Service Mode.

You can enter Service Mode in any one of the following ways (1 to 3).

1. Using the buttons on the main unit

1-1. Dislay on "No Disc" by Function button.

1-2. Immediately (within one second) after pushing sound preset button both and buttons simultaneously,

push button.

A. Market / Region SETUP

In the initial condition for this model, Market and Region

information are undefined.

In the following cases, be sure to set up Market/Region.

1. When updating the system using CD-R

(Part code :0PRADC9695--A ).

2. When replacing a DVD substrate.

While Market/Region information are undefined, the message

"Region Undefined" is displayed on the screen.

NOTE: Even if the condition is not under 1 or 2 above, if the

message "Region Undefined" is displayed, be sure to set up

Market/Region.

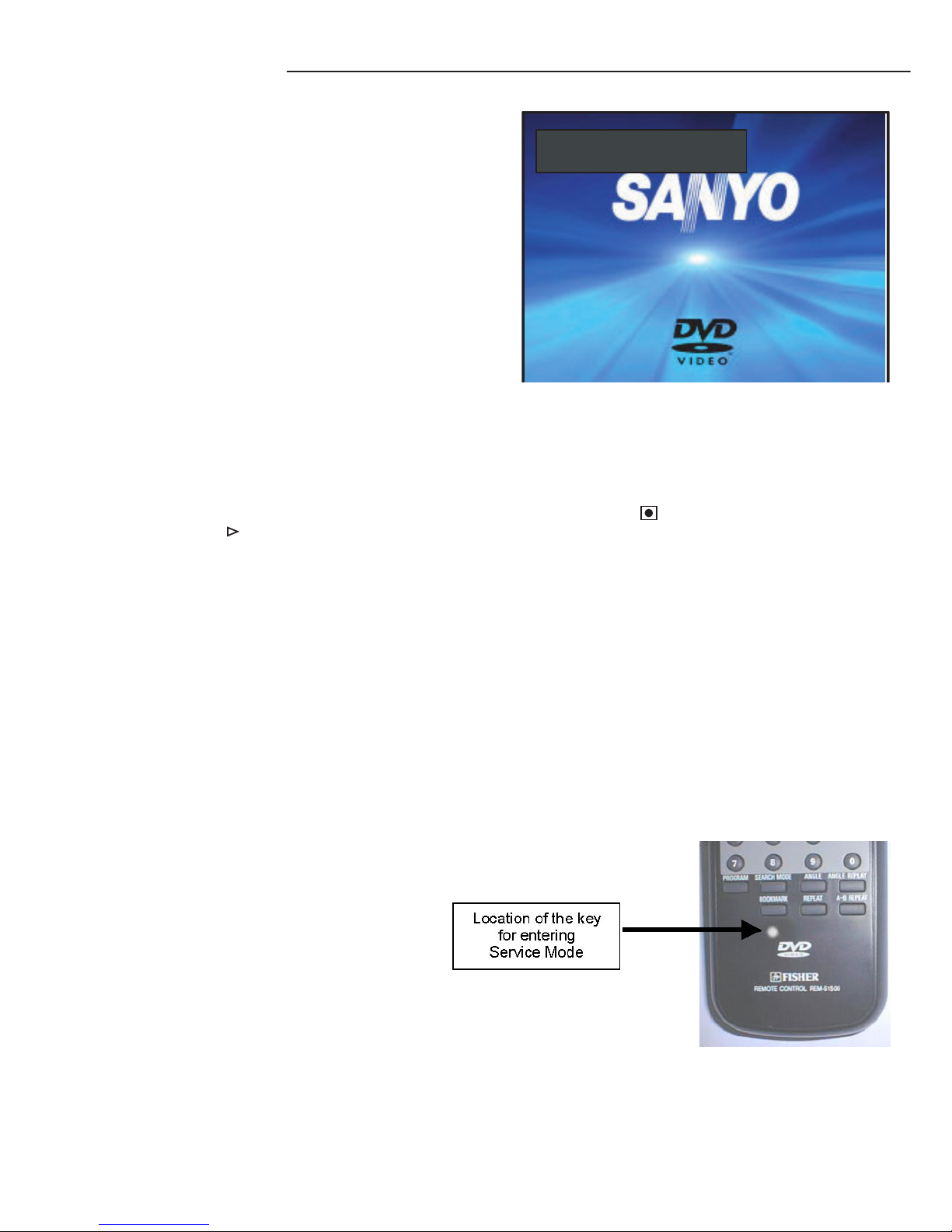

2. Pushing the covered key located beneath Book Mark key on RB-

1500 or REM-S1500.

3. Simultaneously pushing both Shift key and ON SCREEN key on RB-TS780.

- 3 -

SERVICE MODE

C. Setup Procedures

1. Displaying SERVICE MODE screen

Display Service Mode screen following the instructions "How to

enter Service Mode" above.

Region0 Market

BackendVersion S31130A0

LoaderVersion 17 Z09 Y03

Value

2. Displaying Internal Setup screen

Push button within three seconds after operating the

Service Mode display.

On the Internal Setup screen shown on the right, set up Market

and Region.

3. Setting Market code

3.1. While a highlighted indicator is displayed on the right side

of the Market denotation, push numeric buttons on the

remote controller.

When you push wrong number , push CLEAR button.

(The indicator reset to "00")

Be sure to input by double figures.

Maket code of UK model is "02", and XE model is "03".

3.2. Specify the code of the model in accordance with the

Market/Region Setup Table above.

3.3 Once the desired code is displayed, push p button to

move the highlighted indicator to the Region input area.

Internal Setup

Market WM

Region 2

Exit

00-WM 01-SFC 02-UK 03-XE 04-S18

05-

SS 06-PA 07-AU 08-CN 09-JP

10-FXE 11-MX 12-NT

Internal Setup

Market WM

Region 1

Exit

00-WM 01-SFC 02-UK 03-XE 04-S18

05-SS 06-PA 07-AU 08-CN 09-JP

10-FXE 11-MX 12-NT

(Reference figure)

- 4 -

SERVICE MODE

4. Setting REGION code

4.1 While a highlighted indicator is displayed on the right side

of the Region denotation, push ENT, and each button

on the remote controller. With each push the indicator will

advance as shown below.

1 <-> 2 <-> 3 <-> 4 <-> 5 <-> 6

5. Saving settings

5.1 Make sure that the Market and Region settings are properly

set.

(If any of the settings are incorrect, you can make a change

by moving the indicator using obutton, and following

procedures 3 and 4 above. )

5.2 After ensuring that the settings are all correct, push ENT

button while the indicator is on Exit area. The settings are

now saved.

6. Finishing settings

6.1 After a few seconds, the Internal Setup screen disappears,

and then the Service Mode screen is displayed again for

three seconds as shown on the right.

You should check the settings.

Region2 Market

BackendVersion S31204A2

LoaderVersion 17

Z09

Y03

Value

6.2 Power OFF.

Internal Setup

Market 00

Region 1

Exit

00-WM 01-SFC 02-UK 03-XE 04-S18

05-

SS 06-PA 07-AU 08-CN 09-JP

10-FXE 11-MX 12-NT

Internal Setup

Market 00

Region 1

00-WM 01-SFC 02-UK 03-XE 04-S18

05- SS 06-PA 07-AU 08-CN 09-JP

10-FXE 11-MX 12-NT

Exit

Backend version S 31204 A 2

Brand (S : SANYO , F : FISHER)

Version ( 2 0 0 2 . 12 . 25)

Sub Version (A,B,......Z)

Region ( 0 : Region undefined

1 ~ 6 : Region defined )

Loader Version (17 Z09 Y03)

(Reference figure)

4.2 Set up the region coder currently displayed on the set.

4.3 Once the desired number is displayed, push pbutton to

move the highlighted indicator to Exit area.

The sample of a display of a region

code.

- 5 -

SERVICE MODE

D. IMPORTANT NOTE

1. Once the "Market/Region" settings are written into EEPROM (IC801) on the DVD substrate, they cannot be reset.

(However, updating the system using CD-R enables you to make new settings.)

2. While the Internal Setup screen is displayed, pushing the Power button enables you to terminate the operations without

making any settings.

HOW TO LOAD SOFTWARE FOR MPEG P.W.BOARD

1. Power on, then open disk lid.

2. The function key of remote control is pushed and it is made DVD/CD mode.

3. It take on CD-ROM for UPDATE software to the tray, and disk lid close.

4. It is displayed on a screen as "Reading" and is displayed on LCD as "READING."

5. A screen will become noise-like if UPDATE is started.

Cautions) update is not ended even if rotation of a disk stops.

3. For the time being, tray open and FL display remain "UP DATING".

4. Loading of software will be completed, if update is started and about 60 seconds pass,

then the display of "update" of LCD will be "GOOD-BY" and disappears soon.

5.The disk for update is taken out.

6. Next, set up market code and region code by "SERVICE MODE"

CD-ROM part code is "0PRADC9695--A".

CAUTIONS FOR PWB OR IC ASSY EXCHANGE

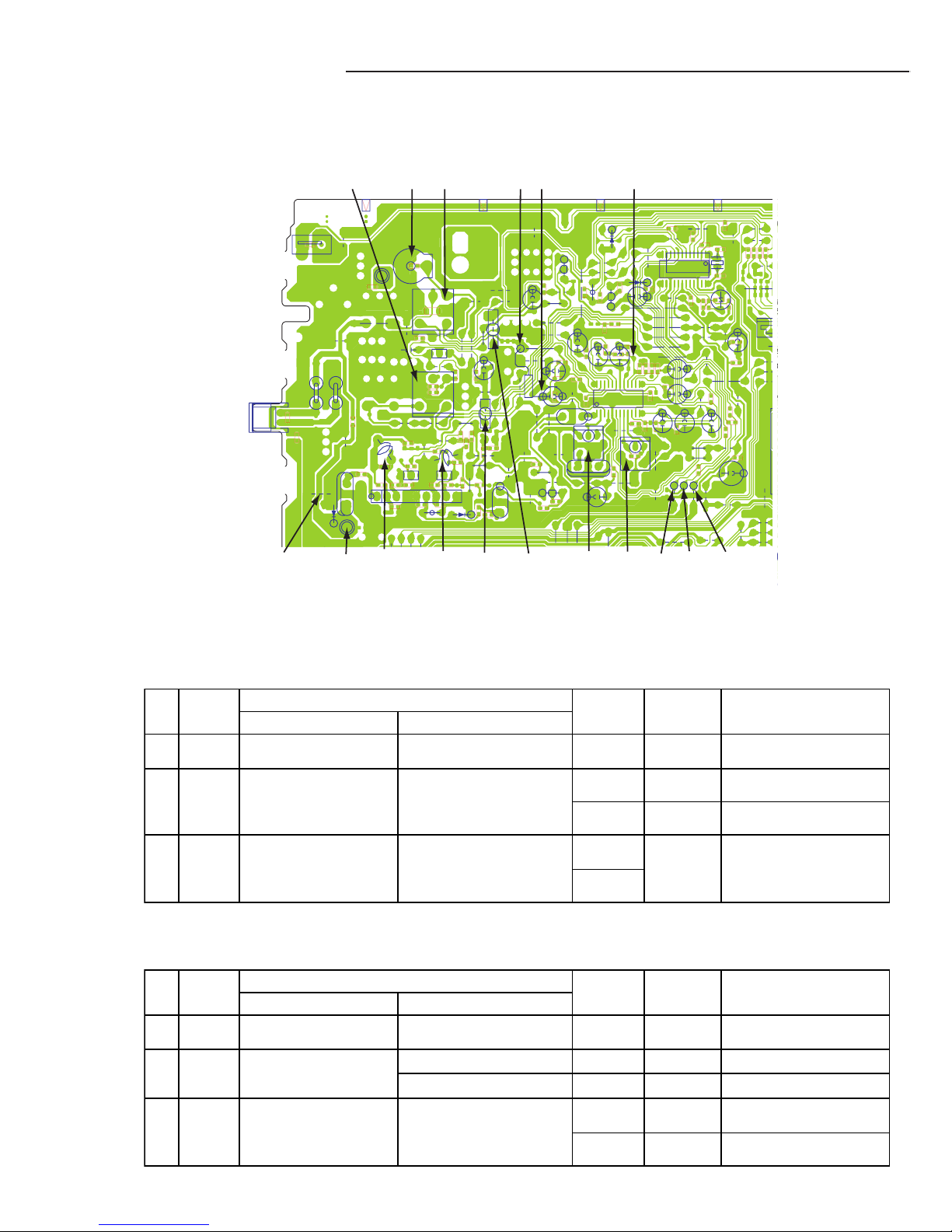

After an MAIN board(614 329 5587) or IC ASSY(410 507 6601) exchange should carry out loading of the software by the

newest CD-R, and should check operation.

CAUTIONS FM ANTENNA WIRE

The knot is made so that FM antenna line may not enter during a set of a line. If it enters in a set of FM antenna line, There is a

danger that a line will melt into the high-fever part in a set.

Be careful of below at things at the time of disassembly of a set, and an assembly.

At the time of disassembly of a set

Remove thermal shrinkage tube, and disassemble a set after loosening the knot of a line.

At the time of the assembly of a set

Make a knot to the place distant from the end of a line 885mm or more, fix a knot to it by thermal shrinkage tube(parts code :

614 330 9918 ULSUMITUBE-F2,D4.0), and a line should not enter it from a knot.

REAR CABINET

885 mm or more

FM ANT.

Thermal shrinkage tube

(parts code : 614 330 9918 ULSUMITUBE-F2,D4.0)

- 6 -

Input Output

IC231 3-22Pin

TP24,25

TP11 (H)

TP12 (E)

90.0MHz

106.0MHz

Input Output

1IF

Adjustment Loop Ant IC231 19Pin_DCCUT

(TP26)-GND 522kHz T2002 Max.

---

603kHz L2151 Max.

1404kHz CT252 Max.

0.0±0.05V

About 1.1V

FM Ant

SG=66dBµV

87.5MHz

98.0MHz XF233

L2103

Remark

Frequency

2Cover

Voltage --- TP11 (H)

Adjustment

---

1. FM

Step Adjusting

Circuit

Connection

108.0MHz

Tracking3

2 Cover

Remark

2. AM

Step Adjusting

Circuit

Connection SG

Frequency Adjustment

3 Tracking

522kHz

TP13 (L)

TP14 (R)

TP15 (E)

TP12 (E) 1710kHz

---

L2153

Confirm voltage is < 8.0V

Loop Ant

SG=80dBµV/m

TP13 (L)

TP14 (R)

TP15 (E)

FM Ant

SG=8dBµV L2102 Max.

1.0±0.1V

Confirm voltage is < 8.5 V.

TUNER ADJUSTMENT

Antenna : 75Ωunbalanced direct, Modulation : 1 kHz

Dev. : ±22.5kHz(MONO), ±22.5kHz(STEREO),±6.75kHz(PILOT)

RF Level : dBuV EMF

Output Level : about 100mV at TP13, TP14, TP15

Anntena : IRE Loop(SG), Moduration : 1kHz 30%

RF Level : dBuV EMF

Output Level : about 100mV at TP13, TP14, TP15

• Use a plastic screw driver for adjustments. • MODE : ST (Stereo)

• Speaker impedance : 8 ohms • TUNING FM : 87.5 - 108MHz

AM : 522 - 1710 kHz

ABCD

VGND

DVD/TV-L

AGND

DVD/TV-R

FR_GND

DGND

D9V

LID_SW

D-MUTE

D5.6V

DVD_PCON

DIP

13 24

CN445

TU DI

TU_DOUT

GND

J4408

J4416 J4016

J4013

J4018

J4015

J4019

J44

CN400

J44

J4413

J4412

J4411

R4602

4423

4422

4421

4420

J4418

J4012

J4400

J4414

CN420

D2453

X2451

C2457

L2151

L2153

L2451

C2451

XF233

D2103

J2210

D2153

Q2451

J2201

XF221

XF222

C2321

C2305

C2328

C2327

C2307

C2317

T2002

J2218

C2303

J2108

J2204

J2101

J2103

J2104

J2022

J2105

J2031

C2116

R_CH

L_CH

+9.0V

GND

J2016

J2017

J2019

J2216

IC231

IC241

J2211

J2033

J2015

J2025

R2109 TP11(H)

J2213

CN201

S2001

IC211

J2009

J2011

J2012

C2306

J2024

L2104

D2102

L2103

C2311

C2313

J2030

J2214

J2212

J2026

J2002

J2045

J2044

J2043

J2028

J2032

J2034

J2035

J2205

CT252

J2001

J2209

D2101

J2207

Q2201

J2046 J2036

C2901

J2005

CN202

J2203

J2014

J2208

J2106

J2107

J2013

J2206

J2006

XF211

J2029

J2042

J2219

J2038

J2020

J2007

R2148

C2151

LC72121M

LA1844ML

J2102

J2018

J2023

L2102

R2101

R2202 R2203

R2301

J2047

C2301

R2311

J2037

J2027

J2008

J2041

D2104

C2458

J2021

Q2450

D2450

J2202

J2004

J2215

J2039

J2010

J2040 TP12(E)

0V-ADJ

LA1186N

J2048

J2217

R2140

C2140

L2101

L2100

CN203

XF231

R4123

4129

4127

R4121

4131

CAN

R2303

IC241

IC231

C2461

C2456

R2453

R2452

C2455

C2154

R2131

R2149

R2151

C2453

C2454

C2304

R2304

R2305

R2306

C2320

C2319

C2309

C2316

R2307

R2309

R2308

C2308

C2310

C2312

R2302

C2902

R2801

R2701

R2100

R2712

R2812

C2314

C2302

C2462

C2600

C2322

C2463

C2464

C2318

R2106

C2323

C2101

C2105

C2103

C2107 R2102 R2107

C2110

C2111

R2108

C2112

R2103

C2114

C2113

R2110

R2201

R2204

C2452

R2111

C2104

C2102

C2106

C2141

C2152

C2115

R2120

C2203

R2105

C2109

C2330

R2358

R2454

R2455

R2464

R2462

R2461

R2463

R2450

R2460

R2459

R2451

C2315

R2456

C2998

SG201

SG202

L2153 CT252 L2151 TP25 TP24

L2102 L2103 TP11 TP12 T2002 XF233 TP13 TP15 TP14

FM ANT.(H)

FM ANT.(E)

TP26

- 7 -

EXPLODED VIEW (CABINET & CHASSIS)

60(UK)

60(XE,SS,KR)

Y05

Y01

Y06

Y15

Y13

Y17

Y19

Y18

Y20

Y20 Y21

Y24

Y21 Y25

Y14

Y16

Y02

12 17

51 30

Y03

Y07

Y09

Y10

Y09

Y10

Y12

Y07

Y08

Y03

Y11

SCART PWB(UK,XE Only)

- 8 -

PARTS LIST

CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.

Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.

PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE

IEC SYMBOL !

!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND

PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !

!! , USE ONLY THE

REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT

ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE

MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE

RETURNING THE PRODUCT TO THE CUSTOMER.

REF.NO. PART NO. DESCRIPTION

PACKING & ACCESSORIES

REF.NO. PART NO. DESCRIPTION

645 063 7483 ASSY,ANTENA,LOOP

645 066 9330 CABLE,VIDEO,CABLE,VIDEO

614 329 5303 CARTON CASE(UK)

614 329 5310 CARTON CASE(XE)

614 329 0315 CUSHION,FRONT

614 329 0322 CUSHION,REAR

614 329 5365 INSTRUCTION MANUAL(UK)

614 329 5372 INSTRUCTION MANUAL(XE)

614 329 5426 INSTRUCTION MANUAL,GREEK(XE)

645 037 8102 POLY BAG-0150X0500*NC,

AC CORD(UK)

645 042 3628 POLY BAG-0150X0500*NC,

AC CORD(XE)

645 067 3887 POLY BAG-0180X0250*NC,

ACCESSORY

645 066 4410 POLY BAG-0250X0350*NC,

INST MANUAL

645 066 3864 POLY SHEET-0900X0300*NC,

SET(UK)

645 067 5164 POLY SHEET-0900X0300*NC,

SET(XE)

645 064 9356 REMOCON,RB-PT70,RB-PT70

30 614 330 1028 ASSY,BOX,SPEAKER(UK)

30 614 330 1721 ASSY,BOX,SPEAKER(XE)

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1614 319 6983 COVER,DECK(UK)

1614 325 7981 COVER,DECK(XE)

2614 319 7003 DEC,WINDOW,DECK(UK)

2614 326 3043 DEC,WINDOW,DECK(XE)

3614 320 3520 SPRING,WIRE,DOOR DECK

4614 319 7096 LID,CASSETTE

5614 329 0469 PANEL

6614 329 5228 ASSY,PANEL FRONT(XE)

6614 329 5211 ASSY,PANEL FRONT(UK)

7614 319 7072 KNOB,VOLUME

8614 303 1277 LATCH,CAM,DECK DOOR LOCKING

9614 309 7969 ASSY,GEAR,LID CASSETTE

10 614 330 0816 BUTTON,OPERATION,11 KEYS(UK)

10 614 330 0809 BUTTON,OPERATION,11 KEYS(XE)

11 614 319 6945 BUTTON,RIGHT,4 KEYS

12 614 325 7974 BUTTON,POWER

13 614 328 7322 SHIELD,MPEG

14 614 328 7254 MOUNTING,MPEG

15 614 325 5369 SPACER,MECHA,BASE MECHA FIX

16 614 328 7193 COVER,PICK UP

17 614 328 7261 MOUNTING,DVD

18 614 322 2125 ASSY,GEAR,LID DVD

19 614 303 0263 LATCH,PUSH,DVD DOOR LOCKING

20 614 328 8442 SPRING,LID DVD

21 614 328 7247 LID,DVD

22 614 330 0847 DEC,WINDOW,DVD(XE)

22 614 330 0854 DEC,WINDOW,DVD,LID(UK)

25 !

!! 614 330 0465 PWB,STOPPER,STOPPER

27 614 329 5150 ASSY,CABINET,REAR(XE)

27 614 329 5143 ASSY,CABINET,REAR(UK)

28 614 328 2877 ASSY,MECHA,

KIT800 SE BASE,BASE MECHA

29 614 329 8465 MOUNTING,TRANS,

TRANS

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

Y01 411 156 2105 SCR S-TPG BIN 2.3X6,

PANEL+PANEL FRONT

Y02 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+LATCH CAM

Y03 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+DECK MECHA

Y05 411 020 8905 SCR S-TPG BRZ+FLG 3X10,

MTG DVD+ASSY.GEAR LID DV

Y06 411 021 3503 SCR S-TPG BIN 3X10,

FRONT PWB+MTG DVD

Y07 411 021 6405 SCR S-TPG BIN 3X8,

SHIELD MPEG FIX

Y08 411 021 6405 SCR S-TPG BIN 3X8,MPEG FIX

Y09 411 132 4703 SCR S-TPG BIN 2X10,DVD MECHA

Y10 411 185 0103 WASHER Z 2.1X9.5X0.5,

DVD MECHA

Y11 411 153 0708 WASHER Z 3X15X0.8,

REAR+P-TRANS

Y12 411 021 0809 SCR S-TPG BIN 2X6,

DVD MECHA COVER

Y13 411 020 8905 SCR S-TPG BRZ+FLG 3X10,

F-PANEL+ASSY.GEAR DECK

Y14 411 021 4906 SCR S-TPG BIN 3X20,

F-PANEL+MOUNTING DVD

Y15 411 021 3503 SCR S-TPG BIN 3X10,

MAIN PWB +MTG DVD

Y16 411 184 0906 SCR S-TPG BIN 2.3X10,

LID DVD+DEC WINDOW DVD

Y17 411 098 4403 SCR S-TPG BIN 3X25,

REAR+P-TRANS

Y18 411 021 3503 SCR S-TPG BIN 3X10,

REAR+PWB STOPPER

Y19 411 098 4403 SCR S-TPG BIN 3X25,

REAR+PANEL FRONT

Y20 411 098 7800 SCR S-TPG FLT 3X12,

REAR+MTG(L/R)

Y21 411 021 6405 SCR S-TPG BIN 3X8,

SHIELD BOTTOM

Y24 411 021 3404 SCR S-TPG BIN 3X10,REAR+OUT

Y25 411 021 3404 SCR S-TPG BIN 3X10,

SHIELD REAR FIX(XE)

ELECTRICAL-PARTS

REF.NO. PART NO. DESCRIPTION

26 645 031 7637 CORE,FERRITE,FOR AC CORD

or 645 051 0649 CORE,FERRITE,FOR AC CORD

51 614 329 9516 ASSY,WIRE,AMP-DECK

52 614 330 9093 CORD,1P CONNECTOR,

TUNER GND-SHIELD

53 645 067 5577 FLEXIBLE FLAT CABLE

54 614 330 6122 ASSY,WIRE,AMP-DVD

55 614 329 0414 ASSY,WIRE,FRONT-DVD

- 9 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION

56 645 066 2430 FLEXIBLE FLAT CABLE,MECHA

57 645 066 2423 FLEXIBLE FLAT CABLE,PICK-UP

58 614 274 2013 CORD,ID CONNECTOR,FM ANT

59 614 329 3170 ASSY,WIRE,AMP-DG

60 !

!! 645 036 9797 CORD,POWER-1.6MK,FOR UK(UK)

or !

!! 645 036 9803 CORD,POWER-1.6MK,FOR UK(UK)

or !

!! 645 054 0233 CORD,POWER-1.6MK,FOR UK(UK)

60 !

!! 645 016 9939 CORD,POWER-1.74MK,FOR XE(XE)

or !

!! 614 255 2513 POWER CORD,FOR XE(XE)

61 !

!! 645 067 0282 TRANS,POWER

62 645 051 0656 CORE,FERRITE,

DG-MAIN,DVD-MAIN,FRONT-DVD

or 645 042 8999 CORE,FERRITE,

DG-MAIN,DVD-MAIN,FRONT-DVD

63 614 330 6139 ASSY,WIRE,DVD-SCART

REF.NO. PART NO. DESCRIPTION

FRONT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

71 614 329 9851 ASSY,PWB,FRONT(UK)(Only initial)

71 614 330 1738 ASSY,PWB,FRONT(XE)(Only initial)

BRC60 614 328 7209 COVER,LED,COVER_LED

BRH60 614 328 7230 HOLDER,LCD,HOLDER_LCD

BRS60 614 327 1512 DEC,SHEET,LCD,DEC_SHEET_LCD

CN601 645 009 8444 SOCKET,FFC 24P

CN602 614 310 2656 PLUG,9P

or 645 006 0960 PLUG,9P

D6211 407 225 7300 LED LT03B3-43-URE1(UK)

D6211 408 053 4004 LED LT0334-43-UBC1,

AMBER_LED(XE)

DS601 407 232 4002 PHOTO DIODE SPS-440-1-VG

IC601 410 507 6908 IC LC877440A-53C2

IC602 410 429 7908 IC AT24C02N-10SI-2.7

or 410 448 8504 IC S524A40X21-SCB0

or 410 448 8405 IC S524A40X21-SCT0

IC603 409 575 1908 IC PST3645U

L6010 645 001 4550 INDUCTOR,10U K

LCD61 645 065 1656 LCD

LG601 614 129 9082 LUG

Q6108 405 011 8500 TR 2SC1740S-R

or 405 011 8609 TR 2SC1740S-S

or 405 017 9600 TR 2SC3330-T

or 405 017 9709 TR 2SC3330-U

or 405 143 8706 TR KTC3199-GR

Q6211 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M

Q6212 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M

Q6271 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M

Q6272 405 004 4601 TR 2SA608-F-SPA

or 405 004 5103 TR 2SA608-G-SPA

or 405 006 1806 TR 2SA933S-R

or 405 006 1905 TR 2SA933S-S

or 405 143 6504 TR KTA1267-GR

S6001 645 054 1230 SWITCH,ROTARY(ENCODER)

S6110 614 220 5471 SWITCH,TACT

or 614 240 1002 SWITCH,TACT
