Sanyo DC-SLIM3000 User manual

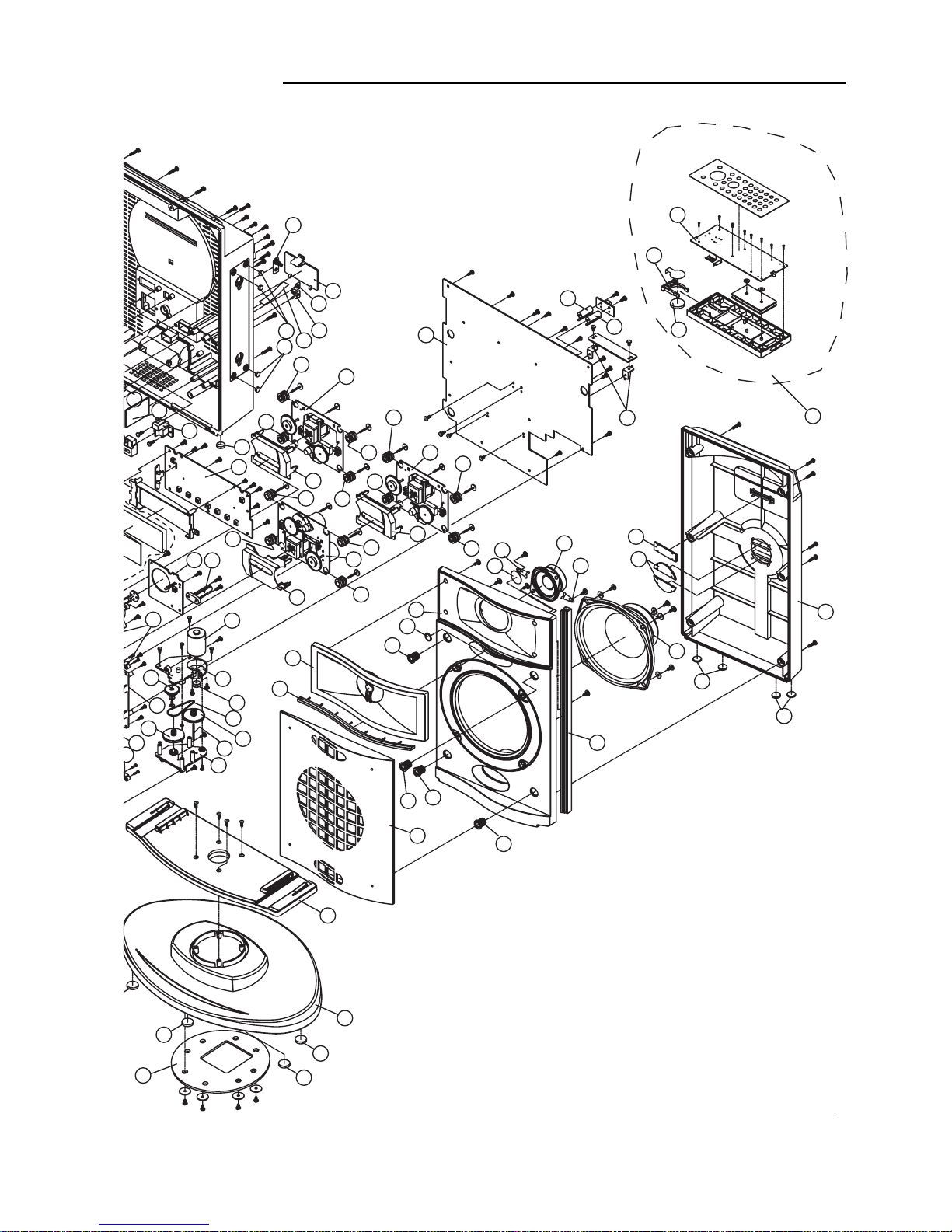

EXPLODED VIEW
2
1
10
1
2
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
35
36 37
38
39
3
5
6
8
9
40
41
42
43
44
4
46
47
48
49
50
51
52
54
55
56
57
59
61
63
65
68
73
71
74
75
78
79
80
81
82
83
33
34
85
87
89
91
100
108
109
110
79
70
70
56
56
69
69
72
72
72
75
7
73
19
41
89
41
17
90
90
45
45
45
21
18
93
94
92
99
95
112
113
114

EXPLODED VIEW
3
11
12
15
2
4
7
4
1
45
53
58
60
62
64
66
67
72
73
76
77
84
85
86
88
89 90
91
96
97 98
101
102
103
104
105
106
107
72
75 75
54
55
73
73
56
56
56 56
65
78
76
77
76
77
76
77
76 77
76
77
15
15
41
11
69
69
71
99
10
74
20
51
21
18
101
101
93
92
94
111

PARTS LIST
4
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL IN THE PARTS LISTAND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICE SAFETY CAN BE OF
SPECIAL SIGNIFICANCE. WHEN REPLACINGA COMPONENT IDENTIFIED BY , USE ONLY THE REPLACEMENT PARTS DESIG-
NATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THATARE DESIGNATED IN THE PARTS
LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EX-
POSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUS-
TOMER.
REF NO. PART NO. DESCRIPTION
PACKING &ACCESSORIES
76-01A300000420 GIFT BOX
77-20A300000420 INSTRUCTION MANUAL(E)
45-184330000020 SPK CORD 3.3M (GREY/BLK)
02-32A200000000 AM LOOPANTASS'Y
44-316445052520 2P WIRE L=4500mm
FRONT PANEL & CABINET
1 56-02A300018000 MOTOR BOX -L1
2 56-02A300028000 MOTOR BOX -R1
3 56-02A300038000 MOTOR BOX -L2
4 56-02A300048000 MOTOR BOX -R2
5 56-04A30000A010 FRONT CAB(HIPS)
6 56-05A300008000 REAR CAB(HIPS)
7 56-06A300008000 BATTERY DOOR
8 56-07A300000000 SELECT DISC KNOB LENS HLD
9 56-07A300010000 VOL KNOB LENS HOLDER
10 56-07A300048000 PCB BKT (T)
11 56-07A300058000 PCB BKT (-)
12 56-07A300068000 DECK BKT
13 AU-56A300000040 CD DOOR-LEFTASS'Y
14 AU-56A300000050 CD DOOR-RIGHTASS'Y
15 56-15MS0661B000 LASER COVER
16 56-22A30000A000 TOP COVER
17 56-37A300000000 TRANSITION GEAR-A
18 56-37A300010000 MOTOR GEAR-1
19 56-37A300040000 TRANSITION GEAR-B
20 56-37A300050000 MOTOR GEAR-2
21 56-37A300060000 MOTOR GEAR-3
22 56-54A30000A000 EQ KNOB GROUP(1)5KEY
23 56-54A30001A000 EQ KNOB GROUP(2)4KEY
24 56-54A30002A000 IN LINE OUT KNOB
25 56-54A30003A000 FUN.KNOB GROUP 5KEY
26 56-54A30004G000 CD KNOB GROUP 9KEY
27 56-54A30005G020 VOL KNOB
28 56-54A30006G020 SELECT DISC KNOB
29 56-54A30007G000 CD DOOR OPEN KNOB
30 56-54A30008G000 POWER KNOB
31 56-54A30009G000 MODE LIGHT KNOB
32 56-54A3000AG000 BACKLIGHT KNOB
33 61-11A300000520 IRON BKT-L
34 61-11A300000620 IRON BKT-R
35 AU-56A300000060 BACK LIGHT LENSASS'Y
36 56-57A300030030 DISPLAY LENS
37 56-57A300040000 CD KNOB LENS 7KEY
38 56-57A300050000 SELECT DISC KNOB LENS
39 56-57A300060000 VOL KNOB LENS
40 56-57A300070000 MOON LIGHT LENS
REF NO. PART NO. DESCRIPTION
42 56-69A30001A000 FIX PLATE TOP
43 56-69A30002A000 FIX PLATE BOTTOM
44 56-69A300038000 PHONES PRESS SHEE
45 56-69A300048000 REAR CAB COVER PLATE
46 56-69A30005A020 LINE OUT COVER
47 56-71A30000G000 CHROME BAR
48 56-81000000B000 AC SOCKET COVER
49 56-07A300029000 BACK LIGHT LENS BKT
50 56-07A300039000 MOON LIGHT BKT
51 56-76M620R00000 MOTOR PULLEY
52 56-22A30001A000 TWEETER COVER-L
53 56-22A30002A000 TWEETER COVER-R
54 56-69A200068000 SHEET PLATE (A)-SPK BOX
55 56-69A200078000 SHEET PLATE (B)-SPK BOX
56 56-80S16800B000 SPEAKER PANEL STUD BLK
57 56-85A200018000 REAR CAB-SPK BOX-L
58 56-85A200028000 REAR CAB-SPK BOX-R
59 56-85A30000A000 SPEAKER SIDE-L
60 56-85A30001A000 SPEAKER SIDE-R
61 56-86A30000B000 SPEAEKR NET BKT-L
62 56-86A30001B000 SPEAKER NET BKT-R
63 56-87A30002G000 SPEAKER PANEL BAR-L
64 56-87A30003G000 SPEAKER PANEL BAR-R
65 56-87A30004A000 SPK BOX BAR
66 56-80A300008000 BOTTOM BASE
67 56-80A300018000 BOTTOM BASE BKT
68 57-26A300000020 FILTER SHEET(MOOD LIGHT)
69 58-262702250020 RUBBER FOOT
70 58-262952200020 HARD RUBBER FOOT
71 58-263122300020 HARD RUBBER FOOT
72 58-263122200120 HARD RUBBER FOOT
73 58-263162300020 HARD RUBBER FOOT
74 58-43A300000020 DRIVE BELT
75 61-90MS73300020 SPEAKER CLIP
76 58-61M520R02120 SHOCKABSORBER(PINK)
77 58-61M620R00120 SHOCKABSORBER(BLACK)
78 58-653120000020 SILVER CAP DIA 12.5MM
79 61-11A300000020 FIX PLATE
80 61-11A300000120 CD DOOR BKT-1
81 61-11A300000220 CD DOOR BKT-2
82 61-11A300000320 CD DOOR BKT-3
83 61-11A300000420 CD DOOR BKT-4
84 61-256600000020 BATTERY CONTACT PLATE(+)
85 61-25A160000020 BATTERY PLATE(+)
86 61-266600000020 BATTERY CONTACT SPRING(-)
87 61-26A160000020 BATTERY SPRING PLATE(-)
88 61-26SX88000022 BATTERY SPRING (+ -)
89 61-65A300000020 MOTOR SHAFT-AL=216.6mm

PARTS LIST
5
REF NO. PART NO. DESCRIPTION
90 61-65A300000120 MOTOR SHAFT-B L=26mm
91 61-37M620R00020 METALPLATE T=3mm
92 19-031153150020 SPEAKER 5.25”15W 4 OHM
93 19-032053100320 TWEETER 2”10W 4 OHM
94 19-100310000020 POCKET BUZZER DIA=20mm
95 41-210240010010 DOOR LOCK (LUCKY FIRST)
96 79-090101040000 RIBBON (BLACK) W=10mm
97 43-520300000001 AC SOCKET VDE APP
98 61-25SCD6600020 CONTACT PLATE
ELECTRICALPARTS
99 58-44X200000020 CD MOTOR MXN-13FB12F
100 18-206A30001120 TRANSFORMER 240V 12.5V
45-124200600060 AC CORD SET SAAAPP 2M
CD MECANISMASS'Y
101 20-70CMSB35BG60 CD MECHANISM CMS-B35BG6
REMOTE CONTROLASS'Y
102 02-17A300000011 REMOTE CONTROLASS'Y
103 05-13A300000000 REMOTE BOARDASS'Y
104 51-021301000050 LITHIUM BATTERY CR2032
105 56-44A16000A000 REMOTE BATT DOOR
MAIN PCBASS'Y
106 05-01A300000120 MAIN BOARDASS'Y
C104 25-014100930121 CERAMIC CAP 100PF 50V
C105 25-036150930121 MYLAR CAP 0.015UF 50V
C107 25-036100930121 MYLAR CAP 0.01UF 50V
C108 25-035270930121 MYLAR CAP 0.0027UF 50V
C109 25-035270930121 MYLAR CAP 0.0027UF 50V
C112 25-036330930121 MYLAR CAP 0.033UF 50V
C115 25-017100960121 CERAMIC CAP 0.1UF 50V
C116 25-036470930121 MYLAR CAP 0.047UF 50V
C119 25-036470930121 MYLAR CAP 0.047UF 50V
C123 25-017100960121 CERAMIC CAP 0.1UF 50V
C124 25-017100960121 CERAMIC CAP 0.1UF 50V
C125 25-017100960121 CERAMIC CAP 0.1UF 50V
C126 25-013150930121 CERAMIC CAP 15PF 50V
C127 25-013150930121 CERAMIC CAP 15PF 50V
C129 25-017100960121 CERAMIC CAP 0.1UF 50V
C132 25-017100960121 CERAMIC CAP 0.1UF 50V
C133 25-017100960121 CERAMIC CAP 0.1UF 50V
C134 25-017100960121 CERAMIC CAP 0.1UF 50V
C135 25-017100960121 CERAMIC CAP 0.1UF 50V
C136 25-017100960121 CERAMIC CAP 0.1UF 50V
C137 25-017100960121 CERAMIC CAP 0.1UF 50V
C142 25-035470930121 MYLAR CAP 0.0047UF 50V
C143 25-012100930121 CERAMIC CAP 1PF 50V
C144 25-077100930121 MONO CAP 0.1UF 50V
C145 25-077100930121 MONO CAP 0.1UF 50V
C146 25-077100930121 MONO CAP 0.1UF 50V
C147 25-077100930121 MONO CAP 0.1UF 50V
C148 25-013560930121 CERAMIC CAP 56PF 50V
C149 25-017100960121 CERAMIC CAP 0.1UF 50V
C150 25-017100960121 CERAMIC CAP 0.1UF 50V
C151 25-017100960121 CERAMIC CAP 0.1UF 50V
C155 25-017100960121 CERAMIC CAP 0.1UF 50V
C156 25-037330930121 MYLAR CAP 0.33UF 50V
REF NO. PART NO. DESCRIPTION
C157 25-013150930121 CERAMIC CAP 15PF 50V
C158 25-013150930121 CERAMIC CAP 15PF 50V
C159 25-017100960121 CERAMIC CAP 0.1UF 50V
C161 25-017100960121 CERAMIC CAP 0.1UF 50V
C163 25-017100960121 CERAMIC CAP 0.1UF 50V
C164 25-017100960121 CERAMIC CAP 0.1UF 50V
C165 25-017100960121 CERAMIC CAP 0.1UF 50V
C167 25-017100960121 CERAMIC CAP 0.1UF 50V
C168 25-017100960121 CERAMIC CAP 0.1UF 50V
C170 25-017100960121 CERAMIC CAP 0.1UF 50V
C172 25-017100960121 CERAMIC CAP 0.1UF 50V
C173 25-017100960121 CERAMIC CAP 0.1UF 50V
C175 25-017100960121 CERAMIC CAP 0.1UF 50V
C179 25-017100960121 CERAMIC CAP 0.1UF 50V
C180 26-014221050121 E.CAP 2.2UF 50V
C181 26-014221050121 E.CAP 2.2UF 50V
C182 25-017100960121 CERAMIC CAP 0.1UF 50V
C188 25-017100960121 CERAMIC CAP 0.1UF 50V
C189 25-017100960121 CERAMIC CAP 0.1UF 50V
C190 25-017100960121 CERAMIC CAP 0.1UF 50V
C193 25-017100960121 CERAMIC CAP 0.1UF 50V
C196 25-016470960121 CERAMIC CAP 0.047UF 50V
C197 25-016470960121 CERAMIC CAP 0.047UF 50V
C198 25-014470930121 CERAMIC CAP 470PF 50V
C199 25-014470930121 CERAMIC CAP 470PF 50V
C201 25-013300930121 CERAMIC CAP 30PF 50V
C202 25-013300930121 CERAMIC CAP 30PF 50V
C203 25-013470930121 CERAMIC CAP 47PF 50V
C207 25-023120930121 CERAMIC CAP 12PF 50V
C210 25-013200930121 CERAMIC CAP 20PF 50V
C212 25-014100930121 CERAMIC CAP 100PF 50V
C214 25-017100960121 CERAMIC CAP 0.1UF 50V
C216 25-017100960121 CERAMIC CAP 0.1UF 50V
C220 25-017100960121 CERAMIC CAP 0.1UF 50V
C224 25-016100960121 CERAMIC CAP 0.01UF 50V
C227 25-014390930121 CERAMIC CAP 390PF 50V
C228 25-017100960121 CERAMIC CAP 0.1UF 50V
C230 26-014101050121 E.CAP 1UF 50V
C234 25-016100960121 CERAMIC CAP 0.01UF 50V
C235 25-017100960121 CERAMIC CAP 0.1UF 50V
C237 25-035100930121 MYLAR CAP 0.001UF 50V
C238 25-035470930121 MYLAR CAP 0.0047UF 50V
C239 26-014101050121 E.CAP 1UF 50V
C240 26-014101050121 E.CAP 1UF 50V
C241 26-014101050121 E.CAP 1UF 50V
C242 25-017100960121 CERAMIC CAP 0.1UF 50V
C243 25-016100960121 CERAMIC CAP 0.01UF 50V
C244 25-016100960121 CERAMIC CAP 0.01UF 50V
C245 25-017100960121 CERAMIC CAP 0.1UF 50V
C247 26-014221050121 E.CAP 2.2UF 50V
C248 26-014221050121 E.CAP 2.2UF 50V
C250 25-016100960121 CERAMIC CAP 0.01UF 50V
C251 25-017100960121 CERAMIC CAP 0.1UF 50V
C252 25-023200930121 CERAMIC CAP 20PF 50V
C253 25-023200930121 CERAMIC CAP 20PF 50V
C254 25-014100930121 CERAMIC CAP 100PF 50V
C255 25-014100930121 CERAMIC CAP 100PF 50V
C256 25-014100930121 CERAMIC CAP 100PF 50V
C259 25-016100960121 CERAMIC CAP 0.01UF 50V

PARTS LIST
6
REF NO. PART NO. DESCRIPTION
C260 26-014101050121 E.CAP 1UF 50V
C261 26-014221050121 E.CAP 2.2UF 50V
C262 25-016100960121 CERAMIC CAP 0.01UF 50V
C264 26-014101050121 E.CAP 1UF 50V
C272 25-014680930121 CERAMIC CAP 680PF 50V
C273 25-014680930121 CERAMIC CAP 680PF 50V
C290 26-013221050111 E.CAP 0.22UF 50V
C301 26-014471050121 E.CAP 4.7UF 50V
C302 26-014471050121 E.CAP 4.7UF 50V
C303 26-014221050121 E.CAP 2.2UF 50V
C304 25-036470930121 MYLAR CAP 0.047UF 50V
C305 25-036100930121 MYLAR CAP 0.01UF 50V
C306 26-014471050121 E.CAP 4.7UF 50V
C307 25-035150930121 MYLAR CAP 0.0015UF 50V
C308 25-077100930121 MONO CAP 0.1UF 50V
C309 26-014471050121 E.CAP 4.7UF 50V
C310 26-014471050121 E.CAP 4.7UF 50V
C311 26-014221050121 E.CAP 2.2UF 50V
C312 26-014221050121 E.CAP 2.2UF 50V
C313 26-014471050121 E.CAP 4.7UF 50V
C314 26-014471050121 E.CAP 4.7UF 50V
C315 25-077100930121 MONO CAP 0.1UF 50V
C316 25-035150930121 MYLAR CAP 0.0015UF 50V
C317 26-014471050121 E.CAP 4.7UF 50V
C318 25-036100930121 MYLAR CAP 0.01UF 50V
C319 25-036470930121 MYLAR CAP 0.047UF 50V
C320 26-014221050121 E.CAP 2.2UF 50V
C321 26-014221050121 E.CAP 2.2UF 50V
C322 26-014221050121 E.CAP 2.2UF 50V
C324 25-017100960121 CERAMIC CAP 0.1UF 50V
C325 26-017100650121 E.CAP 1000UF 10V
C327 25-017100960121 CERAMIC CAP 0.1UF 50V
C328 26-014221050121 E.CAP 2.2UF 50V
C329 26-014221050121 E.CAP 2.2UF 50V
C330 26-014471050121 E.CAP 4.7UF 50V
C331 25-017100960121 CERAMIC CAP 0.1UF 50V
C332 26-014471050121 E.CAP 4.7UF 50V
C333 26-014221050121 E.CAP 2.2UF 50V
C334 26-014221050121 E.CAP 2.2UF 50V
C337 25-017100960121 CERAMIC CAP 0.1UF 50V
C340 26-014221050121 E.CAP 2.2UF 50V
C341 26-014221050121 E.CAP 2.2UF 50V
C342 26-014221050121 E.CAP 2.2UF 50V
C344 25-035100930121 MYLAR CAP 0.001UF 50V
C345 26-017100650121 E.CAP 1000UF 10V
C346 26-014471050121 E.CAP 4.7UF 50V
C347 25-017100960121 CERAMIC CAP 0.1UF 50V
C348 25-035100930121 MYLAR CAP 0.001UF 50V
C349 25-035100930121 MYLAR CAP 0.001UF 50V
C350 25-035100930121 MYLAR CAP 0.001UF 50V
C356 25-077100930121 MONO CAP 0.1UF 50V
C357 25-014680930121 CERAMIC CAP 680PF 50V
C358 25-014680930121 CERAMIC CAP 680PF 50V
C359 25-077100930121 MONO CAP 0.1UF 50V
C603 25-017100960121 CERAMIC CAP 0.1UF 50V
C701 25-016470960121 CERAMIC CAP 0.047UF 50V
C702 25-016470960121 CERAMIC CAP 0.047UF 50V
C703 25-016470960121 CERAMIC CAP 0.047UF 50V
C704 25-016470960121 CERAMIC CAP 0.047UF 50V
REF NO. PART NO. DESCRIPTION
C705 26-017680850121 E.CAP 6800UF 25V
C710 25-077100930121 MONO CAP 0.1UF 50V
C711 25-077100930121 MONO CAP 0.1UF 50V
C712 25-077100930121 MONO CAP 0.1UF 50V
C713 25-077100930121 MONO CAP 0.1UF 50V
C717 25-015100960121 CERAMIC CAP 0.001UF 50V
C721 25-015100960121 CERAMIC CAP 0.001UF 50V
C723 26-014221050121 E.CAP 2.2UF 50V
C724 26-014221050121 E.CAP 2.2UF 50V
C730 25-016100960121 CERAMIC CAP 0.01UF 50V
C735 25-014470930121 CERAMIC CAP 470PF 50V
C737 25-017100960121 CERAMIC CAP 0.1UF 50V
CF202 31-028107000120 CERAMIC FILTER 10.7MA5-A
CF204 31-026450010110 CERAMIC FILTER SFU450B
CF205 31-038107000120 FILTER JT10.7MG82-A
CN101 44-022275066020 16P FLAT FLEX CABLE
CN102 44-022275066020 16P FLAT FLEX CABLE
CN103 44-022320066020 16P FLAT FLEX CABLE
CN104 43-012200160120 WAFER 2mm 6P 180C
CN105 43-012200160120 WAFER 2mm 6P 180C
CN106 43-012200160120 WAFER 2mm 6P 180C
CN107 43-012200120120 WAFER 2mm 2P 180C
CN108 43-012200120120 WAFER 2mm 2P 180C
CN109 43-012200120120 WAFER 2mm 2P 180C
CN201 43-012250120120 WAFER 2.5mm 2P 180C
CN301 44-565330056620 6P SHIELD WIRE L=300mm
CN601 44-022318079020 29P FLAT FLEX CABLE
CN701 43-022250130120 WAFER 2.5mm 3P 90C
CN702 43-022250150120 WAFER 2.5mm 5P 90C
CON601 43-012100229320 FFC.WAFER 1mm 29P 180C
CT201 27-501602202020 TRIMMER 20PF(RED)
CW302 44-315310053620 3P WIRE L=100mm
CW701 44-316332053321 3P WIRE L=320mm
CW702 44-316320055320 5P WIRE L=200mm
D101 12-1N4148000021 DIODE 1N4148
D103 12-1N4148000021 DIODE 1N4148
D206 12-1N4148000021 DIODE 1N4148
D601 12-1N4148000021 DIODE 1N4148
D606 12-1N4148000021 DIODE 1N4148
D701 12-1N5401000021 RECTIFIER DIODE 1N540
D702 12-1N5401000021 RECTIFIER DIODE 1N540
D703 12-1N5401000021 RECTIFIER DIODE 1N540
D704 12-1N5401000021 RECTIFIER DIODE 1N540
D706 12-1N5822000021 RECTIFIER DIODE 1N5822
F1 46-055630300010 GLASS FUSE T6.3A/250V
IC101 16-TC94A09F1021 IC TC94A09F-003
IC102 16-TA2153FN0021 IC TA2153FN
IC103 16-TC94A0200021 IC TC94A02F-007
IC104 16-BA6898FP0021 IC BA6898FP
IC105 16-BA6898FP0021 IC BA6898FP
IC106 16-BA6898FP0021 IC BA6898FP
IC107 16-IS62LV100021 IC IS62LV1024LL-55T
IC108 16-HEF4052B0021 IC HEF4052BT
IC109 16-HEF4052B0021 IC HEF4052BT
IC110 16-HEF4052B0021 IC HEF4052BT
IC111 16-HEF4052B0021 IC HEF4052BT
IC112 16-HEF4052B0021 IC HEF4052BT
IC113 16-HEF4052B0021 IC HEF4052BT
IC114 16-HEF4052B0021 IC HEF4052BT

PARTS LIST
7
REF NO. PART NO. DESCRIPTION
IC116 16-TA7291S00021 IC TA7291S
IC201 16-TA8176SN0021 IC TA8176SN
IC202 16-TA2099N00021 IC TA2099N
IC203 16-TC9257F00021 IC TC9257F
IC301 16-TC9421F00021 IC TC9421F
IC302 16-SC5387000021 IC SC5387
IC303 16-KA7810000021 IC KA7810
IC701 16-LA4725000021 IC LA4725
IC702 16-MC34063A0021 IC MC34063A
JK301 43-451100006020 RCA JACK 1P(WHITE)
JK302 43-451100005020 RCA JACK 1P(RED)
JK303 43-451100013020 RCA JACK 1P (BLK)
JK701 43-431360006020 PH 3.6mm JY353507001
JK702 43-441400001020 SPK JACK UIC-134V
L201 40-351500135020 FM COIL 5x3.5T (0.8mm)
L202 40-351500135020 FM COIL 5x3.5T (0.8mm)
L203 40-351500125020 FM COIL 5x2.5T (0.8mm)
L301 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L302 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L303 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L701 38-103100050320 CHOKE COIL 10UH
L702 38-103100050320 CHOKE COIL 10UH
L703 38-103100050320 CHOKE COIL 10UH
L704 38-103100050320 CHOKE COIL 10UH
L705 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L706 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L707 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L708 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L709 38-013100050220 AXIAL INDUCTOR 10UH 500mA
L710 38-104230050020 CHOKE COIL 230UH
LED601 13-011196021020 LED LAMP (BLUE)
Q102 11-9015C0000021 PNP TRANSISTORS 9015C
Q104 11-9015C0000021 PNP TRANSISTORS 9015C
Q106 11-9015C0000021 PNP TRANSISTORS 9015C
Q113 11-8050C0000021 TRANSISTORS 2W8050C
Q116 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q202 11-9015C0000021 PNP TRANSISTORS 9015C
Q203 11-9014C0000021 NPN TRANSISTORS 9014C
Q204 11-9014C0000021 NPN TRANSISTORS 9014C
Q205 11-9014C0000021 NPN TRANSISTORS 9014C
Q206 11-9014C0000021 NPN TRANSISTORS 9014C
Q207 11-9014C0000021 NPN TRANSISTORS 9014C
Q208 11-9014C0000021 NPN TRANSISTORS 9014C
Q209 11-9014C0000021 NPN TRANSISTORS 9014C
Q210 11-9014C0000021 NPN TRANSISTORS 9014C
Q211 11-9015C0000021 PNP TRANSISTORS 9015C
Q214 11-9014C0000021 NPN TRANSISTORS 9014C
Q215 11-9014C0000021 NPN TRANSISTORS 9014C
Q216 11-9014C0000021 NPN TRANSISTORS 9014C
Q301 11-9014C0000021 NPN TRANSISTORS 9014C
Q302 11-9015C0000021 PNP TRANSISTORS 9015C
Q303 11-9014C0000021 NPN TRANSISTORS 9014C
Q304 11-9014C0000021 NPN TRANSISTORS 9014C
Q305 11-9014C0000021 NPN TRANSISTORS 9014C
Q306 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q307 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q308 11-9014C0000021 NPN TRANSISTORS 9014C
Q309 11-9014C0000021 NPN TRANSISTORS 9014C
Q310 11-9015C0000021 PNP TRANSISTORS 9015C
REF NO. PART NO. DESCRIPTION
Q311 11-9014C0000021 NPN TRANSISTORS 9014C
Q312 11-9014C0000021 NPN TRANSISTORS 9014C
Q601 11-8050C0000021 TRANSISTORS 2W8050C
Q602 11-9014C0000021 NPN TRANSISTORS 9014C
Q701 11-9014C0000021 NPN TRANSISTORS 9014C
Q702 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q703 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q704 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
Q705 11-KSB772YS0021 TRANSISTORS KSB772YS
Q706 11-9014C0000021 NPN TRANSISTORS 9014C
Q708 11-2SD1936T0021 TRANSISTORS 2SD1936T-SSH
S1 41-071100020020 MICRO SWITCH 1120B
S2 41-071100020020 MICRO SWITCH 1120B
S3 41-071100020020 MICRO SWITCH 1120B
S4 41-071100020020 MICRO SWITCH 1120B
S5 41-160040000020 V/TACT SWITCH
T201 40-017400003020 I.F.T 10mm 740 (ORANGE)
T202 40-09A049004020 I.F.T 6.5mm A049 (YELLOW)
T203 40-01660R002020 I.F.T 10mm 660R (RED)
T204 40-01312B000020 I.F.T 10mm 312B (BLACK)
VD201 12-1SV101000021 VARICAP DIODE 1SV-101
VD202 12-1SV101000021 VARICAP DIODE 1SV-101
VD203 12-1SV149000021 VARICAP DIODE 1SV-149
VD204 12-1SV149000021 VARICAP DIODE 1SV-149
VR701 22-810083100020 H/SEMI-FIXED 8mm B100
VR702 22-810083100020 H/SEMI-FIXED 8mm B100
VR703 22-810083100120 V/SEMI-FIXED 8mm 100
X101 31-018169302010 CRYSTAL16.9344MHZ
X102 31-018169302010 CRYSTAL16.9344MHZ
X201 31-017720002020 CRYSTAL 49/U 7.2MHZ
ZD101 12-011390320121 ZENER DIODE 3.9V 1/2W
ZD201 12-011620320121 ZENER DIODE 6.2V 1/2W
ZD301 12-011820320121 ZENER DIODE 8.2V 1/2W
ZD601 12-011620320121 ZENER DIODE 6.2V 1/2W
ZD701 12-011560320121 ZENER DIODE 5.6V 1/2W
12-1N5819000021 RECTIFIER DIODE 1N5819
12-1N5819000021 RECTIFIER DIODE 1N5819
12-1N5819000021 RECTIFIER DIODE 1N5819
43-012100216120 F.F.C.WAFER 1mm 16P 180C
43-022100216120 F.F.C.WAFER 1mm 16P 90C
43-012100216120 F.F.C.WAFER 1mm 16P 180C
43-012200160120 WAFER 2mm 6P 180C
32-042222130120 FERRITE CORE
DISPLAY PCBASS'Y
107 05-04A300000000 DISPLAY BOARD ASS'Y
C407 25-013220934221 CHIP CAPACITOR 22PF 50V
C408 25-013680934221 CHIP CAP 68PF 50V
C409 25-013200934221 CHIP CAPACITOR 20PF 50V
C410 25-013200934221 CHIP CAPACITOR 20PF 50V
C412 25-013220934221 CHIP CAPACITOR 22PF 50V
CN1 43-022200130120 WAFER 2mm 3P 90C
CN2 43-022200160120 WAFER 2mm 6P 90C
CN3 43-022200130120 WAFER 2mm 3P 90C
CN6 43-022200120120 WAFER 2mm 2P 90C
CN302 43-022200130120 WAFER 2mm 3P 90C
CON301 43-022200160120 WAFER 2mm 6P 90C
CON401 43-012100229220 SMD FFC.WAFER 1mm 29P
CW1 44-315310053620 3P WIRE L=100mm

PARTS LIST
8
REF NO. PART NO. DESCRIPTION
CW2 44-315310056621 6P WIRE L=100mm
D401 12-1N4148000021 DIODE 1N4148
D402 12-1N4148000021 DIODE 1N4148
D403 12-1N4148000021 DIODE 1N4148
D404 12-1N5819000021 RECTIFIER DIODE 1N5819
D405 12-1N4148000021 DIODE 1N4148
IC601 16-TMP87PP23021 IC TMP87PP23F (OTP)
JK703 43-531800001120 DC JACK (ULAPP)
LCD 13-05A300000020 LCD DISPLAY FDA131DP
LED401 13-011202211020 LED LAMP 2x5mm (RED)
LED402 13-011306422020 LED LAMP 3mm (S.BLUE)
LED403 13-011306422020 LED LAMP 3mm (S.BLUE)
LED501 13-011306422020 LED LAMP 3mm (S.BLUE)
LED502 13-011306422020 LED LAMP 3mm (S.BLUE)
LED503 13-011292121020 LED LAMP MSC32D-C(RED)
Q401 11-MMBT39060021 TRANSISTORS MMBT3906LT1
Q402 11-MMBT39060021 TRANSISTORS MMBT3906LT1
Q403 11-9015C0000021 PNP TRANSISTORS 9015C
Q404 11-MMBT39040021 TRANSISTORS MMBT3904LT1
Q406 11-MMBT39040021 TRANSISTORS MMBT3904LT1
Q407 11-MMBT39040021 TRANSISTORS MMBT3904LT1
Q408 11-MMBT39040021 TRANSISTORS MMBT3904LT1
R409 21-203547062225 CHIP RESISTORS 47K 1/16W
R410 21-203547062225 CHIP RESISTORS 47K 1/16W
R411 21-203412062225 CHIP RESISTORS 1.2K 1/16W
R412 21-203515062225 CHIP RESISTORS 15K 1/16W
R413 21-203456062225 CHIP RESISTORS 5.6K 1/16W
R414 21-203443062225 CHIP RESISTORS 4.3K 1/16W
R415 21-203443062225 CHIP RESISTORS 4.3K 1/16W
R416 21-203456062225 CHIP RESISTORS 5.6K 1/16W
R417 21-203456062225 CHIP RESISTORS 5.6K 1/16W
R418 21-203522062225 CHIP RESISTORS 22K 1/16W
R419 21-203515062225 CHIP RESISTORS 15K 1/16W
R427 21-203510062225 CHIP RESISTORS 10K 1/16W
R428 21-203510062225 CHIP RESISTORS 10K 1/16W
R429 21-203510062225 CHIP RESISTORS 10K 1/16W
R430 21-203510062225 CHIP RESISTORS 10K 1/16W
R431 21-203410062225 CHIP RESISTORS 1K 1/16W
R432 21-203410062225 CHIP RESISTORS 1K 1/16W
R433 21-203410062225 CHIP RESISTORS 1K 1/16W
R434 21-203410062225 CHIP RESISTORS 1K 1/16W
R435 21-203418062225 CHIP RESISTORS 1.8K 1/16W
R436 21-203447062225 CHIP RESISTORS 4.7K 1/16W
R437 21-203420062225 CHIP RESISTORS 2K 1/16W
R438 21-203430062225 CHIP RESISTORS 3K 1/16W
R446 21-203310062225 CHIP RESISTORS 100 1/16W
R447 21-203510062225 CHIP RESISTORS 10K 1/16W
R448 21-203382062225 CHIP RESISTORS 820 1/16W
R449 21-203247062225 CHIP RESISTORS 47 1/16W
R450 21-203510062225 CHIP RESISTORS 10K 1/16W
R451 21-203422062225 CHIP RESISTORS 2.2K 1/16W
R454 21-203510062225 CHIP RESISTORS 10K 1/16W
R455 21-203310062225 CHIP RESISTORS 100 1/16W
R456 21-203410062225 CHIP RESISTORS 1K 1/16W
R457 21-203447062225 CHIP RESISTORS 4.7K 1/16W
R458 21-203510062225 CHIP RESISTORS 10K 1/16W
R459 21-203547062225 CHIP RESISTORS 47K 1/16W
R460 21-203547062225 CHIP RESISTORS 47K 1/16W
R461 21-203547062225 CHIP RESISTORS 47K 1/16W
REF NO. PART NO. DESCRIPTION
R462 21-204547062325 CHIP RESISTORS 47K 1/10W
R463 21-203410062225 CHIP RESISTORS 1K 1/16W
R464 21-203618062225 CHIP RESISTORS 180K 1/16W
R465 21-203510062225 CHIP RESISTORS 10K 1/16W
R466 21-203547062225 CHIP RESISTORS 47K 1/16W
R501 21-203347062225 CHIP RESISTORS 470 1/16W
R502 21-203368062225 CHIP RESISTORS 680 1/16W
R503 21-203543062225 CHIP RESISTORS 43K 1/16W
R504 21-203527062225 CHIP RESISTORS 27K 1/16W
R505 21-203582062225 CHIP RESISTORS 82K 1/16W
R506 21-203456062225 CHIP RESISTORS 5.6K 1/16W
R507 21-203475062225 CHIP RESISTORS 7.5K 1/16W
R508 21-203468062225 CHIP RESISTORS 6.8K 1/16W
R509 21-203439062225 CHIP RESISTORS 3.9K 1/16W
R510 21-203615062225 CHIP RESISTORS 150K 1/16W
R511 21-203475062225 CHIP RESISTORS 7.5K 1/16W
R512 21-203422062225 CHIP RESISTORS 2.2K 1/16W
R513 21-203427062225 CHIP RESISTORS 2.7K 1/16W
R514 21-203518062225 CHIP RESISTORS 18K 1/16W
R515 21-203430062225 CHIP RESISTORS 3K 1/16W
R516 21-203543062225 CHIP RESISTORS 43K 1/16W
R517 21-203527062225 CHIP RESISTORS 27K 1/16W
R518 21-203347062225 CHIP RESISTORS 470 1/16W
R519 21-203368062225 CHIP RESISTORS 680 1/16W
R521 21-203439062225 CHIP RESISTORS 3.9K 1/16W
R522 21-203222062225 CHIP RESISTORS 22 1/16W
REM401 17-05FM60380010 OPTIC SENSER FM-6038TM2
S501 41-180010030020 PUSH SWITCH(W/LOCK)
SW401 41-150010030020 TACT SWITCH 4LEGS
SW402 41-150010030020 TACT SWITCH 4LEGS
SW403 41-150010030020 TACT SWITCH 4LEGS
SW404 41-150010030020 TACT SWITCH 4LEGS
SW405 41-150010030020 TACT SWITCH 4LEGS
SW406 41-150010030020 TACT SWITCH 4LEGS
SW407 41-150010030020 TACT SWITCH 4LEGS
SW408 41-150010030020 TACT SWITCH 4LEGS
SW409 41-150010030020 TACT SWITCH 4LEGS
SW501 41-150010030020 TACT SWITCH 4LEGS
SW502 41-150010030020 TACT SWITCH 4LEGS
SW503 41-150010030020 TACT SWITCH 4LEGS
SW504 41-150010030020 TACT SWITCH 4LEGS
SW505 41-150010030020 TACT SWITCH 4LEGS
SW506 41-150010030020 TACT SWITCH 4LEGS
SW507 41-150010030020 TACT SWITCH 4LEGS
SW508 41-150010030020 TACT SWITCH 4LEGS
SW509 41-150010030020 TACT SWITCH 4LEGS
SW510 41-150010030020 TACT SWITCH 4LEGS
SW511 41-150010030020 TACT SWITCH 4LEGS
SW512 41-150010030020 TACT SWITCH 4LEGS
SW513 41-150010030020 TACT SWITCH 4LEGS
SW514 41-150010030020 TACT SWITCH 4LEGS
SW515 41-150010030020 TACT SWITCH 4LEGS
SW516 41-150010030020 TACT SWITCH 4LEGS
SW517 41-150010030020 TACT SWITCH 4LEGS
SW518 41-150010030020 TACT SWITCH 4LEGS
SW519 41-150010030020 TACT SWITCH 4LEGS
SW520 41-150010030020 TACT SWITCH 4LEGS
SW521 41-150010030020 TACT SWITCH 4LEGS
X401 31-017800002010 CRYSTAL8.0MHZ

PARTS LIST
9
REF NO. PART NO. DESCRIPTION
X402 31-015327603020 CRYSTAL32.768KHZ
LEFT KEY PCB ASS'Y
108 AU-05A300000220 LEFT KEY PCB ASS'Y
COW4 44-12A320052520 2P FLAT CABLE L=200mm
RIGHT KEY PCBASS'Y
109 AU-05A300001220 RIGHT KEY PCB ASS'Y
COW5 44-12A330052520 2P FLAT CABLE L=300mm
TOP KEY PCB ASS'Y
110 AU-05A300002220 TOP KEY PCBASS'Y
CW6 44-315310052620 2P WIRE L=100mm
MOTOR-1 PCBASS'Y
111 AU-32A300000120 MOTOR-1 BOARDASS'Y
COW7 44-12A270052520 2P FLAT CABLE (RED/WHITE)
MOTOR-2 PCBASS'Y
112 AU-32A300000120 MOTOR-2 BOARDASS'Y
POWER PCB ASS'Y
113 AU-07A300000120 POWER BOARDASS'Y
LINE OUT PCB ASS'Y
114 AU-08A300000120 LINE OUT BOARD ASS'Y

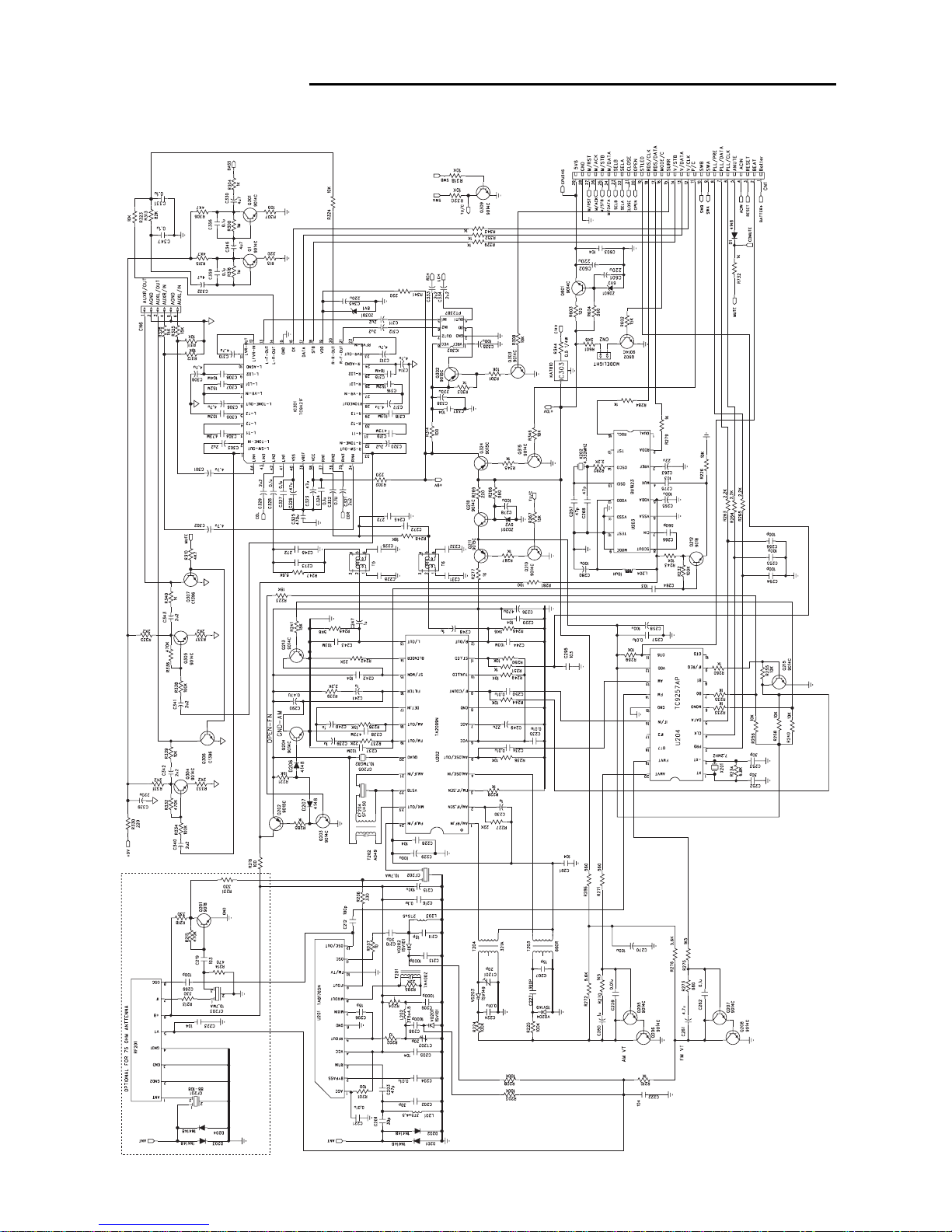

SHEMATIC DIAGRAM
10
1. MAIN PCB (1/3)

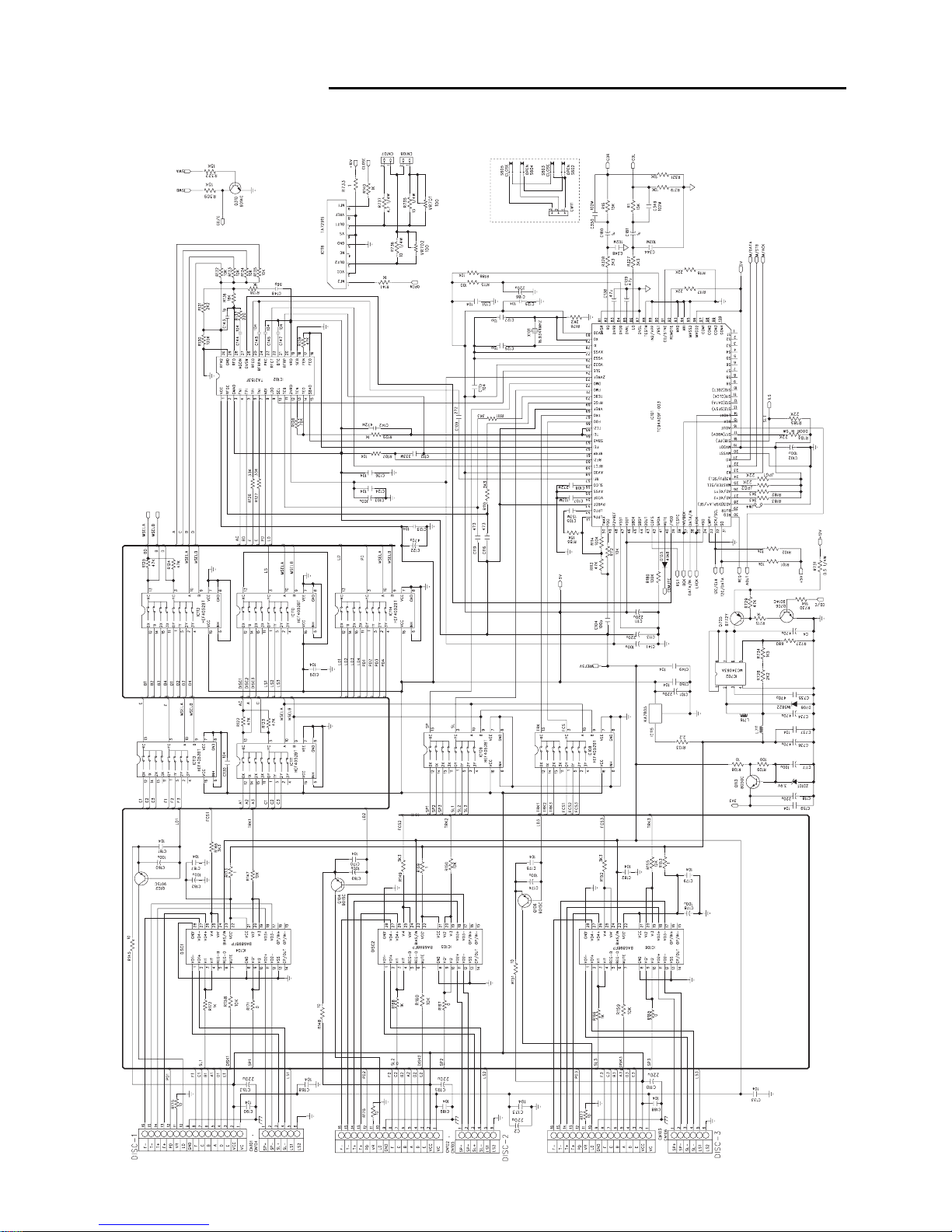

SCHEMATIC DIADRAM
11
2. MAIN PCB (2/3)

SHEMATIC DIAGRAM
3. MAIN PCB (3/3)
12

SCHEMATIC DIADRAM
4. DISPLAY / KEY PCB (1/2)
13

SHEMATIC DIAGRAM
5. DISPLAY / KEY PCB (2/2)
14

WIRING DIAGRAM
15
1. MAIN PCB

WIRING DIAGRAM
2. DISPLAY / KEY PCB
16
Jul./’05
SANYO Electric Co., Ltd.
Osaka, Japan
