Sanyo DC-MCR350M User manual

Service Manual
FILE NO.
REFERENCE No.

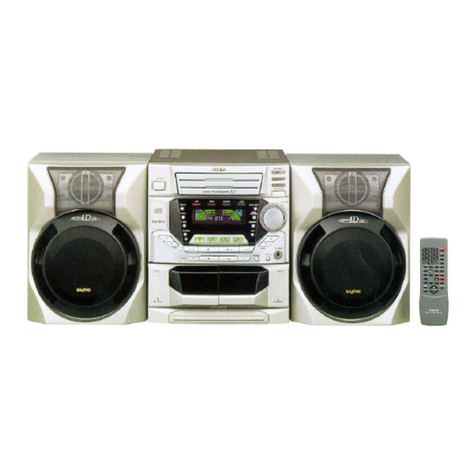

Micro Component System DC-MCR350M (XE)
PRODUCT CODE No.
129 682 08
This service manual consists of "DC-MCR350MU/XE" (Main unit : 129 681 08) and
"SX-MCR300/XE" (Speaker system : 165 096 02).
Contents
Laser beam safety precaution .......................................... 1
Tape adjustments ............................................................ 1
Tuner adjustments ........................................................... 2
CD pick-up maintenance .................................................. 2
Exploded view .................................................................. 3
Parts list ........................................................................... 4
IC block diagram & description ........................................ 8
FL display descriptions .................................................... 18
Wiring connection ............................................................ 19
Schematic diagram
(CD)
MPEG section .......................................................... 20
Servo section ........................................................... 22
(FRONT) ....................................................................... 26
SM5810604
(MAIN) ........................................................................... 30
(TUNER) ....................................................................... 34
(POWER AMPLIFIER) .................................................. 37
Wiring diagram
(CD) Parts side view .................................................... 24
Pattern side view ................................................. 25
(FRONT & JOG VR)...................................................... 28
(LED) ............................................................................. 28
(DOOR SWITCH) .......................................................... 29
(MAIN) ........................................................................... 32
(TUNER) ....................................................................... 36
(POWER AMPLIFIER) Parts side view ....................... 38
Pattern side view .................... 39

- 1 -
TAPE ADJUSTMENTS
3. Torque Measurement
Test Cassette
Take-up Torque
Back
te tio
Driving power cassette :
TW-2412 (PLAY)
TW-2422(REV. PLAY)
70 ~140 grcm
PLAY/REV.
F.FWD
REW
2 ~ 6 grcm
-
--70 ~ 140 grcm
Pulley tentionItem
PLAY : TW2111A (FWD)
PLAY : TW2121A (REV)
F.FWD / REW : TW2231
PLAY : TW2111A (FWD)
PLAY : TW2121A (REV)
30 ~ 65 grcm
30 ~ 65 grcm
> 50grcm
Back tention
LASER BEAM SAFETY PRECAUTION
• Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE,
TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY
COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE
OF THE PRODUCT.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
LASER OUTPUT .............. 0.6 mW Max. (CW)
WAVELENGTH .................. 790 nm
• Be sure to clean the heads before attempting to make any adjustment.
• Be sure both channels (1 and 2) are the same level.
(Using a dual-channel oscilloscope)
• Be sure both channel's waveform are same for the phase matching.
• After completion of the adjustment, use the threadlock (TB-1401B) to
secure the azimuth adjustment screws.
1. Open the lid. And press the "Lid Close Key" as Fig.1.
2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.
3. Press the PLAY button. (Normal playback)
4. Use a + tip screwdriver to turn the screw for normal azimuth
adjustment so that the left and right outputs are maximized at
the same phase during normal playback. See Fig.2.
5. Press the PLAY button. (Reverse playback)
6. Use a + tip screwdriver to turn the screw for reverse azimuth
adjustment so that the left and right outputs are maximized
at the same phase during reverse playback.
7. Adjust so that the waveforms for the left and right channels are in alignment.
1. Azimuth Adjustment
2. Tape Speed Adjustment
• Connect the Frequency Counter to TAPE OUT.
1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.
2. Press the PLAY button. .
3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 ±5Hz is obtained.See Fig.3.
4. Press the STOP button, and eject the test tape.
Fig.1
Fig.2
hole for adjustment
MOTOR
Fig.3
PRESS
LID CLOSE KEY
NORMAL
CAUTION –INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL –USYNLIG LASER STRÅLING VED ÅBNING, NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅUDS ÆTTELSE
FOR STRÅLING.
VARNING –OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG.
VORSICHT –UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN
DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN.
VARO –AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄKATSO SÄTEESEEN.

- 2 -
TUNER ADJUSTMENTS
Antenna : 75Ωunbalanced direct, Modulation : 1 kHz
Dev. : ±22.5kHz(MONO), ±22.5kHz(STEREO),±6.75kHz(PILOT)
RF Level : dBuV EMF
Output Level : about 30mV at TP9, TP10, TP11
Anntena : IRE Loop(SG), Moduration : 1kHz 30%
RF Level : dBuV EMF
Output Level : about 30mV at TP9, TP10, TP11
CD PICK-UP MAINTENANCE
About pick-up (Optical lens) Cleaning
Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.
Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)
Show a clean procedure in the following in reference by swab of cotton.
1. Cotton swab is wrapped with Cleaning paper.
2. Add the isopropyl alcohol.
3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.
•Use a plastic screw driver for adjustments. •MODE : ST (Stereo)
•Speaker impedance : 6 ohms •TUNING FM : 87.5 - 108MHz
AM : 522 - 1710 kHz (9 kHz steps)
520 - 1710 kHz (10 kHz steps)
E
E
E
E
E
E
E
E
E
E
E
E
E
T002 94V-0
1AD4B10D2223F
IC211
IC222
L2353
L2351
CT252
XF220
XF221
L2302
D2308
D2314
D2330
C2106
C2104
C2402
XF211
Q2418 Q2415
Q2413
Q2427
L2313 T2001
J2111
J2113
D2100
D2101
J2115
X2107
XF222
Q2101
C2405
Q2510
Q2509
Q2505
Q2504
CN203
R2417
C2407
J2200
C2512
C2508
C2519
Q2803
Q2804
D2709
C2412
R2330
J2118 J2116
J2304
J2307
X2503
C2805
L2801
R2709
R2801
J2105
J2301
J2302
Q2802
J2106
R2803
J2104
J2102
R2802
J2100
J2101
J2300
C2222
C2211
J2108
CN231
D2102
J2305
Q2421
J2303
J2110
J2117
J2306
D2103
AM-VT
FM-VT
CN201
R2328 C2325
C2321
R2322
R2321
C2329
C2301
C2301
C2350
C2350
R2323
R2323
C2436
C2436
R2616
R2616
C2301
C2303
R2309C2312
R2310
R2310
R2310
R2314
R2430
R2105
R2105
R2103
R2103
R2108
R2108
C2406
C2406
R2416
R2416
R2414
R2414
C2109
C2109
C2201
C2201
C2213
C2213
R2403
R2403
R2105
R2103
R2102
R2104
R2101
R2108
C2425
R2426
C2410C2409
R2408
C2419
R2429 C2430
C2404
C2406
R2416
R2431
R2414
R2513
R2513
R2521
R2521
C2511
C2511
C2507
C2507
R2506
R2506
R2522
R2522
C2502
C2502
R2605
R2605
R2604
R2604
C2801
C2801
R2513R2521
C2511
C2507
R2506
R2522
C2502
C2501
R2601 R2602 R2603
R2608 R2609
R2610
R2610
R2606
R2606
R2610
R2318
R2316
R2611
R2606
R2607
C2109 R2605
R2604
C2413
C2802
C2201 C2213
C2319
C2317
C2411
R2403
C2350
C2801
R2307
R2315
R2420
R2422
C2423
R2612
R2401
R2323
C2304
C2318
C2436
C2518
R2613R2614
R2616
T2001
TP10
TP11
TP9
TP6
TP5TP7
TP8
L2353
L2313
CT252
L2351
L2302
1. FM
Connection
Input Output
TP5 (H) 87.5MHz L2313 1.00±0.50V
TP6 (E) 108.0MHz --- 4.30±0.50V Check Only
2. AM
Connection
Input Output
---
T2001
603kHz
1404kHz
L2353
L2351
CT252
Remark
SG
Frequency
SG
Frequency
Adjustment
Adjustment
98MHz
Maximum
Maximum
1
1611kHz
522kHz
IF
Adjustment Loop Ant 450KHz at 999kHz
---
Step
TP9 (L)
Step
Adjusting
Circuit
Adjusting
Circuit
2 Tracking FM Ant
Cover
TP7 (H)
TP8 (E)
1
2Cover
TP10 (R)
TP11 (E)
Tracking3 Loop Ant
TP9 (L)
1.00±0.05V
7.20±0.50V Check Only
---
Remark
MaximumTP10 (R)
TP11 (E)
---
L2302

- 3 -
EXPLODED VIEW
This is a basic exploded view.
64
1
2
8
9
12
57
58 17
13
16
18
14
11
15
10
10
3
5
67
51
59
60
63
24
25
61
20
21
77
78
22
23
26
62
29
30
27
28
19
4
52
31
53
54 71 72 73
32
74
75
76
55
56
Y01
Y02
Y03
Y25
Y26
Y03
Y04
Y05
Y10
Y11
Y12
Y12
Y07
Y07
Y12
Y07
Y14
Y15
Y16
Y16
Y16
Y16
Y16
Y18
Y17 Y17
Y1
7
Y21
Y22
Y19
Y20
Y18
Y23
Y23
Y24
Y24
Y24
Y12
Y13
Y05
Y06
Y07
Y07
Y07
Y08
Y08
Y09
32

- 4 -
PARTS LIST
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT
ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE
MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE PRODUCT TO THE CUSTOMER.
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
N.S.P : Not available as service parts.
REF.NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
614 330 4456 CARTON CASE
614 328 2846 CUSHION,REAR
614 328 2853 CUSHION,FRONT
614 330 4463 INSTRUCTION MANUAL
614 330 4470 INSTRUCTION SHEET
645 063 7483 ASSY,ANTENA,LOOP
614 330 8874 LID,BATTERY REMOCON
645 067 1494 REMOCON,RB-MCR350MO
614 330 0151 ASSY,BOX,SPEAKER(L,R)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 614 329 4498 ASSY,LID
2 614 330 4425 ASSY,CABINET,TOP
3 614 328 2624 DEC,WINDOW STANDBY
4 614 328 2525 BUTTON,LID CLOSE,1 KEY
5 614 328 2686 KNOB,VOLUME
6 614 328 2709 LEVER,LEFT
7 614 328 2716 LEVER,RIGHT
8 614 329 4986 ASSY,MOUNTING,GEAR
9 614 328 8374 COVER,PICK-UP,CD,MECHA
10 614 298 8886 SPACER,MECHA,CD,MECHA
11 614 328 2754 SHIELD,MECHA
12 614 328 2488 BUTTON,POWER OUT,2 KEY
13 614 328 2495 BUTTON,POWER INNER,2 KEY
14 614 328 2617 DEC,WINDOW DISC
15 614 328 2501 BUTTON,FUNCTION OUT,6 KEY
16 614 328 2518 BUTTON,FUNCTION INNER,12 KEY
17 614 328 2815 SPRING,LID
18 614 328 8954 MOUNTING,PWB,PWB,VOLUME
19 614 330 4432 ASSY,COVER REAR
20 614 328 4550 MOUNTING,COVER REAR
21 614 328 2785 SHIELD,TUNER-PWB TOP,TUNER
22 614 329 8755 HEAT SINK,D-AMP
23 614 328 2761 SHIELD,AMP-PWB TOP,D-AMP
24 614 329 2418 SHIELD,TUNER-PWB BOTTOM
25 614 329 4993 HEAT SINK,MAIN PWB
26 614 328 2655 DEC,WINDOW IR
27 614 328 2556 CABINET,MIDDLE
28 614 328 2792 SHIELD
29 614 329 4535 CABINET,BOTTOM
30 614 328 8947 ASSY,STAND
31 614 327 7668 ASSY,MECHA,DA11B3N
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 411 098 0702 SCR S-TPG BIN 3X12,
C-REAR+C-TOP
Y02 411 165 3803 SCR S-TPG BIN 2.3X10,
GEAR,BOX+C-TOP
Y03 411 092 0906 WASHER Z 2.6X10X0.5,
C-TOP+CD,MECHA
Y04 411 021 1806 SCR S-TPG BIN 2.6X10,
C-TOP+CD,MECHA
ELECTRICAL PARTS
REF.NO. PART NO. DESCRIPTION
51 645 031 7637 CORE,FERRITE,EMC
or 645 051 0649 CORE,FERRITE,EMC
52 614 326 3722 ASSY,WIRE,CD-MOTOR
53 614 329 9288 FLEXIBLE FLAT CABLE,
CD-CD MECHA
54 614 329 9189 ASSY,WIRE,CD-MAIN
55 614 329 9271 FLEXIBLE FLAT CABLE,CD-MAIN
56 614 330 2018 ASSY,WIRE,DECK MECHA-MAIN
57 614 329 9295 FLEXIBLE FLAT CABLE,
FRONT-MAIN
58 614 329 9233 ASSY,WIRE,FRONT-LED
59 645 066 9958 CORD,POWER-1.76MK
60 423 016 8103 FUSE 250V 4A
or 423 016 8103 FUSE 250V 4A
61 614 329 9172 ASSY,WIRE,D-AMP-MAIN
62 645 066 9484 TRANS,POWER
63 423 016 9803 FUSE 250V 0.63A
64 614 274 2013 CORD,ID CONNECTOR,FM ANT
Y05 411 020 9902 SCR S-TPG BRZ+FLG 3X8,
CD,PCB+C-TOP
Y06 411 165 3803 SCR S-TPG BIN 2.3X10,
LED,PCB+C-TOP
Y07 614 129 9136 LUG (TAPE MECHA,FRONT PWB)
Y08 411 021 3503 SCR S-TPG BIN 3X10,
C-TOP+MECHA,DECK
Y09 411 025 1901 SCR S-TPG PAN 2X3,
SHIELD+MECHA,DECK
Y10 411 165 3803 SCR S-TPG BIN 2.3X10,
BUTTON,POWER+C-TOP
Y11 411 098 4700 SCR S-TPG BIN 2.3X8,
DEC,WINDOW DISC+C-TOP
Y12 411 165 3803 SCR S-TPG BIN 2.3X10,
FRONT,PCB+C-TOP
Y13 411 165 3803 SCR S-TPG BIN 2.3X10,
VOL,PCB+C-TOP
Y14 411 098 0702 SCR S-TPG BIN 3X12,
CBB+C-REAR(BACK,VIDEO IN,
SPK)
Y15 411 021 3503 SCR S-TPG BIN 3X10,
CBB+C-REAR(BOTTOM)
Y16 411 021 3503 SCR S-TPG BIN 3X10,
MAIN,PCB+CBM
Y17 614 130 0382 LUG,MAIN PWB
Y18 411 021 5705 SCR S-TPG BIN 3X6,FOR HS403
Y19 411 001 3905 SCR S-TPG BIN 4X6,P-TRANS+CBB
Y20 411 021 6405 SCR S-TPG BIN 3X8,FOR HS502
Y21 411 021 5705 SCR S-TPG BIN 3X6,FOR HS502
Y22 411 021 3503 SCR S-TPG BIN 3X10,DEC,IR+CBM
Y23 411 021 4302 SCR S-TPG BIN 3X14,CBM+C-TOP
Y24 411 021 3503 SCR S-TPG BIN 3X10,
STAND+CBM+CBB
Y25 412 011 6306 SPECIAL WASHER,SPRING
Y26 411 021 1806 SCR S-TPG BIN 2.6X10,SPRING

- 5 -
PARTS LIST
CD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 329 1497 ASSY,PWB,CD(Only initial)
CN111 645 033 5525 SOCKET,FFC 16P
CN113 645 006 0939 PLUG,6P
or 614 310 2625 PLUG,6P
CN114 614 310 2434 PLUG,2P
or 645 005 7366 PLUG,2P
CN130 645 012 5591 SOCKET,FPC 26P
or 645 059 6582 SOCKET,FFC 26P
CN140 614 310 2472 PLUG,6P
or 645 005 8127 PLUG,6P
CN180 645 060 2085 SOCKET,IC 32P(IC180)
D1011 407 177 5300 DIODE RL153-M13
D1012 407 177 5300 DIODE RL153-M13
D1530 407 099 5105 ZENER DIODE MTZJ4.7B
D1531 407 099 4603 ZENER DIODE MTZJ3.9B
D1601 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1602 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1603 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1641 407 127 3806 ZENER DIODE MTZJ3.3B
D1642 407 148 6701 DIODE 1A3-I
D1643 407 148 6701 DIODE 1A3-I
D1651 407 127 3806 ZENER DIODE MTZJ3.3B
D1652 407 148 6701 DIODE 1A3-I
D1653 407 148 6701 DIODE 1A3-I
D1661 407 099 4603 ZENER DIODE MTZJ3.9B
IC110 410 468 0205 IC TA2153FN,RFAMP
IC120 410 468 0304 IC TC9462F,CDDSP
IC121 410 472 2509 IC TC74HC14AFN-EL,HEXINVERTER
IC122 409 051 2702 IC TC4052BF,ANALOGSW
IC130 410 468 0403 IC TA2092N,SERVODRIVER
IC140 410 468 0502 IC TC74HCU04AFN-EL, HEXINVERTER
IC150 409 408 1303 IC LB1641L
IC160 409 574 9509 IC ES3890F,VCDPROCESSOR
IC170 409 573 2808 IC PT8211S,DAC
IC180 410 516 1109 IC ASSY,EEPROM
or 410 497 8401 (IC MX29F004TPC-70)
IC190 410 499 1905 IC M11L16161SA-45T,DRAM16M
or 410 507 7608 IC A42L0616V-50,DRAM16M
or 410 505 2100 IC MSM51V18165F-60TS-K,
DRAM16M
L1010 645 006 3886 INDUCTOR,1U K
L1131 645 001 5519 INDUCTOR,47U K
L1132 645 001 4550 INDUCTOR,10U K
L1280 645 001 4581 INDUCTOR,100U K
L1601 645 001 5465 INDUCTOR,3.3U K
L1602 645 037 2858 CORE,PIPE
L1603 645 037 2858 CORE,PIPE
L1701 645 001 4581 INDUCTOR,100U K
Q1131 405 008 7202 TR 2SB810-E
or 405 008 7301 TR 2SB810-F
or 405 008 6809 TR 2SB808-F-SPA
Q1530 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q1601 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q1641 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
or 405 025 0200 TR 2SD734-G
Q1651 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
or 405 025 0200 TR 2SD734-G
Q1661 405 025 0200 TR 2SD734-G
or 405 141 3109 TR KTC3203-Y
or 405 024 9907 TR 2SD734-F
R1530 402 083 3600 RESISTOR 15 J- 2W
SH101 614 329 6447 SHIELD,PLATE,CD
X1451 645 059 0948 OSC,CRYSTAL 16.9344MHZ
X1601 645 059 0955 OSC,CRYSTAL 27.000MHZ,27MHZ
LED P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 328 1221 ASSY,PWB,LED(Only initial)
CN630 645 005 8127 PLUG,6P,FRONT-SW
or 614 310 2472 PLUG,6P,FRONT-SW
CN631 645 040 1145 PLUG,5P
D6301 407 235 7406 LED LT7V34-81-URC1
D6302 407 235 7307 LED LT7VB3-81-UAE5
D6303 407 236 5203 LED LT7V23-810UEC8-505
Q6304 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
or 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
Q6305 405 134 5905 TR 2SA1037AK-R
or 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q6306 405 144 5209 TR DTC114TKA
or 405 177 7607 TR KRC111S
Q6307 405 144 5209 TR DTC114TKA
or 405 177 7607 TR KRC111S
Q6308 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q6309 405 014 4509 TR 2SC2412K-R
or 405 011 1006 TR 2SC1623-L6
or 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
Q6310 405 144 5209 TR DTC114TKA
or 405 177 7607 TR KRC111S
Q6311 405 146 1704 TR KTA1504-Y
or 405 146 9700 TR KTA1504-GR
or 405 134 5905 TR 2SA1037AK-R
or 405 002 0308 TR 2SA1037K-R
or 405 005 5508 TR 2SA812-M6
Q6312 405 146 2206 TR KTC3875-GR
or 405 146 2107 TR KTC3875-Y
or 405 011 1006 TR 2SC1623-L6
or 405 014 4509 TR 2SC2412K-R
DOOR SWITCH P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 328 1245 ASSY,PWB,DOOR SW(Only initial)
CN621 645 040 1152 SOCKET,5P
S6210 645 023 5795 SWITCH,LEVER,OPEN
FRONT P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 330 0427 ASSY,PWB,FRONT(Only initial)
BR601 614 328 2679 HOLDER,FL,HOLDER-FL
CN601 645 012 5201 SOCKET,FPC 16P,FRONT-MCU
CN604 614 310 2472 PLUG,6P,FRONT-SW
or 645 005 8127 PLUG,6P,FRONT-SW
D6002 408 034 8700 LED SLZ-981C-13H-AB-T2,STANDBY
D6010 407 012 4406 DIODE 1SS133
FL601 645 065 6958 FLOURESCENT TUBE,FL
IC601 409 519 6907 IC PT6315
L6010 645 001 5441 INDUCTOR,2.2U K
Q6001 405 141 5608 TR DTC114YKA
or 405 159 0503 TR KRC107S
Q6002 405 141 5608 TR DTC114YKA
or 405 159 0503 TR KRC107S
S6000 645 066 2393 SWITCH,PUSH 1P-1TX1,CLOSE_SW
S6040 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6041 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T

- 6 -
PARTS LIST
JOG VR P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 328 1238 ASSY,PWB,JOG VR(Only initial)
S6101 645 057 4689 SWITCH,ROTARY(ENCODER)
MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
76 614 330 4548 ASSY,PWB,PRE DECK DG (Only initial)
C4077 403 349 3303 CERAMIC 0.01U M 250V
or 403 366 7803 CERAMIC 0.01U M 250V
C4315 403 325 2306 ELECT 4700U M 35V
or 403 294 7005 ELECT 4700U M 35V
C4316 403 325 2306 ELECT 4700U M 35V
or 403 294 7005 ELECT 4700U M 35V
C4359 403 330 2100 ELECT 6800U M 16V
C4601 403 057 3503 POLYESTER 0.1U K 50V
C4605 403 061 3605 POLYESTER 0.039U J 50V
C4606 403 061 7702 POLYESTER 4700P J 50V
C4607 403 056 7502 POLYESTER 1000P J 50V
or 403 377 6307 POLYESTER 1000P J 50V
C4608 403 060 2807 POLYESTER 0.027U K 50V
C4727 403 259 0508 NP-ELECT 1U M 50V
C4827 403 259 0508 NP-ELECT 1U M 50V
CN401 645 006 1806 PLUG,3P
or 614 319 3456 PLUG,3P
CN402 645 006 0878 PLUG,12P
or 614 310 2533 PLUG,12P
CN407 645 005 9315 PLUG,2P
CN408 645 006 1806 PLUG,3P
or 614 319 3456 PLUG,3P
CN409 645 006 1813 PLUG,4P
CN431 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN432 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
S6042 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6043 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6044 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6045 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6046 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6050 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6051 645 006 5958 SWITCH,PUSH 1P-1T
or 614 240 1002 SWITCH,TACT
or 614 220 5471 SWITCH,TACT
S6052 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6053 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6054 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6055 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
S6056 614 220 5471 SWITCH,TACT
or 614 240 1002 SWITCH,TACT
or 645 006 5958 SWITCH,PUSH 1P-1T
REF.NO. PART NO. DESCRIPTION
CN433 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN434 645 006 4760 HOLDER,FUSE
or 645 031 7903 HOLDER,FUSE
CN435 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN436 645 031 7903 HOLDER,FUSE
or 645 006 4760 HOLDER,FUSE
CN440 645 005 8127 PLUG,6P
or 614 310 2472 PLUG,6P
CN455 645 005 8127 PLUG,6P
or 614 310 2472 PLUG,6P
CN470 645 005 7373 PLUG,3P
or 614 310 2441 PLUG,3P
CN497 614 017 8203 TERMINAL BOARD
CN498 614 017 8203 TERMINAL BOARD
CN651 645 006 0878 PLUG,12P
or 614 310 2533 PLUG,12P
CN652 645 005 8158 PLUG,10P
or 614 310 2519 PLUG,10P
CN653 645 012 5201 SOCKET,FPC 16P
CN654 645 012 5300 SOCKET,FPC 26P
CN655 645 005 8134 PLUG,8P
or 614 310 2496 PLUG,8P
D4070 407 097 8009 DIODE MPG06G
D4071 407 097 8009 DIODE MPG06G
D4072 407 097 8009 DIODE MPG06G
D4073 407 097 8009 DIODE MPG06G
D4074 407 012 4406 DIODE 1SS133
D4075 407 099 5402 ZENER DIODE MTZJ6.2B
D4320 407 099 6003 ZENER DIODE MTZJ9.1B
D4330 407 099 6805 ZENER DIODE MTZJ13B
D4331 407 012 4406 DIODE 1SS133
D4332 407 012 4406 DIODE 1SS133
D4340 407 148 6701 DIODE 1A3-I
D4341 407 012 4406 DIODE 1SS133
D4342 407 148 6701 DIODE 1A3-I
D4352 407 099 5204 ZENER DIODE MTZJ5.1B
D4353 407 012 4406 DIODE 1SS133
D4360 407 196 5800 DIODE 1N5402BD82
D4361 407 196 5800 DIODE 1N5402BD82
D4362 407 196 5800 DIODE 1N5402BD82
D4363 407 196 5800 DIODE 1N5402BD82
D4365 407 098 3300 DIODE RL153-BF-S2
D4366 407 098 3300 DIODE RL153-BF-S2
D4367 407 098 3300 DIODE RL153-BF-S2
D4368 407 098 3300 DIODE RL153-BF-S2
D4369 407 098 3300 DIODE RL153-BF-S2
D4370 407 098 3300 DIODE RL153-BF-S2
D4620 407 099 5204 ZENER DIODE MTZJ5.1B
D4624 407 012 4406 DIODE 1SS133
D4625 407 012 4406 DIODE 1SS133
D4626 407 012 4406 DIODE 1SS133
D4627 407 012 4406 DIODE 1SS133
D4628 407 099 9509 ZENER DIODE MTZJ30B
D6501 407 012 4406 DIODE 1SS133
D6502 407 012 4406 DIODE 1SS133
D6503 407 012 4406 DIODE 1SS133
D6504 407 012 4406 DIODE 1SS133
D6701 407 012 4406 DIODE 1SS133
D6702 407 012 4406 DIODE 1SS133
HS401 614 329 1046 HEAT SINK
HS402 614 328 3010 HEAT SINK
IC434 409 463 6701 IC KIA7805API
IC440 409 451 7406 IC AN7348K
IC441 410 468 0809 IC TC9422F
IC443 409 189 3404 IC BA7755A
IC651 410 516 1406 IC ASSY
(IC TMP87EP26F-4K76,MICON)
L4070 645 038 7364 INDUCTOR,70U
L4600 645 006 1523 INDUCTOR,470U J
L4601 645 006 1523 INDUCTOR,470U J
L4602 645 037 2858 CORE,PIPE
REF.NO. PART NO. DESCRIPTION

- 7 -
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
PARTS LIST
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
77 614 329 9356 ASSY,PWB,TUNER(Only initial)
CN201 614 221 8273 TERMINAL,FM-TERMINAL
CN203 645 004 2683 PLUG,2P,AM-TERMARINL
CN231 645 006 0878 PLUG,12P
or 614 310 2533 PLUG,12P
CN243 614 329 9257 ASSY,WIRE,TUNER
CT252 645 032 5663 TRIMMER,7PF
D2100 407 012 4406 DIODE 1SS133
D2101 407 012 4406 DIODE 1SS133
D2102 407 012 4406 DIODE 1SS133
D2103 407 012 4406 DIODE 1SS133
D2308 407 157 8109 VARACTOR DI SVC211-B
D2314 407 157 8109 VARACTOR DI SVC211-B
D2330 407 105 1602 VARACTOR DI SVC342M-V
or 407 105 1305 VARACTOR DI SVC342L-V
D2709 407 099 4801 ZENER DIODE MTZJ4.3B
IC211 410 468 0601 IC TA2149BFN
IC222 410 468 0700 IC TC9257F
L2302 645 062 5633 INDUCTOR,AIR
L2313 645 040 2746 COIL,AIR —
L2351 645 037 2377 TRANS,ANT,796KHZ
L2353 645 040 2739 TRANS,OSC,796KHZ
L2801 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
Q2101 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2413 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2415 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2418 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2421 405 151 4806 TR KTC3195-O
or 405 151 4301 TR KTC3195-Y
Q2427 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2504 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2505 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2509 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2510 405 151 4301 TR KTC3195-Y
or 405 151 4806 TR KTC3195-O
Q2802 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q2803 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
L4603 645 006 1523 INDUCTOR,470U J
L4604 645 037 2858 CORE,PIPE
L6501 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
L6502 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
L6503 645 031 7842 INDUCTOR,100U K
or 645 001 4581 INDUCTOR,100U K
LG401 645 006 4425 FIXER
PA001 614 086 2164 COVER,FOR C4007
PR431 645 014 2567 PROTECTOR,2.5A 125V
PR432 645 042 2614 PROTECTOR,1A 125V
PR433 645 042 2614 PROTECTOR,1A 125V
PR434 645 042 2560 PROTECTOR,0.75A 125V
PR435 645 042 2614 PROTECTOR,1A 125V
PT407 645 048 6036 TRANS,POWER
Q4070 405 023 5306 TR 2SD400-F-MP
or 405 023 5009 TR 2SD400-E-MP
or 405 141 1402 TR KTD863-GR
Q4071 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
or 405 019 2708 TR 2SC536-F-NP
or 405 019 3804 TR 2SC536-G-NP
Q4320 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3505 TR KTA1266-Y
or 405 141 3406 TR KTA1266-GR
Q4321 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q4322 405 095 1701 TR 2SD2061-F
or 405 095 1602 TR 2SD2061-E
or 405 138 6403 TR KTD2058Y
Q4330 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3406 TR KTA1266-GR
or 405 141 3505 TR KTA1266-Y
Q4331 405 095 1602 TR 2SD2061-E
or 405 095 1701 TR 2SD2061-F
or 405 138 6403 TR KTD2058Y
Q4350 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q4351 405 004 5004 TR 2SA608-G-NP
or 405 004 4502 TR 2SA608-F-NP
or 405 141 3505 TR KTA1266-Y
or 405 141 3406 TR KTA1266-GR
Q4352 405 095 1701 TR 2SD2061-F
or 405 095 1602 TR 2SD2061-E
or 405 138 6403 TR KTD2058Y
Q4600 405 141 3703 TR KTA1271-Y
or 405 008 2504 TR 2SB698-G
or 405 008 2405 TR 2SB698-F
Q4601 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q4602 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q4603 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q4604 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
Q4700 405 143 9000 TR KRC106M
or 405 075 8607 TR DTC143ZS
Q4800 405 143 9000 TR KRC106M
or 405 075 8607 TR DTC143ZS
Q6502 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q6701 405 155 0002 TR MPSA56
Q6702 405 155 0002 TR MPSA56
Q6703 405 155 0002 TR MPSA56
Q6704 405 000 3806 TR DTC114YS
or 405 143 0007 TR KRC107M
Q6705 405 143 0007 TR KRC107M
or 405 000 3806 TR DTC114YS
R4349 402 083 3303 FUSIBLE RES 33 J- 1/2W
R4626 401 120 1500 MT-FILM 10 FD 1/4W
R4628 402 083 7707 RESISTOR 1K J- 1W
RY407 645 030 5597 RELAY
SA401 411 021 6405 SCR S-TPG BIN 3X8
SA402 411 021 6405 SCR S-TPG BIN 3X8
SA403 411 021 6405 SCR S-TPG BIN 3X8
SA404 411 021 6405 SCR S-TPG BIN 3X8
SA405 411 021 6405 SCR S-TPG BIN 3X8
SA406 411 021 6405 SCR S-TPG BIN 3X8
SE691 407 231 8704 PHOTO DIODE SPS-441-1-VG
X6501 645 063 9791 OSC,CRYSTAL 7.372800MHZ
X6502 645 032 1627 OSC,CRYSTAL 32.768KHZ

- 8 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
IC121 TC74HC14AFN-EL
(HEX Schmitt Inverter)
1
2
3
4
5
6
7 8
9
10
11
12
13
14
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
6Y
5A
5Y
4A
4Y
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
OUT c IN
12
14
15
11
1
5
2
4
3
0X
1X
2X
3X
0Y
1Y
2Y
3Y
Y-COMMON
13 X-COMMON
6
9
10
INH
B
A
16
V
DD
87
V
SS V EE
LOGIC LEVEL CONVERTER
IC122 TC4052BF (Deferential 4-Channel Multiplexer/
Demultiplexer)
IC BLOCK DIAGRAM & DESCRIPTION
POWER AMPLIFIER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
78 614 330 9789 ASSY,PWB,POWER AMP(Only initial)
C5779 403 392 4302 CERAMIC 560P K 100V
C5780 403 394 2603 CERAMIC 0.22U M 250V
C5783 403 393 6305 MT-POLYEST 0.47U J 63V
C5879 403 392 4302 CERAMIC 560P K 100V
C5880 403 394 2603 CERAMIC 0.22U M 250V
C5883 403 393 6305 MT-POLYEST 0.47U J 63V
C5978 403 394 2603 CERAMIC 0.22U M 250V
C5981 403 394 2603 CERAMIC 0.22U M 250V
C5985 403 394 2603 CERAMIC 0.22U M 250V
C5986 403 394 2603 CERAMIC 0.22U M 250V
C5990 403 394 2603 CERAMIC 0.22U M 250V
CN567 645 031 4308 JACK,PHONE D3.6,HEADPHONE
CN577 645 064 8502 JACK,RCA-2
CN587 645 064 8519 TERMINAL,SPEAKER 4P
CN597 614 310 2533 PLUG,12P
or 645 006 0878 PLUG,12P
CN598 614 310 2441 PLUG,3P
or 645 005 7373 PLUG,3P
CN599 614 319 3456 PLUG,3P
or 645 006 1806 PLUG,3P
D5970 407 012 4406 DIODE 1SS133
D5971 407 012 4406 DIODE 1SS133
D5972 407 012 4406 DIODE 1SS133
HS501 614 328 2662 HEAT SINK,D-AMP
IC597 409 568 1502 IC TDA8921TH
L5775 645 063 4017 INDUCTOR,33U K
L5776 645 031 7835 INDUCTOR,10U K
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
32 614 320 4213 ASSY,MECHA,TM-DA280TN-SH
645 052 2888 RP HEAD C-9142-BD-1025
645 010 9447 PINCH ROLLER(F) ASSY
645 045 1959 RF BELT
645 052 4158 MAIN BELT
645 045 2048 DETECT SWITCH MXS01190
645 052 2864 ASSY,MOTOR
Q2804 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
T2001 645 043 0213 FILTER,450KHZ
X2107 645 061 3449 CERAMIC FILTER 10.7MHZ
X2503 645 023 4965 OSC,CRYSTAL 7.2MHZ
XF211 645 059 0047 FILTER,BP
or 645 026 2975 FILTER,BP 108MHZ
or 614 252 1045 FILTER,LC
XF220 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
XF221 645 059 0054 CERAMIC FILTER 450KHZ
or 645 041 9324 CERAMIC FILTER 450KHZ
XF222 645 054 1223 CERAMIC FILTER 10.70MHZ
or 645 010 7665 CERAMIC FILTER 10.70MHZ
or 614 240 2917 FILTER,CERAM
or 645 001 4550 INDUCTOR,10U K
L5875 645 063 4017 INDUCTOR,33U K
L5876 645 031 7835 INDUCTOR,10U K
or 645 001 4550 INDUCTOR,10U K
L5970 645 037 2858 CORE,PIPE
L5971 645 037 2858 CORE,PIPE
L5973 645 037 2858 CORE,PIPE
L5974 645 037 2858 CORE,PIPE
Q5972 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q5974 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q5975 405 141 3307 TR KTC3198-GR
or 405 141 3208 TR KTC3198-Y
or 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
Q5977 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
Q5978 405 019 3804 TR 2SC536-G-NP
or 405 019 2708 TR 2SC536-F-NP
or 405 141 3208 TR KTC3198-Y
or 405 141 3307 TR KTC3198-GR
R5777 402 082 1102 FUSIBLE RES 22 JA 1/2W
R5779 401 009 5605 CARBON 330 JA 1/2W
or 401 009 5803 CARBON 330 JA 1/2W
R5780 401 314 1309 MT-FILM 4.7 FD 1/4W
R5877 402 082 1102 FUSIBLE RES 22 JA 1/2W
R5879 401 009 5605 CARBON 330 JA 1/2W
or 401 009 5803 CARBON 330 JA 1/2W
R5880 401 314 1309 MT-FILM 4.7 FD 1/4W
S5970 614 224 4531 RELAY
or 645 035 6582 RELAY
S5971 645 059 0306 RELAY
or 645 030 5597 RELAY
SA501 411 021 4005 SCR S-TPG BIN 3X12,FOR HS501

- 9 -
IC BLOCK DIAGRAM & DESCRIPTION
IC110 TA2153FN (RF Amp)
16
17
18
FEO
FEN
SEB
19VRO
20RFRP
21BTC
22RFCT
23PKC
24RFRPIN
25RFGO
26GVSW
27AGCIN
28RFO
29GND
30RFN2
15
14
13
SBAD
TEO
TEN
12 2VRO
11 TEB
10 SEL
9 LDO
8 MDI
7 TNI
6 TPI
5 FPI
4 FNI
3 GMAD
2 RFGC
1 Vcc
AGC Amp.
BOTTOM
PEAK
3 STATE
DET.
I-I
I-I
10pF
15pF
40pF
15pF
3pF
10pF
3pF
36pF
40pF
SW1
SW3
SW2
IC140 TC74HCU04AFN-EL (HEX Inverter)
14
13
12
11
10
9
8
1
2
3
4
5
6
7
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
5A
6Y
5Y
4A
4Y
(TOP VIEW)
PIN CONNECTOR LOGICAL CIRCUIT
TRUTH VALUE
(2)
(4)
(6)
(8)
(10)
(12)
1Y
2Y
3Y
4Y
5Y
6Y
1A
2A
3A
4A
5A
6A
(1)
(3)
(5)
(9)
(11)
(13)
1
AY
LH
HL
123
1. INPUT
2. COMMON
3. OUTPUT
IC434 KIA7805API (Regulator)

- 10 -
IC BLOCK DIAGRAM & DESCRIPTION
DVSR
RO
DVDD
DVR
LO
DVSL
TEST1
TEST2
TEST3
BUS0
BUS1
BUS2
BUS3
VDD
VSS
BUCK
CCE
TEST4
TSMOD
RST
TEST0
HSO
UHSO EMPH
LRCK
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
12345
55 54 53 52 51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
DMO FVO FMO TEBC RFGC
VREF
TRO
FDO
TEZI
TEI
TSIN
SBAD
FEI
56575859606162636465666768697071727374757677787980
3029282726252423222120191817161514131211109876
RFRP
RFZI
RFCT
AVDD
RFI
SLCO
AVSS
VCOF
VCOREF
PVREF
LPFO
LPFN
XVDD XO XI XVSS VDD PXO PXI VSS TESIO1 TESIN DACT CKSE DMOUT IO3 IO2 IO1 IOO VSS VDD FLGD FLGC FLGB FLGA SEL 2VREF
VSS
BCK
AOUT
DOUT
MBOV
IPF
SBOK
CLCK
VDD
VSS
DATA
SFSY
SBSY
SPCK
SPDA
COFS
MONIT
VDD
TES:O0
P2VREF
HSSW
ZDET
PD0
TMAXS
TMAX
+
-
+
-
+
-
+
-
LPF 1 BIT
DAC CLOCK
GENERATOR
SERVO
CONTROL
PWM
D/A
ROM
A/D
RAM
DIGITAL
EQUALIZER
ADDRESS
CIRCUIT
CLV SERVO
MICON
INTERFACE
16k RAM
CORRECTION
CIRCUIT
DIGITAL OUT
AUDIO OUT
CIRCUIT
SUB CODE
DECODER
STATUS
PLL TMAX
VCO
DATA
SLICER
SYNCHRONOUS
GUARANTEE
EFM DECODE
AUTOMATIC
ADJUSTMENT
CIRCUIT
IC120 TC9462F (Digital Servo Processor)
IC130 TA2092N (Power Driver IC for CD Player)
123456789101112
PW GND
OUT(Ĺ)1
PV
CC1
OUT(ĸ)1
V
IN1
V R1
V C1
V IN2
OUT(ĸ)2
PV
CC2
OUT(Ĺ'0
PW GND
PW GND
OUT(Ĺ)4
PV
CC4
OUT(ĸ)4
V
IN4
SV CC1
SGND
V
IN3
OUT(ĸ)3
PV
CC3
OUT(Ĺ'1
PW GND
24 23 22 21 20 19 18 17 16 15 14 13
FUNCTION
Input for CH3
Supply terminal of small signal GND
Small signal GND
Input for CH4
Non-inverted output for CH4
Supply terminal of output stage for CH4
Inverted output for CH4
Power GND
SYMBOL
V
IN3
S GND
S V
CC
V IN4
OUT(+)4
PV CC4
OUT(-)4
PW GND
TERMINAL
NO.
17
18
19
20
21
22
23
24
SYMBOL
PW GND
OUT(-)1
PV
CC1
OUT(+)1
V
IN1
V RI
V CI
TERMINAL
NO.
1
2
3
4
5
6
7
FUNCTION
Power GND
Connected to substrate.
ŗ*ŗ*ŗ*ŗpin are connected inside.
Inverted output for CH1
Supply terminal of output stage for CH1
Supply terminal of output stage are not
connected to other channel terminal.
Non-inverted output for CH1
Input for CH1
Not biased inside.
Input reference voltage
Under condition of V
RI Ł 1.8V, internal
bias circuit is shut off.
No signal input condition : V
R1 = V IN
Output reference voltage
V OUT = V CI = (V CC - V F ) / 2
2413121
Input for CH2
Non-inverted output for CH2
Supply terminal of output stage for CH2
Inverted output for CH2
Power GND
Power GND
Inverted output for CH3
Supply terminal of output stage for CH3
Non-inverted output for CH3
V IN2
OUT(+)2
PV CC2
OUT(-)2
PW GND
PW GND
OUT(-)3
PV
CC3
OUT(+)3
8
9
10
11
12
13
14
15
16

- 11 -
IC BLOCK DIAGRAM & DESCRIPTION
1
PRE-
DRIVE
INPUT LOGIC CIRCUIT
5
4
6
10 97
2
8
3
GND
IN1
OUT1P1 VCC2 OUT2 P2
VZ
VCC
IN2
IC150 LB1641L (Bidirectional Motor Driver)
Input Output Action
Brake
Normal(Reverse)Rotary
Reverse(Normal)Rotary
Brake
IN1
0
1
0
1
IN2
0
0
1
1
OUT1
0
1
0
0
OUT2
0
0
1
0
SRAM/ROM
Interface
GPIO
Interface
Gateway
DMA Controller
Huffman
Decoder
Video
Processor
32-bit
RISC Processor
TV-Encoder
DRAM
Interface
OSD
Display
Controller
TDM
Interface Transport Parser
Serial Audio
Interface
Audio
ADC
8kB cache
1
3839 6465
102
103
128
AUX2[3]/IRQ
AUX2[4]/C2P0
AUX2[5]/SP
AUX2[6]/S0S1
AUX2[7] AUX1[0] AUX1[1] AUX1[2] AUX1[3] AUX1[4] AUX1[5]
AUX1[6]/VFD_DO
AUX1[7]/VFD_DI
VCC
VSS
AUX0[0] AUX0[1] AUX0[2] AUX0[3] AUX0[4]
VSSV VSSV
VDAC YDAC
VCCV VCCV
VPP DRAS1# CAS# MCLK SEL_PLL0/TSD SEL_PLL1/TWS TBCK TDMCLK TDMDR TDMFS LA19 LA18 LA17 LA16 LA15 LA14 LA13 LA12 LA11 LA10 LA9 LA8 VCC VSS LA7 LA6
VSSA
RSEVT
VREF
COMP
VCM
MIC2
MIC1
VDDA
VSSA
AUX0[5]
AUX0[6]
AUX0[7]
AUX3[0]
AUX3[1]
AUX3[2]
LWR#
LOE#
CS0#
CS1#
CS3#
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
VCC
XIN
XOUT
VSS
LA0
LA1
LA2
LA3
LA4
LA5
AUX2[2]/SQCK
AUX2[1]/SQSO
AUX2[0]/VFD_CL
K
VCC_P
VSS_P
VSS
RESET#
VCC
DBUS15
DBUS11
DBUS13
DBUS12
DBUS11
DBUS10
DBUS9
DBUS8
DBUS7
DBUS6
DBUS5
DBUS4
DBUS3
DBUS2
DBUS1
DBUS0
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
DOE#/MA9
DWE#
DRAS0#
VCC
VSS
Names Pin No. I/O Descriptions
VSSA 1.9 G Ground for analog circuits.
RSET 2 O Reset. Internal current source generator. Connect this pin to
a 510Ωresistor to ground.
VREF 3 O Output reference voltage. Connect to a 0.01-µF high -frequency
bypass capacitor to VSSA.
COMP 4 O Compensation capacitance for low-pass filter on VDAC. Connect
to a 0.01-µF high-frequency bypass capacitor to VSSA.
VCM 5 O ADC analog voltage reference. Connect to a 0.01-µF filter
capacitor to VSSA.
MIC1.MIC.2 6,7 I Microphone inputs.
VDDA 8 P 5.0V power supply for analog circuits.
AUX0[7:5] 10:12 I/O General-purpose programmable I/O.
AUX3[2:0] 13:15 I/O General-purpose programmable I/O.
LWR# 16 O RISC interface Write Enable (active-low).
LOE# 17 O RISC SRAM Output Enable (active-low).
CS0# 18 O Chip select 0 for SRAM (active-low).
CS1# 19 O Chip select 1 for SRAM (active-low).
CS3# 20 O Chip select 3 for SRAM (active-low).
LD[7:0] 21:28 I/O Data bus.
VCC 29.42.66.95.116 P Core power supply (2.5V).
XIN 30 I Crystal connection or input source of 27MHz. Must be 50% duty cycle.
XOUT 31 O Crystal connection or output drive of an input clock source.
VSS 32,41,65,97,117 G Ground for core.
LA[19:0] 33:40,43:54 O Address bus.
TDMFS 55 I Frame signal from CDROM.
TDMDR 56 I Data signal from CDROM.
TDMCLK 57 I Clock signal from CDROM.
TBCK 58 O Transmit clock when sending audio IIS data to external DAC.
SEL_PLL1 I PLL mode select 1. Pulldown to ground to bypass PLL. Pullup to
VCC for optimal performance.
TWS O Audio strobe signal of IIS signals to external DAC.
SEL_PLL0 I PLL mode select 0. Pulldown to GND to bypass PLL. Pullup to VCC
for optimal performance.
TSD O Audio data of IIS signals to external DAC.
MCLK 61 I/O Media clock input to drive external audio devices or media clock
output when driven by external source into the ES 3890.
CAS# 62 O Column Address Strobe to DRAM (active-low).
DRAS1# 63 O Row Address Strobe 1 to DRAM (active-low).
VPP 64 P 5V power supply.
DRAS0# 67 O Row Address Strobe 0 to DRAM (active-low).
DWE# 68 O Write Enable to DRAM (active-low).
DOE# O Data Out Enable to DRAM (active-low).
MA9 O Multiplexed memory row and column address.
MA[8:0] 70:78 O Multiplexed memory row and column address.
59
60
69
Names Pin No. I/O Descriptions
DBUS[15:0] 79:94 I/O Input when DRAM is being read. Output when DRAM is being written.
REST# 96 I External system reset forces ES3890 to do a reset (active-low).
VSS_P 98 G Ground for system PLL.
VCC_P 99 P 2.5V power supply for system PLL.
AUX2[0] I/O General-purpose programmable I/O.
VFD_CLK I VFD clock
AUX2[1] I/O General-purpose programmable I/O.
SQSO I Subcode-Q data.
AUX2[2] I/O General-purpose programmable I/O.
SQCK I Subcode-Q clock.
AUX2[3] 103 I/O General-purpose programmable I/O.
AUX2[4] I/O General-purpose programmable I/O.
C2PO I C2PO error correction flag from CDROM.
AUX2[5] I/O General-purpose programmable I/O.
SP I Serial port from 16550 UART.
AUX2[6] I/O General-purpose programmable I/O.
S0S1 I Subcode-Q sync.
AUX2[7] 107 I/O General-purpose programmable I/O.
AUX1[5:0] 108:113 I/O General-purpose programmable I/O.
AUX1[6] I/O General-purpose programmable I/O.
VFD_DO O VFD data output.
AUX1[7] I/O General-purpose programmable I/O.
VFD_DI I VFD data input.
AUX0[1:0] 118,119 I/O General-purpose programmable I/O.
AUX0[2] 120 I General-purpose programmable input.
AUX0[3] 121 I/O General-purpose programmable I/O.
AUX0[4] 122 I/O General-purpose programmable input.
VSSV 123,124 G Ground for VDAC circuit.
VDAC 125 O Video DAC V output.
YDAC 126 O Video DAC Y output.
VCCV 127,128 P 2.5V power supply for video DAC circuit.
106
114
115
101
102
104
105
100
IC160 ES3890F (VCD Processor)

- 12 -
IC BLOCK DIAGRAM & DESCRIPTION
PIN DESCRIPTION
SYMBOL PIN NAME
A0~A18 Address Input
Q0~Q7 Data Input/Output
CE Chip Enable Input
WE Write Enable Input
OE Output Enable Input
VCC Single Power Supply Pin (+5V)
GND Ground Pin
CE
OE
WE
CONTROL
INPUT
LOGIC
PRPGRA/ERASE
HIGH VOLTAGE
WRITE
STATE
MACHINE
(WSM)
A0~A18
ADDRESS
LATCH
AND
BUFFER
MX29F004T/B
FLASH
ARRAY
Y-PASS GATE
X-DECODER Y-DECODER
ARRAY
SOURCE
HV
STATE
REGISTER
COMMAND
DATA
DECODER
SENSE
AMPLIFIER
PGM
DATA
HV
PROGRAM
DATA LATCH
COMMAND
DATA LATCH
Q0~Q7 I/O BUFFER
IC180 MX29F004TPC-70 4M-Bit Flash Memory)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VCC
WE
A17
A14
A13
A8
A9
A11
OE
A10
CE
Q7
Q6
Q5
Q4
Q3
A18
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
Q0
Q1
Q2
GND
MX29F004T/B
RF
GND
FM
RF OUT
FM
RF IN
RF
Vcc
AM
LOW
CUT
MIX
OUT
FM
OSC
AM
RF IN AM OSC ST LED
OSC
OUT
Vcc AM
IF IN FM IF IN GND
IF
REQ DET OUT LPF1 LPF2
AGC QUAD R-OUT L-OUT
24 21 20 19 18 17 16 15 14 132223
1 45678910111232
AM
OSC
FM
OSC
AM
MIX
LEVEL
DET
AM
DET FM DET
FM
MIX AGC
BUFF
FMRF
BUFF
ST
1/8
1/1 or
1/16
SW
IF
BUFF
AF
BUFF
FMIFAMIF
AF
IF
REQ
ST/MO
FM/AM
MJTE
VCO
DIVIDE DECODE
MPX
IN
IC211 TA21494BFN (AM/FM 1Chip Tuner IC)

- 13 -
IC BLOCK DIAGRAM & DESCRIPTION
144
V SS V CC
12 33
NC NC
NC
17 28
A8
29
NC
16
A9
18 27
A7A0
19 26
A6A1
20 25
A5A2
2421
A4A3
23
22
V SS V CC
32
NC
13
CASL
31
14
WE CASH
3015
RAS OE
6 39
V CC V SS
2 43
I/O0 I/O15
3 42
I/O1 I/O14
4 41
I/O2 I/O13
5 40
I/O3 I/O12
738
I/O4 I/O11
8 37
I/O5 I/O10
9 36
I/O6 I/O9
10 35
I/O7 I/O8
TSOP(Type ll) Top View
11 34
NC NC
1024 x 1024 x 16
MEMORY
ARRAY
SENSE AMPLIFIERS
I/O GATING
ROW
DECODER
COLUMN
DECODER
1024
1024
1024 x 16
CLOCK
GENERATOR
COLUMN
ADDRESS
BUFFER
REFRESH
CONTROLER
REFRESH
COUNTER
ROW
ADDRESS
BUFFER(10)
CONTROL
LOGIC
DATA-IN BUFFER
WE
RAS
CASL
CASH
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
OE
IO0
:
:
IO15
16
16
16
10
10
10
10
9
10
DATA-OUT
BUFFER
Vss
Vss GENERATOR Vcc
PIN NO. PIN NAME TYPE DESCRIPTION
17-20, 23-28 A0-A9PP Input Address Input Row Address : A0 - A9
Column Address : A0 - A9
14 RAS Input Row Address Strobe
30 CASH Input Column Address Strobe / Upper Byte Control
31 CASL Input Column Address Strobe / Lower Byte Control
13 WE Input Write Enable
29 OE Input Output Enable
2-5, 7-10, 33-36, 38-41 I/O0 - I/O15 Input / Output Data Input / Output
1, 6, 21 VCC Supply Power (3.3V)
22, 37, 42 VSS Ground Ground
11, 12, 15, 16, 32 NC - - - No Connect
IC190 M11L16161SA-45T (DRAM)
BCK
WS
DIN
GND
RCH
NC
LCH
VDD
1
2
3
4
8
7
6
5
Pin Name
BCK
WS
DIN
GND
VDD
LCH
NC
RCH
I/O
I
I
I
-
Power
O
-
O
Description
Bit Serial Clock Input Pin
Word Select Input Pin
Date Input Pin
Ground
Positive Power Supply
Left Channel Output Pin
No Connection
Right Channel Output Pin
No.
1
2
3
4
5
6
7
8
1
2
3
45
6
7
8
BCK
WS
DIN
GND
RCH
NC
LCH
VDD
OUT
OUT
OUT
DAC
DAC
Vcc
Data Latch
Floating
Conversion
Floating
Conversion
op
+
-
op
+
-
op
+
-
IC170 PT8211S (Digital to Analog Converter)
1 4 52 3
IC443 BA7755A (Rec/Play Switch)

- 14 -
IC BLOCK DIAGRAM & DESCRIPTION
IC222 TC9257F (Tuner PLL IC)
2 MODULUS
PRESCALER 4bit SWALLOW COUNTER POWER ON RESET
TRI-STATE
BUFFER
TRI-STATE
BUFFER
OUTPUT PORT
ADDRESS
DECODER
OSC
CIRCUIT
PHASE
COMPARATOR
12bit PROGRAMMABLE COUNTER
20bit BINARY COUNTER
UNIVERSAL COUNTER CONTROL
REFERENCE COUNTER
24bit REGISTER
24bit SHIFT REGISTER
24bit REGISTER
MAX
1/ 2
UNLOCK
I/O PORT
XT 20 DO2
1
XT 19 DO1
2
PERIOD 18 I/O-7
/SCIN
3
CLOCK 17 I/O-8
/IFIN1
4
DATA 16 I/O-9
/IFIN2
5
OT-1 15 GND
6
OT-2 14 FMIN
7
OT-3 13 AMIN
8
12
9
1110
OT-4 VDD
I/O-5
/CLK I/O-6
Top View
DIP-20PIN / SOP-20PIN
TEST
GATE AMP
AMP
AMP
OT-4
OT-4
OT-1 OT-3
OT-2 OT-4
RESET
PSC
MODE LFFM
HFFMH
FML
XT
1ms
1ms
OSC
4
8
24 22
10
5
5
4
4
15
12
4
DO1
I/O-5
/CLK
I/O-6
I/O-7 / SCIN
DO2
(DO2 / OT-4)
I/O-9 / IFIN2
(I/O-6 / IFIN2)
I/O-8 / IFIN1
(I/O-5 / IFIN1)
GNDVDD
FMIN
AMIN
XT
XT
DATA
CLOCK
PERIOD
Nor/Cro
& Hi/Lo
Logic
R
R
P
R
P
P
ALC
Mute
Mute
Logic
A/B
Logic
Rec/PB
Ripple
Rejection
Rec
Amp(L)
Rec
Amp(R)
PB Amp(L)
PB Amp(R)
A/Rec
A/Rec
B
B
123457
68910 1211
1314
15
16
17
1819
20
21222324
L-PB AMP
R-PB AMP
R-PB NF
R-PB EO
R-PB OUT
AB SW
R-REC OUT
R-REC IN
REC/PB SW
A/B SW
FILTER
GND VCC
CRO/NOR
HI/LO
ALC
L-REC OUT L-REC IN
ALC
L-PB AMP OUT
L-PB EO L-PB NF R-PB AMP
L-PB AMP
IC440 AN7348K (Play /Rec Pre Amp)

- 15 -
IC BLOCK DIAGRAM & DESCRIPTION
9
3 10
1
12
18 23 14
17
19
24 20
13
15
16
8
11
2
7
6
4
22
21
5
VSSP1
VSSP2
mute
mute
INPUT
STAGE PWM
MODULATOR CONTROL
AND
HANDSHAKE
DRIVER
HIGH
DRIVER
LOW
RELEASE1
SWITCH1
ENABLE1
INPUT
STAGE
PWM
MODULATOR
CONTROL
AND
HANDSHAKE DRIVER
LOW
DRIVER
HIGH
RELEASE2
SWITCH2
ENABLE2
MODE OSCILLATOR MANAGER TEMPERATURE SENSOR
CURRENT PROTECTION
STABI
VSSP1VSSA1VSSA2VSSD HW VSSP2
BOOT1
BOOT2
OUT1
OUT2
IN1-
IN1+
SGND1
SGND2
IN2+
IN2-
OSC
MODE
124
2
23
3
22
4
21
5
20
6
19
7
18
8
17
9
16
10
15
11
14
1213
V DDA 2
V
DDA 1
V
DDP 1
V
DDP 2
PROT
STABI
V
SSP 1
V
SSA 1
V
SSA 2V SSD
HW
V
SSP 2
BOOT1
BOOT2
OUT1
OUT2
IN1-
IN1+
SGND1
SGND2
IN2+
IN2-
OSC
MODE
TDA8921TH
VSSA2
SGND2
VDDA2
IN2-
IN2+
MODE
OSC
IN1+
IN1-
VDDA1
SGND1
VSSA1
1
2
3
4
5
6
7
8
9
10
11
12
negative analog supply voltage for channel 2
signal ground for channel 2
positive analog supply voltage for channel 2
negative audio channel 2 input
positive audio channel 2 input
mode select input : (standby, mute or operationg)
oscillator frequency adjustment or tracking input
positive audio channel 1 input
negative audio channel 1 input
positive analog supply voltage for channel 1
signal ground for channel 1
negative analog supply voltage for channel 1
SYMBOL PIN DESCRIPTION
PROT
VDDP1
BOOT1
OUT1
VSSP1
STABI
HW
VSSP2
OUT2
BOOT2
VDDP2
VSSD
13
14
15
16
17
18
19
20
21
22
23
24
time constant capacitor for protection delay
positive power supply voltage for channel 1
bootstrap capacitor for channel 1
channel 1 PWM output
negative power supply voltage for channel 1
decouping capacitor of internal stabilizer for logic supply
handle wafer ; must be connected to VSSD
negative power supply voltage for channel 2
channel 2 PWM output
bootstrap capacitor for channel 2
positive power supply voltage for channel 2
negative digital supply voltage
SYMBOL PIN DESCRIPTION
IC597 TDA8921TH (2 x 50 Class-D Power Amplifier)
IC601 PT6315 (VFD Driver / Controller IC)
OSC
Serial
Data
Interface
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
42
41
40
39
1
2
3
4
7
6
8
9
5
30131110
Control
Display Memory
(24 bits x 17 Words)
Key Moter Memory
LED
Driver
Grid
Driver
Segment
Driver
Grid
Driver
Key Scan
Output
Driving Circuit
TI~inc Generator
SG1/KS1
SG2/KS2
SG3/KS3
SG4/KS4
SG5/KS5
SG6/KS6
SG7/KS7
SG8/KS8
SG9/KS9
SG10/KS10
SG11/KS11
SG12/KS12
SG13/KS13
SG14/KS14
SG15/KS15
SG16/KS16
SG17/GR12
SG18/GR11
SG19/GR10
SG20/GR9
SG21/GR8
SG22/GR7
SG23/GR6
SG24/GR5
GR1
GR2
GR3
GR4
LED1
LED2
LED3
LED4
DIN
DOUT
CLK
STB
OSC
VEEGNDVDDK2K1
Description
LED Output Pin
Oscillator Input Pin
A resistor is connected to this pin to
determinc the oscillation frequency
Data Output Pin (N-Channel, Open-Drain)
This pin outputs scrial data at the falling
edge of the shift clock
(starting from the lower bit)
Data Input Pin
This pin inputs serial data at the rising cdge
of the shift clock (starting from the lower bit)
Clock Input Pin
This pin reads serial data at the rising cdge
and outputs data at the falling cdge.
Serial Interface Strobe Pin
The data input after the STB has fallen is
processed as a command.
When this pin "HIGH",CLK is ignored,
Key Data Input Pins
The data inputted to these pins are fatched
at the end of the display cycle.
Logic Ground Pin
Logic Power Supply
High-Voltage Segment Output Pins
Also acts as the Key Source
Pull-Down Level
High Voltage Segment/Grid Output Pins
High-Voltage Grid Output Pins
Pin No.
1 to 4
5
6
7
8
9
10, 11
12, 44
13, 43
14 to 29
30
31 to 38
39 to 42
I/O
O
I
O
I
I
I
I
-
-
O
-
O
O
Pin Name
LED1 to LED4
OSC
DOUT
DIN
(Schmitt Trigger)
CLK
(Schmitt Trigger)
STB
(Schmitt Trigger)
K1 to K2
VSS
VDD
SG1/KS1 to
SG16/KS16
VEE
SG17/GR12 to
SG24/GR5
GR4 to GR1

- 16 -
IC BLOCK DIAGRAM & DESCRIPTION
GND
2
1
V DD
28
3
4
5
6
7
8
9
10
11
12
13 14 15 16
27
26
25
24
23
22
21
20
19
18
17
Vref CK DATA STB
32BIT SR
50k
500
750
50k
100k
MAIN VR
50k / 64STEP
13k
13k
1k
BASS VR
50k /
16STEP
TREBLE VR
50k /
16STEP
50k
CAPACITOR FOR
OSCILLATION
GAIN CONTROL
0, 6, 12, 18dB
INPUT
SELECTOR
500
750
50k
100k
MAIN VR
50k / 64STEP
13k
13k
1k
BASS VR
50k /
16STEP
TREBLE VR
50k /
16STEP
CAPACITOR FOR
OSCILLATION
GAIN CONTROL
0, 6, 12, 18dB
INPUT
SELECTOR
L-IN1
L-IN2
L-IN3
L-IN4
L-SW-OUT
L-VR-IN
L-B1
L-B2
L-B3
L-Tone-OUT
L-T1
R-IN1
R-IN2
R-IN3
R-IN4
R-SW-OUT
R-VR-IN
R-B1
R-B2
R-B3
R-Tone-OU
T
R-T1
IC441 TC9422F (Volume Control)

- 17 -
IC BLOCK DIAGRAM & DESCRIPTION
16-bit
Timer/Counter
Time Base
Timer
Watchdog
Timer
TC1
System Controller
Standby Controller
Timing Generator
High frequ.
Low frequ.
Clock
Generator TC2
Interrupt Controller
8-bit
Timer/Counter
Data Memory
(RAM) Data Memory
(EEPROM)
Program
Counter
8bit
AD converter P5 P0 P4
I/O ports
VAREF
I/O ports (Segment output)
Segment outputCommon output
P3 P4 PD
P2
Program Memory
TC3 TC5
Serial
Interfaces
SIO1 SIO2
Register banks
Stack Pointer
Flags RBS
PSW
LOD Driver
ALU
VDD
VSS
VLC
RESET
BOOT
TEST
XIN
XOUT
MROM
BOOT
Inst. Register
Inst. Decoder
EEPROM
P9P6
P93/SEG12
to
P90/SEG15
COM3
to
COM0
P22
to
P20
P57 to P50
(AIN7) to (AIN0)
P07
to
P00
P17
to
P10 P36
to
P30 P47
to
P40
PD2
to
PD0
SEG11
to
SEG0
P87/SEG32
to
P80/SEG39 P77/SEG24
to
P70/SEG31 P67/SEG16
to
P60/SEG23
P7 P8
IC651 TMP87EP26F-4K76 (Micro Controller)
Control Pin I/O Remarks
XIN
XOUT
XTIN
XTOUT
RESET
STOP/INTS
TEST
BOOT
P0
P5
P1
P3
P2
P6
P7
P8
P9
P4
PD
Input
Output
Input
Output
I/O
Input
Input
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Resonator connecting pins (high-frequency)
Rf=1.2MΩ(typ.)
Ro=1.5kΩ(typ.)
R=1kΩ(typ.)
Resonator connecting pins (low-frequency)
Rf=6MΩ(typ.)
Ro=220kΩ(typ.)
R=1kΩ(typ.)
Sink open drain output. Hysteresis input.
Pull-up resistor.
R
IN=220kΩ(typ.)
R=1kΩ(typ.)
Hysteresis input.
R=1kΩ(typ.)
Pull-down resistor.
R
IN=70kΩ(typ.)
R=1kΩ(typ.)
Tri-state I/O.
R=1kΩ(typ.)
Tri-state I/O. Hysteresis input.
R=1kΩ(typ.)
Sink open drain output. Hysteresis input.
R=1kΩ(typ.)
Sink open drain output.
R=1kΩ(typ.)
Sink open drain
or
Segment output.
R=1kΩ(typ.)
Sink open drain or push-pull output.
P41 High current output. Hysteresis input.
Sink open drain output.
R=1kΩ(typ.)
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM3
COM2
COM1
COM0
VLC
PD0
PD1
PD2
VDD
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
VSS
BOOT
VAREF
P57(AIN7)
P56(AIN6)
P55(AIN5)
P54(AIN4)
P53(AIN3)
P52(AIN2)
P51(AIN1)
P50(AIN0)
P36
P35
P34
P33
P32
P31
P30
P17
P16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
VSS
XOUT
XIN
RESET
(XOUT)P22
(XIN)P21
TEST
(INTS/STOP)P20
(INT3/TC3)P40
(PMW/PDO)P41
(SCK1)P42
(SI1)P43
(SO1)P44
(SCK2)P45
(SI2)P46
(SO2)P47
P00 P01 P02 P03 P04 P05 P06 P07
(INT0)P10 (INT1)P11
(INT2/TC1)P12
(DVO)P13
(PPG)P14
(TC2)P15
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
SEG11 SEG12/P93 SEG13/P92 SEG14/P91 SEG15/P90 SEG16/P67 SEG17/P66 SEG18/P65 SEG19/P64 SEG20/P63 SEG21/P62 SEG22/P61 SEG23/P60 SEG24/P77 SEG25/P76 SEG26/P75 SEG27/P74 SEG28/P73 SEG29/P72 SEG30/P71 SEG31/P70 SEG32/P87 SEG33/P86 SEG34/P85 SEG35/P84 SEG36/P83 SEG37/P82 SEG38/P81 SEG39/P80 VDD

- 18 -
2G 3G 4G 5G 6G 7G 8G 9G 10G1G
Dp
col
(2G~9G)
a
bf hjk
pn
d
rce
gm
B1
B8
B2 B3 B4
B5
B6
B7
S1
PIN No.
CONNECTION
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
F1 F1 NP 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G NX NX P1 P2 P3
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 NP F2 F2
PIN No.
CONNECTION
*NOTES*
1) F1,F2 : Filament Pin 3) Pn : Anode Pin 5) NX : No Extended Pin
2) G : Grid PIn 4) NP : No Pin
351
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
col
c
e
p
r
n
d
Dp
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
a
b
f
h
j
k
g
m
-
c
e
p
r
n
d
-
1G 2G 3G 4G 5G 6G 7G 8G 9G 10G
S1
B1
B2
B3
B4
B5
B6
B7
B8
-
-
-
( )
( )
( )
( )
PATTERN AREA
FL DISPLAY DESCRIYIONS
FL601

- 19 -
WIRING CONNECTION
(16P)
PICK UP
(6P)
CN470
(3P)
CN401
(3P)
CN408
(3P)
CN409
(4P)
CN651
(12P)
CN402
(12P)
CN652
(10P)
CN407
(3P)
CN655
(8P)
CN654
(26P)
CN653
(16P)
CN114
(2P)
CN113
(6P)
CN111
(16P)
CN140
(6P)
CN130
(26P)
CN601
(16P) CN604
(6P)
CN631
(5P)
CN630
(6P)
CN621
(5P)
CN440
(6P)
CN455
(6P)
CN597
(12P)
CN231
(12P)
CN201
FM
ANT.
CN203
AM LOOP
ANT.
CN577
AUX IN
L-CH R-CH
CN598
(3P)
CN567
PHONES
CN599
(3P)
POWER
AMPLIFIER
P. W. B
MAIN P.W.B
CD P.W.B
FRONT P.W.B
LED P.W.B
DOOR SWITCH
P. W. B
JOG VR P.W.B
CD MECHANISM
TUNER P.W.B
(10P)
TAPE DECK
MECHANISM
FU411
T4A L 250V
FU499
T630mA L 250V
FU410
T4A L 250V
P. T
AC IN
CN497
BL
CN498
BW
LOADING MOTOR
M
CN587
SPEAKERS
L-CH R-CH
+ - - +
This is a basic wiring connection.
