Sanyo CP28WF1 User manual

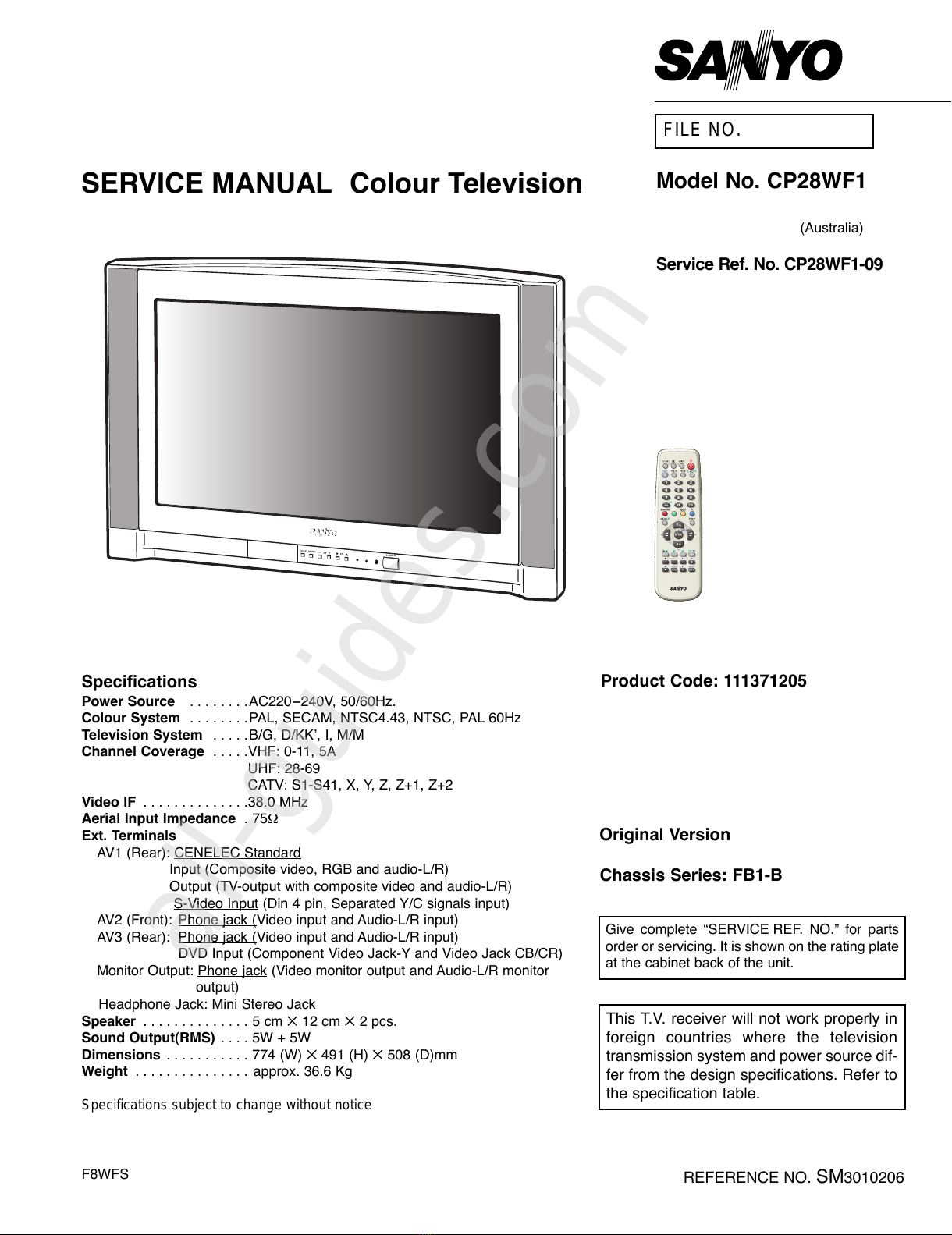

SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . .AC220 - 240V, 50/60Hz.
Colour System . . . . . . . .PAL, SECAM, NTSC4.43, NTSC, PAL 60Hz
Television System . . . . .B/G, D/KK’, I, M/M
Channel Coverage . . . . .VHF: 0-11, 5A
UHF: 28-69
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . .38.0 MHz
Aerial Input Impedance .75Ω
Ext. Terminals
AV1 (Rear): CENELEC Standard
Input (Composite video, RGB and audio-L/R)
Output (TV-output with composite video and audio-L/R)
S-Video Input (Din 4 pin, Separated Y/C signals input)
AV2 (Front): Phone jack (Video input and Audio-L/R input)
AV3 (Rear): Phone jack (Video input and Audio-L/R input)
DVD Input (Component Video Jack-Y and Video Jack CB/CR)
Monitor Output: Phone jack (Video monitor output and Audio-L/R monitor
output)
Headphone Jack: Mini Stereo Jack
Speaker . . . . . . . . . . . . . . 5 cm 12 cm  2 pcs.
Sound Output(RMS) . . . . 5W + 5W
Dimensions . . . . . . . . . . . 774 (W) 491 (H) 508 (D)mm
Weight . . . . . . . . . . . . . . . approx. 36.6 Kg
Specifications subject to change without notice
Original Version
Chassis Series: FB1-B
F8WFS
FILE NO.
Model No. CP28WF1
Service Ref. No. CP28WF1-09
(Australia)
Give complete “SERVICE REF. NO.” for parts
order or servicing. It is shown on the rating plate
at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Product Code: 111371205
REFERENCE NO. SM3010206
TV/AV MENU CH POWER
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 1
All manuals and user guides at all-guides.com
all-guides.com

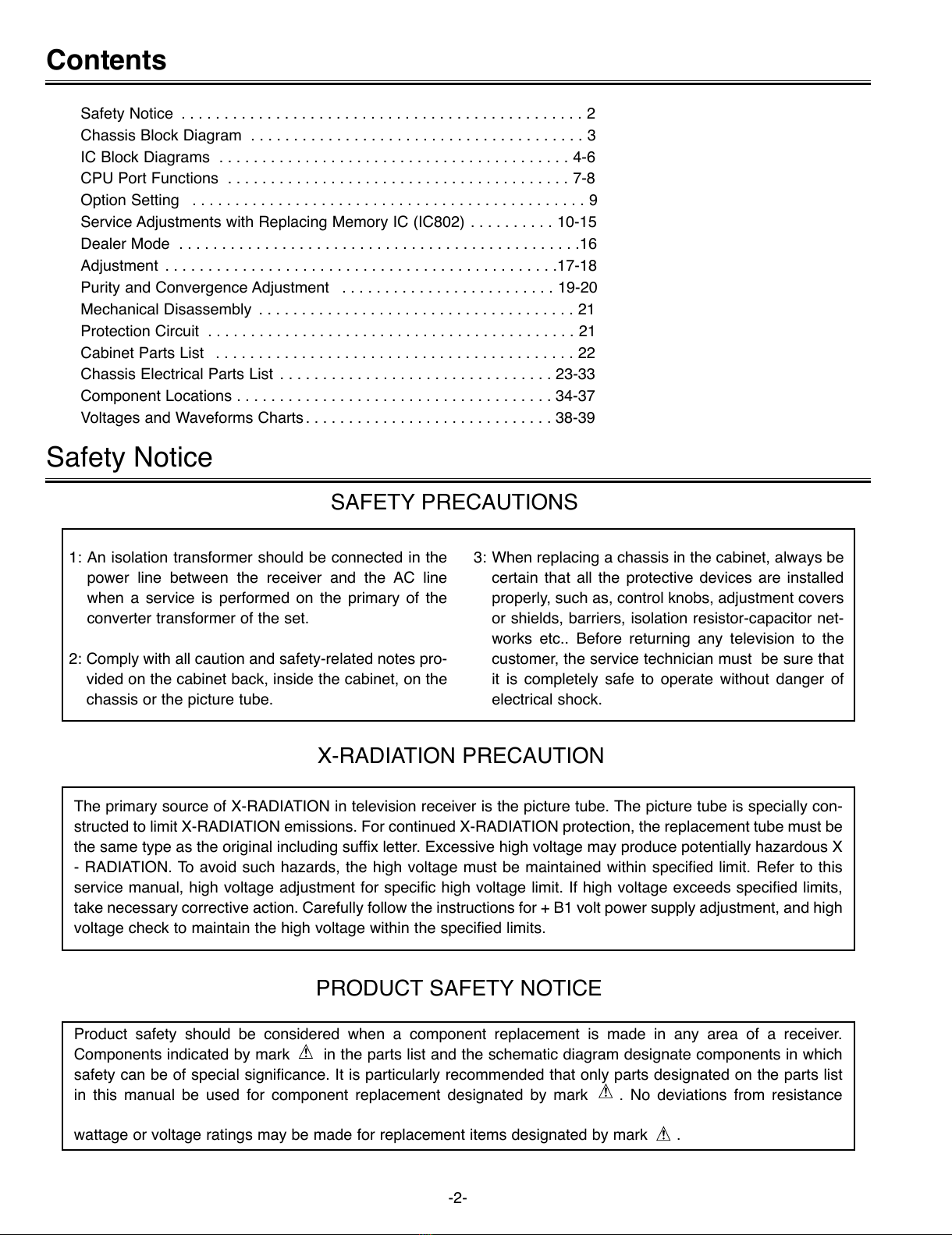

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
CPU Port Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Option Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Service Adjustments with Replacing Memory IC (IC802) . . . . . . . . . . 10-15
Dealer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-18
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 19-20
Mechanical Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-33
Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-37
Voltages and Waveforms Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-39
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high
voltage check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
SM_28-F8WFS (AUS) 9/6/06 7:45 PM Page 2
All manuals and user guides at all-guides.com

TUNER
VIDEO
L/R
INPUT-1 INPUT-2
INPUT-3
MONITOR
OUT
Y-IN
Cb-IN
Cr-IN
L/R
VIDEO
VIDEO
L/R
L/R
Y/C
VIF/SIF
IC201
PROCESSOR
IC001
AUDIO AMP.
IC1401
WOOFER AMP.
KEY SW
RC
RECEIVER LED
H-PHONE SPEAKER WOOFER
IC802
EEPROM
IC701
TRIPLE
VIDEO
OUTPUT
AMP
IC501
VERTICAL
T431
H-DRIVE
TRANS
Q431
H-DRIVE
Q901
CRT
T471
FBT
Q432
H-OUT
PCC
CIRCUIT
-3-
Chassis Block Diagrams

 IC1401<Woofer Pre-Amp. IC> is not used
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 3
All manuals and user guides at all-guides.com

IC Block Diagrams
-4-
11 12
COLOUR SYSTEM OPTION INPUT
KEY SWITCH IN KEY
SWITCH
SCL
2
1
106
SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
QXXAVC534M
18
17
127
9998
7 6
112
99
26
33
DEFLECTION
CIRCUIT
HORIZ. SYNC IN (ACTIVE=LOW)
VERT. SYNC IN (ACTIVE=LOW)
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
SCL
SDA
IC802
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED
ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
9 122
SOUND MUTE
IC001
AUDIO AMP.
VIF-M OUTPUT (HIGH=NTSC, LOW=OTHER)
A101
F/S TUNER
RESET INPUT (RESET=LOW)
13
VIDEO SELECTOR (LOW=AV1, H=AV2)
56
SECAM KILLER INPUT (HIGH=SECAM)
IC1201
VIDEO SELECTOR 2
16
BILINGUAL OUTPUT (LOW=S-1, HIGH=S-2)
IC3701
AUDIO CONTROL/
SURROUND
10
13 14
5
4
System Control
QXXAAJQ0685--
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 4
All manuals and user guides at all-guides.com

-5-
IC201 < CPU/IF/Video/Chroma/Def.> QXXAVC534C7JAS
IC Block Diagrams
SWITCH
QSS SOUND IF
AGC
QSS MIXER
AM DEMODULATOR
QSSO/AMOUT
REFO
SSIF
SIFIN/DVBIN
DVBO/IFVO/ FMRO
DVBO/FMRO
AGCOUT
VIFIN
IFVO/SVO/ CVBSI
YSYNC
CVBS2/Y2 CVBS3/Y3 CVBS4/Y4
C2/C3
C4
CVBSO/PIP
VISION IF/AGC/AFC
PLL DEMOD.
SOUND TRAP
GROUP DELAY
VIDEO AMP.
VIDEO SWITCH
VIDEO IDENT.
VIDEO FILTERS
H/V SYNC SEP.
H.OSC. + PLL
2nd LOOP
H-SHIFT
H.DRIVE
HOUT
H/V
Y
C
SOUND PLL
DEEMPHASIS
PAL/SECAM/NTSC
DECODER
DIGITAL
2H/4H
COMB FILTER
Y DELAY ADJ.
VERTICAL
& EAST-WEST
GEOMETRY
V-DRIVE
EWD
EHTO
BL
R/PR
G/Y
B/PB
B/PB
SWO1 BL
Vo Uo Ui ViYo Yi
G/Y R/PR
RGB/YPRPBINSERT
YUV INTERFACE
BASE-BAND
DELAY LINE
A/D CONVERTER
ALL-STANDARD
STEREO
DECODER
AM
SCART/CINCH IN/OUT
AUDIO SELECT
ADC/DAC
12S
AUDIO CONTROL
VOLUME
TREBBLE/BASS
FEATURES
DACS
LS-OUT HP-OUT
LR LR
RDS
I/OS
µ-PROCESSOR AND TELETEXT DECODER
DIGITAL SIGNAL PROCESSING FEATURES
SCAVEM
ON TEXT
YUV IN/OUT
PEAKING
SCAN VELOCITY
MODULATION
U/V DELAY
YUV
CON.
BRI
BL RGBCR
RGB CONTROL
OSD/TEXT INSERT
CONTR/BRIGHTN
CCC
WHITE-P.ADJ.
RO
GO
BO
BCLIN
BLKIN
SVM
RGB MATRIX
BLUE STRETCH
BLACK STRETCH
GAMMA CONTROL
SAT
SKIN TONE
U/V TINT
SATURATION
(CVBSX/YX)(CX)
REF
29
30
39
43
44
31 24
25 48
73
55
58
59
51 64
52
67 22 23 32
65
84
83
87
86 85
63
6261
60
78 79 80 76
33
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 5
All manuals and user guides at all-guides.com

-6-
IC Block Diagrams

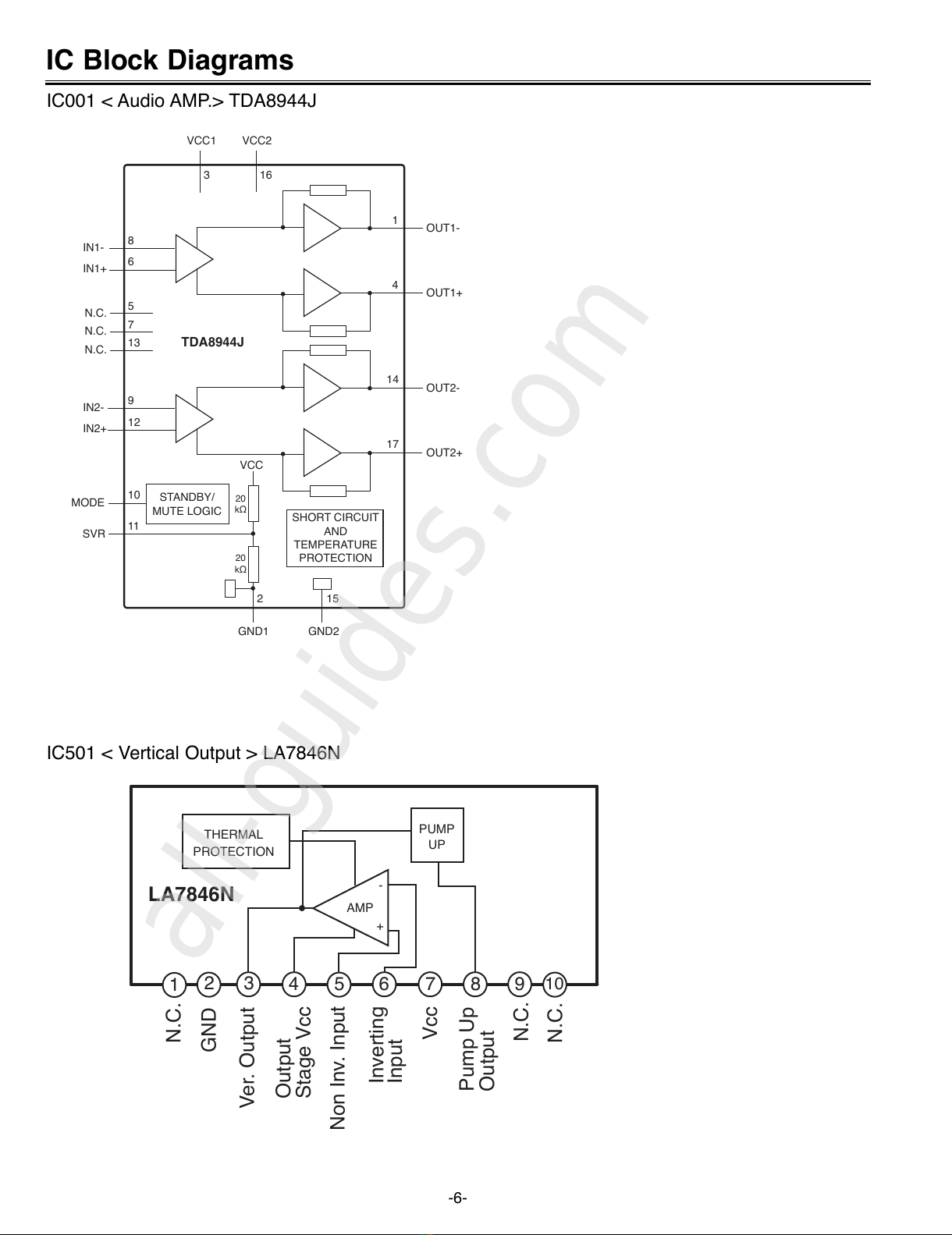

IC001 < Audio AMP.> TDA8944J
1
4
14
17
OUT1-
OUT1+
OUT2-
OUT2+
16
3
VCC1 VCC2
6
5
7
13
8
12
10
11
9
IN1-
IN1+
IN2-
IN2+
MODE
SVR
STANDBY/
MUTE LOGIC
VCC
20
kΩ
20
kΩ
215
GND1 GND2
SHORT CIRCUIT
AND
TEMPERATURE
PROTECTION
N.C.
N.C.
N.C. TDA8944J
IC501 < Vertical Output > LA7846N
THERMAL
PROTECTION
PUMP
UP
AMP
-
+
N.C.
Ver. Output
Output Stage Vcc
Non Inv. Input
Inverting Input
Vcc
Pump Up Output
LA7846N
GND
N.C.
N.C.
123457
689
10
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 6
All manuals and user guides at all-guides.com
all-guides.com

-7-
CPU Port Functions
Pin No. Function Name Function
1 VSSP2 Ground
2 VSSC4 Ground
3 VDDC4 Digital supply to SDACs (1.8V)
4 VDDA3(3.3V) Supply (3.3V)
5 VREF_POS_LSL Positive reference voltage SDAC (3.3V)
6 VREF_NEG_LSL+HPL Negative reference voltage SDAC (0 V)
7 VREF_POS_LSR+HPR Positive reference voltage SDAC (3.3 V)
8 VREF_NEG_HPL+HPR Negative reference voltage SDAC (0 V)
9 VREF_POS_HPR Positive reference voltage SDAC (3.3V)
10 XTALIN Crystal oscillator input
11 XTALOUT Crystal oscillator output
12 VSSA1 Ground
13 VGUARD/SWIO V-guard input / I/O switch
14 DECDIG Decoupling digital supply
15 VP1 1st supply voltage TV-processor (+5 V)
16 PH2LF Phase-2 filter
17 PH1LF Phase-1 filter
18 GND1 Ground 1 for TV-processor
19 SECPLL SECAM PLL decoupling
20 DECBG Bandgap decoupling
21 EWD/AVL (1) East-West drive output or AVL capacitor
22 VDRB Vertical drive B output
23 VDRA Vertical drive A output
24 VIFIN1 IF Input 1
25 VIFIN2 IF Input 2
26 VSC Vertical sawtooth capacitor
27 IREF Reference current input
28 GNDIF Ground connection for IF amplifier
29 SIFIN1/DVBIN1 (2) SIF input 1 / DVB input 1
30 SIFIN2/DVBIN2 (2) SIF input 2 / DVB input 2
31 AGCOUT Tuner AGC output
32 EHTO EHT/overvoltage protection input
33 AVL/SWO/SSIF/ Automatic Volume Levelling / swith
REFO/REFIN (2)(3) output / sound IF input / subcarier
reference output / external reference
signal input for I signal mixer for
DVB operation
34 AUDIOIN5L Audio-5 input (left signal)
35 AUDIOIN5R Audio-5 input (right signal)
36 AUDOUTSL Audio output for SCART/CINCH (left signal)
37 AUDOUTSR Audio output for SCART/CINCH (right signal)
38 DECSDEM Decoupling sound demodulator
39 QSSO/AMOUT QSS intercarrier output / AM output
/AUDEEM (2) / deemphasis (front-end audio out)
40 GND2 Ground 2 for TV processor
41 PLLIF IF-PLL loop filter
42 SIFAGC/DVBAGC(2) AGC sound IF / internal-external
AGC for DVB applications
Pin No. Function Name Function
43 DVBO/IFVO/FMRO (2) Digital Video Broadcast output / IF
video output / FM radio output
44 DVBO/FMRO (2) Digital Video Broadcast output / FM
radio output
45 VCC8V 8 Volt supply for audio switches
46 AGC2SIF AGC capacitor second sound IF
47 VP2 2nd supply voltage TV processor (+5 V)
48 IFVO/SVO/CVBSI (2) IF video output / selected CVBS
output / CVBS input
49 AUDIOIN4L Audio-4 input (left signal)
50 AUDIOIN4R Audio-4 input (right signal)
51 CVBS4/Y4 CVBS2/Y4 input
52 C4 Chroma-4 input
53 AUDIOIN2L/SSIF (3) Audio 2 input (left signal) / sound IF
input
54 AUDIOIN2R Audio 2 input (right signal)
55 CVBS2/Y2 CVBS2/Y2 input
56 AUDIOIN3L Audio 3 input (left signal)
57 AUDIOIN3R Audio 3 input (right signal)
58 CVBS3/Y3 CVBS3/Y3 input
59 C2/C3 Chroma-2/3 input
60 AUDOUTLSL Audio output for audio power ampli-
fier (left signal)
61 AUDOUTLSR Audio output for audio power ampli-
fier (left signal)
62 AUDOUTHPL Audio output for headphone channel
(left signal)
63 AUDOUTHPR Audio output for headphone channel
(Right signal)
64 CVBSO/PIP CVBS / PIP output
65 SVM Scan velocity modulation output
66 FBISO/CSY Flyback input/sandcastle output or
composite H/V timing output
67 HOUT Horizontal output
68 VSScomb Ground connection for comb filter
69 VDDcomb Supply voltage for comb filter (5V)
70 VIN (R/PRIN2/CX) V-input for YUV interface (2nd R
input / PR input or Cxinput)
71 UIN (B/PBIN2) U-input for YUV interface (2nd B
input / PB input)
72 YIN (G/YIN2/CVBS-Yx) Y-input for YUV interface (2nd G
input / Y input or CVBS/Yx input)
73 YSYNC Y-input for sync separator
74 YOUT Y-output (for YUV interface)
75 UOUT (INSSW2) U-output for YUV interface (2nd
RGB / YPBPRinsertation input)
76 VOUT (SW01) V-output for YUV interface (general
purpose switch output)
77 INSSW3 3rd RGB / YPBPRinsertion input
78 R/PRIN3 3rd R input / PRinput
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 7
All manuals and user guides at all-guides.com

-8-
Pin No. Function Name Function
79 G/YIN3 3rd G input / Y input
80 B/PBIN3 3rd B input / PBinput
81 GND3 Ground 3 for TV-processor
82 VP3 3rd supply for TV processor (5V)
83 BCLIN Beam current limiter input
84 BKLIN Black current input
85 RO Red output
86 GO Green output
87 BO Blue output
88 VDDA1 Analog supply for TCG µ-Controller
and digital supply for TV-processor
(+3.3V)
89 VREFAD_NEG Negative reference voltage (0 V)
90 VREFAD_POS Positive reference voltage (3.3 V)
91 VREFAD Reference voltage for audio ADCs
(3.3/2 V)
92 GNDA Ground
93 VDDA(1.8V) Analogue supply for audio ADCs
(1.8V)
94 VDDA2(3.3) Supply voltage SDAC (3.3 V)
95 VSSadc Ground for video ADC and PLL
96 VDDadc(1.8) Supply voltage video ADC and PLL
97 INT0/P0.5 External interrupt 0 or port 0.5 (4 mA
current sinking capability for direct
drive of LEDs)
98 P1.0/INT1 Port 1.0 or external interupt 1
99 P1.1/T0 Port 1.1 or Counter/Timer 0 input
100 VDDC2 Digital supply to core (1.8 V)
101 VSSC2 Ground
102 P0.4/I2SWS Port 0.4 or I2S word select
103 P0.3/I2SCLK Port 0.3 or I2S clock
104 P0.2/I2SDO2 Port 0.2 or I2S digital output 2
105 P0.1/I2SDo1 Port 0.1 or I2S digital output 1
106 P0.0/I2SDI1/O Port 0.0 or I2S digital input 1 or I2S
digital output
107 P1.3/T1 Port 1.3 or Counter/Timer 1 input
108 P1.6/SCL Port 1.6 or I2C-bus clock line
109 P1.7/SDA Port 1.7 or I2C-bus data line
110 VDDP(3.3V) Supply to periphery and on-chip voltage
regulator (3.3V)
111 P2.0/TPWM Port 2.0 or Tuning PWM output
112 P2.1/PWM0 Port 2.1 or PWM0 output
113 P2.2/PWM1 Port 2.2 or PWM1 output
114 P2.3/PWM2 Port 2.3 or PWM2 output
115 P3.0/ADC0 Port 3.0 or ADC0 input
116 P3.1/ADC1 Port 3.1 or ADC1 input
117 VDDC1 Digital supply to core (+1.8V)
118 DECV1V8 Decoupling 1.8V supply
119 P3.2/ADC2 Port 3.2 or ADC2 input
Pin No. Function Name Function
120 P3.3/ADC3 Port 3.3 or ADC3 input
121 VSSC/P Digital ground for µ-Controller core
and periphery
122 P2.4/PWM3 Port 2.4 or PWM3 output
123 P2.5/PWM4 Port 2.5 or PWM4 output
124 VDDC3 Digital supply to core (1.8V)
125 VSSC3 Ground
126 P1.2/INT2 Port 1.2 or external interrupt 2
127 P1.4/RX Port 1.4 or UART bus
128 P1.5/TX Port 1.5 or UART bus
CPU Port Functions
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 8
All manuals and user guides at all-guides.com

-9-

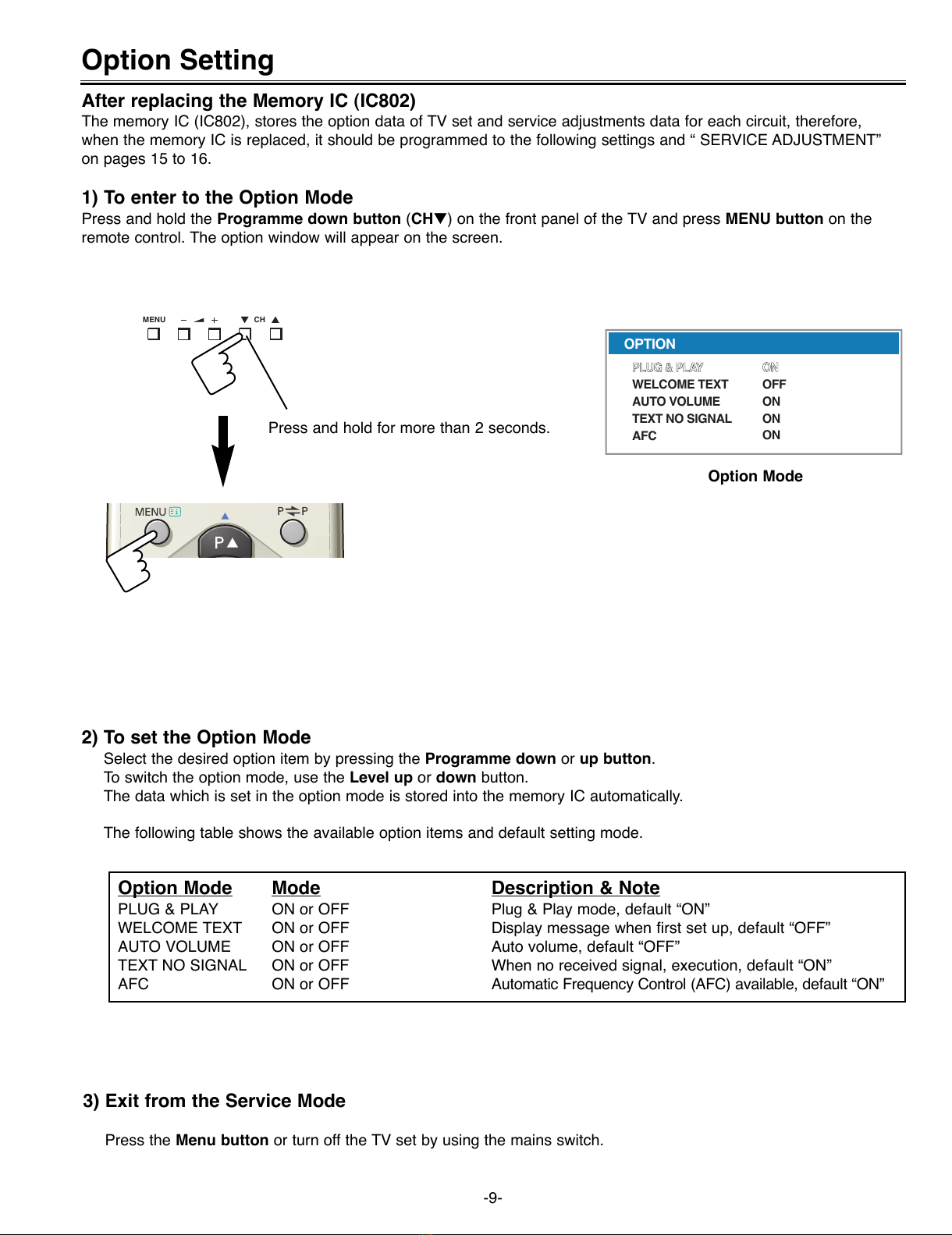

Option Setting
After replacing the Memory IC (IC802)
The memory IC (IC802), stores the option data of TV set and service adjustments data for each circuit, therefore,
when the memory IC is replaced, it should be programmed to the following settings and “ SERVICE ADJUSTMENT”
on pages 15 to 16.
1) To enter to the Option Mode
Press and hold the Programme down button (CH) on the front panel of the TV and press MENU button on the
remote control. The option window will appear on the screen.
MENU CH
PLUG & PLAY
WELCOME TEXT
AUTO VOLUME
TEXT NO SIGNAL
AFC
ON
OFF
ON
ON
ON
OPTION
HOTEL MODE
OFF
Option Mode
2) To set the Option Mode
Select the desired option item by pressing the Programme down or up button.
To switch the option mode, use the Level up or down button.
The data which is set in the option mode is stored into the memory IC automatically.
The following table shows the available option items and default setting mode.
Option Mode Mode Description & Note
PLUG & PLAY ON or OFF Plug & Play mode, default “ON”
WELCOME TEXT ON or OFF Display message when first set up, default “OFF”
AUTO VOLUME ON or OFF Auto volume, default “OFF”
TEXT NO SIGNAL ON or OFF When no received signal, execution, default “ON”
AFC ON or OFF Automatic Frequency Control (AFC) available, default “ON”
3) Exit from the Service Mode
Press the Menu button or turn off the TV set by using the mains switch.
Press and hold for more than 2 seconds.
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 9
All manuals and user guides at all-guides.com

-10-

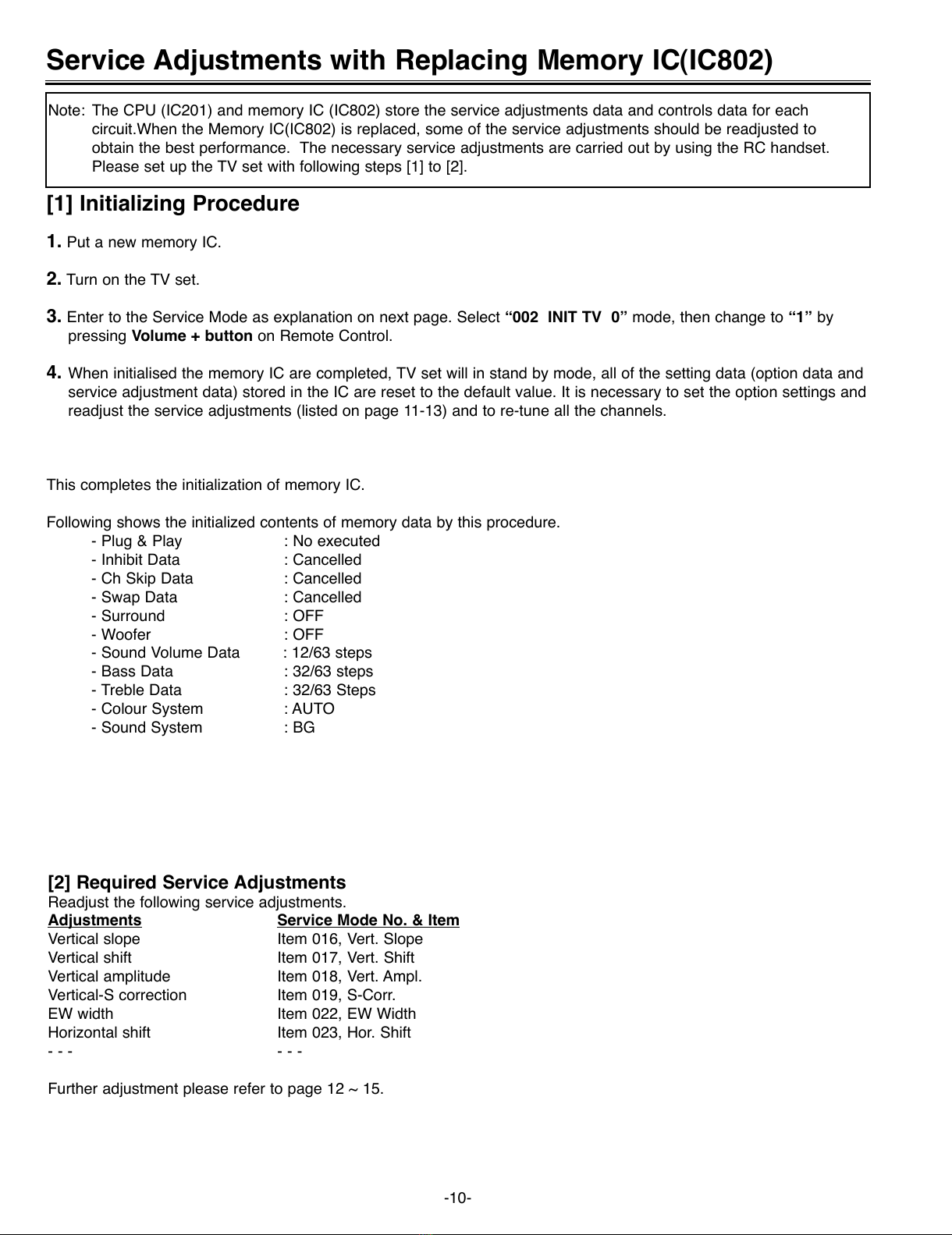

Service Adjustments with Replacing Memory IC(IC802)
Note: The CPU (IC201) and memory IC (IC802) store the service adjustments data and controls data for each
circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].
[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Enter to the Service Mode as explanation on next page. Select “002 INIT TV 0” mode, then change to “1” by
pressing Volume + button on Remote Control.
4. When initialised the memory IC are completed, TV set will in stand by mode, all of the setting data (option data and
service adjustment data) stored in the IC are reset to the default value. It is necessary to set the option settings and
readjust the service adjustments (listed on page 11-13) and to re-tune all the channels.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & Play : No executed
- Inhibit Data : Cancelled
- Ch Skip Data : Cancelled
- Swap Data : Cancelled
- Surround : OFF
- Woofer : OFF
- Sound Volume Data : 12/63 steps
- Bass Data : 32/63 steps
- Treble Data : 32/63 Steps
- Colour System : AUTO
- Sound System : BG
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
Vertical slope Item 016, Vert. Slope
Vertical shift Item 017, Vert. Shift
Vertical amplitude Item 018, Vert. Ampl.
Vertical-S correction Item 019, S-Corr.
EW width Item 022, EW Width
Horizontal shift Item 023, Hor. Shift
- - - - - -
Further adjustment please refer to page 12 ~ 15.
SM_28-F8WFS (AUS) 9/7/06 3:52 PM Page 10
All manuals and user guides at all-guides.com

-11-
Service Adjustments with Replacing Memory IC(IC802)
1) To enter to the Service Mode
1. Press and hold the Volume + button on the front of TV set and press the Menu button on the Remote Control.
3) Exit from the Service Mode
Press the Menu button or turn off the TV set by using the mains switch.
Adjustment Data
Item No.
SERVICE
001 FB1B 0.37
ZOOM 50HZ
021 V.LINEARITY 39
00111010 00000000
01010000 10001100
10000001 00001010
00011010 00001010
Example
Display for [V.Linearity] Vertical Linearity adjustment
2. Press the Programme up / down button to select the mode required. Then press the Volume + button to
adjust.
TV/AV MENU CH
MENU
0102030405....96.. 9695949392....01..
Read Status Item
Display for Software Version Information
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 11
All manuals and user guides at all-guides.com
all-guides.com

-12-
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
01 FB1C/FB1B x,y 0.37 Software version information
02 Init TV 0 -1 0 Initialise NVM
03 ISP Mode 0 - 1 0 Set the TV in ISP mode
04 PWT - 00000 Power on time
05 DDLE 0 - 1 1
06 Cut Off 0 - 63 12 Cut off
07 VSD On/Off - Vertical scan disable (1 line adj.)
08 VG2 On/Off 000 Adjustment Vg2 voltage
10 DCXO 0 - 127 47 DXCO adjustment
11 DXCO Auto On/Off 000 Automatic DXCO adjustment
(Adjust in NICAM)
12 TUBE-TYPE 0 - 1 0 Picture tube type (0=16:9, 1=4:3)
13 OP WIDE ZOOM 0 - 1 1 0=No Zoom mode, 1=with zoom mode
14 TRACK. MODE 0 - 1 0 Track. Mode (HCO)
15 VERT. ZOOM 0 - 63 27 Vertical Zoom
16 VERT. SLOPE 0 - 63 32 Vertical Slope
17 VERT. SHIFT 0 - 63 32 Vertical Shift
18 VERT. AMPL. 0 - 63 17 Vertical Amplitude
19 S-CORR 0 - 63 27 S-Correction
20 V.LIN.CTRL 0 - 2 0 Vertical Linearity Control
21 V. LINEARITY 0 - 63 31 Vertical Linearity
22 EW WIDTH 0 - 63 31 East West Width
23 HOR. SHIFT 0 - 63 27 Horizontal Shift
24 EW PARABOLA 0 - 63 9 East West Parabola Width
25 TRAPEZIUM 0 - 63 20 East West Trapezium
26 UC PARABOLA 0 - 63 35 East West Upper Corner Parabola
27 LC PARABOLA 0 - 63 50 East West Lower Corner Parabola
28 HOR. BOW 0 - 63 30 Horizontal Bow
29 PARALLEL 0 - 63 23 Horizontal Parallelogram
30 VERT. SCROLL 0 - 63 34 Vertical Scroll
31 H BLK SW 0 - 1 1 R G B Blanking Mode
32 WBF 0 - 15 7 Timing of wide blankingfront(WBF)
33 WBR 0 - 15 11 Timing of wide blanking rear(WBR)
34 OSVE 0 - 1 0 Black current measuring lines in overscan
35 EVB 0 - 1 0 Extended Vertical Blanking
36 NA VX 0 - 255 4 Natural Vertical Zoom (50Hz)
37 NA EWW 0 - 255 6 Natural EW Width (50Hz)
38 NA HSH 0 - 255 2 Natural Horizontal Shift (50Hz)
39 NA PW 0 - 255 2 Natural Parabola/Width (50Hz)
40 NA TP 0 - 255 255 Natural Trapezium (50Hz)
41 NA UCP 0 - 255 5 Natural Upper Corner Parabola (50Hz)
42 NA LCP 0 - 255 4 Natural Lower Corner Parabola (50Hz)
43 NA HB 0 - 255 1 Natural Horizontal Bow (50Hz)
44 NA HP 0 - 255 3 Natural Horizontal Paralellogram (50Hz)
45 NA VSC 0 - 255 0 Natural Vertical Scroll (50Hz)

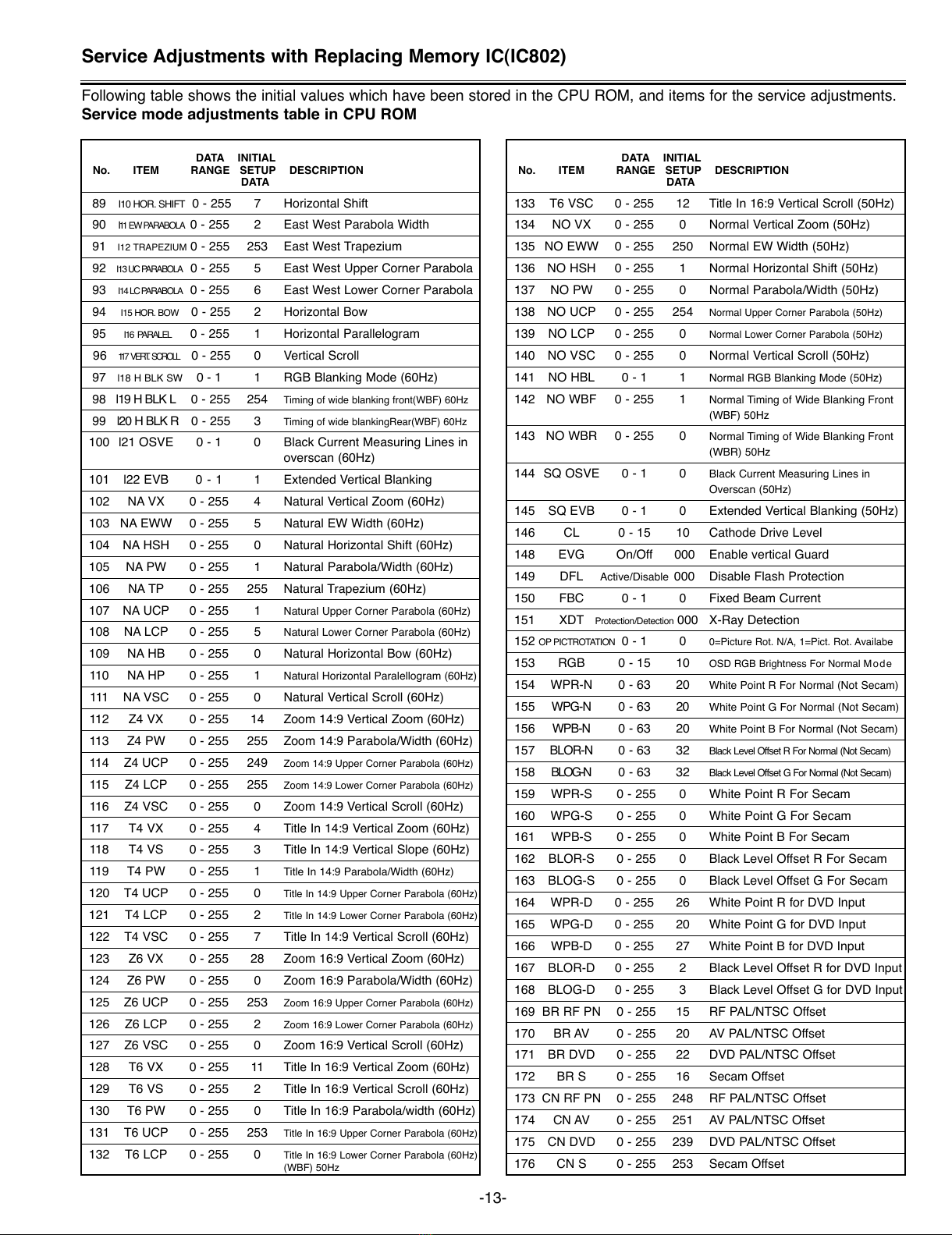

Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
Service Adjustments with Replacing Memory IC(IC802)
(/JE0258A)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
46 Z4 VX 0 - 255 10 Zoom 14:9 Vertical Zoom (50Hz)
47 Z4 PW 0 - 255 1 Zoom 14:9 Parabola/Width (50Hz)
48 Z4 UCP 0 - 255 3 Zoom 14:9 Upper Corner Parabola (50Hz)
49 Z4 LCP 0 - 255 2 Zoom 14:9 Lower Corner Parabola (50Hz)
50 Z4 VSC 0 - 255 0 Zoom 14:9 Vertical Scroll (50Hz)
51 T4 VX 0 - 255 251 Title In 14:9 Vertical Zoom (50Hz)
52 T4 VS 0 - 255 18 Title In 14:9 Vertical Slope (50Hz)
53 T4 PW 0 - 255 1 Title In 14:9 Parabola/Width (50Hz)
54 T4 UCP 0 - 255 3 Title In 14:9 Upper Corner Parabola (50Hz)
55 T4 LCP 0 - 255 2 Title In 14:9 Lower Corner Parabola (50Hz)
56 T4 VSC 0 - 255 20 Title In 14:9 Vertical Scroll (50Hz)
57 Z6 VX 0 - 255 28 Zoom 16:9 Vertical Zoom (50Hz)
58 Z6 PW 0 - 255 1 Zoom 16:9 Parabola/Width (50Hz)
59 Z6 UCP 0 - 255 2 Zoom 16:9 Upper Corner Parabola (50Hz)
60 Z6 LCP 0 - 255 2 Zoom 16:9 Lower Corner Parabola (50Hz)
61 Z6 VSC 0 - 255 0 Zoom 16:9 Vertical Scroll (50Hz)
62 T6 VX 0 - 255 10 Title In 16:9 Vertical Zoom (50Hz)
63 T6 VS 0 - 255 2 Title In 16:9 Vertical Scroll (50Hz)
64 T6 PW 0 - 255 0 Title In 16:9 Parabola/width (50Hz)
65 T6 UCP 0 - 255 254 Title In 16:9 Upper Corner Parabola (50Hz)
66 T6 LCP 0 - 255 0 Title In 16:9 Lower Corner Parabola (50Hz)
67 T6 VSC 0 - 255 13 Title In 16:9 Vertical Scroll (50Hz)
68 NO VX 0 - 255 255 Normal Vertical Zoom (50Hz)
69 NO EWW 0 - 255 250 Normal EW Width (50Hz)
70 NO HSH 0 - 255 1 Normal Horizontal Shift (50Hz)
71 NO PW 0 - 255 0 Normal Parabola/Width (50Hz)
72 NO UCP 0 - 255 0 Normal Upper Corner Parabola (50Hz)
73 NO LCP 0 - 255 0 Normal Lower Corner Parabola (50Hz)
74 NO VSC 0 - 255 0 Normal Vertical Scroll (50Hz)
75 NO HBL 0 - 1 1 Normal RGB Blanking Mode (50Hz)
76 NO WBF 0 - 255 9 Normal Timing of Wide Blanking Front
(WBF) 50Hz
77 NO WBR 0 - 255 5 Normal Timing of Wide Blanking Front
(WBF) 50Hz
78 SQ OSVE 0 - 1 0 Black Current Measuring Lines in
Overscan (50Hz)
79 SQ EVB 0 - 1 0 Extended Vertical Blanking (50Hz)
80 I01 TRACK MODE. 0 - 1 0 Track Mode(HCO)
81 I02 VERT.ZOOM 0 - 255 0 Vertical Zoom
82 I03 VERT.SLOPE 0 - 255 255 Vertival Slope
83 I04 VERT.SHIFT 0 - 255 1 Vertical Shift
84 I05 VERT.AMPL. 0 - 255 3 Vertical Amplitudo
85 I06 S-CORR 0 - 255 0 S-Correction
86 I07 V.LIN.CTRL. 0 - 255 0 Vertical Linearity Control
87 I08 V. LINEARITY 0 - 255 1 Vertical Linearity
88 I09 EW WIDTH 0 - 255 0 East West Width
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 12
All manuals and user guides at all-guides.com

-13-
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
Service Adjustments with Replacing Memory IC(IC802)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
89 I10 HOR. SHIFT 0 - 255 7 Horizontal Shift
90 I11 EW PARABOLA 0 - 255 2 East West Parabola Width
91 I12 TRAPEZIUM 0 - 255 253 East West Trapezium
92 I13 UC PARABOLA 0 - 255 5 East West Upper Corner Parabola
93 I14 LC PARABOLA 0 - 255 6 East West Lower Corner Parabola
94 I15 HOR. BOW 0 - 255 2 Horizontal Bow
95 I16 PARALEL 0 - 255 1 Horizontal Parallelogram
96 117 VERT. SCROLL 0 - 255 0 Vertical Scroll
97 l18 H BLK SW 0 - 1 1 RGB Blanking Mode (60Hz)
98 l19 H BLK L 0 - 255 254 Timing of wide blanking front(WBF) 60Hz
99 l20 H BLK R 0 - 255 3 Timing of wide blankingRear(WBF) 60Hz
100 l21 OSVE 0 - 1 0 Black Current Measuring Lines in
overscan (60Hz)
101 l22 EVB 0 - 1 1 Extended Vertical Blanking
102 NA VX 0 - 255 4 Natural Vertical Zoom (60Hz)
103 NA EWW 0 - 255 5 Natural EW Width (60Hz)
104 NA HSH 0 - 255 0 Natural Horizontal Shift (60Hz)
105 NA PW 0 - 255 1 Natural Parabola/Width (60Hz)
106 NA TP 0 - 255 255 Natural Trapezium (60Hz)
107 NA UCP 0 - 255 1 Natural Upper Corner Parabola (60Hz)
108 NA LCP 0 - 255 5 Natural Lower Corner Parabola (60Hz)
109 NA HB 0 - 255 0 Natural Horizontal Bow (60Hz)
110 NA HP 0 - 255 1 Natural Horizontal Paralellogram (60Hz)
111 NA VSC 0 - 255 0 Natural Vertical Scroll (60Hz)
112 Z4 VX 0 - 255 14 Zoom 14:9 Vertical Zoom (60Hz)
113 Z4 PW 0 - 255 255 Zoom 14:9 Parabola/Width (60Hz)
114 Z4 UCP 0 - 255 249 Zoom 14:9 Upper Corner Parabola (60Hz)
115 Z4 LCP 0 - 255 255 Zoom 14:9 Lower Corner Parabola (60Hz)
116 Z4 VSC 0 - 255 0 Zoom 14:9 Vertical Scroll (60Hz)
117 T4 VX 0 - 255 4 Title In 14:9 Vertical Zoom (60Hz)
118 T4 VS 0 - 255 3 Title In 14:9 Vertical Slope (60Hz)
119 T4 PW 0 - 255 1 Title In 14:9 Parabola/Width (60Hz)
120 T4 UCP 0 - 255 0 Title In 14:9 Upper Corner Parabola (60Hz)
121 T4 LCP 0 - 255 2 Title In 14:9 Lower Corner Parabola (60Hz)
122 T4 VSC 0 - 255 7 Title In 14:9 Vertical Scroll (60Hz)
123 Z6 VX 0 - 255 28 Zoom 16:9 Vertical Zoom (60Hz)
124 Z6 PW 0 - 255 0 Zoom 16:9 Parabola/Width (60Hz)
125 Z6 UCP 0 - 255 253 Zoom 16:9 Upper Corner Parabola (60Hz)
126 Z6 LCP 0 - 255 2 Zoom 16:9 Lower Corner Parabola (60Hz)
127 Z6 VSC 0 - 255 0 Zoom 16:9 Vertical Scroll (60Hz)
128 T6 VX 0 - 255 11 Title In 16:9 Vertical Zoom (60Hz)
129 T6 VS 0 - 255 2 Title In 16:9 Vertical Scroll (60Hz)
130 T6 PW 0 - 255 0 Title In 16:9 Parabola/width (60Hz)
131 T6 UCP 0 - 255 253 Title In 16:9 Upper Corner Parabola (60Hz)
132 T6 LCP 0 - 255 0 Title In 16:9 Lower Corner Parabola (60Hz)
(WBF) 50Hz
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
133 T6 VSC 0 - 255 12 Title In 16:9 Vertical Scroll (50Hz)
134 NO VX 0 - 255 0 Normal Vertical Zoom (50Hz)
135 NO EWW 0 - 255 250 Normal EW Width (50Hz)
136 NO HSH 0 - 255 1 Normal Horizontal Shift (50Hz)
137 NO PW 0 - 255 0 Normal Parabola/Width (50Hz)
138 NO UCP 0 - 255 254 Normal Upper Corner Parabola (50Hz)
139 NO LCP 0 - 255 0 Normal Lower Corner Parabola (50Hz)
140 NO VSC 0 - 255 0 Normal Vertical Scroll (50Hz)
141 NO HBL 0 - 1 1 Normal RGB Blanking Mode (50Hz)
142 NO WBF 0 - 255 1 Normal Timing of Wide Blanking Front
(WBF) 50Hz
143 NO WBR 0 - 255 0 Normal Timing of Wide Blanking Front
(WBR) 50Hz
144 SQ OSVE 0 - 1 0 Black Current Measuring Lines in
Overscan (50Hz)
145 SQ EVB 0 - 1 0 Extended Vertical Blanking (50Hz)
146 CL 0 - 15 10 Cathode Drive Level
148 EVG On/Off 000 Enable vertical Guard
149 DFL Active/Disable 000 Disable Flash Protection
150 FBC 0 - 1 0 Fixed Beam Current
151 XDT Protection/Detection 000 X-Ray Detection
152 OP PICTROTATION 0 - 1 0 0=Picture Rot. N/A, 1=Pict. Rot. Availabe
153 RGB 0 - 15 10 OSD RGB Brightness For Normal Mode
154 WPR-N 0 - 63 20 White Point R For Normal (Not Secam)
155 WPG-N 0 - 63 20 White Point G For Normal (Not Secam)
156 WPB-N 0 - 63 20 White Point B For Normal (Not Secam)
157 BLOR-N 0 - 63 32 Black Level Offset R For Normal (Not Secam)
15 8 BLOG-N 0 - 63 32 Black Level Offset G For Normal (Not Secam)
159 WPR-S 0 - 255 0 White Point R For Secam
160 WPG-S 0 - 255 0 White Point G For Secam
161 WPB-S 0 - 255 0 White Point B For Secam
162 BLOR-S 0 - 255 0 Black Level Offset R For Secam
163 BLOG-S 0 - 255 0 Black Level Offset G For Secam
164 WPR-D 0 - 255 26 White Point R for DVD Input
165 WPG-D 0 - 255 20 White Point G for DVD Input
166 WPB-D 0 - 255 27 White Point B for DVD Input
167 BLOR-D 0 - 255 2 Black Level Offset R for DVD Input
168 BLOG-D 0 - 255 3 Black Level Offset G for DVD Input
169 BR RF PN 0 - 255 15 RF PAL/NTSC Offset
170 BR AV 0 - 255 20 AV PAL/NTSC Offset
171 BR DVD 0 - 255 22 DVD PAL/NTSC Offset
172 BR S 0 - 255 16 Secam Offset
173 CN RF PN 0 - 255 248 RF PAL/NTSC Offset
174 CN AV 0 - 255 251 AV PAL/NTSC Offset
175 CN DVD 0 - 255 239 DVD PAL/NTSC Offset
176 CN S 0 - 255 253 Secam Offset
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 13
All manuals and user guides at all-guides.com

-14-
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
223 SVMA 0 - 1 1 Scavem Output Signal
224 SVM 00 ns 00 Delay of RGB output to SVM output
25 ns
50 ns
75 ns
100 ns
125 ns
150 ns
175 ns
225 VMA Off 0 Amplitude of SVM output
0.8 Vp-p
1.2 Vp-p
1.8 Vp-p
226 SMD Off 1 Scan Velocity Modulation Mode
Video
TXT/OSD
Video/OSD
227 SVM-OSD-PW 0 - 3 3 OSD Scavem Pulse Width
228 SMD-OSD-TM 0 -7 2 OSD Scavem Time
229 PeakFreq PAL443 0 - 3 3 No Function. Peaking Centre Frequency
230 PeakFreqAV 0 -3 3 Peaking Centre Frequency Default
231 SoftClipevel 0% above PWL 000 Soft Cliping Level
5% above PWL
10% above PWL
Off
232 BLUE BACK MUTE 0=Off 0 Blue Back Mute
1=Black Back
2=Blue Back
233 TXT MAX 0 - 15 15 OSD RGB Brightness for TEXT BRIGHTNESS MAX
234 TXT CEN 0 - 15 8 OSD RGB Brightness for TEXT BRIGHTNESS
CENTER
235 TXT MIN 0 - 15 0 OSD RGB Brightness for TEXT BRIGHTNESS MIN
236 Blackstretch 0 - 1 1 Black Stretch Functionality
(0=Disable, 1=Enable)
237 Bluestretch 0 - 1 000 Blue Stretch Functionality
(0=Disable, 1=Enable)
238 Whitestretch 0 - 3 3 White Stretch Setting
(0=cold, 1=normal, 2=warm, 3=)
239 SoftClipper 0 - 3 000 Set Soft Clipper
240 PeakRatio0VShot 0 - 3 3 Set Peaking Ratio
241 Tint Def 0 - 63 32 Default Tint Value
242 Tint NT 0 - 255 0
243 OSO On/Off 1 Switch-Off in Vertical Overscan
244 FSL Noise Detector 60% 000 Forced Slicing Level for Vertical sync
245 HP2 0 - 1 000 Synchronisation of OSD/TEXT display
(0=Phi 1, 1=Phi 2)
246 MR VOL L 0 - 255 64 Master Volume Lower 8 bits
247 MR VOL H 0 - 7 4 Master Volume Upper 3 bits
248 EQU_SUB_BASS 0 - 63 32 Equalizer Adjustment for Bass
249 EQU_SUB_TREBLE 0 - 63 38 Equalizer Adjustment for Treble
250 OP AUDIO CONFIG 0 - 2 2 0=Mono only functions. 1=No Audio SSD avai-
lable Audio SSD functions available but no
stereo decoder. 2=Full Audio SSD
253 OP MONOURAL 0 - 1 0 0=AV Stereo, 1=Mono.
254 OP BASS EXP 0 - 1 1 0=No Bass Exp./Woofer, 1=with Bass Exp./Woofer
255 OP WOOFER 0 - 1 0 Activated/Deactivated Bass Expander Feature
Menu. (0=Bass Expander, 1=Woofer)
Service Adjustments with Replacing Memory IC(IC802)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
177 CN 43 0 - 255 250 Wide Mode 4:3 Offset
178 SH RF PN 0 - 255 10 RF PAL/NTSC Offset
179 SH AV 0 - 255 10 AV PAL/NTSC Offset
180 SH DVD 0 - 255 10 DVD PAL/NTSC Offset
181 SH S 0 - 255 10 Secam Offset
182 CL RF P 0 - 255 12 RF PAL/NTSC Offset
183 CL AVP 0 - 255 10 AV PAL Offset
184 CL N 0 - 255 0 NTSC RF/Video Offset
185 CL S 0 - 255 0 Secam Offset
186 CL DVD 0 - 255 14 DVD PAL/NTSC Offset
187 CL 43 0 - 255 0 Wide Mode 4:3 Offset
188 PV-BR-DY 0 - 63 31 Preset Video Dynamic Brightness
189 PV-CT-DY 0 - 63 63 Preset Video Dynamic Contrast
190 PV-CL-DY 0 - 63 36 Preset Video Dynamic Colour
191 PV-SH-DY 0 - 63 54 Preset Video Dynamic Sharpness
192 PV-BR-ST 0 - 63 32 Preset Video Standard Brightness
193 PV-CT-ST 0 - 63 50 Preset Video Standard Contrast
194 PV-CL-ST 0 - 63 32 Preset Video Standard Colour
195 PV-SH-ST 0 - 63 35 Preset Video Standard Sharpness
196 PV-BR-EC 0 - 63 31 Preset Video Eco Brightness
197 PV-CT-EC 0 - 63 40 Preset Video Eco Contrast
198 PV-CL-EC 0 - 63 26 Preset Video Eco Colour
199 PV-SH-EC 0 - 63 31 Preset Video Eco Sharpness
200 PV-BR-GA 0 - 63 36 Preset Video Game Brightness
201 PV-CT-GA 0 - 63 25 Preset Video Game Contrast
202 PV-CL-GA 0 - 63 36 Preset Video Game Colour
203 PV-SH-GA 0 - 63 31 Preset Video Game Sharpness
204 CLO S 0 - 1 0
205 DTR S 0 - 1 0
206 Y-SECAM 0 - 15 11 Y-Delay Adjusment for SECAM
207 YNTSC 0 - 15 6 Y-Delay Adjusment for NTSC
208 YPAL 0 - 15 4 Y-Delay Adjustment for PAL
209 YAV 0 - 15 4 Y-Delay Adjustment for AV
211 YSVHS 0 - 15 4 Y-Delay Adjustment for S-VHS
212 ACL On/Off 000 Automatic Colour Limiting
213 MUS Japan 1 NTSC Matrix
214 PWL CONTROL On/Off 0 Peak White Limiting On/Off Control
215 PWL 0 - 15 8 Peak White Limiting DAC Control
216 CB On/Off 1 Chroma Bandpass Centre Freq.
217 CB RF P On/Off 0 CB Setting for RF PAL
218 CB AV N On/Off 0 CB Setting for AV NTSC
219 CBS On/Off 1 Control Sequence Beam Current Limiting
220 BSD On/Off 1 Black Stretch Depth
221 BPS On/Off 000 Bypass Chroma Base-Band
222 FCO On/Off 000 Forced Colour On
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 14
All manuals and user guides at all-guides.com

-15-
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
Service Adjustments with Replacing Memory IC(IC802)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
256 OP SURROUND 0 - 1 1 Activated / Deactivated Surround
feature. (0=No Surround, 1=with
Surround.)
257 OP MPP 0 - 1 0 Activated / Deactivated MPP
feature. (0=No MPP, 1=with MPP.)
258 OP EQUALIZER 0 - 1 1 Activated / Deactivated Equalizer
Menu. (0=No Equalizer, 1=with
Equalizer.)
260 AVL-LRF 0 - 15 9
261 AVL-LAV 0 - 15 5
262 AVL-WGT 0 - 1 1 AVL Weight
263 AVL-MOD 0 - 5 2 AVL Delay Time
264 DVB-CA 0 - 255 000
265 DVB-CL 0 - 255 000
266 DVB-CH 0 - 15 8
267 OP-CLIP 0 - 4 000 Clip Management
268 DEC-LEV 0 - 31 15 FM Stereo decoder output level adjust
269 MONO-LEV 0 - 31 15 Mono Output Level Adjust
270 NIC-LEV 0 - 31 16 Nicam Output Level Adjust
271 ADC-AM-L 0 - 31 15 External AM Level Adjust
272 ADC-AV-L 0 - 31 15 External AV Level Adjust
273 E2D FE 000 Selection of Audio Output Signal on AUDEEM pin
AV
274 FFI 0 - 1 000 Fast Filter IF-PLL
275 PA-BA-MU 0 - 63 32 Preset Audio Bass Music
276 PA-TR-MU 0 - 63 32 Preset Audio Treble Music
277 PA-B1-MU 0 - 63 63 Preset Audio Equalizer Band 1 (100Hz) Music
278 PA-B2-MU 0 - 63 47 Preset Audio Equalizer Band 2 (300Hz) Music
279 PA-B3-MU 0 - 63 32 Preset Audio Equalizer Band 3 (1000Hz) Music
280 PA-B4-MU 0 - 63 47 Preset Audio Equalizer Band 4 (3000Hz) Music
281 PA-B5-MU 0 - 63 63 Preset Audio Equalizer Band 5 (8000Hz) Music
282 PA-BA-TA 0 - 63 32 Preset Audio Bass Talk
283 PA-TR-TA 0 - 63 32 Preset Audio Treble Talk
284 PA-B1-TA 0 - 63 32 Preset Audio Equalizer Band 1 (100Hz) Talk
285 PA-B2-TA 0 - 63 42 Preset Audio Equalizer Band 2 (300Hz) Talk
286 PA-B3-TA 0 - 63 52 Preset Audio Equalizer Band 3 (1000Hz) Talk
287 PA-B4-TA 0 - 63 42 Preset Audio Equalizer Band 4 (3000Hz) Talk
288 PA-B5-TA 0 - 63 32 Preset Audio Equalizer Band 5 (8000Hz) Talk
289 PA-BA-NO 0 - 63 32 Preset Audio Bass Normal
290 PA-TR-NO 0 - 63 32 Preset Audio Treble Normal
291 PA-B1-NO 0 - 63 32 Preset Audio Equalizer Band 1 (100Hz) Normal
292 PA-B2-NO 0 - 63 32 Preset Audio Equalizer Band 2 (300Hz) Normal
293 PA-B3-NO 0 - 63 32 Preset Audio Equalizer Band 3 (1000Hz) Normal
294 PA-B4-NO 0 - 63 32 Preset Audio Equalizer Band 4 (3000Hz) Normal
295 PA-B5-NO 0 - 63 32 Preset Audio Equalizer Band 5 (8000Hz) Normal
296 DSG 0 - 1 1 Gain Audio --> Out
297 FMWS 0 - 3 1 Window Size for FM Demodulator
298 AGN 0 - 1 000 FM Sound Output Gain
299 CV2 0 - 1 0
300 OVMADAPT 0 - 1 1
301 OVMTHR 0 - 15 3
302 ASD SC1 THR 0 - 31 0 Threshold for detection of first sound
carrier (SC1)
303 CHSE 0 - 3 2
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
305 AGC Speed 0 - 3 1 IF AGC Speed
306 AGC Take Over 0 - 63 27 AGC Take Over also used as TOP
when an internal AGC tuner is used.
307 OIF 0 - 63 32 Correction for DC Offset in the IF-PLL
308 IF 0 - 7 3 PLL Demodulator Frequency
309 GD 0 - 1 0 Group Delay CVBS1
310 IFO 0 - 7 0 Set Condition IFV0 Pin4344
314 AKB On/Off 000 Black Currennt Stabilisation
315 OP TELETEXT 0 - 1 1 Activated / Deactivated Teletext
features (0=No Teletext, 1=with.)
327 PMUTE AKB 0 - 255 40
328 PMUTE DEF 0 - 255 15
329 SVO IF / CVBS 1 Selected Video Output
330 BPB 0 - 1 000 Bypass Internal Sound Bandpass Filter
331 OP DVD INPUT 0 - 1 1 (0=No DVD Input, 1=with DVD Input.)
332 OP WSS 4:3 MODE 0 - 1 1 Option Zoom Mode (Auto Position) if there is
no WSS or no scart middle voltage. (0=No
WSS, Natural Wide, 1=No WSS, Normal Wide.)
333 OP SCART INPUT 0 - 2 1 (0=No Scart Input, 1=with 1 Scart Input, 2=with 2
Scart Input.)
334 TXT-H-POS 0 - 63 6 Option Zoom Mode (Auto Position) if
there is no WSS or no Scart middle Voltage
338 OSVE AV 0 - 1 0 OSVE AV
347 NLEL 0 - 255 100 Nicam Lower Error Limit
348 NUEL 0 - 255 200 Nicam Upper Error Limit
349 L HI CUT 0 - 63 26
350 TEXT EW OFFSET 0 - 255 4
351 INH EW OFFSET 0 - 255 5
352 OPTION SVM MENU 0 - 1 0
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 15
All manuals and user guides at all-guides.com

-16-

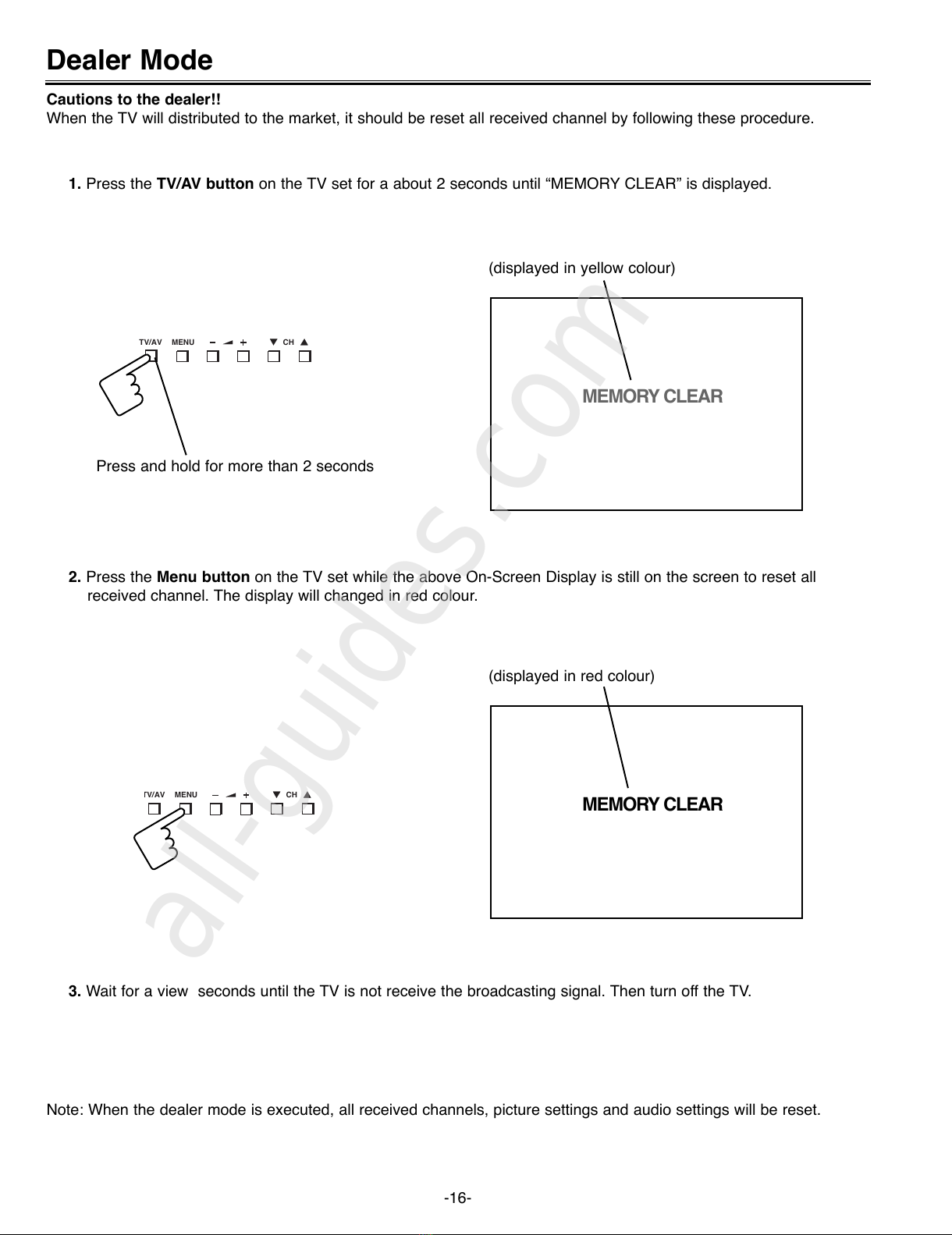

Dealer Mode
MEMORY CLEAR
2. Press the Menu button on the TV set while the above On-Screen Display is still on the screen to reset all
received channel. The display will changed in red colour.
TV/AV MENU CH
(displayed in yellow colour)
1. Press the TV/AV button on the TV set for a about 2 seconds until “MEMORY CLEAR” is displayed.
MEMORY CLEAR
T
V/AV MENU CH
(displayed in red colour)
Cautions to the dealer!!
When the TV will distributed to the market, it should be reset all received channel by following these procedure.
3. Wait for a view seconds until the TV is not receive the broadcasting signal. Then turn off the TV.
Note: When the dealer mode is executed, all received channels, picture settings and audio settings will be reset.
Press and hold for more than 2 seconds
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 16
All manuals and user guides at all-guides.com
all-guides.com

-17-
Adjustments
IMPORTANT NOTICE
Do not attempt to adjust the following service adjustments except when adjustments are required in servicing other-
wise it may cause loss of performance and product safety.
+B VOLTAGE ADJUSTMENT
(1) Connect a DC voltmetre to TP-B and the ground.
(2) Tune the receiver to an active channel and synchronized pic-
ture. Select NATURAL picture mode by pressing the Picture
mode selection button on the remote control .
(3) Adjust voltage to 145± 0.5V DC by using VR641.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment with weak signal.
(1) connect digital voltmeter to TP-A and GND.
(2) Tune the receiver to most clearest (or strongest) VHF station
in your area. Set the brightness and contrast controls to max-
imum. Set the colour control to minimum.
(3) Enter to the service mode item No. 306 “AGC TAKE OVER”
(4) Press the Volume (+) or Volume (
- )button to adjust voltage
to be 3.25 ± 0.25V DC.
FOCUS ADJUSTMENT
(1) Receive a monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) By using FOCUS VR on the F.B.T., adjust focus control for
well defined canning lines.
SCREEN ADJUSTMENT
(1) Receive cross hatch pattern.
(2) Set the picture mode to Dynamic.
(3) Enter to the service mode item No. 08 “VG2”.
(4) Turn screen VR on F.B.T. from min. to max., then the display
will change from below to above. Turn back the screen VR to
min. side, appear below with OK is displayed then stop turn-
ing.
WHITE ADJUSTMENT
(1) Receive circular pattern.
(2) Set the picture mode to Dynamic.
(3) Enter to the service mode “Red” item No. 154 “WPR-N”.
(4) Adjust white balance by Volume (+) or Volume ( - )button.
(5) Enter to the service mode “Green” in item No. 155 “WPG-N”.
(6) Adjust white balance by Volume (+) or Volume (
- )button.
(7) Enter to the service mode “Blue” in item No. 156 “WPB-N”.
(8) Adjust white balance by Volume (+) or Volume ( - )button.
GREY SCALE ADJUSTMENT
PCC ADJUSTMENT
PCC ADJUSTMENT
(1) Receive cross hatch pattern, set the picture mode to Natural.
(2) Enter to the service mode item No. 24 “EW PARABOLA”.
(3) Press the Volume (+) or Volume ( - )button to adjust the ver-
tical line to be straight.
TRAPEZOID ADJUSTMENT
(1) Receive cross hatch pattern, set the picture mode to Natural.
(2) Enter to the service mode item No. 25 “TRAPEZIUM” for fre-
quens.
(3) Press the Volume (+) or Volume ( - )button to correct the
trapezium distortion of the vertical line.
CORNER ADJUSTMENT
(1) Receive cross hatch pattern, set the picture mode to Natural.
(2) Enter to the service mode item No. 26 “UC PARABOLA” for
top corner adjustment or item No. 27 “LC PARABOLA” for bot-
tom corner adjustment.
(3) Press the Volume (+) or Volume ( - )button to correct the dis-
tortion of the vertical line around the corners..
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 17
All manuals and user guides at all-guides.com

-18-
Adjustments
HORIZONTAL ADJUSTMENT
HIGH-VOLTAGE CONFIRMATION
VERTICAL ADJUSTMENT
HORIZONTAL CENTRING ADJUSTMENT
(1) Receive circular pattern and set picture mode to “Dynamic”.
(2) Enter to the service mode item No. 23 “HOR.SHIFT”.
(3) Press the Volume (+) or Volume ( - )button to adjust the hor-
izontal centre.
VERTICAL CENTRING ADJUSTMENT
(1) Receive circular pattern and set picture mode to “Dynamic”.
(2) Enter to the service mode item No. 17 “VERT.SHIFT”.
(3) Press the Volume (+) or Volume ( - )button to adjust the ver-
tical centre.
Horizontal centre
HORIZONTAL WIDTH ADJUSTMENT
(1) Receive circular pattern and set picture mode to “Dynamic”.
(2) Enter to the service mode item No. 22 “EW WIDTH”.
(3) Press the Volume (+) or Volume ( - )button to adjust the hor-
izontal width. Note: +B (+145V) Voltage Check and Grayscale Adjustment must
be completed before attempting High Voltage Check.
(1) Connect high-voltage meter to the anode of CRT and the
ground.
(2) Receive circular pattern and set brightness and contrast to
max..
(3) Set controls for brightness and contrast to maximum.
(4) Confirm high voltage is within 28.0 KV and 30.0 KV at maxi
mum beam current.
(5) Eliminate the beam current by adjusting the contast and
brightness controls to minimum. Confirm high voltage does
not exceed 32 KV at zero beam current.
VERTICAL HEIGHT ADJUSTMENT
(1) Receive circular pattern and set picture mode to “Dynamic”.
(2) Enter to the service mode item No. 18 “VERT.AMPL”.
(3) Press the Volume (+) or Volume ( - )button to adjust the ver-
tical height.
OSD POSITIONING ADJUSTMENT
(1) Receive circular pattern and set bright and Contrast to
Dynamic.
(2) Enter to the service mode and select item No. 334 “TXT-H-
POS”.
(3) Press the Volume (+) or Volume ( - )button to adjust proper
OSD positioning. (A=B ± 10mm.)
AB
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 18
All manuals and user guides at all-guides.com

-19-

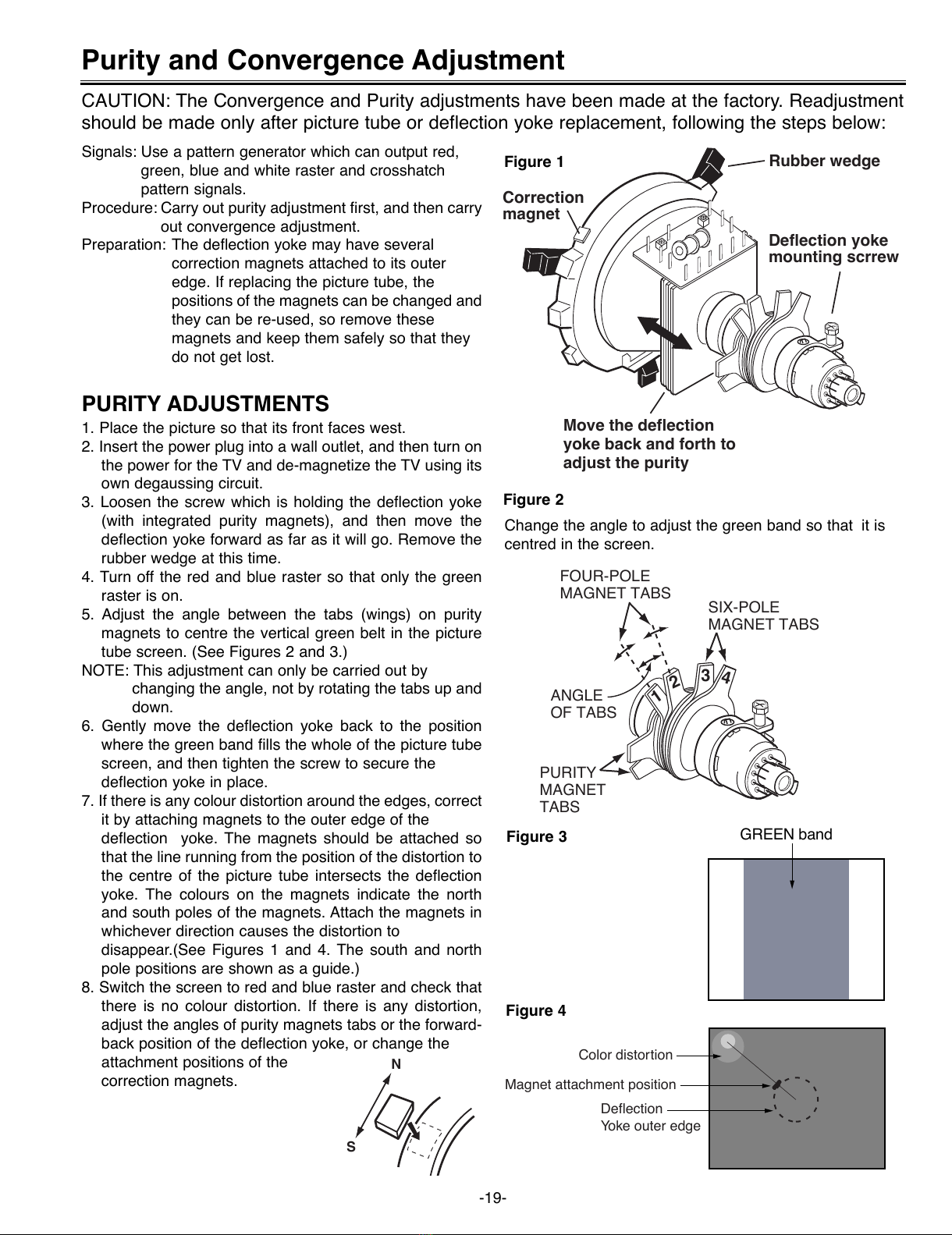

Signals: Use a pattern generator which can output red,
green, blue and white raster and crosshatch
pattern signals.
Procedure: Carry out purity adjustment first, and then carry
out convergence adjustment.
Preparation: The deflection yoke may have several
correction magnets attached to its outer
edge. If replacing the picture tube, the
positions of the magnets can be changed and
they can be re-used, so remove these
magnets and keep them safely so that they
do not get lost.
PURITY ADJUSTMENTS
1. Place the picture so that its front faces west.
2. Insert the power plug into a wall outlet, and then turn on
the power for the TV and de-magnetize the TV using its
own degaussing circuit.
3. Loosen the screw which is holding the deflection yoke
(with integrated purity magnets), and then move the
deflection yoke forward as far as it will go. Remove the
rubber wedge at this time.
4. Turn off the red and blue raster so that only the green
raster is on.
5. Adjust the angle between the tabs (wings) on purity
magnets to centre the vertical green belt in the picture
tube screen. (See Figures 2 and 3.)
NOTE: This adjustment can only be carried out by
changing the angle, not by rotating the tabs up and
down.
6. Gently move the deflection yoke back to the position
where the green band fills the whole of the picture tube
screen, and then tighten the screw to secure the
deflection yoke in place.
7. If there is any colour distortion around the edges, correct
it by attaching magnets to the outer edge of the
deflection yoke. The magnets should be attached so
that the line running from the position of the distortion to
the centre of the picture tube intersects the deflection
yoke. The colours on the magnets indicate the north
and south poles of the magnets. Attach the magnets in
whichever direction causes the distortion to
disappear.(See Figures 1 and 4. The south and north
pole positions are shown as a guide.)
8. Switch the screen to red and blue raster and check that
there is no colour distortion. If there is any distortion,
adjust the angles of purity magnets tabs or the forward-
back position of the deflection yoke, or change the
attachment positions of the
correction magnets.
Purity and Convergence Adjustment
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
Deflection yoke
mounting scrrew
Rubber wedge
Correction
magnet
Move the deflection 
yoke back and forth to 
adjust the purity
GREEN band
Magnet attachment position
Deflection 
Yoke outer edge
Color distortion
Figure 1
Figure 2
Figure 3
Figure 4
N
S
1
2
3
4
SIX-POLE
MAGNET TABS
FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
Change the angle to adjust the green band so that it is
centred in the screen.
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 19
All manuals and user guides at all-guides.com

-20-

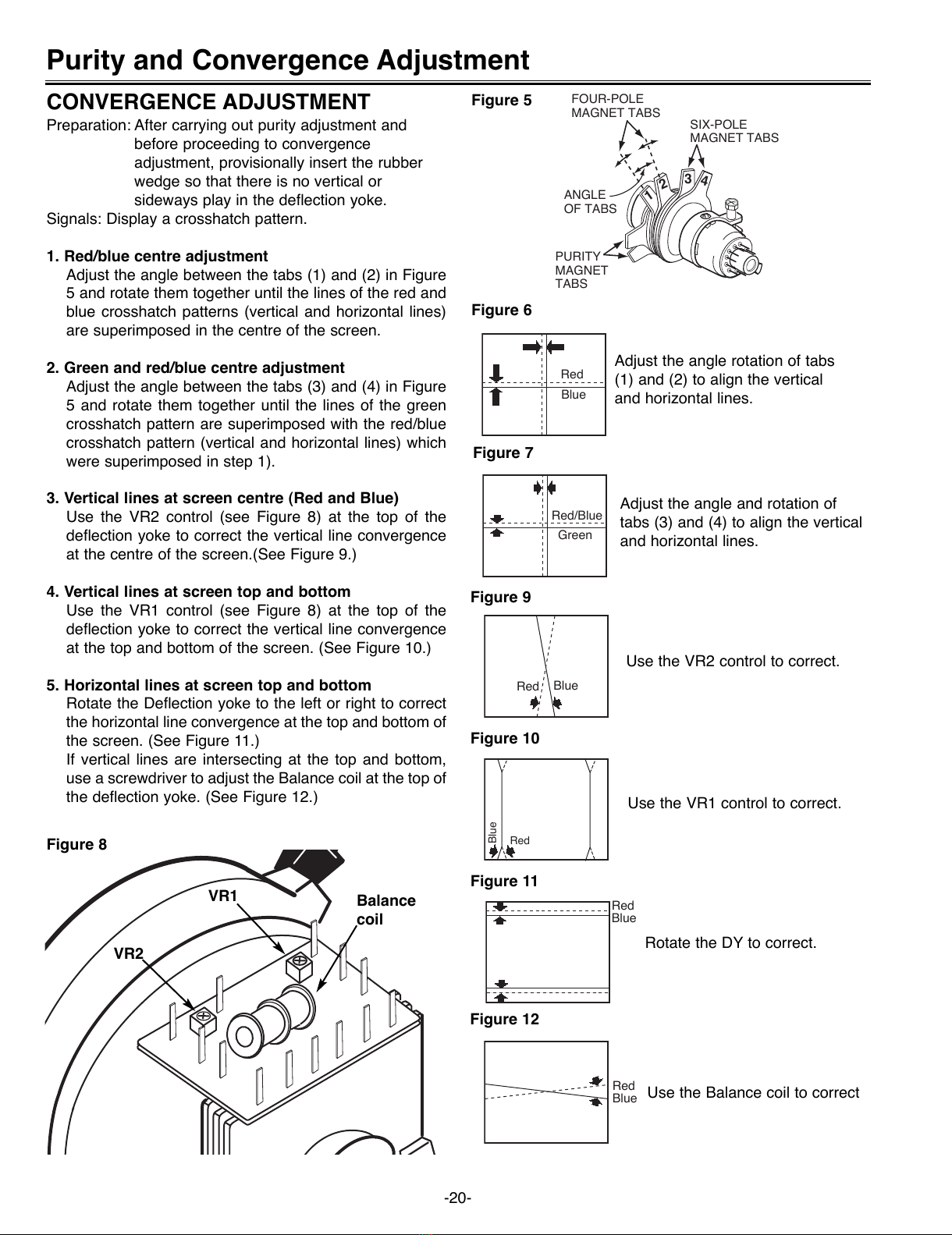

Purity and Convergence Adjustment
CONVERGENCE ADJUSTMENT
Preparation: After carrying out purity adjustment and
before proceeding to convergence
adjustment, provisionally insert the rubber
wedge so that there is no vertical or
sideways play in the deflection yoke.
Signals: Display a crosshatch pattern.
1. Red/blue centre adjustment
Adjust the angle between the tabs (1) and (2) in Figure
5 and rotate them together until the lines of the red and
blue crosshatch patterns (vertical and horizontal lines)
are superimposed in the centre of the screen.
2. Green and red/blue centre adjustment
Adjust the angle between the tabs (3) and (4) in Figure
5 and rotate them together until the lines of the green
crosshatch pattern are superimposed with the red/blue
crosshatch pattern (vertical and horizontal lines) which
were superimposed in step 1).
3. Vertical lines at screen centre (Red and Blue)
Use the VR2 control (see Figure 8) at the top of the
deflection yoke to correct the vertical line convergence
at the centre of the screen.(See Figure 9.)
4. Vertical lines at screen top and bottom
Use the VR1 control (see Figure 8) at the top of the
deflection yoke to correct the vertical line convergence
at the top and bottom of the screen. (See Figure 10.)
5. Horizontal lines at screen top and bottom
Rotate the Deflection yoke to the left or right to correct
the horizontal line convergence at the top and bottom of
the screen. (See Figure 11.)
If vertical lines are intersecting at the top and bottom,
use a screwdriver to adjust the Balance coil at the top of
the deflection yoke. (See Figure 12.)
Red
Blue
Figure 6
Red/Blue
Green
Figure 7
Red Blue
Figure 9
Figure 5
Adjust the angle rotation of tabs
(1) and (2) to align the vertical
and horizontal lines.
Adjust the angle and rotation of
tabs (3) and (4) to align the vertical
and horizontal lines.
Use the VR2 control to correct.
Red
Blue
Figure 10
Use the VR1 control to correct.
Blue
Red
Figure 11
Rotate the DY to correct.
Blue
Red
Figure 12
Use the Balance coil to correct
1
2
3
4
SIX-POLE
MAGNET TABS
FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
Balance
coil
VR1
VR2
Figure 8
SM_28-F8WFS (AUS) 9/6/06 7:06 PM Page 20
All manuals and user guides at all-guides.com
