Sanyo H3ELM User manual

AS
FILE NO.
SERVICE MANUAL Remote Control Digital
ColorTelevision HT32744 (U.S.A.)
(CANADA)
ORIGINALVERSION
Chassis No. 32744-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments. . . . . . . . . . . . . 3 - 17
Service Hints. . . . . . . . . . . . . . . . . . . . . . 18
Mechanical Disassemblies. . . . . . . . . . . 19
Chassis Electrical Parts List . . . . . . 20 - 40
Cabinet Parts List . . . . . . . . . . . . . . . . . . 41
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 42 - 49
Block Diagrams . . . . . . . . . . . . . . . . 50 - 55
Troubleshooting Flow Charts . . . . . 56 – 58
Control Port Function . . . . . . . . . . . . . . . 59
Schematic Inserts . . . . . . . . . . . . . . 61 – 76
Schematic Notes . . . . . . . . . . . . . . . . . 61
Pin Layouts . . . . . . . . . . . . . . . . . . . . . 61
Capacitor and Resistor Codes . . . . . . 61
Board Connections & Locations. 62 – 64
Waveforms. . . . . . . . . . . . . . . . . . 62 – 64
Main Board. . . . . . . . . . . . . . . . . . 65 – 68
A/V Select and Video Boards . . . 69 – 72
VM Board. . . . . . . . . . . . . . . . . . . . . . . 73
CRT Socket Board . . . . . . . . . . . . . . . . 73
Power and Deflection Board. . . . 74 – 76
Front Board . . . . . . . . . . . . . . . . . 74 – 75
Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . 120V, 60Hz
140W (Avg), 2.5A (Max)
Antenna Input Impedance. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Digital
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14 - 94, 95 - 125 (CATV)
1 - 99 (Digital)
Remote Ready . . . . . . . . . . 52 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 5.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
Picture Tube. . . . . . . . . . . . . . . . . . . A80ERF082X44
Semiconductors
Integrated Circuits . . . . . . . . . . . . . . . . . . . . . . . 40
Transistors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Except within Tuner, RC Pre-Amp. & Digital Module
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 888 mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 687 mm
Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 570 mm
REFERENCE No. SM780095
HT32744, H3ELM, PRODUCT CODE 111369990
AS

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed on the side of the cabinet, inside the cabinet, on the
chassis, and the picture tube.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
DO NOT OPERATE THIS TELEVISION RECEIVER
WITHOUT THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in solid-state receivers is
the picture tube. The picture tube is specially constructed to
limit X-Ray emission. For continued X-RADIATION protection,
the replacement tube must be the same type as the original
(including the suffix letter in the part numbers). Excessive high
voltage may produce potentially hazardous X-RADIATION. To
avoid such hazards, the high voltage must be maintained within
specific limits. Refer to the X-RADIATION WARNING NOTE on
the CHASSIS SCHEMATIC in this service manual for specific
high voltage limits. If the high voltage exceeds specified limits,
check the components specified on the chassis schematic
diagram and take the necessary corrective action. Carefully
follow the instructions for the +B Voltage Check and the High
Voltage Check to maintain the high voltage within the specified
limits.
HIGHVOLTAGE HOLD-DOWNTEST
To prevent X-RADIATION from the picture tube due to
excessive high voltage, a HOLD-DOWN circuit is provided in
the high voltage circuit. Every time the receiver is serviced,
the high voltage HOLD-DOWN circuit must be tested for
proper operation. Refer to the HIGH VOLTAGE HOLD-
DOWN TEST in service adjustments.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
star (★) in the parts list and in the schematic diagrams. To
ensure safe product operation, it is necessary to replace
those components with the exact same PARTS.
SAFETY INSTRUCTIONS
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.

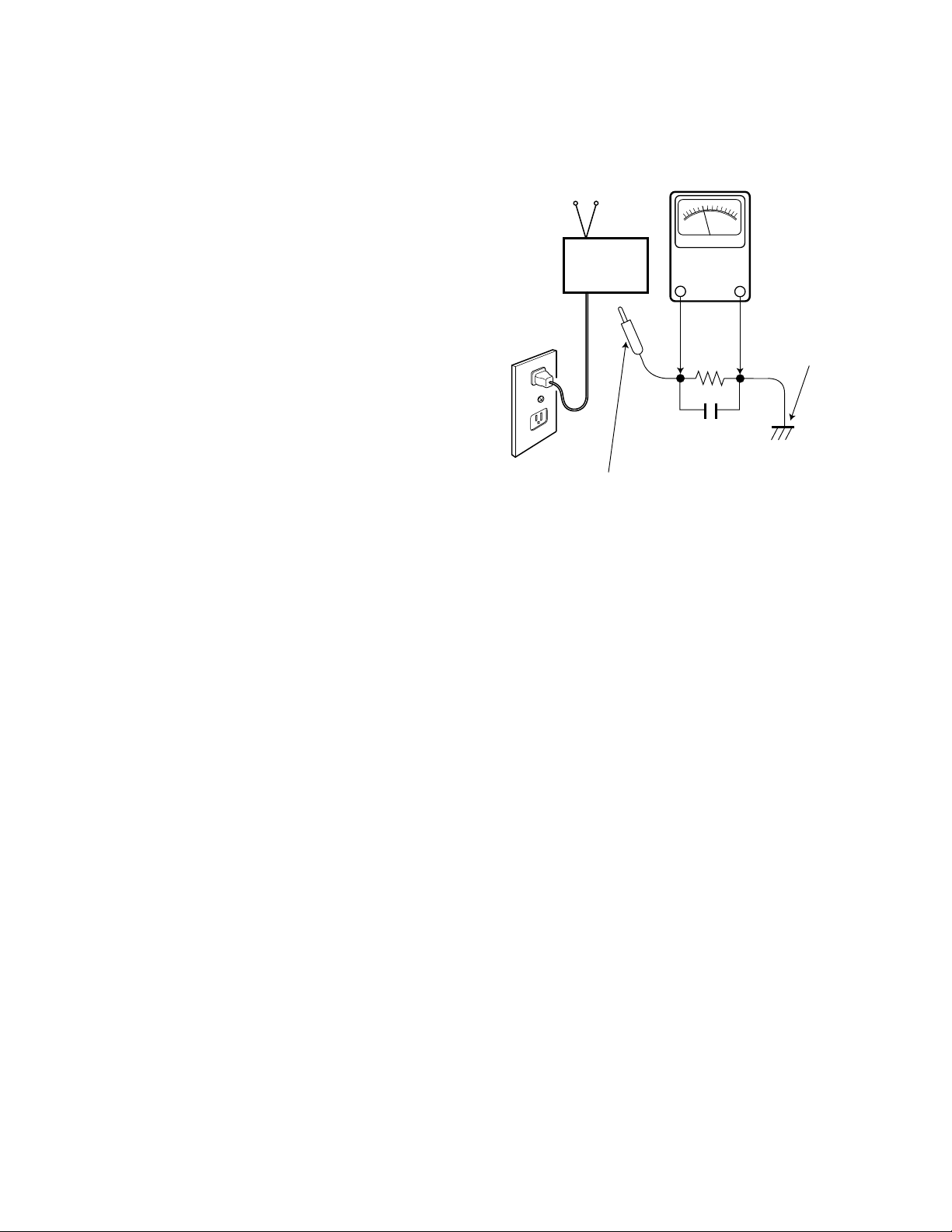

Voltmeter Hook-up for Leakage Current Check.

GENERAL
Thisset has an On-screenServiceMenu system included intheCPU that allows remoteoperationfor most of theserviceadjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•While pressing the – VOLUME key on the front control panel,
reconnect the AC power cord. The Service Menu Display will now
appear. The remote can now be used to make adjustments.
See Figure 1.
2. Service Adjustments:
•Press the Channel ▲or ▼key to select the desired service
menu you want to adjust. See page 5 for On-screen Service
Menu.
•Use the Volume + or – key or numeric keys to adjust the data.
(For Sub - Address see below)
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu display.
ADJUSTMENT FOR SUB ITEM (ADDRESS)
Some service data have Sub - Addresses. Use the numeric keys (from 0 to 7), to adjust the Sub - item data.
ADJUST DATA OF SUB-TITLE
1. Find the title and its bit of binary data from Table 1 (On-Screen Service Menu).
2. Enter the service menu (see above) and select the item number needed with the Channel ▲or ▼key.
3. With the numeric key (from 0 to 7), change the bit data. Each time the numeric key is pressed, the data changes from 0 to
1 alternately. For example, to change the data of bit 5, press the “5” key.
NOTE: The ▲and ▼symbols used in the following service adjustments refer to the Channel up and down keys not the
Menu keys.
SERVICE ADJUSTMENTS
— 3 —
XXXXXXXXXXX
XX XX XXXXXXXX
Figure 1. Service Menu Display
ITEM NO.
TITLE BINARY DATA
(8 bit)
HEXADECIMAL
DATA
(b7) (b6) (b5) (b4) (b3) (b2) (b1) (b0)
0 1 0 1 0 1 1 0 BINARY DATA
(8 bit)
IC802 (EEPROM) REPLACEMENT
When IC802 (EEPROM) is replaced, IC801 (CPU) will automatically write the initial reference data into IC802 for basic TV operation.
However, the bus data should be checked and some bus data should be set up before attempting the service adjustments.
(See Table 1. on pages 5 – 13 for detailed bus data information.)
INITIAL BUS DATA SETUP
Note: When IC802 (EEPROM) is replaced, change the following initial reference data for proper TV operation before
attempting service adjustments.
1. Disconnect the AC power cord (AC 120V line).
2. While pressing the MENU key, reconnect the AC power cord. The Service Menu display will now appear.
3. Select NO. 102 SHU2PO (Sub Hue / Pre/Over Shoot) with ▲or ▼key. Adjust the data with number keys for 1F.
4. Select NO. 103 SLC2CTI (Sub Color / CTI Level) with ▲or ▼key. Adjust the data with number keys for 21.
5. Select NO. 105 SSH2LTI (Sub Sharp / LTI Level) with ▲or ▼key. Adjust the data with number keys for 89.
6. Select NO. 106 RD2PTL (R Drive / P Limit Level) with ▲or ▼key. Adjust the data with number keys for 70.
7. Select NO. 108 BD2CTIM1 (B Drive / CTI Mode) with ▲or ▼key. Adjust the data with number keys for 78.
8. Select NO. 109 SBR2GAM (Sub Bright / Gamma) with ▲or ▼key. Adjust the data with number keys for 26.
9. Select NO. 10A RCT2LTIM1 (R Cutoff / LTI Mode) with ▲or ▼key. Adjust the data with number keys for 88.
9. Select NO. 10B GCT2DPL (G Cutoff / DPIC Level) with ▲or ▼key. Adjust the data with number keys for 5D.
10. Select NO. 10C BCT2DCT (B Cutoff / DC Transit) with ▲or ▼key. Adjust the data with number keys for 75.
11. Select NO. 10F CBOF2AW1AB (CB Offset / Aging W / Aging B) with ▲or ▼key. Adjust the data with number keys for 94.
12. Select NO. 110 CROF2SYS (CR Offset / System ) with ▲or ▼key. Adjust the data with number keys for B8.
13. Select NO. 114 VML4FLC2FLS (VM Level / FLCOL / FLCOL Switch) with ▲or ▼key. Adjust the data with number keys for F2.
14. Select NO. 116 VS (V Size ) with ▲or ▼key. Adjust the data with number keys for B6.

— 4 —
SERVICE ADJUSTMENTS (Cont.)
INITIAL BUS DATA SETUP (Cont.)
15. Select NO. 117 VPS (V Position) with ▲or ▼key. Adjust the data with number keys for 64.
16 Select NO. 119 HSI2UUC (H Size / Up UCP) with ▲or ▼key. Adjust the data with number keys for 48.
17. Select NO. 11A PAP2LUP (Pin Amp / Lo UCP) with ▲or ▼key. Adjust the data with number keys for 80.
18. Select NO. 11B UCP 2UUG (Up CPin / Up UCG) with ▲or ▼key. Adjust the data with number keys for 94.
19. Select NO. 11C LCP2LUG (Up CPin / Lo UCG) with ▲or ▼key. Adjust the data with number keys A8.
20. Select NO. 11D PPH2UPO1VBS (Pin Phase / Uc Pol / V Blk Sw) with ▲or ▼key. Adjust the data with number keys 55.
21. Select NO. 11E HPO2CSH1NIN (H Position / CLP Shift / Non Inter) with ▲or ▼key. Adjust the data with number keys for A5.
22. Select NO. 11F ABO2RAM (AFC Bow / RF AFC Mode) with ▲or ▼key. Adjust the data with number keys for 81.
23. Select NO. 120 AAN2AGS1 (AFC Angle / AGC Sw) with ▲or ▼key. Adjust the data with number keys for 7C.
24. Select NO. 121 LBK2CPH (Left Blk / CLP Phase) with ▲or ▼key. Adjust the data with number keys for BC.
25. Select NO. 122 RBK2CGA1HSW (R Blk / CLP Gate / H Blk Sw) with ▲or ▼key. Adjust the data with number keys for 9D.
26. Select NO. 126 VCP4HCP (V Comp / H Comp) with ▲or ▼key. Adjust the data with number keys for 76.
27. Select NO. 136 RF-HUE (RF Tint) with ▲or ▼key. Adjust the data with number keys for 00.
28. Select NO. 137 RF-COL (RF Color) with ▲or ▼key. Adjust the data with number keys for 00.
29. Select NO. 157 RF-SHP (RF Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
30. Select NO. 158 41-SHP (480I Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
31. Select NO. 159 4P-SHP (480P Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
32. Select NO. 15A 1I-SHP (1080I Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
33. Select NO. 15B 7P-SHP (720P Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
34. Select NO. 15C DIGITAL-SHP (Digital Sharpness) with ▲or ▼key. Adjust the data with number keys for FE.
35. Select NO. 15E RF-LLV (Rf LTI Level) with ▲or ▼key. Adjust the data with number keys for 01.
36. Select No. 171 RF-CB (RF CB Offset) with ▲or ▼key. Adjust the data with number keys for 03.
37. Select No. 172 4I-CB (480I CB Offset) with ▲or ▼key. Adjust the data with number keys for 03.
38. Select No. 173 4P-CB (480P CB Offset) with ▲or ▼key. Adjust the data with number keys for 03.
39. Select No. 174 1I-CB (1080I CB Offset) with ▲or ▼key. Adjust the data with number keys for FF.
40. Select No. 175 7P-CB (720P CB Offset) with ▲or ▼key. Adjust the data with number keys for FF.
41. Select No. 176 D-CB (Digital CB Offset) with ▲or ▼key. Adjust the data with number keys for F8.
42. Select No. 178 RF-CR (RF CR Offset) with ▲or ▼key. Adjust the data with number keys for 02.
43. Select No. 179 4I-CR (480I CR Offset) with ▲or ▼key. Adjust the data with number keys for FE.
44. Select No. 17A 4P-CR (480P CR Offset) with ▲or ▼key. Adjust the data with number keys for FE.
45. Select No. 17B 1I-CR (1080I CR Offset) with ▲or ▼key. Adjust the data with number keys for F6.
46. Select No. 17C 7P-CR (720P CR Offset) with ▲or ▼key. Adjust the data with number keys for F6.
47. Select No. 17D D-CR (Digital CR Offset) with ▲or ▼key. Adjust the data with number keys for F6.
48. Select No. 184 D-SYS (Digital System) with ▲or ▼key. Adjust the data with number keys for 01.
49. Select No. 1D3 CWUBK (Video 1/2 Letter Box Lo Blk) with ▲or ▼key. Adjust the data with number keys for 08.
50. Select No. 1D4 CWLBK (Video 1/2 Letter Box Up Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
51. Select No. 1FA 4PWLBK (480P letter Box Lo Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
52. Select No. 20C 7PWUBK (720P Letter Box Up Blk) with ▲or ▼key. Adjust the data with number keys for 08.
53. Select No. 20D 7PWLBK (720P letter Box Lo Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
54. Select No. 21F 1IWUBK (1080I-Letter Box Up Blk) with ▲or ▼key. Adjust the data with number keys for 08.
55. Select No. 220 1IWLBK (1080I-Letter Box Lo Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
56. Select No. 22B DVPS (Digital - Full V Position) with ▲or ▼key. Adjust the data with number keys for 01.
57. Select No. 258 PUBK (PAP-On Up Blk) with ▲or ▼key. Adjust the data with number keys for 08.
58. Select No. 259 PLBK (PAP-On Lo Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
59. Select No. 26B DWUBK (Digital Letter Box Up Blk) with ▲or ▼key. Adjust the data with number keys for 08.
60. Select No. 26C DWLBK (Digital Letter Box Lo Blk) with ▲or ▼key. Adjust the data with number keys for 0B.
61. Select No. 043 SHU4SCL (Sub Hue / Sub Color) with ▲or ▼key. Adjust the data with number keys for 72.
62. Select No. 045 YD3SF2FO1CM2 (Y Drive / SHP-FO / FSC Out / CD Mode) with ▲or ▼key. Adjust the data with number
keys for 32.
63. Select No. 053 HP2V11V2 (HP / V1/ V2) with ▲or ▼key. Adjust the data with number keys for 7B.
64. Select No. 088 OP2 (Option 2) with ▲or ▼key. Adjust the data with number keys for 10.
65. Select No. 08C AKB (AKB Detect Time) with ▲or ▼key. Adjust the data with number keys for 10.
66. Press the MENU key to turn off the Service Menu display.

— 5 —
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. (See pages 3 and 4 for Initial Bus Data Setup.)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
100 PRGBON4DL2ES1SF FD FD 11111101 PIC+R+G+B On(7~4), D COL(3~2), ES1(1):0(fixed), SF(0)
101 BLKBTM 00 00 00000000 BLK_BTM(1~0)
102 SHU2PO 23 1F* 00011111 SUB HUE(7~2), PRE/OVER(1~0)
103 SCL2CTI 3D 21* 00100001 SUB COLOR(7~2), CTI_LEV(1~0)
104 ↓↓↓↓NOT USED
105 SSH2LTI 81 89* 10001001 SUB SHARPNESS(7~2), LTI_LEV(1~0)
106 RD2PTL 7C 70* 01110000 R_DRIVE(7~2), PLIMIT_LEV(1~0)
107 GD2ABLM 7F 7F 01111111 G_DRIVE(7~2), ABL_MODE(1~0)
108 BD2CTIM1 7C 70* 01111000 B_DRIVE(7~2), CTI_MODE(1)
109 SBR2GAM 3E 26* 00100110 SUB_BRIGHT(7~2), GAMMA(1~0)
10A RCT2LTIM1 7C 88* 10001000 R_CUTOFF(7~2), LTI_MODE(1)
10B GCT2DPL 7F 5D* 01011101 G_CUTOFF(7~2), DPIC_LEV(1~0)
10C BCT2DCT 7F 75* 01110101 B_CUTOFF(7~2), DC_TRAN(1~0)
10D SCO4LR2L 57 57 01010111 SUB_CONT(7~4), LRGB2_LEV(3~0)
10E PABL4ABLT F1 F1 11110001 P_ABL(7~4), ABL_TH(3~0)
10F CB0F2AW1AB 90 94* 10010100 CB_OFFSET(7~2), AGING_W(1), AGING_B(0)
110 CROF2SYS B0 B8* 10111000 CR_OFFSET(7~2), SYSTEM(1~0)
111 YOF4VD2VF 02 02 00000010 Y_OFFSET(7~4), VM_DLY(3~2), VM_FO(1~0)
112 RYR4RYB 88 88 10001000 R-Y/R(7~4), R-Y/B(3~0)
113 GYR4GYP 88 88 10001000 G-Y/R(7~4),G-Y/B(3~0)
114 VML4FLC2FLS F8 F2* 11110010 VM_LEV(7~4), FLCOL(3~2), FLCOL SW(1)
115 UBK4LBK 00 00 00000000 UP_BLK(7~4), LO_ BLK(3~0)
116 VS BE B6* 10110110V_SIZE(7~2), bit1:1 bit0:0 (b1/b0: fixed)
117 VPS 78 64* 01010100 V_POSITION(7~2)
118 VLI4SCR 76 76 01110110 V_LIN(7~4), S_CORRECTION(3~0)
119 HSI2UUC 61 48* 01001000 H_SIZE(7~2), UP_UCP(1~0)
11A PAP2LUP B5 80* 10000000 PIN AMP(7~2), LO UCP(1~0)
11B UCP2UUG 8D 94* 10010100 UP_CPIN(7-2), UP_UCG(1-0)Y
11C LCP2LUG 99 A8* 10101000 LO_CPIN(7-2), LO_UCG(1-0)
11D PPH2UPO1VBS 83 55* 01010101 PIN_PHASE(7-2), UC_POL(1), VBLK_SW(0)
11E HPO2CSH1NIN 9C A5* 10100101 H_POSITION(7-2), CLP_SHIFT(1),NONINTER(0)
11F ABO2RAM 85 81* 10000001 AFC_BOW(7-2), RF AFC_MODE(1-0)
120 AAN2AGS1 84 7C* 01111100 AFC_ANGLE(7-2), AGC_SW(1)
121 LBK2CPH E0 BC* 10111100 LEFT_BLK(7-2), CLP_PHASE(1-0)
122 RBK2CGA1HSW 71 9D* 10011101 RIGHT_BLK(7-2), CLP_GATE(1), HBLK_SW(0)
123 VAS2JSW 00 00 00000000 V_ASPECT(7-2), JMP_SW (0)
124 VSR 7D 7D 01111101 V_SCROLL(7-2), b1 : 0, b0 : 1 (b1 / b0: fixed)
125 UVL4LVL 00 00 00000000 UP_VLIN(7-4), LO_VLIN(3-0)
126 VCP4HCP 49 76* 01110110 V_COMP(7-4), H_COMP(3-0)
127 ATI3HVS2BOF1AOF 70 70 01110000 AKB-TIM(7-3), HVBTM_SW(2),BLK OFF(1), AKB OFF(0)
128 128 00 00 00000000 PRELIMINARY
129 RF-SF0 01 01 00000001 RF SHP_F0(0)
12A 4I-SF0 01 01 00000001 480I SHP_F0(0)
12B 4P-SF0 01 01 00000001 480P SHP_F0(0)
12C 1I-SF0 01 01 00000001 1080I SHP_F0(0)
12D 7P-SF0 01 01 00000001 720P SHP_F0(0)
12E D-SF0 01 01 00000001 DIGITAL SHP_F0(0)
12F RF-CON 00 00 00000000 RF CONTRAST
130 4I-CON 00 00 00000000 480I CONTRAST
131 4P-CON 00 00 00000000 480P CONTRAST

Table 1. ON-SCREEN SERVICE MENU (Continued)
— 6 —
SERVICE ADJUSTMENTS (Cont.)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
132 1I-CON 00 00 00000000 1125I CONTRAST
133 7P-CON 00 00 00000000 720P CONTRAST
134 D-CON 00 00 00000000 DIGITAL CONTRAST
135 W-CON 00 00 00000000 LETTER BOX CONTRAST
136 RF-HUE FC 00* 00000000 RF TINT
137 4I-HUE 00 00 00000000 480I TINT
138 4P-HUE 00 00 00000000 480P TINT
139 1I-HUE 00 00 00000000 1080I TINT
13A 7P-HUE 00 00 00000000 720P TINT
13B D-HUE 00 00 00000000 DIGITAL TINT
13C W-HUE FF FF 11111111 LETTER BOX TINT
13D RF-PRE 02 02 00000010 RF PRE/OVER(1-0)
13E 4I-PRE 03 03 00000011 480I PRE/OVER(1-0)
13F 4P-PRE 03 03 00000011 480P PRE/OVER(1-0)
140 1I-PRE 03 03 00000011 1080I PRE/OVER(1-0)
141 7P-PRE 03 03 00000011 720P PRE/OVER(1-0)
142 D-PRE 03 03 00000011 DIGITAL PRE/OVER(1-0)
143 RF-COL 01 00* 00000000 RF COLOR
144 4I-COL 04 04 00000100 480I COLOR
145 4P-COL 05 05 00000101 480P COLOR
146 1I-COL 04 04 00000100 1080I COLOR
147 7P-COL 04 04 00000100 720P COLOR
148 D-COL 00 00 00000000 DIGITAL COLOR
149 W-COL 00 00 00000000 LETTER BOX COLOR
14A RF-CLV 01 01 00000001 RF CTI_LEV(1-0)
14B 4I-CLV 01 01 00000001 480I CTI_LEV(1-0)
14C 4P-CLV 01 01 00000001 480P CTI_LEV(1-0)
14D 1I-CLV 01 01 00000001 1080I CTI_LEV(1-0)
14E 7P-CLV 01 01 00000001 720P CTI_LEV(1-0)
14F D-CLV 01 01 00000001 DIGITAL CTI_LEV(1-0)
150 RF-BRI 00 00 00000000 RF BRIGHT
151 4I-BRI 00 00 00000000 480I BRIGHT
152 4P-BRI 00 00 00000000 480P BRIGHT
153 1I-BRI 00 00 00000000 1080I BRIGHT
154 7P-BRI 00 00 00000000 720P BRIGHT
155 D-BRI 00 00 00000000 DIGITAL BRIGHT
156 W-BRI 00 00 00000000 LETTER BOX BRIGHT
157 RF-SHP 00 FE* 11111110 RF SHARPNESS
158 4I-SHP 00 FE* 11111110 480I SHARPNESS
159 4P-SHP 00 FE* 11111110 480P SHARPNESS
15A 1I-SHP 00 FE* 11111110 1080I SHARPNESS
15B 7P-SHP 00 FE* 11111110 720P SHARPNESS
15C DIGITAL-SHP 00 FE* 00000000 DIGITAL SHARPNESS
15D W-SHP 00 00 00000000 LETTER BOX SHARPNESS
15E RF-LLV 00 01* 00000001 RF LTI_LEV(1-0)
15F 4I-LLV 01 01 00000001 480I LTI_LEV(1-0)
160 4P-LLV 01 01 00000001 480P LTI_LEV(1-0)
161 1I-LLV 01 01 00000001 1080I LTI_LEV(1-0)
162 7P-LLV 01 01 00000001 720P LTI_LEV(1-0)
163 D-LLV 01 01 00000001 DIGITAL LTI_LEV(1-0)

— 7 —
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
164 RF-CMD 00 00 00000000 RF CTI_MODE(0)
165 4I-CMD 00 00 00000000 480I CTI_MODE(0)
166 4P-CMD 00 00 00000000 480P CTI_MODE(0)
167 1I-CMD 00 00 00000000 1080I CTI_MODE(0)
168 7P-CMD 00 00 00000000 720P CTI_MODE(0)
169 D-CMD 00 00 00000000 DIGITAL CTI_MODE(0)
16A 1I-GAM 02 02 00000010 1125I ÇfAMMA(1-0)
16B RF-LMD 00 00 00000000 RF LTI_MODE(0)
16C 4I-LMD 00 00 00000000 480I LTI_MODE(0)
16D 4P-LMD 00 00 00000000 480P LTI_MODE(0)
16E 1I-LMD 00 00 00000000 1080I LTI_MODE(0)
16F 7P-LMD 00 00 00000000 720P LTI_MODE(0)
170 D-LMD 00 00 00000000 DIGITAL LTI_MODE(0)
171 RF-CB 00 03* 00000011 RF CB_OFFSET
172 4I-CB 00 03* 00000011 480I CB_OFFSET
173 4P-CB F0 03* 00000011 480P CB_OFFSET
174 1I-CB F0 FF* 11111111 1080I CB_OFFSET
175 7P-CB F0 FF* 11111111 720P CB_OFFSET
176 D-CB F0 F8* 11111000 DIGITAL CB_OFFSET
177 W-CB 00 00 00000000 000000 LETTER BOX CB_OFFSET
178 RF-CR 00 02* 00000010 RF CR_OFFSET
179 4I-CR 00 FE* 11111110 480I CR_OFFSET
17A 4P-CR F0 FE* 11111110 480P CR_OFFSET
17B 1I-CR F0 F6* 11110110 1080I CR_OFFSET
17C 7P-CR 00 F6* 11110110 720P CR_OFFSET
17D D-CR 00 F6* 11110110 DIGITAL CR_OFFSET
17E W-CR 00 00 00000000 LETTER BOX CR_OFFSET
17F RF-SYS 00 00 00000000 RF SYSTEM(1-0)
180 4I-SYS 00 00 00000000 480I SYSTEM(1-0)
181 4P-SYS 00 00 00000000 480P SYSTEM(1-0)
182 1I-SYS 01 01 00000001 1080I SYSTEM(1-0)
183 7P-SYS 01 01 00000001 720P SYSTEM(1-0)
184 D-SYS 00 01* 00000001 DIGITAL SYSTEM(1-0)
185 RF-VMD 00 00 00000000 RF VM_DLY(1-0)
186 4I-VMD 00 00 00000000 480I VM_DLY(1-0)
187 4P-VMD 00 00 00000000 480P VM_DLY(1-0)
188 1I-VMD 00 00 00000000 1080I VM_DLY(1-0)
189 7P-VMD 00 00 00000000 720P VM_DLY(1-0)
18A D-VMD 00 00 00000000 DIGITAL VM_DLY(1-0)
18B RF-VMF 02 02 00000010 RF VM_F0(1-0)
18C 4I-VMF 02 02 00000010 480I VM_F0(1-0)
18D 4P-VMF 02 02 00000010 480P VM_F0(1-0)
18E 1I-VMF 02 02 00000010 1080I VM_F0(1-0)
18F 7P-VMF 02 02 00000010 720P VM_F0
190 D-VMF 02 02 00000010 DIGITAL VM_F0
191 W-VMF 02 02 00000010 LETTER BOX VM_F0
192 RF-RYR 08 08 00001000 RF RYR(3-0)
193 4I-RYR 08 08 00001000 480I RYR(3-0)
194 4P-RYR 08 08 00001000 480P RYR(3-0)
195 1I-RYR 08 08 00001000 1080I RYR(3-0)
196 7P-RYR 08 08 00001000 720P RYR(3-0)
197 D-RYR 08 08 00001000 DIGITAL RYR(3-0)
198 RF-RYB 08 08 00001000 RF RYB(3-0)
199 4I-RYB 08 08 00001000 480I RYB(3-0)

— 8 —
SERVICE ADJUSTMENTS (Cont.)
Table 1. ON-SCREEN SERVICE MENU (Continued)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
19A 4P-RYB 08 08 00001000 480P RYB(3-0)
19B 1I-RYB 08 08 00001000 1080I RYB(3-0)
19C 7P-RYB 08 08 00001000 720P RYB(3-0)
19D D-RYB 08 08 00001000 DIGITAL RYB(3-0)
19E RF-GYR 08 08 00001000 RF GYR(3-0)
19F 4I-GYR 08 08 00001000 480I GYR(3-0)
1A0 4P-GYR 08 08 00001000 480P GYR(3-0)
1A1 1I-GYR 08 08 00001000 1080I GYR(3-0)
1A2 7P-GYR 08 08 00001000 720P GYR(3-0)
1A3 D-GYR 08 08 00001000 DIGITAL GYR(3-0)
1A4 RF-GYB 08 08 00001000 RF GYB(3-0)
1A5 4I-GYB 08 08 00001000 480I GYB(3-0)
1A6 4P-GYB 08 08 00001000 480P GYB(3-0)
1A7 1I-GYB 08 08 00001000 1080I GYB(3-0)
1A8 7P-GYB 08 08 00001000 720P GYB(3-0)
1A9 D-GYB 08 08 00001000 DIGITAL GYB(3-0)
1AA RF-VLV 0F 0F 00001111 RF VM_LEV(3-0)
1AB 4I-VLV 0F 0F 00001111 480I VM_LEV(3-0)
1AC 4P-VLV 0F 0F 00001111 480P VM_LEV(3-0)
1AD 1I-VLV 0F 0F 00001111 1080I VM_LEV(3-0)
1AE 7P-VLV 0F 0F 00001111 720P VM_LEV(3-0)
1AF D-VLV 0F 0F 00001111 1080I VM_LEV(3-0)
1B0 W-VLV 00 00 00000000 LETTER BOX VM_LEV(3-0)
1B1 1B1 00 00 00000000 PRELIMINARY
1B2 1B2 00 00 00000000 PRELIMINARY
1B3 1B3 00 00 00000000 PRELIMINARY
1B4 1B4 00 00 00000000 PRELIMINARY
1B5 1B5 00 00 00000000 PRELIMINARY
1B6 RWUBK 00 00 00000000 RF-LETTER BOX UP_BLK
1B7 RWLBK 00 00 00000000 RF-LETTER BOX LO_BLK
1B8 RWVS 00 00 00000000 RF-LETTER BOX V_SIZE
1B9 RWVPS 00 00 00000000 RF-LETTER BOX V_POSITION
1BA RWUUC 00 00 00000000 RF-LETTER BOX UP_UCP
1BB RWPAP 00 00 00000000 RF-LETTER BOX PIN_AMP
1BC RWLUP 00 00 00000000 RF-LETTER BOX LO_UCP
1BD RWUCP 00 00 00000000 RF-LETTER BOX UP_CPIN
1BE RWUUG 00 00 00000000 RF-LETTER BOX UP_UCG
1BF RWLCP 00 00 00000000 RF-LETTER BOX LO_CPIN
1C0 RWLUG 00 00 00000000 RF-LETTER BOX LO_UCG
1C1 RWPPH 00 00 00000000 RF-LETTER BOX PIN_PHASE
1C2 RWVBS 00 00 00000000 RF-LETTER BOX VBLK_SW
1C3 RWABO 00 00 00000000 RF-LETTER BOX AFC_BOW
1C4 RWAAN 00 00 00000000 RF-LETTER BOX AFC_ANGLE
1C5 RWVAS 00 00 00000000 RF-LETTER BOX V_ASPECT
1C6 RWJSW 00 00 00000000 RF-LETTER BOX JMP_SW
1C7 RWVSR 00 00 00000000 RF-LETTER BOX V_SCROLL
1C8 1C8 00 00 00000000 RF-LETTER BOX PRELIMINARY
1C9 CFUBK 00 00 00000000 VIDEO1/2-FULL UP_BLK
1CA CFLBK 00 00 00000000 VIDEO1/2-FULL LO_BKL
1CB CFVS 00 00 00000000 VIDEO1/2-FULL V_SIZE
1CC CFVPS 00 00 00000000 VIDEO1/2-FULL V_POSITION

— 9 —
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
1CD CFHSI 00 00 00000000 VIDEO1/2-FULL H_SIZE
1CE CFHPO 00 00 00000000 VIDEO1/2-FULL H_POSITION
1CF CFLBK 00 00 00000000 VIDEO1/2-FULL L_BLK
1D0 CFRBK 00 00 00000000 VIDEO1/2-FULL R_BLK
1D1 CFVAS 00 00 00000000 VIDEO1/2-FULL V_ASPECT
1D2 CFVSR 00 00 00000000 VIDEO1/2-FULL V_SCROLL
1D3 CWUBK 09 08* 00001000 VIDEO1/2-LETTER BOX LO_BLK
1D4 CWLBK 0D 0B* 00001011 VIDEO1/2-LETTER BOX LO_BLK
1D5 CWVS 00 00 00000000 VIDEO1/2-LETTER BOX V_SIZE
1D6 CWVPS 00 00 00000000 VIDEO1/2-LETTER BOX V_POSITION
1D7 CWVBS 01 01 00000001 VIDEO1/2-LETTER BOX VBLK_SW
1D8 CWVAS 12 12 00010010 VIDEO1/2-LETTER BOX V_ASPECT
1D9 CWJSW 01 01 00000001 VIDEO1/2-LETTER BOX JMP_SW
1DA CWVSR 00 00 00000000 VIDEO1/2-LETTER BOX V_SCROLL
1DB 1DB 00 00 00000000 VIDEO1/2-LETTER BOX PRELIMINARY
1DC 4IUBK 00 00 00000000 480I-FULL UP_BLK
1DD 4ILBK 00 00 00000000 480I-FULL LO_BLK
1DE 4IVS 00 00 00000000 480I-FULL V_SIZE
1DF 4IVPS 00 00 00000000 480I-FULL V_POSITION
1E0 4IHSI 00 00 00000000 480I-FULL H_SIZE
1E1 4IHPO 00 00 00000000 480I-FULL H_POSITION
1E2 4ILBK 00 00 00000000 480I-FULL L_BLK
1E3 4IRBK 00 00 00000000 480I-FULL R_BLK
1E4 4IVAS 00 00 00000000 480I-FULL V_ASPECT
1E5 4IVSR 00 00 00000000 480I-FULL V_SCROLL
1E6 4IWUBK 08 08 00001000 480I-LETTER BOX UP_BLK
1E7 4IWLBK 0B 0B 00001011 480I-LETTER BOX LO_BLK
1E8 4IWVS 00 00 00000000 480I-LETTER BOX V_SIZE
1E9 4IWVPS 00 00 00000000 480I-LETTER BOX V_POSITION
1EA 4IWVBS 01 01 0000000 1480I-LETTER BOX VBLK_SW
1EB 4IWVAS 12 12 00010010 480I-LETTER BOX V_ASPECT
1EC 4IWJSW 01 01 00000001 480I-LETTER BOX JMP_SW
1ED 4IWVSR 00 00 00000000 480I-LETTER BOX V_SCROLL
1EE 1EE 00 00 00000000 480I PRELIMINARY
1EF 4PUBK 00 00 00000000 480P-FULL UP_BLK
1F0 4PLBK 00 00 00000000 480P-FULL LO_BLK
1F1 4PVS 00 00 00000000 480P-FULL V_SIZE
1F2 4PVPS 00 00 00000000 480P-FULL V_POSITION
1F3 4PHSI 00 00 00000000 480P-FULL H_SIZE
1F4 4PHPO 00 00 00000000 480P-FULL H_POSITION
1F5 4PLBK 00 00 00000000 480P-FULL L_BLK
1F6 4PRBK 00 00 00000000 480P-FULL R_BLK
1F7 4PVAS 00 00 00000000 480P-FULL V_ASPECT
1F8 4PVRS 00 00 00000000 480P-FULL V_SCROLL
1F9 4PWUBK 08 08 00001000 480P-LETTER BOX UP_BLK
1FA 4PWLBK 0D 0B* 00001011 480P-LETTER BOX LO_BLK
1FB 4PWVS 00 00 00000000 480P-LETTER BOX V_SIZE
1FC 4PWVPS 00 00 00000000 480P-LETTER BOX V_POSITION
1FD 4PWVBS 01 01 00000001 480P-LETTER BOX VBLK_SW
1FE 4PWVAS 12 12 00010010 480P-LETTER BOX V_ASPECT
1FF 4PWJSW 01 01 00000001 480P-LETTER BOX JMP_SW
200 4PWVSR 00 00 00000000 480P-LETTER BOX V_SCROLL
201 201 00 00 00000000 480P PRELIMINARY
202 7PUBK 00 00 00000000 720P-FULL UP_BLK

— 10 —
SERVICE ADJUSTMENTS (Cont.)
Table 1. ON-SCREEN SERVICE MENU (Continued)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
203 7PLBK 00 00 00000000 720P-FULL LO_BLK
204 7PVS 00 00 00000000 720P-FULL V_SIZE
205 7PVPS 00 00 00000000 720P-FULL V_POSITION
206 7PHSI 00 00 00000000 720P-FULL H_SIZE
207 7PHPO 00 00 00000000 720P-FULL H_POSITION
208 7PLBK 00 00 00000000 720P-FULL L_BLK
209 7PRBK 00 00 00000000 720P-FULL R_BLK
20A 7PVAS 00 00 00000000 720P-FULL V_ASPECT
20B 7PVSR 00 00 00000000 720P-FULL V_SCROLL
20C 7PWUBK 09 08* 00001000 720P-LETTER BOX UP_BLK
20D 7PWLBK 0D 0B* 00001011 720P-LETTER BOX LO_BLK
20E 7PWVS 00 00 00000000 720P-LETTER BOX V_SIZE
20F 7PWVPS 00 00 00000000 720P-LETTER BOX V_POSITION
210 7PWVBS 01 01 00000001 720P-LETTER BOX VBLK_SW
211 7PWVAS 12 12 00010010 720P-LETTER BOX V_ASPECT
212 7PWJSW 01 01 00000001 720P-LETTER BOX JMP_SW
213 7PWVSR 00 00 00000000 720P-LETTER BOX V_SCROLL
214 214 00 00 00000000 720P PRELIMINARY
215 1IUBK 00 00 00000000 1080I-FULL UP_BLK
216 1ILBK 00 00 00000000 1080I-FULL LO_BLK
217 1IVS 00 00 00000000 1080I-FULL V_SIZE
218 1IVPS 00 00 00000000 1080I-FULL V_POSITION
219 1IHSI 00 00 00000000 1080I-FULL H_SIZE
21A 1IHPO 00 00 00000000 1080I-FULL H_POSITION
21B 1ILBK 00 00 00000000 1080I-FULL L_BLK
21C 1IRBK 00 00 00000000 1080I-FULL R_BLK
21D 1IVAS 00 00 00000000 1080I-FULL V_ASPECT
21E 1IVSR 00 00 00000000 1080I-FULL V_SCROLL
21F 1IWUBK 09 08* 00001000 1080I-LETTER BOX UP_BLK
220 1IWLBK 0C 0B* 00001011 1080I-LETTER BOX LO_BLK
221 1IWVS 00 00 00000000 1080I-LETTER BOX V_SIZE
222 1IWVPS 00 00 00000000 1080I-LETTER BOX V_POSITION
223 1IWVBS 01 01 00000001 1080I-LETTER BOX VBLK_SW
224 1IWVAS 12 12 00010010 1080I-LETTER BOX V_ASPECT
225 1IWJSW 01 01 00000001 1080I-LETTER BOX JMP_SW
226 1IWVSR 00 00 00000000 1080I-LETTER BOX V_SCROLL
227 227 00 00 00000000 1080I PRELIMINARY
228 DUBK 00 00 00000000 DIGITAL-FULL UP_BLK
229 DLBK 00 00 00000000 DIGITAL-FULL LO_BLK
22A DVS 00 00 00000000 DIGITAL-FULL V_SIZE
22B DVPS 00 01* 00000001 DIGITAL-FULL V_POSITION
22C DHSI 00 00 00000000 DIGITAL-FULL H_SIZE
22D DHPO 00 00 00000000 DIGITAL-FULL H_POSITION
22E DLBK 00 00 00000000 DIGITAL-FULL L_BLK
22F DRBK 00 00 00000000 DIGITAL-FULL R_BLK
230 DVAS 00 00 00000000 DIGITAL-FULL V_ASPECT
231 DVSR 00 00 00000000 DIGITAL-FULL V_SCROLL
232 232 00 00 00000000 DIGITAL PRELIMINARY
233 RZVS 00 00 00000000 RF-ZOOM V_SIZE
234 RZVPS 00 00 00000000 RF-ZOOM V_POSITION
235 RZVBS 00 00 00000000 RF-ZOOM VBLK_SW

— 11 —
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
236 RZVAS 00 00 00000000 RF-ZOOM V_ASPECT
237 RZZSW 00 00 00000000 RF-ZOOM ZOOM_SW
238 RZVSR 00 00 00000000 RF-ZOOM V_SCROLL
239 239 00 00 00000000 RF PRELIMINARY
23A CZVS 00 00 00000000 VIDEO1/2-ZOOM V_SIZE
23B CZVPS 00 00 00000000 VIDEO1/2-ZOOM V_POSITION
23C CZVAS 00 00 00000000 VIDEO1/2-ZOOM V_ASPECT
23D CZVSR 00 00 00000000 VIDEO1/2-ZOOM V_SCROLL
23E 23E 00 00 00000000 VIDEO1/2 PRELIMINARY
23F 4IZVS 00 00 00000000 480I-ZOOM V_SIZE
240 4IZVPS 00 00 00000000 480I-ZOOM V_POSITION
241 4IZVAS 00 00 00000000 480I-ZOOM V_ASPECT
242 4IZVSR 00 00 00000000 480I-ZOOM V_SCROLL
243 243 00 00 00000000 480I PRELIMINARY
244 4PZVS 00 00 00000000 480P-ZOOM V_SIZE
245 4PZVPS 00 00 00000000 480P-ZOOM V_POSITION
246 4PZVAS 00 00 00000000 480P-ZOOM V_ASPECT
247 4PZVSR 00 00 00000000 480P-ZOOM V_SCROLL
248 248 00 00 00000000 480P PRELIMINARY
249 4PZVS 00 00 00000000 720P-ZOOM V_SIZE
24A 4PZVPS 00 00 00000000 720P-ZOOM V_POSITION
24B 4PZVAS 00 00 00000000 720P-ZOOM V_ASPECT
24C 4PZVSR 00 00 00000000 720P-ZOOM V_SCROLL
24D 24D 00 00 00000000 720P PRELIMINARY
24E 1IZVS 00 00 00000000 1080I-ZOOM V_SIZE
24F 1IZVPS 00 00 00000000 1080I-ZOOM V_POSITION
250 1IZVAS 00 00 00000000 1080I-ZOOM V_ASPECT
251 1IZVSR 00 00 00000000 1080I-ZOOM V_SCROLL
252 252 00 00 00000000 1080I PRELIMINARY
253 DZVS 00 00 00000000 DIGITAL-ZOOM V_SIZE
254 DZVPS 00 00 00000000 DIGITAL-ZOOM V_POSITION
255 DZVAS 00 00 00000000 DIGITAL-ZOOM V_ASPECT
256 DZVSR 00 00 00000000 DIGITAL-ZOOM V_SCROLL
257 257 00 00 00000000 DIGITAL PRELIMINARY
258 PUBK 07 08* 00001000 PAP-ON UP_BLK
259 PLBK 0F 0F 00001011 PAP-ON LO_BLK
25A PVS 00 00 00000000 PAP-ON V_SIZE
25B PVPS 00 00 00000000 PAP-ON V_POSITION
25C PUUC 00 00 00000000 PAP-ON UP_UCP
25D PPAP 00 00 00000000 PAP-ON PIN_AMP
25E PLUP 00 00 00000000 PAP-ON LO_UCP
25F PUCP 00 00 00000000 PAP-ON UP_UCP
260 PUUG 00 00 00000000 PAP-ON UP_UCG
261 PLCP 00 00 00000000 PAP-ON LO_CPIN
262 PLUG 00 00 00000000 PAP-ON LO_UCG
263 PPPH 00 00 00000000 PAP-ON PIN_PHASE
264 PVBS 01 01 00000001 PAP-ON VBLK_SW
265 PABO 00 00 00000000 PAP-ON AFC_BOW
266 PAAN 00 00 00000000 PAP-ON AFC_ANGLE
267 PVAS 12 12 00010010 PAP-ON V_ASPECT
268 PJSW 01 01 00000001 PAP-ON JMP_SW
269 PVSR 00 00 00000000 PAP-ON V_SCROLL
26A 26A 00 00 00000000 PAP-ON PRELIMINARY
26B DWUBK 07 08* 00001000 DIGITAL-LETTER BOX UP_BLK

— 12 —
SERVICE ADJUSTMENTS (Cont.)
Table 1. ON-SCREEN SERVICE MENU (Continued)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
26C DWLBK 0F 0B* 00001011 DIGITAL-LETTER BOX LO_BLK
26D DWVS 00 00 00000000 DIGITAL-LETTER BOX V_SIZE
26E DWVPS 00 00 00000000 DIGITAL-LETTER BOX V_POSITION
26F DWVBS 01 01 00000001 DIGITAL-LETTER BOX VBLK_SW
270 DWVAS 12 12 00010010 DIGITAL-LETTER BOX V_ASPECT
271 DWJSW 01 01 00000001 DIGITAL-LETTER BOX ZOOM_SW
272 DWVSR 00 00 00000000 DIGITAL-LETTER BOX V_SCROLL
040 HU2DO1CY 83 83 10000011 HUE(7-2),DPIC OFF(1),CV/YC(0)
041 COL2RHM1CAN 52 52 01010010 COLOR(7-2), RF HMASK(1), CANAL(0)
042 SHA4SCO 47 47 01000111 SHARPNESS(7-4), SUBCONT(3-0)
043 SHU4SCL 77 72* 01110010 SUBHUE(7-4), SUBCOLOR(3-0)
044 CAJ4RAF2TRO1TOO 78 78 01111000 CTRAPADJ(7-4),AFC(3-2),TRAPON(1),TOT ON(0)
045 YD3SF2FO1CM2 2A 32* 00110010 Y DRIVE(7-3),SHP-f0(2), FSC OUT(1), CD MODE2(0)
046 UPD4VPD 68 68 01101000 U PED(7-4), V PED(3-0)
047 U2PD4V2PD 00 00 00000000 U2 PED(7-4), V2 PED(3-0)
048 Y2D3DCT 00 00 00000000 Y2 DRIVE(7-3), DC TRAN(2-0)
049 U2D3PRO1 00 00 00000000 U2 DRIVE(7-3), PRE OVER(2-1),bit0: 0 (bit0: fixed)
04A V2D 00 00 00000000 V2(7-3), bit2: 0, bit1: 0, bit0: 0 (bit2 / 1/ 0: fixed)
04B CS6XP4VF2DL 02 02 00000010 CS(7-6),XP(5-4),VF(3-2),DL(1-0)
04C - 01 01 00000001 bit7, 6: 0, bit5, 4: 0, bit3, 2: 0, bit1: 0 ,bit0: 1
04D EXAFC 00 00 00000000 EX(V1/V2)AFC
04E EXCAFC 01 01 00000001 EX(V3)AFC
04F 04F 00 00 00000000 PRELIMINARY
050 HF61SW42SW2SL 3C 3C 00111100 HF6(7-6),1SW(5-4), 2SW(3-2), SL(1-0)
051 D16D24D33T21I12I 03 03 00000011 D16(7-6), D24(5-4), D33(3), T2(2), 1I1(1), 2I(0)
052 VF6CP4FDS2IS CC CC 11001100 VF6(7-5), CP(4), FDS(3-2), IS(1-0)
053 HP2V11V2 53 7B* 01111011 HP(7-2),V1(1),V2(0)
054 4PHF 01 01 00000000 480P H-FREQUENCY
056 7PHF 03 03 00000000 720P H-FREQUENCY
057 4PVF 04 04 00000000 480P V-FREQUENCY
058 1IVF 03 03 00000000 1080I V-FREQUENCY
059 7PVF 01 01 00000000 720P V-FREQUENCY
05A WDT 1A 1A 00000000 WATCH DOG TIMER (*500MSEC)
05B 3D04 29 29 00000000 3D Y/C DATA 04
05C 3D05 36 36 00000000 3D Y/C DATA 05
05D 3D06 99 99 00000000 3D Y/C DATA 06
05E 3D0A 52 52 00000000 3D Y/C DATA 11
05F 3D0B 3A 3A 00000000 3D Y/C DATA 12
060 3D10 50 50 00000000 3D Y/C DATA 17
080 ATT 07 07 00000000 MTS INPUT LEVEL(3-0)
081 WDB 20 20 00000000 MTS LOW SEPARATION(5-0)
082 SPC 20 20 00000000 MTS HI SEPARATION(5-0)
083 083 00 00 00000000 NOT AVAILABLE
084 084 00 00 00000000 NOT AVAILABLE
085 085 00 00 00000000 NOT AVAILABLE
086 086 00 00 00000000 NOT AVAILABLE
087 OP1 00 00 00000000 OPTION1 DATA
088 OP2 10 10 00010000 OPTION2 DATA
089 OSD 02 02 00000010 OSD H-POSITION
08A 08A 00 00 00000000 NOT AVAILABLE
08B VMT 48 48 01001000 VIDEO MUTE TIME

— 13 —
PROGRAM CODES
The microprossesor used in this model is a multi-purpose type and is used in several different models. To ensure proper
operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1).
Is not used in this model.
Note 2. Option Data 2 (NO. 088 OP2) should be
Hexadecimal 10 (00010000 binary). If this program code
is wrong the TV will not operate properly.
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
08C AKB 30 10* 00010000 AKB DETECT TIME
08D - 00 00 00000000 NOT AVAILABLE
08E - 00 00 00000000 NOT AVAILABLE
255 00 00 00000000 NOT AVAILABLE
– R/B DRIVE – – – R / B DRIVE LEVEL ADJUSTMENT
– SCREEN – – – BLACK SCREEN FOR SCREEN ADJUSTMENT
0B0 ROO – – – ROM CORRECTION DATA
↓↓↓↓↓
0F7 R47 – – – ROM CORRECTION DATA
BIT FUNCTION DATA
01
0 NOT USED – –
1 TV ASPECT RATIO 4:3 16:9
2 NOT USED – –
3 NOT USED – –
4 PAP NONE YES
5 NOT USED – –
6 NOT USED – –
7 NOT USED – –

— 14 —
SERVICE ADJUSTMENTS (Continued)
ANTENNA CONNECTIONS
This receiver is designed for UHF/VHF and Digital RF recep-
tion. A 75 ohm terminal is provided for UHF/VHF reception
and a separate 75 ohm terminal is provided for Digital RF
reception. When connecting a CATV antenna system, con-
nect the 75 ohm coaxial cable directly to the 75 ohm
UHF/VHF terminal. For 300 ohm VHF antenna, use an
adapter (not included with the TV set).
CIRCUIT PROTECTION
Fuse F601 (4A) is included in the AC line. This fuse must be
replaced with the proper fuse (see Parts List).
+BVOLTAGE CHECK
1. Connect Voltmeter + lead to TJ1 (140 V) and – lead to
ground (Power/Deflection board).
2. Connect receiver to AC 120V line.
3. Tune receiver to an active channel.
4. Set the picture controls to the Sports level or Reset (use
MENU key and ▲or ▼ key or RESET key).
5. Voltage must measure between 139.0 V and 142.0V.
If the voltage is out of range, the power circuit must be
checked. No +B adjustment is provided on this chassis.
HORIZONTAL CENTERING ADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the horizontal center of TV
screen. If picture is not centered horizontally, perform
steps 3 - 6.
3. Turn off the receiver and disconnect the AC power cord.
(120V AC line)
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
5. Select NO. 11E (HPO2: Horizontal Position, Bit 7 - 2) with
▲or ▼key.
6. Adjust the data with numeric keys for horizontal center. To
turn off the Service Menu display, press the MENU key.
HORIZONTALWIDTHADJUSTMENT
1. Tune receiver to an active channel.
2. Check the picture for proper width. If width is not cor-
rect, perform steps 3 - 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
5. Select NO. 119 (HSI2: Horizontal Size, Bit 7 - 2) with
▲or ▼key.
6. Adjust the data with numeric keys for proper width. To
turn off the Service Menu display, press the MENU key.
VERTICAL SIZEADJUSTMENT
1. Tune receiver to an active analog channel.
2. Check the vertical size of the picture. If the vertical size
is too large or small, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
5. Select NO. 116 (VS: Vertical Size, Bit 7 - 2) with ▲or ▼
key.
6. Adjust the data with + or – key for full scan. To turn off
the Service Menu display, press the MENU key.
VERTICAL CENTERINGADJUSTMENT
1. Tune receiver to an active analog channel.
2. Check that picture is in the vertical center of TV screen.
If picture is not centered vertically, perform steps 3 - 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
5. Select NO. 117 (VPS: Vertical Position) with ▲or ▼key.
6. Adjust the data with numeric key for vertical center. To
turn off the Service Menu display, press the MENU key.
GRAYSCALE ADJUSTMENT
1. Connect a color-bar generator to the analog antenna
terminal.
2. Switch the generator to the white pattern.
3. Set the picture controls to the Sports level or Reset (use
MENU key and ▲or ▼ key or RESET key).
4. Turn off the receiver and disconnect the AC power cord
(120V AC line).
5. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
6. Select the following service menu items with the ▲or ▼
keys and set the data with the numeric keys.
7. Select NO. 106 RD2 (Red Drive) and set data to 70, NO. 107
GD2 (Green Drive) and set data to 7F, and NO. 108 BD2
(Blue Drive) and set data to 70.
8. Set NO. 10A RCT2 (Red Cutoff) data to 88, NO. 10B GCT2
(Green Cutoff) data to 5D, and NO. 10C BCT2 (Blue Cutoff)
data to 75.
9. Set NO. 109 SBR2 (Sub Brightness) data to 26 and
NO. 105 SSH2 (Sub Sharpness) data to 89.
ScreenAdjustment
10. Connect oscilloscope probe (at least 50:1) to TP47G and
ground lead to TE47 on the CRT socket PWB.
11. Select “Screen Adjustment” Menu (between NO. 08F
and 0B0) with ▲or ▼key (Black Picture).
12. Adjust Screen Control (T402) to obtain 15 Vp-p from
black to white level. (See Figure 2.)
CAUTION FOR CONTINUED PROTECTION AGAINST
A RISK OF FIRE, REPLACE ONLY WITH THE
SAME TYPE 4A, 125V FUSE.
ATTENTION : POUR MAINTENIR LA PRO-
TECTION CONTRE LES RISQUES
D’ INCENDIE UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE 4A, 125V.
4A 125V
1V
15 Vp-p

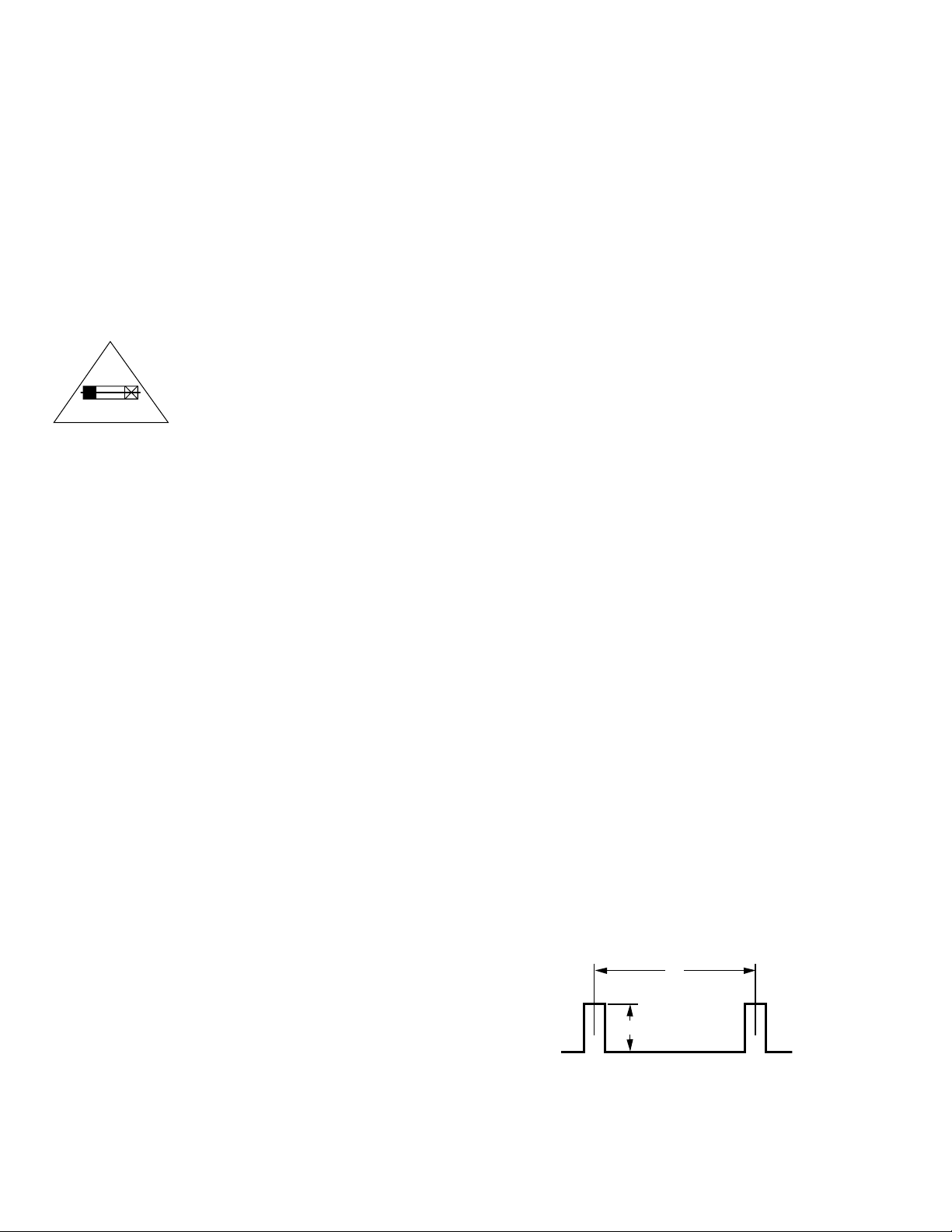

Figure 2.

— 15 —
Drive LevelAdjustment
13. Select “Drive Level Adjustment” Menu (between
NO. 08E and NO. 0B0) with ▲or ▼key. The Menu dis-
play will appear.
14. Adjust Red and Blue Drive Levels alternately with 1, 3,
7, or 9 key to produce normal black and white picture in
highlight areas. The Drive Level adjustment data will be
written in the Service Menu No. 106 and 108 automati-
cally. (See Figure 3.)
15. Check for proper grayscale at all brightness levels.
Note: If Grayscale Adjustment is made after picture tube
replacement, check Brightness Adjustment.
BRIGHTNESS LEVELADJUSTMENT
Note: Grayscale Adjustment and High Voltage Check must be
completed before attempting Brightness Level
Adjustment.
1. Connect a color-bar generator to the analog antenna
terminal.
2. Switch the generator to the 15 IRE flat pattern.
3. Reset the picture controls to the Sports level.
4. Connect voltmeter (high impedance) + lead to terminal
TP51 and – lead to terminal TP50 on P/D board. Set
voltmeter for 1.5V ~ 3V range.
5. Turn off the receiver and disconnect the AC power cord.
6. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
7. Select NO. 109 (SBR2: Sub Brightness, Bit 7 - 2) with ▲
or ▼key.
8. Adjust the data with numeric keys for 20mVDC.
9. Press the MENU key to turn off the Service Menu display.
10. Check brightness level on every active channel, readjust
(repeat steps 5 ~ 9), if necessary.
Note: Do not set to excessive brightness level, otherwise
the contrast level will be suppressed.
SUB CONTRAST ADJUSTMENT
1. Connect a color-bar generator to the analog antenna
terminal.
2. Switch the generator to the crosshatch pattern.
3. Connect oscilloscope probe (at least 50:1) to TP47G and
ground lead to TE47 on the CRT socket PWB.
4. Turn off the receiver and disconnect the AC power cord.
5. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
6. Select NO. 109 (SBR2: Sub Brightness, Bit 7 - 2) with ▲
or ▼key. Remember this data setting.
7. Set the data with numeric key to 2E with numeric keys.
8. Select NO. 10D (SCO4: Sub Contrast, Bit 7 - 4) with
▲or ▼key.
9. Set the data with numeric keys 4 - 7 for 100Vp-p.
10. Reset brightness level to previous data (repeat steps
6 – 7). To turn off the Service Menu display, press the
MENU key.
SUB COLOR AND SUB HUE ADJUSTMENT
Sub Hue (Tint)
1. Connect a color-bar generator to the analog antenna
terminal. Set picture controls to Sports level.
2. Switch the generator to the color-bar (NTSC) pattern.
3. Connect oscilloscope probe (at least 50:1) to TP47G and
ground lead to TE47 on the CRT socket PWB.
4. Turn off the receiver and disconnect the AC power cord.
5. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
6. Select NO. 102 (SHU2: Sub HUE, Bit 7 - 2) with ▲or ▼key.
7. Set the data with numeric keys 2 - 7 for waveform
shown in Figure 5.
Sub Color
8. Select NO. 103 (SCL2: Sub Color, Bit 7 - 2) with ▲or ▼key.
9. Set the data with numeric keys 7 -2 for waveform
shown in Figure 6 (Flat Waveform).
10. After adjustment add 8 steps to NO. 102 (SHU2: Sub
HUE) data and 8 steps to NO. 103 (SCL2: Sub Color) data.
To turn off the Service Menu display, press the MENU
key.
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
Figure 3. Remote Control Number keys’ functions in
Service Menu “Drive Level Adjustment”
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
Figure 6. Sub Color
100Vp-p
(From Blanking Level
to White 100IRE)
Figure 4. Sub Contrast
Same level
Figure 5. Sub Hue

— 16 —
SERVICE ADJUSTMENTS (Continued)
HIGHVOLTAGE HOLD-DOWNTEST
Every time the receiver is serviced, the HIGH VOLTAGE
HOLD-DOWN circuit must be tested for proper operation by
following these steps:
1. Connect receiver to 120V AC line. Tune receiver to active
channel. Reset the picture controls to the Sports level.
2. Check that the voltage measured between TP7 and TE7
(ground side) on the P/D PC board is within 20 VDC to 24
VDC. If the voltage is out of this range, the Hold-Down
Circuit must be checked.
3. Connect a DC Voltage supply to TP7 and TE7 through a
100 ohm 1/4W resistor. Adjust the DC voltage to 26 VDC.
The receiver should shut down, losing raster and sound.
Then the receiver should turn off automatically.
This reaction indicates that the Hold-Down circuit is func-
tioning properly. If the receiver does not shutdown, a
malfunction is indicated and its cause must be found and
corrected.
4. To obtain picture again, remove the DC Supply and wait
a few minutes. Now turn on the receiver.
HIGHVOLTAGE CHECK
Note: +B (+140V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage
Check.
1. Connect high voltage voltmeter – lead to ground, and
connect + lead to anode of picture tube.
2. Tune receiver to an active channel and confirm TV is
operating properly.
3. Eliminate the beam current by adjusting the contrast and
brightness controls to minimum.
4. Confirm high voltage is within 28.2 KV and 32.9 KV. If
reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
FOCUSADJUSTMENT
Adjust focus control (T402) for well defined scanning lines.
PURITYAND CONVERGENCEADJUSTMENTS
Purity and Convergence have been aligned at the factory.
No re-alignment is necessary.
MULTI-SOUND SECTION ADJUSTMENTS
Note: Multi-Sound Section must be adjusted after
A101 (U/V Tuner), IC3601 (MTS Decoder), Digital
Module or IC802 (EEPROM) is replaced.
INPUT LEVELADJUSTMENT
1. Connect a signal to the analog antenna terminal with
audio of 1 KHZ100% modulation.
2. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
3. Connect voltmeter (RMS) to TP317 and ground on the
Main PC board.
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu will now appear.
5. Select NO. 080 (ATT: MTS Input Level) with the ▲or ▼
key.
6. Adjust the + or – key for a voltmeter reading of 400 ±
20 mVrms at TP317.
SEPARATIONADJUSTMENT
7. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
8. Connect oscilloscope CH1 to TP317 and CH2 to TP318
and ground.
9. Connect an MTS TV/Stereo generator to antenna terminal.
10. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu will now appear.
11. Select pilot, 300Hz audio frequency and Left modulating
signal.
12. Select NO. 081 (WDB: Wide Band) with the ▲or ▼key.
13. Adjust the + or – key for minimum low frequencies at
TP317. (See Figure 7.)
14. Select 4 KHz audio frequency and Right modulating signal.
15. Select NO. 082 (SPC: Spectral) with the ▲or ▼key.
16. Adjust the + or – key for minimum high frequencies at
TP318. (See Figure 7.)
Repeat adjustments (steps 11–16) until no further decreases
in amplitude can be obtained. Press the MENU key to turn
off the Service Menu display.
Minimize L leakage
Minimize R leakage
4KHz
300Hz
TP317 (R)
TP318 (L)
Figure 7. Separation Adjustments

PINCUSHION CORRECTIONADJUSTMENT
1. Connect a color-bar generator to the analog antenna
terminal and select a crosshatch pattern.
2. Set the picture controls to the Sports level.
3. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu will now appear.
5. Select the items below with ▲or ▼key according to the
symptoms of Figure 8.
NO.ITEM Bit NAME
11A PAP2 7 - 2 Pin AMP
11D PPH2 7 - 2 Pin Phase
11F ABO2 7 - 2 AFC Bow
120 AAN2 7 - 2 AFC Angle
11B UCP2 7 - 2 Upper Corner Pin
11C LCP2 7 - 2 Lower Corner Pin
6. Adjust the data with numeric keys for straight vertical
lines. To turn off the Service Menu display, press the
MENU key.
OSDADJUSTMENT
1. Connect a color-bar generator to the analog antenna
terminal.
2. Set the picture controls to the Sports level.
3. Turn off the receiver and disconnect the AC power cord.
(120V AC line)
4. While pressing the VOLUME – key, reconnect the AC
power cord. The Service Menu display will now appear.
5. Select NO. 089 (OSD: On-Screen Display) with ▲or ▼
key.
6. Adjust the + or - key for proper position shown in
Figure 9. To turn off the Service Menu display, press the
MENU key.
COMPONENTY LEVEL CONFIRM
1. Connect a color-bar generator to the analog antenna
terminal.
2. Switch the generator to the color-bar (NTSC) pattern.
3. Connect oscilloscope probe to Connector KG pin 12 and
ground on the main board.
4. Confirm a reading of 0.7 Vp-p ± .05. See Figure 10.
— 17 —
Figure 8. Pincushion Adjustments
091
OSD 03 00000011
50mm
Visible
Area
Figure 9.
Figure 10.
0.7 Vp-p
Pin AMP
Upper Corner Pin
Lower Corner Pin
AFC Bow
Pin Phase
AFC Angle

— 18 —
SERVICE HINTS
POWER FAILURE DETECTOR
This unit is equipped with a Power Failure Detector function included in the CPU which checks for an abnormal condition in
the chassis power supplies, including the power supply derived from the Horizontal Output Transformer.
If, while the power is on, a failure is caused by any of the following that results in a low voltage supply, the CPU will turn the
unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
•Stoppage of the Horizontal Output Oscillator caused by the X-Radiation protection Hold-Down Circuit.
If, while the power is off, the power is switched on and any of these failures remains uncorrected, the CPU will shut off the
power within three seconds.
Check the following if the unit is turned off by the power failure detector.
1. Disconnect the AC power cord (120V AC line) for at least 10 seconds.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage supplies.
4. If any of these voltages is low, the power failure detector should turn the unit off within three seconds.
5. Check all circuits shown above.
Note: This unit is equipped with a Power Surge Protection feature included in the CPU. If power failure occurs three times
within 15 minutes, the CPU will automatically stop functioning to help prevent secondary damage. (TV will not turn on
by pressing the power key.) To reset the operating programs within the CPU, disconnect the AC power cord for at least
10 seconds.
Block Diagram (Power Fail Lines)
14
IC801 (CPU)
D663 Main
Main
DAF
R655
R656
5VTV 6.5V
14VTV
IC662
D662
5VIP IC663
D661
21V
D664 R655
R656
9VTV
D665
31VTV
IC661
14V
D2302 9V IC2303
6.5V
D2303 5V IC2304
D654 D659
3.3VDM
14VDM
IC652
D676 D653
2.5VDM IC653
12V
14V
IC4304
5V
IC4305
Video
Front
K23VBD (19)
K8VBD (19)
K1901 (5)
K9FRB (5)
14V
D1281
9V IC1281
D622 D621
D508
21V
T601
D510
3.3V
2.5V IC7103
IC501
D7103 R7112 5V IC7102
AV
K10G (6)
KG (6)
K4D (2)
K6PDD (2) P/D
Q7101
D7102
D7101
TJ7 15
D652 D631
35V 21
D649 D623 D656
-15V 16
Q642
(Switching)
(V Out)
D486 D481
D4365
D4366
200V
T402
4
3
D429 D482D428 9
Hold Down
(Circuit)
Vertical
Output
(FBT)
R487
R488
IC2501 12
(CRT Driver) Hold Down
(Circuit) K5B (8)
k23VDA (15) K6PDB (8)
Q851/Q825
IC651
D509
K8VDA (15)
K43B (9) K4DF (9)
39
Power ON/OFF
Q1611
RL601
(Main Relay)

— 19 —
MECHANICAL DISASSEMBLIES
CABINET BACK REMOVAL
1. Refer to Figure 1, remove 13 screws.
2. Pull off cabinet back and remove.
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the
dag coating (picture tube grounding lead).
3. Disconnect degaussing coil socket (KD), picture tube
socket, deflection yoke connector (KX), speakers
connector (KSP), picture tube ground leads (2), velocity
modulation coil connector (K17A) and 2nd anode lead.
4. Remove chassis completely by sliding it straight back.
PICTURETUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken to
keep these assemblies intact, unless picture tube is being
replaced. Discharge the picture tube to the coating before
handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on a soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube
grounding lead on the picture tube. See Figure 2.
Note: If Picture Tube is being replaced, mount the Degaussing
Coil properly on the tube. See Figure 2.
Figure 2. Picture Tube Removal
Figure 1. Cabinet Back Removal
DEGAUSSING
COIL
PICTURE TUBE
GROUNDING LEAD
TO PICTURE TUBE
SOCKET BOARD
GROUND
DEGAUSSING COIL
SOCKET

— 20 —
CHASSIS ELECTRICAL PARTS LIST
CAPACITORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V Rated Voltage
Tolerance Symbols:
less than 10PF
A . .Not specified
B . .±0.1PF C . .±0.25PF
D . .±0.5PF F . .±1PF
G . .±2PF R . .+0.25 - 0PF
S . .+0 - 0.25PF E . .+0 - 1PF
more than 10PF
A . .Not specified
B . .±0.1% C . .±0.25%
D . .±0.5% F . .±1%
G . .±2% H . .±3%
J . .±5% K . .±10%
L . .±15% M . .±20%
N . .±30% P . .+100 - 0%
Q . .+30 - 10% T . .+50 - 10%
U . .+75 - 10% V . .+20 - 10%
W .+100 - 10% X . .+40 - 20%
Y . .+150 - 10% Z . .+80 - 20%
Rated Value: P...Pico Farad U...Micro Farad
Material:
CERAMIC . . . . . .Ceramic
MT-PAPER . . . . .Metalized Paper
POLYESTER . . .Polyester
MT-POLYEST . .Metalized Polyester
POLYPRO . . . . .Polypropylene
MT-POLYPRO . .Metalized Polypropylene
COMPO-FILM . .Composite Film
MT-COMPO . . . .Metalized Composite
STYRENE . . . . . .Styrene
TA-SOLID . . . . .Tantalum Solid
AL-SOLID . . . . . .Aluminum Solid
ELECT . . . . . . . .Electrolytic
NP-ELECT . . . . .Non-Polarized Electrolytic
OS-SOLID . . . . .Aluminum Solid with Organic
Semiconductive Electrolytic
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
X-RADIATION PRECAUTIONS, HIGH VOLTAGE HOLD-DOWN TEST, and PRODUCT SAFETY NOTICE on Page 2.
Notes: Parts having Location Number are located on the following boards.
Numbers 400, 600, Series . . . . . . . . . . . . . . . . . . . . . .On the Main Board and Power / Deflection Board
Numbers 700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Picture Tube Socket Board
Numbers 900 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .Out of Board.
Numbers 1700 Series . . . . . . . . . . . . . . . . . . . . . . . . . .On the Velocity Modulation Board
Numbers 2000 Series . . . . . . . . . . . . . . . . . . . . . . . . . .On the Video Board
All Other Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board and AV Board
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR (★) INTHIS PARTS LIST ANDTHE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ONTHE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BYA STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE,ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A STAR.
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
Tolerance Symbols:
A...0.05% B...0.1% C...25%
D...0.5% F...1% G...2%
J...5% K...10% M...20%
P...+5 -15%

Rated Value, ohms:
K...1,000 M...1,000,000
Material:
CARBON .............
MT-FILM ..............
OXIDE-MT ...........
SOLID ..................
MT-GLAZE ...........
WIRE WOUND .....
CERAMIC RES ....
FUSIBLE RES .....
Performance Symbols:
A...General B...Non-flammable

Z...Low noise
Other... Temperature coefficient
Rated Wattage
CARBON 4.7K J A 1/4W
Read description of the Resistor as follows:
NOTES:
(Example)


Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire Wound
Ceramic
Fusible
RESISTORS
