Sanyo CE28DF1-C User manual

Colour Television Service Manual Model CE28DF1-C
(W.EUROPE)
Service Ref. No. CE28DF1-C-00
Give complete "SERVICE REF. NO." for parts order or
servicing, it is shown on the rating sheet on the
cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission system
and power source differ from the design specifications.
Refer to the specifications for the design specifications
PRODUCT CODE
111327213
ORIGINAL VERSION
Chassis No. EB3-A
Specifications
Power source AC 220~240V 50Hz
Television system System B/G, I,L/L’
Colour system PAL/SECAM
Receiving channel VHF: E2~E12
CATV: X,Y,Z, S1~S41
UHF: #21~#69
Aerial input impedance 75ohm
AV terminal
AV1 : 21-Pin SCART Terminal
AV2 : 21-Pin SCART Terminal
AV3 : Cinch Terminal
Sound output (CONT) 10 watts X2
Picture tube 70cm diagonal, 110 degree
(Visible picture diagonal) 66cm
Dimensions 740(W) X 595(H) X 494(D)mm
Weight 31.6 Kg
Part No. SKSM0273 SEPT 1998 issue 1

-2-
SAFETY PRECAUTION
An isolation transformer should be connected in the
power line between the receiver and the AC line when
a service is performed on the primary of the converter
transformer of the set.
Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor
networks etc.
Before returning any television to the customer, the
service technician must be sure that it is completely safe
to operate without danger of electrical shock.
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take
necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high voltage
adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a
receiver. Components indicated by mark ! in the parts list and the schematic diagram designate
components in which safety can be of special significance. It is particularly recommended that
only parts designated on the parts list in this manual be used for component replacement
designated by mark ! . No deviations from resistance wattage or voltage ratings may be made
for replacement items designated by mark ! .
1:
2:
3:

-3-
BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
IF in B in G in R in V in (EXT) V in TV out
B-Y out
R-Y out
B-Y in
R-Y in
B out
G out
R out H out
V out
B-Y in
R-Y in
B-Y out
R-Y out
5V
IC101
(TDA8361)
IF/COLOUR/
DEFLECTION
IC270
(TDA4661)
1H DELAY
46 45
24 23 22
15 13
7
31 30 28 29
14 16 12
11
1
9
CRT
18 19 20
37
43
Q431 H-Drive
Q432 H-OUT T471 FBT HV
Deflection Yoke
H
V
IC451
(LA7833)
Vert. AMP.
B4:24V
6
42
Speakers
SP X2
Q431 H-Drive
Sound Trap
10
A InA in (L/R)
A out (L/R)
V in
V out
R
G
B
AV1 B7:8V
B9:5V
ANT
A101
TUNER
IC701
CPU
IC731
MEMORY
SCL
SDA SCL
SDA
12 13
6 5
27
21. 22
8
X101
SAW
Digital Control
AC Power Circuit
T311 CONVERTER TRANS.
B7:8V
IC352 REG.
IC353 REG.
B8:5V (Main Low3)
13
31
B9:5V
B7:8V (Main Low2)
G out
51
B1: 150V(Main High) B2: 25V(Audio) B3: 15V(Main Low1) B4: 24V(Vert.) B5: 8V(Main Low2)
3: Colour, 4: Bright, 5: Contrast, 6: Sharpness
52
R out
SDA SCL
Audio Unit Audio L,R
SIF in
Teletext Decoder
R,G,B
L,R
C in TV/AV
16
TV/AV
TV Out
R,G,B
34,35
Key switches
SCL
SDA (Band/Tuning data)
A in (L/R)
A out (L/R)
V in
Monitor out
SIF Unit
AV2
AV3
IC861 Audio Switch
IC851 Video Switch
V in
A in (L/R) IC351
REG.
13B6:12V (Main Low1)

-4-
1.POWER SUPPLY
The power supply circuit of the EB3-A chassis is
composed of a rectifier smoothing circuit, an oscillation
circuit, a control circuit and an output rectifier circuit. The
AC input voltage is full-wave rectified by the rectifier
smoothing circuit, and an unstable DC voltage is
generated at both terminals of the smoothing capacitor
C307. This voltage is input to the oscillation circuit. The
oscillation circuit is provided with a blocking oscillator
circuit that switches the switching FET Q301 ON and
OFF, and an oscillation frequency and a duty square
wave pulse are generated in the input windings
according to operation of the control circuit. A square-
wave pulse whose size is dependent on the turn ratio of
the input and output windings is obtained in the output
winding. This is rectified in the output rectifier circuit, and
the desired DC voltage is obtained.
2.IF & DEFLECTION (TDA8362)
The IF output signal from the tuner passes through the
SAW filter, and it is input to pin45 and pin46 of IC101.
The signal input to the IC passes through the IF
amplifier, video detection and video amplifier circuits and
is output from pin7 as a composite video signal. And
after this signal is converted to impedance at Q122,
supplies to the video and chroma amplifier stages.
The sync.-separation circuit separates the video signals
applied to pin13(internal video signal) or pin15(external
video signal) to vertical- and horizontal-sync. signals
respectively. The horizontal oscillator requires no
external components and is fully integrated. The
oscillator is always running when the start-pin36 is
supplied with 8V. Horizontal drive signal is output from
pin37. VR401 is for adjustment of the horizontal centring.
The separated vertical-sync. signal from sync. separation
circuit passes through the vertical-separation circuit, and
applied to trigger divider circuit. The horizontal oscillation
pulse and input vertical sync. pulse are monitored by the
trigger divider circuit, and switching 50Hz and 60Hz
system, the vertical amplitude automatically adjusted for
50Hz and 60Hz. The output signal from the trigger
divider is triggered vertical oscillation circuit consisting of
C401, R402 and pin42, and vertical drive pulse is output
from pin43. VR451 is for changing the amount of AC
feedback applied to pin41 and for adjustment of the
vertical amplitude.
3.VIDEO CHROMA & R.G.B. (TDA8362)
The composite video signal output from the pin7 of
IC101 passes through Q122/Q124, and it is supplied to
pin13. The external video signal output from SCART is
supplied to pin15. The video signal input to pin13 or
pin15 is separated to luminance (Y) signal and chroma
signal in IC101. These pins are used in common with
H/V-sync. separation input. The peaking of Y signal is
adjusted by DC voltage of pin14. (“SHARPNESS”
control) The chroma signal is divided into R-Y and B-Y
chroma signals, demodulated in IC101, and output from
pin30 (R-Y) and pin31 (B-Y). These chroma signals pass
through the 1H delay line circuit (IC270), and they are
input to pin29 (R-Y) and pin28 (B-Y). These R-Y/B-Y
signals pass through RGB matrix circuit and RGB
selector circuit of IC101. The internal RGB signals are
generated in RGB matrix circuit and the RGB selector,
consisting linear amplifiers, clamps and selects either the
internal RGB signals or the external RGB signals input
from pin22(R), pin23(G), pin24(B). Selection is controlled
by the voltage at the RGB switch control (pin21) and
mixed RGB modes are possible since RGB switching is
fast. The RGB switch also functions as a fast blanking
pin by blanking the RGB output stages; here internal and
external RGB signals are overruled. The colour gain is
controlled by DC voltage of pin26. (“COLOUR” control)
The contrast control voltage present at pin25, and the
brightness control voltage present at pin17 controls DC
level of RGB signals. The RGB signals are finally
buffered before being available at the RGB output pins
[pin20 (R), pin19 (G), pin18 (R)].
4.AUDIO OUTPUT(TDA7263M)
The audio signals output from the audio unit are input to
pin1(L) and 5(R) of IC581 and passes through the pre-
amplifier circuit and drive circuit, after which it is input to
the audio amplifier. The audio amplifier is an SEPP
(single-ended, push-pull) OTL type and output to pin8(R)
and 10(L) to directly drive the speakers.
5.VERTICAL OUTPUT (LA7833)
An IC (LA7833) is used for the vertical output circuit in
this chassis. The vertical drive pulse from pin43 of IC101
is input to pin4 of IC451. This pulse drives IC451, and
vertical scanning is performed. In the first half of
scanning a deflecting current is output from pin2 and
passes through the following path:
Vcc(B4) ➞D451 ➞pin3 ➞pin2 ➞DY ➞C461 ➞
VR451/R459. An electric charge is then stored in C461.
In the last half of scanning the current path is C461 ➞
DY ➞ pin2 ➞pin1 ➞ VR451/R459 ➞C461. In this way,
an amplifying sawtooth waveform current flows directly to
DY to perform electron beam defection. Next, in the first
half of the banking period the vertical drive pulse
suddenly becomes OFF, and in order to reduce the
current flowing to DY, the current path becomes as
follows by the inductance of DY:
DY ➞pin2 ➞pin1 ➞VR451/R459 ➞C461 ➞DY. Also,
when the charge of DY has dissipated, the current path
becomes Vcc24V ➞pin6 ➞pin7 ➞ C452 ➞pin3 ➞
pin2➞DY ➞C461 ➞ VR451/R459, and when the
prescribed current value is reached, the vertical drive
pulse becomes ON. This completes one cycle.
CIRCUIT DESCRIPTION

-5-
6.HORIZONTAL OUTPUT
A horizontal oscillation signal is output from pin37 of
IC101 and switches the drive transistor Q431. This
switching signal is current amplified by the drive
transformer T431 and drives the output transistor Q432.
When Q432 becomes ON, an amplifying current flows
directly to DY through C441/442 ➞DY ➞Q432 ➞GND,
and defection is performed in the last half of the scanning
period. Next, when Q432 becomes OFF, the charge that
had been stored in DY up to that point releases a
resonance current to the resonant capacitors C420 and
C423 and charges them.The current stored in C420 and
C423 is then flowed back to DY, and an opposite charge
is then stored in DY. This opposite charge then switches
the dumper diode in Q432 ON, the resonance state is
completed, and an amplifying current is then flowed
again directly to DY through the dumper diode. By this
means, deflection in the first half of the scanning period
is performed, and when Q432 becomes ON at the end of
the first half of the scanning period, deflection during the
last half is begun, thus completing one cycle.
7. CPU
Pin description
Pin1: H-sync. input (Horizontal pulse for OSD)
Pin2: V-sync. input (Vertical pulse for OSD)
Pin3: Colour control output
Pin4: Brightness control output
Pin5: Contrast control output
Pin6: Sharpness control output
Pin7: Tint (GND)
Pin8: TV/AV output (L:AV mode)
Pin9: AV mode selection output-A
Pin10: AV mode selection output-B
Pin11: Natioal select option
Pin12: I2C bus SCL (Serial clock for memory)
Pin13: I2C bus SDA (Serial date for memory)
Pin14: Not used (+5V through pull up resistor 22K)
Pin15: Ident signal input (L:No signal)
Pin16: R/C signal input
Pin17: AV1 Scart control signal input (VTR play:L)
Pin18: AV2 Scart control signal input (VTR play:L)
Pin19: Ignor output
Pin20: 50/60Hz output
Pin21/22: GND
Pin23: Supply Ground
Pin24: Oscillator input for CPU
Pin25: Oscillator output for CPU
Pin26: Supply Ground
Pin27: Power supply(+5V)
Pin28: Oscillator output for OSD
Pin29: Oscillator input for OSD
Pin30: Reset input
Pin31: Protect signal input (L:Power circuit defects)
Pin32: Not used(GND)
Pin33: AFT signal input
Pin34: TEXT/16:9 SELECT OPTION
Pin35: Key scan 1
Pin36: P-ON(TEXT)
Pin37: S-VHS output
Pin38: GND
Pin39: BG/I Select output
Pin40: L/L’ Select output
Pin41: NEG/POS Select output
Pin42: Not used (GND)
Pin43: 16:9/4:3 switch output
Pin44: Not used (GND)
Pin45: Not used (GND)
Pin46: Not used (GND)
Pin47: Mute output in no picture(FTZ mute)
Pin48: Power ON/OFF output (H:ON)
Pin49: Blanking output for OSD
Pin50: Not used (Open)
Pin51: Green output for OSD
Pin52: Red output for OSD

Q381
D331
Q313
Power
Q461
Q462
VR462
H-WIDTH
T471
Flyback
Transformer
T381 Q783
Q731
IC701 K171
Q761
TP-B
Q353
Q122
IC790
SW220
IC351
IC352
KU
T121
IC101
Q101
Q401
VR401
H-CENTRE
Q202
IC851
A101
TUNER
IC280
K801
21P-SCART TERMINAL
Q854
Q856
IC801
SW451 V-CENTRE
IC451
V-Output
Q434
Q431
Q432
H-Output
KDY
CPU
IF/CHROMA/VIDEO/DEF.
AUDIO UNIT
SW701 SW702 SW703 SW704 SW701A SW705
-> SERVICE
TP-A
F301
Fuse
VR351
+B ADJ.
R232
VR451
V-SIZE
MEMORY
Main switch
T311
Converter
transformer
Q784
Q781
Q771
Q762
Q741Q128
Q127
Q124 TP-D
IC270
1H Delay
TV/AV SW.
IC353
TP-E
Q203
Q702
Q701
Q205
Q820 Q800
Q852 Q862 Q861
Q853
Q855
Q857
Q851
D332
IC301
POWER
VR120
AGC
K803
FOCUS SCREEN
SW301
K802
SCART Terminal-2 K801 SCART Terminal-1
EB3-A
B1 POWER SUPPLY ADJ. TU-AGC ADJ.AFT ADJ.
GREY SCALE ADJ.
FOCUS ADJ.

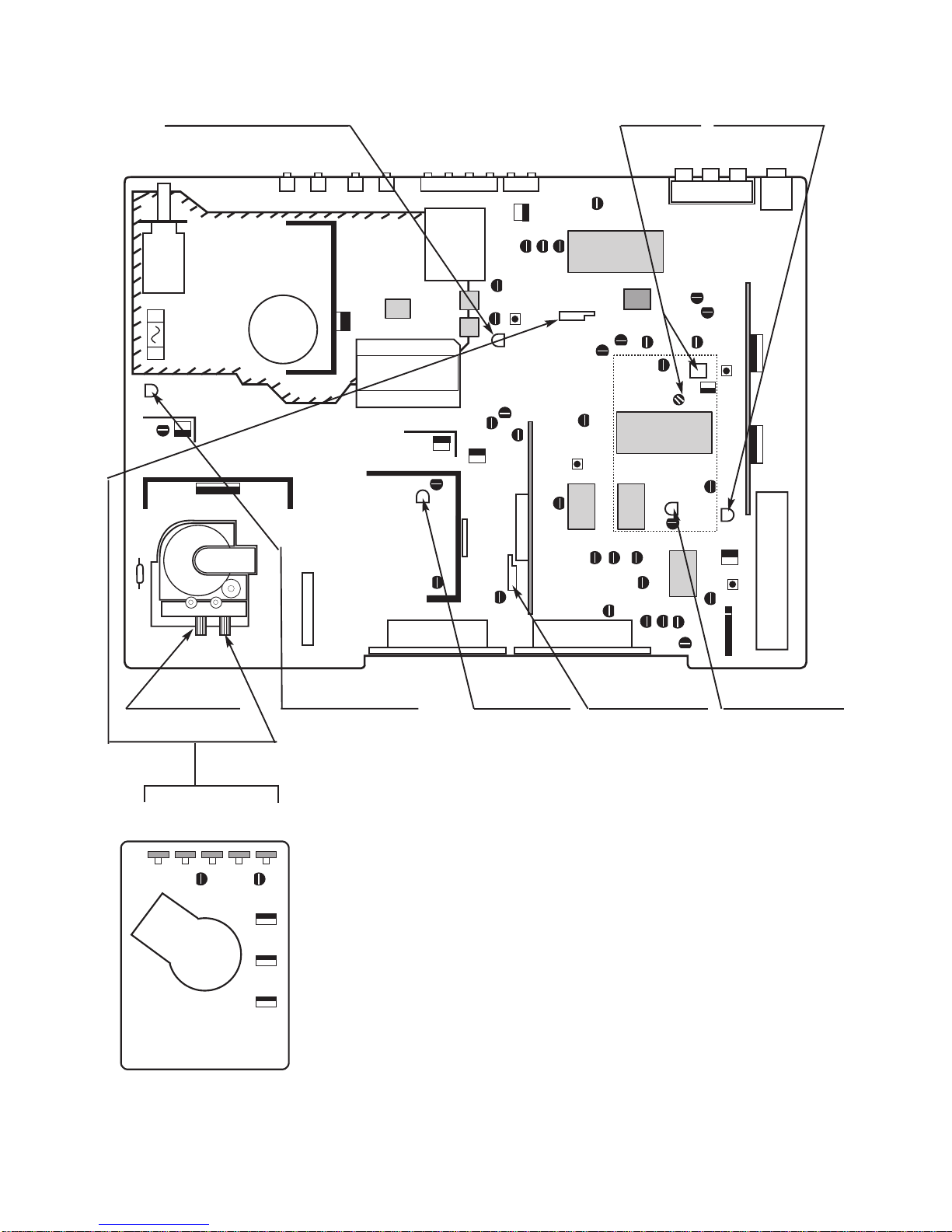

MAIN BOARD
HIGH VOLTAGE &
H-WIDTH ADJ. V-CENTRE ADJ. H-CENTRE ADJ.V-SIZE ADJ.
-6-
Q601 Q611 Q621Q640
VR621 G-BIAS
VR601 B-BIAS
VR612 R-DRIVE
VR602 B-DRIVE
VR611 R-BIAS
Q651
SERVICE CONTROL ADJUSTMENT
CRT BOARD
SECAM DECODER
VC141

-7-
B1 POWER SUPPLY ADJUSTMENT
1. Set VR351 to be mechanical centre before pressing the main
switch.
2. Tune the receiver to PAL circular pattern.
3. Set brightness and contrast controls to normal.
4. Connect digital V-meter to test point "TP-B".
5. By using VR351, adjust voltage to 150 ± 0.5 V.
AFT ADJUSTMENT
1. B/G/I area : Tune the receiver to the clearest station on
system BG. By using T121, adjust AFT to obtain the best
picture.
2. L/L’ area : Tune the receiver to VL station on system L/L’. By
using VC141, adjust AFT to obtain the best picture.
3. If BG/I and L/L’ can be received adjust 1 and 2.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment with weak signal.
1. Tune the receiver to the clearest station.
2. Set AGC VR(VR120) in direction which causes snow noise
to appear, then in the opposite direction until snow noise just
disappears.
GREY SCALE ADJUSTMENT
[SCREEN VR ADJUSTMENT]
1. Tune the receiver to the white pattern.
2. Set brightness control to display centre and contrast control
to normal.
3. Set SW220 to "SERVICE" position.
4. Set VR602 and VR612 to be mechanical centre.
5. Turn VR601, VR611 and VR621 fully counter-clockwise.
6. Set screen VR for one colour to be just visible.
[BIAS VR ADJUSTMENT]
7. By using VR601, VR611 or VR621, adjust line to be white.
8. Set SW220 to "NORMAL" position.
[DRIVE VR ADJUSTMENT]
9. By using VR602 and VR612, adjust white balance.
HIGH VOLTAGE & WIDTH ADJUSTMENT
[HIGH VOLTAGE ADJUSTMENT]
1. Tune the receiver to PAL circular pattern.
2. Set brightness and contrast controls to maximum.
3. Connect digital V-meter to both terminals of R232(left
side)(+) , and high voltage meter to CRT anode.
4. Confirm high voltage to be 26.0 ± 1 KV at beam current 1.3,
and less than 29.0 KV at 0 beam current .
[H-WIDTH ADJUSTMENT]
5. Adjust VR462 to obtain proper H- width.
6. Reconfirm high voltage.
H-CENTRE ADJUSTMENT
1. Tune the receiver to circular pattern.
2. Adjust H-centre by using VR401.
V-CENTRE ADJUSTMENT
1. Tune the receiver to circular pattern.
2. Adjust V-centre by using SW451.
V-SIZE ADJUSTMENT
1. Tune the receiver to circular pattern.
2. Adjust V-size by using VR451.
FOCUS ADJUSTMENT
By using FOCUS VR, adjust focus control for well scanning
lines.

-8-
0.01uF
P
DC 15V
DC 5V
AGC voltage (4.3-4.5V)
Output probe
Input probe
Tool-A
System SW
Sweep ATT
DETECTOR
ADJUSTMENT - 1
SETTING
IC351-pin 1
Q381-Emitter
IC101-pin 48
IC101-pin 45
(Side b)
IC101-pin7
IC101-pin46
BG
20
Adjustment
By using T121, adjust
"P" to be maximum
amplitude.
VIF waveform
CIRCUIT ALIGNMENT
VIF ALIGNMENT
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe Output probe Tool-A
Q122
IC351
IC352
KU
T121
IC101
Q101
Q401
VR401
H-CENTRE
Q202
IC851
A101
TUNER
IC280
K801
21P-SCART TERMINAL
Q854
Q856
IC801
SW451 V-CENTRE
IC451
V-Output
Q434
Q431
IF/CHROMA/VIDEO/DEF.
AUDIO UNIT
TP-A
VR351
+B ADJ.
R
451
SIZE
re
r
Q741Q128
Q124 TP-D
IC270
1H Delay
TV/AV SW.
IC353
TP-E
Q203
Q702
Q701
Q205
Q820 Q800
Q852 Q862 Q861
Q853
Q855
Q857
Q851
VR120
AGC
8
02
C
ART Terminal-2 K801 SCART Terminal-1
Detector adjustment - 1
MAIN BOARD
Detector adjustment - 2
VC141
DETECTOR
ADJUSTMENT - 2
IC351-pin 1
Q381-Emitter
IC101-pin 48
IC101-pin 45
(Side b)
IC101-pin7
IC101-pin46
L’
20
By using VC141,
adjust "P" to be
maximum amplitude.
Note:
How to select SYSTEM
L or L’
1. Before switching on
connect IC701 pin 11
to ground.
2. Select L or L’
according to the table.
P
L L’
IC701- GND SHORT SHORT
Q761- GND SHORT OPEN
B
41

-9-
DC=0 DC=0
DC 12V
AGC voltage (DC 5V)
Output probe
Input probe
Sweep ATT
Marker Frequency
System
FM DETECTOR-1
SETTING
KOH - PIN 5
IC002-pin 13
IC002 - PIN 5
(Side a)
IC002-pin 17
10
38.9MHz
Adjustment
1. By using T003, adjust "P"
to be ± 100KHz
frequency
VIF waveform
By using T002, adjust DC
level to be 1.7V.
FM DETECTOR-2
KOH - PIN 5
IC001 - PIN 21
IC001-PIN 15
(Side b)
IC001-pin 16
(Condition)
Carrier frequency: 5.5MHz
Modulation frequency:
1kHz(sine waveform)
B/G (See note)
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe Output probe
SIF ALIGNMENT
T003
IC102
IC101 T002
T001
FM Detector-2
FM Detector-1
AUDIO BOARD
1.7V
By using T001, adjust DC
level to be 1.7V.
KOH - PIN 5
IC1001 - PIN 21
IC001-pin 19
(Side b)
IC001-pin 18
(Condition)
Carrier frequency: 5.74MHz
Modulation frequency:
1kHz(sine waveform)
B/G (See note)
1.7V
0.01uF
103P
NOTE:
How to set system B/G
* KOH - 1, Connect to 5V
* KOH - 2, Connect to
chassis earth.
P

-10-

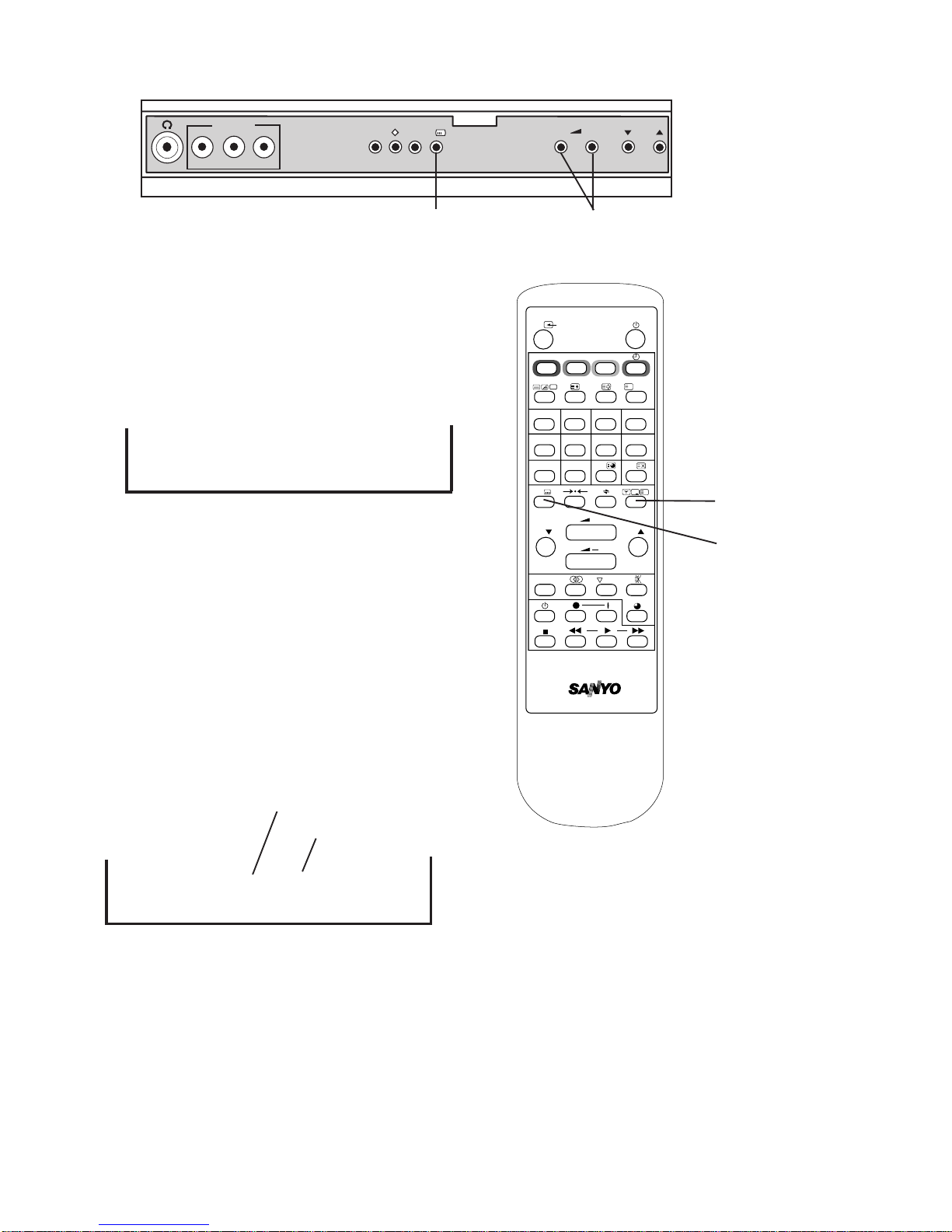

When you replace a memory IC (IC731), it is necessary to
initialise the IC as follows.
A. Initialisation of Memory IC
1. When you press and hold the Function button on the TV
set and then press the Recall button on the RC
transmitter, the following picture will appear on the screen.
2. Confirm SET number of all items is "0" by pressing the
Function button.
3. If it is not "0", change to "0" by the Level (+/-) button.
(Changing the SET number, automatically memorised.)
4. Press the Recall button, to return the normal TV mode.
For more information, please refer to "special functions" on
the instruction manual.
MEMORY IC REPLACEMENT (Important Notice)
AV3 IN
VIDEO L/S-AUDIO-R/D
MENU
F
+
-P
SYS.
1 2 3 4
5 6 7 8
9 0
/MENU
i
PP
-/--
BASS A.B
F
+
P
P
CS
?
TV
16:9
Function Button
Recall Button
ITEM -1 SET➔ 0
Level Button
Function Button
B. Stereo separation setting
1. To enter the SERVICE mode, press and hold Function
button on the TV set and then press the Function button on
the RC transmitter. The following picture will appear on the
screen.
2. Set the service codes and numbers as below;
K1 ➔16
K2 ➔32
To change the service code, press the Function button.
To change the service number, press the Level (+/-)
button.
3. Press the Recall button to return to the TV mode.
4. Confirm the sound quality with stereo signal receiving.
K2➔ 32
Service code
Service number

-11-
CABINET PARTS LIST
1
10
610
8
25
4
1 610 276 5571 ASSY,CABINET FR-F3SRV
2 610 261 6057 BUTTON POWER-F3SCM
3 610 271 9567 CABINET BACK-F3SLV-A
4 610 276 5489 DOOR-F3SR
5 610 261 6132 DEC BOARD-F3SCM
6 610 276 5502 DEC CONTROL SHEET-F3SY
7 610 253 2449 HOLDER AC CORD-GBR-D4VA
8 610 261 3032 SPRING-E7GC
9 645 003 9256 BADGE,SANYO*46.2X13.5L45
10 610 104 2505 LATCH PUSH,7.9X6.9BK
ACCESSORIES
11 JXTA RC TRANSMITTER
SKP10147 INST MANUAL-F3SRV (1) GB,D,
SKP10149 INST MANUAL -F3SRV (2) F,I
645 000 6708 BATTERY,MANGAN,COMPOSITE
MODEL CE28DN1F-C
Key
No. Part No. Description Notes
Note: Parts order must contain Service ref No., Part No. and a Description.

OUT OF CIRCUIT BOARD
PICTURE TUBE
/!\Q901 414 007 1203 CRT A66ECY13X38
COIL
/!\L901 645 003 0048 COIL,DEGAUSSING
645 003 0055 COIL,DEGAUSSING
MISCELLANEOUS
KA-1 645 008 3129 TERMINAL,SOCKET
KA-2 645 008 3129 TERMINAL,SOCKET
KA-3 645 008 3129 TERMINAL,SOCKET
KA-4 645 008 3129 TERMINAL,SOCKET
KA-5 645 008 3129 TERMINAL,SOCKET
KA-6 645 008 3129 TERMINAL,SOCKET
KA-7 645 008 3129 TERMINAL,SOCKET
KA-8 645 008 3129 TERMINAL,SOCKET
KB-1 645 008 3129 TERMINAL,SOCKET
KB-2 645 008 3129 TERMINAL,SOCKET
KB-3 645 008 3129 TERMINAL,SOCKET
KB-4 645 008 3129 TERMINAL,SOCKET
KB-5 645 008 3129 TERMINAL,SOCKET
KB-6 645 008 3129 TERMINAL,SOCKET
KC-1 645 008 3129 TERMINAL,SOCKET
KC-10 645 008 3129 TERMINAL,SOCKET
KC-2 645 008 3129 TERMINAL,SOCKET
KC-3 645 008 3129 TERMINAL,SOCKET
KC-4 645 008 3129 TERMINAL,SOCKET
KC-5 645 008 3129 TERMINAL,SOCKET
KC-6 645 008 3129 TERMINAL,SOCKET
KC-7 645 008 3129 TERMINAL,SOCKET
KC-8 645 008 3129 TERMINAL,SOCKET
KC-9 645 008 3129 TERMINAL,SOCKET
KDY-1 645 006 4623 TERMINAL,SOCKET
KDY-3 645 006 4623 TERMINAL,SOCKET
KDY-5 645 006 4623 TERMINAL,SOCKET
KDY-6 645 006 4623 TERMINAL,SOCKET
KFOS1 610 212 6341 TERMINAL,SOCKET
KL-1 645 008 3129 TERMINAL,SOCKET
KL-2 645 008 3129 TERMINAL,SOCKET
KP-1 645 008 3129 TERMINAL,SOCKET
KP-2 645 008 3129 TERMINAL,SOCKET
KP-3 645 008 3129 TERMINAL,SOCKET
KP-4 645 008 3129 TERMINAL,SOCKET
KP-5 645 008 3129 TERMINAL,SOCKET
KQ-1 645 008 3129 TERMINAL,SOCKET
KQ-2 645 008 3129 TERMINAL,SOCKET
KQ-3 645 008 3129 TERMINAL,SOCKET
KR-1 645 006 4623 TERMINAL,SOCKET
KR-2 645 006 4623 TERMINAL,SOCKET
K5A-1 645 008 3129 TERMINAL,SOCKET
K5A-2 645 008 3129 TERMINAL,SOCKET
K5A-3 645 008 3129 TERMINAL,SOCKET
K5A-4 645 008 3129 TERMINAL,SOCKET
K5A-5 645 008 3129 TERMINAL,SOCKET
K5A-6 645 008 3129 TERMINAL,SOCKET
Ref. No. Part No. Description Ref. No. Part No. Description
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a ! mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
Note Parts order must contain Service Ref. No., Part No., and descriptions.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G: ±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G: ±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W: +100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Rated value: P=pico farad, U=Micro farad
Material:
CERAMIC.......... Ceramic
MT-PAPER........ Metallized Paper
POLYESTER..... Polyester
MT-POLYEST.... Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarized Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Doble Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND... Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES.... Fusible
-12-

K5A-7 645 008 3129 TERMINAL,SOCKET
K5A-8 645 008 3129 TERMINAL,SOCKET
K5B-1 645 008 3129 TERMINAL,SOCKET
K5B-2 645 008 3129 TERMINAL,SOCKET
K5B-3 645 008 3129 TERMINAL,SOCKET
K5B-4 645 008 3129 TERMINAL,SOCKET
K5B-5 645 008 3129 TERMINAL,SOCKET
K5B-6 645 008 3129 TERMINAL,SOCKET
K5C-1 645 008 3129 TERMINAL,SOCKET
K5C-10 645 008 3129 TERMINAL,SOCKET
K5C-2 645 008 3129 TERMINAL,SOCKET
K5C-3 645 008 3129 TERMINAL,SOCKET
K5C-4 645 008 3129 TERMINAL,SOCKET
K5C-5 645 008 3129 TERMINAL,SOCKET
K5C-6 645 008 3129 TERMINAL,SOCKET
K5C-7 645 008 3129 TERMINAL,SOCKET
K5C-8 645 008 3129 TERMINAL,SOCKET
K5C-9 645 008 3129 TERMINAL,SOCKET
K6P-1 645 008 3129 TERMINAL,SOCKET
K6P-2 645 008 3129 TERMINAL,SOCKET
K6P-3 645 008 3129 TERMINAL,SOCKET
K6P-4 645 008 3129 TERMINAL,SOCKET
K6P-5 645 008 3129 TERMINAL,SOCKET
K6Q-1 645 008 3129 TERMINAL,SOCKET
K6Q-2 645 008 3129 TERMINAL,SOCKET
K6Q-3 645 008 3129 TERMINAL,SOCKET
SP901 645 002 4313 SPEAKER,8
SP902 645 002 4313 SPEAKER,8
/!\W901 610 233 9567 AC CORD
/!\W902 610 252 5601 ASSY,WIRE GND CONNECTOR E
ASSY,PWB,MAIN F3SRV 1AA0B10H004F0
TRANSISTOR
Q101 405 013 3305 TR 2SC2216(SAN)
Q121 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q122 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q124 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q127 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q128 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q203 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q205 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q301 406 011 2802 TR 2SK2045-PM-YA14
405 123 5503 TR 2SK1404-04
Q302 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q353 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q381 405 014 8408 TR 2SC2568(1)-K
405 014 8507 TR 2SC2568(1)-L
405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
Q401 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q431 405 018 0507 TR 2SC3332-R
405 018 0606 TR 2SC3332-S
Q432 405 095 0209 TR 2SD1556-3E
Q434 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q461 405 064 7307 TR 2SB1274-Q-RA
405 064 7406 TR 2SB1274-R-RA
405 064 7505 TR 2SB1274-S-RA
Q462 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q701 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q702 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q731 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q741 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q761 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q762 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q771 406 007 1901 TR JC556A
Ref. No. Part No. Description Ref. No. Part No. Description
-13-

406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q781 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q783 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q784 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q800 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q820 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q851 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q852 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q853 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q854 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q855 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q856 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q857 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q861 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q862 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
INTEGRATED CIRCUIT
IC101 409 307 2500 IC TDA8362/N3
IC270 409 352 0803 IC TDA4665/V3
IC280 409 299 4902 IC TDA8395/N1
IC301 409 261 6101 IC TDA4605
IC351 409 143 3402 IC AN78M12-LB
409 026 9507 IC L78M12-RA
IC352 409 285 5203 IC L78M08-RA
IC353 409 026 8609 IC L78M05-RA
IC451 409 192 5709 IC LA7833
IC701 410 222 0007 IC M37210M4-523SP
IC731 409 285 5401 IC 24C04A/P
409 343 6302 IC 24LC04B/P
IC851 409 161 3408 IC LA7954
IC861 409 009 2501 IC HD14052BP
409 120 7607 IC MN4052B
409 051 2801 IC TC4052BP
409 059 2209 IC UPD4052BC
CAPACITOR
C101 403 248 1905 ELECT 10U M 16V
C102 403 248 1608 ELECT 47U M 16V
C103 403 069 8305 CERAMIC 0.01U Z 50V
C104 403 248 2001 ELECT 4.7U M 25V
C105 403 017 7701 CERAMIC 22P J 50V
C106 403 017 7701 CERAMIC 22P J 50V
C107 403 017 7701 CERAMIC 22P J 50V
C113 403 069 8305 CERAMIC 0.01U Z 50V
C114 403 069 8305 CERAMIC 0.01U Z 50V
C115 403 069 8305 CERAMIC 0.01U Z 50V
C116 403 069 8305 CERAMIC 0.01U Z 50V
C120 403 248 1400 ELECT 1U M 50V
C121 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C122 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C127 403 069 0507 CERAMIC 1000P K 50V
C128 403 248 2803 ELECT 2.2U M 50V
C129 403 028 2009 CERAMIC 56P J 50V
C130 403 069 8305 CERAMIC 0.01U Z 50V
C131 403 248 1608 ELECT 47U M 16V
C132 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C133 403 024 9705 CERAMIC 4P C 50V
C135 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C136 403 194 4609 ELECT 470U M 16V
C137 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C142 403 069 8305 CERAMIC 0.01U Z 50V
C143 403 069 8305 CERAMIC 0.01U Z 50V
C145 403 019 7709 CERAMIC 27P J 50V
C151TM 403 069 8305 CERAMIC 0.01U Z 50V
C152TM 403 069 8305 CERAMIC 0.01U Z 50V
C186 403 069 8305 CERAMIC 0.01U Z 50V
C187 403 069 8305 CERAMIC 0.01U Z 50V
C189TM 403 069 8305 CERAMIC 0.01U Z 50V
C202 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C203 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C204 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C205 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C207 403 248 2803 ELECT 2.2U M 50V
C208 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C209 403 270 2901 MT-POLYEST 0.1U K 63V
Ref. No. Part No. Description Ref. No. Part No. Description
-14-

403 243 6806 MT-COMPO 0.1U J 50V
C210 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C211 403 248 2803 ELECT 2.2U M 50V
C212 403 248 2803 ELECT 2.2U M 50V
C213 403 057 0601 POLYESTER 0.01U K 50V
403 179 3801 POLYESTER 0.01U K 50V
C214 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C215 403 270 3908 MT-POLYEST 0.47U K 63V
403 264 2207 MT-COMPO 0.47U J 50V
C216 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C221 403 270 3403 MT-POLYEST 0.22U K 63V
403 263 5704 MT-COMPO 0.22U J 50V
C225 403 013 1901 CERAMIC 150P J 50V
C226 403 014 8008 CERAMIC 180P J 50V
C231 403 194 2100 NP-ELECT 4.7U M 100V
C232 403 138 1602 ELECT 1U M 100V
C271 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C272 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C275 403 248 1905 ELECT 10U M 16V
C280 403 166 8109 MT-POLYEST 0.22U J 63V
403 263 5704 MT-COMPO 0.22U J 50V
C281 403 166 6808 MT-POLYEST 0.1U J 63V
403 243 6806 MT-COMPO 0.1U J 50V
C282 403 248 1608 ELECT 47U M 16V
C283 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
C300 403 076 4000 CERAMIC 4700P K 500V
/!\C301 404 047 3602 MT-POLYEST 0.1U M 125V
404 044 0901 MT-COMPO 0.1U M 250V
/!\C302 404 047 3602 MT-POLYEST 0.1U M 125V
404 044 0901 MT-COMPO 0.1U M 250V
C303 403 076 7100 CERAMIC 1000P M 1K
C304 403 076 7100 CERAMIC 1000P M 1K
C305 403 076 7100 CERAMIC 1000P M 1K
C306 403 076 7100 CERAMIC 1000P M 1K
C307 404 058 1901 ELECT 330U M 400V
404 061 5507 ELECT 330U M 385V
C308 403 061 7504 POLYESTER 4700P J 50V
403 179 1203 POLYESTER 4700P J 50V
C309 403 270 3205 MT-POLYEST 0.15U K 63V
403 243 6905 MT-COMPO 0.15U J 50V
C310 403 167 8603 CERAMIC 220P K 2K
C311 403 266 6302 MT-POLYEST 0.033U J 1K
C312 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C313 403 183 7000 ELECT 47U M 50V
C315 403 161 8104 ELECT 1U M 50V
C316 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C317 403 167 8603 CERAMIC 220P K 2K
C318 403 071 7402 CERAMIC 2200P K 50V
/!\C331 404 060 6505 CERAMIC 2200P M 400V
404 060 6604 CERAMIC 2200P M 400V
/!\C332 404 044 2806 CERAMIC 470P K 400V
404 060 6901 CERAMIC 470P M 400V
C350 403 270 3403 MT-POLYEST 0.22U K 63V
403 263 5704 MT-COMPO 0.22U J 50V
C351 403 232 1300 CERAMIC 1500P K 2K
C361 404 055 9801 ELECT 220U M 200V
C362 403 196 0203 ELECT 2200U M 35V
C363 403 119 8002 ELECT 470U M 25V
403 121 8700 ELECT 470U M 25V
403 203 8208 ELECT 470U M 25V
C364 403 148 0404 ELECT 1000U M 25V
403 134 5307 ELECT 1000U M 25V
403 190 2708 ELECT 1000U M 25V
C365 403 196 0203 ELECT 2200U M 35V
C366 404 064 0707 ELECT 100U M 200V
C371 403 148 0305 ELECT 470U M 16V
403 160 7207 ELECT 470U M 16V
403 203 7409 ELECT 470U M 16V
C374 403 184 7207 ELECT 47U M 16V
C375 403 244 1206 ELECT 100U M 10V
C381 403 210 5504 ELECT 470U M 35V
C382 403 244 1206 ELECT 100U M 10V
C385 403 233 1507 ELECT 4.7U M 50V
C400 403 014 0200 CERAMIC 18P J 50V
C401 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C402 403 270 3809 MT-POLYEST 0.047U K 63V
403 256 1102 MT-COMPO 0.047U J 50V
C403 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C404 403 086 2300 NP-ELECT 1U M 50V
C405 403 060 0704 POLYESTER 2700P K 50V
403 179 2200 POLYESTER 2700P K 50V
C407 403 233 0302 ELECT 100U M 16V
/!\C420 404 060 7908 MT-POLYPRO 6000P J 1.5K
/!\C423 404 046 8905 MT-POLYPRO 5400P J 1.5K
C424 403 083 4307 POLYPRO 0.022U J 400V
C425 403 083 3904 POLYPRO 0.018U J 400V
C426 403 066 6106 MT-POLYEST 0.47U J 250V
C431 403 270 4004 MT-POLYEST 0.056U K 63V
403 246 2102 MT-COMPO 0.056U J 50V
C432 403 075 7101 CERAMIC 1000P K 500V
C433 403 076 3102 CERAMIC 3900P K 500V
C434 403 229 1207 ELECT 47U M 35V
/!\C441 403 082 7804 POLYPRO 0.18U J 200V
/!\C442 403 082 6906 POLYPRO 0.12U J 200V
C444 403 165 7004 CERAMIC 470P K 3K
403 264 4300 CERAMIC 470P K 3K
403 232 3205 CERAMIC 470P K 3K
403 185 9705 CERAMIC 470P K 3K
C445 403 076 1405 CERAMIC 2700P K 500V
C451 403 148 2002 ELECT 470U M 35V
403 161 3109 ELECT 470U M 35V
403 204 2809 ELECT 470U M 35V
C452 403 217 1103 ELECT 220U M 35V
C453 403 023 9706 CERAMIC 39P J 50V
C454 403 069 8305 CERAMIC 0.01U Z 50V
C455 403 075 7101 CERAMIC 1000P K 500V
C456 403 233 0807 ELECT 10U M 50V
C458 403 163 8607 ELECT 10U M 50V
C459 403 065 9801 MT-POLYEST 0.22U K 100V
403 188 0907 MT-POLYEST 0.22U K 100V
C461 403 233 0500 ELECT 3300U M 25V
C462 403 248 1400 ELECT 1U M 50V
C463 403 188 1607 MT-POLYEST 0.1U J 100V
403 102 8408 MT-POLYEST 0.1U K 100V
C464 403 270 3700 MT-POLYEST 0.39U K 63V
403 264 2108 MT-COMPO 0.39U J 50V
C465 403 066 0104 MT-POLYEST 2.2U K 100V
403 158 9107 MT-POLYEST 2.2U K 100V
C466 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C467 403 241 3807 ELECT 220U M 10V
C468 403 258 3500 ELECT 22U M 25V
C469 403 233 0807 ELECT 10U M 50V
C470 403 069 8305 CERAMIC 0.01U Z 50V
C485 403 076 1405 CERAMIC 2700P K 500V
C486 403 159 7409 MT-POLYEST 0.1U K 250V
C701 403 138 5600 POLYESTER 5600P J 50V
403 179 0800 POLYESTER 5600P J 50V
C702 403 068 9006 CERAMIC 100P K 50V
C703 403 248 2001 ELECT 4.7U M 25V
C704 403 068 9006 CERAMIC 100P K 50V
C705 403 248 1400 ELECT 1U M 50V
C706 403 068 9006 CERAMIC 100P K 50V
C707 403 248 1400 ELECT 1U M 50V
Ref. No. Part No. Description Ref. No. Part No. Description
-15-

C708 403 068 9006 CERAMIC 100P K 50V
C709 403 248 2001 ELECT 4.7U M 25V
C721 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C722 403 248 1608 ELECT 47U M 16V
C723 403 026 0700 CERAMIC 47P J 50V
C724 403 026 0700 CERAMIC 47P J 50V
C730 403 069 8305 CERAMIC 0.01U Z 50V
C731 403 248 1905 ELECT 10U M 16V
C732 403 270 2901 MT-POLYEST 0.1U K 63V
403 243 6806 MT-COMPO 0.1U J 50V
C741 403 026 0809 CERAMIC 47P J 50V
C742 403 069 0507 CERAMIC 1000P K 50V
C781 403 068 9006 CERAMIC 100P K 50V
C783 403 068 9006 CERAMIC 100P K 50V
C784 403 068 9006 CERAMIC 100P K 50V
C801 403 069 0507 CERAMIC 1000P K 50V
C802 403 248 1905 ELECT 10U M 16V
C804 403 068 9006 CERAMIC 100P K 50V
C805 403 248 1905 ELECT 10U M 16V
C807 403 069 0507 CERAMIC 1000P K 50V
C808 403 248 1905 ELECT 10U M 16V
C810 403 068 9006 CERAMIC 100P K 50V
C811 403 248 1905 ELECT 10U M 16V
C812 403 248 1905 ELECT 10U M 16V
C821 403 069 0507 CERAMIC 1000P K 50V
C822 403 248 1905 ELECT 10U M 16V
C824 403 068 9006 CERAMIC 100P K 50V
C825 403 248 1905 ELECT 10U M 16V
C827 403 069 0507 CERAMIC 1000P K 50V
C828 403 248 1905 ELECT 10U M 16V
C830 403 068 9006 CERAMIC 100P K 50V
C831 403 248 1905 ELECT 10U M 16V
C832 403 248 1905 ELECT 10U M 16V
C833 403 068 9006 CERAMIC 100P K 50V
C835 403 248 1905 ELECT 10U M 16V
C836 403 068 9006 CERAMIC 100P K 50V
C838 403 248 1905 ELECT 10U M 16V
C839 403 248 1905 ELECT 10U M 16V
C841TM 403 069 0507 CERAMIC 1000P K 50V
C851 403 248 1905 ELECT 10U M 16V
C852 403 270 3908 MT-POLYEST 0.47U K 63V
403 264 2207 MT-COMPO 0.47U J 50V
C861 403 248 1905 ELECT 10U M 16V
RESISTOR
R101 401 026 9303 CARBON 47 JA 1/6W
R103 401 024 6700 CARBON 100 JA 1/6W
R104 401 027 2600 CARBON 5.6K JA 1/6W
R105 401 024 7004 CARBON 1K JA 1/6W
R106 401 025 7409 CARBON 220 JA 1/6W
R107 401 026 0409 CARBON 27 JA 1/6W
R111 401 025 7409 CARBON 220 JA 1/6W
R112 401 025 7409 CARBON 220 JA 1/6W
R121 401 027 0309 CARBON 47K JA 1/6W
R122 401 025 8703 CARBON 220K JA 1/6W
R123 401 025 8703 CARBON 220K JA 1/6W
R124 401 027 5502 CARBON 6.8K JA 1/6W
R126 401 027 2600 CARBON 5.6K JA 1/6W
R127 401 024 6700 CARBON 100 JA 1/6W
R130 401 024 9721 CARBON 12K JA 1/6W
R131 401 027 5502 CARBON 6.8K JA 1/6W
R132 401 027 0309 CARBON 47K JA 1/6W
R133 401 025 3807 CARBON 180 JA 1/6W
R134 401 024 7004 CARBON 1K JA 1/6W
R136 401 027 0309 CARBON 47K JA 1/6W
R138 401 025 3827 CARBON 180 JA 1/6W
R141 401 025 8208 CARBON 22K JA 1/6W
R142 401 024 7727 CARBON 100K JA 1/6W
R143 401 027 2620 CARBON 5K6 JA 1/6W
R144 401 027 2620 CARBON 5K6 JA 1/6W
R145 401 024 7024 CARBON 1K JA 1/6W
R151 401 022 1905 CARBON 680 JA 1/4W
R153 401 024 7004 CARBON 1K JA 1/6W
R154 401 024 7004 CARBON 1K JA 1/6W
R155 401 024 7004 CARBON 1K JA 1/6W
R156 401 024 7024 CARBON 1K JA 1/6W
R157 401 024 7430 CARBON 10K JA 1/6W
R159 401 026 1624 CARBON 270K JA 1/6W
R185 401 007 7601 CARBON 150 JA 1/2W
R186 401 007 7601 CARBON 150 JA 1/2W
R202 401 024 7707 CARBON 100K JA 1/6W
R203 401 024 6700 CARBON 100 JA 1/6W
R204 401 024 6700 CARBON 100 JA 1/6W
R205 401 024 6700 CARBON 100 JA 1/6W
R206 645 003 8518 PEAKING COIL
R207 645 003 8518 PEAKING COIL
R208 645 003 8518 PEAKING COIL
R209 401 027 5502 CARBON 6.8K JA 1/6W
R210 401 025 1902 CARBON 15K JA 1/6W
R212 401 025 4200 CARBON 1.8K JA 1/6W
R213 401 024 7400 CARBON 10K JA 1/6W
R215 401 025 4200 CARBON 1.8K JA 1/6W
R216 401 024 7400 CARBON 10K JA 1/6W
R217 401 025 1308 CARBON 150 JA 1/6W
R218 401 025 1308 CARBON 150 JA 1/6W
R219 401 019 1000 CARBON 390 JA 1/4W
R221 401 024 6700 CARBON 100 JA 1/6W
R231 401 014 9506 CARBON 160K JA 1/4W
R232 401 024 7004 CARBON 1K JA 1/6W
R233 401 000 7509 SOLID 1.5K KA 1/2W
R234 401 024 7400 CARBON 10K JA 1/6W
R235 401 026 7408 CARBON 39K JA 1/6W
R236 401 026 7804 CARBON 3.9M JA 1/6W
R241 401 025 8208 CARBON 22K JA 1/6W
R275 401 025 7409 CARBON 220 JA 1/6W
R301 401 010 4802 CARBON 470K JA 1/2W
R302 401 016 5803 CARBON 220K JA 1/4W
R303 401 016 5803 CARBON 220K JA 1/4W
R304 401 018 5801 CARBON 330K JA 1/4W
R305 401 017 3808 CARBON 270K JA 1/4W
R306 401 020 3901 CARBON 470K JA 1/4W
R307 401 017 3808 CARBON 270K JA 1/4W
R308 401 026 9907 CARBON 4.7K JA 1/6W
R309 401 016 2604 CARBON 220 JA 1/4W
R310 401 011 6102 CARBON 8.2K JA 1/2W
R311 401 011 6102 CARBON 8.2K JA 1/2W
R312 401 011 6102 CARBON 8.2K JA 1/2W
R313 401 011 6102 CARBON 8.2K JA 1/2W
R314 401 022 9406 CARBON 8.2 JA 1/4W
R315 401 020 2003 CARBON 4.7K JA 1/4W
R316 401 008 8607 CARBON 220K JA 1/2W
R317 401 159 1304 OXIDE-MT 100K JA 2W
R318 401 008 8607 CARBON 220K JA 1/2W
R319 401 159 1304 OXIDE-MT 100K JA 2W
R321 401 027 0309 CARBON 47K JA 1/6W
R324 401 024 7400 CARBON 10K JA 1/6W
R325 401 012 4503 CARBON 100 JA 1/4W
R326 401 025 7805 CARBON 2.2K JA 1/6W
R327 401 027 2600 CARBON 5.6K JA 1/6W
/!\R331 402 000 8305 SOLID 5.6M KA 1/2W
/!\R332 402 000 8305 SOLID 5.6M KA 1/2W
R352 401 014 6109 CARBON 150K JA 1/4W
R353 401 027 4307 CARBON 6.2K JA 1/6W
R354 401 015 4708 CARBON 180K JA 1/4W
R355 401 011 2708 CARBON 68K JA 1/2W
R356 401 025 8208 CARBON 22K JA 1/6W
R357 401 101 5800 OXIDE-MT 0.68 JA 2W
R358 401 101 5800 OXIDE-MT 0.68 JA 2W
R361 401 065 9609 OXIDE-MT 18 JA 2W
R366 401 059 9608 OXIDE-MT 2.2 JA 1W
R367 401 060 0403 OXIDE-MT 2.7 JA 1W
R381 401 026 4308 CARBON 3.3K JA 1/6W
R383 401 026 9600 CARBON 470 JA 1/6W
Ref. No. Part No. Description Ref. No. Part No. Description
-16-

R385 401 007 2309 CARBON 100K JA 1/2W
R400 401 027 0309 CARBON 47K JA 1/6W
R401 401 024 6700 CARBON 100 JA 1/6W
R402 401 027 3201 CARBON 560K JA 1/6W
R403 401 024 6700 CARBON 100 JA 1/6W
R404 401 025 8208 CARBON 22K JA 1/6W
R405 401 024 6700 CARBON 100 JA 1/6W
R406 401 026 7606 CARBON 390K JA 1/6W
R407 401 025 8208 CARBON 22K JA 1/6W
R408 401 024 6700 CARBON 100 JA 1/6W
R409 401 026 9907 CARBON 4.7K JA 1/6W
R410 401 025 8208 CARBON 22K JA 1/6W
R411 401 025 7805 CARBON 2.2K JA 1/6W
R412 401 025 0004 CARBON 120K JA 1/6W
R413 401 024 7400 CARBON 10K JA 1/6W
R422 402 068 0204 WIRE WOUND 10 JA 5W
R432 401 024 7004 CARBON 1K JA 1/6W
R433 401 007 1104 CARBON 1K JA 1/2W
R434 401 067 9201 OXIDE-MT 390 JA 2W
R436 401 012 7009 CARBON 10K JA 1/4W
/!\R441 402 038 0708 FUSIBLE RES 1K J- 1W
R450 401 027 3003 CARBON 56K JA 1/6W
/!\R451 402 051 8705 FUSIBLE RES 4.7 J- 1/2W
R452 401 026 7002 CARBON 3.9K JA 1/6W
R453 401 025 7805 CARBON 2.2K JA 1/6W
R454 401 027 8107 CARBON 82 JA 1/6W
R455 401 025 1605 CARBON 1.5K JA 1/6W
R456 401 026 9907 CARBON 4.7K JA 1/6W
R457 401 026 1000 CARBON 2.7K JA 1/6W
R458 401 059 2807 OXIDE-MT 150 JA 1W
R459 401 057 7507 OXIDE-MT 0.82 JA 1W
R460 401 062 1200 OXIDE-MT 470 JA 1W
R461 401 058 3706 OXIDE-MT 1K JA 1W
R462 401 025 1605 CARBON 1.5K JA 1/6W
R463 401 025 1605 CARBON 1.5K JA 1/6W
R464 401 063 6402 OXIDE-MT 820 JA 1W
R467 401 025 8703 CARBON 220K JA 1/6W
R468 401 025 4200 CARBON 1.8K JA 1/6W
R469 401 027 5908 CARBON 68K JA 1/6W
R471 401 025 1605 CARBON 1.5K JA 1/6W
R472 401 027 0309 CARBON 47K JA 1/6W
R473 401 027 5205 CARBON 680 JA 1/6W
R474 401 009 0907 CARBON 270 JA 1/2W
R475 401 009 5803 CARBON 330 JA 1/2W
R476 401 016 3809 CARBON 2.2K JA 1/4W
R477 401 027 2600 CARBON 5.6K JA 1/6W
R479 401 025 4200 CARBON 1.8K JA 1/6W
R480 401 027 0309 CARBON 47K JA 1/6W
R481 401 064 5305 OXIDE-MT 1.5 JA 2W
R485 401 025 4903 CARBON 180K JA 1/6W
R486 401 027 2600 CARBON 5.6K JA 1/6W
R701 401 026 1307 CARBON 27K JA 1/6W
R702 401 024 7400 CARBON 10K JA 1/6W
R703 401 027 0309 CARBON 47K JA 1/6W
R704 401 026 9907 CARBON 4.7K JA 1/6W
R705 401 026 9907 CARBON 4.7K JA 1/6W
R706 401 026 4605 CARBON 33K JA 1/6W
R707 401 025 7805 CARBON 2.2K JA 1/6W
R708 401 024 7400 CARBON 10K JA 1/6W
R709 401 025 8208 CARBON 22K JA 1/6W
R710 401 027 0309 CARBON 47K JA 1/6W
R711 401 025 7805 CARBON 2.2K JA 1/6W
R712 401 026 7002 CARBON 3.9K JA 1/6W
R713 401 026 4605 CARBON 33K JA 1/6W
R715 401 026 9600 CARBON 470 JA 1/6W
R716 401 026 9907 CARBON 4.7K JA 1/6W
R717 401 026 7002 CARBON 3.9K JA 1/6W
R719 401 025 7805 CARBON 2.2K JA 1/6W
R720 401 026 4308 CARBON 3.3K JA 1/6W
R721 401 026 4308 CARBON 3.3K JA 1/6W
R723 401 024 7400 CARBON 10K JA 1/6W
R724 401 025 8208 CARBON 22K JA 1/6W
R725 401 025 8208 CARBON 22K JA 1/6W
R726 401 024 7400 CARBON 10K JA 1/6W
R727 401 025 1625 CARBON 1K5 JA 1/6W
R728 401 025 8208 CARBON 22K JA 1/6W
R731 401 025 1308 CARBON 150 JA 1/6W
R732 401 026 7002 CARBON 3.9K JA 1/6W
R733 401 024 6700 CARBON 100 JA 1/6W
R734 401 025 1308 CARBON 150 JA 1/6W
R735 401 026 7002 CARBON 3.9K JA 1/6W
R736 401 024 6700 CARBON 100 JA 1/6W
R737 401 026 9907 CARBON 4.7K JA 1/6W
R738 401 027 8602 CARBON 8.2K JA 1/6W
R739 401 025 1605 CARBON 1.5K JA 1/6W
R740 401 024 7400 CARBON 10K JA 1/6W
R741 401 024 9305 CARBON 1.2K JA 1/6W
R742 401 027 2600 CARBON 5.6K JA 1/6W
R743 401 024 7400 CARBON 10K JA 1/6W
R744 401 024 7400 CARBON 10K JA 1/6W
R745 401 024 7707 CARBON 100K JA 1/6W
R746 401 026 4308 CARBON 3.3K JA 1/6W
R747 401 026 9907 CARBON 4.7K JA 1/6W
R748 401 025 8208 CARBON 22K JA 1/6W
R749 401 026 9600 CARBON 470 JA 1/6W
R751 401 027 0309 CARBON 47K JA 1/6W
R752 401 025 1902 CARBON 15K JA 1/6W
R753 401 027 5502 CARBON 6.8K JA 1/6W
R754 401 026 9907 CARBON 4.7K JA 1/6W
R755 401 026 1000 CARBON 2.7K JA 1/6W
R756 401 025 4200 CARBON 1.8K JA 1/6W
R757 401 025 1605 CARBON 1.5K JA 1/6W
R758 401 025 1308 CARBON 150 JA 1/6W
R759 401 024 7400 CARBON 10K JA 1/6W
R761 401 025 8208 CARBON 22K JA 1/6W
R762 401 025 8208 CARBON 22K JA 1/6W
R763 401 024 7024 CARBON 1K JA 1/6W
R764 401 025 8228 CARBON 22K JA 1/6W
R765 401 024 7024 CARBON 1K JA 1/6W
R766 401 025 8208 CARBON 22K JA 1/6W
R767 401 026 4308 CARBON 3.3K JA 1/6W
R771 401 025 1902 CARBON 15K JA 1/6W
R772 401 027 2303 CARBON 560 JA 1/6W
R773 401 026 3905 CARBON 330 JA 1/6W
R774 401 025 7805 CARBON 2.2K JA 1/6W
R781 401 026 3905 CARBON 330 JA 1/6W
R783 401 026 9907 CARBON 4.7K JA 1/6W
R784 401 026 4308 CARBON 3.3K JA 1/6W
R791 401 025 8208 CARBON 22K JA 1/6W
R800 401 027 2303 CARBON 560 JA 1/6W
R802 401 025 7805 CARBON 2.2K JA 1/6W
R804 401 027 2303 CARBON 560 JA 1/6W
R806 401 025 7805 CARBON 2.2K JA 1/6W
R808 401 027 6608 CARBON 75 JA 1/6W
R809 401 025 8208 CARBON 22K JA 1/6W
R810 401 026 1000 CARBON 2.7K JA 1/6W
R811 401 027 6608 CARBON 75 JA 1/6W
R812 401 027 6608 CARBON 75 JA 1/6W
R813 401 027 6608 CARBON 75 JA 1/6W
R814 401 027 6608 CARBON 75 JA 1/6W
R815 401 027 6608 CARBON 75 JA 1/6W
R816 401 024 6700 CARBON 100 JA 1/6W
R817 401 027 8305 CARBON 820 JA 1/6W
R818 401 027 8305 CARBON 820 JA 1/6W
R820 401 027 2303 CARBON 560 JA 1/6W
R822 401 025 7805 CARBON 2.2K JA 1/6W
R824 401 027 2303 CARBON 560 JA 1/6W
R826 401 025 7805 CARBON 2.2K JA 1/6W
R828 401 025 8208 CARBON 22K JA 1/6W
R829 401 026 1000 CARBON 2.7K JA 1/6W
R830 401 027 6608 CARBON 75 JA 1/6W
R831 401 027 6608 CARBON 75 JA 1/6W
R832 401 025 7805 CARBON 2.2K JA 1/6W
R833 401 024 7707 CARBON 100K JA 1/6W
Ref. No. Part No. Description Ref. No. Part No. Description
-17-

R834 401 025 7805 CARBON 2.2K JA 1/6W
R835 401 024 7707 CARBON 100K JA 1/6W
R836 401 027 6608 CARBON 75 JA 1/6W
R837 401 024 6700 CARBON 100 JA 1/6W
R838 401 024 6700 CARBON 100 JA 1/6W
R850 401 025 1308 CARBON 150 JA 1/6W
R851 401 026 9600 CARBON 470 JA 1/6W
R852 401 025 7409 CARBON 220 JA 1/6W
R853 401 025 8228 CARBON 22K JA 1/6W
R854 401 027 8305 CARBON 820 JA 1/6W
R855 401 024 7400 CARBON 10K JA 1/6W
R856 401 025 4200 CARBON 1.8K JA 1/6W
R857 401 026 9600 CARBON 470 JA 1/6W
R858 401 024 7400 CARBON 10K JA 1/6W
R859 401 026 9907 CARBON 4.7K JA 1/6W
R860 401 026 6609 CARBON 390 JA 1/6W
R861 401 024 7400 CARBON 10K JA 1/6W
R862 401 026 9600 CARBON 470 JA 1/6W
R863 401 024 9305 CARBON 1.2K JA 1/6W
R864 401 026 1000 CARBON 2.7K JA 1/6W
R865 401 027 5502 CARBON 6.8K JA 1/6W
R866 401 026 9600 CARBON 470 JA 1/6W
R867 401 025 7805 CARBON 2.2K JA 1/6W
R868 401 026 9600 CARBON 470 JA 1/6W
R869 401 025 7805 CARBON 2.2K JA 1/6W
R870 401 027 9005 CARBON 82K JA 1/6W
R871 401 027 9005 CARBON 82K JA 1/6W
R872 401 027 9005 CARBON 82K JA 1/6W
R873 401 027 9005 CARBON 82K JA 1/6W
R874 401 027 9005 CARBON 82K JA 1/6W
R875 401 027 9005 CARBON 82K JA 1/6W
VARIABLE RESISTOR
VR120 645 006 5422 VR,SEMI,10K N
610 239 7567 VR B-10K
VR351 645 006 5514 VR,SEMI,2.2K N
610 239 7581 VR B-2K
VR401 645 006 5422 VR,SEMI,10K N
610 239 7567 VR B-10K
VR451 645 006 5408 VR,SEMI,100 N
610 232 7908 VR,SEMI,100 N
VR462 645 006 5606 VR,SEMI,4.7K N
TRANSFORMER
T121 610 037 4522 S COIL
/!\T311 645 004 9750 TRANS,POWER,PULSE
/!\T381 610 033 3758 POWER TRANS
610 240 4722 POWER TRANS
T431 610 000 1077 DRIVE TRANS
/!\T471 645 003 3094 TRANS,FLYBACK
COIL
L103 645 008 2863 INDUCTOR,4.7U K
L125 645 008 2894 INDUCTOR,5.6U K
L126 645 003 9782 INDUCTOR,22U K
L171 645 008 5635 INDUCTOR,12U K
L172 645 008 5635 INDUCTOR,12U K
L221 645 008 2863 INDUCTOR,4.7U K
L222 645 008 2863 INDUCTOR,4.7U K
L280 645 001 4567 INDUCTOR,10U K
/!\L301 610 221 6912 LINE FILTER
L361 610 032 1083 INDUCTOR,82U K
L431 645 008 5628 INDUCTOR,1U M
L441 610 000 1046 LINEARITY COIL
L442 610 219 0342 COIL
L452 610 032 1243 INDUCTOR,150U K
610 032 1250 INDUCTOR,150U
L461 610 031 1367 INDUCTOR 202J
L462 645 000 2229 INDUCTOR,430UH
L701 645 008 2894 INDUCTOR,5.6U K
L702 645 003 9782 INDUCTOR,22U K
L731 645 001 4697 INDUCTOR,1.5U M
L824 645 001 4567 INDUCTOR,10U K
L825 645 001 4567 INDUCTOR,10U K
DIODE
D132 408 007 8607 DIODE 1N4148
D135 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D141 407 088 2623 DIODE 1SS265
D201 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D202 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D203 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D210 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D231 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D232 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D233 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D275 407 048 1202 ZENER DIODE EQA02-05E
407 053 6407 ZENER DIODE MTZ5.1C
407 056 8200 ZENER DIODE RD5.1EB3
407 163 8209 ZENER DIODE UZ-5.1BCC
D303 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D304 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D305 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D306 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D311 407 146 8103 DIODE EG01C
D312 407 007 7306 DIODE EU01Z
D313 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
/!\D331 407 105 8700 PHOTO COUPLE PC113B
408 009 8407 PHOTO COUPLE CNY17F-3OPT6
/!\D332 407 105 8700 PHOTO COUPLE PC113B
408 009 8407 PHOTO COUPLE CNY17F-3OPT6
D351 407 156 2207 DIODE RU4B LF-L1
D352 407 106 2806 DIODE RU3YX
D353 407 007 7603 DIODE EU2
408 007 2506 DIODE BYW32
D354 407 106 2806 DIODE RU3YX
D355 407 166 2303 DIODE ERC91-02L
D361 407 048 2407 ZENER DIODE EQA02-06E
407 048 2605 ZENER DIODE EQA02-06F
407 053 7206 ZENER DIODE MTZ6.2C
407 053 7503 ZENER DIODE MTZ6.8A
407 057 2801 ZENER DIODE RD6.2EB3
407 057 4003 ZENER DIODE RD6.8EB1
407 151 8600 ZENER DIODE UZ-6.2BCC
407 164 9908 ZENER DIODE UZ-6.8BCA
D381 407 005 7308 DIODE EM01Z
D382 407 048 2001 ZENER DIODE EQA02-06B
407 053 6803 ZENER DIODE MTZ5.6C
407 057 0104 ZENER DIODE RD5.6EB3
407 151 8501 ZENER DIODE UZ-5.6BCC
D383 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D384 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D385 407 147 9208 ZENER DIODE BZX79C33
407 049 0907 ZENER DIODE EQA02-33A
407 100 0204 ZENER DIODE MTZJ36A
407 056 2307 ZENER DIODE RD36EB1
407 163 9503 ZENER DIODE UZ-36BCA
D391 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
Ref. No. Part No. Description Ref. No. Part No. Description
-18-

D393 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D394 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D395 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D401 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D431 407 048 4906 ZENER DIODE EQA02-09A
407 048 5101 ZENER DIODE EQA02-09B
407 053 8708 ZENER DIODE MTZ9.1A
407 053 8807 ZENER DIODE MTZ9.1B
407 057 9602 ZENER DIODE RD9.1EB1
407 057 9701 ZENER DIODE RD9.1EB2
407 163 9909 ZENER DIODE UZ-9.1BCA
407 162 2703 ZENER DIODE UZ-9.1BCB
D438 407 095 8001 DIODE ERD07-15L
D439 407 006 4108 DIODE ERB44-04
D451 407 005 7308 DIODE EM01Z
408 009 9008 DIODE BYD33D
D452 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D464 407 048 1509 ZENER DIODE EQA02-05F
407 053 6605 ZENER DIODE MTZ5.6A
407 056 9801 ZENER DIODE RD5.6EB1
407 163 9602 ZENER DIODE UZ-5.6BCA
D465 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D466 407 048 9000 ZENER DIODE EQA02-18A
407 077 9705 ZENER DIODE MTZ20A
407 055 1707 ZENER DIODE RD20EB1
407 164 7805 ZENER DIODE UZ-20BCA
D467 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D468 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D469 407 007 7405 DIODE EU1
D471 407 118 2207 ZENER DIODE 1Z75
D485 407 007 7405 DIODE EU1
D486 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D731 407 055 7907 ZENER DIODE RD3.6EL
D741 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D771 407 120 9706 LED LN28RPL
D771Z 610 269 4697 HOLDER LED A-E7GC
D775 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D781 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D800 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D801 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D802 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D803 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D804 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D805 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D806 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D807 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D808 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D809 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D810 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D820 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D821 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D822 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D823 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D824 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D825 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D826 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D827 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D828 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D851 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D852 407 048 8300 ZENER DIODE EQA02-15A
407 063 8002 ZENER DIODE MTZ16A
D853 407 048 8300 ZENER DIODE EQA02-15A
407 063 8002 ZENER DIODE MTZ16A
MISCELLANEOUS
/!\F301 423 022 2102 FUSE 250V 4A
A101 645 009 0523 TUNER,U/V
A701 610 224 5806 RC PREAMP 409-1L
K171 645 005 5706 PHONE JACK HTJ-035-10AB
K801 645 005 5867 SOCKET,RGB 21P
610 234 3779 SOCKET 21P
K801Z 610 081 9887 SOCKET MTG BRKT-D8PC
K802 645 005 5867 SOCKET,RGB 21P
610 234 3779 SOCKET 21P
K802Z 610 081 9887 SOCKET MTG BRKT-D8PC
K803 610 234 7142 JACK,RCA-3
/!\NTC301 408 017 7508 THERMISTOR SECI TSD 1520
408 017 7607 TH Q-63023-K-1479-N
408 017 7706 TH B-57129-B-3479-M
/!\PS301 408 013 3801 TH PTH451C262BF140M270
SW220 610 011 2728 SWITCH,LEVER 1P-3T
/!\SW301 645 003 6811 SWITCH,PUSH POWER 2P-2T
SW451 610 011 2728 SWITCH,LEVER 1P-3T
SW701 610 011 4432 SWITCH,PUSH
SW702 610 011 4432 SWITCH,PUSH
SW703 610 011 4432 SWITCH,PUSH
SW704 610 011 4432 SWITCH,PUSH
SW705 610 011 4456 SWITCH,PUSH
VC141 X101 421 002 8106 SAW F TSF5330
X124 610 015 2854 TRAP,CERAMIC 5.5MHZ
X126 610 015 3011 TRAP,CERAMIC 6.5MHZ
X400 610 249 5577 CRYSTAL OSCILLATOR
X701 645 000 6692 OSC,CERAMIC 8.00MHZ
645 002 1039 OSC,CERAMIC 8.00MHZ
ASSY,PWB,CRT E7MZV 1AA0B10H003A0
TRANSISTOR
Q601 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q611 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q621 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
Ref. No. Part No. Description Ref. No. Part No. Description
-19-

405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q640 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q651 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
CAPACITOR
C601 403 073 6403 CERAMIC 470P K 50V
C611 403 073 6403 CERAMIC 470P K 50V
C621 403 073 6403 CERAMIC 470P K 50V
C631 403 077 2708 CERAMIC 1000P P 2K
C635 403 055 8401 ELECT 22U M 250V
403 260 0405 ELECT 22U M 250V
C651 403 201 5001 ELECT 330U M 16V
C661 403 068 9006 CERAMIC 100P K 50V
RESISTOR
R601 401 018 2800 CARBON 330 JA 1/4W
R602 401 019 1901 CARBON 3.9K JA 1/4W
R603 401 012 5708 CARBON 1K JA 1/4W
R604 401 065 4604 OXIDE-MT 12K JA 2W
R605 401 002 0102 SOLID 3.3K KA 1/2W
R611 401 018 2800 CARBON 330 JA 1/4W
R612 401 019 1901 CARBON 3.9K JA 1/4W
R613 401 016 3809 CARBON 2.2K JA 1/4W
R614 401 065 4604 OXIDE-MT 12K JA 2W
R615 401 002 0102 SOLID 3.3K KA 1/2W
R621 401 018 2800 CARBON 330 JA 1/4W
R622 401 019 1901 CARBON 3.9K JA 1/4W
R623 401 015 2704 CARBON 1.8K JA 1/4W
R624 401 065 4604 OXIDE-MT 12K JA 2W
R625 401 002 0102 SOLID 3.3K KA 1/2W
R627 401 020 0801 CARBON 470 JA 1/4W
R631 401 001 7607 SOLID 270K KA 1/2W
R641 401 020 2003 CARBON 4.7K JA 1/4W
R642 401 018 3807 CARBON 3.3K JA 1/4W
R644 401 017 0807 CARBON 270 JA 1/4W
R652 401 012 7009 CARBON 10K JA 1/4W
R653 401 012 7009 CARBON 10K JA 1/4W
R654 401 019 1000 CARBON 390 JA 1/4W
VARIABLE RESISTOR
VR601 645 003 4121 VR,SEMI,4.7K S
VR602 645 002 1916 VR,SEMI,1K S
VR611 645 003 4121 VR,SEMI,4.7K S
VR612 645 002 1916 VR,SEMI,1K S
VR621 645 003 4121 VR,SEMI,4.7K S
DIODE
D601 407 013 1206 DIODE 1S1555
D611 407 013 1206 DIODE 1S1555
D621 407 013 1206 DIODE 1S1555
D651 407 013 1206 DIODE 1S1555
MISCELLANEOUS
K6M 645 008 4058 TERMINAL,PLUG
K6P 645 004 2911 PLUG,5P
K6Q 645 004 2898 PLUG,3P
K601 610 233 7990 CRT SOCKET
ASSY,PWB,SIF F3SRV 1AA0B10H004HA
TRANSISTOR
Q001 405 015 9711 TR 2SC2814-F4-TA
Q002 405 109 4407 TR BC848-B
Q003 405 109 4407 TR BC848-B
Q004 405 109 4407 TR BC848-B
Q005 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q006 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q011 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q012 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q013 405 109 4407 TR BC848-B
INTEGRATED CIRCUIT
IC001 409 330 9903 IC TDA3866/V1
IC002 409 310 8407 IC LA7577N
CAPACITOR
C001 403 069 9500 CERAMIC 0.01U Z 50V
C002 403 069 9500 CERAMIC 0.01U Z 50V
C003 403 069 9500 CERAMIC 0.01U Z 50V
C004 403 069 9500 CERAMIC 0.01U Z 50V
C005 403 069 9500 CERAMIC 0.01U Z 50V
C006 403 069 9500 CERAMIC 0.01U Z 50V
C007 403 248 2001 ELECT 4.7U M 25V
C008 403 248 2803 ELECT 2.2U M 50V
C009 403 013 3004 CERAMIC 150P J 50V
C011 403 011 4914 CERAMIC 120P J 50V
C012 403 022 8215 CERAMIC 33P J 50V
C013 403 069 9500 CERAMIC 0.01U Z 50V
C014 403 069 9500 CERAMIC 0.01U Z 50V
C016 403 018 0513 CERAMIC 22P J 50V
C017 403 248 2803 ELECT 2.2U M 50V
C018 403 248 2803 ELECT 2.2U M 50V
C019 403 248 2803 ELECT 2.2U M 50V
C020 403 069 9500 CERAMIC 0.01U Z 50V
C021 403 258 3203 ELECT 22U M 16V
C022 403 248 1905 ELECT 10U M 16V
C023 403 069 9500 CERAMIC 0.01U Z 50V
C024 403 069 9500 CERAMIC 0.01U Z 50V
C025 403 023 4414 CERAMIC 330P J 50V
C026 403 069 9500 CERAMIC 0.01U Z 50V
C027 403 069 9500 CERAMIC 0.01U Z 50V
C028 403 051 0607 ELECT 4.7U M 50V
C034 403 069 9500 CERAMIC 0.01U Z 50V
C035 403 069 9500 CERAMIC 0.01U Z 50V
C036 403 069 1712 CERAMIC 1000P K 50V
C037 403 074 6610 CERAMIC 560P K 50V
C038 403 048 6308 ELECT 0.47U M 50V
C039 403 179 0117 POLYESTER 0.068U K 50V
C041 403 051 0607 ELECT 4.7U M 50V
RESISTOR
R001 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R002 401 037 5212 MT-GLAZE 100 JA 1/10W
R006 401 038 3514 MT-GLAZE 330 JA 1/10W
R007 401 038 3514 MT-GLAZE 330 JA 1/10W
R008 401 038 9219 MT-GLAZE 6.8K JA 1/10W
R009 401 038 0711 MT-GLAZE 2.2K JA 1/10W
R011 401 037 5618 MT-GLAZE 10K JA 1/10W
R012 401 037 5618 MT-GLAZE 10K JA 1/10W
R013 401 037 5618 MT-GLAZE 10K JA 1/10W
R014 401 037 5618 MT-GLAZE 10K JA 1/10W
R015 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R016 401 038 3603 MT-GLAZE 3.3K JA 1/10W
Ref. No. Part No. Description Ref. No. Part No. Description
-20-
